Optical Shutters

The laser shutter is conduction mounted for air conditioning, much like a power semiconductor or laser diode. Visit : https://www.nmlaser.com/

davidanderson11513
Download Presentation

Optical Shutters

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

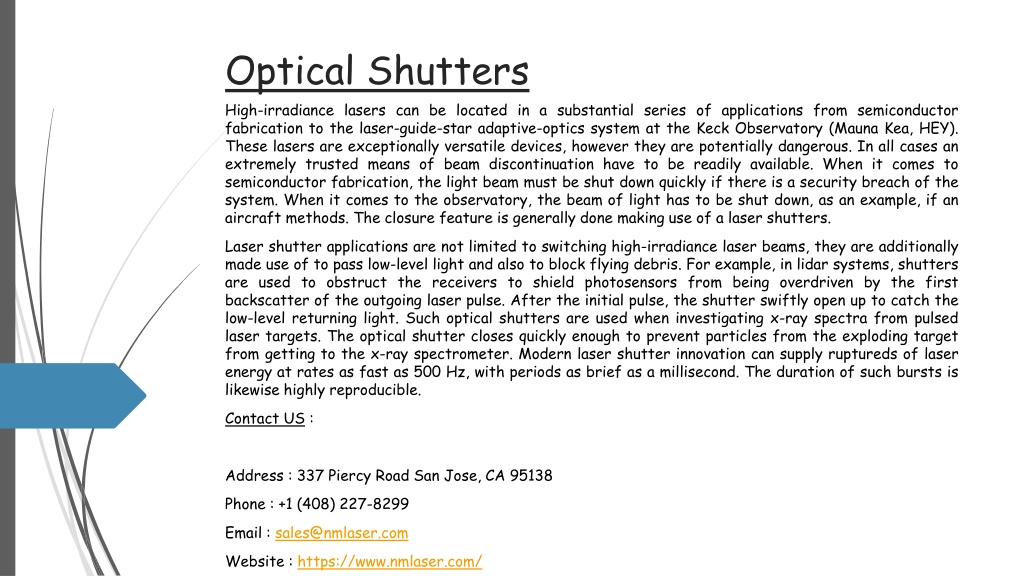

  1. Optical Shutters High-irradiance lasers can be located in a substantial series of applications from semiconductor fabrication to the laser-guide-star adaptive-optics system at the Keck Observatory (Mauna Kea, HEY). These lasers are exceptionally versatile devices, however they are potentially dangerous. In all cases an extremely trusted means of beam discontinuation have to be readily available. When it comes to semiconductor fabrication, the light beam must be shut down quickly if there is a security breach of the system. When it comes to the observatory, the beam of light has to be shut down, as an example, if an aircraft methods. The closure feature is generally done making use of a laser shutters. Laser shutter applications are not limited to switching high-irradiance laser beams, they are additionally made use of to pass low-level light and also to block flying debris. For example, in lidar systems, shutters are used to obstruct the receivers to shield photosensors from being overdriven by the first backscatter of the outgoing laser pulse. After the initial pulse, the shutter swiftly open up to catch the low-level returning light. Such optical shutters are used when investigating x-ray spectra from pulsed laser targets. The optical shutter closes quickly enough to prevent particles from the exploding target from getting to the x-ray spectrometer. Modern laser shutter innovation can supply ruptureds of laser energy at rates as fast as 500 Hz, with periods as brief as a millisecond. The duration of such bursts is likewise highly reproducible. Contact US : Address : 337 Piercy Road San Jose, CA 95138 Phone : +1 (408) 227-8299 Email : sales@nmlaser.com Website : https://www.nmlaser.com/

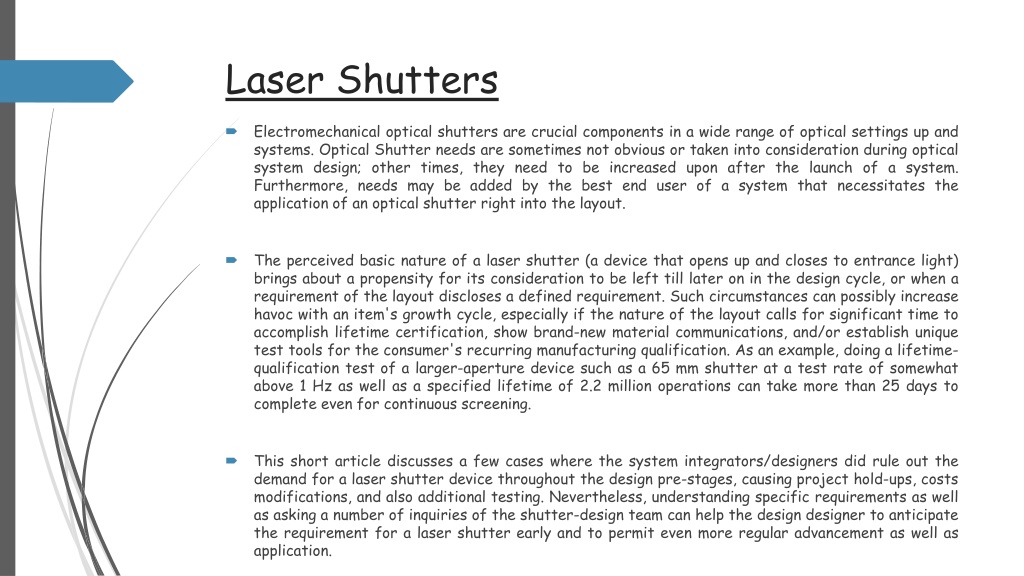

  2. Laser Shutters • Electromechanical optical shutters are crucial components in a wide range of optical settings up and systems. Optical Shutter needs are sometimes not obvious or taken into consideration during optical system design; other times, they need to be increased upon after the launch of a system. Furthermore, needs may be added by the best end user of a system that necessitates the application of an optical shutter right into the layout. • The perceived basic nature of a laser shutter (a device that opens up and closes to entrance light) brings about a propensity for its consideration to be left till later on in the design cycle, or when a requirement of the layout discloses a defined requirement. Such circumstances can possibly increase havoc with an item's growth cycle, especially if the nature of the layout calls for significant time to accomplish lifetime certification, show brand-new material communications, and/or establish unique test tools for the consumer's recurring manufacturing qualification. As an example, doing a lifetime-qualification test of a larger-aperture device such as a 65 mm shutter at a test rate of somewhat above 1 Hz as well as a specified lifetime of 2.2 million operations can take more than 25 days to complete even for continuous screening. • This short article discusses a few cases where the system integrators/designers did rule out the demand for a laser shutter device throughout the design pre-stages, causing project hold-ups, costs modifications, and also additional testing. Nevertheless, understanding specific requirements as well as asking a number of inquiries of the shutter-design team can help the design designer to anticipate the requirement for a laser shutter early and to permit even more regular advancement as well as application.

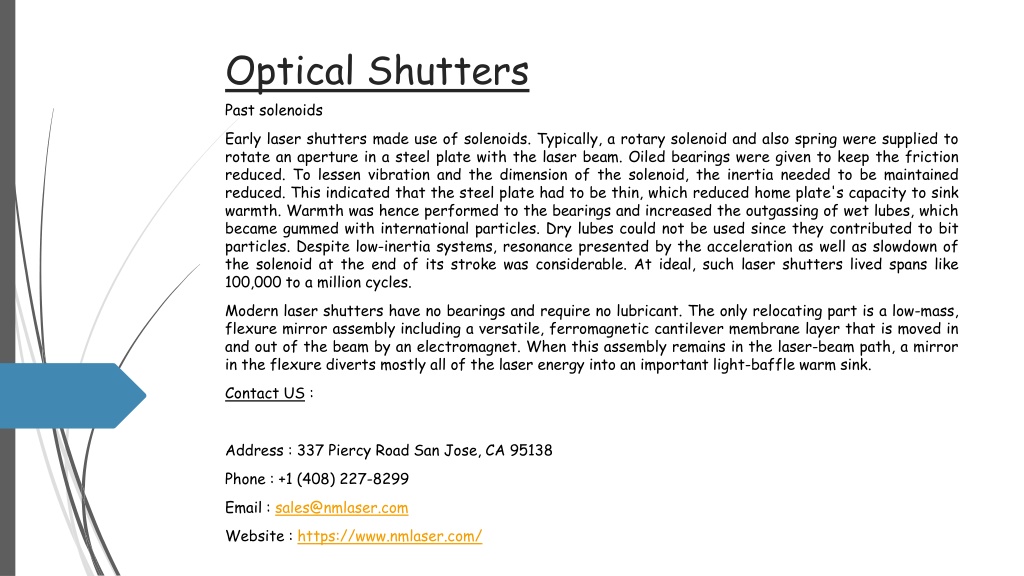

  3. Optical Shutters Past solenoids Early laser shutters made use of solenoids. Typically, a rotary solenoid and also spring were supplied to rotate an aperture in a steel plate with the laser beam. Oiled bearings were given to keep the friction reduced. To lessen vibration and the dimension of the solenoid, the inertia needed to be maintained reduced. This indicated that the steel plate had to be thin, which reduced home plate's capacity to sink warmth. Warmth was hence performed to the bearings and increased the outgassing of wet lubes, which became gummed with international particles. Dry lubes could not be used since they contributed to bit particles. Despite low-inertia systems, resonance presented by the acceleration as well as slowdown of the solenoid at the end of its stroke was considerable. At ideal, such laser shutters lived spans like 100,000 to a million cycles. Modern laser shutters have no bearings and require no lubricant. The only relocating part is a low-mass, flexure mirror assembly including a versatile, ferromagnetic cantilever membrane layer that is moved in and out of the beam by an electromagnet. When this assembly remains in the laser-beam path, a mirror in the flexure diverts mostly all of the laser energy into an important light-baffle warm sink. Contact US : Address : 337 Piercy Road San Jose, CA 95138 Phone : +1 (408) 227-8299 Email : sales@nmlaser.com Website : https://www.nmlaser.com/
