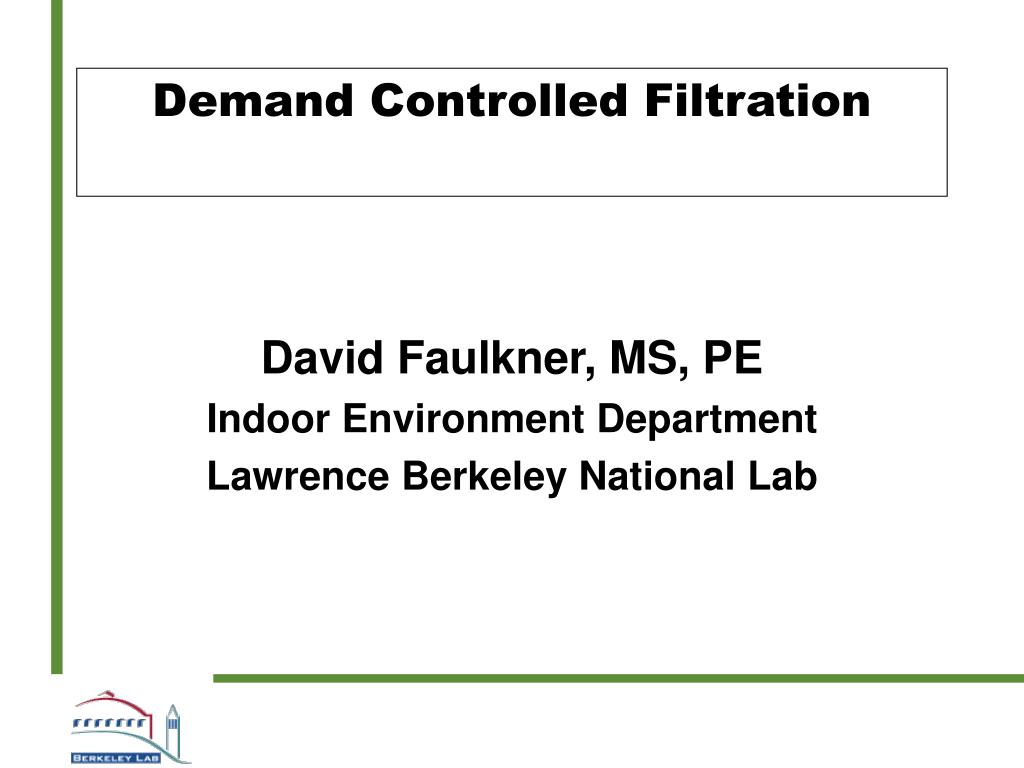

  1. Demand Controlled Filtration David Faulkner, MS, PE Indoor Environment Department Lawrence Berkeley National Lab

  2. Demand Controlled Filtration • What it is, what it is not • Background • Previous work • Energy savings potential

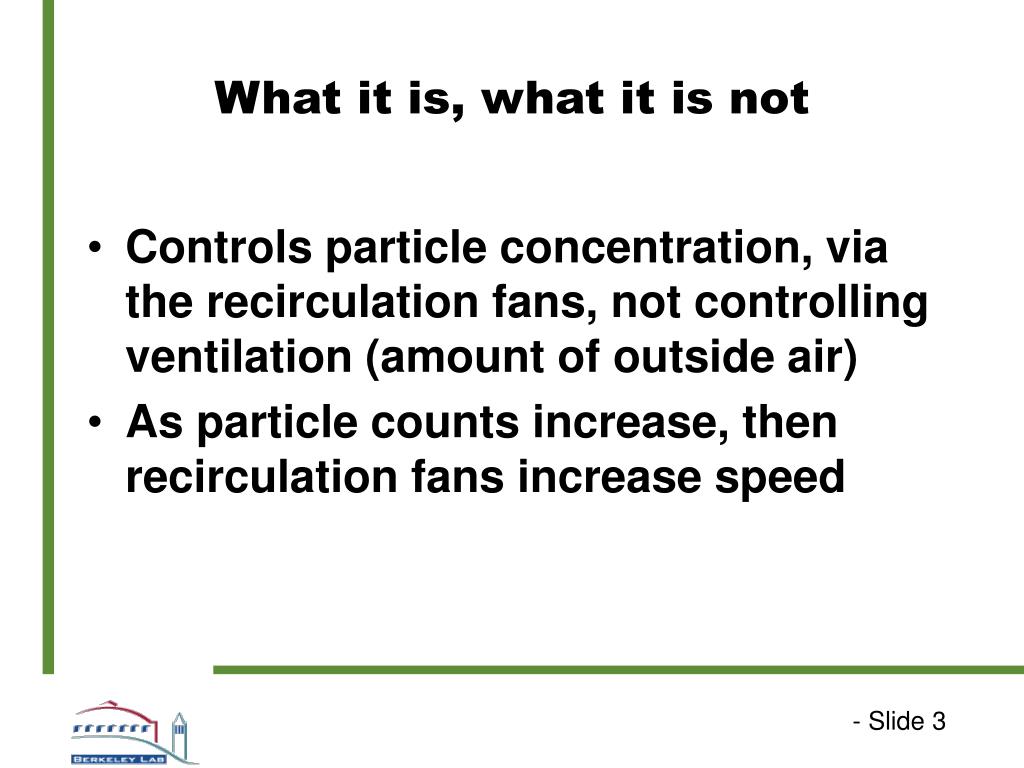

  3. What it is, what it is not • Controls particle concentration, via the recirculation fans, not controlling ventilation (amount of outside air) • As particle counts increase, then recirculation fans increase speed

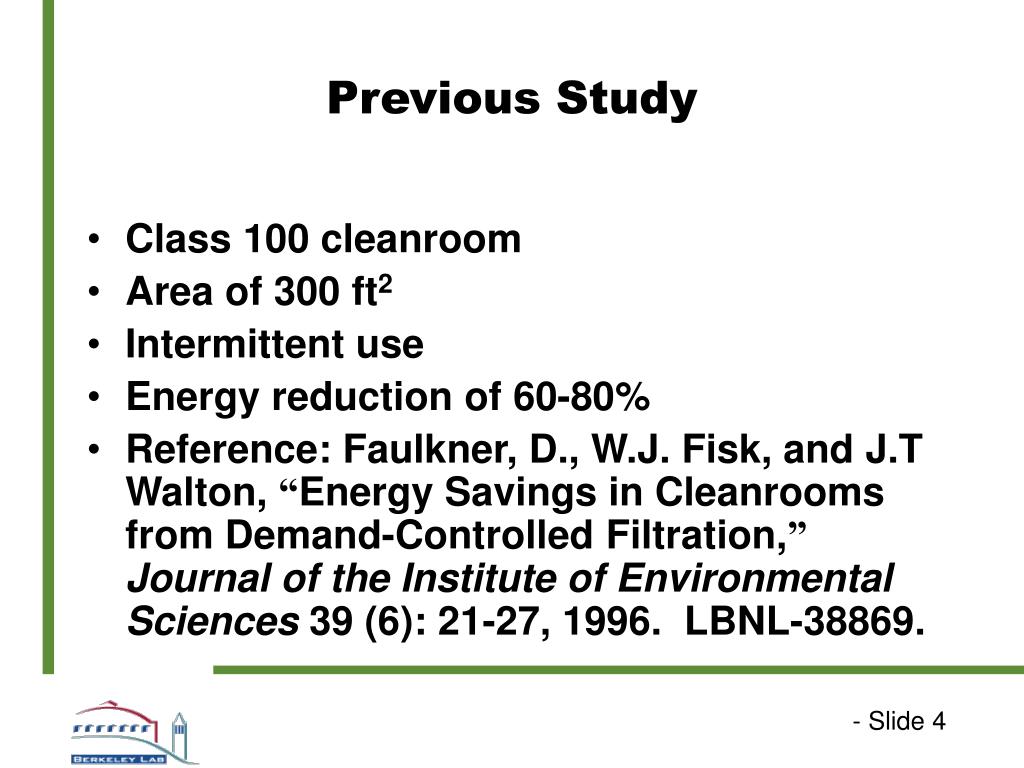

  4. Previous Study • Class 100 cleanroom • Area of 300 ft2 • Intermittent use • Energy reduction of 60-80% • Reference: Faulkner, D., W.J. Fisk, and J.T Walton, “Energy Savings in Cleanrooms from Demand-Controlled Filtration,”Journal of the Institute of Environmental Sciences 39 (6): 21-27, 1996. LBNL-38869.

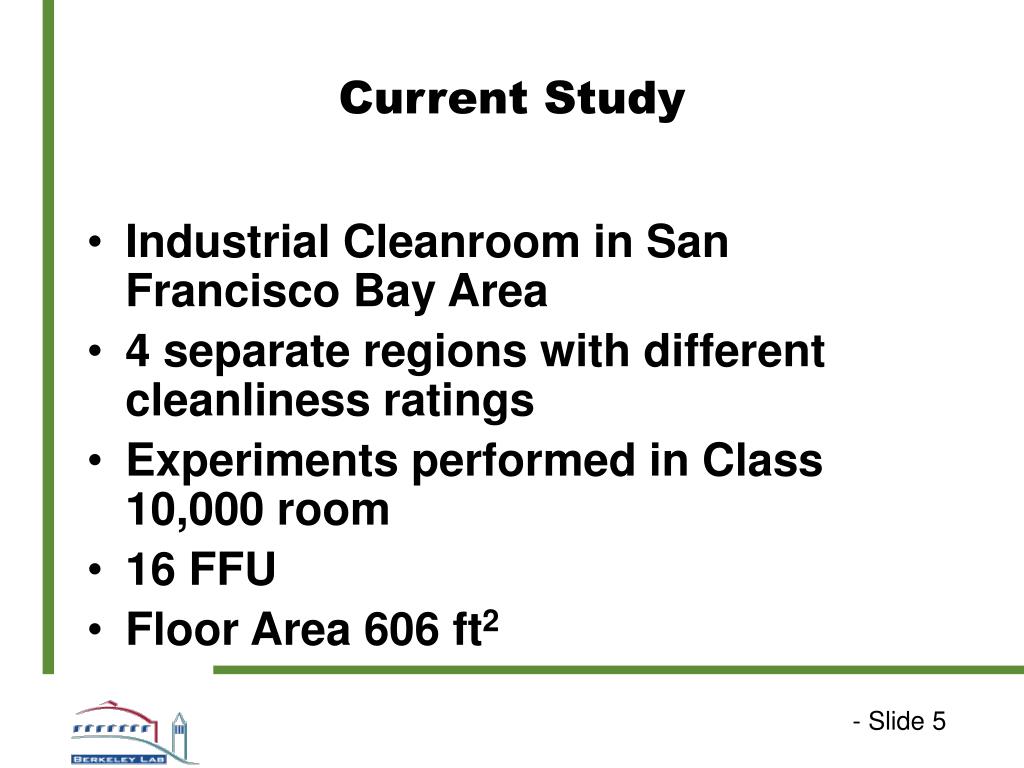

  5. Current Study • Industrial Cleanroom in San Francisco Bay Area • 4 separate regions with different cleanliness ratings • Experiments performed in Class 10,000 room • 16 FFU • Floor Area 606 ft2

  6. Other Industrial Settings • Southern CA industrial facility is saving energy by night-time setback • Large Southern CA manufacturer is in the process of implementing DCF • Large university in the East recently retrofitted cleanroom facilities and is ready to implement DCF

  7. Case study – recirculation setback • Setback based solely on time clock, 8:00 PM-6:00 AM • No reported process problems or concerns from process engineers • 60% – 70% power reduction on turndown

  8. Facility Existing Procedures • All fans controlled by PC running proprietary software • Software capable of scheduling fan speeds • Fans controlled from 100% during day to 50% at night and weekends?? • 100% from 6:00 am to 10:00 pm

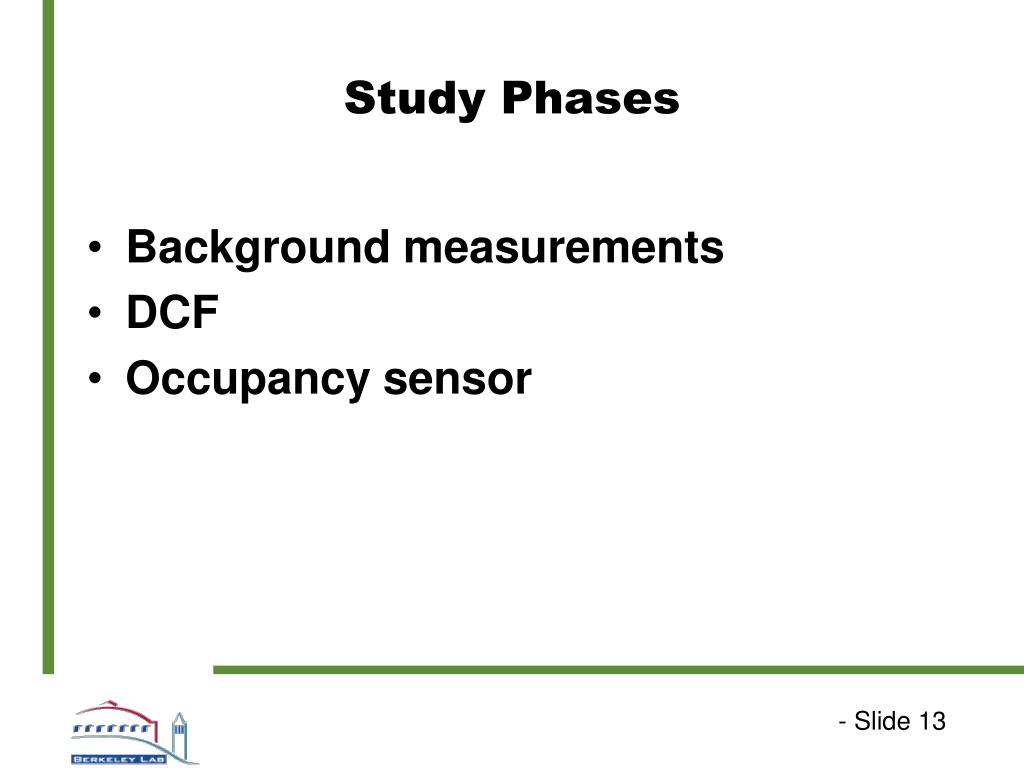

  9. Study Phases • Background measurements • DCF • Occupancy sensor

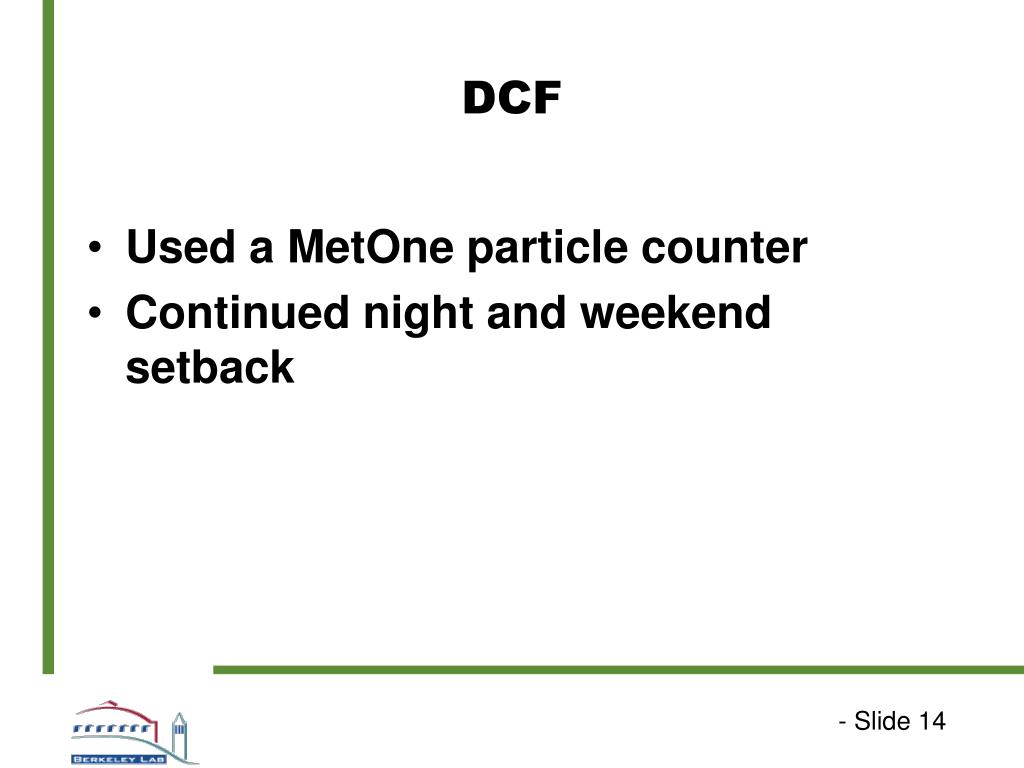

  10. DCF • Used a MetOne particle counter • Continued night and weekend setback

  11. Occupancy Sensors • Stopped weekend and night setback • 6 wireless occupancy sensors • 30 minute delay after last occupancy detection

  12. The Savings

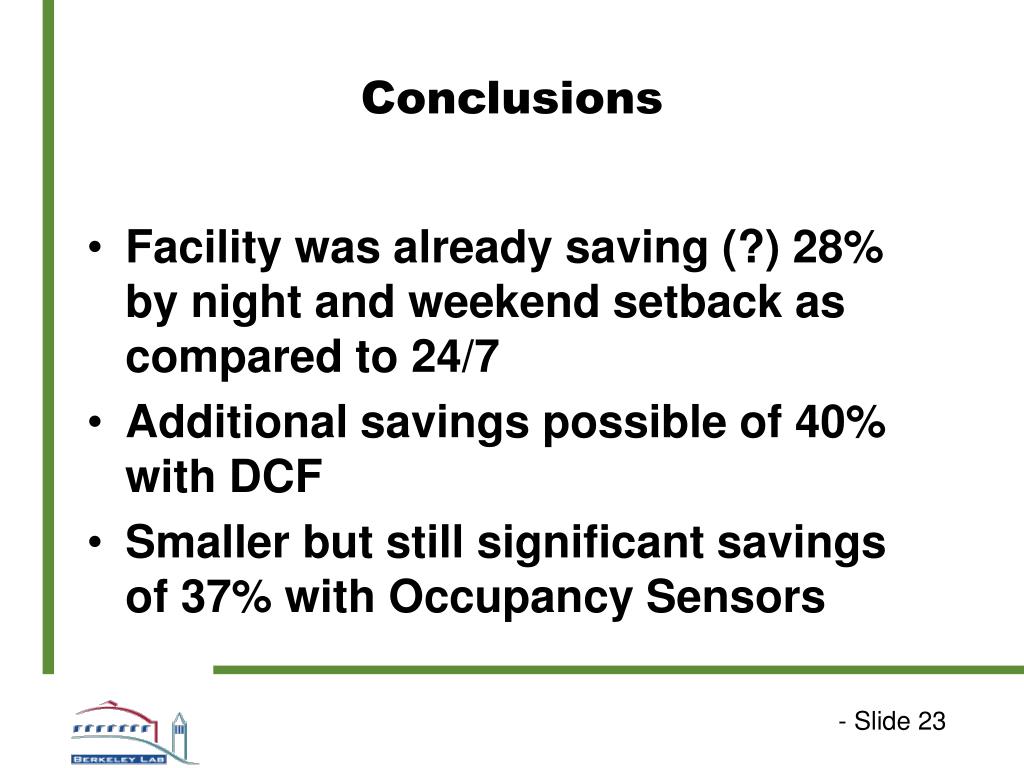

  13. Conclusions • Facility was already saving (?) 28% by night and weekend setback as compared to 24/7 • Additional savings possible of 40% with DCF • Smaller but still significant savings of 37% with Occupancy Sensors

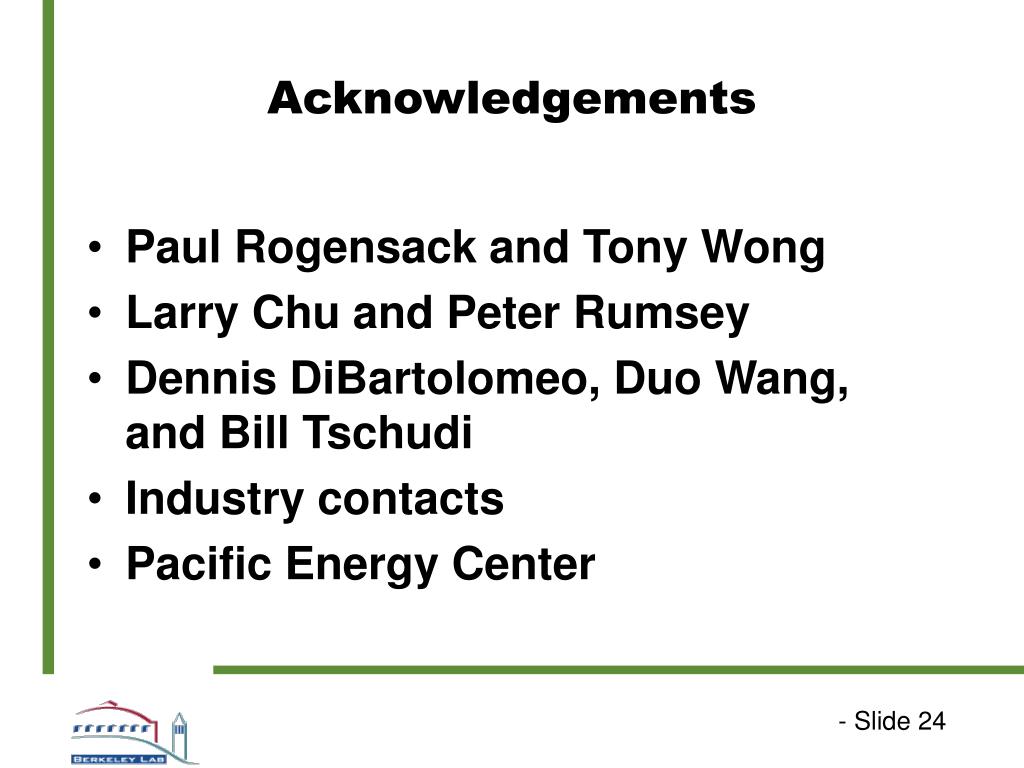

  14. Acknowledgements • Paul Rogensack and Tony Wong • Larry Chu and Peter Rumsey • Dennis DiBartolomeo, Duo Wang, and Bill Tschudi • Industry contacts • Pacific Energy Center

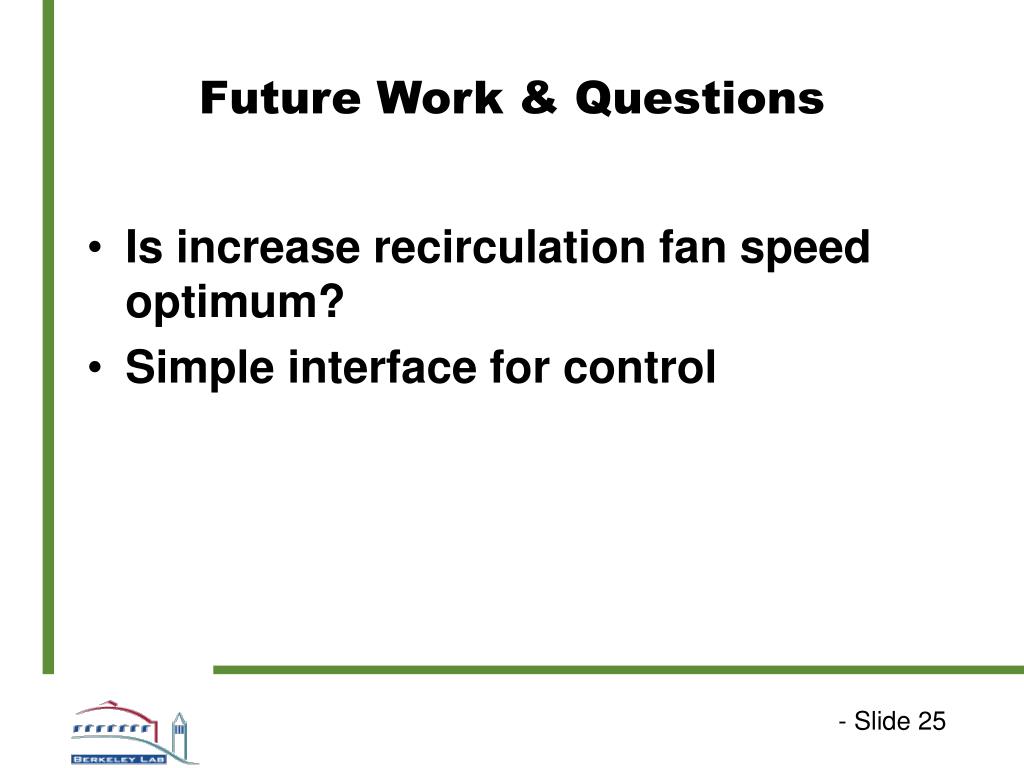

  15. Future Work & Questions • Is increase recirculation fan speed optimum? • Simple interface for control

  16. DAVID FAULKNER • D_Faulkner@lbl.gov • 510.486.7326
