### The Half-Edge Data Structure

Computational Geometry, WS 2006/07

Lecture 9, Part I

Prof. Dr. Thomas Ottmann

Khaireel A. Mohamed

Algorithmen & Datenstrukturen, Institut für Informatik

Fakultät für Angewandte Wissenschaften

Albert-Ludwigs-Universität Freiburg

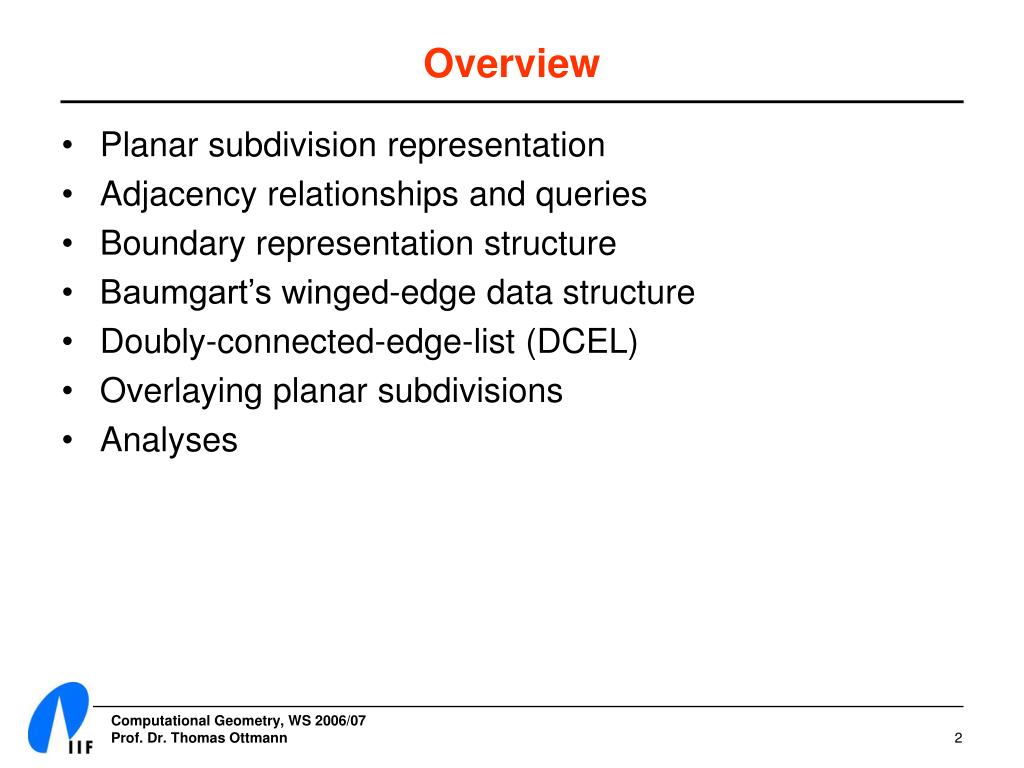

Overview
• Planar subdivision representation
• Boundary representation structure
• Baumgart’s winged-edge data structure
• Doubly-connected-edge-list (DCEL)
• Overlaying planar subdivisions
• Analyses

Computational Geometry, WS 2006/07

Prof. Dr. Thomas Ottmann

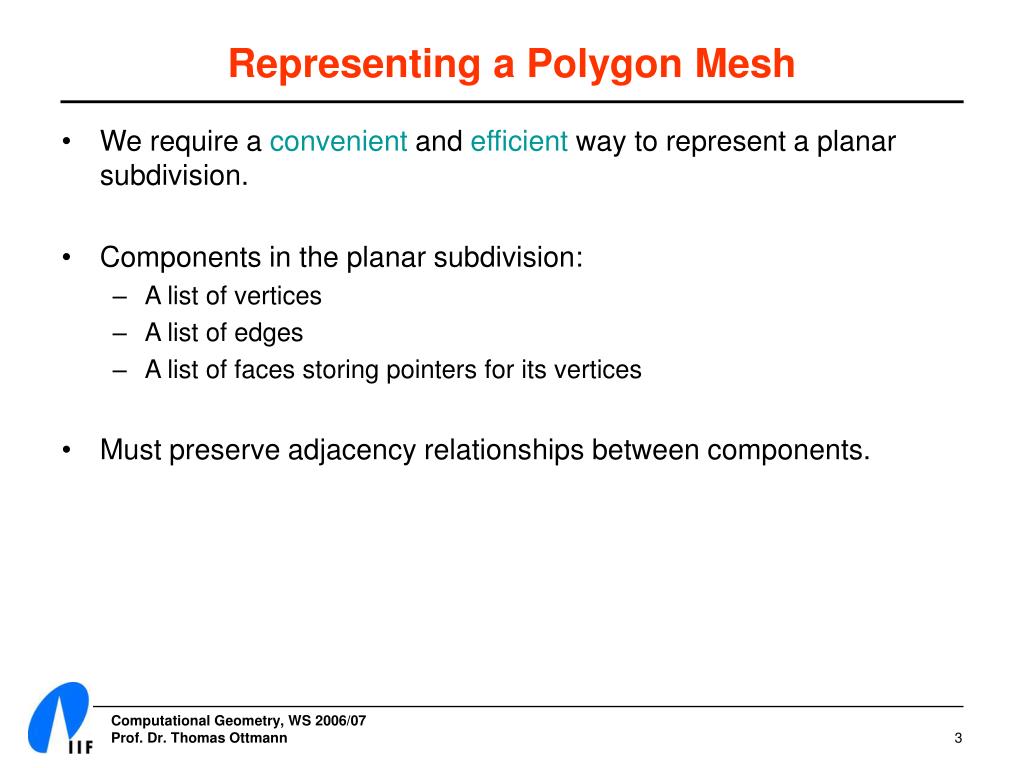

Representing a Polygon Mesh
• We require a convenient and efficient way to represent a planar subdivision.
• Components in the planar subdivision:
• A list of vertices
• A list of edges
• A list of faces storing pointers for its vertices
• Must preserve adjacency relationships between components.

Computational Geometry, WS 2006/07

Prof. Dr. Thomas Ottmann

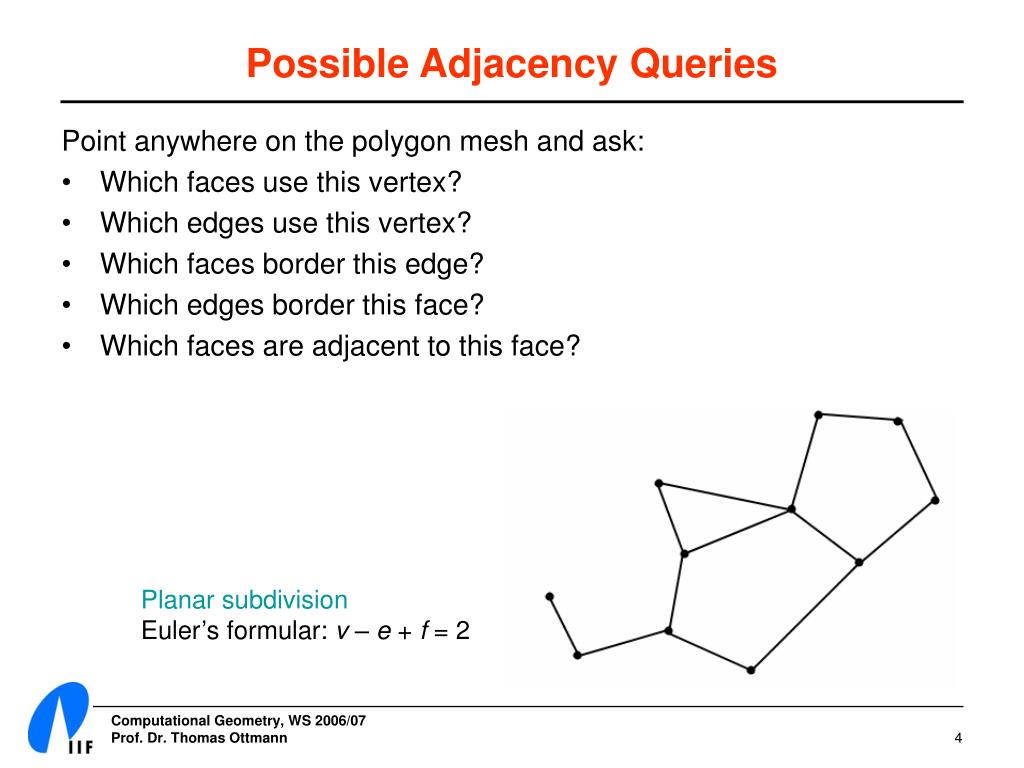

Point anywhere on the polygon mesh and ask:

• Which faces use this vertex?
• Which edges use this vertex?
• Which faces border this edge?
• Which edges border this face?
• Which faces are adjacent to this face?

Planar subdivision

Euler’s formular: v – e + f = 2

Computational Geometry, WS 2006/07

Prof. Dr. Thomas Ottmann

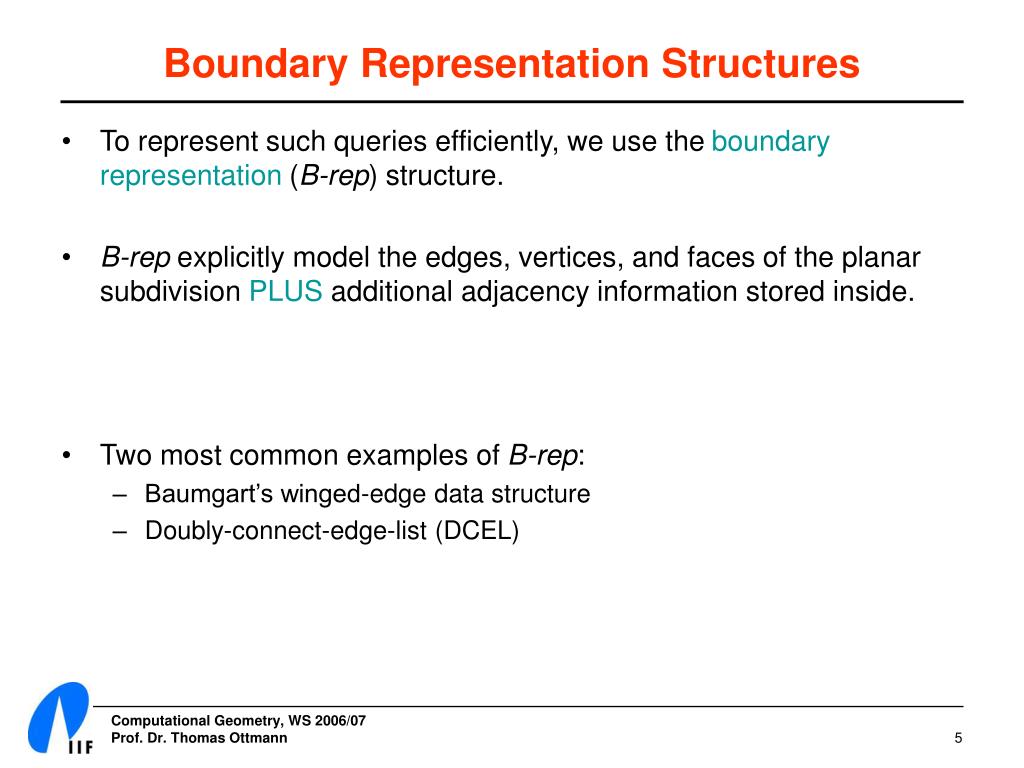

Boundary Representation Structures
• To represent such queries efficiently, we use the boundary representation (B-rep) structure.
• B-rep explicitly model the edges, vertices, and faces of the planar subdivision PLUS additional adjacency information stored inside.
• Two most common examples of B-rep:
• Baumgart’s winged-edge data structure
• Doubly-connect-edge-list (DCEL)

Computational Geometry, WS 2006/07

Prof. Dr. Thomas Ottmann

e_v1[4]

v1

f1

e

f2

v2

e_v2[4]

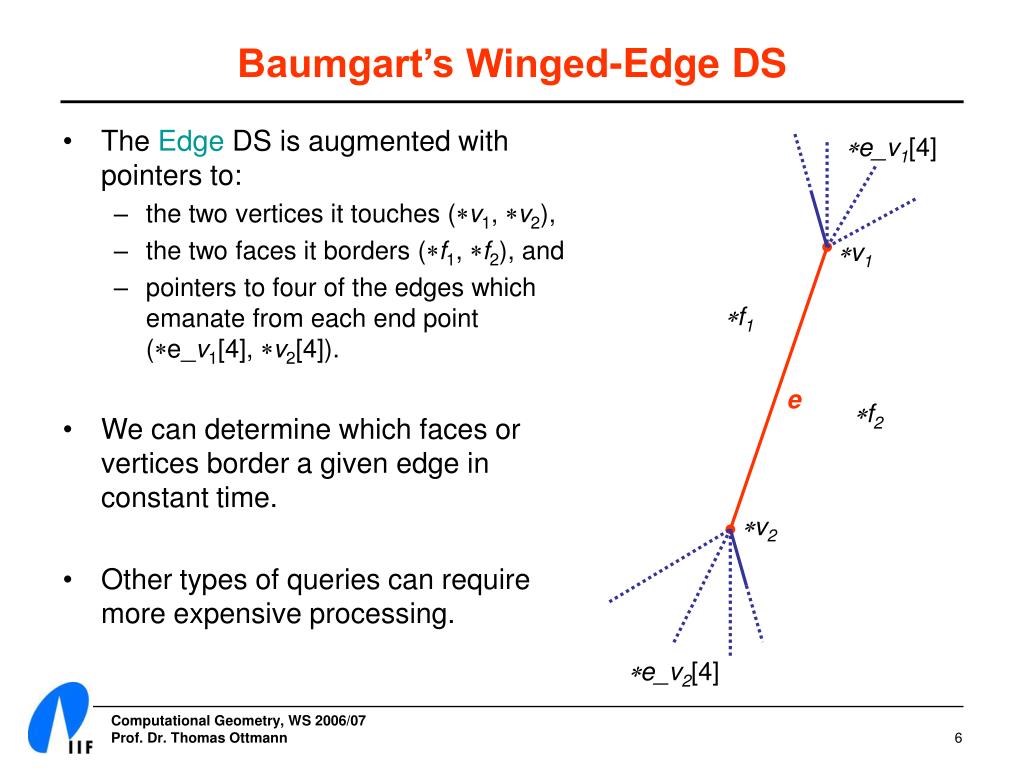

Baumgart’s Winged-Edge DS
• The Edge DS is augmented with pointers to:
• the two vertices it touches (v1, v2),
• the two faces it borders (f1, f2), and
• pointers to four of the edges which emanate from each end point (e_v1[4], v2[4]).
• We can determine which faces or vertices border a given edge in constant time.
• Other types of queries can require more expensive processing.

Computational Geometry, WS 2006/07

Prof. Dr. Thomas Ottmann

The Doubly-Connected-Edge-List (DCEL)
• DCEL is a directed half-edgeB-rep data structure.
• Allows all adjacency queries in constant time (per piece of information gathered). That is, for example;
• When querying all edges adjacent to a vertex, the operation will be linear in the number of edges adjacent to the vertex, but constant time per edge.
• The DCEL is excellent in representing manifold surfaces:
• Every edge is bordered by exactly two faces.
• Cross junctions and internal polygons are not allowed.

Computational Geometry, WS 2006/07

Prof. Dr. Thomas Ottmann

f

e_next

HE_edge

v_orig

e_twin

e_prev

DCEL Component – Half-edge
• The half-edges in the DCEL that border a face form a circular linked-list around its perimeter (anti-clockwise); i.e. each half-edge in the loop stores a pointer to the face it borders (incident).
• Each half-edge is directed and can be described in C as follows:

struct HE_edge {

HE_vert *v_orig;

HE_edge *e_twin;

HE_face *f;

HE_edge *e_next;

HE_edge *e_prev;

};

Computational Geometry, WS 2006/07

Prof. Dr. Thomas Ottmann

edge

HE_vert

p=(x,y)

DCEL Component - Vertex
• Vertices in the DCEL stores:
• their actual point location, and
• a pointer to exactly ONE of the HE_edge, which uses the vertex as its origin.
• There may be several HE_edge whose origins start at the same vertex. We need only one, and it does not matter which one.

struct HE_vert {

Gdiplus::PointF p;

HE_edge *edge;

};

Computational Geometry, WS 2006/07

Prof. Dr. Thomas Ottmann

DCEL Component – Face I
• The “bare-bones” version of the face component needs only to store a single pointer to one of the half-edges it borders.
• In the implementation by de Berg et al. (2000), edge is the pointer to the circular loop of the OuterComponent (or the outer-most boundary) of the incident face.
• For the unbounded face, this pointer is NULL.

struct HE_face_barebone {

HE_edge *edge;

};

HE_face_barebone

edge

Computational Geometry, WS 2006/07

Prof. Dr. Thomas Ottmann

innerComps[0]

HE_face

outerComp

DCEL Component – Face II
• All holes contained inside an incident face are considered as InnerComponents. A list of pointers to half-edges of unique holes is maintained in HE_face as follows.
• In the case that there are no holes in an incident face, innerComps is set to NULL.

struct HE_face {

HE_edge *outerComp;

HE_edge **innerComps;

};

Computational Geometry, WS 2006/07

Prof. Dr. Thomas Ottmann

v2

f1

edge

f2

v1

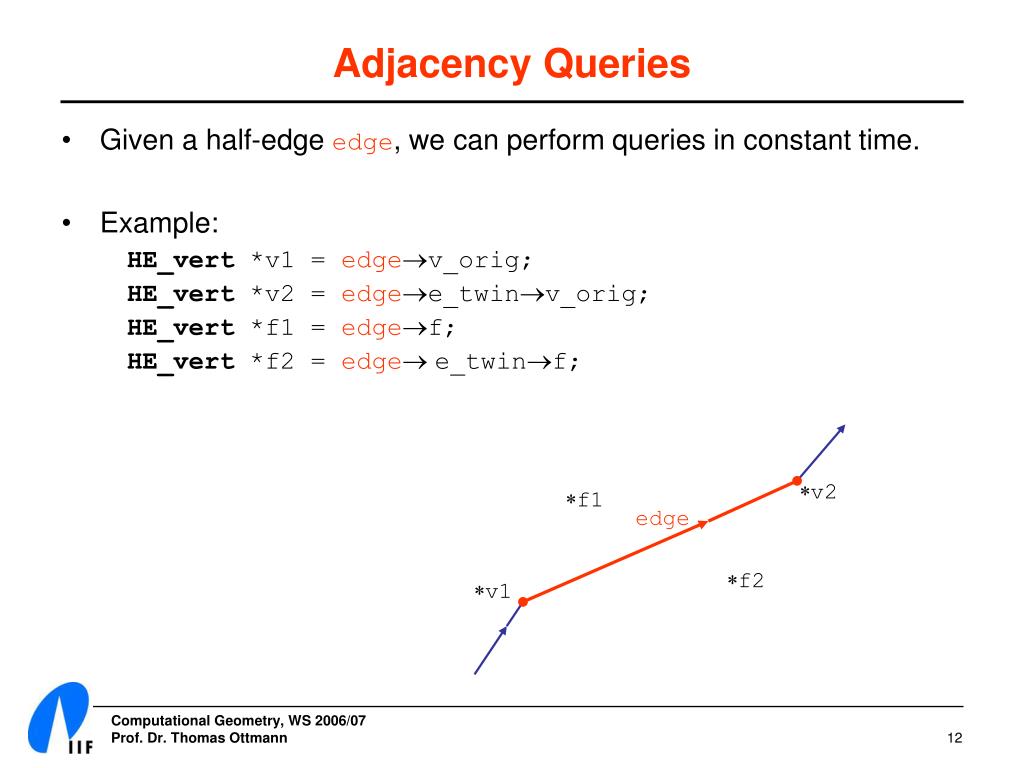

• Given a half-edge edge, we can perform queries in constant time.
• Example:

HE_vert *v1 = edgev_orig;

HE_vert *v2 = edgee_twinv_orig;

HE_vert *f1 = edgef;

HE_vert *f2 = edge e_twinf;

Computational Geometry, WS 2006/07

Prof. Dr. Thomas Ottmann

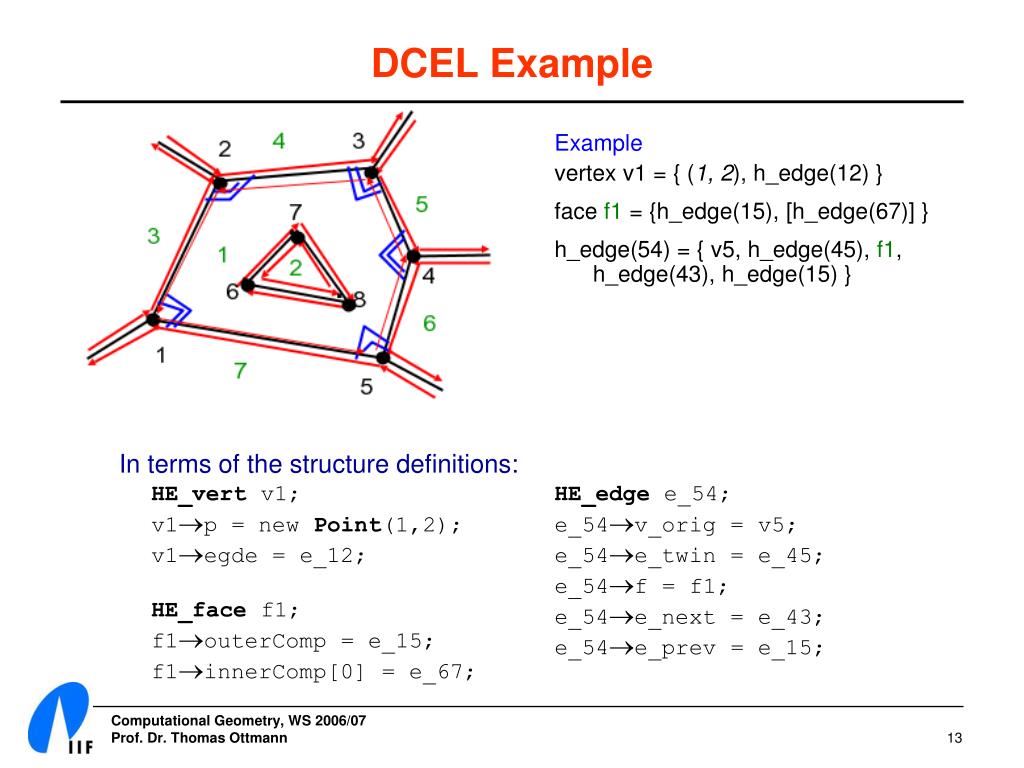

DCEL Example

Example

vertex v1 = { (1, 2), h_edge(12) }

face f1 = {h_edge(15), [h_edge(67)] }

h_edge(54) = { v5, h_edge(45), f1, h_edge(43), h_edge(15) }

In terms of the structure definitions:

HE_vert v1;

v1p = new Point(1,2);

v1egde = e_12;

HE_face f1;

f1outerComp = e_15;

f1innerComp[0] = e_67;

HE_edge e_54;

e_54v_orig = v5;

e_54e_twin = e_45;

e_54f = f1;

e_54e_next = e_43;

e_54e_prev = e_15;

Computational Geometry, WS 2006/07

Prof. Dr. Thomas Ottmann

• Iterating over the half-edges adjacent to a given face.
• Iterating over the half-edges that are adjacent to a given vertex.

HE_edge *edge = faceouterComp;

do {

// Do something with edge.

edge = edgenext;

} while (edge != faceouterComp);

HE_edge *edge = vertexedge;

do {

// Do something with edge, edgee_twin, etc.

edge = edgee_twinnext;

} while (edge != vertexedge);

Computational Geometry, WS 2006/07

Prof. Dr. Thomas Ottmann

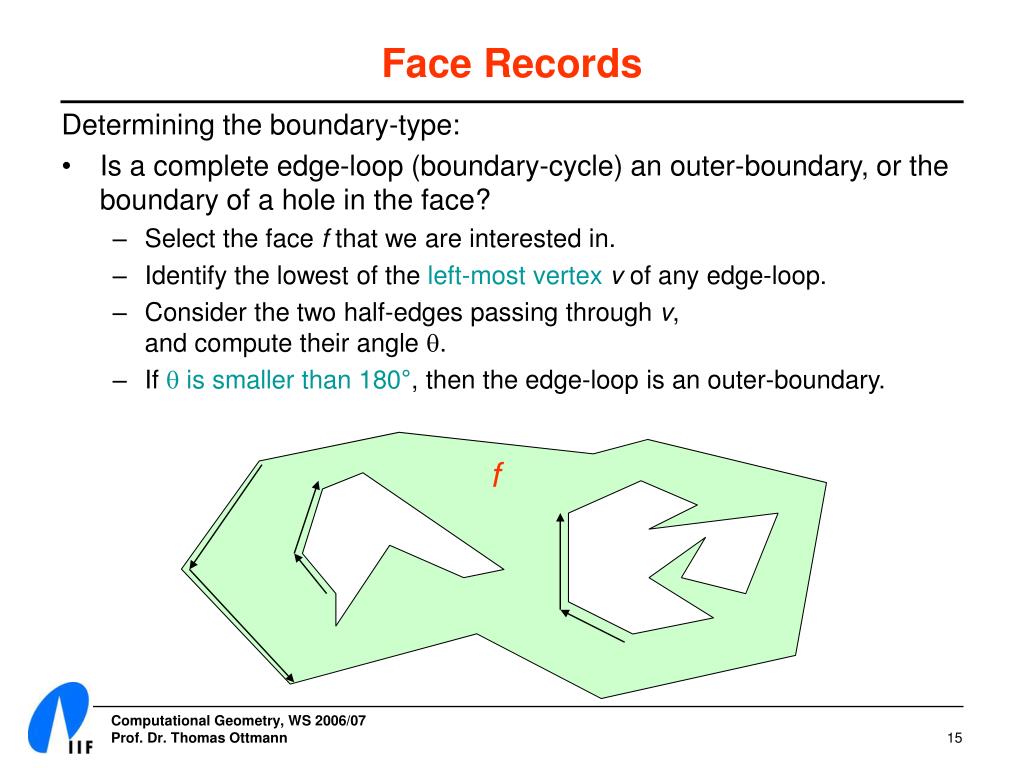

Face Records

Determining the boundary-type:

• Is a complete edge-loop (boundary-cycle) an outer-boundary, or the boundary of a hole in the face?
• Select the face f that we are interested in.
• Identify the lowest of the left-most vertexv of any edge-loop.
• Consider the two half-edges passing through v, and compute their angle .
• If  is smaller than 180°, then the edge-loop is an outer-boundary.

f

Computational Geometry, WS 2006/07

Prof. Dr. Thomas Ottmann

c6

c3

c2

c7

c5

c1

c8

c4

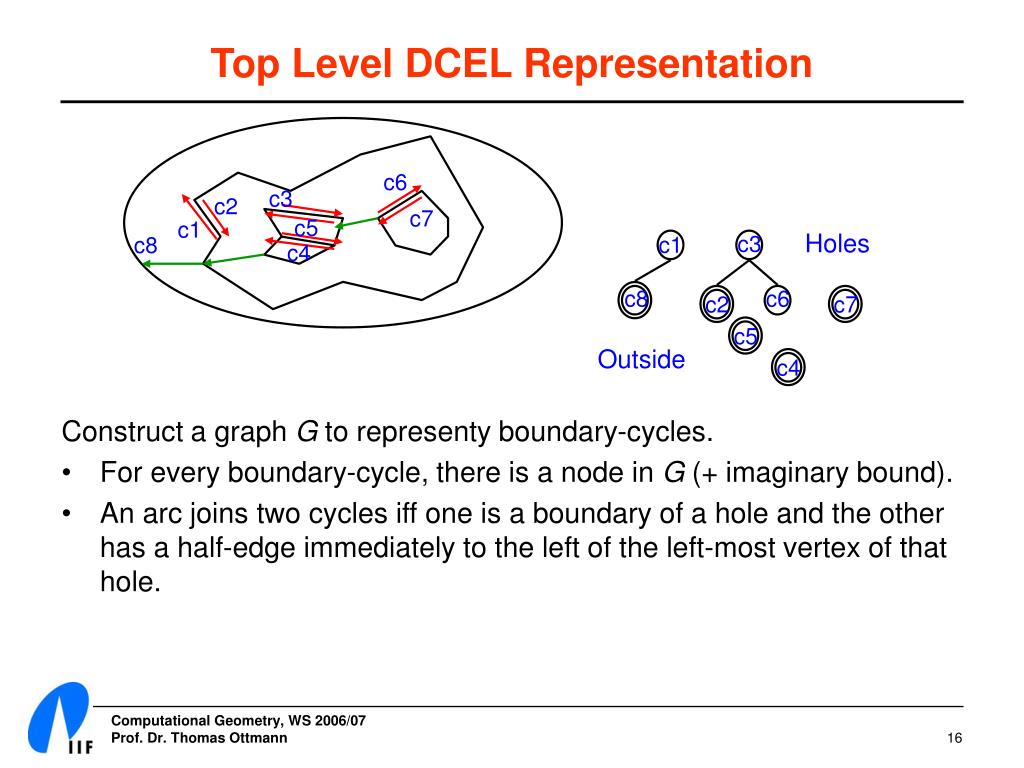

Top Level DCEL Representation

Construct a graph G to representy boundary-cycles.

• For every boundary-cycle, there is a node in G (+ imaginary bound).
• An arc joins two cycles iff one is a boundary of a hole and the other has a half-edge immediately to the left of the left-most vertex of that hole.

Holes

c3

c1

c8

c6

c2

c7

c5

Outside

c4

Computational Geometry, WS 2006/07

Prof. Dr. Thomas Ottmann

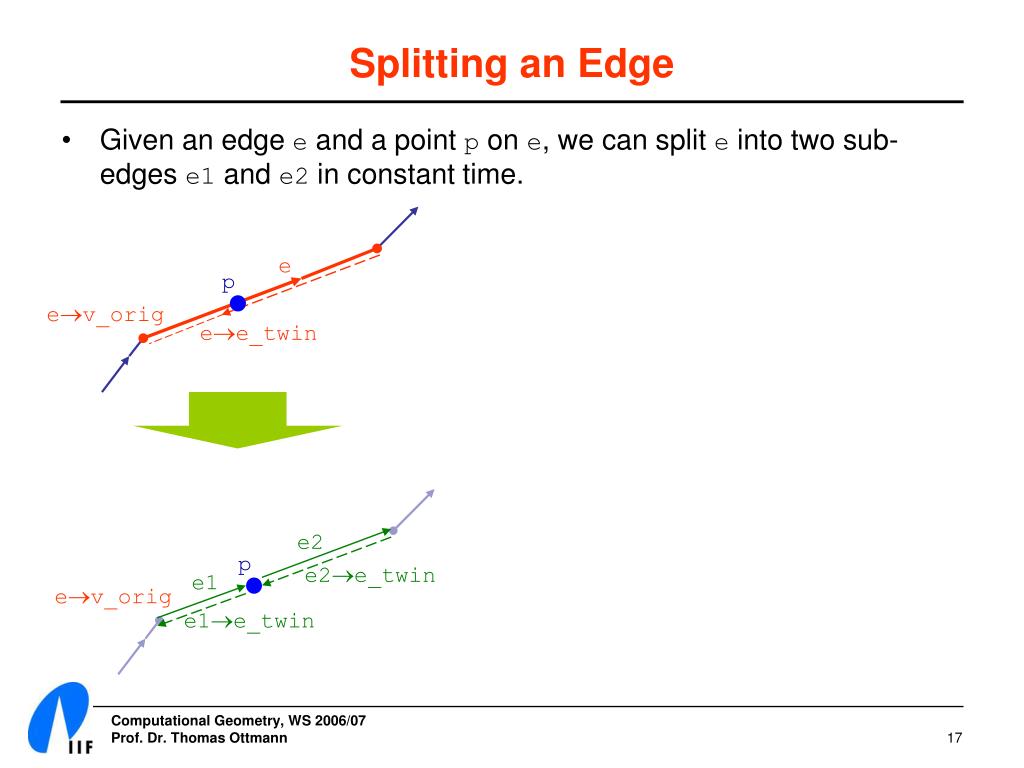

Splitting an Edge
• Given an edge e and a point p on e, we can split e into two sub-edges e1 and e2 in constant time.

e

p

ev_orig

ee_twin

e2

p

e2e_twin

e1

ev_orig

e1e_twin

Computational Geometry, WS 2006/07

Prof. Dr. Thomas Ottmann

Splitting and Re-directing Edges
• Given an edge e and a vertex v of degree deg(v) on e, we can split and redirect the sub-edges of the DCEL at v in time O(1 + deg(v)).

e

Insertion of new edges into the flow:

» Iterate edges at v.

» Exercise.

v

ev_orig

e2

v

e1

Computational Geometry, WS 2006/07

Prof. Dr. Thomas Ottmann

Overlaying Two Planar Subdivisions

Plane sweep!

• Event-points (maintained in balanced binary search tree):
• Vertices of S1 and S2
• All intersections between edges in S1 and S2
• Status-structure (per event):
• Neighbouring edges sorted in increasing x-order.

Computational Geometry, WS 2006/07

Prof. Dr. Thomas Ottmann

2

1

3

3

1

7

4

5

8

8

L

7

2

1

P

U(P)

C(P)

7

3

1

3

C(P)

2

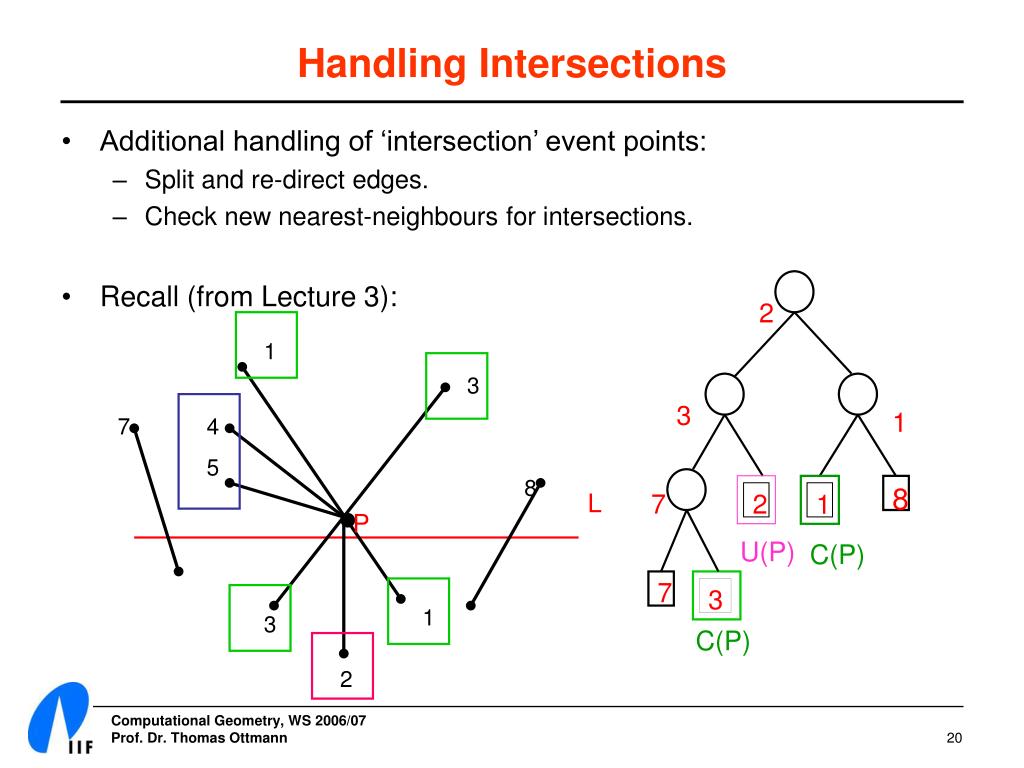

Handling Intersections
• Additional handling of ‘intersection’ event points:
• Split and re-direct edges.
• Check new nearest-neighbours for intersections.
• Recall (from Lecture 3):

Computational Geometry, WS 2006/07

Prof. Dr. Thomas Ottmann

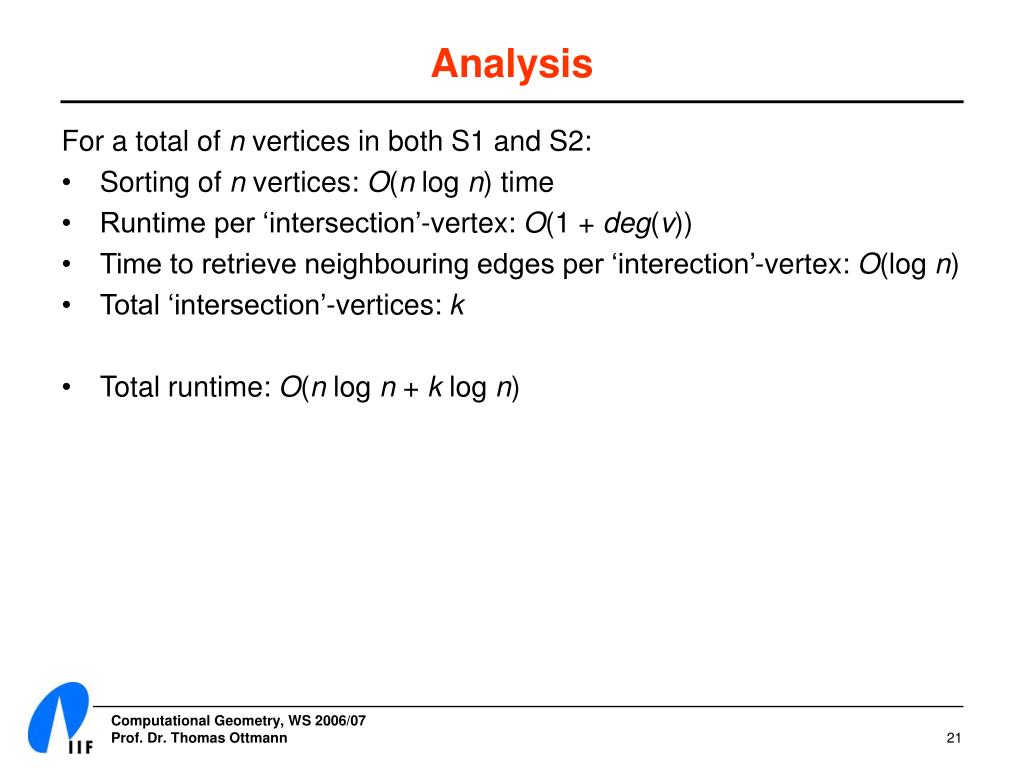

Analysis

For a total of n vertices in both S1 and S2:

• Sorting of n vertices: O(n log n) time
• Runtime per ‘intersection’-vertex: O(1 + deg(v))
• Time to retrieve neighbouring edges per ‘interection’-vertex: O(log n)
• Total ‘intersection’-vertices: k
• Total runtime: O(n log n + k log n)
