  1. IE 423 – Design of Decision Support Systems Database development – Relationships and Queries Introduction to SQL

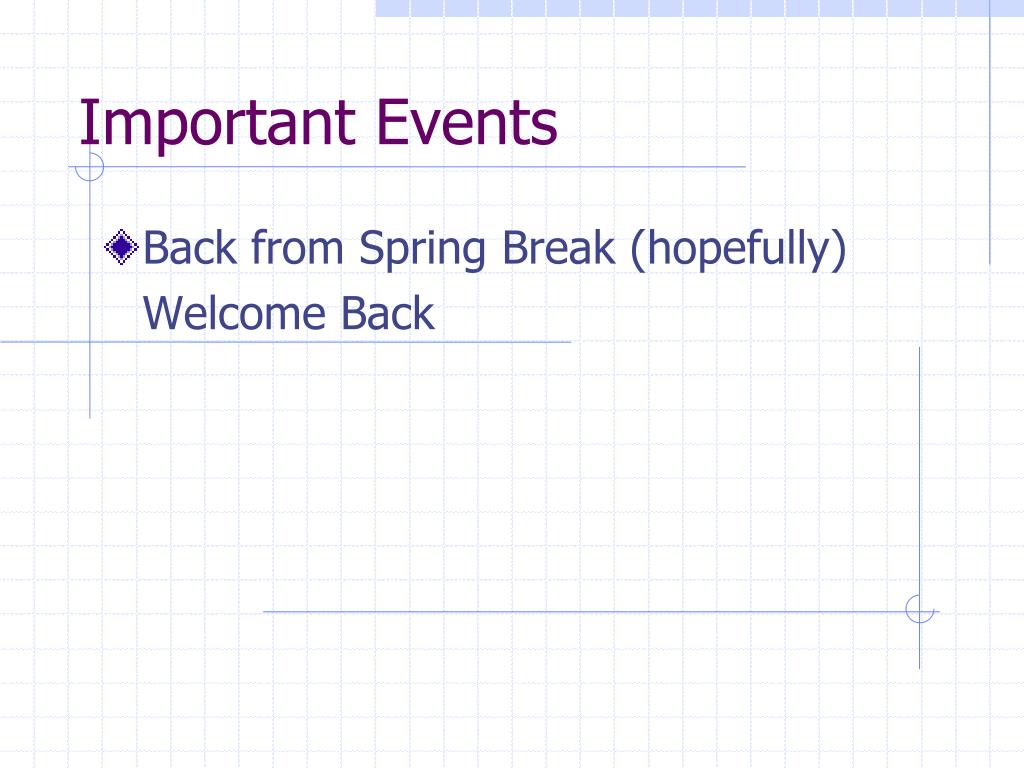

  2. Important Events Back from Spring Break (hopefully) Welcome Back

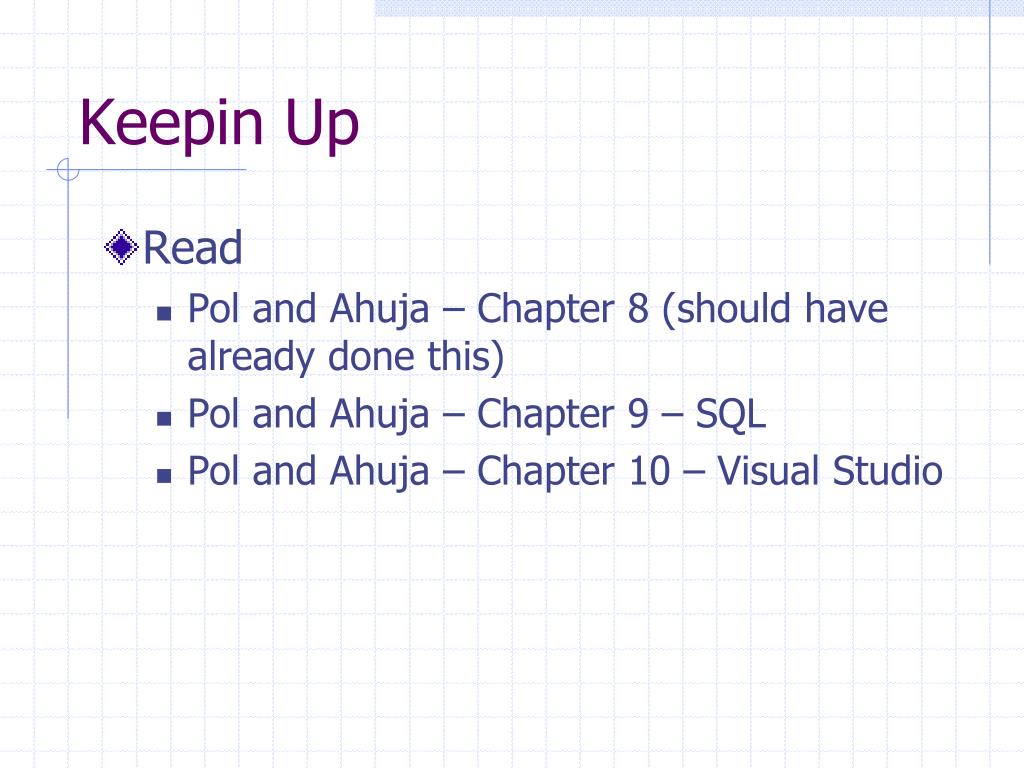

  3. Keepin Up • Read • Pol and Ahuja – Chapter 8 (should have already done this) • Pol and Ahuja – Chapter 9 – SQL • Pol and Ahuja – Chapter 10 – Visual Studio

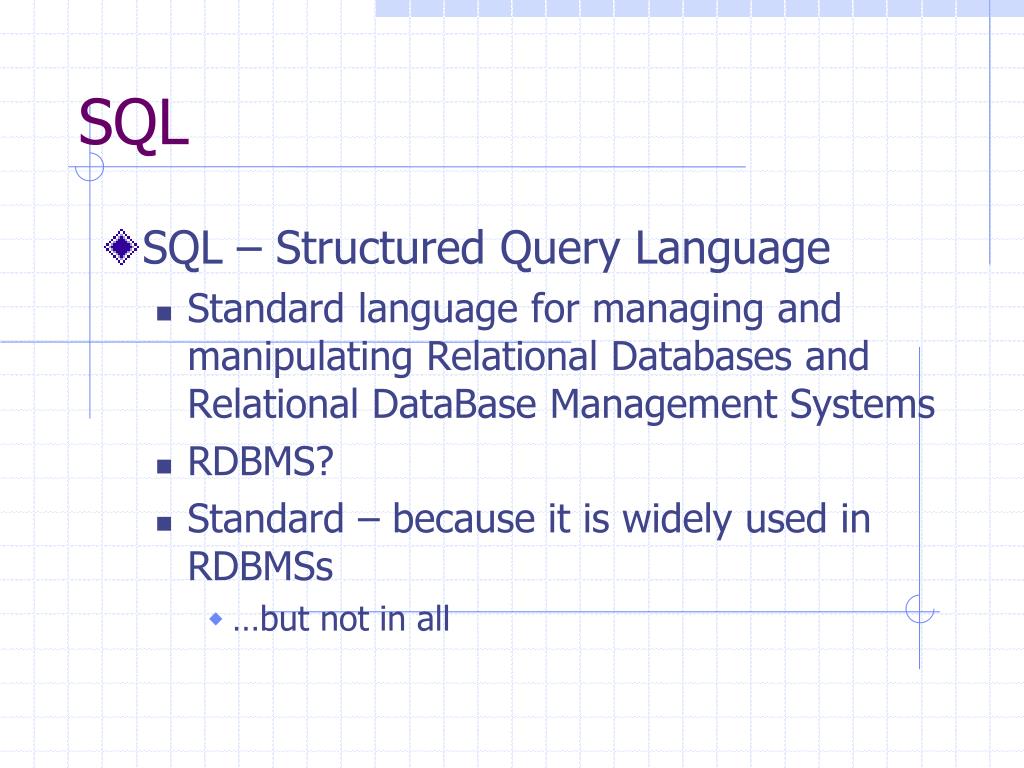

  4. SQL SQL – Structured Query Language Standard language for managing and manipulating Relational Databases and Relational DataBase Management Systems RDBMS? Standard – because it is widely used in RDBMSs …but not in all

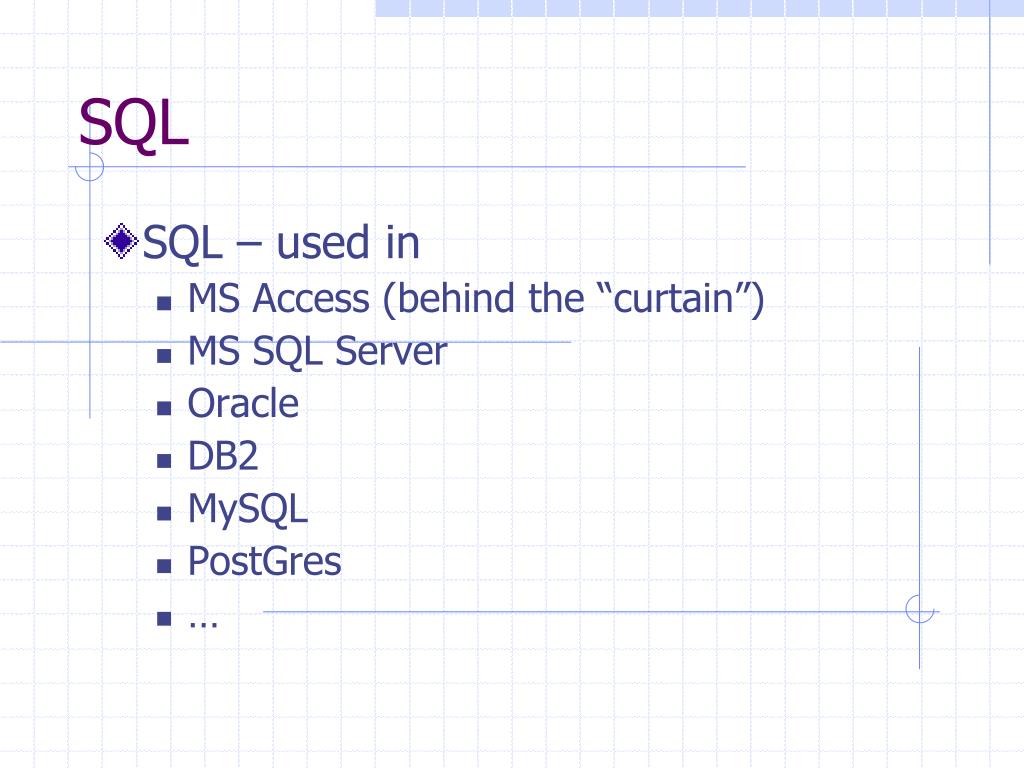

  5. SQL SQL – used in MS Access (behind the “curtain”) MS SQL Server Oracle DB2 MySQL PostGres …

  6. SQL SQL – standard, but… Some variations in SQL across platforms Usually syntactic differences Function differences Subsets Arguments

  7. SQL SQL – Important Point! SQL is a database management language SQL is not a programming language What does this mean? Why does this matter? What can we do about this?

  8. SQL SQL – four components to the language DDL – Data Definition Language Define/delete db objects DML – Data Manipulation Language Language for using db DCL – Data Control Language Defines/sets control features of db DSPL – Data Stored Procedure Language Tools for creating SQL modules

  9. SQL SQL – four components to the language DCL and DSPL – outside the scope of this class (mostly) DDL and DML – we will take a closer look at these two languages

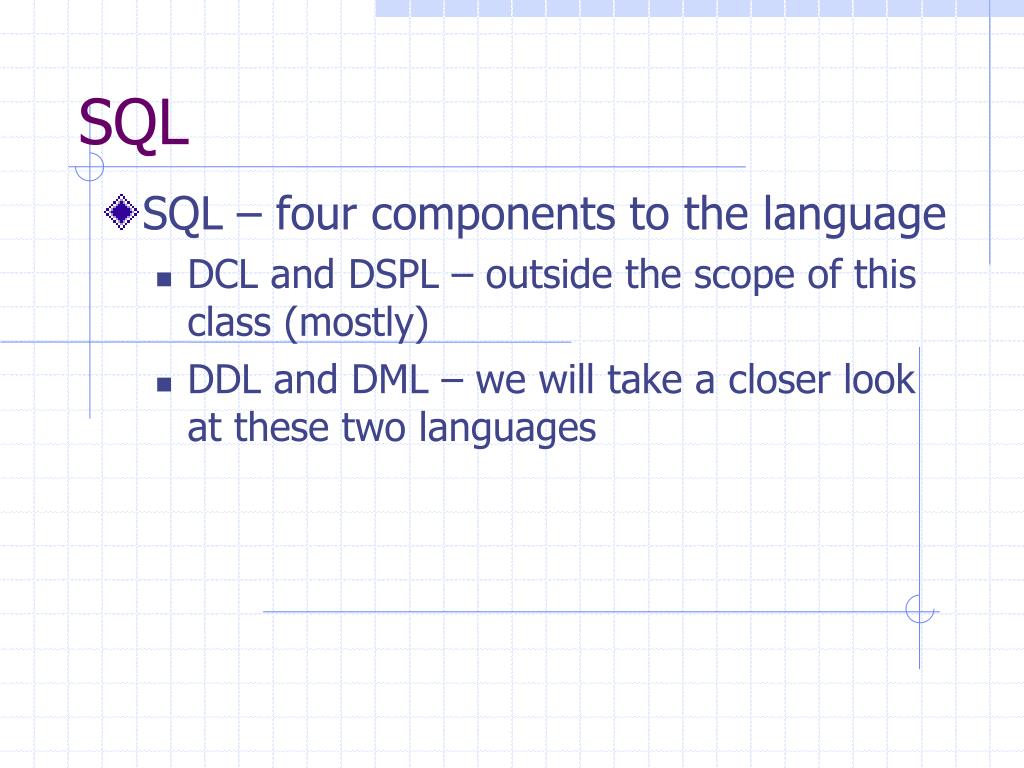

  10. SQL SQL – four components to the language DCL and DSPL – outside the scope of this class (mostly) DDL and DML – we will take a closer look at these two languages

  11. DDL DDL – Data Definition Language Create TABLES PRIMARY KEYS FOREIGN KEYS INDEXES

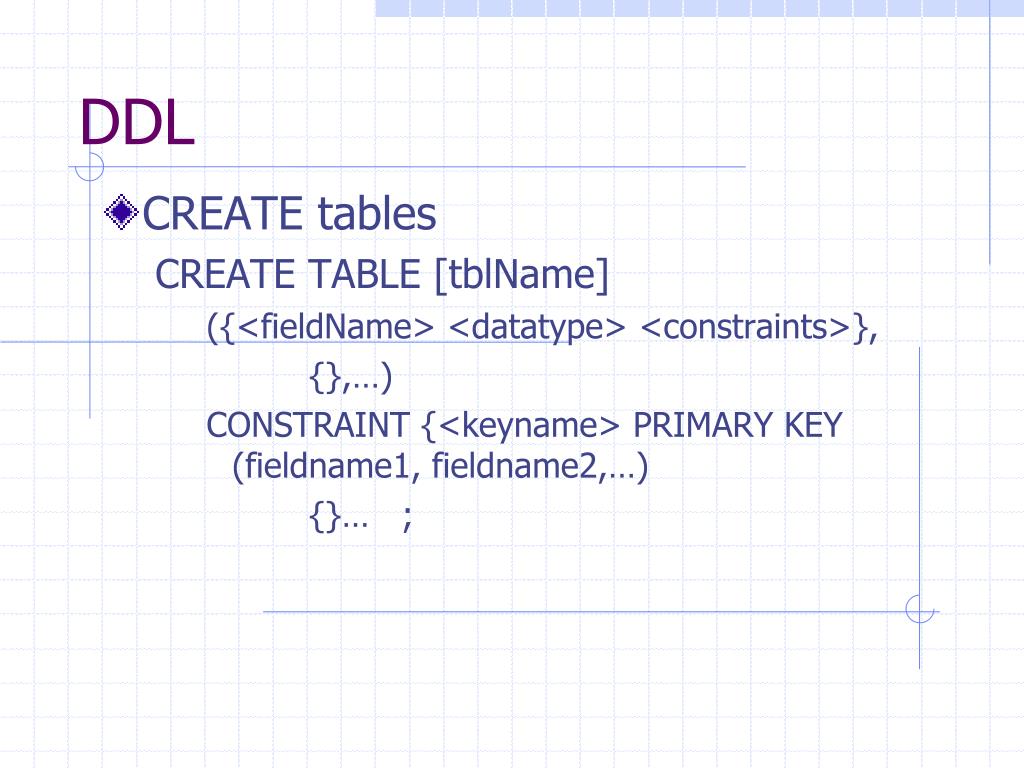

  12. DDL CREATE tables CREATE TABLE [tblName] ({<fieldName> <datatype> <constraints>}, {},…) CONSTRAINT {<keyname> PRIMARY KEY (fieldname1, fieldname2,…) {}… ;

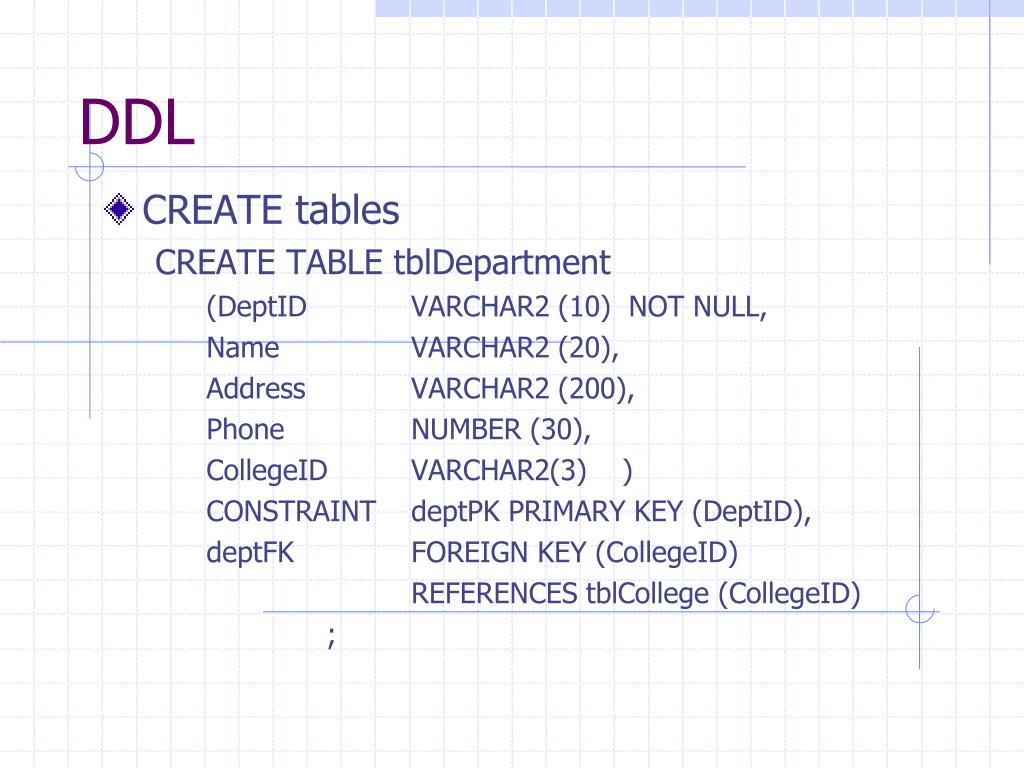

  13. DDL CREATE tables CREATE TABLE tblDepartment (DeptID VARCHAR2 (10) NOT NULL, Name VARCHAR2 (20), Address VARCHAR2 (200), Phone NUMBER (30), CollegeID VARCHAR2(3) ) CONSTRAINT deptPK PRIMARY KEY (DeptID), deptFK FOREIGN KEY (CollegeID) REFERENCES tblCollege (CollegeID) ;

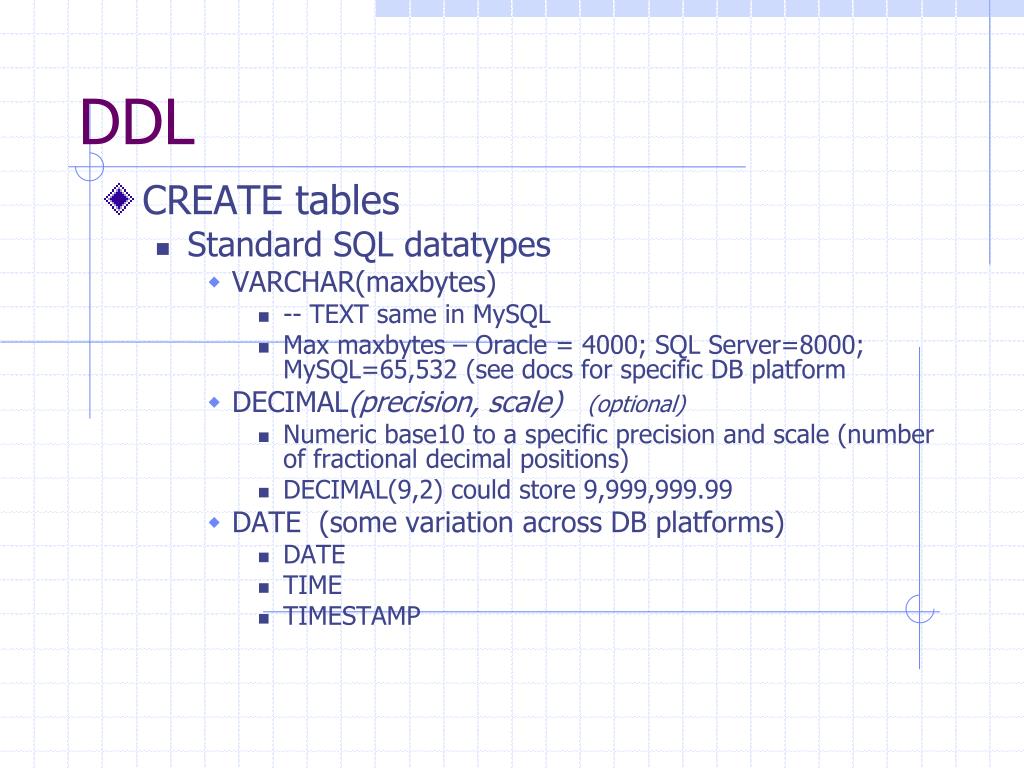

  14. DDL CREATE tables Standard SQL datatypes VARCHAR(maxbytes) -- TEXT same in MySQL Max maxbytes – Oracle = 4000; SQL Server=8000; MySQL=65,532 (see docs for specific DB platform DECIMAL(precision, scale) (optional) Numeric base10 to a specific precision and scale (number of fractional decimal positions) DECIMAL(9,2) could store 9,999,999.99 DATE (some variation across DB platforms) DATE TIME TIMESTAMP

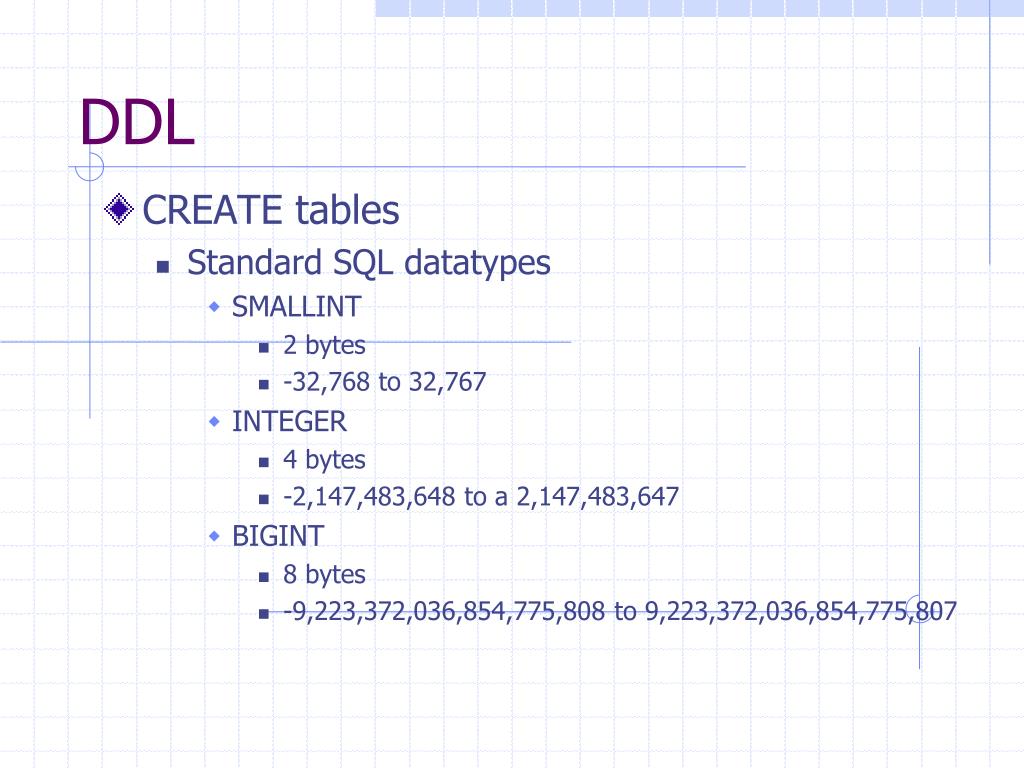

  15. DDL CREATE tables Standard SQL datatypes SMALLINT 2 bytes -32,768 to 32,767 INTEGER 4 bytes -2,147,483,648 to a 2,147,483,647 BIGINT 8 bytes -9,223,372,036,854,775,808 to 9,223,372,036,854,775,807

  16. DDL CREATE Indexes CREATE INDEX tblDeptAddressIndex ON tblDepartment (Address) ;

  17. DDL DDL – Data Definition Language DROP – deletes db objects DROP TABLE – deletes a table (and its data) from a db …not used to drop a field from a table or a record from a table

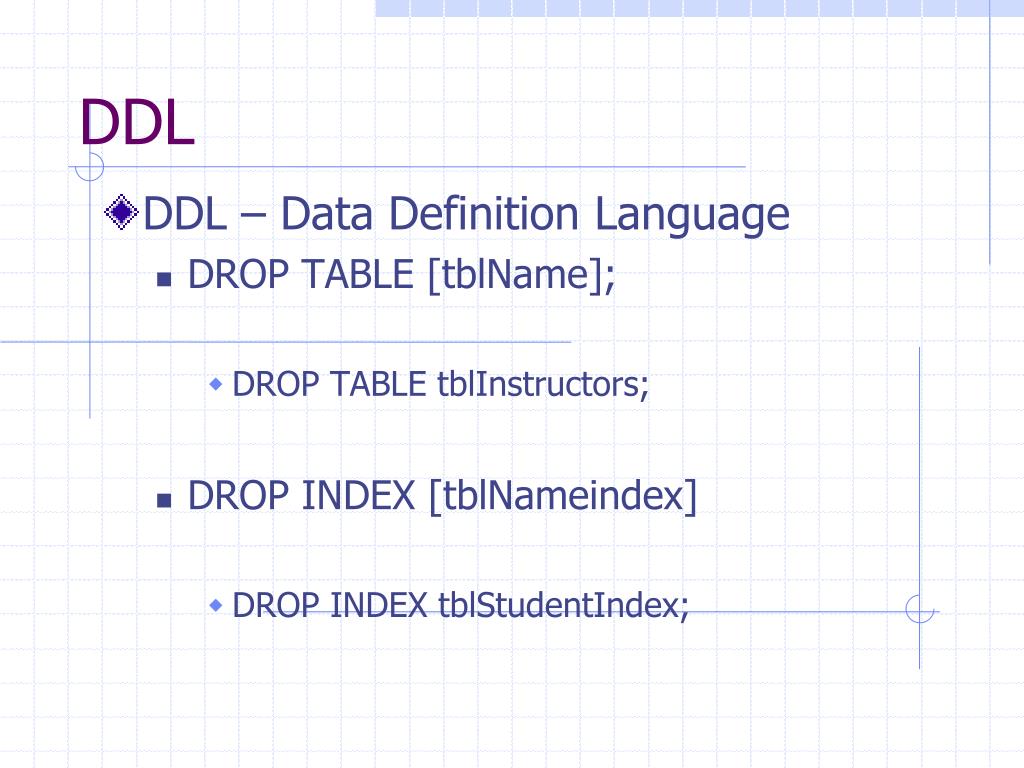

  18. DDL DDL – Data Definition Language DROP TABLE [tblName]; DROP TABLE tblInstructors; DROP INDEX [tblNameindex] DROP INDEX tblStudentIndex;

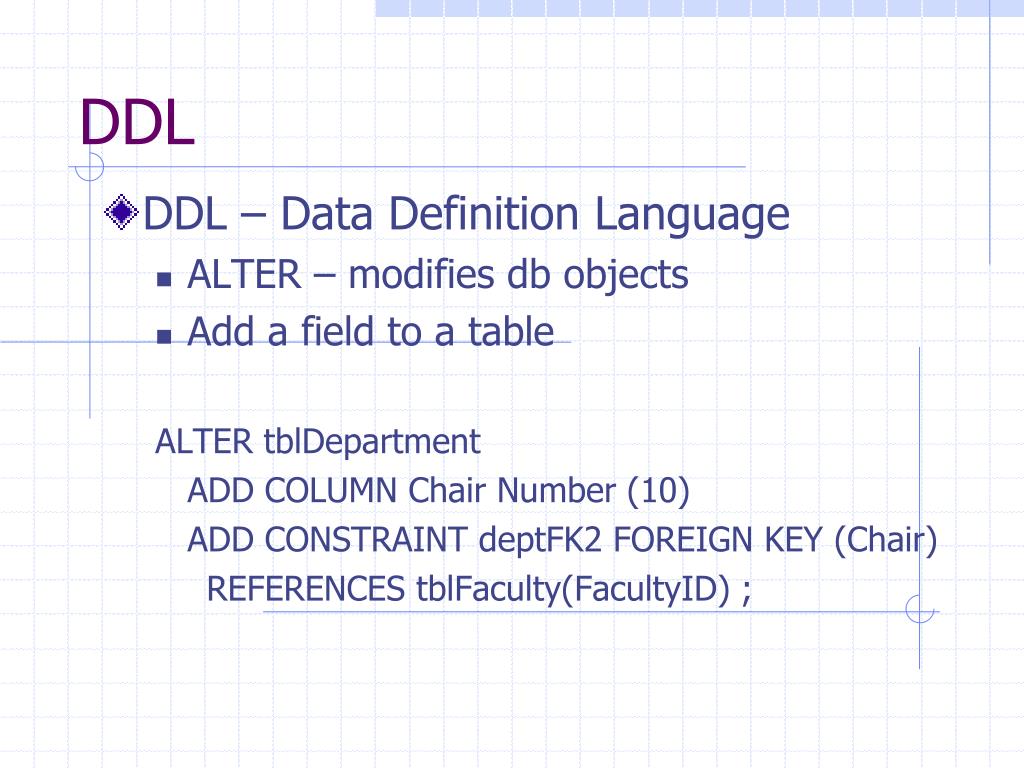

  19. DDL DDL – Data Definition Language ALTER – modifies db objects Add a field to a table ALTER tblDepartment ADD COLUMN Chair Number (10) ADD CONSTRAINT deptFK2 FOREIGN KEY (Chair) REFERENCES tblFaculty(FacultyID) ;

  20. DDL DDL – Data Definition Language ALTER – modifies db objects Delete a field from a table ALTER tblDepartment DROP Chair DROP CONSTRAINT DeptFK2 ;

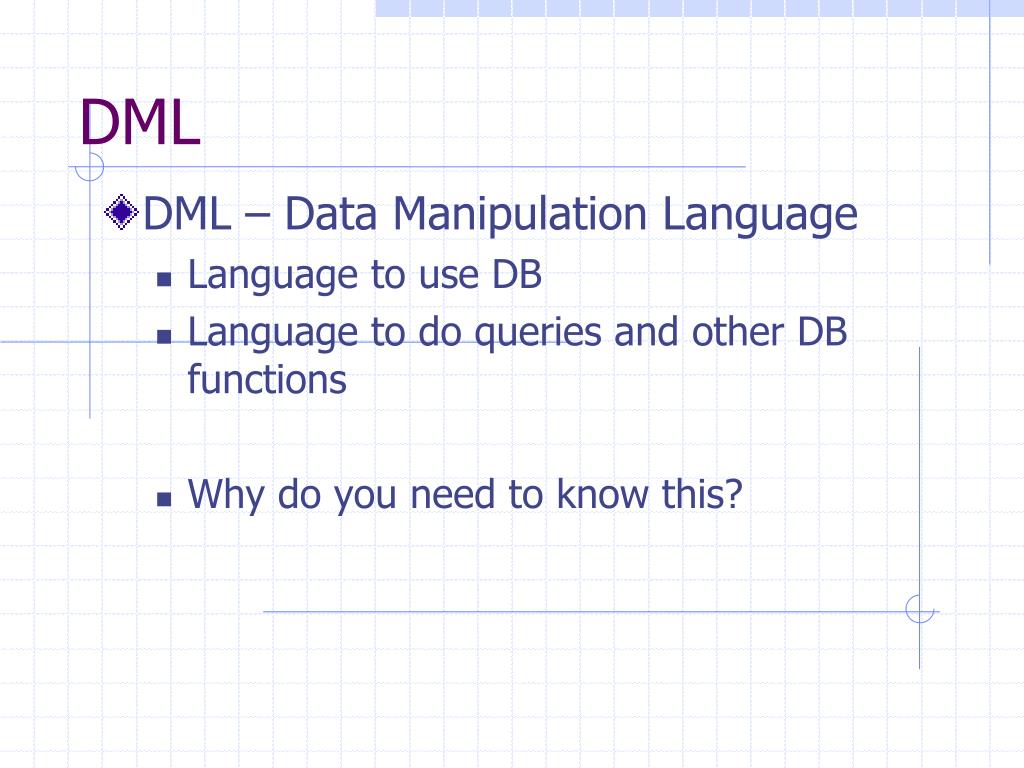

  21. DML DML – Data Manipulation Language Language to use DB Language to do queries and other DB functions Why do you need to know this?

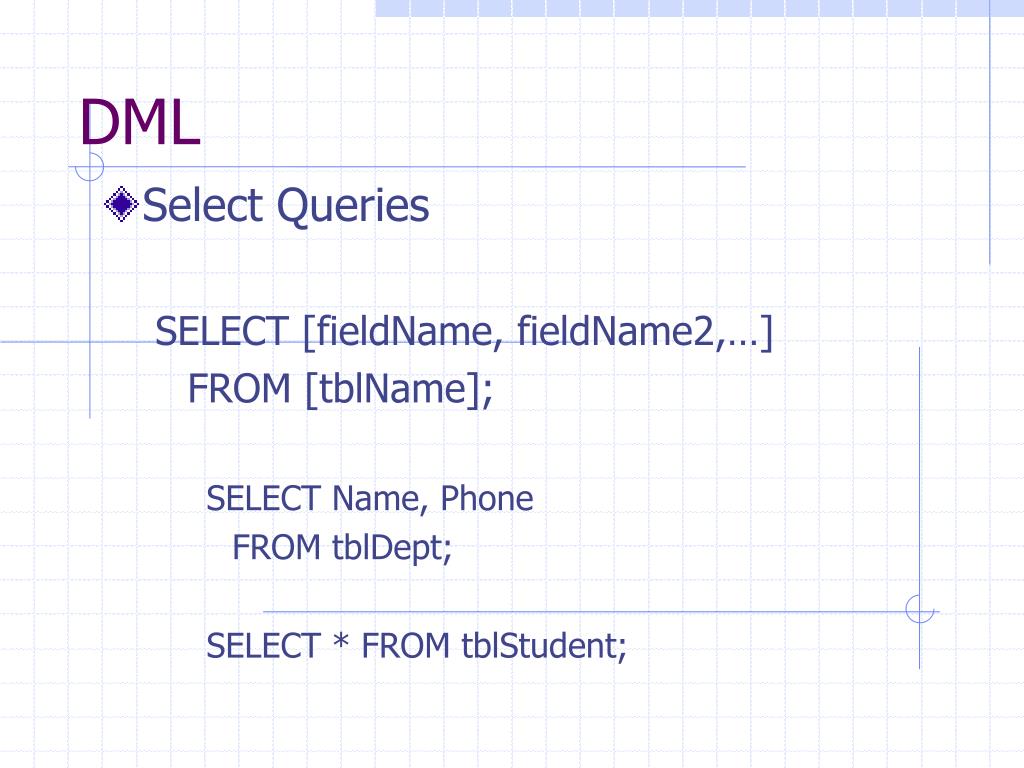

  22. DML Select Queries SELECT [fieldName, fieldName2,…] FROM [tblName]; SELECT Name, Phone FROM tblDept; SELECT * FROM tblStudent;

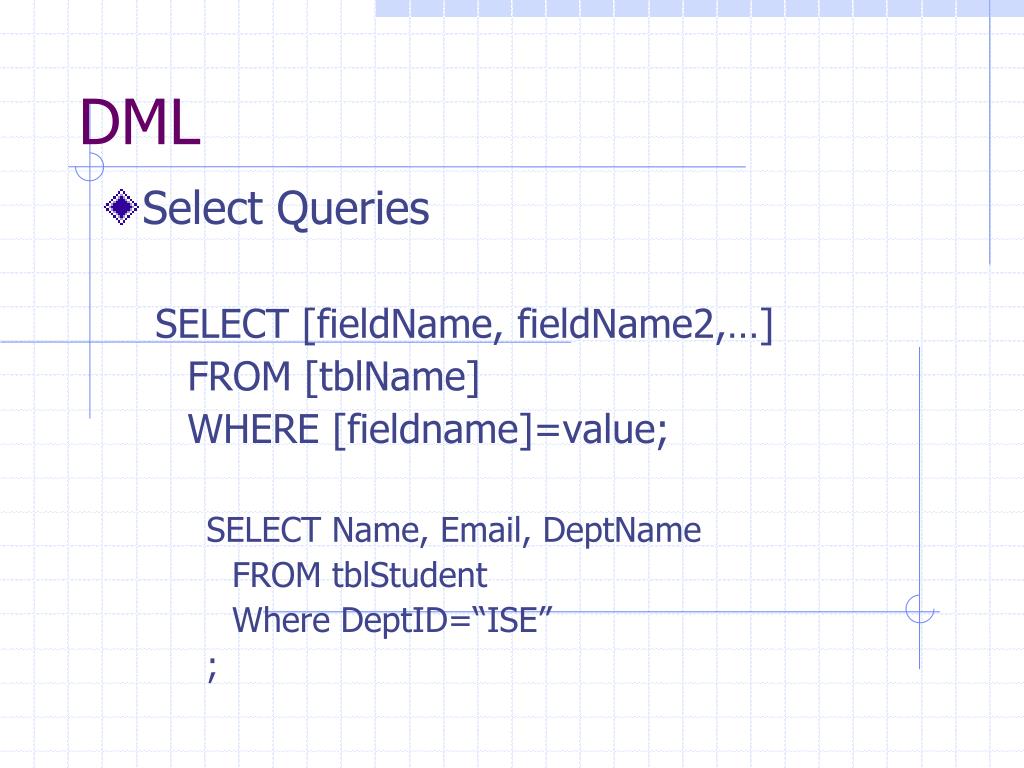

  23. DML Select Queries SELECT [fieldName, fieldName2,…] FROM [tblName] WHERE [fieldname]=value; SELECT Name, Email, DeptName FROM tblStudent Where DeptID=“ISE” ;

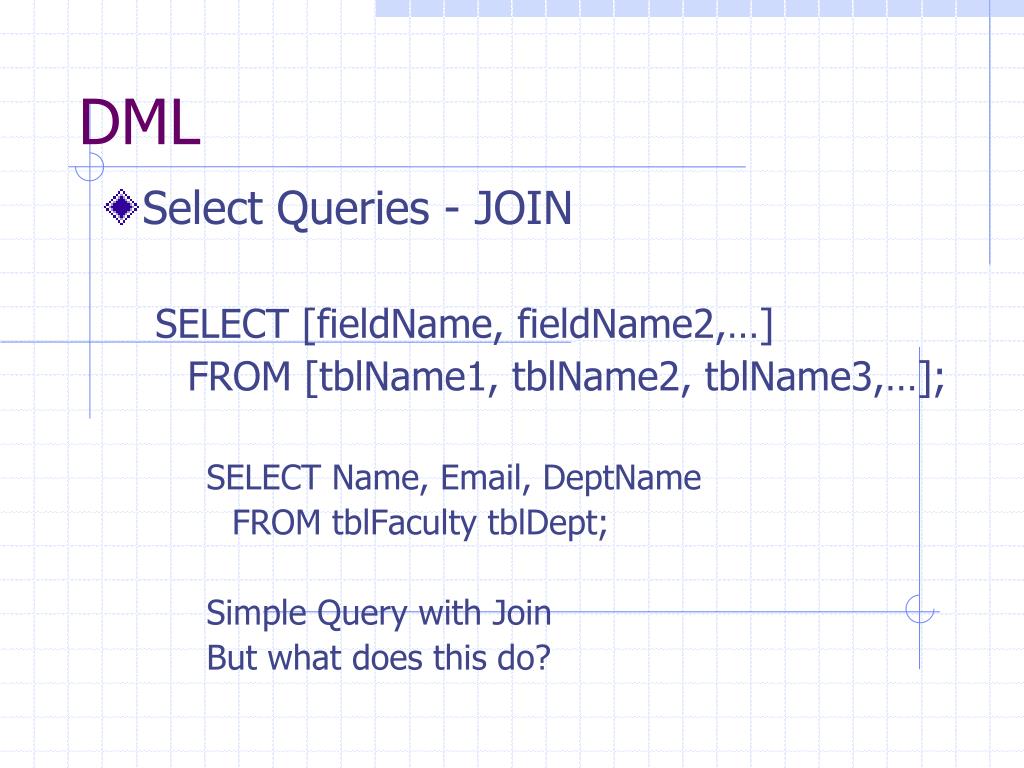

  24. DML Select Queries - JOIN SELECT [fieldName, fieldName2,…] FROM [tblName1, tblName2, tblName3,…]; SELECT Name, Email, DeptName FROM tblFaculty tblDept; Simple Query with Join But what does this do?

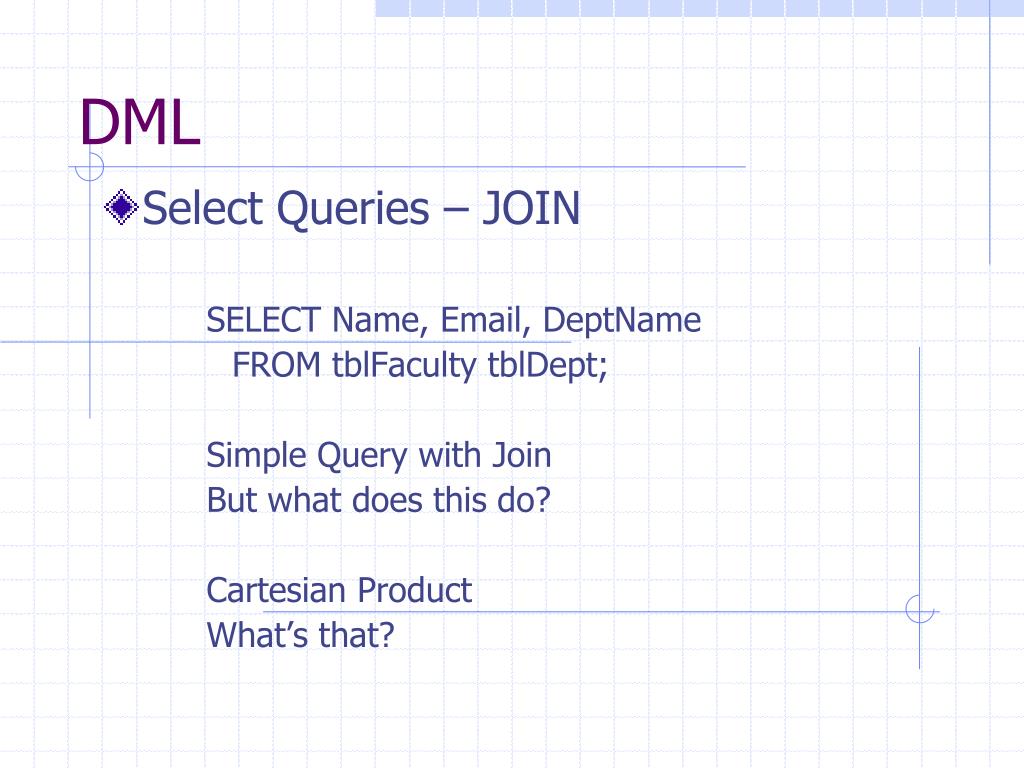

  25. DML Select Queries – JOIN SELECT Name, Email, DeptName FROM tblFaculty tblDept; Simple Query with Join But what does this do? Cartesian Product What’s that?

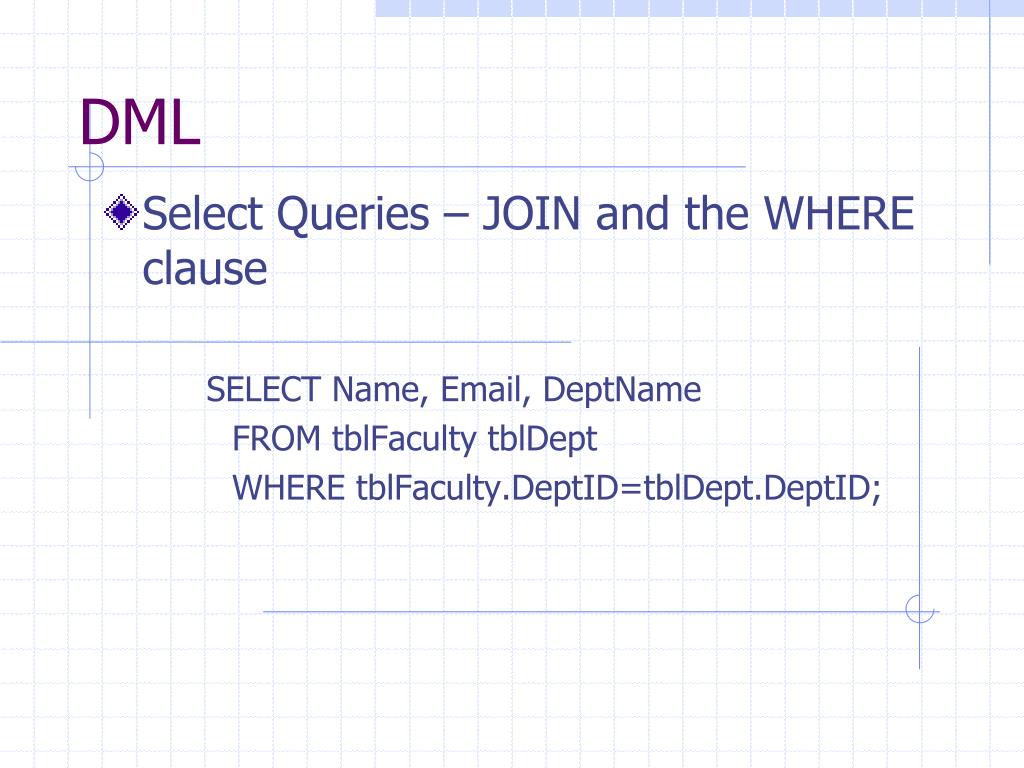

  26. DML Select Queries – JOIN and the WHERE clause SELECT Name, Email, DeptName FROM tblFaculty tblDept WHERE tblFaculty.DeptID=tblDept.DeptID;

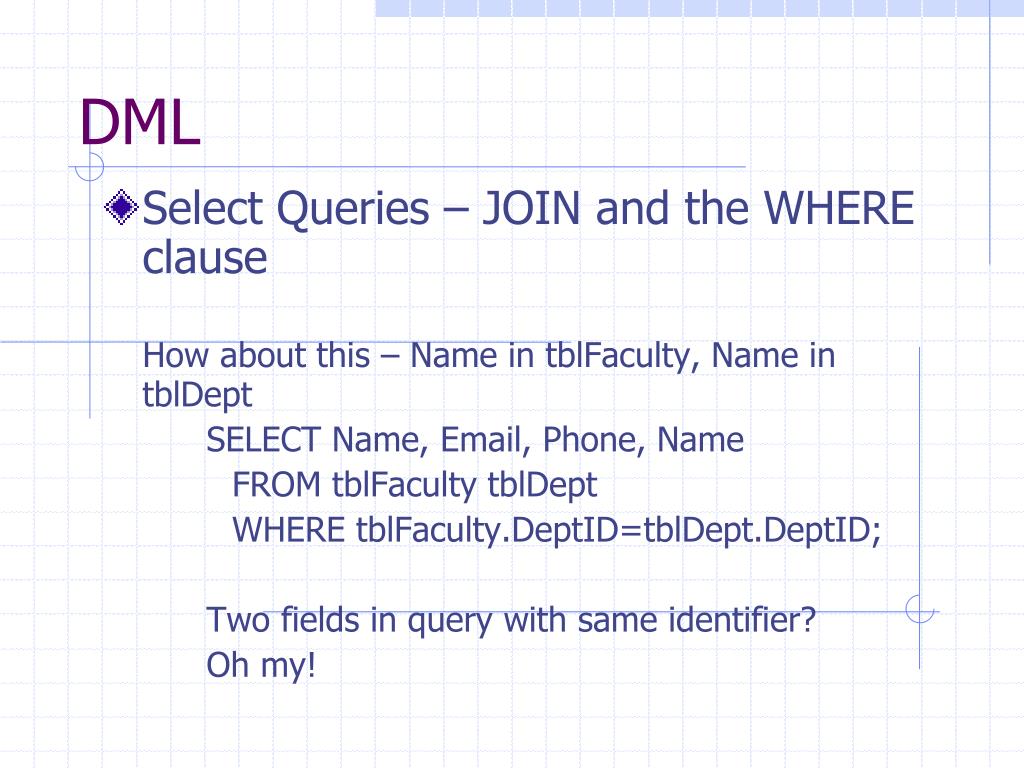

  27. DML Select Queries – JOIN and the WHERE clause How about this – Name in tblFaculty, Name in tblDept SELECT Name, Email, Phone, Name FROM tblFaculty tblDept WHERE tblFaculty.DeptID=tblDept.DeptID; Two fields in query with same identifier? Oh my!

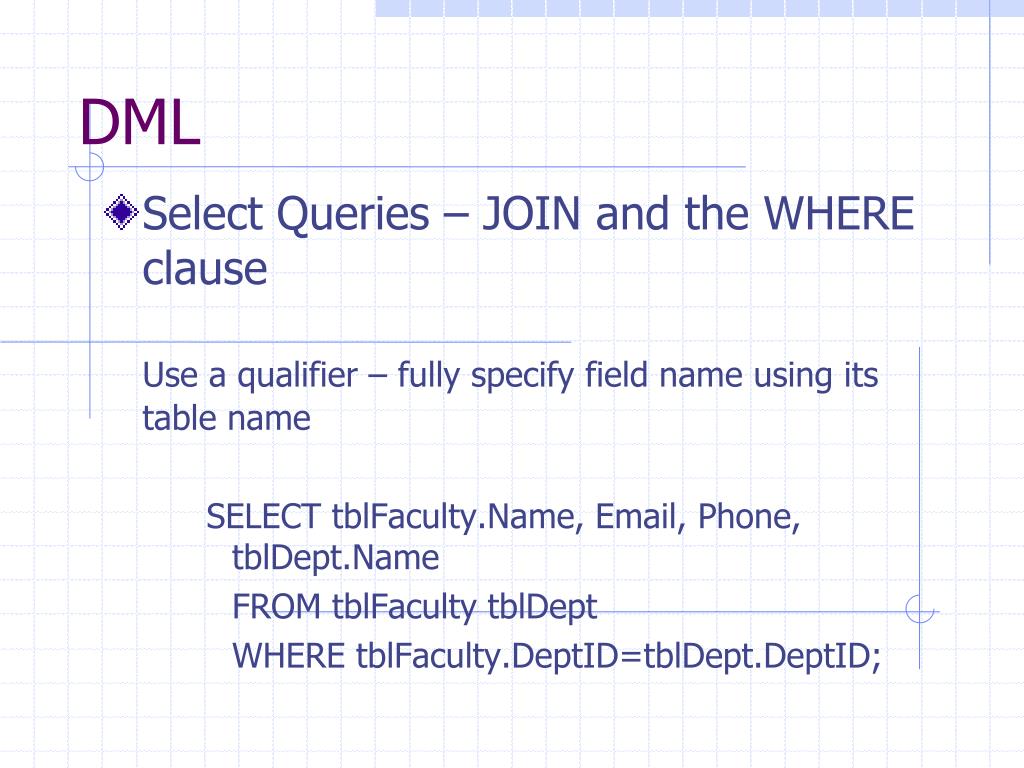

  28. DML Select Queries – JOIN and the WHERE clause Use a qualifier – fully specify field name using its table name SELECT tblFaculty.Name, Email, Phone, tblDept.Name FROM tblFaculty tblDept WHERE tblFaculty.DeptID=tblDept.DeptID;

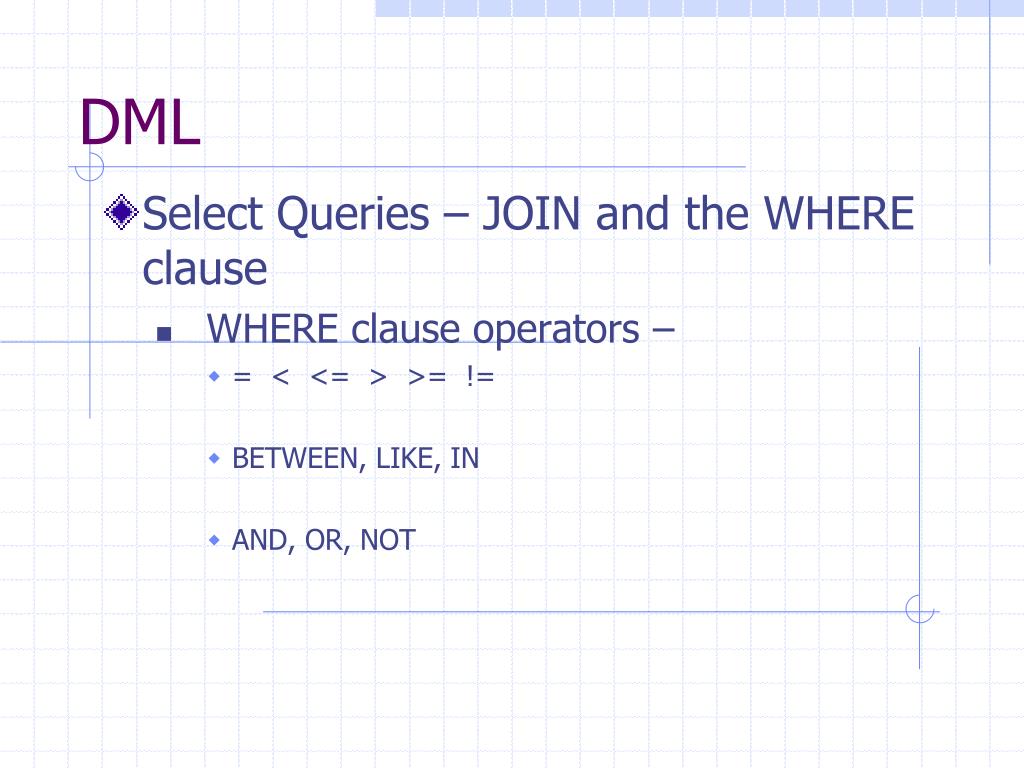

  29. DML Select Queries – JOIN and the WHERE clause WHERE clause operators – = < <= > >= != BETWEEN, LIKE, IN AND, OR, NOT

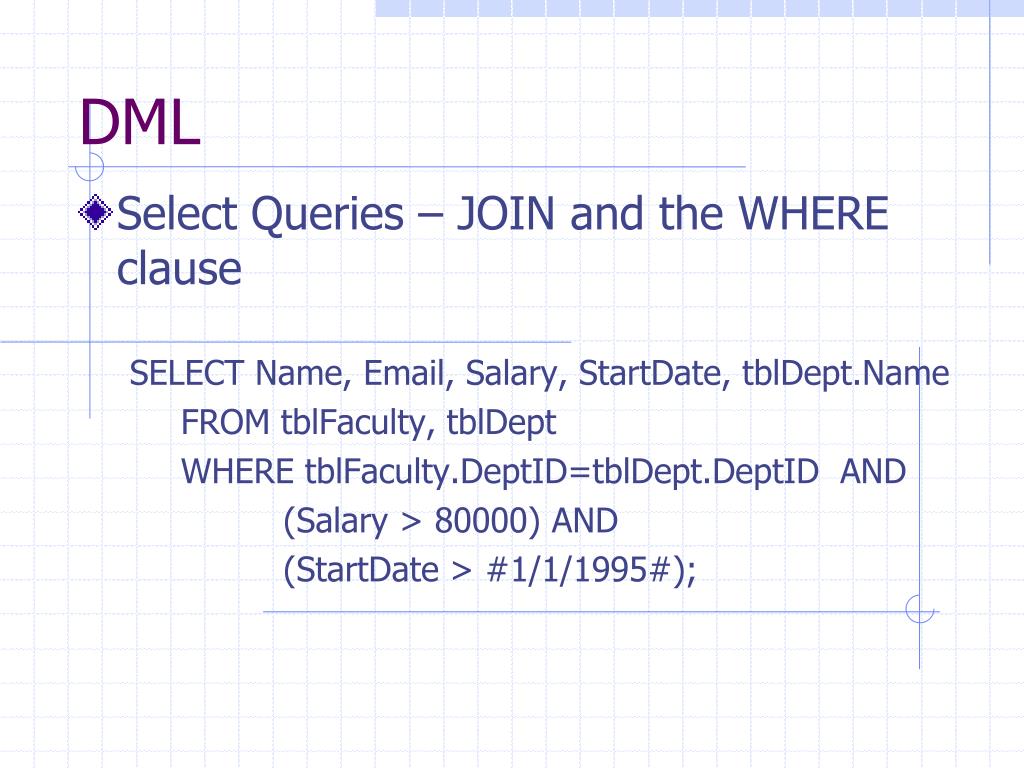

  30. DML Select Queries – JOIN and the WHERE clause SELECT Name, Email, Salary, StartDate, tblDept.Name FROM tblFaculty, tblDept WHERE tblFaculty.DeptID=tblDept.DeptID AND (Salary > 80000) AND (StartDate > #1/1/1995#);

  31. DML Select Queries – JOIN and the WHERE clause BETWEEN – matching a range SELECT Name, Email, Salary, StartDate, tblDept.Name FROM tblFaculty, tblDept WHERE tblFaculty.DeptID=tblDept.DeptID AND (Salary BETWEEN 70000 AND 80000) AND (StartDate > #1/1/1995#);

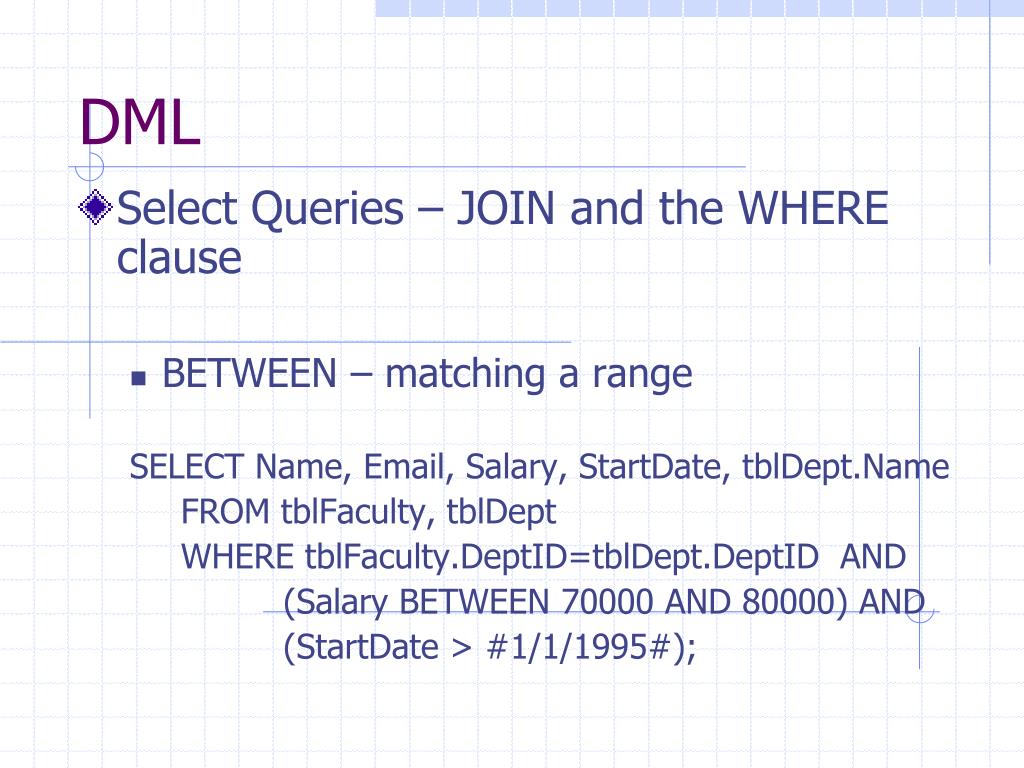

  32. DML Select Queries – JOIN and the WHERE clause BETWEEN – matching a range SELECT Name, Email, Salary, StartDate, tblDept.Name FROM tblFaculty, tblDept WHERE tblFaculty.DeptID=tblDept.DeptID AND (Salary BETWEEN 70000 AND 80000) AND (StartDate > #1/1/1995#);

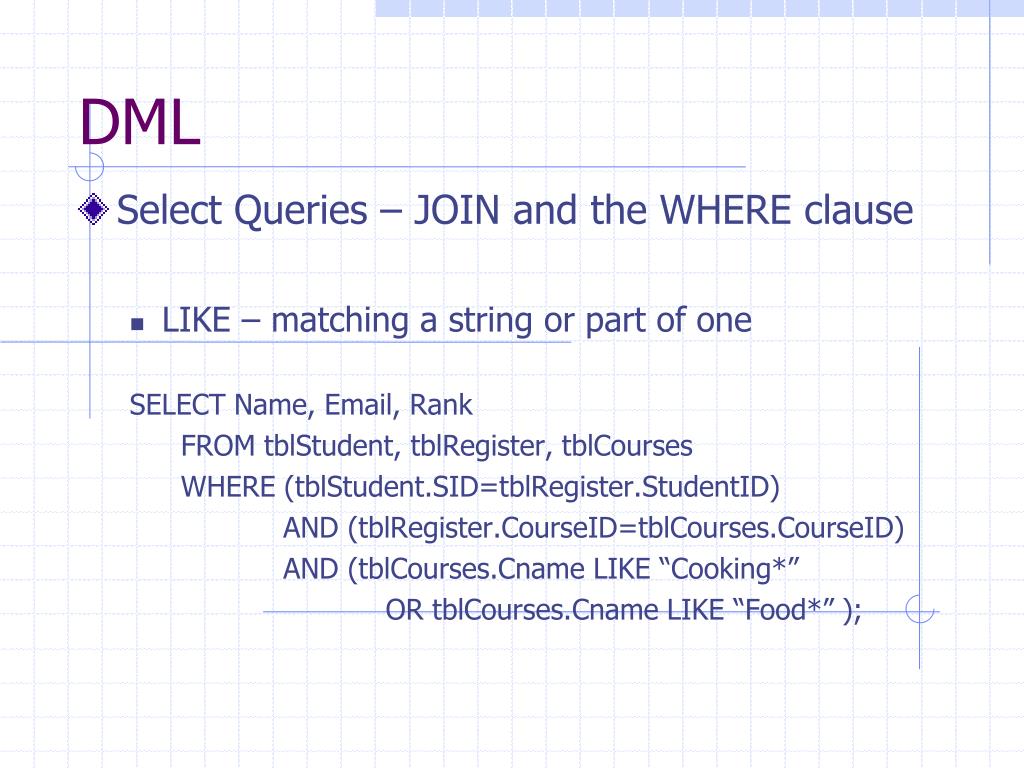

  33. DML Select Queries – JOIN and the WHERE clause LIKE – matching a string or part of one SELECT Name, Email, Rank FROM tblStudent, tblRegister, tblCourses WHERE (tblStudent.SID=tblRegister.StudentID) AND (tblRegister.CourseID=tblCourses.CourseID) AND (tblCourses.Cname LIKE “Cooking*” OR tblCourses.Cname LIKE “Food*” );

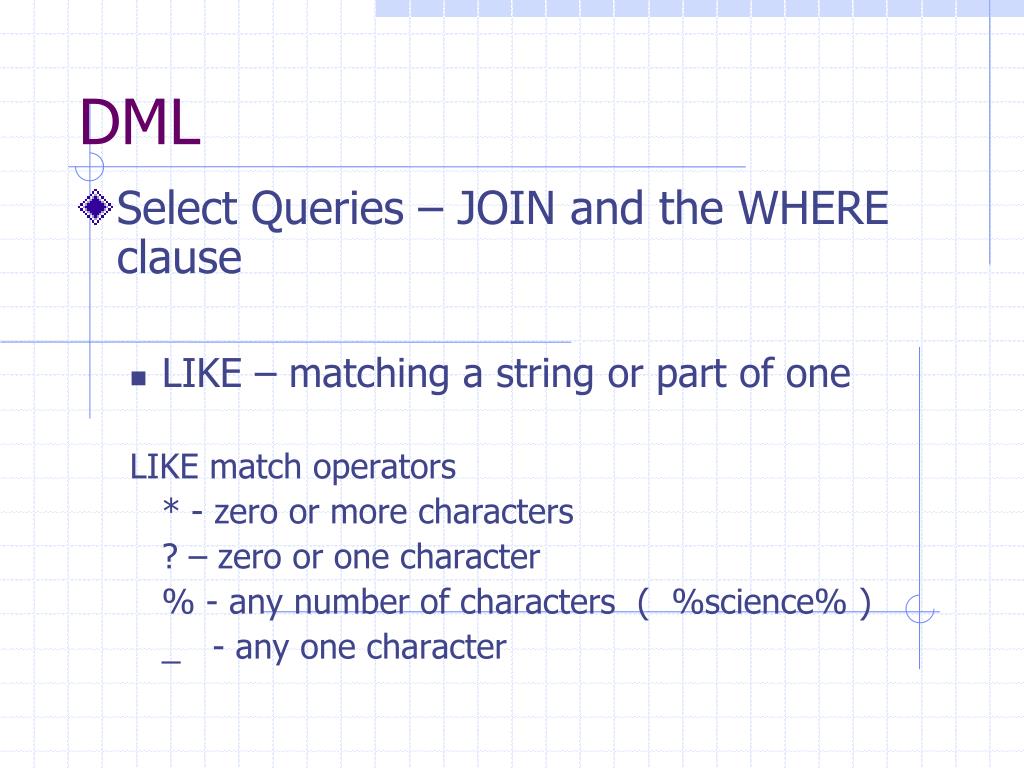

  34. DML Select Queries – JOIN and the WHERE clause LIKE – matching a string or part of one LIKE match operators * - zero or more characters ? – zero or one character % - any number of characters ( %science% ) _ - any one character

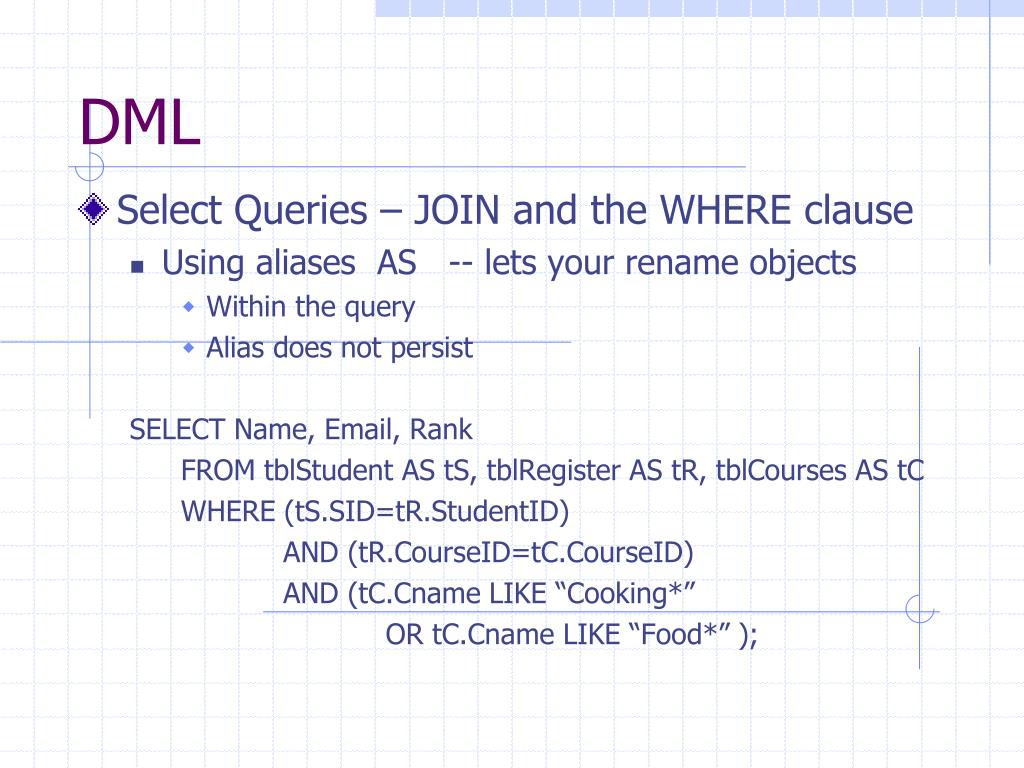

  35. DML Select Queries – JOIN and the WHERE clause Using aliases AS -- lets your rename objects Within the query Alias does not persist SELECT Name, Email, Rank FROM tblStudent AS tS, tblRegister AS tR, tblCourses AS tC WHERE (tS.SID=tR.StudentID) AND (tR.CourseID=tC.CourseID) AND (tC.Cname LIKE “Cooking*” OR tC.Cname LIKE “Food*” );

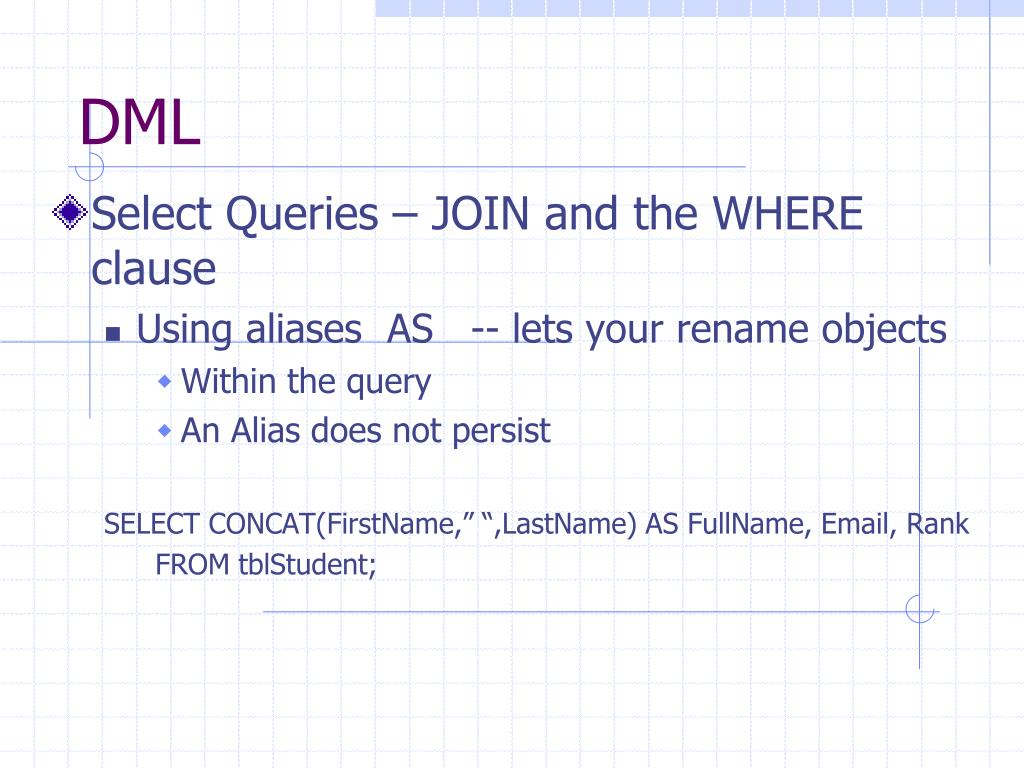

  36. DML Select Queries – JOIN and the WHERE clause Using aliases AS -- lets your rename objects Within the query An Alias does not persist SELECT CONCAT(FirstName,” “,LastName) AS FullName, Email, Rank FROM tblStudent;

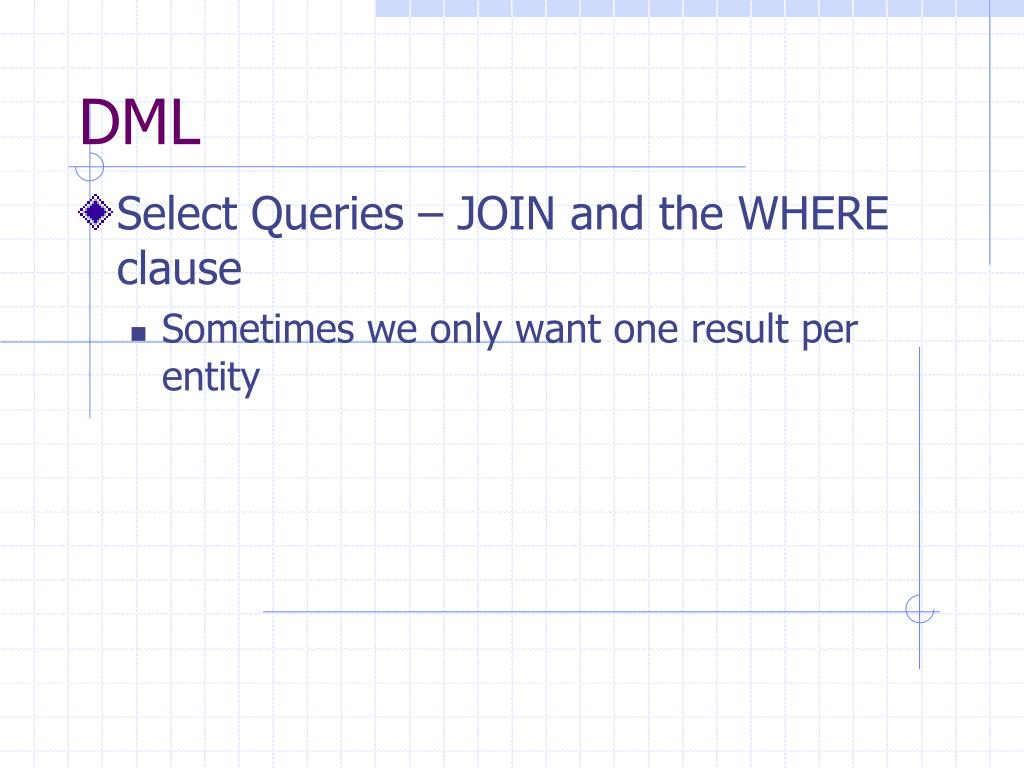

  37. DML Select Queries – JOIN and the WHERE clause Sometimes we only want one result per entity

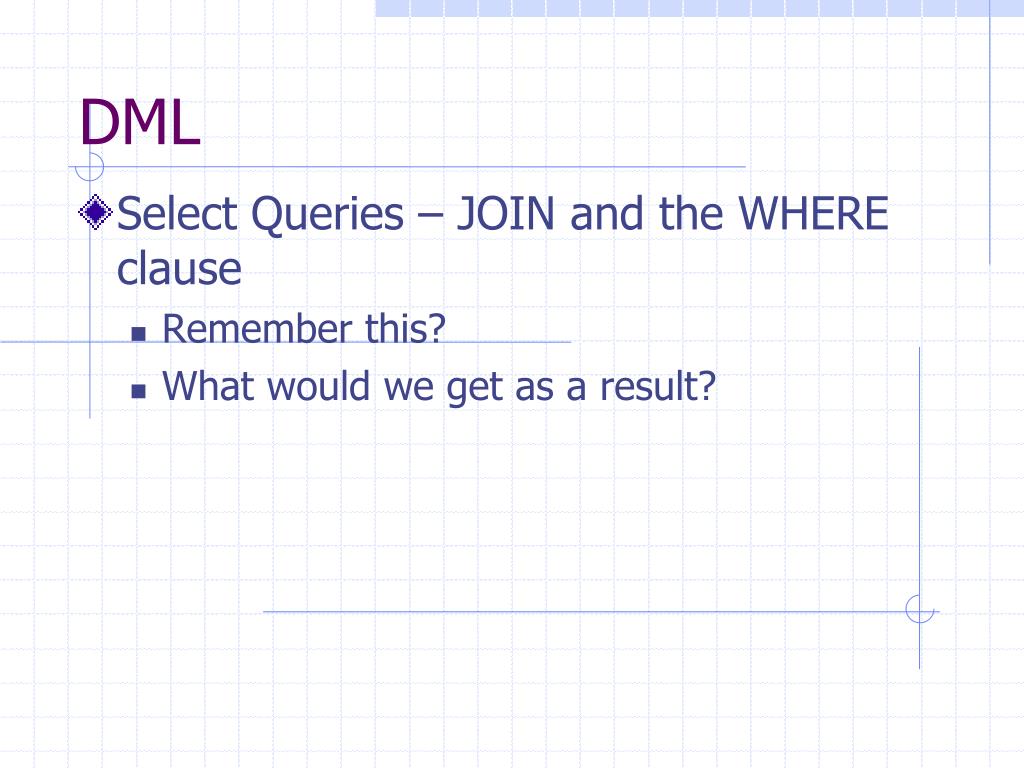

  38. DML Select Queries – JOIN and the WHERE clause Remember this? What would we get as a result?

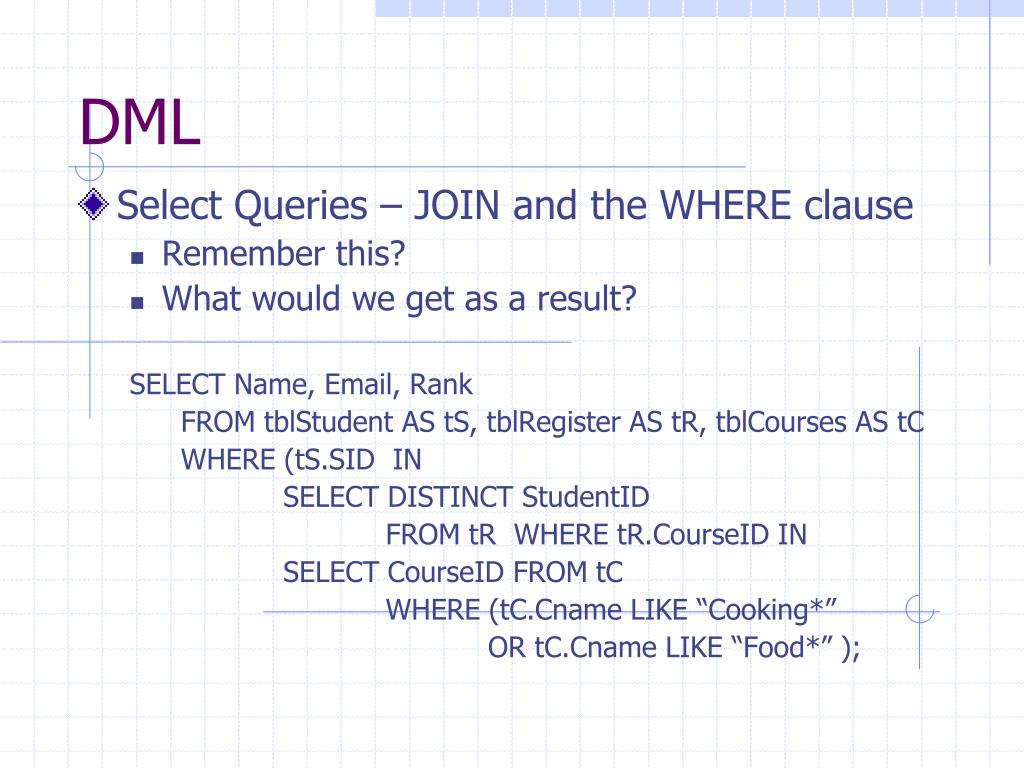

  39. DML Select Queries – JOIN and the WHERE clause Remember this? What would we get as a result? SELECT Name, Email, Rank FROM tblStudent AS tS, tblRegister AS tR, tblCourses AS tC WHERE (tS.SID IN SELECT DISTINCT StudentID FROM tR WHERE tR.CourseID IN SELECT CourseID FROM tC WHERE (tC.Cname LIKE “Cooking*” OR tC.Cname LIKE “Food*” );

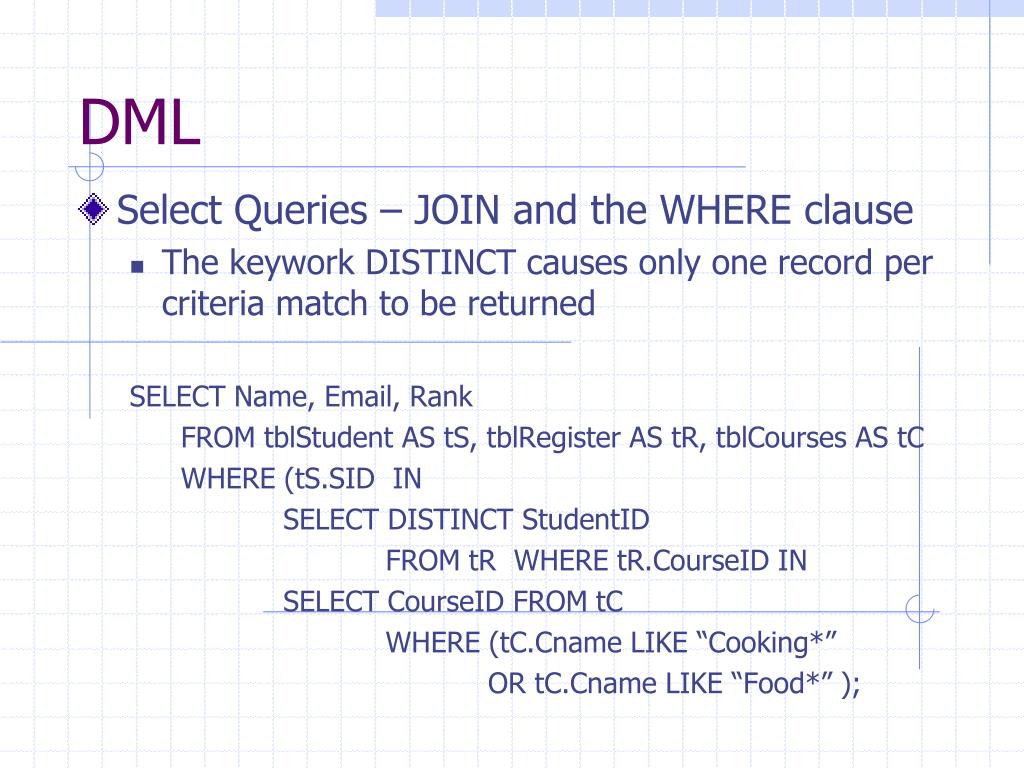

  40. DML Select Queries – JOIN and the WHERE clause The keywork DISTINCT causes only one record per criteria match to be returned SELECT Name, Email, Rank FROM tblStudent AS tS, tblRegister AS tR, tblCourses AS tC WHERE (tS.SID IN SELECT DISTINCT StudentID FROM tR WHERE tR.CourseID IN SELECT CourseID FROM tC WHERE (tC.Cname LIKE “Cooking*” OR tC.Cname LIKE “Food*” );

  41. DML Select Queries – JOIN and the WHERE clause Did you notice something else new? The keyword IN SELECT Name, Email, Rank FROM tblStudent AS tS, tblRegister AS tR, tblCourses AS tC WHERE (tS.SID IN SELECT DISTINCT StudentID FROM tR WHERE tR.CourseID IN SELECT CourseID FROM tC WHERE (tC.Cname LIKE “Cooking*” OR tC.Cname LIKE “Food*” );

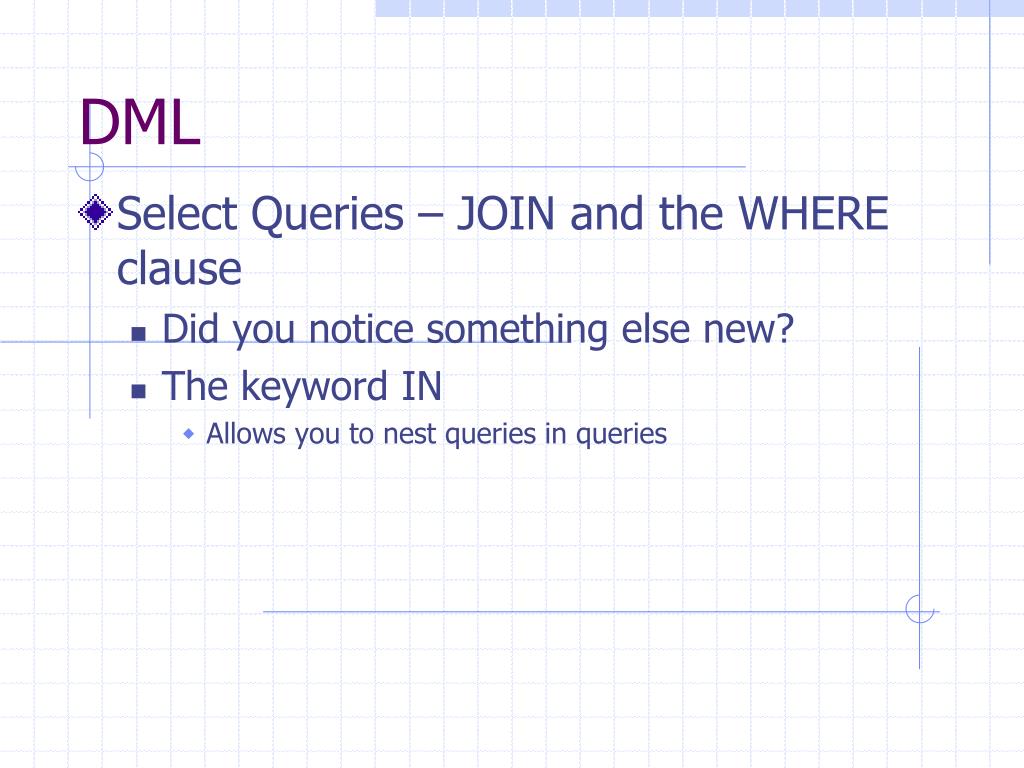

  42. DML Select Queries – JOIN and the WHERE clause Did you notice something else new? The keyword IN Allows you to nest queries in queries

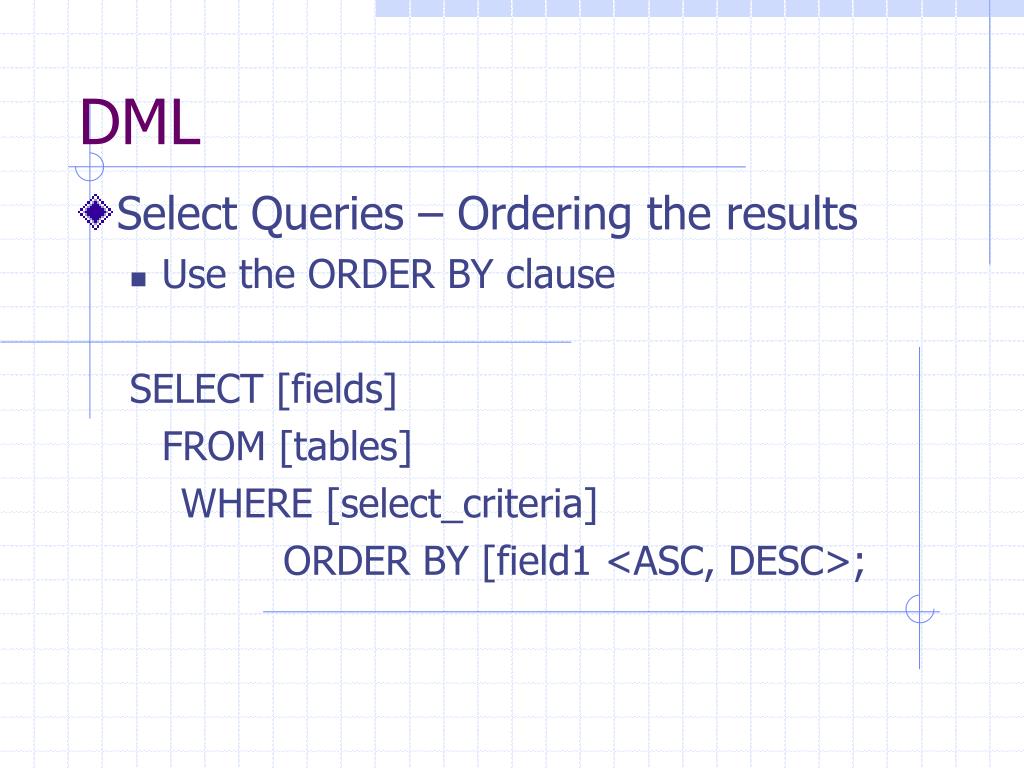

  43. DML Select Queries – Ordering the results Use the ORDER BY clause SELECT [fields] FROM [tables] WHERE [select_criteria] ORDER BY [field1 <ASC, DESC>;

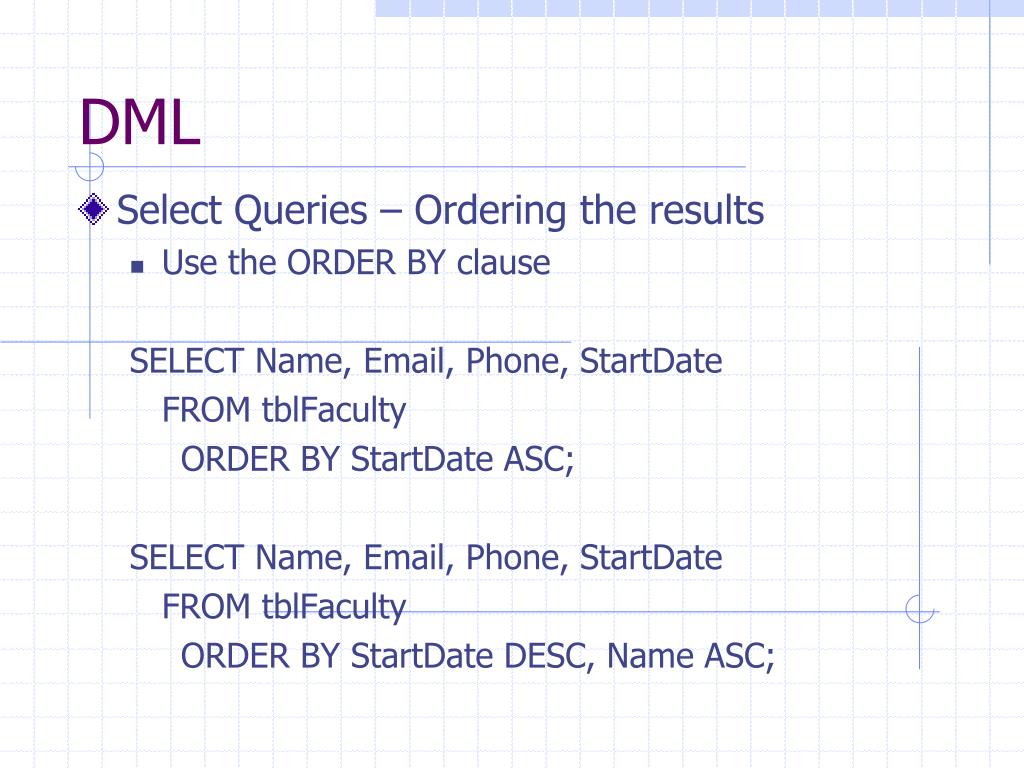

  44. DML Select Queries – Ordering the results Use the ORDER BY clause SELECT Name, Email, Phone, StartDate FROM tblFaculty ORDER BY StartDate ASC; SELECT Name, Email, Phone, StartDate FROM tblFaculty ORDER BY StartDate DESC, Name ASC;

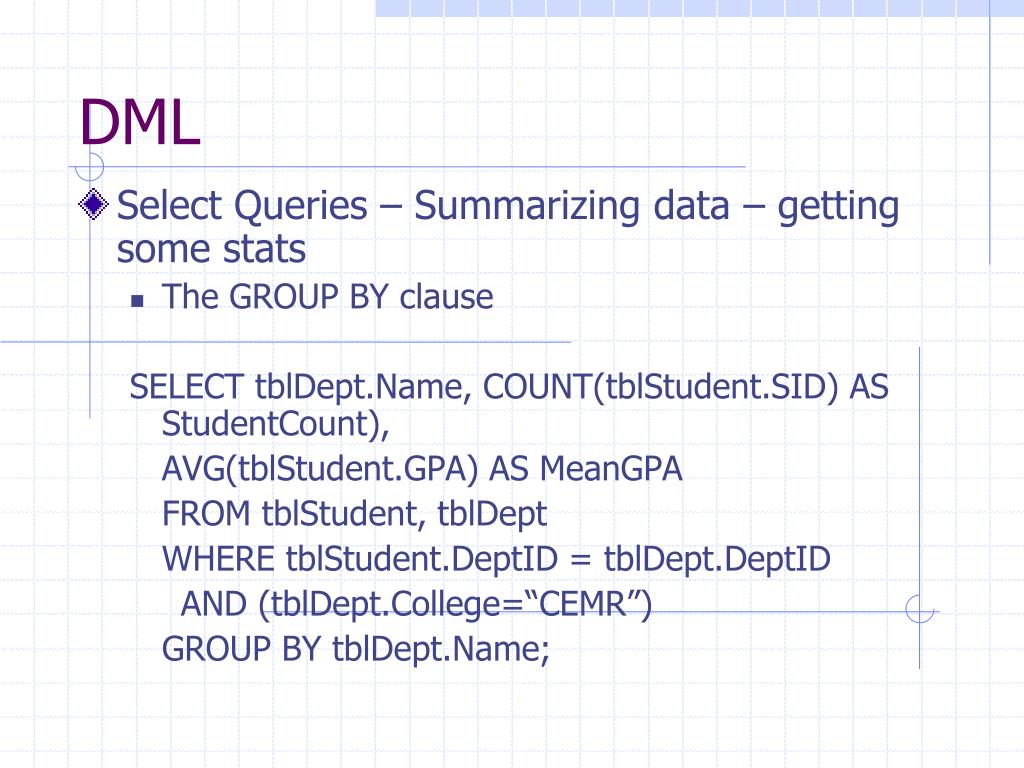

  45. DML Select Queries – Summarizing data – getting some stats The GROUP BY clause SELECT tblDept.Name, COUNT(tblStudent.SID) AS StudentCount), AVG(tblStudent.GPA) AS MeanGPA FROM tblStudent, tblDept WHERE tblStudent.DeptID = tblDept.DeptID AND (tblDept.College=“CEMR”) GROUP BY tblDept.Name;

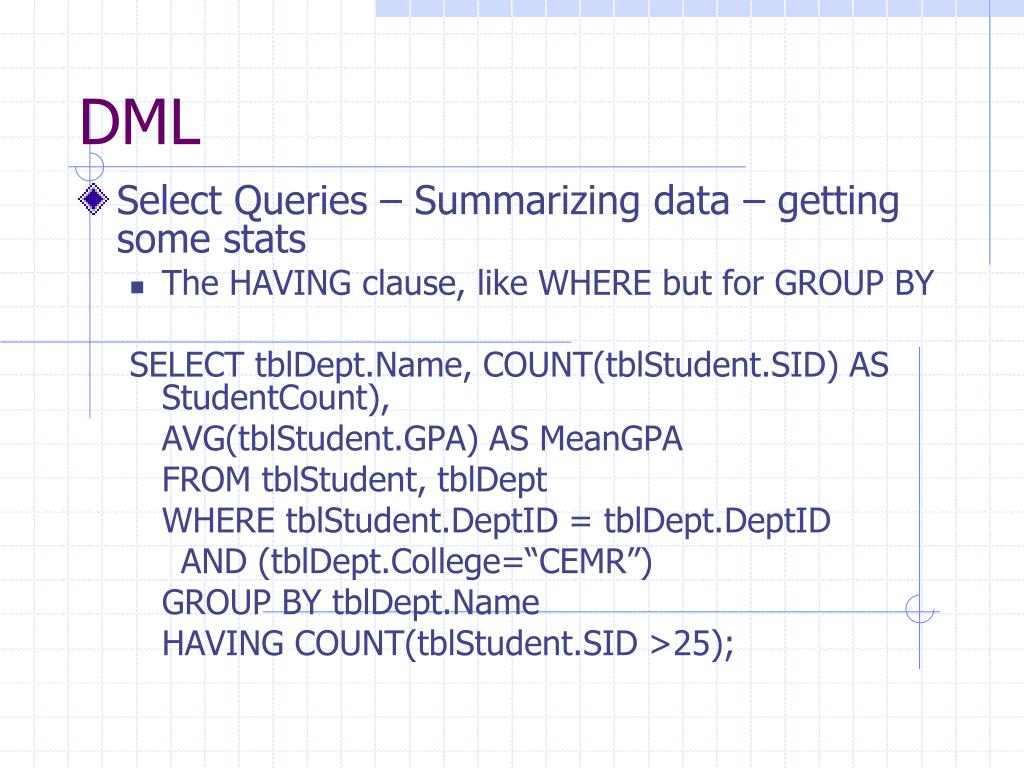

  46. DML Select Queries – Summarizing data – getting some stats The HAVING clause, like WHERE but for GROUP BY SELECT tblDept.Name, COUNT(tblStudent.SID) AS StudentCount), AVG(tblStudent.GPA) AS MeanGPA FROM tblStudent, tblDept WHERE tblStudent.DeptID = tblDept.DeptID AND (tblDept.College=“CEMR”) GROUP BY tblDept.Name HAVING COUNT(tblStudent.SID >25);

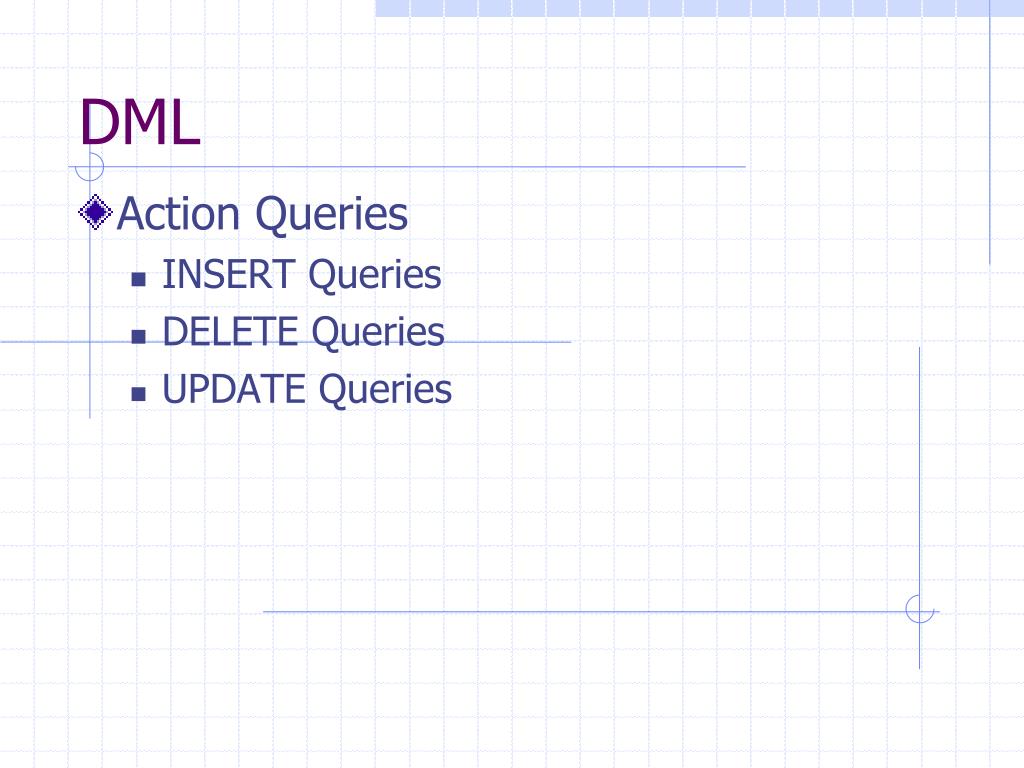

  47. DML Action Queries INSERT Queries DELETE Queries UPDATE Queries

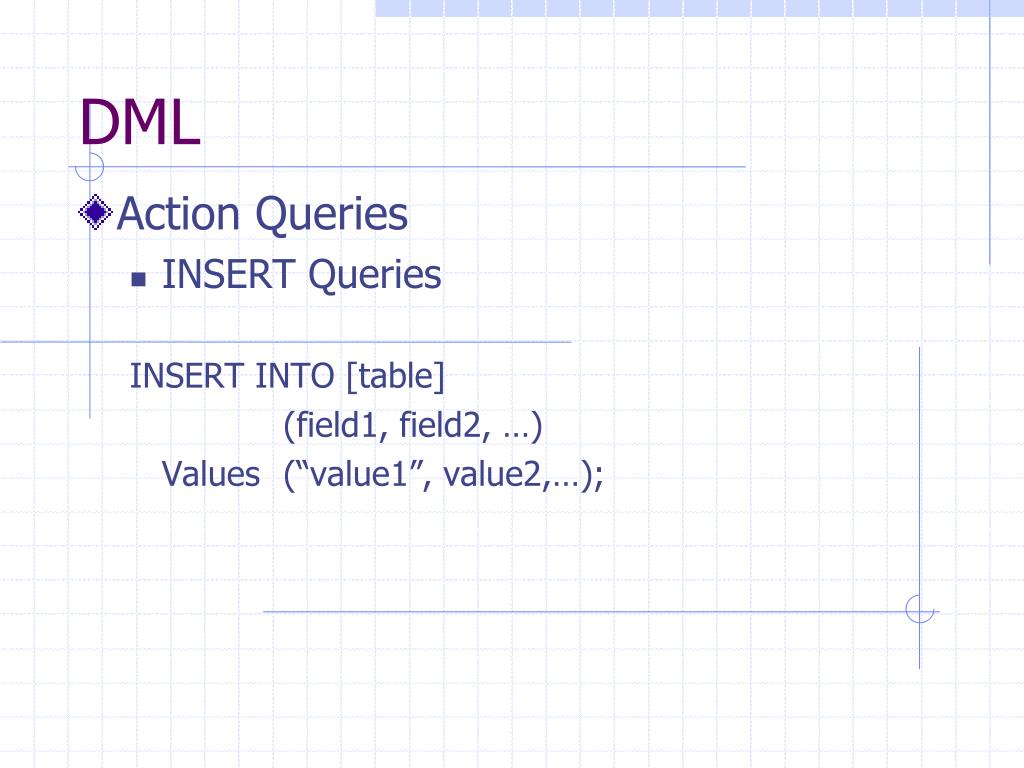

  48. DML Action Queries INSERT Queries INSERT INTO [table] (field1, field2, …) Values (“value1”, value2,…);

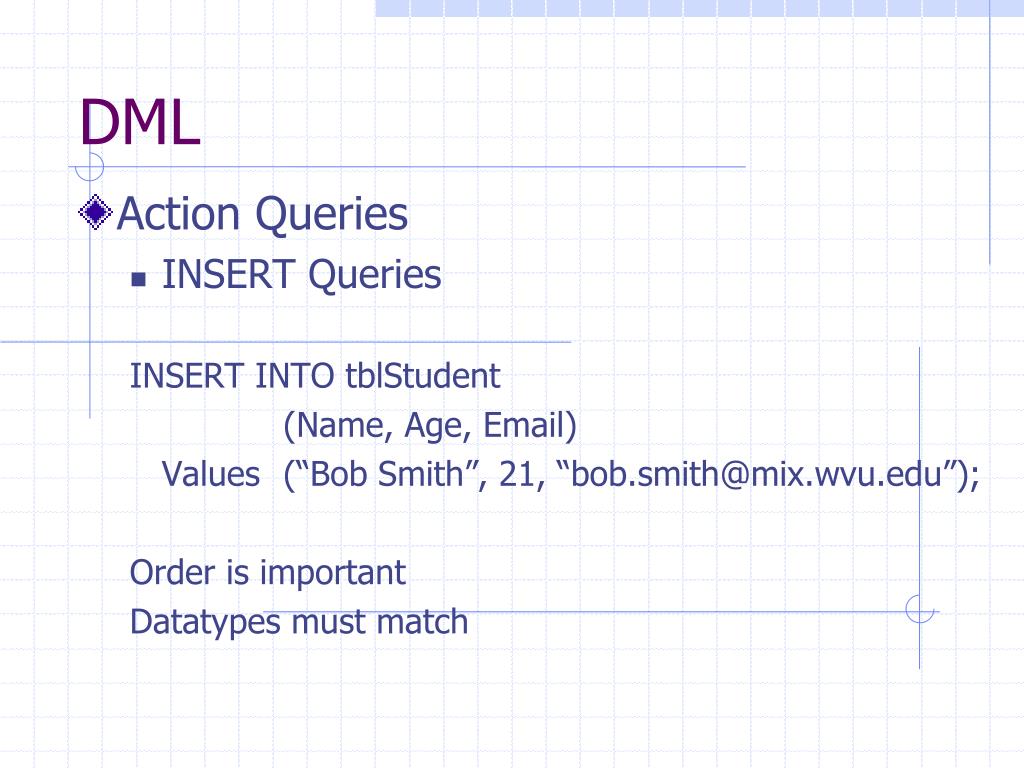

  49. DML Action Queries INSERT Queries INSERT INTO tblStudent (Name, Age, Email) Values (“Bob Smith”, 21, “bob.smith@mix.wvu.edu”); Order is important Datatypes must match

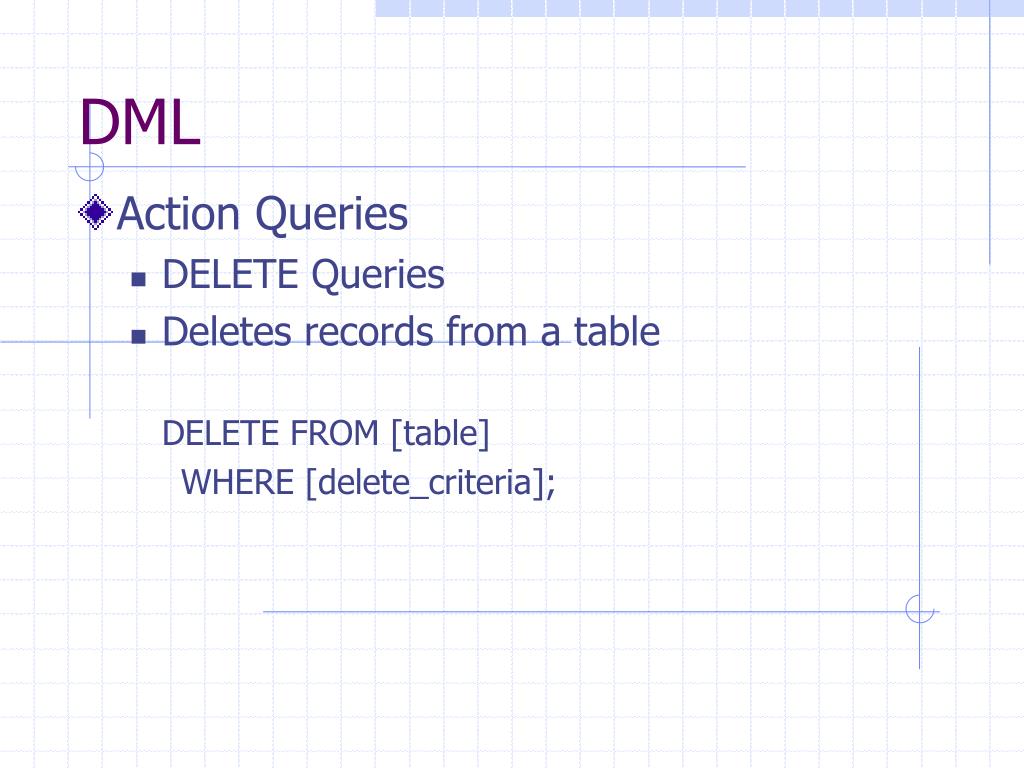

  50. DML Action Queries DELETE Queries Deletes records from a table DELETE FROM [table] WHERE [delete_criteria];
