  1. Day 7:MICROSOFT EXCEL – CHAPTER 10 Cont.MICROSOFT EXCEL – CHAPTER 3 AkhilaKondai akhila.kondai@mail.wvu.edu September 08, 2014

  2. Reminder • Homework # 1 is due on September 12th, 2014, Friday • MyITLab Lesson B is due on September 15th, 2014, Monday • Homework # 2 is due on September 19th, 2014, Friday

  3. Convert Text to Columns • In the imported data, the data may not be structured in a way that meets your needs. • If data is displayed in one column, use the Text to Columns command to separate the data into multiple columns • Convert Text to Columns Wizard guides you through the process of separating data and choosing a delimiting character

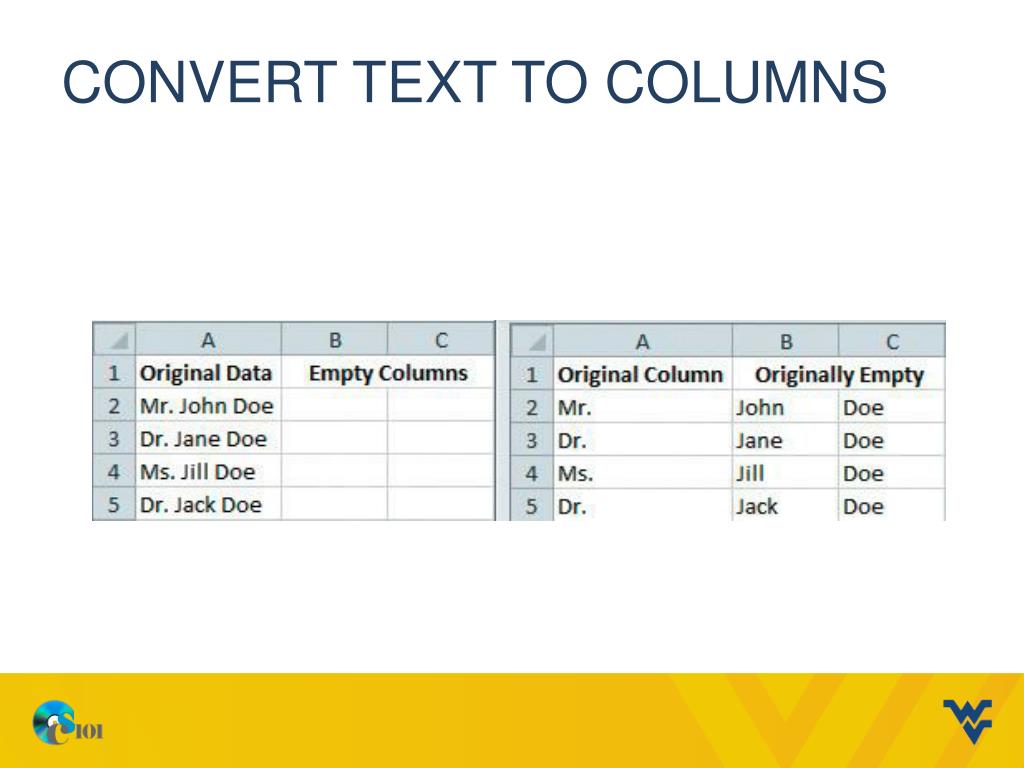

  4. Convert Text to Columns

  5. Text Manipulation • Converting text to columns. • Select the cell or range which contains the delimited text • Go to Data ribbon->Data tools->Text to columns • Manipulating Text with functions. • Concatenate Function combines the text =CONCATENATE(text1,text2) • Proper Function capitalizes the first letter in a text string =PROPER(text) • Upper Function converts the text to upper case =UPPER(text) • Lower Function converts all upper case letters to lower case =LOWER(text)

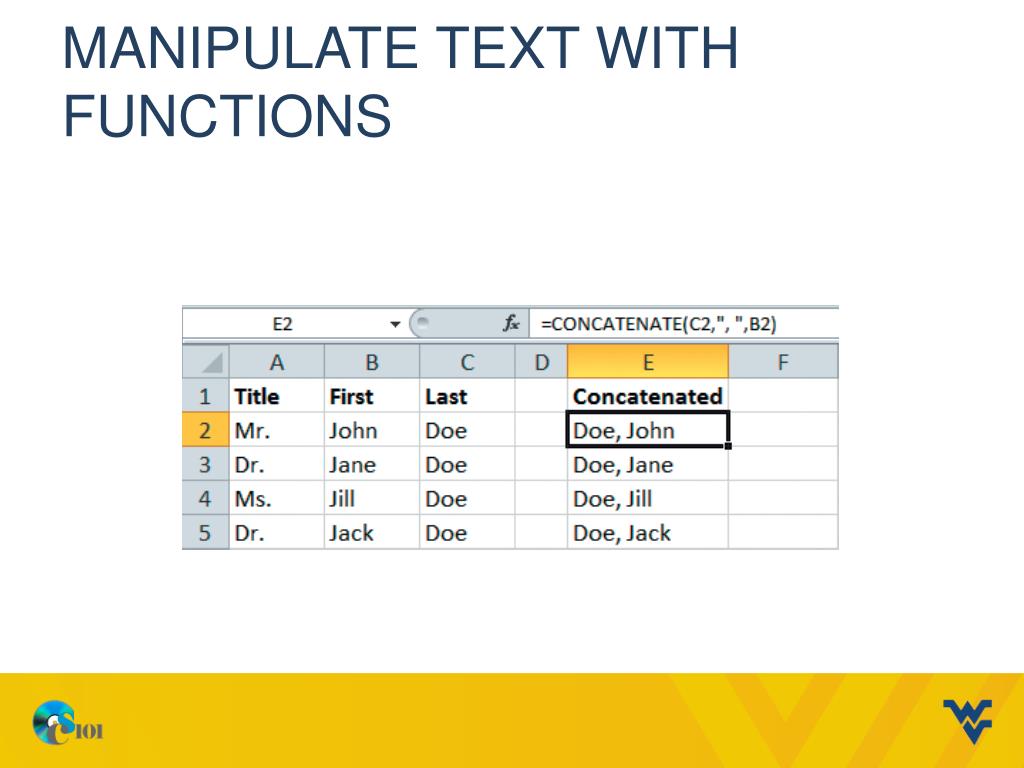

  6. Manipulate Text with Functions

  7. Text Manipulation • Other text functions

  8. Microsoft Excel – Chapter 3.

  9. Chart • Chart gives visual representation of Excel sheet workbook • They allow us to interpret large amount of data easily and quickly.

  10. Chart components • Data Points - A data point is a numeric value that describes a single value on a chart. • Data Series - A data series is a group of related data points. • Category Labels - A category label is text that describes a collection of data points in a chart. • The chart area contains the entire chart and all of its elements. The plot area contains the graphical representation of values in the data series. The X-axis (Category axis) is a horizontal line. The Y-axis (Value axis) is a vertical line.

  11. Chart components

  12. Basic chart types • Pie – Compares parts with the whole • Column – Shows/compares values across different categories • Line charts – Shows trends over time • X-Y Scatter chart – compares pair of values, usually looking for a trend • Other types: Area chart, Stock chart, Surface chart, Doughnut chart, Bubble chart, Radar chart

  13. What they look like Pie Column chart

  14. What they look like.. Line Chart X-Y Scatter plot

  15. Choosing the correct chart type • Choose the chart type that best fits the data • For comparing values from different categories, use • Column, Bar, or Line Chart • For comparing individual values to a whole collection, use • Pie or Doughnut Chart

  16. Creating a Chart • Three main steps to create a chart • Select the Data Source that is the range of cells to chart • Select the chart type • Position and size the chart • You can change the properties of chart using several options available in the LAYOUT ribbon.

  17. Column Chart • A column chart displays data vertically, with each data series forming a column • Go to my lecture notes page, download the ‘majors’ Excel file and open it. • Select the cells A4:A11 and E4:E11 • Insert Tab -> Column chart in Charts section

  18. Clustered Column Chart • Groups or clusters similar data in columns to compare values across categories. • Select the cells A4:E11 • Insert Tab -> Column chart in Charts section (Clustered column chart) • Legendis a key that identifies color, gradient, picture, texture, or pattern fill assigned to each data series in a chart

  19. Stacked Column Chart • Places stacks of data in segments on top of each other in one column, with each category in the data series represented by a different color. • Select the cells A4:E11 • Insert Tab -> Column chart in Charts section (Stacked column chart) • Right click on the chart and select “Select Data” and click “ Switch row/columns ”

  20. 100% Stacked Column Chart • Compares the percentage that each data point contributes to the total for each category. • Select the cells A4:E11 • Insert Tab -> Column chart in Charts section (100% Stacked column chart) • Right click on the chart and select “Select Data” and click “ Switch row/columns ”

  21. Bar Chart • Bar chart compares values across categories using horizontal bars. • Width of the bar indicates its value. • Create a Bar Chart for the given Majors work sheet

  22. Line Chart • Line chart uses a line to connect data points in order to show trends over a period of time. • Different color for each data series. • Create a Line Chart for the given Majors work sheet.

  23. Pie Chart • Pie chart shows each data point in proportion to the whole data series as a slice in a circular pie. • To create a pie chart for 2012, Select the cells A4:A11 and E4:E11 • Insert Tab -> Pie chart in Charts section

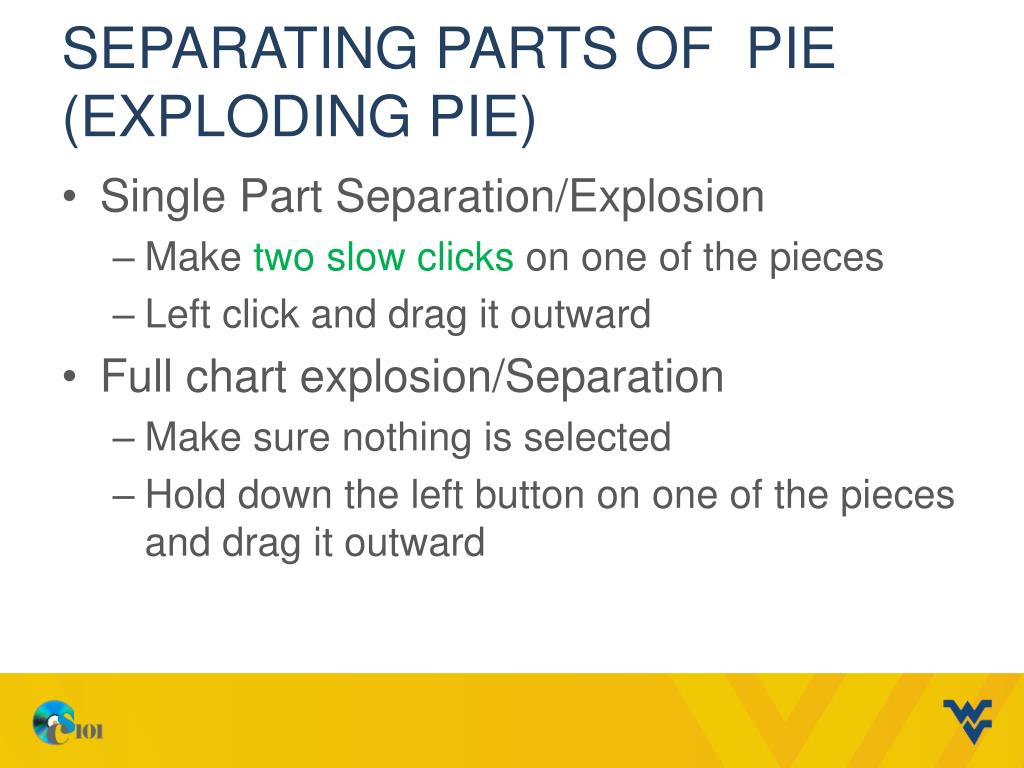

  24. Separating Parts of Pie (Exploding Pie) • Single Part Separation/Explosion • Make two slow clicks on one of the pieces • Left click and drag it outward • Full chart explosion/Separation • Make sure nothing is selected • Hold down the left button on one of the pieces and drag it outward

  25. Changing the Chart Type • Click the Design tab • Click Change Chart Type in the Type section • Select the desired chart type and click OK • For example you can change a stacked column chart to 100% stacked column chart

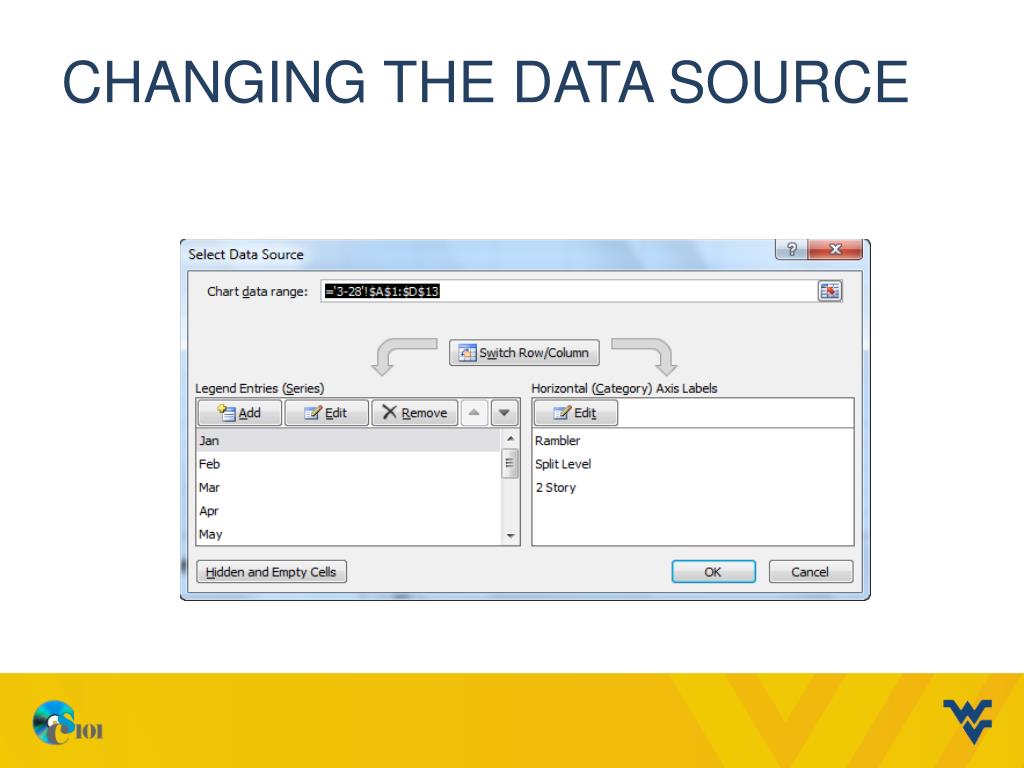

  26. Changing the Data Source

  27. Moving a Chart • To move a chart: • Click the Design tab • Click Move Chart under the Location group

  28. Printing a Chart • To print an embedded chart: • Select the chart • Click the File tab • Click Print to display the Backstage view • Use the Print Selected Chart option • To print a chart sheet: • Use the Print Active Sheet option

  29. Creating a Sparkline • A Sparkline is a miniature chart displayed in a single cell • To create a sparkline • Click the Insert Tab • Click Line, Column, or Win/Loss in the Sparklines group.

  30. Customizing Chart Labels • A chart title is the label that describes the entire chart • An axis title is a label that describes either the category or value axis • A legend is used to distinguish data points in a pie chart or data series in a multiple series chart • A data label is the value or name of a data point • A data table is a grid that contains the data source values and labels.

  31. Axes and Gridlines • Based on the data source values, Excel computes starting, ending, and incremental values for display on the value axis. • A gridline is a horizontal or vertical line through the plot area.

  32. Adding a Trendline • A trendline is a line used to depict trends and forecast future data.

  33. Trendlines • Trend Types • Linear • Exponential • Logarithmic • Polynomial • Power etc.,. • Forecast • R-Squared Value

  34. Next Class • Working with Tables and Worksheets. • Homework # 1 overview

  35. Questions ?
