Supplementary Figure 1

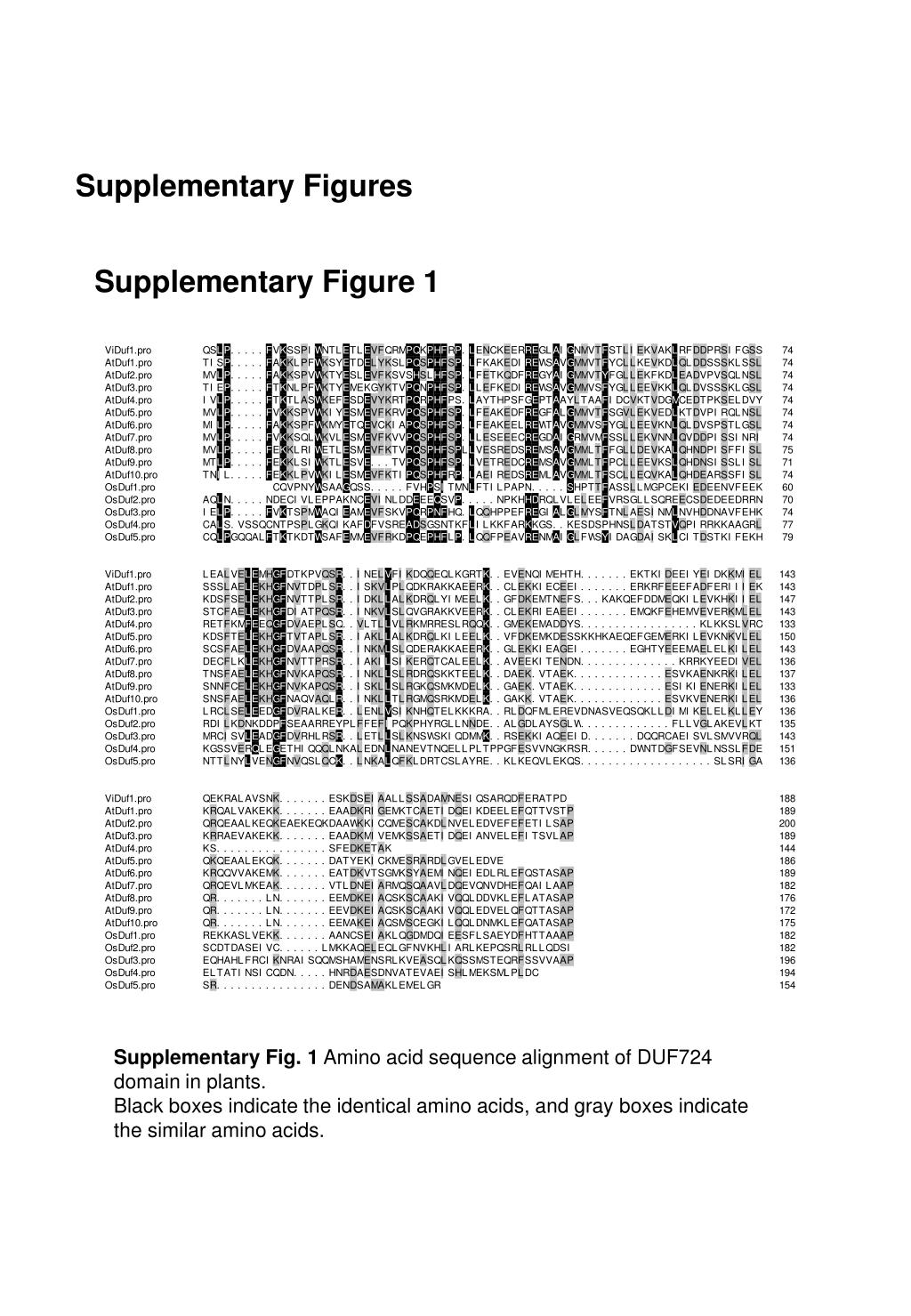

Supplementary Figures. Supplementary Figure 1. Supplementary Fig. 1 Amino acid sequence alignment of DUF724 domain in plants. Black boxes indicate the identical amino acids, and gray boxes indicate the similar amino acids. ViDuf1. 91. PtDuf1. PtDuf2. 100. AtDuf1. AtDuf3. 90. 100. 97.

dard
Download Presentation

Supplementary Figure 1

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Supplementary Figures Supplementary Figure 1 Supplementary Fig. 1 Amino acid sequence alignment of DUF724 domain in plants. Black boxes indicate the identical amino acids, and gray boxes indicate the similar amino acids.

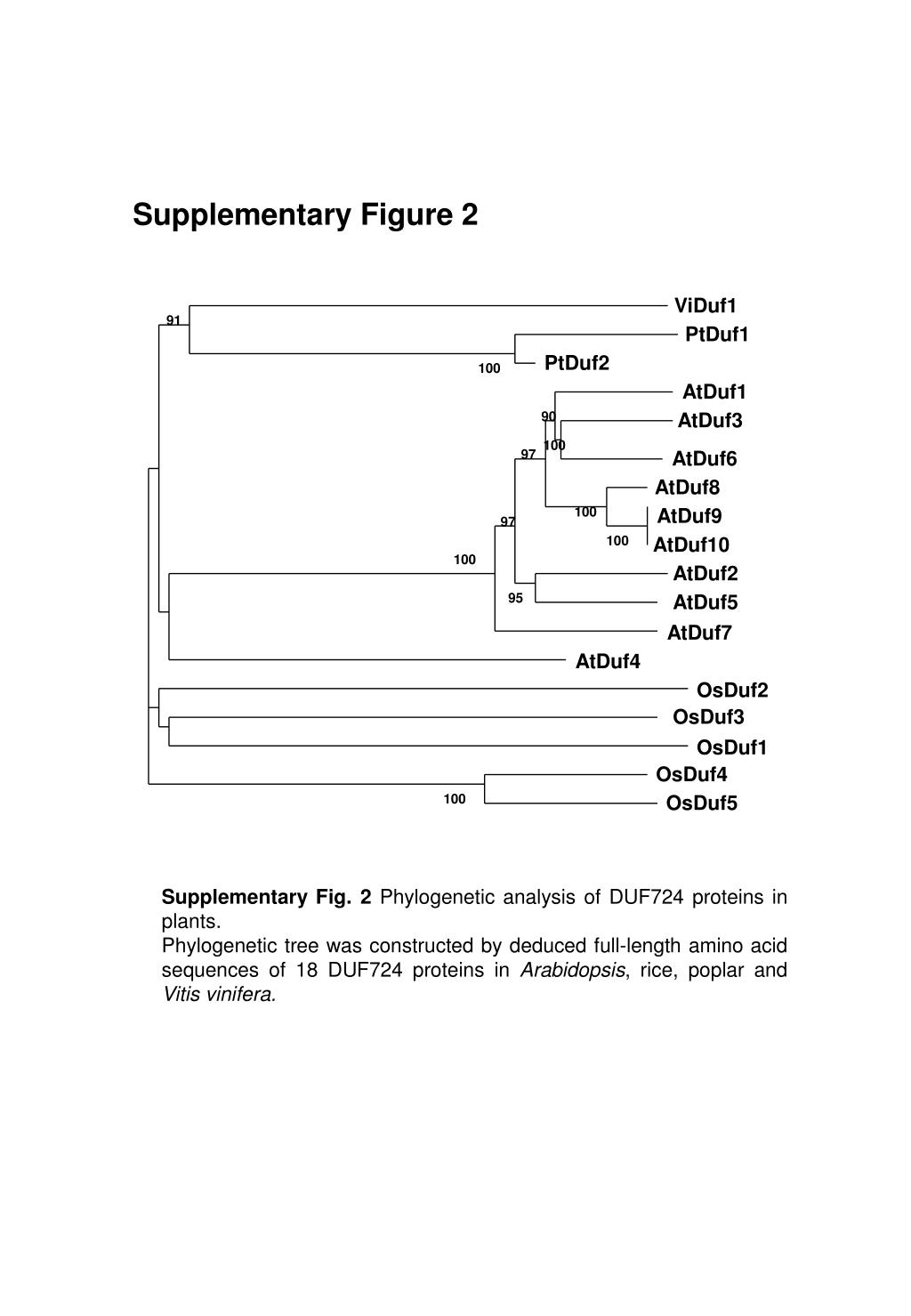

  2. ViDuf1 91 PtDuf1 PtDuf2 100 AtDuf1 AtDuf3 90 100 97 AtDuf6 AtDuf8 AtDuf9 100 97 100 AtDuf10 100 AtDuf2 95 AtDuf5 AtDuf7 AtDuf4 OsDuf2 OsDuf3 OsDuf1 OsDuf4 100 OsDuf5 Supplementary Figure 2 Supplementary Fig. 2 Phylogenetic analysis of DUF724 proteins in plants. Phylogenetic tree was constructed by deduced full-length amino acid sequences of 18 DUF724 proteins in Arabidopsis, rice, poplar and Vitis vinifera.

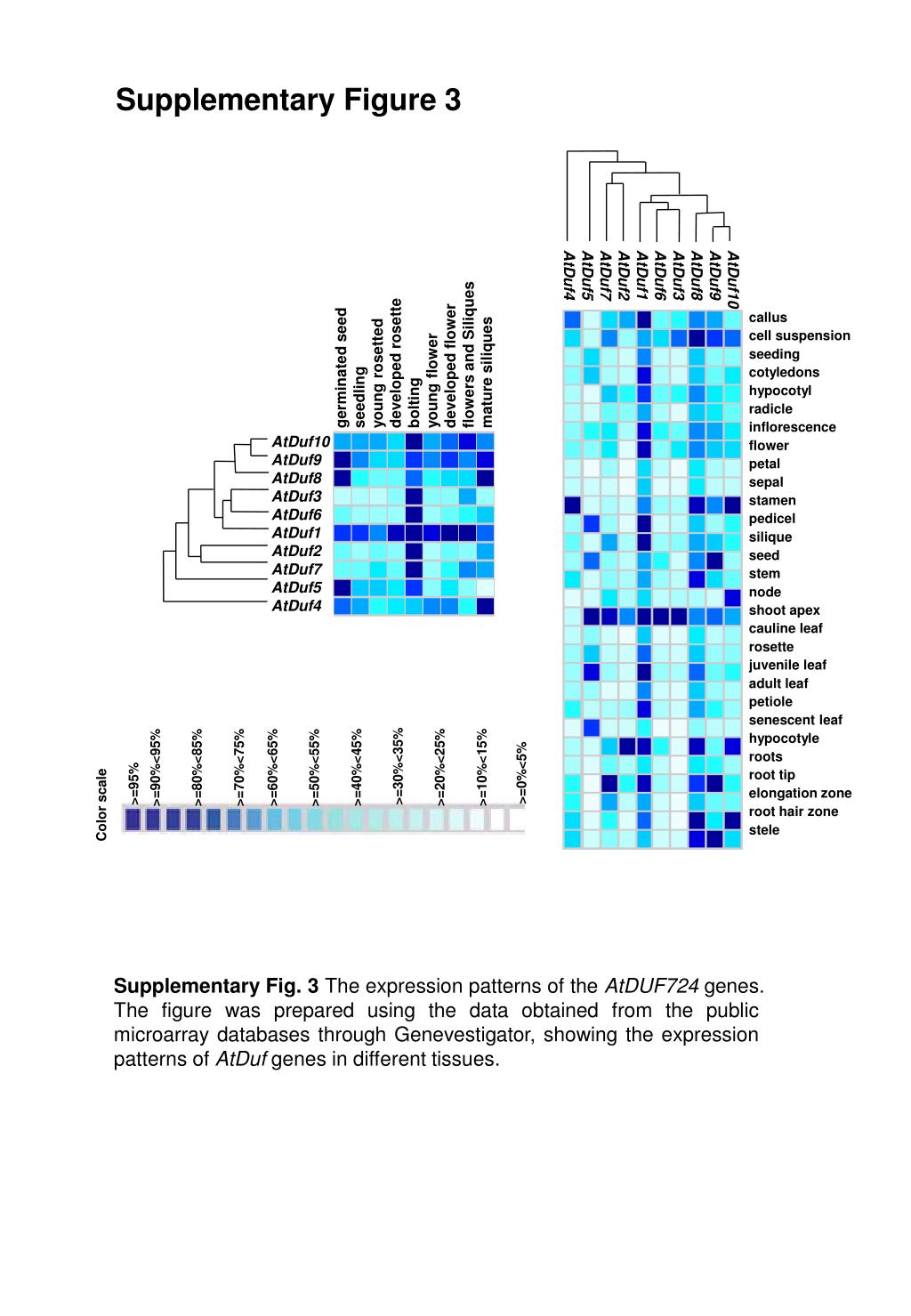

  3. AtDuf10 AtDuf9 AtDuf8 AtDuf3 AtDuf6 AtDuf1AtDuf2 AtDuf7 AtDuf5AtDuf4 callus cell suspension seeding cotyledons hypocotyl radicle inflorescence flower petal sepal stamen pedicel silique seed stem node shoot apex cauline leaf rosette juvenile leaf adult leaf petiole senescent leaf hypocotyle roots root tip elongation zone root hair zone stele germinated seed seedling young rosetted developed rosette bolting young flower developed flower flowers and Siliques mature siliques Color scale >=95% >=90%<95% >=80%<85% AtDuf10 AtDuf9 AtDuf8 AtDuf3 AtDuf6 AtDuf1AtDuf2 AtDuf7 AtDuf5AtDuf4 >=70%<75% >=60%<65% >=50%<55% >=40%<45% >=30%<35% >=20%<25% >=10%<15% >=0%<5% Supplementary Figure 3 Supplementary Fig. 3 The expression patterns of the AtDUF724 genes. The figure was prepared using the data obtained from the public microarray databases through Genevestigator, showing the expression patterns of AtDuf genes in different tissues.

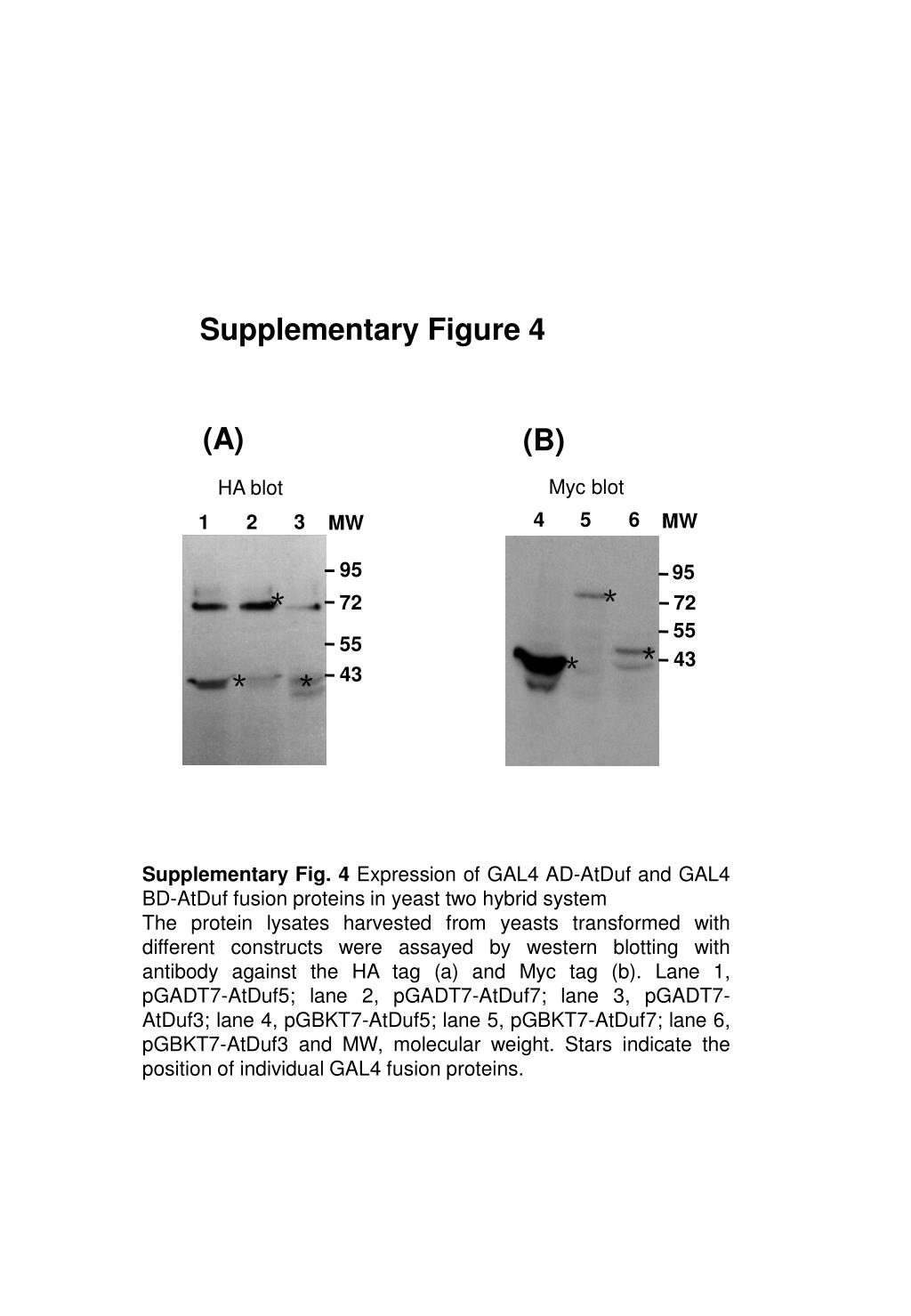

  4. Myc blot HA blot 4 5 6 MW 3 1 2 MW 95 95 ＊ ＊ 72 72 55 55 ＊ 43 ＊ 43 ＊ ＊ Supplementary Figure 4 (A) (B) Supplementary Fig. 4 Expression of GAL4 AD-AtDuf and GAL4 BD-AtDuf fusion proteins in yeast two hybrid system The protein lysates harvested from yeasts transformed with different constructs were assayed by western blotting with antibody against the HA tag (a) and Myc tag (b). Lane 1, pGADT7-AtDuf5; lane 2, pGADT7-AtDuf7; lane 3, pGADT7-AtDuf3; lane 4, pGBKT7-AtDuf5; lane 5, pGBKT7-AtDuf7; lane 6, pGBKT7-AtDuf3 and MW, molecular weight. Stars indicate the position of individual GAL4 fusion proteins.
