  1. Regression Analysis RLR

  2. Purpose of Regression • Fit data to model • Known model based on physics • P* = exp[A - B/(T+C)] Antoine eq. • Assumed correlation • y = a + b*x1+c*x2 • Use model • Interpolate • Extrapolate (use extreme caution) • Identify outliers • Identify trends in data

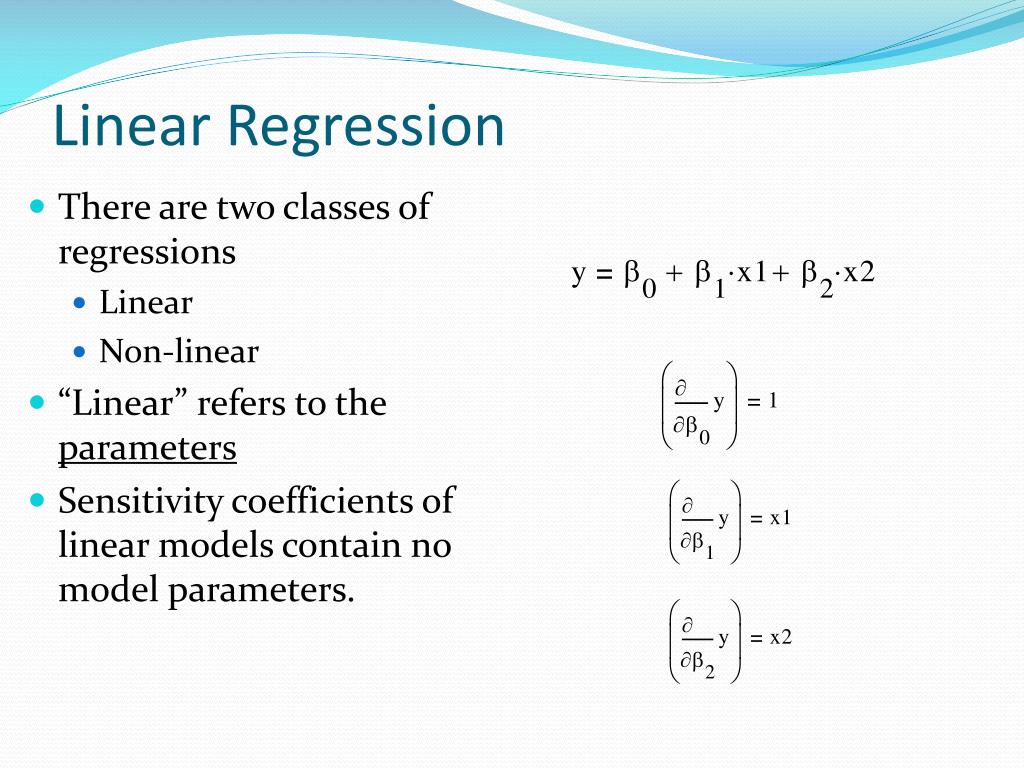

  3. Linear Regression • There are two classes of regressions • Linear • Non-linear • “Linear” refers to the parameters • Sensitivity coefficients of linear models contain no model parameters.

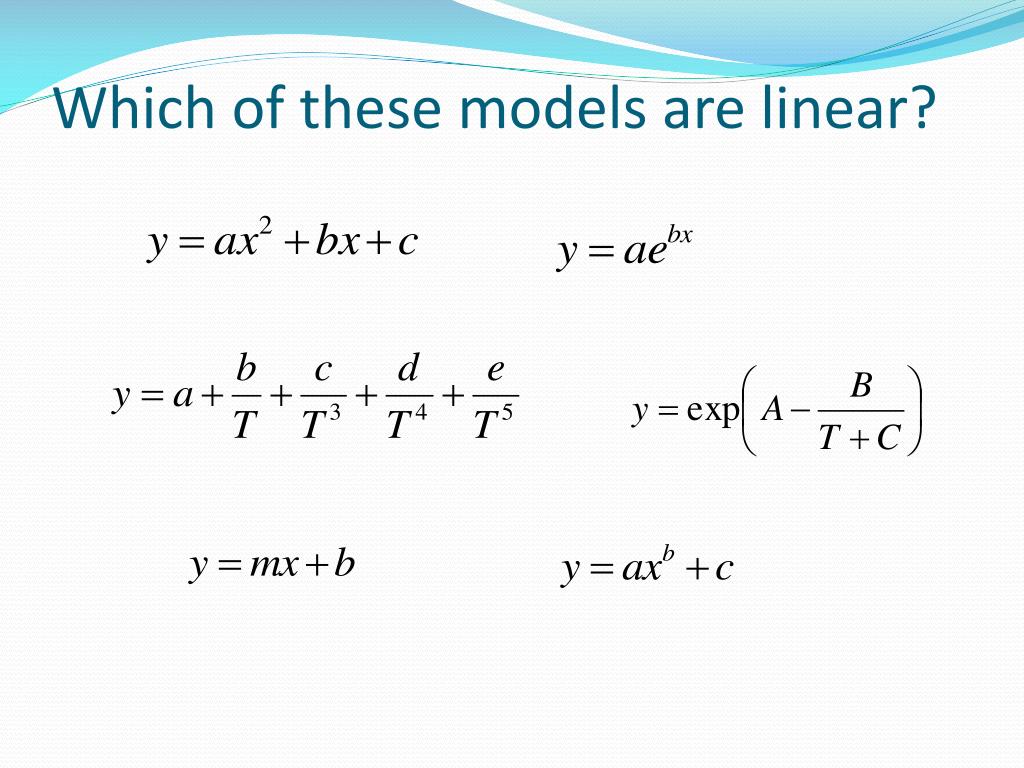

  4. Which of these models are linear?

  5. Example: Surface Tension Model

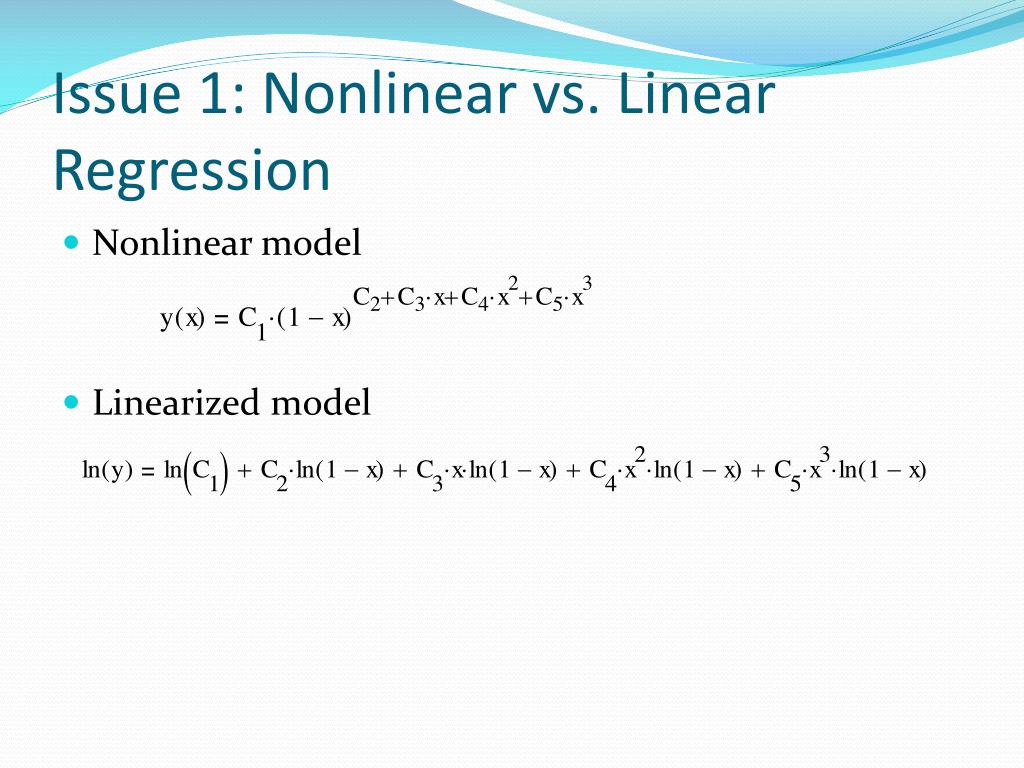

  6. Issue 1: Nonlinear vs. Linear Regression • Nonlinear model • Linearized model

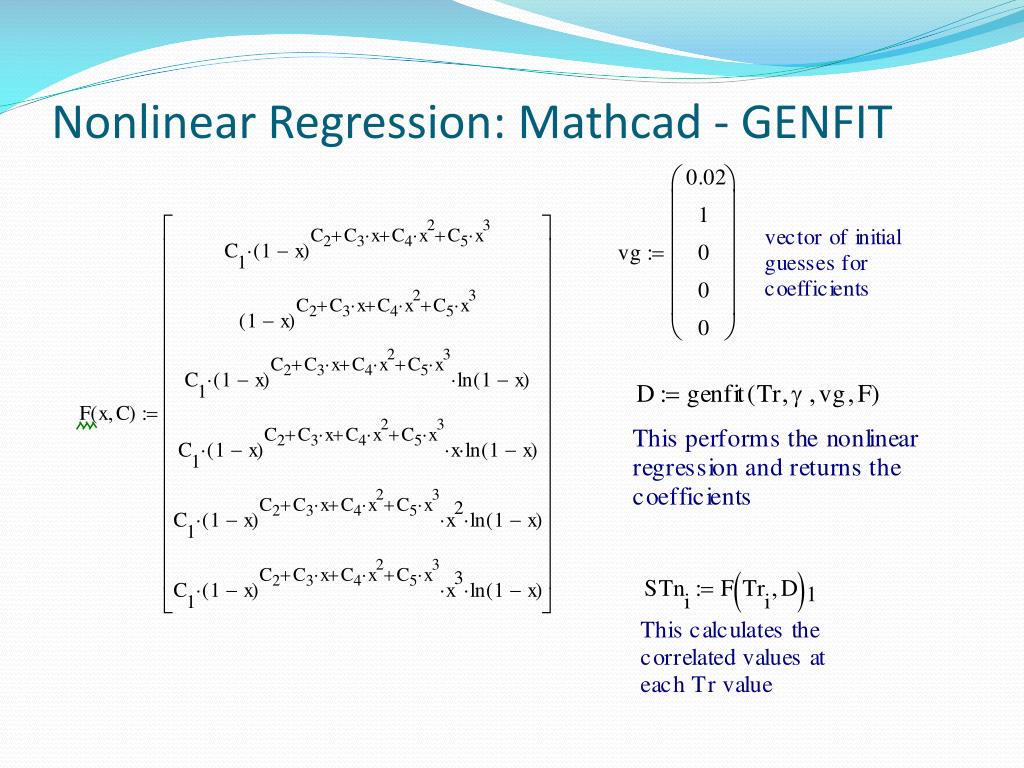

  7. Nonlinear Regression: Mathcad - GENFIT

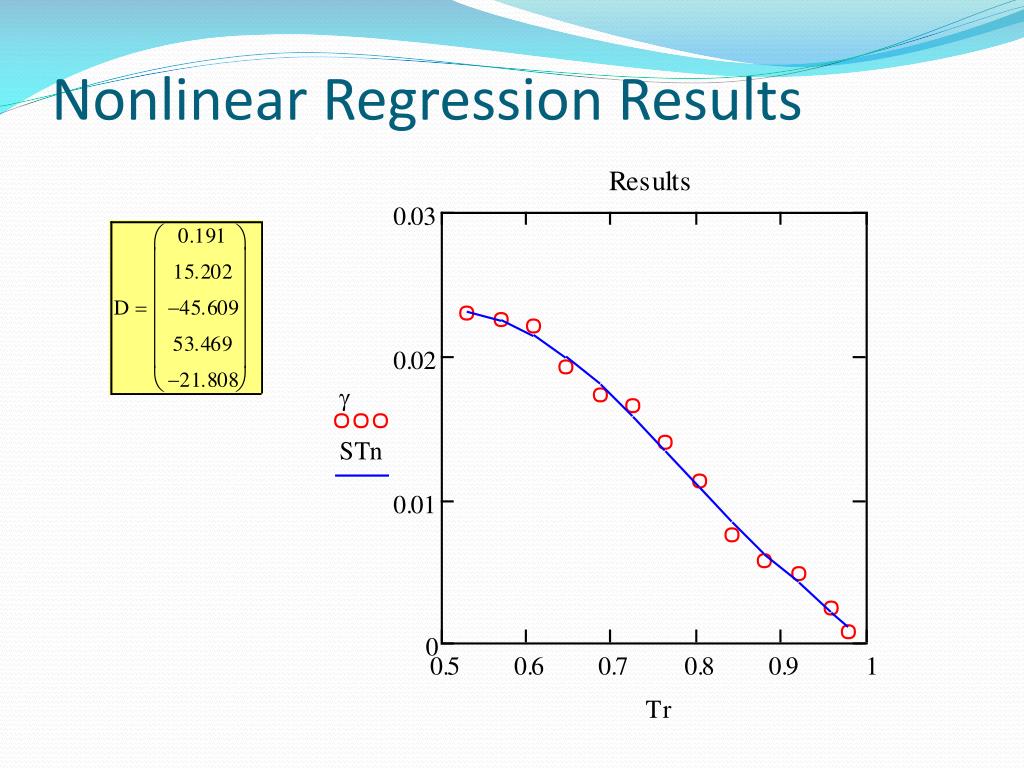

  8. Nonlinear Regression Results

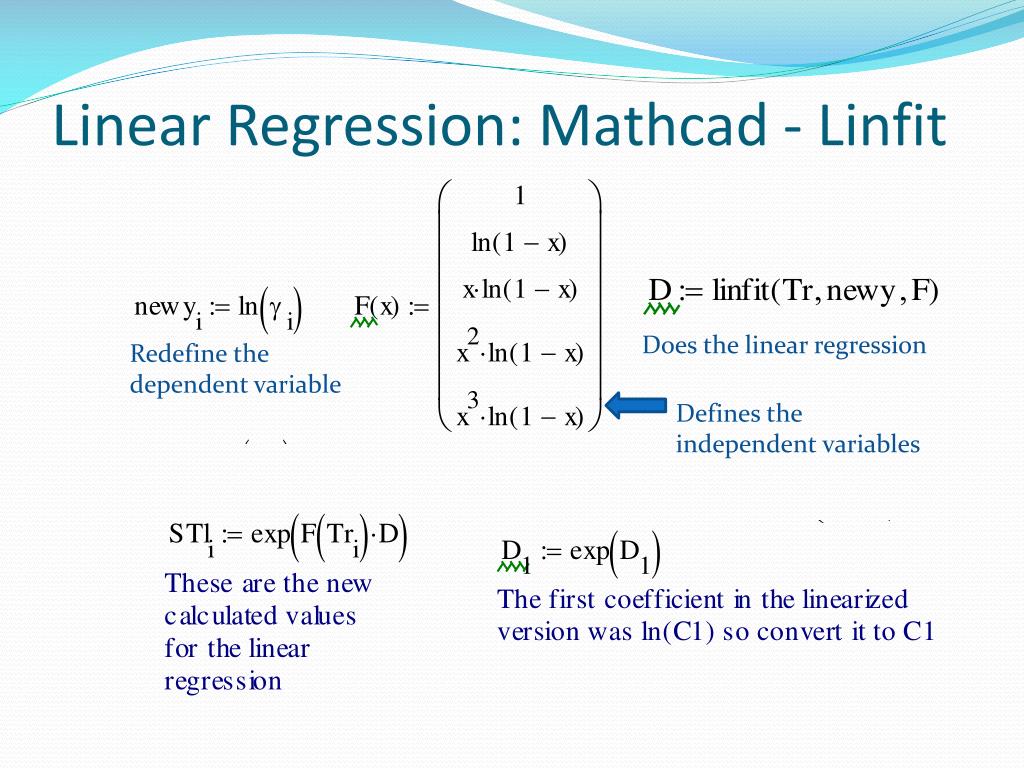

  9. Linear Regression: Mathcad - Linfit Does the linear regression Redefine the dependent variable Defines the independent variables

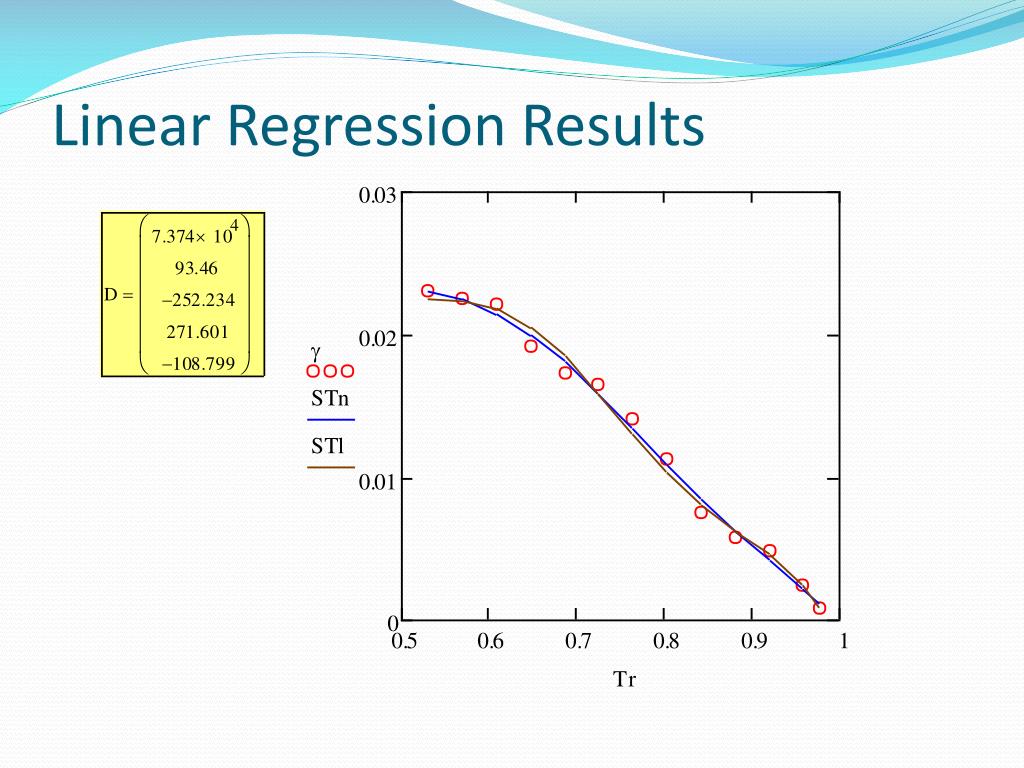

  10. Linear Regression Results

  11. Comparison nonlinear linear

  12. Issue 2: How many parameters? Linear regressions with 2, 3,4, and 5 parameters

  13. Statistical Analysis of Regression Straight Line Model as Example

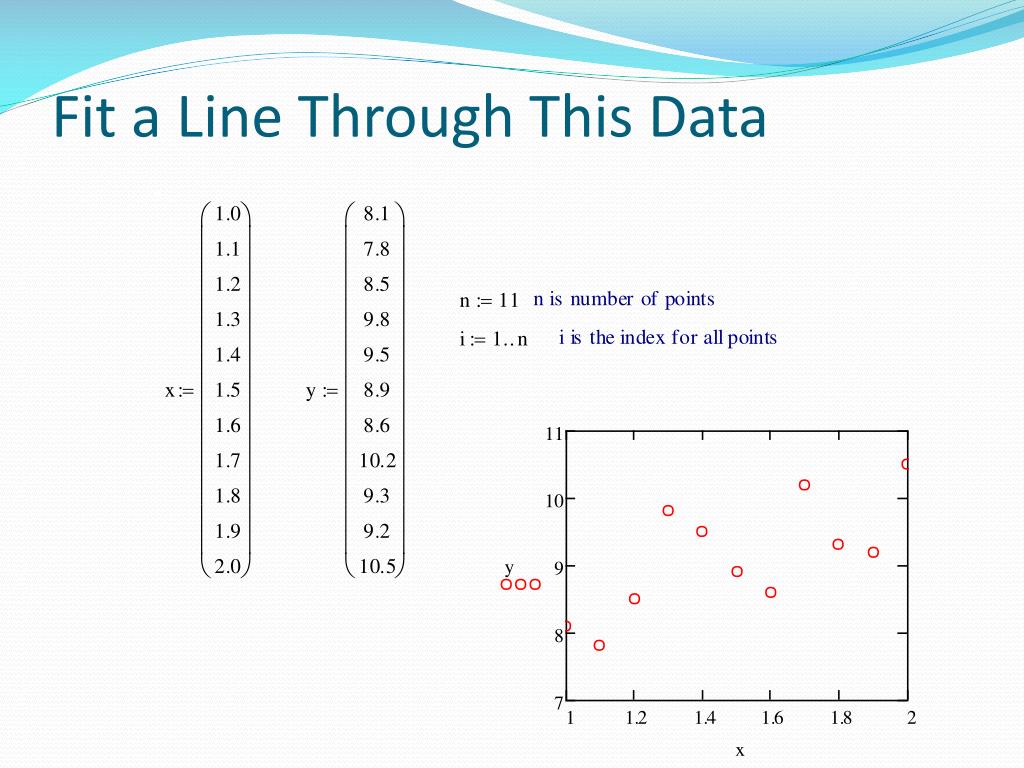

  14. Fit a Line Through This Data

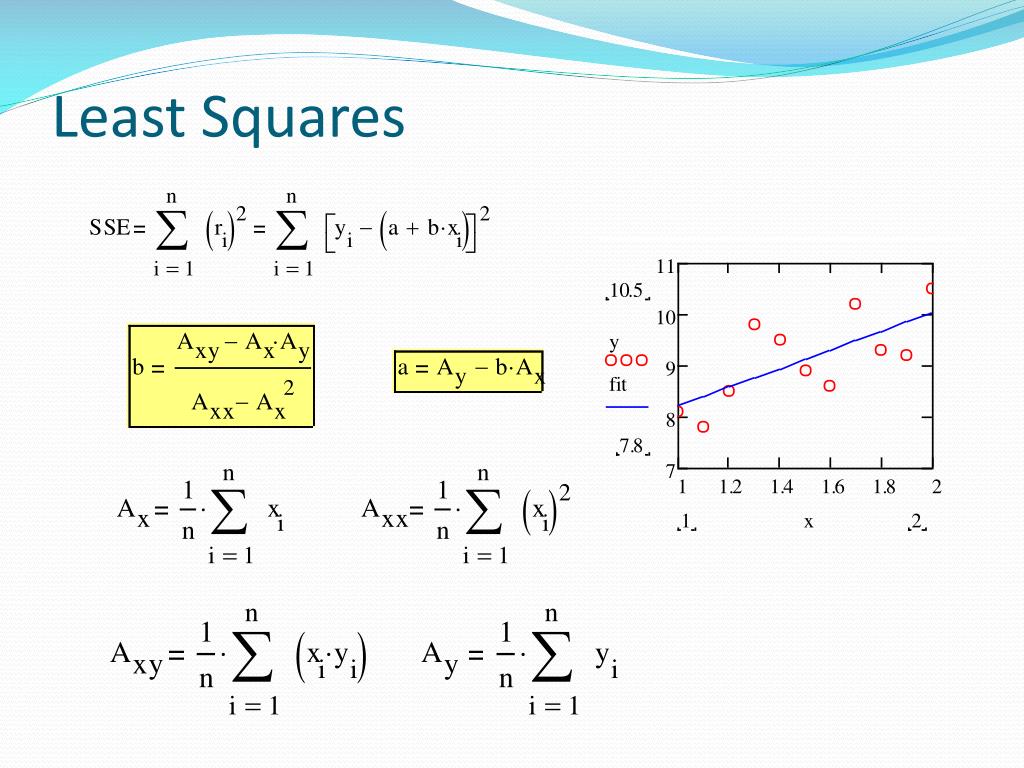

  15. Least Squares

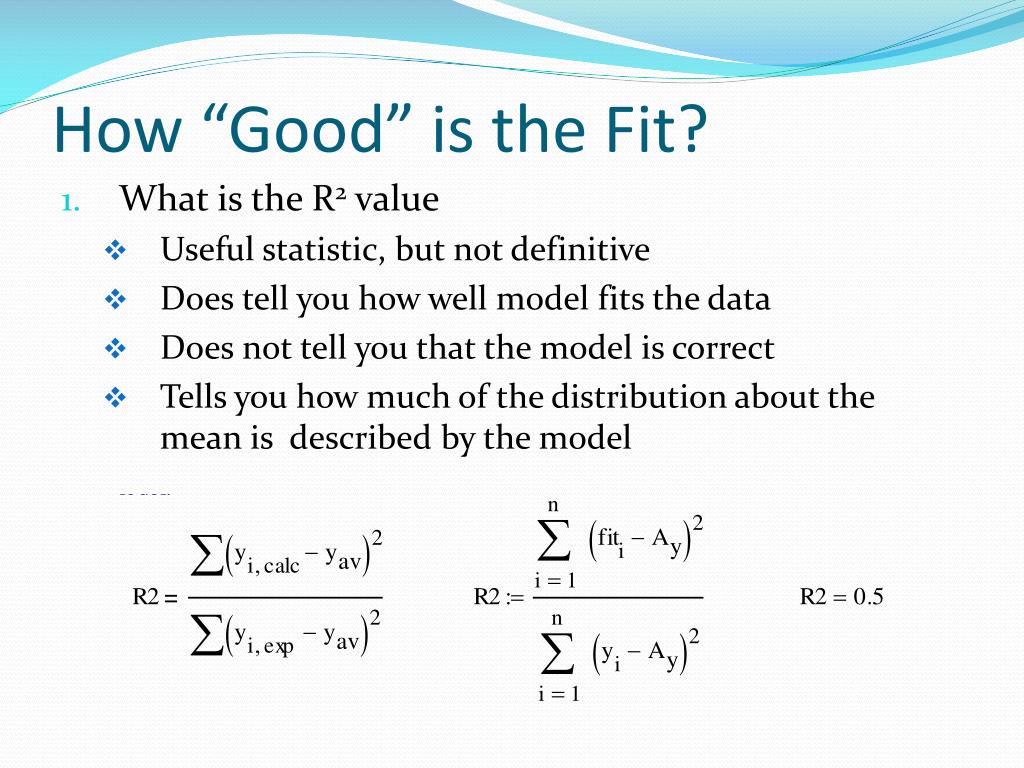

  16. How “Good” is the Fit? • What is the R2 value • Useful statistic, but not definitive • Does tell you how well model fits the data • Does not tell you that the model is correct • Tells you how much of the distribution about the mean is described by the model

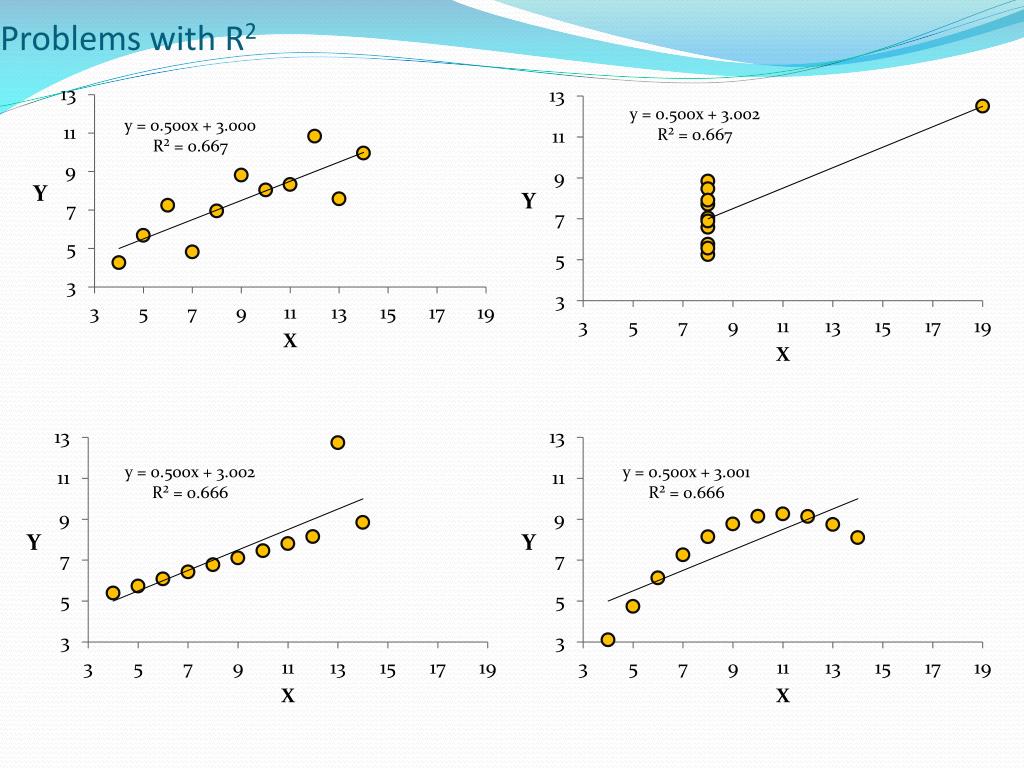

  17. Problems with R2

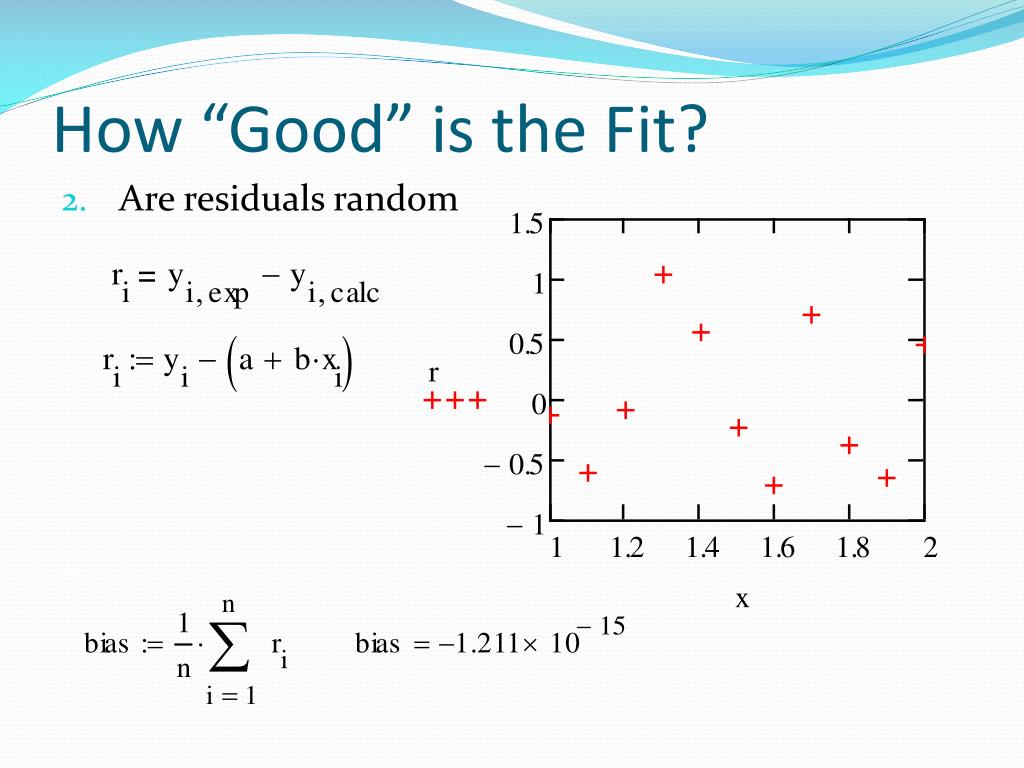

  18. How “Good” is the Fit? • Are residuals random

  19. Residuals Should Be Normally Distributed

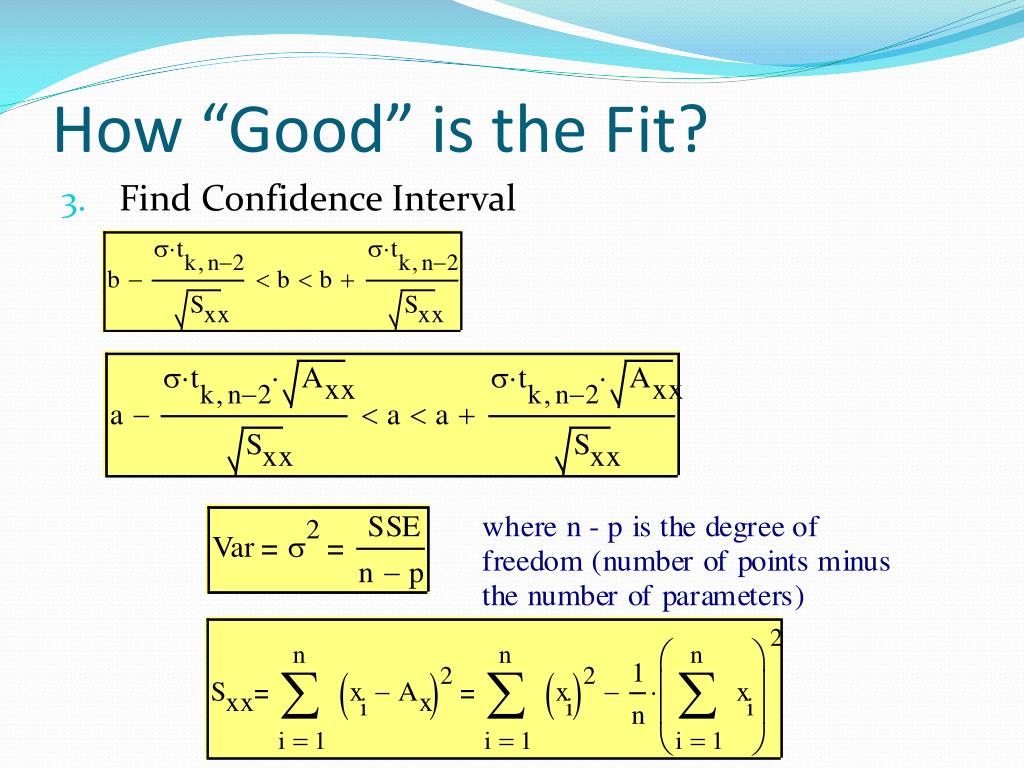

  20. How “Good” is the Fit? • Find Confidence Interval

  21. Parameter Confidence Level

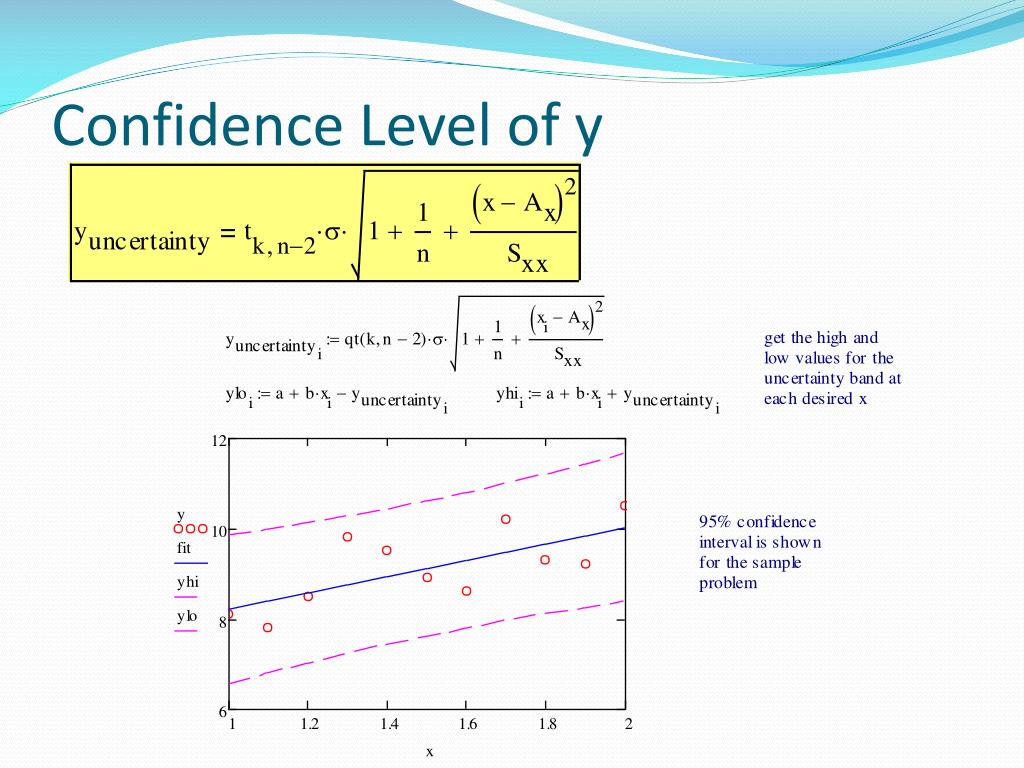

  22. Confidence Level of y

  23. Multiple Linear Regression in Mathcad

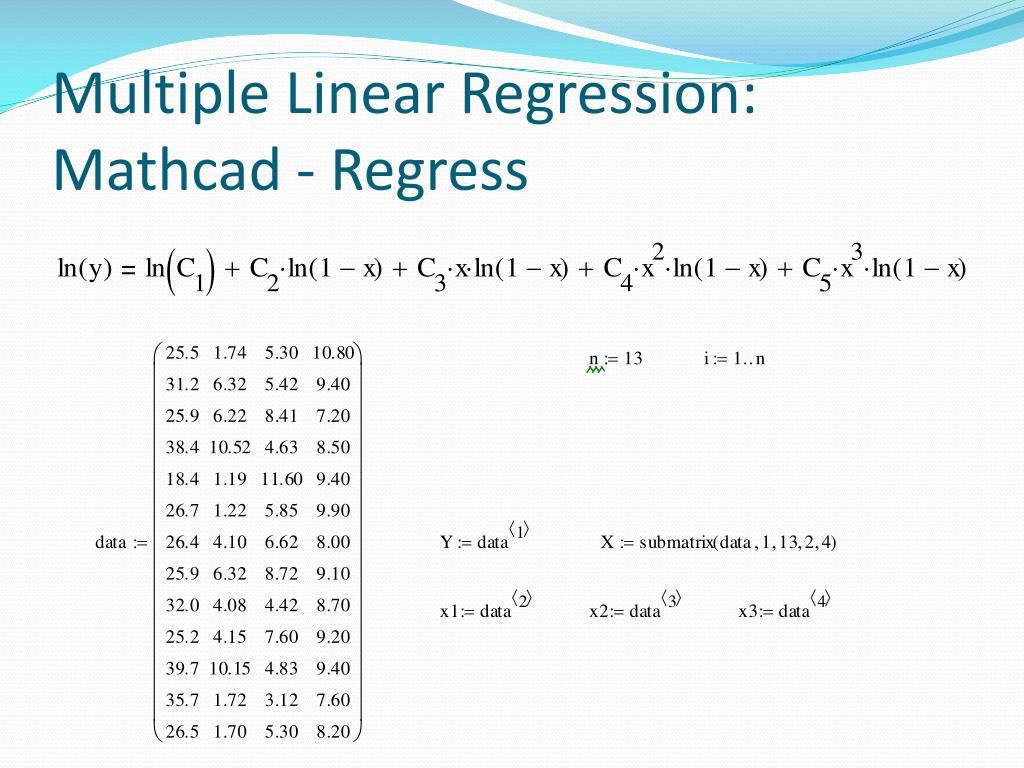

  24. Multiple Linear Regression: Mathcad - Regress

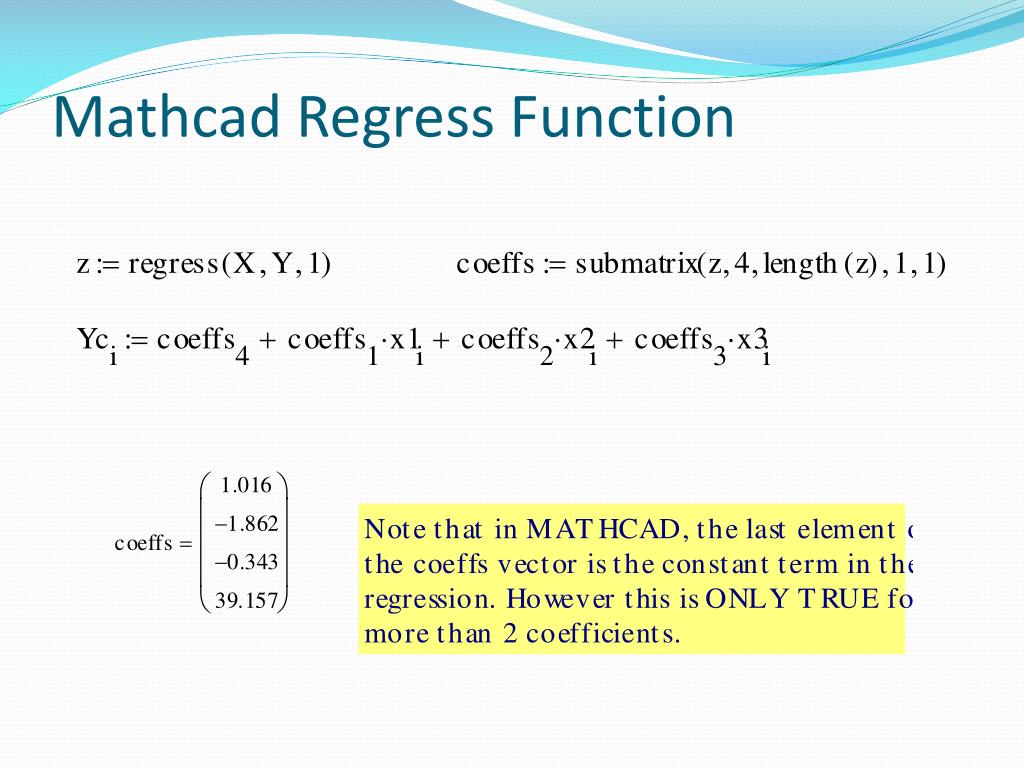

  25. Mathcad Regress Function

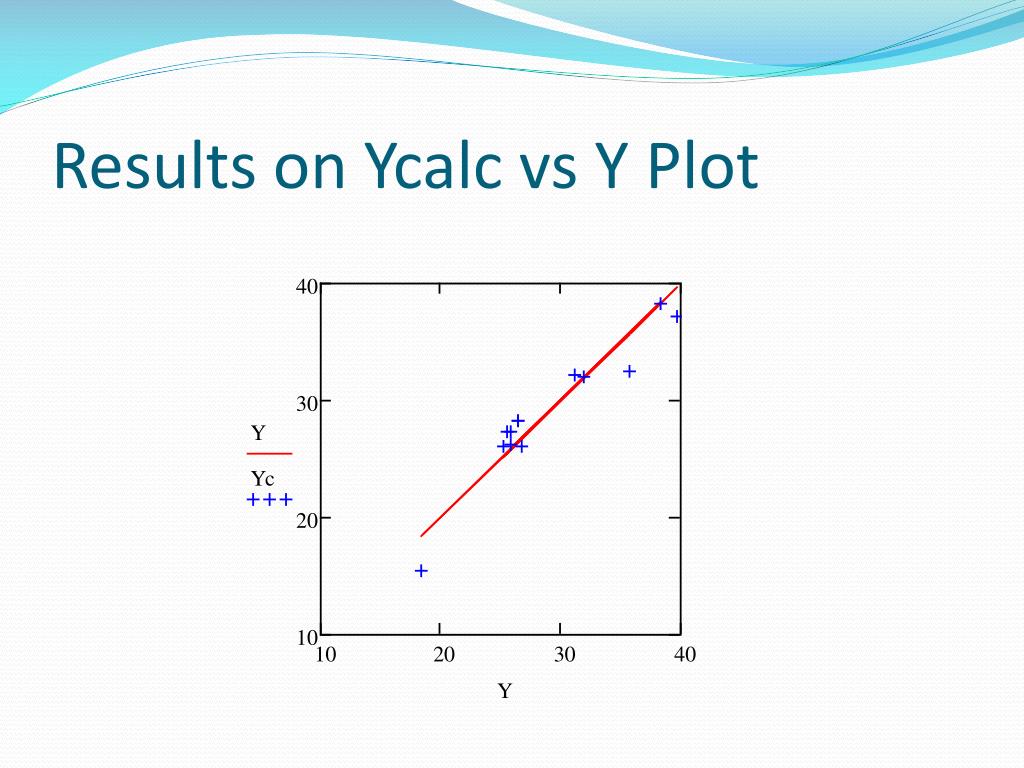

  26. Results on Ycalcvs Y Plot

  27. Residuals

  28. R2 Statistic

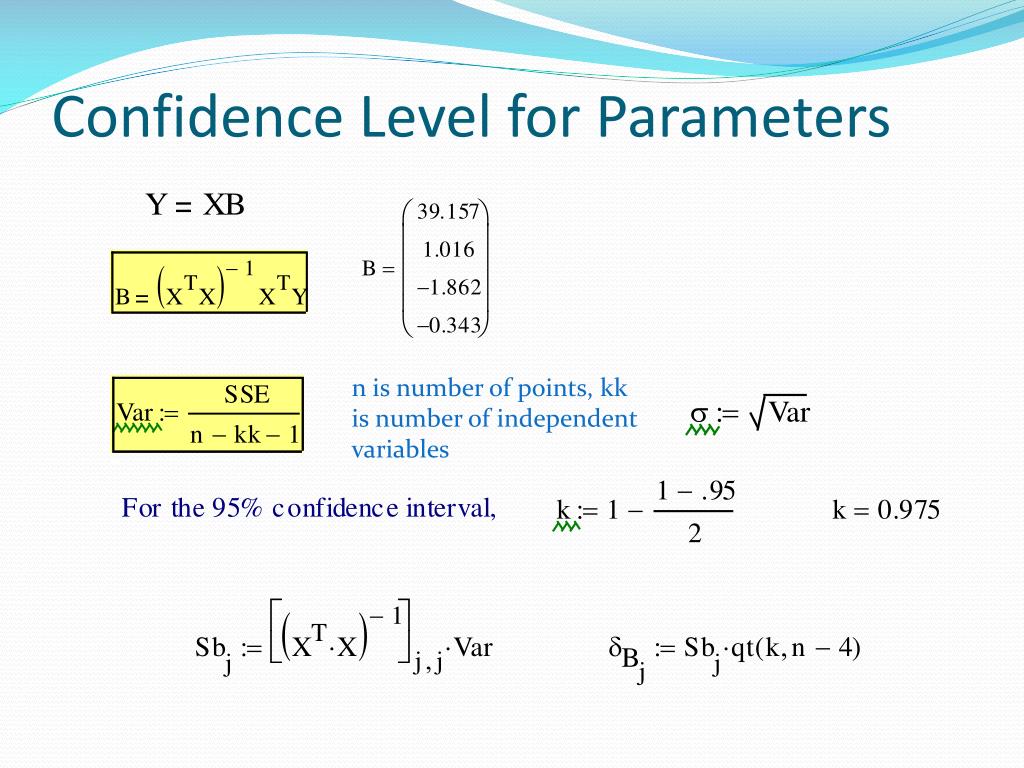

  29. Confidence Level for Parameters n is number of points, kk is number of independent variables

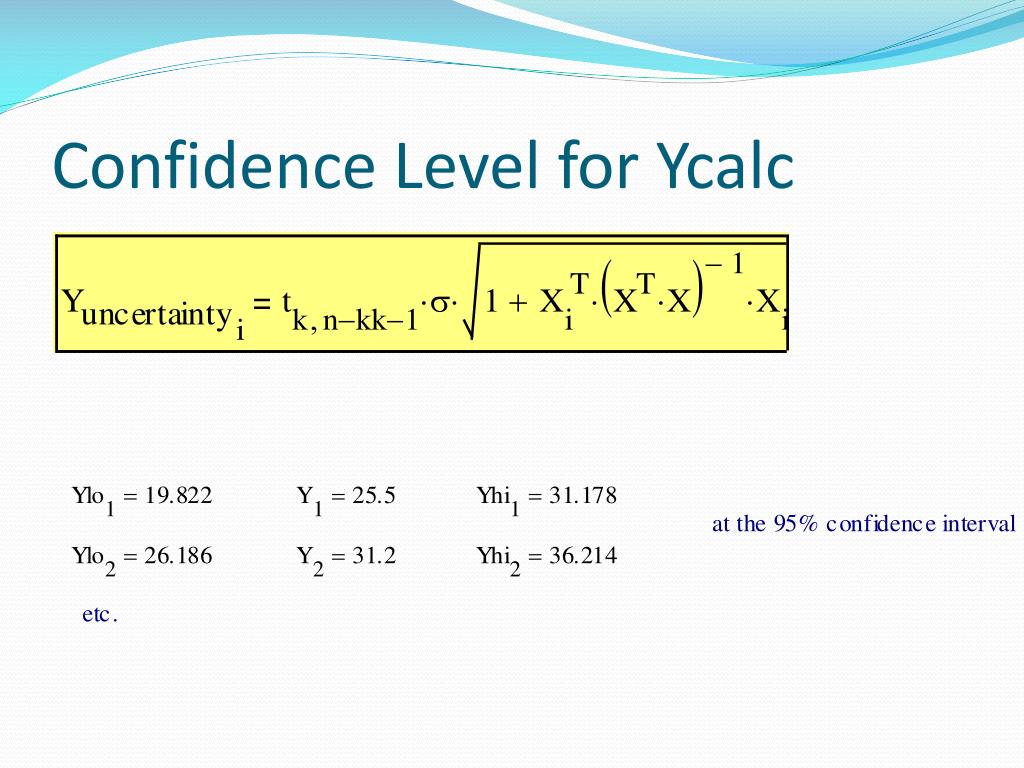

  30. Confidence Level for Ycalc
