slide1
Note
  • These notes are based on the Sebesta text.
  • The tree diagrams in these slides are from the lecture slides provided in the instructor resources for the text, and were made by David Garrett.
introduction syntax and semantics
Introduction: syntax and semantics
  • Syntax: a formal description of the structure of programs in a given language.
  • Semantics: a formal description of the meaning programs in a given language.
  • Together the syntax and semantics define a language.
who uses a language definition
Who uses a language definition?
  • Those who design a language
  • Those who implement a language (e.g. write compilers for it)
  • The who use the language (i.e. software developers)
  • Those who make tools for developers (e.g. JDT in Eclipse)
language grammar

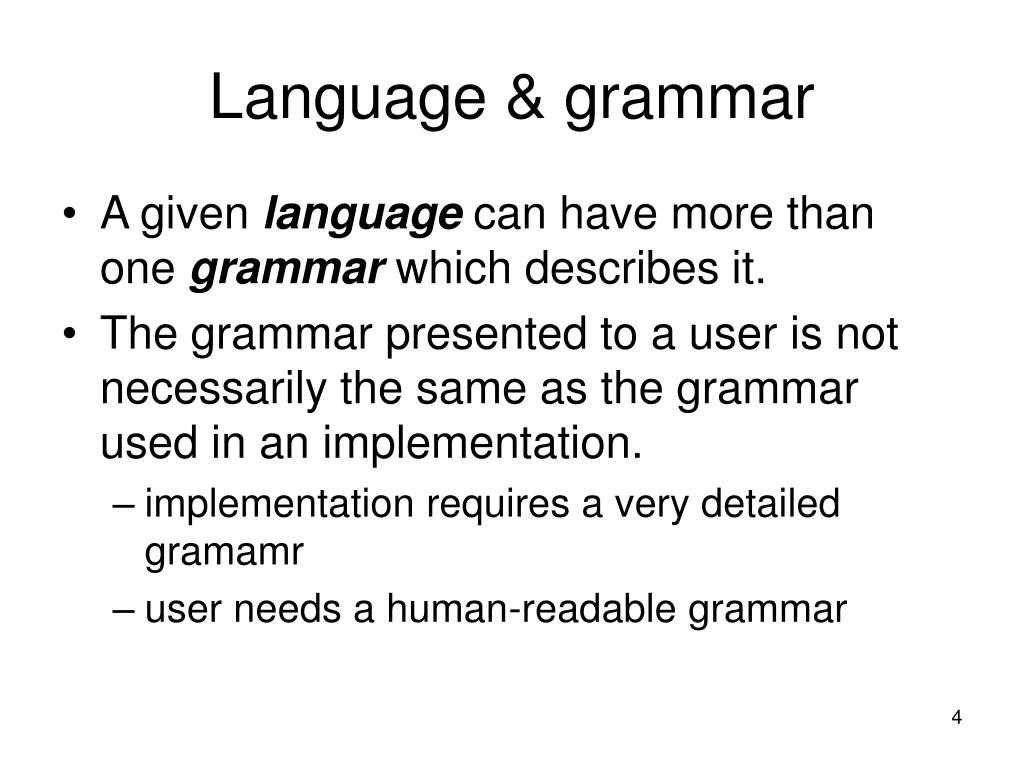

Language & grammar
  • A given language can have more than one grammar which describes it.
  • The grammar presented to a user is not necessarily the same as the grammar used in an implementation.
    • implementation requires a very detailed gramamr
    • user needs a human-readable grammar
syntax and semantics of programming languages
Syntax and semantics of programming languages
  • I have cautioned against getting too hung up on the syntax of a programming language.
  • But, you still need to learn the syntax of any language you work with so that you can read and write programs in the language.
  • To understand the meaning of programs expressed in a language you also have know the semantics of the language.
general background
General background
  • Chomsky hierarchy
  • Context-free grammars
  • Backus-Naur form
chomsky hierarchy
Chomsky hierarchy
  • Noam Chomsky defined a hierarchy of grammars and languages known as the Chomsky hierarchy:
    • regular languages (most restrictive)
    • context-free languages
    • context-sensitive languages
    • unrestricted languages (least restrictive)
context free cf grammar
Context-free (CF) grammar
  • A CF grammar is formally presented as a 4-tuple G=(T,NT,P,S), where:
    • T is a set of terminal symbols (the alphabet)
    • NT is a set of non-terminal symbols
    • P is a set of productions (or rules), where PNT(TNT)*
    • SNT
example 1 a small formal language
Example 1A small formal language

L1 = { 0, 00, 1, 11 }

G1 = ( {0,1}, {S}, { S0, S00, S1, S11 }, S )

example 2 a small fragment of english
Example 2A small fragment of English

L2 = { the dog chased the dog, the dog chased a dog, a dog chased the dog, a dog chased a dog, the dog chased the cat, … }

G2 = ({a, the, dog, cat, chased},

{S, NP, VP, Det, N, V},

{S  NP VP, NP  Det N, Det  a | the,

N  dog | cat, VP  V | VP NP, V  chased},

S )

Notes: S = Sentence, NP = Noun Phrase , N = Noun

VP = Verb Phrase, V = Verb, Det = Determiner

language terminology from sebesta p 125
Language terminology(from Sebesta, p. 125)
  • A language is a set of strings of symbols, drawn from some finite set of symbols (called the alphabet of the language).
  • “The strings of a language are called sentences”
  • “Formal descriptions of the syntax […] do not include descriptions of the lowest-level syntactic units […] called lexemes.”
  • “A token of a language is a category of its lexemes.”
  • Syntax of a programming language is often presented in two parts:
    • regular grammar for token structure (e.g. structure of identifiers)
    • context-free grammar for sentence structure
backus naur form bnf
Backus-Naur Form (BNF)
  • Backus-Naur Form (1959)
    • Invented by John Backus to describe ALGOL 58, modified by Peter Naur for ALGOL 60
    • BNF is equivalent to context-free grammars
    • BNF is a metalanguage used to describe another language, the object language
    • Extended BNF: adds syntactic sugar to produce more readable descriptions
bnf fundamentals
BNF Fundamentals
  • Sample rules [p. 128]

<assign> → <var> = <expression>

<if_stmt> → if <logic_expr> then <stmt>

<if_stmt> → if <logic_expr> then <stmt> else <stmt>

  • non-terminals/tokens surrounded by < and >
  • lexemes are not surrounded by < and >
  • keywords in language are in bold
  • → separates LHS from RHS
  • | expresses alternative expansions for LHS

<if_stmt> → if <logic_expr> then <stmt>

| if <logic_expr> then <stmt> else <stmt>

  • = is in this example a lexeme
bnf rules
BNF Rules
  • A rule has a left-hand side (LHS) and a right-hand side (RHS), and consists of terminal and nonterminal symbols
  • A grammar is often given simply as a set of rules (terminal and non-terminal sets are implicit in rules, as is start symbol)
describing lists

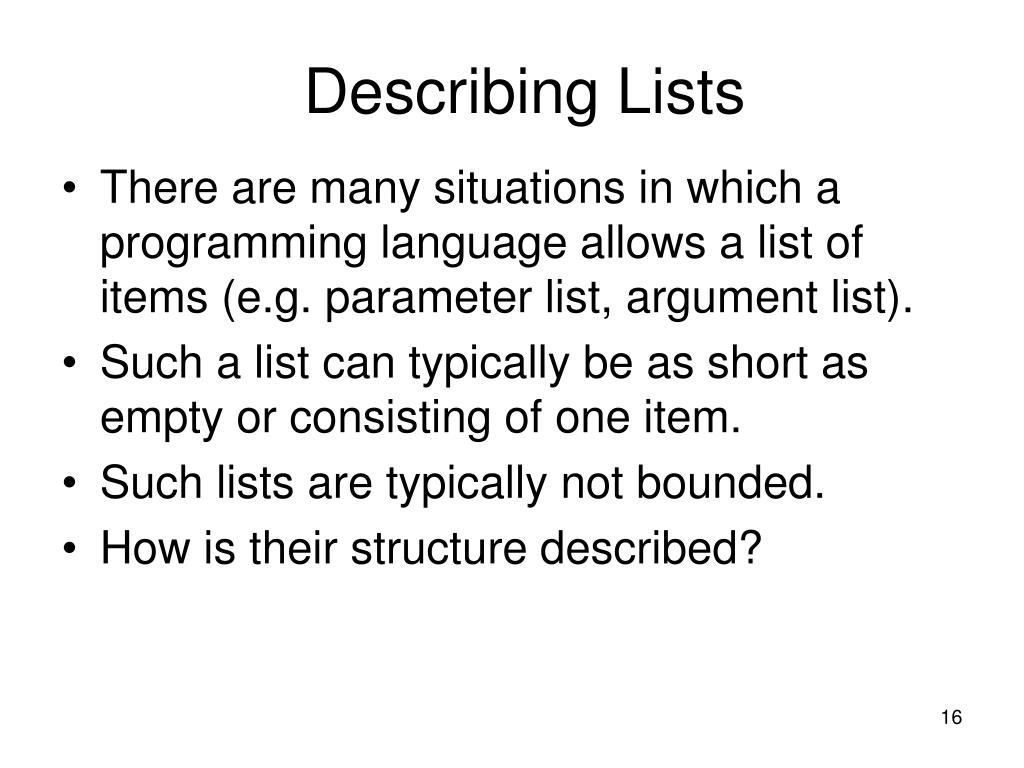

Describing Lists
  • There are many situations in which a programming language allows a list of items (e.g. parameter list, argument list).
  • Such a list can typically be as short as empty or consisting of one item.
  • Such lists are typically not bounded.
  • How is their structure described?
describing lists17
Describing lists
  • The are described using recursive rules.
  • Here is a pair of rules describing a list of identifiers, whose minimum length is one:

<ident_list> -> ident

| ident , <ident_list>

  • Notice that ‘,’ is part of the object language (the language being described by the grammar).
derivation of sentences from a grammar
Derivation of sentences from a grammar
  • A derivation is a repeated application of rules, starting with the start symbol and ending with a sentence (all terminal symbols)
  • Example: derivation of the dog chased a cat

S  NP VP

 Det N VP

 the N VP

 the dog VP

 the dog V NP

 the dog chased NP

 the dog chased Det N

 the dog chased a N

 the dog chased a cat

recall example 2
Recall example 2

G2 = ({a, the, dog, cat, chased},

{S, NP, VP, Det, N, V},

{S  NP VP, NP  Det N, Det  a | the,

N  dog | cat, VP  V | VP NP, V  chased},

S)

example derivation from g 2
Example: derivation from G2
  • Example: derivation of the dog chased a cat

S  NP VP

 Det N VP

 the N VP

 the dog VP

 the dog V NP

 the dog chased NP

 the dog chased Det N

 the dog chased a N

 the dog chased a cat

example 3

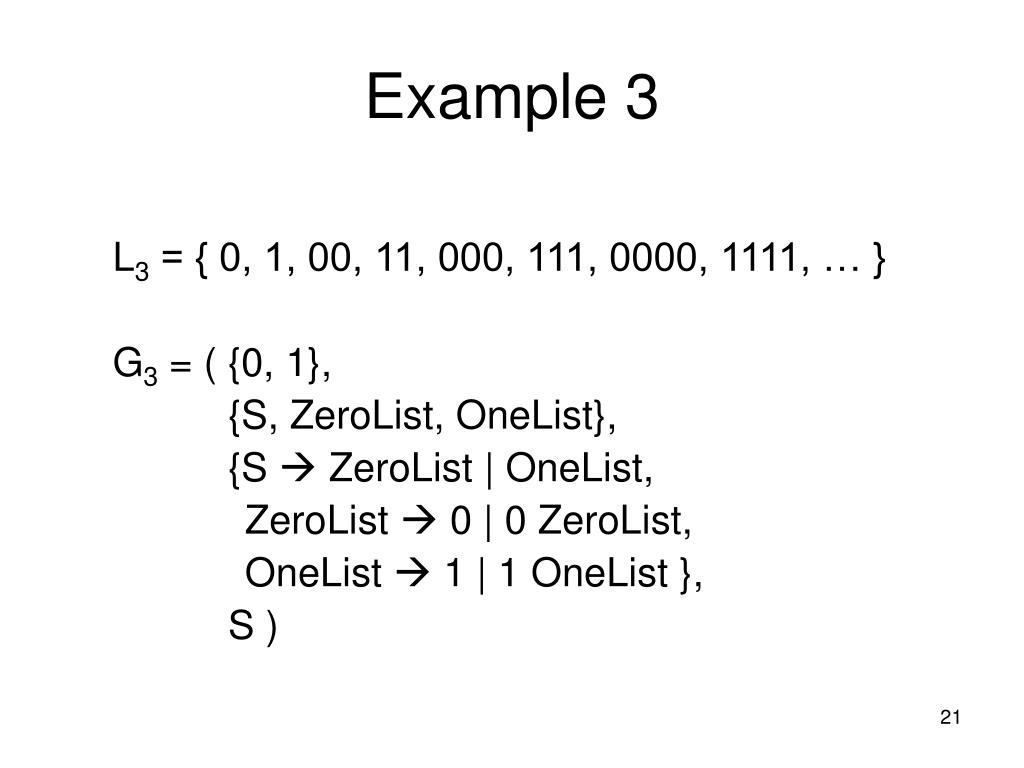

Example 3

L3 = { 0, 1, 00, 11, 000, 111, 0000, 1111, … }

G3 = ( {0, 1},

{S, ZeroList, OneList},

{S  ZeroList | OneList,

ZeroList  0 | 0 ZeroList,

OneList  1 | 1 OneList },

S )

example derivations from g 3
Example: derivations from G3
  • Example: derivation of 0 0 0 0

S  ZeroList

 0 ZeroList

 0 0 ZeroList

 0 0 0 ZeroList

 0 0 0 0

  • Example: derivation of 1 1 1

S  OneList

 1 OneList

 1 1 OneList

 1 1 1

observations about derivations
Observations about derivations
  • Every string of symbols in the derivation is a sentential form.
  • A sentence is a sentential form that has only terminal symbols.
  • A leftmost derivation is one in which the leftmost nonterminal in each sentential form is the one that is expanded.
  • A derivation can be leftmost, rightmost, or neither.
an example programming language grammar fragment

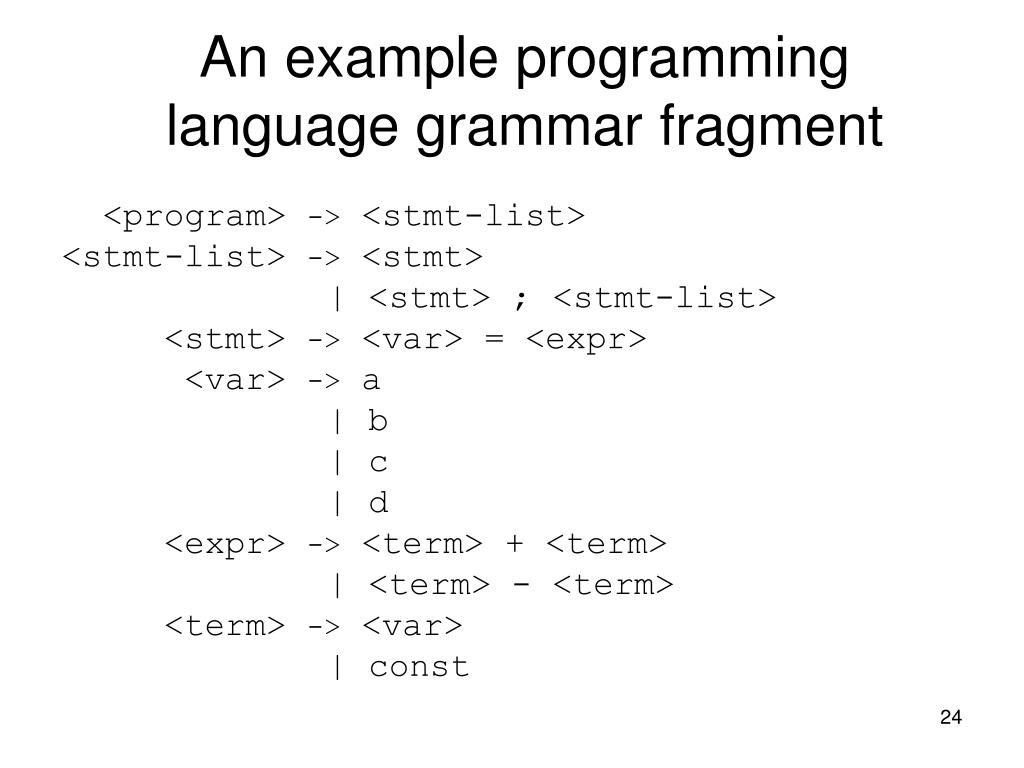

An example programming language grammar fragment

<program> -> <stmt-list>

<stmt-list> -> <stmt>

| <stmt> ; <stmt-list>

<stmt> -> <var> = <expr>

<var> -> a

| b

| c

| d

<expr> -> <term> + <term>

| <term> - <term>

<term> -> <var>

| const

a leftmost derivation of a b const

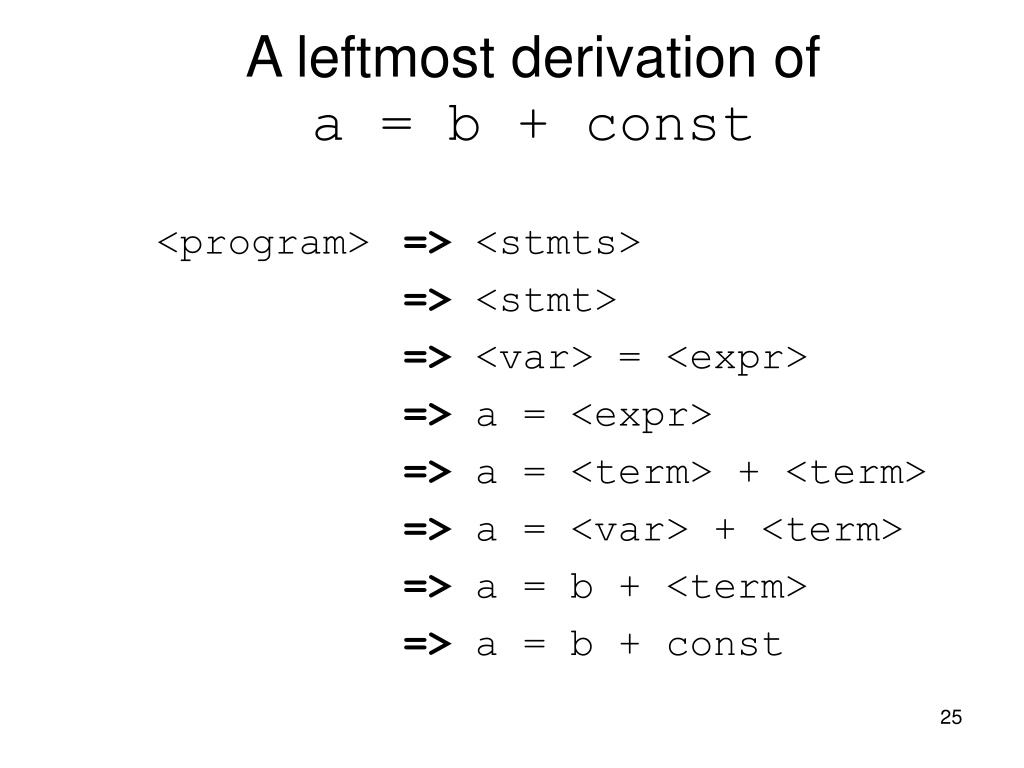

A leftmost derivation ofa = b + const

<program> => <stmts>

=> <stmt>

=> <var> = <expr>

=> a = <expr>

=> a = <term> + <term>

=> a = <var> + <term>

=> a = b + <term>

=> a = b + const

parse tree
Parse tree
  • A parse tree is an hierarchical representation of a derivation:

<program>

<stmts>

<stmt>

<var>

=

<expr>

a

<term>

+

<term>

<var>

const

b

parse trees and compilation
Parse trees and compilation
  • A compiler builds a parse tree for a program (or for different parts of a program).
  • If the compiler cannot build a well-formed parse tree from a given input, it reports a compilation error.
  • The parse tree serves as the basis for semantic interpretation/translation of the program.
extended bnf
Extended BNF
  • Optional parts are placed in brackets [ ]

<proc_call> -> ident [(<expr_list>)]

  • Alternative parts of RHSs are placed inside parentheses and separated via vertical bars

<term> -> <term>(+|-) const

  • Repetitions (0 or more) are placed inside braces { }

<ident> -> letter {letter|digit}

comparison of bnf and ebnf
Comparison of BNF and EBNF
  • sample grammar fragment expressed in BNF

<expr> -> <expr> + <term>

| <expr> - <term>

| <term>

<term> -> <term> * <factor>

| <term> / <factor>

| <factor>

  • same grammar fragment expressed in EBNF

<expr> -> <term> {(+ | -) <term>}

<term> -> <factor> {(* | /) <factor>}

ambiguity in grammars
Ambiguity in grammars
  • A grammar is ambiguous if and only if it generates a sentential form that has two or more distinct parse trees
  • Operator precedence and operator associativity are two examples of ways in which a grammar can provide an unambiguous interpretation.
operator precedence ambiguity

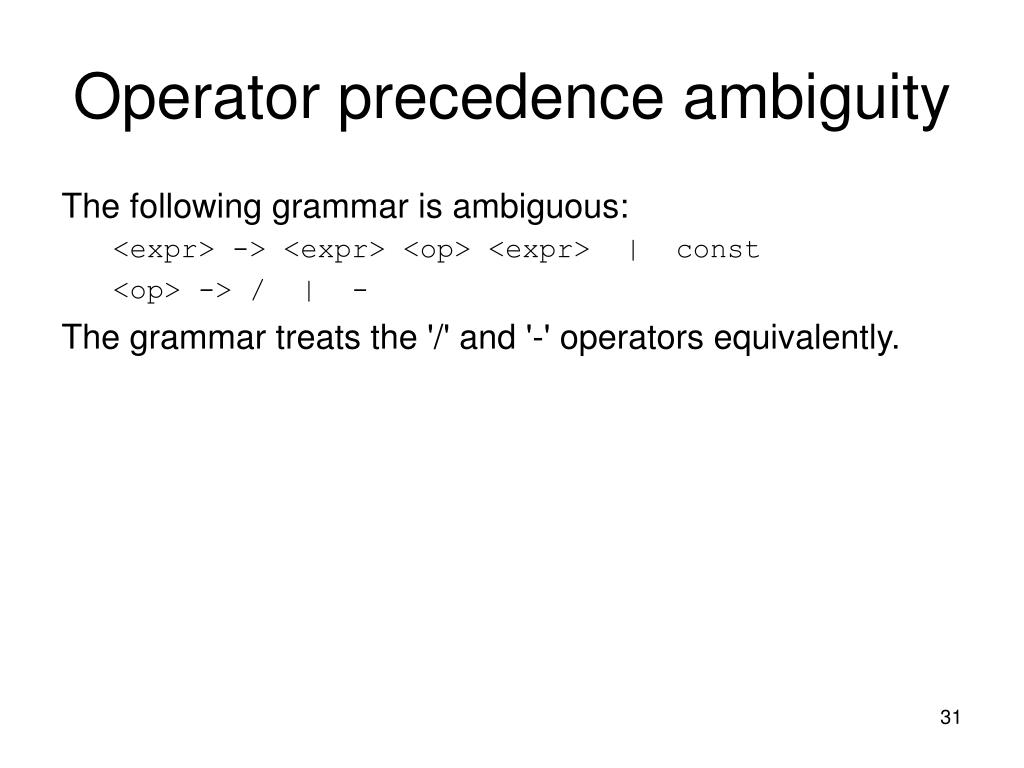

Operator precedence ambiguity

The following grammar is ambiguous:

<expr> -> <expr> <op> <expr> | const

<op> -> / | -

The grammar treats the '/' and '-' operators equivalently.

an ambiguous grammar for arithmetic expressions
An ambiguous grammar for arithmetic expressions

<expr> -> <expr> <op> <expr> | const

<op> -> / | -

<expr>

<expr>

<expr>

<op>

<expr>

<expr>

<op>

<op>

<expr>

<expr>

<op>

<expr>

<expr>

<op>

<expr>

const

-

const

/

const

const

-

const

/

const

disambiguating the grammar
Disambiguating the grammar
  • If we use the parse tree to indicate precedence levels of the operators, we can remove the ambiguity.
  • The following rules give / a higher precedence than -

<expr> -> <expr> - <term> | <term>

<term> -> <term> / const | const

<expr>

<expr>

-

<term>

<term>

<term>

/

const

const

const

links to bnf style grammars for actual programming languages
Links to BNF-style grammars for actual programming languages

Below are some links to grammars for real programming languages. Look at how the grammars are expressed.

  • http://www.schemers.org/Documents/Standards/R5RS/
  • http://www.sics.se/isl/sicstuswww/site/documentation.html

In the ones listed below, find the parts of the grammar that deal with operator precedence.

  • http://java.sun.com/docs/books/jls/index.html
  • http://www.lykkenborg.no/java/grammar/JLS3.html
  • http://www.enseignement.polytechnique.fr/profs/informatique/Jean-Jacques.Levy/poly/mainB/node23.html
  • http://www.lrz-muenchen.de/~bernhard/Pascal-EBNF.html
derivation of 2 5 3 using c grammar

<expression>

Derivation of2+5*3using C grammar

<assignment-expression>

<conditional-expression>

<logical-OR-expression>

<logical-AND-expression>

<inclusive-OR-expression>

<exclusive-OR-expression>

<AND-expression>

<equality-expression>

<relational-expression>

<shift-expression>

<additive-expression>

+

<additive-expression>

<multiplicative-expression>

<multiplicative-expression>

<multiplicative-expression>

<cast-expression>

*

<cast-expression>

<unary-expression>

<cast-expression>

<unary-expression>

<postfix-expression>

<unary-expression>

<postfix-expression>

<primary-expression>

<postfix-expression>

<primary-expression>

<constant>

<primary-expression>

<constant>

3

<constant>

2

5

recursion and parentheses
Recursion and parentheses
  • To generate 2+3*4 or 3*4+2, the parse tree is built so that + is higher in the tree than *.
  • To force an addition to be done prior to a multiplication we must use parentheses, as in (2+3)*4.
  • Grammar captures this in the recursive case of an expression, as in the following grammar fragment:

<expr>  <expr> + <term>

<term>  <term> * <factor>

<factor>  <variable> | <constant> | “(” <expr> “)”

associativity of operators
Associativity of operators
  • When multiple operators appear in an expression, we need to know how to interpret the expression.
  • Some operators (e.g. +) are associative, meaning that the meaning of an expression with multiple instances of the operator is the same no matter how it is interpreted: (a+b)+c = a+(b+c)
  • Some operators (e.g. -) are not associative: (a-b)-c ¹ a-(b-c) e.g. try a=10, b=8, c=6 (10-8)-6 = -4 but 10-(8-6)=8
  • - and / are both left-associative, meaning a-b-c is interpreted as (a-b)-c.
  • Exponentiation (**) is right-associative. This means that 2**3**2 is interpreted as 2**(3**2) (i.e. 2**9) rather than (2**3)**2 (i.e. 8**2 or 2**6).
associativity of operators38
Associativity of Operators
  • Operator associativity can be encoded by a grammar. The following grammar fragment does not do this: the left and right operands of '-' are treated symmetrically.

<expr> -> <expr> - <expr> | <term>

<term> -> <var> | <const> | “(” <expr> “)”

<expr>

<expr>

<expr>

<expr>

<expr>

-

<expr>

<expr>

-

<expr>

<expr>

<expr>

<expr>

<expr>

-

-

<term>

<term>

<term>

<term>

<term>

<term>

associativity of operators39

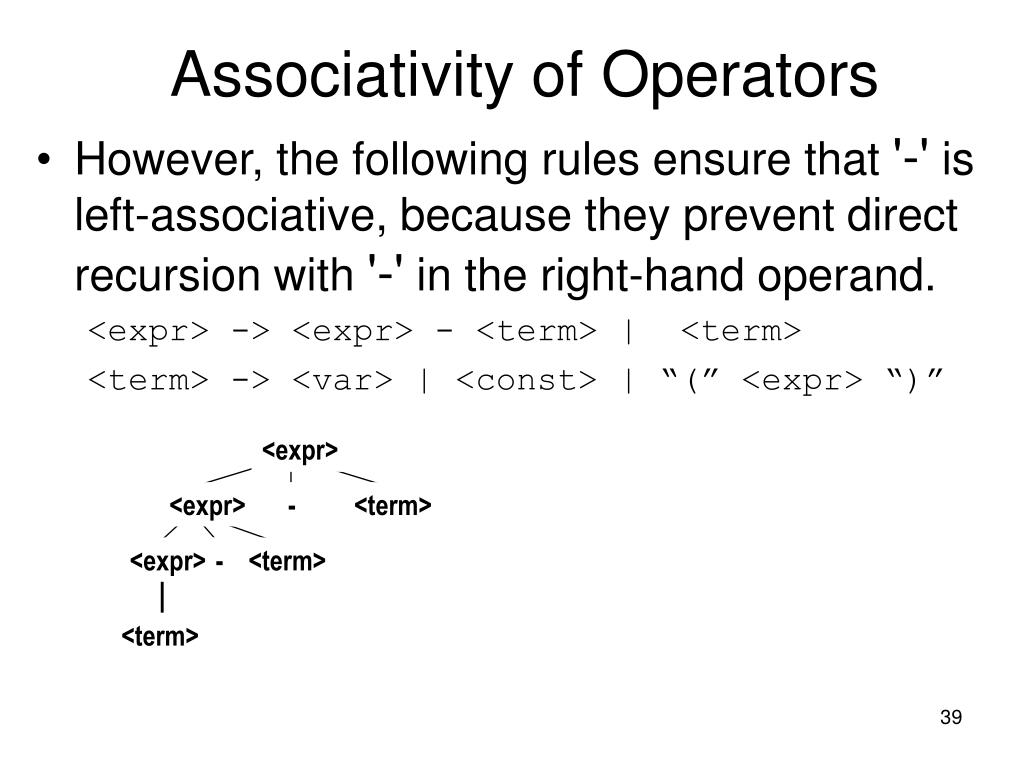

Associativity of Operators
  • However, the following rules ensure that '-' is left-associative, because they prevent direct recursion with '-' in the right-hand operand.

<expr> -> <expr> - <term> | <term>

<term> -> <var> | <const> | “(” <expr> “)”

<expr>

<expr>

<expr>

-

<term>

<expr>

<term>

-

<term>

decision timing design time vs implementation time
Decision timing:Design timevs.Implementation time
  • (to come)
  • Java and precedence/associativity/left-to-right evaluation vs. C++ (?)
theory vs reality

Dealing with fixed-size numeric representations

Theoryvs.Reality
  • (to come)
  • Java/C# vs. C/C++ (size of representation – but this is not the slide to address this on: see next point).
  • Also, effect of fixed size of representations on associativity:
    • mathematically, (x+y)+z = x+(y+z)
    • in practice (+ is not always associative):
      • (large+small)+small = large
      • large+(small+small) > large
