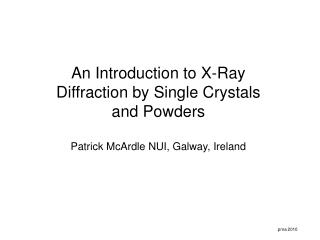

An Introduction to X-Ray Diffraction by Single Crystals and Powders

Patrick McArdle NUI, Galway, Ireland

pma 2010



Crystalline materials differ from amorphous materials in that in the former there is

order in the arrangement of the molecular contents whereas in the latter there is

no order or at best a tendency for a short-range order.

The packing of atoms, molecules or ions within a crystal occurs in a symmetrical

manner and furthermore this symmetrical arrangement is repetitive.

A most important common characteristic that crystals may share is the manner

in which repetition occurs. This will be expressed in a common lattice array.

A lattice array is constructed from the arrangement of

atomic material within the crystal as follows:

pma 2010


A 2-dimensional Lattice

Pick any position within the 2 dimensional lattice in Fig. 1(a) and note the

arrangement about this point. The chosen position can be indicated by

a point (a lattice point). In view of the repetitive arrangement, there will

be a 2 dimensional array of identical positions and if these are also

marked by a point a 2-dimensional lattice will result if the points are


pma 2010


Fig. 2

Fig. 3

In a real 3-dimensional crystal lattice the same ideas apply.

When crystal structures are represented by lattices, it transpires that all crystals

break down into one of fourteen three dimensional lattice arrangements.

Bravais demonstrated mathematically that there are only fourteen ways

in which repetitive symmetry can occur and the fourteen lattices representing

the ways in which repetition can occur are referred to as the Bravais lattices.


A unit cell can be any unit of a lattice array which when repeated in all directions,

and always maintaining the same orientation in space, generates the

lattice array.

There is no unique way of choosing

a unit cell. For example, each of the

cells (A to D) in Fig. 2 are OK.

However, the cell favoured by

crystallographers is the one of

smallest volume that displays all of

the symmetry of the lattice.

Thus, cells C and A are the

preferred unit cells for the lattices

of Figs. 2 and 3 respectively.

pma 2010







Cubic a = b = c. =  =  = 90º.

Tetragonal a = b  c. =  =  = 90º.

Orthorhombic a  b  c. =  =  = 90 º.

Monoclinic a  b  c. = = 90º,  90º.

Triclinic a  b  c..  90º.

Rhombohedral a = b = c.  =  =  90 º.

(or Trigonal)

Hexagonal a = b  c. =  = 90º,  = 120º.

  • In general, six parameters are required to define the shape and size of a unit cell,
  • these being three cell edge lengths (conventionally, defined as a, b, and c),
  • and three angles (conventionally, defined as , , and ). In the strict mathematical
  • sense, a, b, and c are vectors since they specify both length and direction.
  • is the angle between b and c,  is the angle between a and c,  is the angle

between a and b. The unit cell should be right handed. Check the cell above with your right hand

When these unit cells are combined with possible “centering” there are

14 different Bravais lattices.

pma 2010














End Face Centred






Primitive Cell


Fig. 3

pma 2010


3. The fact that a unit cell meets the symmetry requirements

of a crystal system does not guarantee its inclusion within the crystal system.

This could result if the lattice it generated could be equally well

represented by a unit cell type which is already included within the crystal system.

The C-type cell for the tetragonal system (see Fig. 4) provides a good example.

Four simple points on crystal lattices:

1. Every crystal system has a primitive Bravais lattice.

2. The distribution of lattice points in a cell must be such as to

maintain the total symmetry of the crystal system.

Thus, the cubic system cannot have a C-type cell.

4. If you repeat 3. within the orthorhombic

system you will find that the primitive cell you

generate will not have 90º angles. This is not

orthorhombic and thus orthorhombic C is

included in the crystal system.

pma 2010



a ≠ b ≠ c, a = b =  = 90º


a = b ≠ c, a = b =  = 90º





Smaller cell is Tetragonal P

Angle not 90° smaller cell

not orthorhombic

A simplified view down c-axis can be used to illustrate points 3 and 4

pma 2010



Point group theory is not dealt with here. What follows is just a summary. Point group symmetry defines the symmetry of an isolated object or

group of objects, whereas space group symmetry further defines the systematic

fashion in which an object, or group of objects is repeated in space to

generate an infinite periodic array in 3D.

Point group symmetry is quantified in terms of symmetry elements

(existing within the object or group of objects) and their associated operations.

Four symmetry elements are used to quantify point group symmetry

Symmetry Element Symmetry Operation

Rotation axis (n-fold) Rotation

Mirror plane Reflection

Centre of Symmetry Inversion

Rotor-reflection axis (n-fold) Rotation and reflection


Rotor-inversion axis (n-fold) Rotation and inversion

pma 2010


Point Group and Space Group Symmetry

To generate a 3D lattice from an object it is necessary to add translational

symmetry to point group symmetry. The two important space group

symmetry operations which move objects are glide planes and screw

axes. These operations combine translation and reflection and translation

and rotation respectively.

The pentagons on the

left are related by

simple translation.

In 5(b) the pentagon

on the top left of the

cell is related to the

one in the centre by

translation a/2 followed

by either reflection or

rotation. Centres of

inversion in 5(b) are

marked with tiny


pma 2010



























C and A














P and R






Fig. 9

The 230 Space Groups

There is an infinite number of combinations of the four symmetry elements.

However, if there is a restriction on the order of the rotation axes to

2, 3, 4, and 6, as is the case for repetitive symmetry (crystallographic

symmetry) this leaves only 32 unique combinations. These are the 32

crystallographic point groups. Adding screw axes and glide planes gives

the 230 space groups. The overall breakdown of symmetry for crystals

then is as shown in Fig. 9.

The International Tables for Crystallography list the symmetry properties for all 230 Space Groups. The 2nd edition was in one volume and edited by Kathleen Lonsdale. The current edition runs to 7 volumes.

The CSD or Cambridge Data Base is a repository for the structures of organic and organometallic compounds.

Space Group determination is an important step in crystal structure determination.

pma 2010


The ABSEN program within Oscail can provide Bar Charts of the contents of the Cambridge Data Base (CSD)

The number of entries by crystal system

Entries in the first 25 space groups

pma 2010



The use of crystal planes to describe the

structure of crystals goes back to the

start of crystallography and crystal

planes were used by Bragg to explain

diffraction as will be seen later.

Crystal planes are defined by the

intercepts they make on the

crystal axes of the unit cell.

The inverse of these fractions are

the Miller Indices of the planes.

In (a) the intercepts are ½, ½, 1 and

the Miller Indices are (2 2 1).

In (c) the intercepts on b and c are at

infinity the inverse of which is 0 and

the plane is the (2 0 0).

In (d) the plane cuts the negative c

axis at -1 and thus is (1 1 -1). In

crystallography -1 is often written ī

and pronounced “Bar 1”.

pma 2010



Max von Laue was the first to

suggest that crystals might

diffract X-rays and he also

provided the first explanation

for the diffraction observed.

However, it is the explanation

provided by Bragg that is simpler

and more popular.

In the Bragg view crystal

planes act a mirrors.

Constructive interference

is observed when the path

difference between the two

reflected beams in (a) = nl.

The path difference in (a) is

2my. Since my/d = sin

2my = 2dsin = nl

where d is the interplanar spacing.

pma 2010


Bragg’s Law animated

In (a) above it is clear that the planes are the (1,0,0) set of planes.

If the path difference is simply one wavelength the Bragg condition

can be stated as

This is a first order reflection. If the path difference is

two wave lengths the Bragg condition becomes

and the reflection is a second order reflection.

pma 2010




N.B. The crystal must be a single crystal.

Bragg's equation specifies that, if a crystal is rotated

within a monochromatic X-ray beam, such that every

conceivable orientation of the crystal relative to the beam

is achieved, each set of planes will have had the

opportunity to satisfy the Bragg equation and will have

given rise to reflection.

In order to solve a crystal structure it is necessary

to record a large number of reflections.

This implies accurately measuring their intensities and

recording their directions with respect to crystal orientation

and initial X-ray beam direction.

Many experimental techniques have been devised

to achieve this. The steps involved in a crystal structure

determination are summarised in the flow chart.

pma 2010


Diagram Of An Area Detector X-Ray Data Collection System.

The first crystallographic data collection systems used

photographic methods. These

were replaced by automateddiffractometers which measuredreflections one at a time. A typical

data collection took several days.

modern systems use area detectors

which measure 100s at a time.

The crystal is oscillated over < 2°

while an image is collected then

rotated by the same amount

and oscillated again. The process is

repeated over a total range of about 180°.

Each image is exposed for < 100s.

Thus if readout time is ignored total

data collection time is often < 3 hr.

A typical image shown to the left.

A computer program is used to predict

the unit cell from several images.

pma 2010


Determination of the Lattice type and Space Group

High symmetry can lead to reflections being systematically absent from the

data set. Absent reflections have no measurable intensity. There are two types

of absences, General Absences and Special Absences.

The general absences determine the lattice type;

Primitive (P) has no general absences and no restrictions on h, k or l.

End Cantered (C) h+k=2n+1 are all absent.

Face Cantered (F) only h, k, l, all even or all odd are observed.

Body Cantered (I) h+k+l=2n+1 are all absent.

The special absences refer to specific sets of reflections and are used to

detect the presence of glide planes and screw axes. Some Space Groups

are uniquely determined by special absences but in many cases several

Space Groups will have to be considered.

Computer programs are able to lay out the data in tables with absences

indicated and possible Space Groups can be suggested however the choice of

Space Group will often need much thought.

pma 2010


Reflection Analysis I/I Cut1 Cut2 Cut3 = 3.0 6.0 12.0

Group Cond. Op. All Odd Cut1 Cut2 Cut3 Op. No.

h00 h=2n+1 21.. 18 10 8 8 8 1

0k0 k=2n+1 3 1 1 0 0 .21. 2

00l l=2n+1 11 6 0 0 0 ..21 3

0kl k=2n+1 b.. 95 53 49 44 37 4

0kl l=2n+1 c.. 49 43 40 33 5

0kl k+l=2n+1 n.. 40 34 30 28 6

h0l h=2n+1 .a. 412 211 96 89 81 7

h0l l=2n+1 211 1 1 0 .c. 8

h0l h+l=2n+1 .n. 212 95 88 81 9

hk0 h=2n+1 ..a 168 84 67 60 49 10

hk0 k=2n+1 ..b 84 76 69 48 11

hk0 h+k=2n+1 ..n 86 71 69 55 12

hkl k+l=2n+1 A.. 1591 1196 1084 902 13

hkl h+l=2n+1 .B. 1638 1271 1151 915 14

hkl h+k=2n+1 ..C 1651 1285 1145 921 15

hkl h+k+l=2n+1 I 1637 1288 1148 943 16

hkl not all odd/even F 2440 1876 1690 1369 17

P21/c (14)

CSD Total for all SGs at end of 2006 385035

In this case P21/c is the only choice offered by Oscail and this is likely to be correct.

Notice the symmetry operations move to the right when present in the data.

pma 2010


Solving the Structure

The unit cell, the Space Group and the reflection intensities cannot be used

to generate the structure as there is no reflection phase information in the

data set. This is the phase problem.

If the reflection phases were known then an electron density map could be

calculated using a Fourier series. If (x,y,z) is the electron density at x,y,z then

The F here is the square root of the measured intensity

When intensity is measured it is measured without sign and the phase is lost.

  • There are two ways to solve the phase problem:
  • The Patterson or heavy atom method
  • Direct Methods (Hauptman and Karle 1985 Nobel prize)
  • The Charge flipping method is a recent development

pma 2010


Direct Methods

After many years of study statistical trends were observed in reflection phases.

It was also observed that some reflections are more important than others.

The Direct Methods approach tries to guess the reflection phases and then

awards a Figure of Merit to the guess. The most popular is the Combined Figure

of Merit or CFOM). It is normal practice to accept solutions with CFOM values

in the range 0.03-0.15 and to try to use these phases to generate an

electron density map.

The Patterson or heavy atom method.

It is the electrons that scatter X-rays. Atoms that are heavier than all others

in the crystal will give rise to the strongest reflections. Heavy is a relative term

however, all atoms after Rb are normally considered to be heavy. Iodine for example will scatter a lot of X-rays compared to carbon. Using the

Patterson method it should be possible to calculate the position of an iodine

atom and this could be used to phase most of the reflections and calculate

an electron density map.

Charge Flipping

The charge flipping method works well if the data has good resolution.

There is an example in the Oscail tutorials. All non-H atoms are often identified correctly in the solution.

pma 2010


Refining a Structure

It should be possible to “see” atoms in an electron density map if it has good

resolution i.e. at least 1Å resolution. The steps in refining a structure are.

1. Use whatever atoms you have that look OK to generate an electron density


2. The known atoms are subtracted from this to generate a difference map.

3. Any atoms that have been missed should be in the difference map.

4. The refinement process minimises the difference between observed and

calculated reflection intensities.

5. In the final difference map there should be no peaks larger than a H atom

i.e. > 1e/Å3. (A H atom has a volume of about 1Å3 and has 1 e.)

Resolution The resolution of a crystal structure is usually quoted in Angstroms, Å. Standard small molecule structures should always be at least

of 1 Å resolution to give accurate bond lengths. Resolution can be related to Bragg angle at any wavelength through the Bragg equation n = 2d sin. Using the  value of the reflection with the largest Bragg angle in a data set

then d = l/2sin gives the resolution. The pattern shown on slide 15 has a resolution of 0.98Å at the edge.

pma 2010


Anisotropic refinement of the non-hydrogen atoms – In the early stages

atoms are refined as if they were spheres. Since atoms vibrate in a way that

is controlled by chemical bonds and interactions with their neighbours,

it is better to refine then as ellipsoids. One parameter (the radius) is enough

to define a sphere this with x,y,z means that isotropic refinement requires

4 parameters per atom. An ellipsoid needs 6 parameters thus an anisotropic

atom requires 9 parameters.

This is an example of an anisotropic atom

Final stages of refinement.

There are many was in which a structure can be “improved”. The two most

important considerations are addition of hydrogen atoms and anisotropic refinement of the non-hydrogen atoms.

Addition of hydrogen atoms – Hydrogen atoms have only 1 electron and are

often not seen in difference maps. It is best to include them at calculated

positions. This is easy to do and it will improve the “R factor”.

R Factor – The R factors used are Rw and wR2. Rw should be < 8% and

wR2 should be <15%. The lower the better. If the R or error is greater then

these values the structure is not much use. Rs are of the form Sum[(I0-Ic)/Io]

pma 2010


Problems with X-ray Crystallography

Locating Hydrogen atoms - Hydrogen atoms make extremely small contributions

and for this reason X-ray crystallography is not a good technique for accurately

locating hydrogen atom positions. If the location of hydrogen atoms is of specific

interest (e.g. in the study of hydride structures and hydrogen bonding interactions)

use has got to be made of the much more expensive and less available

technique of neutron diffraction. The theory of neutron diffraction is very similar

to that for X-ray diffraction but an essential difference is that hydrogen atoms

scatter neutrons as effectively as many other atoms and for this reason they

can be located with good accuracy in the structure determination.

The Need for Single Crystals - In order to carry out a detailed X-ray structure

determination, it is essential to have a crystal of the material in question.

Many compounds cannot be crystallised and thus are not amenable to

diffraction studies. There are also commercially important materials such

as glasses and many ceramics which owe their unique properties to their

amorphous nature. Being amorphous (no long range order), the structures

of these materials cannot be investigated in detail by diffraction techniques.

Low Temperature Structure Determination – When X-ray data are collected at

low temperature (<-150 ºC) thermal ellipsoids are smaller and better defined.

N.B. bond lengths show very little variation with temperature.

pma 2010



A crystalline powder sample will

diffract X-rays but since the

orientations of the individual

crystals are random the data set

produced is a plot of intensity v.s.

diffraction angle or Bragg angle .

Here the sample is sitting on a

flat plate and the plate is turned

about the centre of the

diffractometer at half the rate

through which the counter

moves. This is the /2 or Bragg

scan method.

Notice the plot contains 2 on

the X-axis and X-ray intensity

on the y-axis.

pma 2010


Uses of X-ray Powder Diffraction

In general, powder diffraction data are unsuitable for solving crystal structures.

Some advances have recently been made using the Rietveld method. However

this is far from trivial and it works best in relatively simple cases. It is very difficult

to be sure that the unit cell is correct as the reflections overlap and are difficult to

resolve from one another.

Important advantages and uses of powder diffraction:

1. The need to grow crystals is eliminated.

2. A powder diffraction pattern can be recorded very rapidly and the technique

is non-destructive.

3. With special equipment very small samples may be used (1-2mg.)

4. A powder diffraction pattern may be used as a fingerprint. It is often superior to

an infrared spectrum in this respect.

5. It can be used for the qualitative, and often the quantitative, determination of

the crystalline components of a powder mixture.

6. Powder diffractometry provides an easy and fast method for the detection of

crystal polymorphs. Powder patterns are provided when a drug is being

registered with the FDA. (Polymorphs are different crystal forms of the same


pma 2010


Calculations using X-ray powder diffraction patterns.

For an orthogonal system (a = b =  = 90°) the relationship between

interplanar spacing (d) and the unit cell parameters is given by the


This is the expression for an orthorhombic crystal.

For the tetragonal system it reduces to

and, for the cubic system, it further reduces to

pma 2010


In the CsCl structure both ions have coordination numbers of 8 and the structure

is a simple primitive one with no centring.

Formula Cs at centre = 1

8 x 1/8Cl = 1 = CsCl

Important Cubic Lattice Types

Two of the most important cubic lattice types are the NaCl type and the

CsCl type.

NaCl crystallizes in the Space Group Fm-3m

Stoichiometry (formula) from the Unit Cell

Site Na+ Cl-

Central 0 1

Face 6/2 0

Edge 0 12/4

Corner 8/8 0

Total 4 4

pma 2010


Cubic close packed spheres

The unit cell of a cubic close packed

Metal has a face cantered or F type lattice

The formula of the unit cell is:

6 x ½ + 8 x 1/8 = 4

pma 2010


The Bragg equation may be rearranged (if n=1)



If the value of 1/(dh,k,l)2 in the cubic system equation above is inserted into

this form of the Bragg equation you have

Since in any specific case a and l are constant and if l2/4a2 = A

pma 2010



Diffraction data have been collected on a powder diffractometer for a series of

compounds that crystallise in the cubic system.

In the practical course each person will calculate the unit cell parameter and

density from an X-ray powder diffraction pattern.

Question 1

Aluminium powder gives a diffraction pattern that yields the following eight

largest d-spacings: 2.338, 2.024, 1.431, 1.221, 1.169, 1.0124, 0.9289

and 0.9055 Å. Aluminium has a cubic close packed structure and its

atomic weight is 26.98 and l = 1.5405 A .

Index the diffraction data and calculate the density of aluminium.

can be used to obtain sin,

The Bragg equation,

The ccp lattice is an F type lattice and the only reflections observed are those

with all even or all odd indices.

that are allowed

Thus the only values of sin2 in

are 3A, 4A , 8A, 11A, 12A,16A and 19A for the first eight reflections.

pma 2010


Insert the values into a table and compute sin and sin2.

Since the lowest value of sin2 is 3A and the next is 4A the first

Entry in the Calc. sin2 column is (0.10854/3)*4 etc.

The reflections have now been indexed.

pma 2010


Calculation of a

For the first reflection (for which h2 + k2 + l2 = 3)

sin2 = 3A = 3 ( l2 / 4a2 )

a2 = 3l2 / 4sin2 a = 4.04946 Å = 4.04946 x 10-8 cm.

Calculation of the density of aluminium

a3 = 66.40356 Å3 = 66.40356 x 10-24 cm3.

If the density of aluminium is r (g. cm.-3), the mass of the unit cell is

 x 66.40356 x 10-24 g.

The unit cell of aluminium contains 4 atoms.

The weight of one aluminium atom is 26.98/(6.022 x 1023) = 4.48024 x 10-23

and the weight of four atoms (the content of the unit cell) is 179.209 x 10-24.

r x 66.40356 x 10-24 = 179.209 x 10-24

p = 2.6988

pma 2010


The X-ray powder diffraction pattern of AgCl obtained using radiation of

wavelength 1.54Å is shown below. The peaks are labelled with 2θ values

  • Answer each of the following.
    • On the basis that the structure is cubic and of either the NaCl or CsCl type
    • 1. Index the first six reflections. [15 marks], 2. Calculate the unit cell parameter.[5 marks], 3. Calculate the density of AgCl. [5 marks]
  • (Assume the following atomic weights: Ag, 107.868; Cl, 35.453;
  • and Avogadro’s number is 6.022 x 1023)

pma 2010


Since  values are available sin2 values can be calculated and inserted

in a table.

From Sin2 = A(h2 + k2 + l2) the possible values are:

1. for a face centred lattice 3A, 4A , 8A, 11A, 12A and 16A

2. for a primitive lattice 1A, 2A, 3A, 4A, 5A and 6A

The second option is not possible as the first 2 are not in the ratio of 1:2.

To test the first option, divide the first by 3 and multiply the result by 4, 8 etc.

pma 2010


Density of AgCl

Since sin2 = l2(h2 + k2 + l2)/4a2

a2 = (1.54)2.(16)/4(0.3083) using the largest (most accurate) 2

a2 = 30.7692

a = 5.547Ǻ (1Ǻ=10-8 cm)

Formula wt. of unit cell = 4AgCl = 573.284g

This is the weight of 4 moles of AgCl.

The weight of 4 molecules is 573.284 / (6.02 x 1023)

Density = 573.284 / (6.02 x 1023)(5.547 x 10-8)3

A is in Ǻ thus the answer should be multiplied by 1 / 10-24

Density= 5.580 g/cm3

pma 2010


Preferred Orientation Effects in X-ray Powder Diffraction Patterns

It is possible to calculate the theoretical diffraction pattern if the

crystal structure is known.


Calculated pattern

Observed pattern

There are no preferred orientation effects here as all reflections have their

expected intensity.

pma 2010




There is clear preferred orientation here.

The 002 is the flat face exposed when the

needles lie down on a flat plate.

Benzoic acid

Calculated pattern

Observed pattern

pma 2010


Some points relating to preferred orientation effects.

  • Preferred orientation effects are often observed for needles and plates.
  • Preferred orientation effects can be reduced by sample rotation etc.
  • However it is possible to obtain useful information when a stationary flat
  • sample holder is used without rotation and when preferred orientation
  • effects are at a maximum.
  • If deviations from a theoretical pattern are measured they may be used
  • to monitor the morphology (shape) of crystals in a production batch.

pma 2010
