corrosion basics

Corrosion Basics

January 21st, 2009

Robert J. Sinko

corrosion experts
Corrosion Experts!
  • “An expert is someone who carries a briefcase and comes from more than 50 miles away” (anonymous)
  • “An expert is a man who has made all the mistakes which can be made in a very narrow field” (Niels Bohr)
outline of the talk
Outline of the Talk
  • A Little History
  • Corrosion Basics
  • Top Corrosion Mechanisms
  • Monitoring Corrosion and Obtaining Data
  • Materials Selection
  • Points to consider
  • Continuing Education
  • Questions
a little history

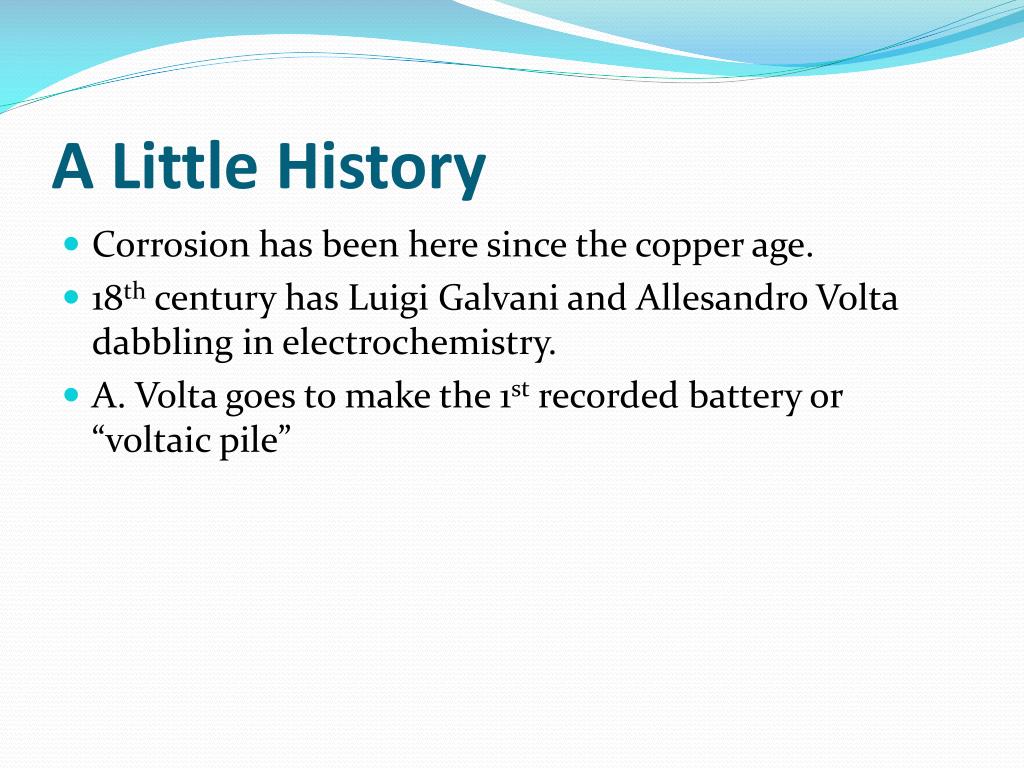

A Little History
  • Corrosion has been here since the copper age.
  • 18th century has Luigi Galvani and Allesandro Volta dabbling in electrochemistry.
  • A. Volta goes to make the 1st recorded battery or “voltaic pile”
a little more history
A Little More History
  • Sir Humphry Davy in early 1800s passes current through substances to decompose them (electrolysis).
  • Concludes that the voltaic piles and electrolysis were same process.
  • Claims that current is generated only when the electrolyte and one of the metals was oxidized
  • Found that two metals are not required as reaction proceeds with zinc and carbon.
  • Initiated the use of zinc as a sacrificial anode for copper hulled British warships
a little more history1
A Little MORE History
  • Michael Faraday had been Sir Davy’s lab flunky but outgrew the role
  • in the 1830s he contributed by developing the theory of electrochemical action and coined the following words we use now.
    • Electrode
    • Electrolysis
    • Ion
  • Sir Davy tried to block Faraday’s election to the Royal Society
  • There are countless more that have moiled in the service
corrosion basics history
Corrosion Basics/History
  • Man sees ore in lowest energy state
  • Man transforms ore in useful object
  • Nature wants her dirt back
  • Nature transforms the object back to dirt.
  • Remember J.W. Gibbs (free energy diagram)?
    • He really worked with the 2nd Law of Thermo in the late 1800s.
      • (You can’t break even - entropy)
slide8

Smelted, heated and beated, forged, ground, drilled and machined

Useful life!

Left out in the rain

Energy

Rusted away

Ore

Time

corrosion basics1
Corrosion Basics
  • Corrosion is electrochemical
    • Anode (Oxidizing – losing electrons) Electrode
    • Cathode (Reducing – gaining electrons) Electrode
    • Need “Short circuit” for electrons between terminals
    • And need a medium for ion transport
  • Electricity and chemicals are main drivers
  • Influenced by other factors
corrosion basics2
Corrosion Basics
  • Usual Textbook Equations
    • Chemical: Zn + 2HCl = ZnCl2 + 2H
    • Electrical: Zn Zn+2 + 2e- (anode)
    • 2H+ + 2e- 2H (cathode)
  • Note: hydrogen is atomic, not diatomic
    • This can come back to get you
  • Generally, the electrical part is not shown
  • Oxygen reaction can be inserted as well
slide11

Note that atomic hydrogen forms on surface and becomes diatomic in solution.

Hydrogen atoms can be absorbed into

materials (Ti and carbon steel couple)

Figure 2.6 – Electrochemical reactions occurring during the corrosion of zinc in air-free hydrochloric acid.

Used by permission, NACE, Corrosion Basics An Introduction, NACE, 1984, pg 28.

corrosion basics other factors
Corrosion Basics- Other Factors
  • Corrosion rates are almost initially very high
  • Polarization – something to slow down reactions
    • Cathodic and anodic surface polarization
    • Film thickness of corrosion product
    • Rate of hydrogen or oxygen diffusion to and from surfaces
    • Rate of corrodant ion diffusion away
  • Areas of reaction (anode to cathode)
  • Oxygen Content (cathodic depolarizer)
  • Temperature – every 10°C = 2 x corrosion rate
  • Velocity effects – moving species to & fro
corrosion top mechanisms
Corrosion Top Mechanisms
  • General
  • Pitting
  • Crevice
  • Underdeposit
  • Dealloying
  • Galvanic
  • Enviromental Cracking
    • Stress Corrosion
    • Hydrogen Embrittlement
    • Liquid metal embrittlement
  • Corrosion Fatigue
  • Cavitation
  • Erosion
corrosion top mechanisms general
Corrosion Top Mechanisms – General

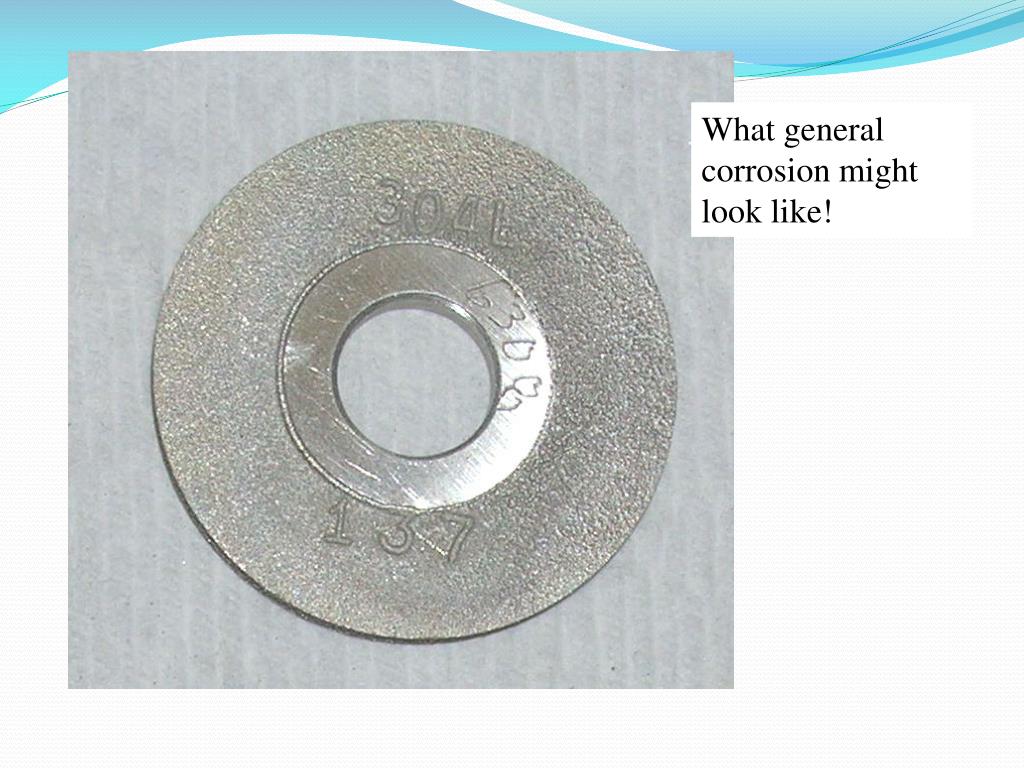

  • The even removal of metal.
  • Allows great planning
    • Monitoring
    • Replacement and scheduling
  • Unfortunately, rare in the real world.

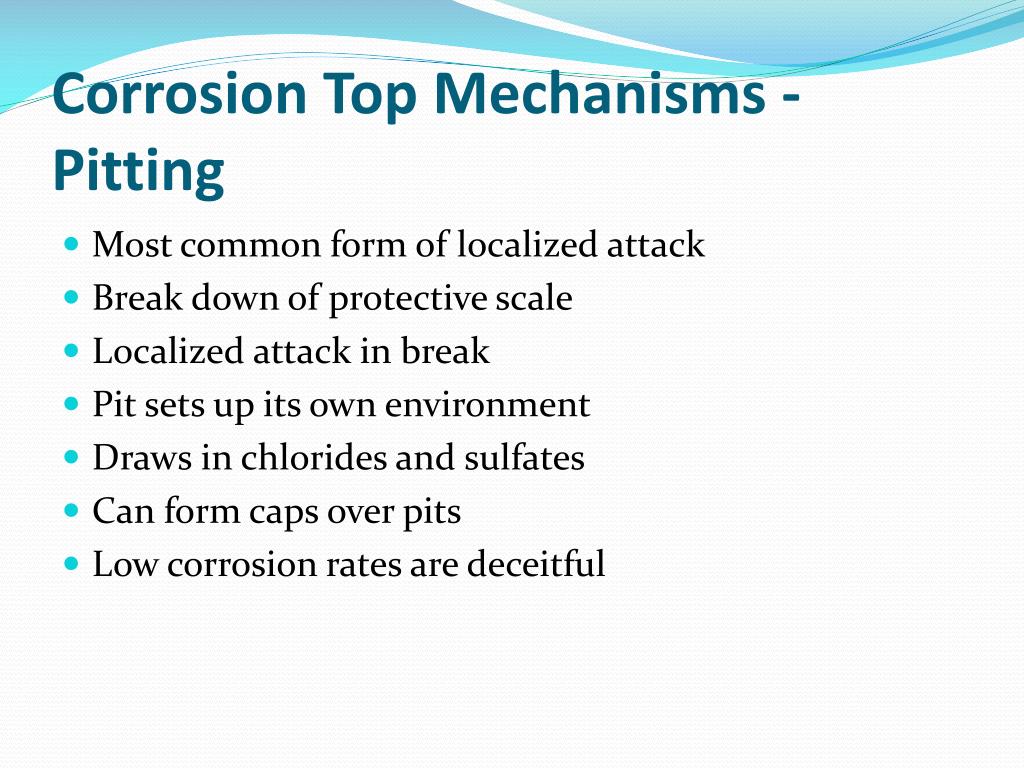

corrosion top mechanisms pitting
Corrosion Top Mechanisms - Pitting
  • Most common form of localized attack
  • Break down of protective scale
  • Localized attack in break
  • Pit sets up its own environment
  • Draws in chlorides and sulfates
  • Can form caps over pits
  • Low corrosion rates are deceitful
corrosion top mechanisms crevice

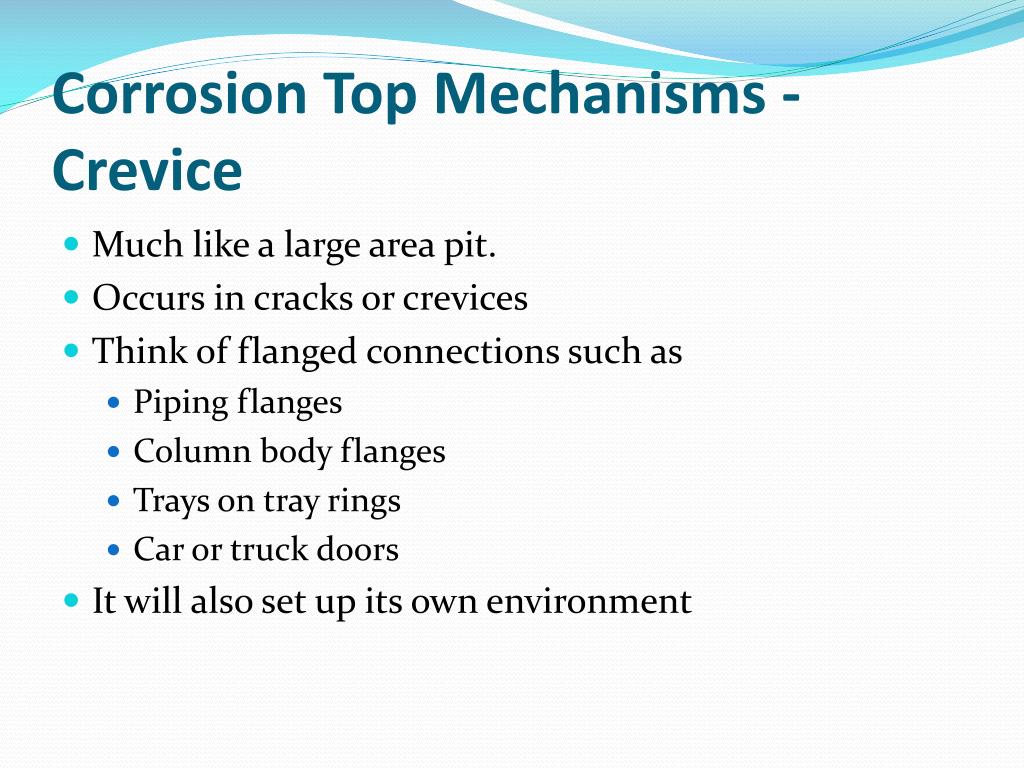

Corrosion Top Mechanisms - Crevice
  • Much like a large area pit.
  • Occurs in cracks or crevices
  • Think of flanged connections such as
    • Piping flanges
    • Column body flanges
    • Trays on tray rings
    • Car or truck doors
  • It will also set up its own environment
slide19

Crevice attack on titanium from fluorinated o-ring

Severe crevice attack as well as general

corrosion top mechanism underdeposit

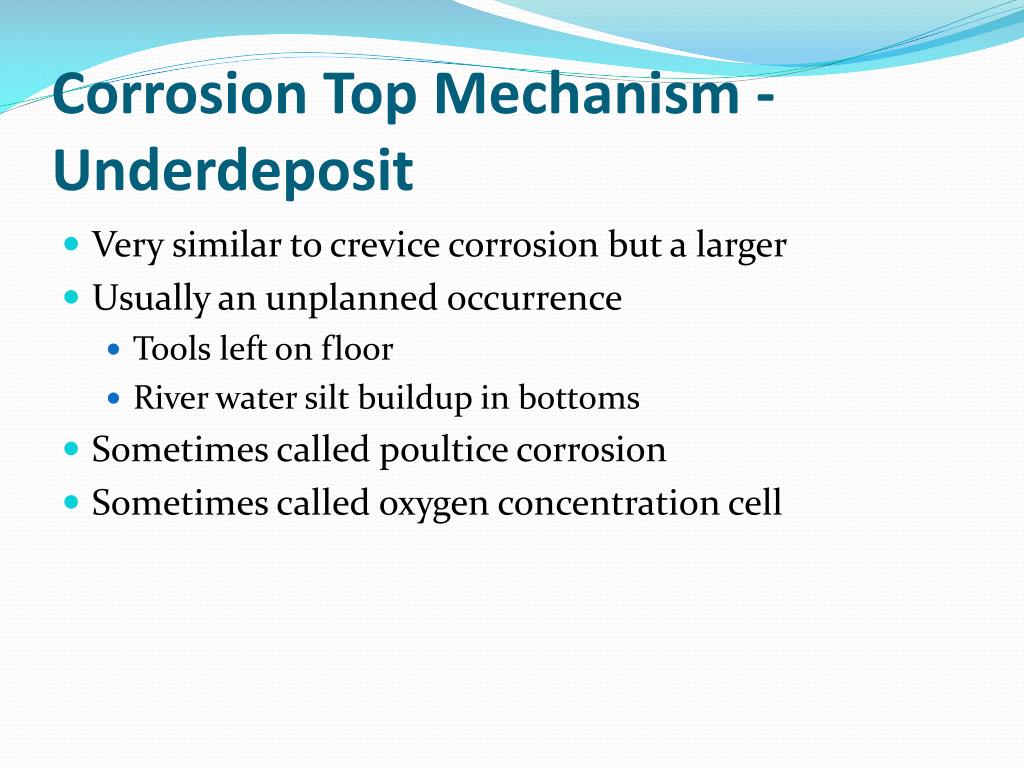

Corrosion Top Mechanism - Underdeposit
  • Very similar to crevice corrosion but a larger
  • Usually an unplanned occurrence
    • Tools left on floor
    • River water silt buildup in bottoms
  • Sometimes called poultice corrosion
  • Sometimes called oxygen concentration cell

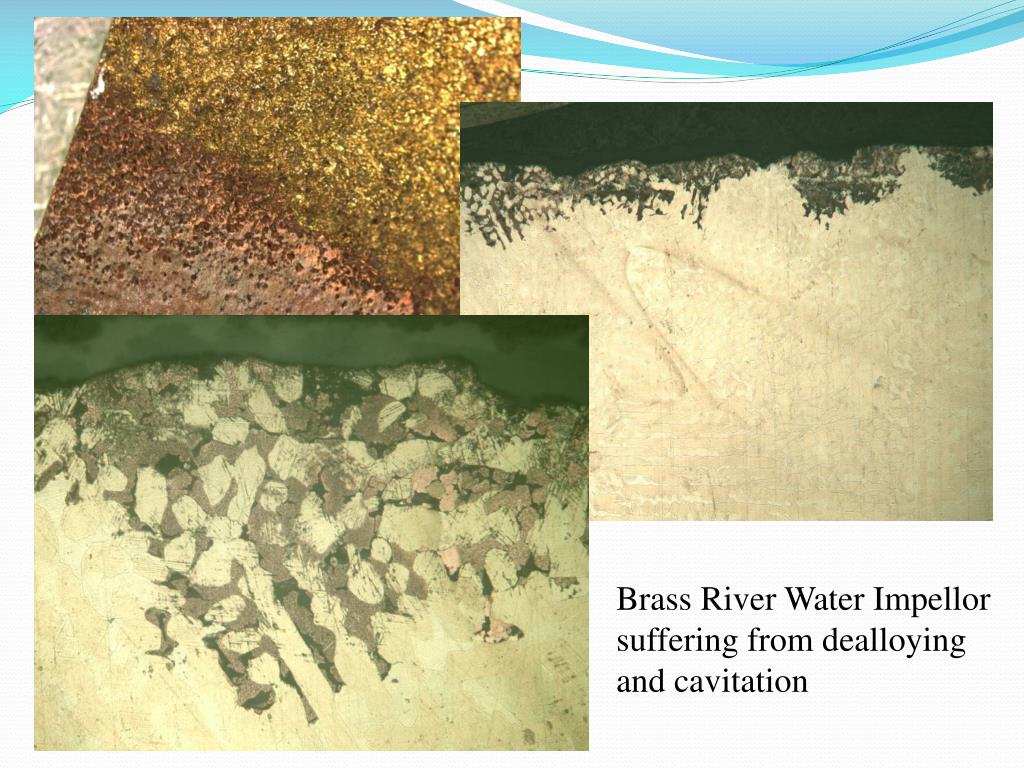

corrosion top mechanism dealloying
Corrosion Top Mechanism - Dealloying
  • Copper alloys
    • Brasses with >30% zinc (bath sink tap screws)
    • Copper nickel alloys (nickel removed)
  • Cast iron (graphitization)
  • Almost any alloy can have the problem
  • Two Theories
    • One element is “leached” from solution
    • Both elements corroded but more noble plates back.
corrosion mechanisms galvanic
Corrosion Mechanisms – Galvanic
  • Think dry cell battery
    • Carbon center cathode
    • Zinc jacket anode
    • MnOH (manganese hydroxide paste)
    • Switch short circuit provided by your flashlight
  • Galvanized water pipe to your house
  • Powerhouse soot blower of SS nozzle and steel pipe
  • Over the road trailers with Al sides and steel rivets
  • Your water heater with aluminum sacrificial anode
slide24

CSTL Pipe

SS Nozzle

Soot blower metallographic sample

corrosion top mechanisms environmental cracking

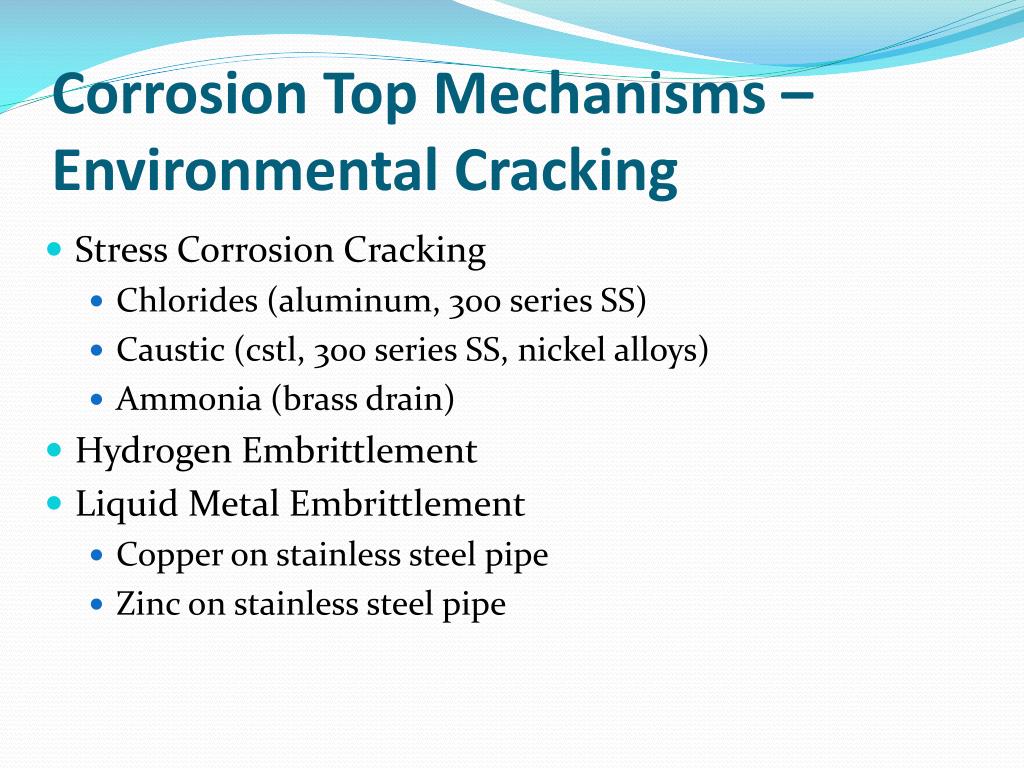

Corrosion Top Mechanisms – Environmental Cracking
  • Stress Corrosion Cracking
    • Chlorides (aluminum, 300 series SS)

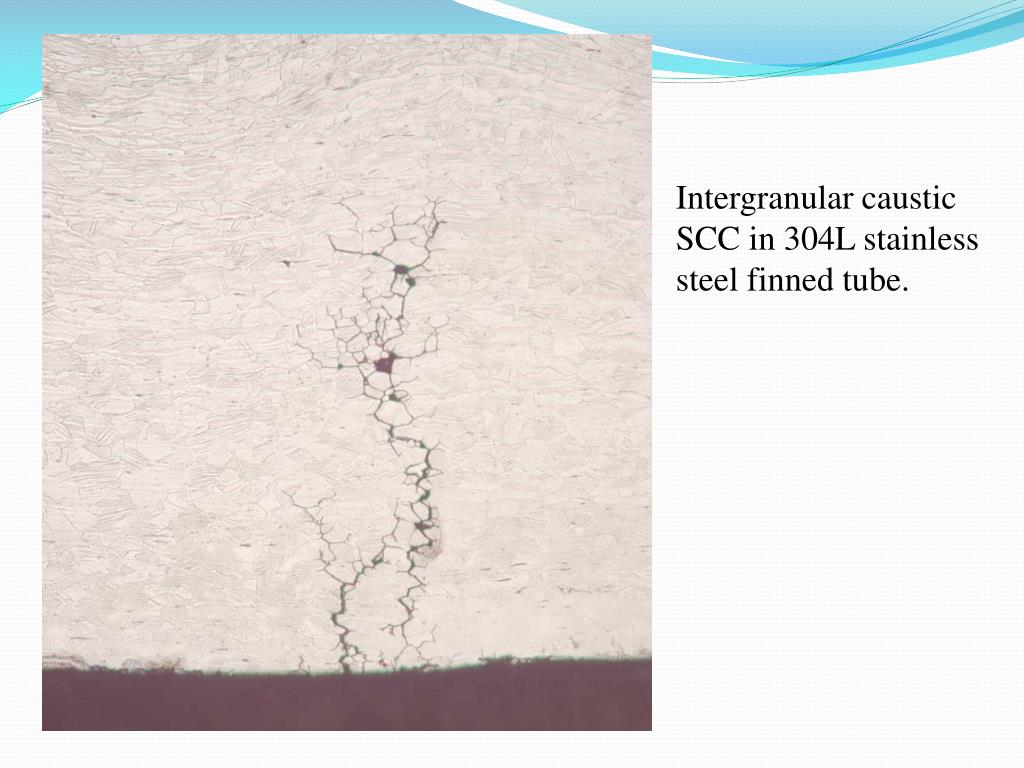

    • Caustic (cstl, 300 series SS, nickel alloys)
    • Ammonia (brass drain)
  • Hydrogen Embrittlement
  • Liquid Metal Embrittlement
    • Copper on stainless steel pipe
    • Zinc on stainless steel pipe
slide26

Weld metal

Knife line attack

Transgranular chloride SCC in 316 stainless steel

slide28

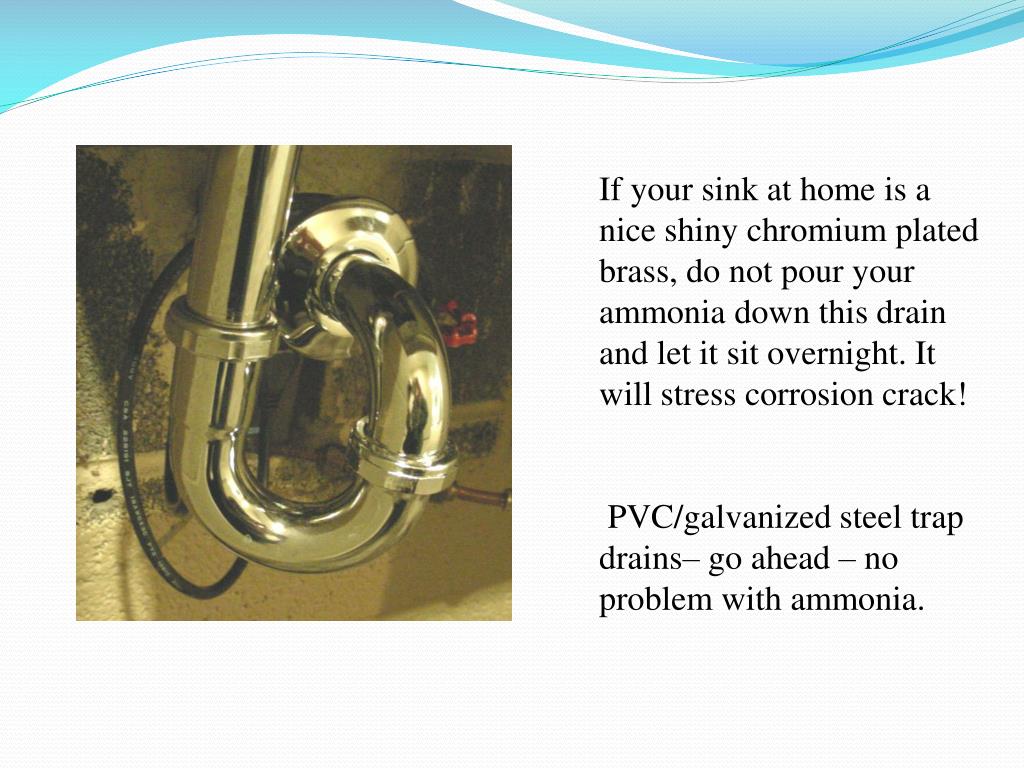

If your sink at home is a nice shiny chromium plated brass, do not pour your ammonia down this drain and let it sit overnight. It will stress corrosion crack!

PVC/galvanized steel trap drains– go ahead – no problem with ammonia.

corrosion top mechanism corrosion fatigue
Corrosion Top Mechanism – Corrosion Fatigue
  • Starts with an alternating stress state
  • Protective oxide breaks open
  • Corrosive species attack and form products
  • Next cycle repeats:
    • crack growth
    • more corrosion product
    • accelerated fatigue failure
  • Seen in rotating shafts
slide30

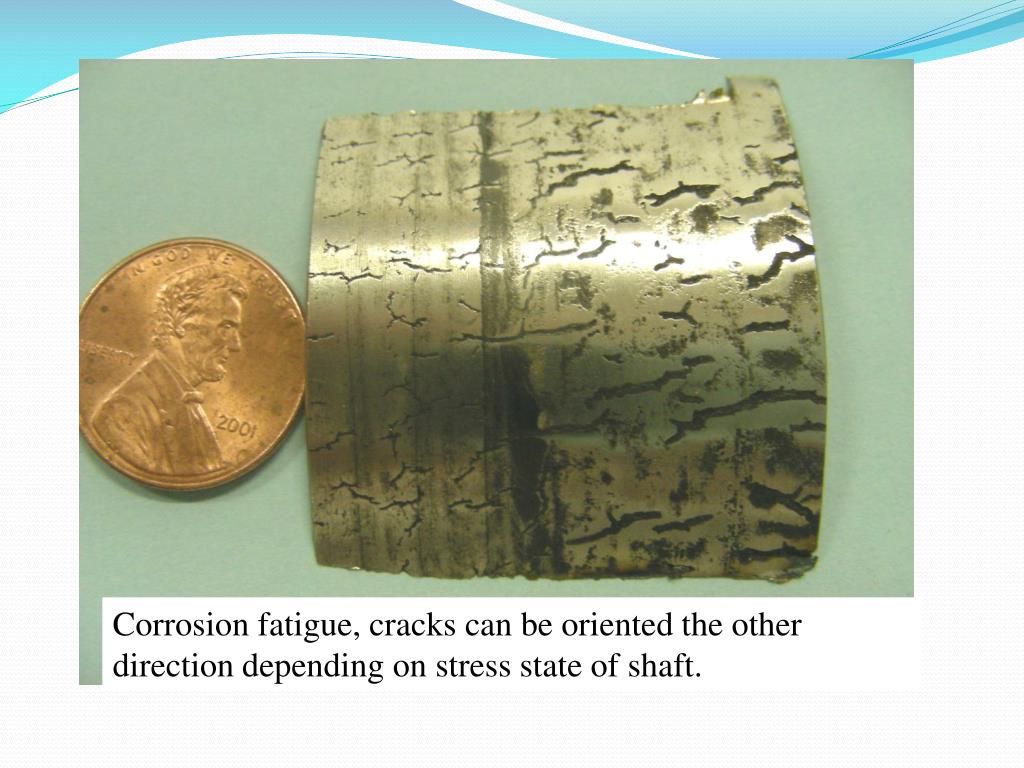

Corrosion fatigue, cracks can be oriented the other direction depending on stress state of shaft.

corrosion top mechanisms cavitation

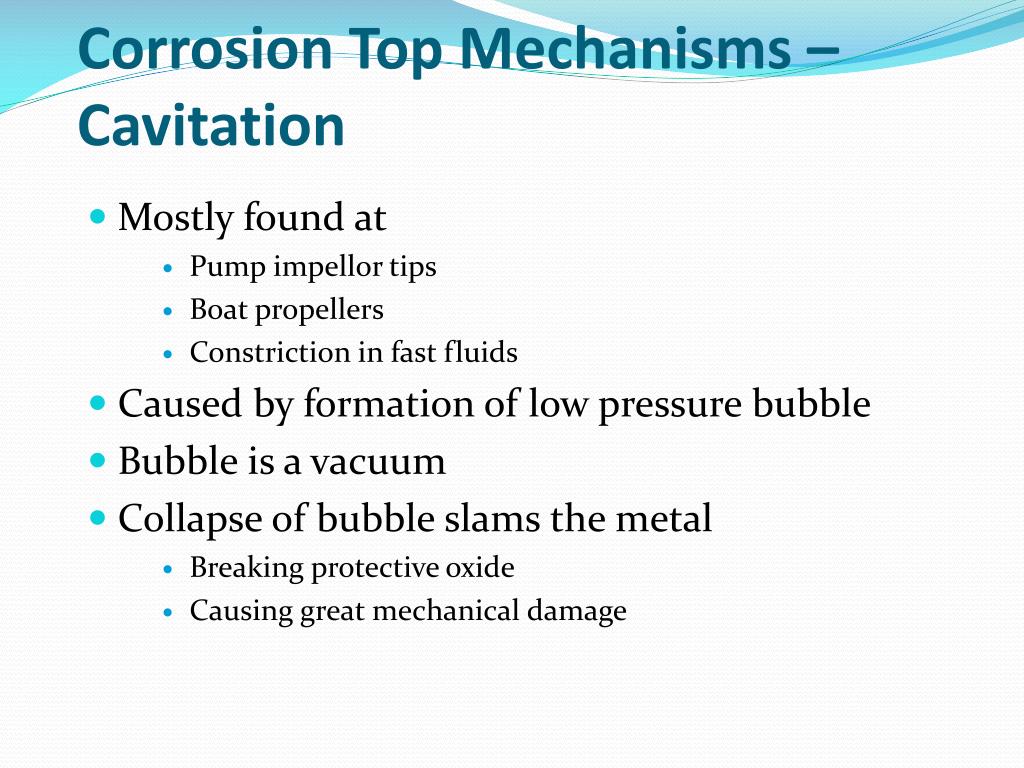

Corrosion Top Mechanisms – Cavitation
  • Mostly found at
      • Pump impellor tips
      • Boat propellers
      • Constriction in fast fluids
  • Caused by formation of low pressure bubble
  • Bubble is a vacuum
  • Collapse of bubble slams the metal
      • Breaking protective oxide
      • Causing great mechanical damage
slide32

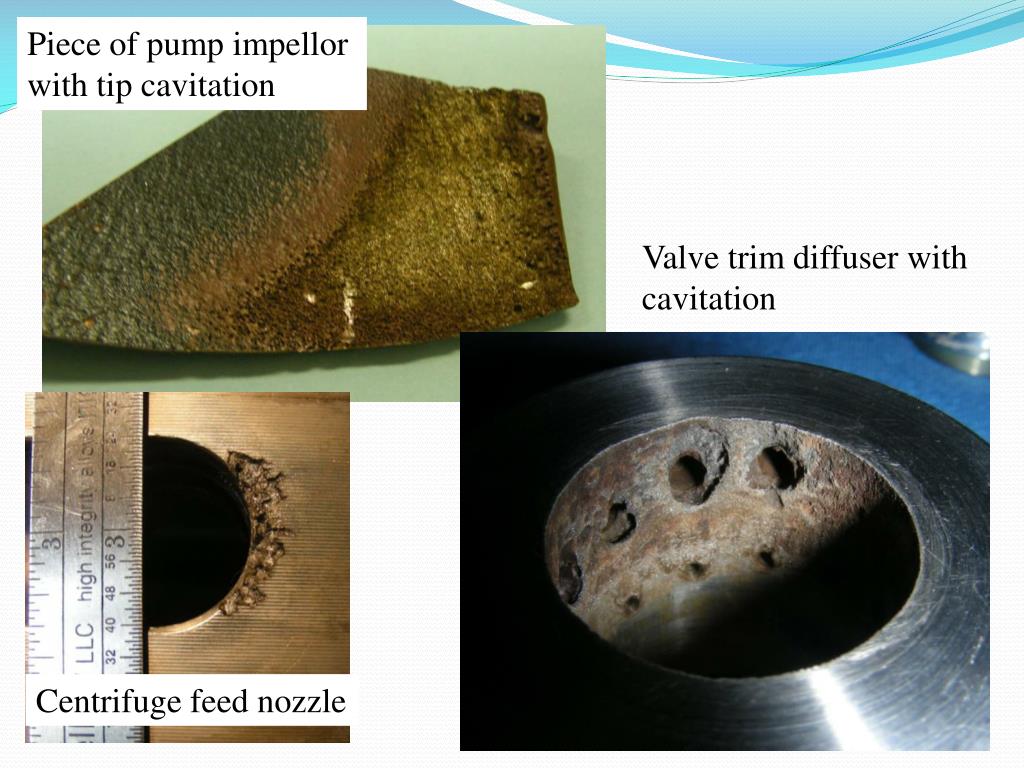

Piece of pump impellor with tip cavitation

Valve trim diffuser with cavitation

Centrifuge feed nozzle

corrosion top mechanism erosion

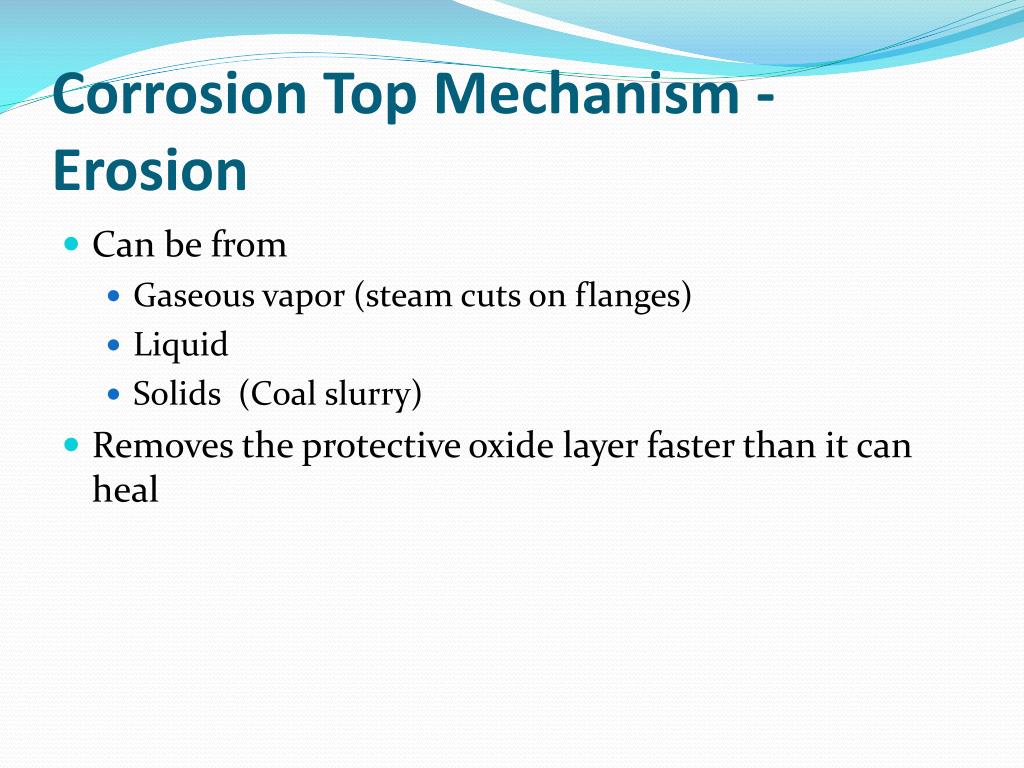

Corrosion Top Mechanism - Erosion
  • Can be from
    • Gaseous vapor (steam cuts on flanges)
    • Liquid
    • Solids (Coal slurry)
  • Removes the protective oxide layer faster than it can heal
monitoring corrosion
Monitoring Corrosion
  • Visual examination for leaks
  • Lab testing
  • Field testing (Corrosion racks with coupons)
  • Corrosion probes
    • ER (electrical resistance)
    • LPR (linear polarization resistance)
    • New technology
  • Metals analysis in process fluids
coupons
Coupons

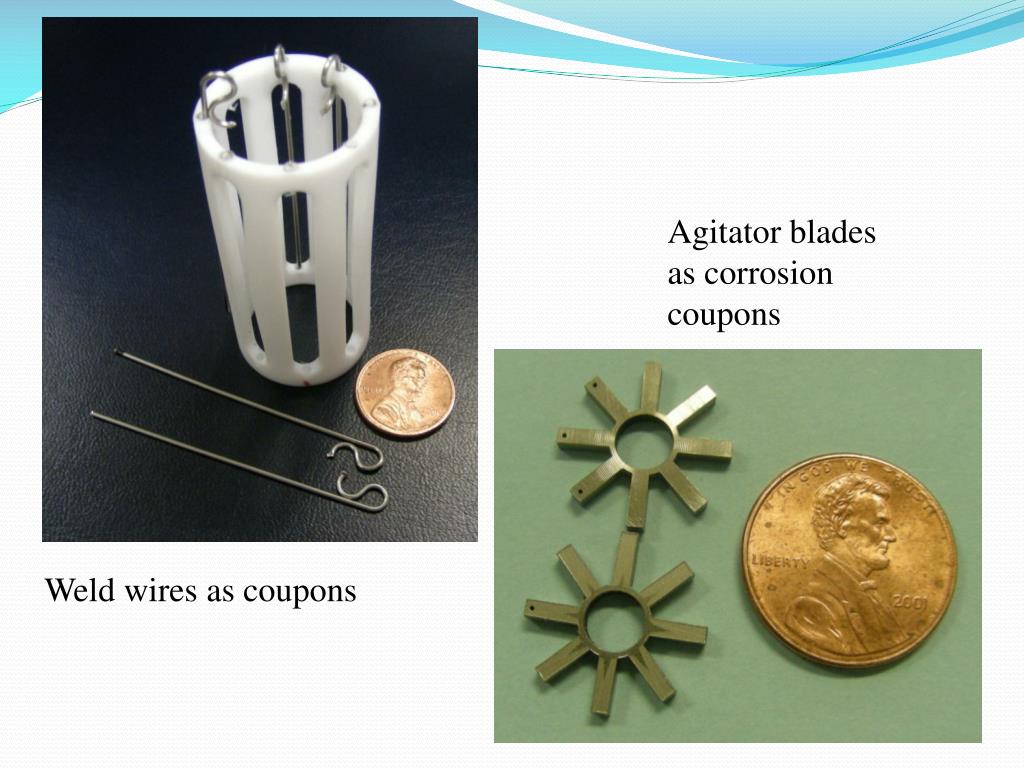

  • All kinds of materials and shapes
    • Metals
    • Plastics
    • Fiber reinforced plastics
    • Ceramics
    • Elastomers
    • Glass
  • Homemade or “store bought” coupons
  • Welds
  • Heat treatments
corrosion lab testing
Corrosion Lab Testing
  • Coupons
  • Lab testing at many temps but low pressure
  • Heat flux testing to simulate exchangers
  • High pressure labs
  • Ingenious bench scale or pilot plant testing
  • Key question - What do you want to know?
field corrosion tools

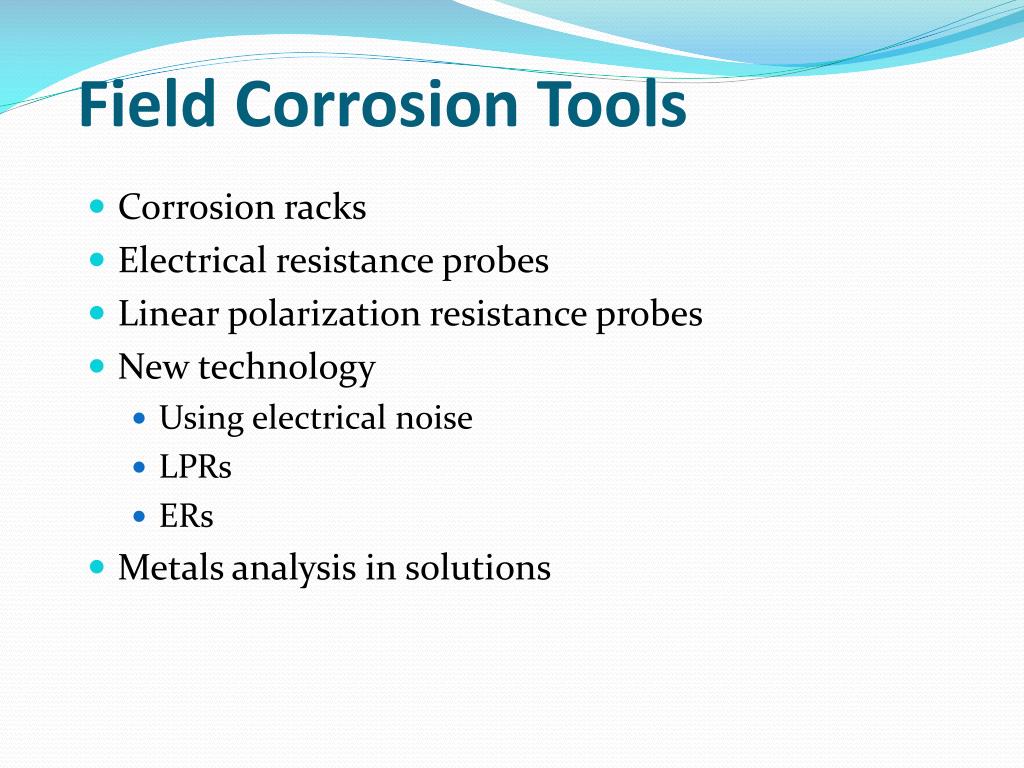

Field Corrosion Tools
  • Corrosion racks
  • Electrical resistance probes
  • Linear polarization resistance probes
  • New technology
    • Using electrical noise
    • LPRs
    • ERs
  • Metals analysis in solutions
slide43

V = I*R

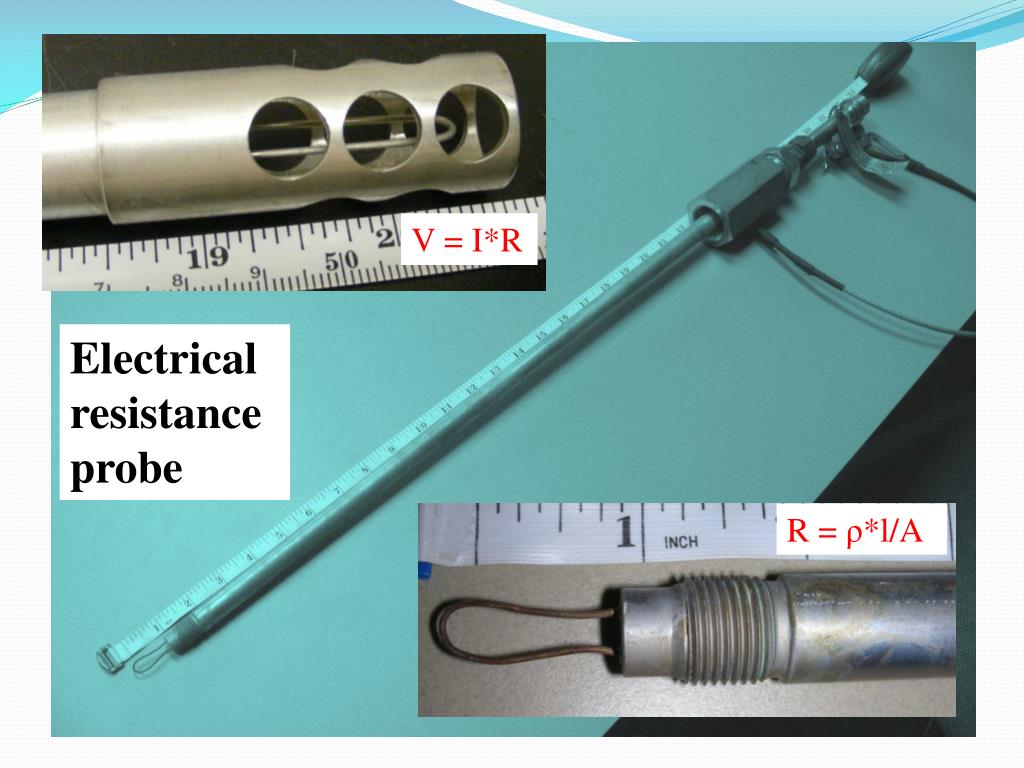

Electrical resistance probe

R = ρ*l/A

slide44

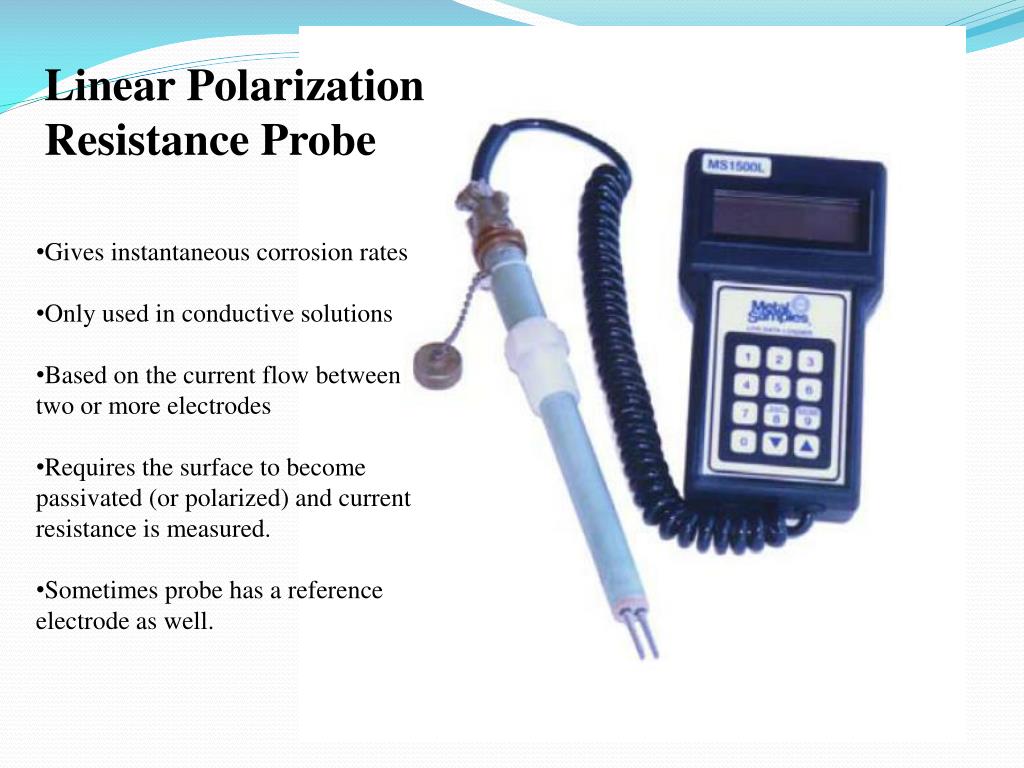

Linear Polarization Resistance Probe

  • Gives instantaneous corrosion rates
  • Only used in conductive solutions
  • Based on the current flow between two or more electrodes
  • Requires the surface to become passivated (or polarized) and current resistance is measured.
  • Sometimes probe has a reference electrode as well.
slide45

Honeywell’s SmartCET® uses a sensor for background electrochemical noise to detect pitting along with LPR probe and a sophisticated computer program.

http://hpsweb.honeywell.com/NR/rdonlyres/8418C7B6-EBB9-4948-8441-C3803B06BA2E/44686/ChemEngJune07.pdf

Newer Technology

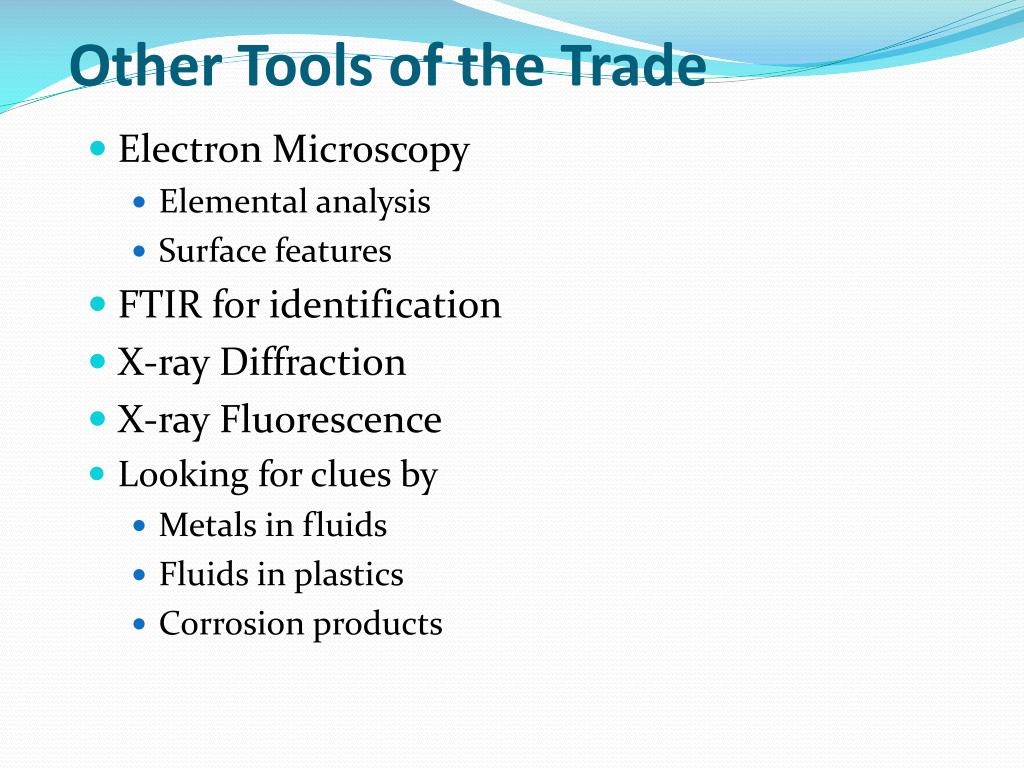

other tools of the trade
Other Tools of the Trade
  • Electron Microscopy
    • Elemental analysis
    • Surface features
  • FTIR for identification
  • X-ray Diffraction
  • X-ray Fluorescence
  • Looking for clues by
    • Metals in fluids
    • Fluids in plastics
    • Corrosion products
materials selection
Materials Selection
  • Basic Groups
    • Metals
    • Plastics
    • Ceramics
    • Elastomers
    • Coatings
    • Linings
  • Balance of “+”s and “-”s
    • Corrosion Resistance
    • Availability
    • Mechanical Properties
    • Cost
    • Code Compliance
    • Fabricability
    • Repair options
materials selection metals
Materials Selection – Metals
  • Carbon steels
  • Aluminum (3000, 5000 and 6000 series)
  • Coppers, brasses, and bronzes
  • Stainless steels
    • Austenitic (200 and 300 series)
    • Martensitic (400 series)
    • Precipitation hardening (17-4 PH)
    • Duplex (2101, 2205, 255, and 2507)
  • Nickel Alloys (600 series, C, B, X, Inconel®, Hastelloy®)
  • Titanium alloys (common grades 2, 5, 7, and 11)
  • Zirconium
materials selection plastics
Materials Selection - Plastics
  • HDPE and Polypropylene (low end)
  • PVC and CPVC
  • Resins – epoxy, vinyl esters
  • Fluoropolymers
    • PTFE, PFA, FEP, ETFE, PVDF
  • PEEK (high end)
  • Can be used as monolithic or composite pieces in equipment
material selection coatings

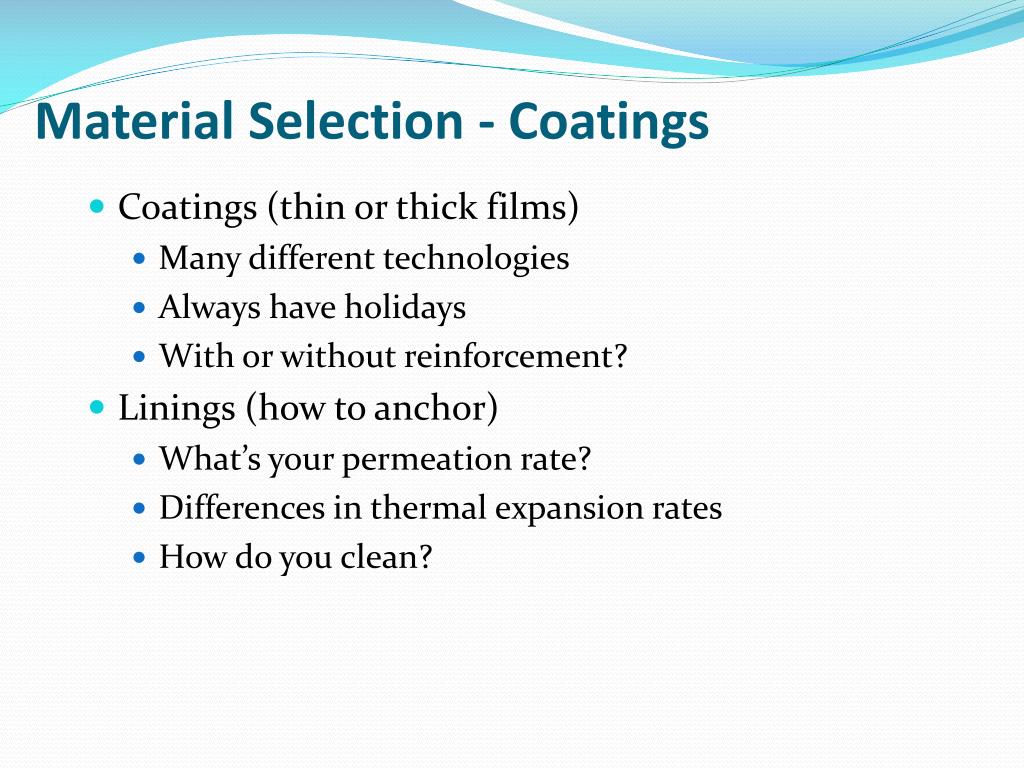

Material Selection - Coatings
  • Coatings (thin or thick films)
    • Many different technologies
    • Always have holidays
    • With or without reinforcement?
  • Linings (how to anchor)
    • What’s your permeation rate?
    • Differences in thermal expansion rates
    • How do you clean?
materials selection ceramics
Materials Selection - Ceramics
  • Concrete
  • Acid proof bricks and mortar
  • Refractory
  • Glass lined steel
  • Alumina
  • Silicon carbide
  • Silicon nitride
materials selection elastomers
Materials Selection -Elastomers
  • Natural Rubbers
  • Nitriles
  • Neoprenes
  • Polyurethanes
  • EPDM
  • Silicones
  • Viton®
  • Kalrez® or Chemraz®
  • Compatibility
  • Temperature limit
  • Mechanical properties
  • Availability
  • Supply Chain
  • Identification
  • Specifications
gaskets sealing
Gaskets & Sealing
  • Gasketing has many options
      • CNA Fiber sheet gaskets (250°F limit)
      • Rubber sheet goods (250°F to 350°F limits)
      • PTFE sheets and composites (350°F limit)
      • Expanded PTFE products (600°F limit)
      • Graphite gaskets (600°F limit)
      • Spiral wounds (rings, windings and fillers)
      • Ring joints (for high T & P)
      • Specialty materials (Thermiculite®, Cogebi®)
know your service
Know Your Service
  • Know your process conditions?
  • What are the upset conditions?
  • What are your projected lives for process?
  • What external/environmental factors?
  • How are you going to clean your equipment?
corrosion classes continuing education
Corrosion ClassesContinuing Education
  • NACE has Basic Corrosion classes in Houston, TX.
    • www.nace.org is the homepage, direct link is,
    • http://web.nace.org/departments/education/Program.aspx?id=403af18b-d51c-db11-953d-001438c08dca
  • ASM International has Corrosion Courses in Metals Park OH.
    • www.asminternational.org is the hompage, direct link is,
    • http://asmcommunity.asminternational.org/portal/site/www/Education/CourseCalendar/
last quote that sums it up for corrosion
Last quote that sums it up for Corrosion!
  • “…..until you return to the ground from which you were taken, for you are dirt and to dirt you shall return” (Genesis 3:19)
