  1. OLAP and Data Warehousing Surajit Chaudhuri Microsoft Research, Redmond, WA, USA surajitc@microsoft.com Umeshwar Dayal Hewlett-Packard Labs., Palo Alto, CA, USA dayal@hpl.hp.com

  2. What is OLAP? • On-Line Analytical Processing • Information technology to help the knowledge worker (executive, manager, analyst) make faster and better decisions. • OLAP is an element of decision support systems (DSS). • Surajit Chaudhuri, Umeshwar Dayal 3

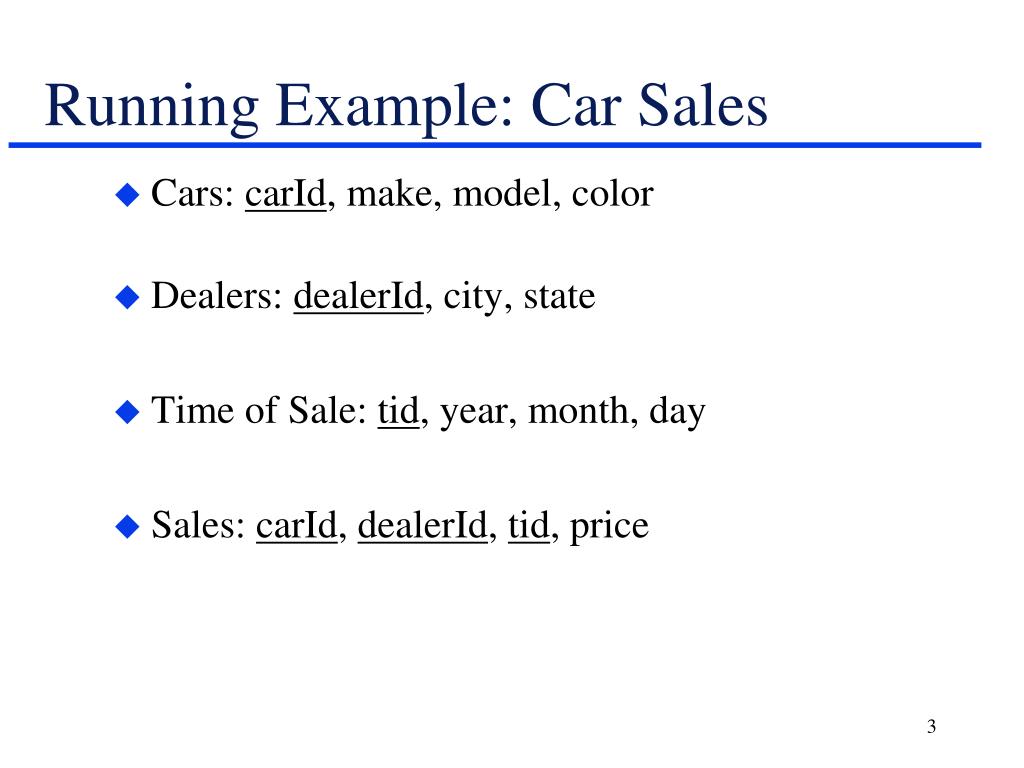

  3. Running Example: Car Sales • Cars: carId, make, model, color • Dealers: dealerId, city, state • Time of Sale: tid, year, month, day • Sales: carId, dealerId, tid, price

  4. OLTP Queries: Examples • create a new sales record that indicates that a red VW Golf was sold in Boston, MA • see how many black and silver VW Passats were sold at dealership #123 on April 11th 2005

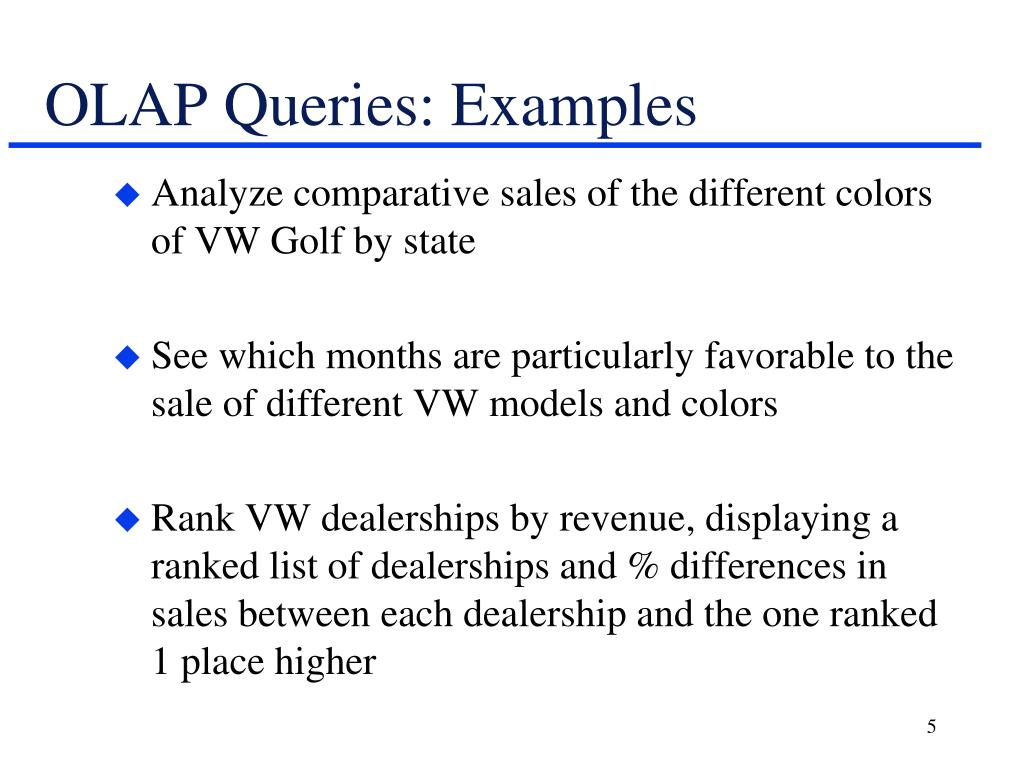

  5. OLAP Queries: Examples • Analyze comparative sales of the different colors of VW Golf by state • See which months are particularly favorable to the sale of different VW models and colors • Rank VW dealerships by revenue, displaying a ranked list of dealerships and % differences in sales between each dealership and the one ranked 1 place higher

  6. OLAP vs. OLTP • OLAP • Knowledge worker • Decision support • Subject-oriented • (Star, snowflake) • Historical, Consolidated • Summarized, Multidimensional • Ad hoc • Complex query • Read mostly • Lots of scans • Millions • Hundreds • 100 GB - TB • Query throughput, response • OLTP • Clerk, IT professional • Day to day operations • Application-oriented • (E-R based) • Current, Isolated • Detailed, Flat relational • Structured, Repetitive • Short, simple transaction Read/write • Index/hash on prim. key • Tens • Thousands • 100 MB - GB • Trans. throughput • User • Function • DB design • Data • View • Usage • Unit of work • Access • Operations • # Records accessed • # Users • Db size • Metric • Surajit Chaudhuri, Umeshwar Dayal

  7. OLAP Queries: Challenges • Many AND, OR in the WHERE clause • Self-join, nested sub-queries • Last year’s sales vs this year’s sales for each product • Show reps for whom every sale has been more than $15000 • Extensive use of aggregation, often on related datasets • Aggregation over time periods • Ranking • Use of statistical functions • Very large datasets • Expectation of an interactive response time

  8. OLAP Query Tools • Goal of OLAP is to support ad-hoc querying for the business analyst (Power user) • Business analysts are familiar with spreadsheets • Extend spreadsheet analysis model to work with warehouse data • Large data set • Semantically enriched to understand business terms (e.g., time, geography) • Combined with reporting features • Multidimensional view of data is the foundation of OLAP. • Surajit Chaudhuri, Umeshwar Dayal

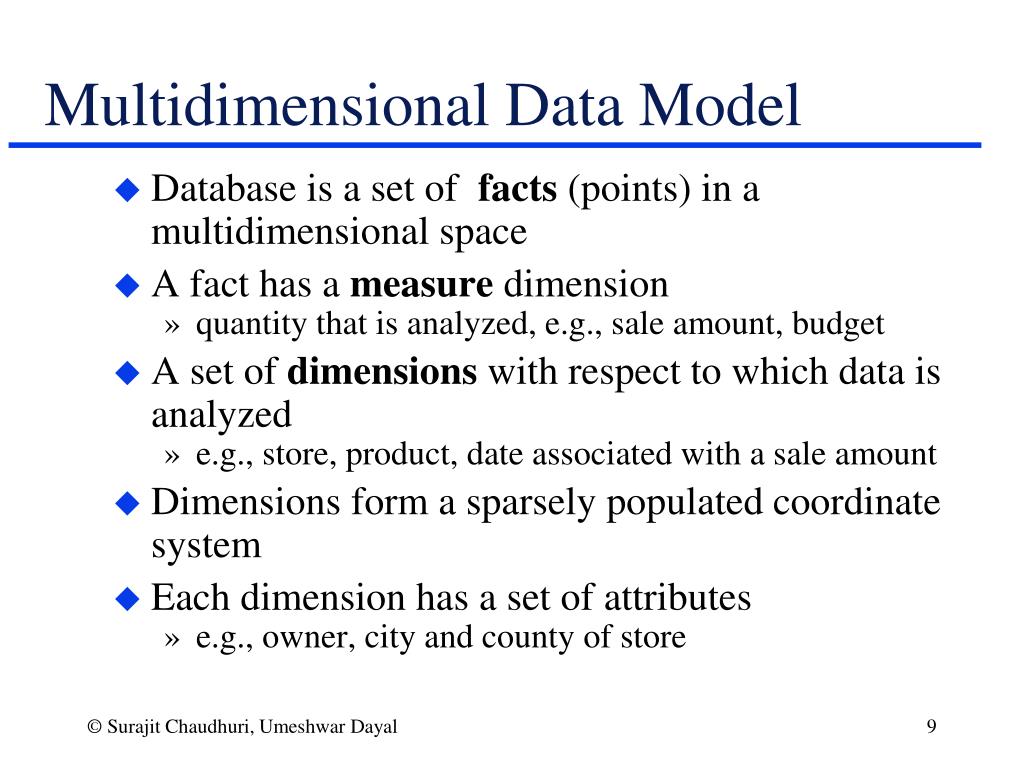

  9. Multidimensional Data Model • Database is a set of facts (points) in a multidimensional space • A fact has a measure dimension • quantity that is analyzed, e.g., sale amount, budget • A set of dimensions with respect to which data is analyzed • e.g., store, product, date associated with a sale amount • Dimensions form a sparsely populated coordinate system • Each dimension has a set of attributes • e.g., owner, city and county of store • Surajit Chaudhuri, Umeshwar Dayal

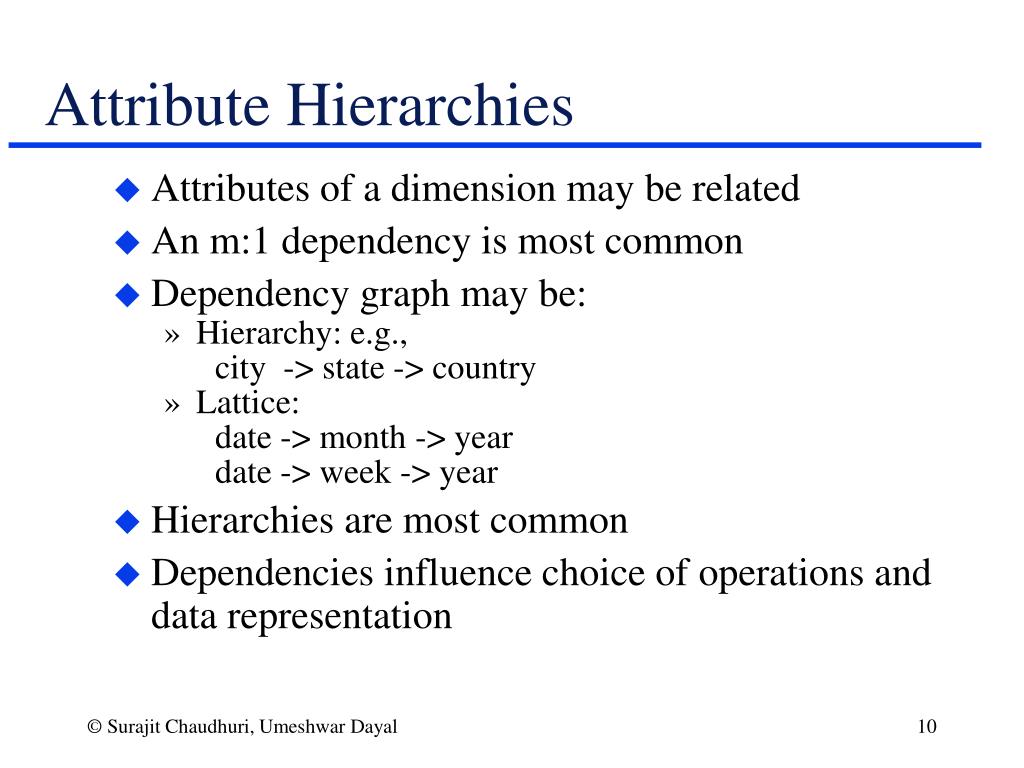

  10. Attribute Hierarchies • Attributes of a dimension may be related • An m:1 dependency is most common • Dependency graph may be: • Hierarchy: e.g., city -> state -> country • Lattice: date -> month -> year date -> week -> year • Hierarchies are most common • Dependencies influence choice of operations and data representation • Surajit Chaudhuri, Umeshwar Dayal

  11. Sales volume as a function of product, time, geography 7 1 2 4 5 6 3 Multidimensional Data Dimensions Color, State, Date Attributes date (year, month, day) Attribute Hierarchies and Lattice Industry Country Year Category State Quarter Product City Month Week State WI CA NY Red 10 Green Color 50 Blue 20 White 12 Silver 15 Black 10 Date Fact data: Sales volume in $100 Date • Surajit Chaudhuri, Umeshwar Dayal Soap

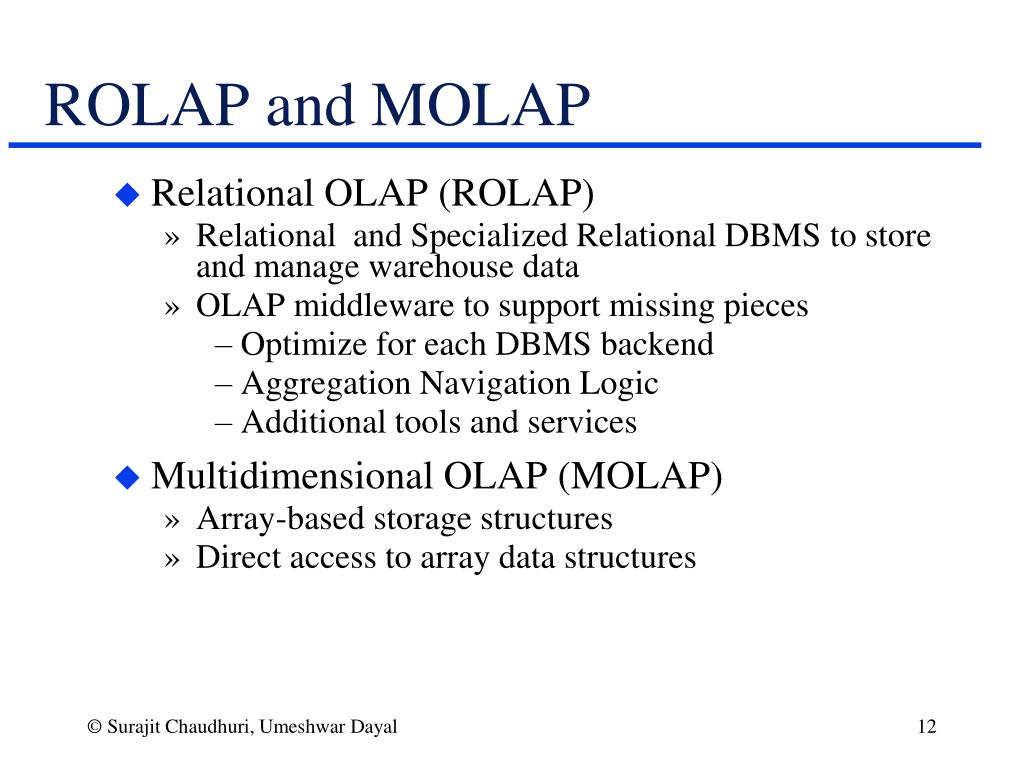

  12. ROLAP and MOLAP • Relational OLAP (ROLAP) • Relational and Specialized Relational DBMS to store and manage warehouse data • OLAP middleware to support missing pieces • Optimize for each DBMS backend • Aggregation Navigation Logic • Additional tools and services • Multidimensional OLAP (MOLAP) • Array-based storage structures • Direct access to array data structures • Surajit Chaudhuri, Umeshwar Dayal

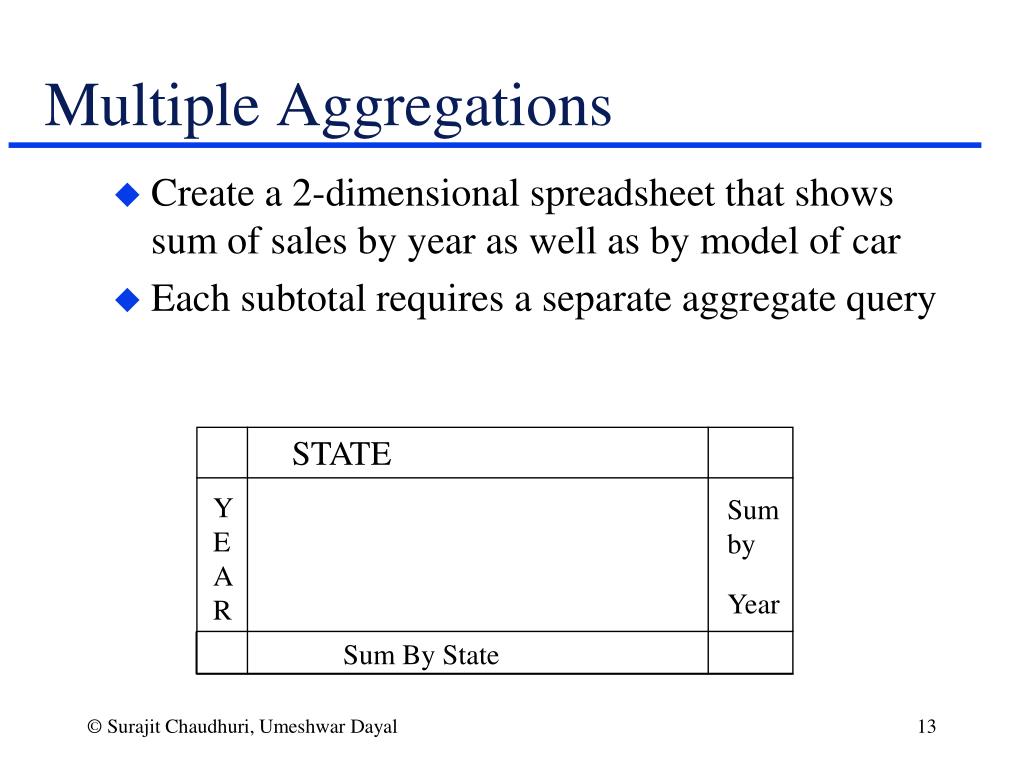

  13. Multiple Aggregations • Create a 2-dimensional spreadsheet that shows sum of sales by year as well as by model of car • Each subtotal requires a separate aggregate query STATE YEAR Sum by Year Sum By State • Surajit Chaudhuri, Umeshwar Dayal

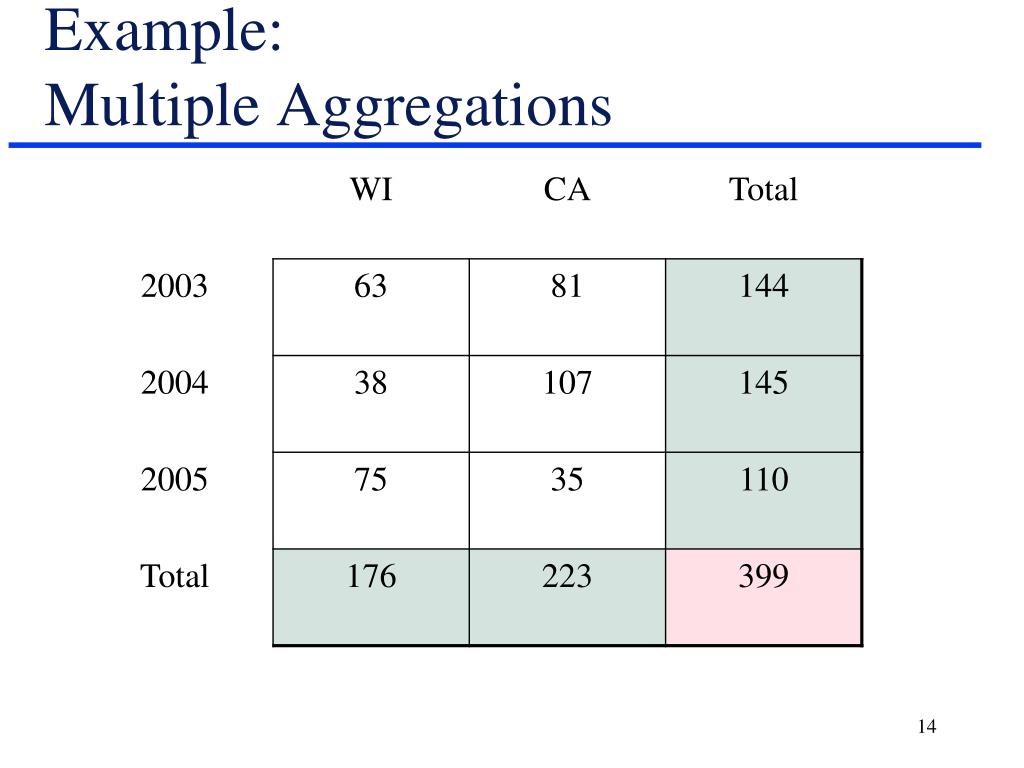

  14. Example: Multiple Aggregations

  15. Generalization: The Data Cube • Base tuples • Aggregate tuples: • one aggregation for each subset of dimensions (powerset) • exponential number of subsets, but can optimize the computation • Example • N = 3 dimensions • model = {Golf, Jetta} • color = {red, black, white} • state = {NY, CA, WI} • How many aggregate tuples in the data cube? • face – 1D agg; edge – 2D agg; corner – 3D agg

  16. Operations on Multidimensional Data Model • Aggregation (roll-up) of detailed data to create summarydata • Navigation to detailed data (drill-down) from summary • Selection (slice) defines a subcube • Project the cube on fewer dimensions by specifying coordinates of remaining dimensions • e.g., sales where state = NY and month = Jan • Calculation • Within a dimension, e.g., (sales - expense) by state • Across dimensions • Ranking • top 3% of states by average sales • Window Queries • Surajit Chaudhuri, Umeshwar Dayal

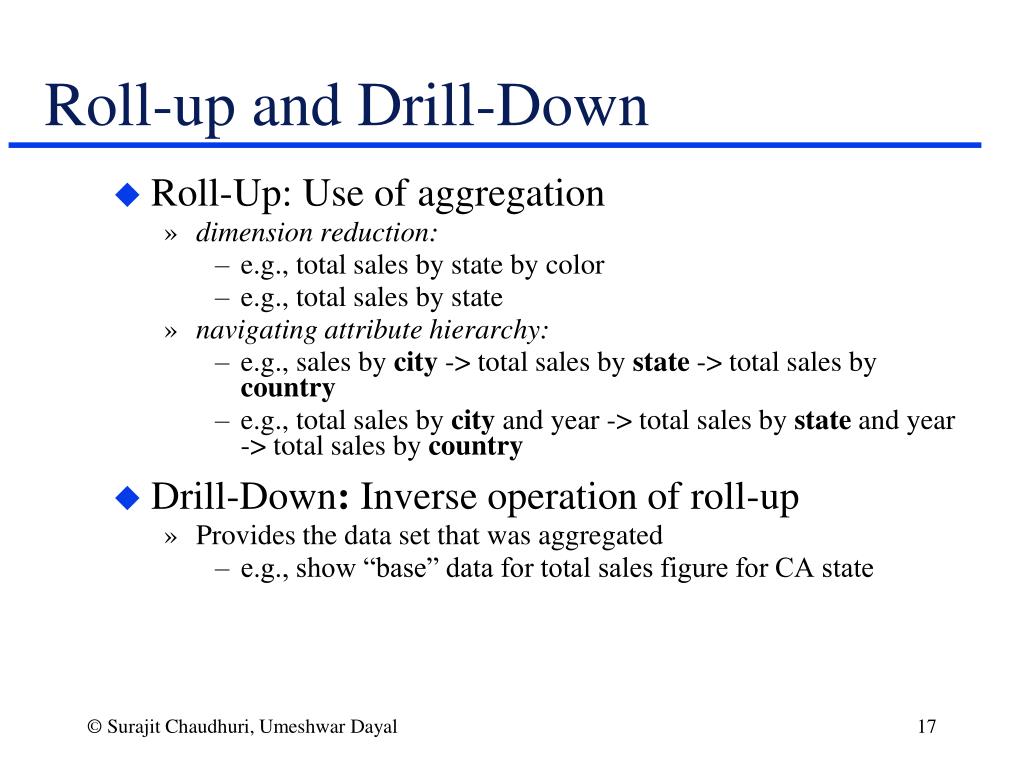

  17. Roll-up and Drill-Down • Roll-Up: Use of aggregation • dimension reduction: • e.g., total sales by state by color • e.g., total sales by state • navigating attribute hierarchy: • e.g., sales by city -> total sales by state -> total sales by country • e.g., total sales by city and year -> total sales by state and year -> total sales by country • Drill-Down: Inverse operation of roll-up • Provides the data set that was aggregated • e.g., show “base” data for total sales figure for CA state • Surajit Chaudhuri, Umeshwar Dayal

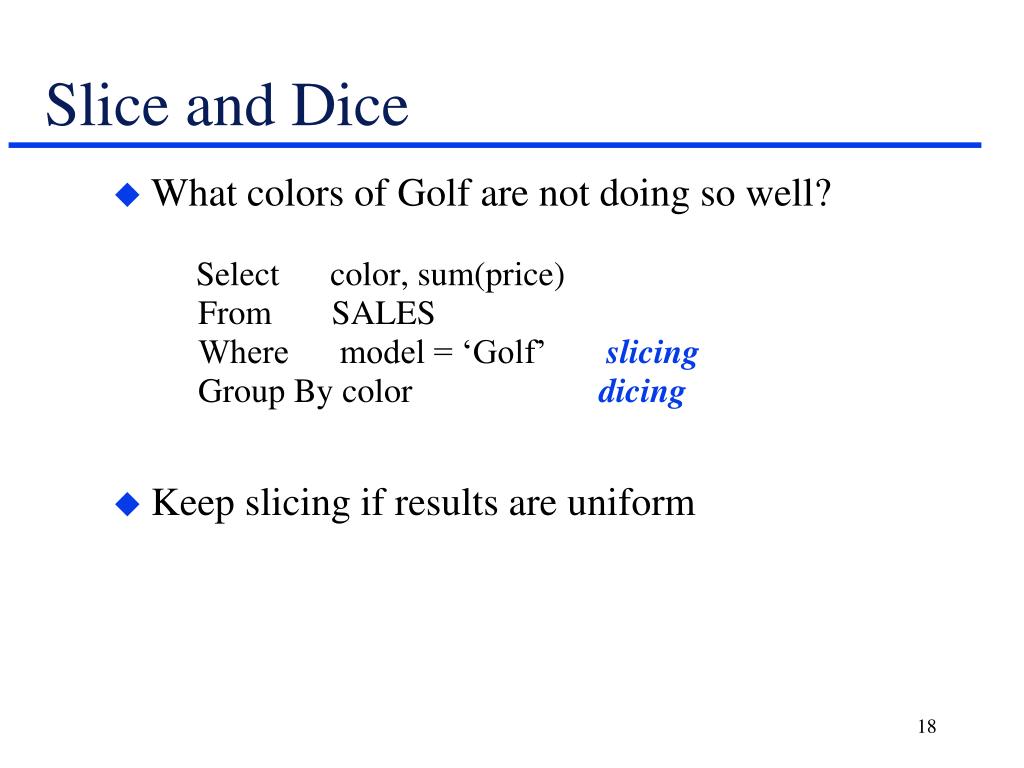

  18. Slice and Dice • What colors of Golf are not doing so well? Select color, sum(price) From SALES Where model = ‘Golf’ slicing Group By color dicing • Keep slicing if results are uniform

  19. More Examples Q: Given a query, which values from the CUBE do we need to retrieve? A: To answer a query Q use tuples T s.t. • If Q groups by A, T must have a non-* value in its component for A • If Q slices by A = b, T must have the value b (not * or any other value) in its component for A • If Q neither groups nor slices by A, then T has to have * in its component for A

  20. Pivot (Rotate) Month LA City SF NY Juice 10 Cola 50 Product Milk 20 Cream 12 Toothpaste City 15 Soap 10 7 1 2 3 4 5 6 Month Product Fact data: Sales volume in $100 Result: cross tabulation • Surajit Chaudhuri, Umeshwar Dayal

  21. Warehouse Database Schema • Entity-Relationship design techniques not appropriate • Design should reflect multidimensional view • Typical schemas: • Star Schema • Snowflake Schema • Fact Constellation Schema • Surajit Chaudhuri, Umeshwar Dayal

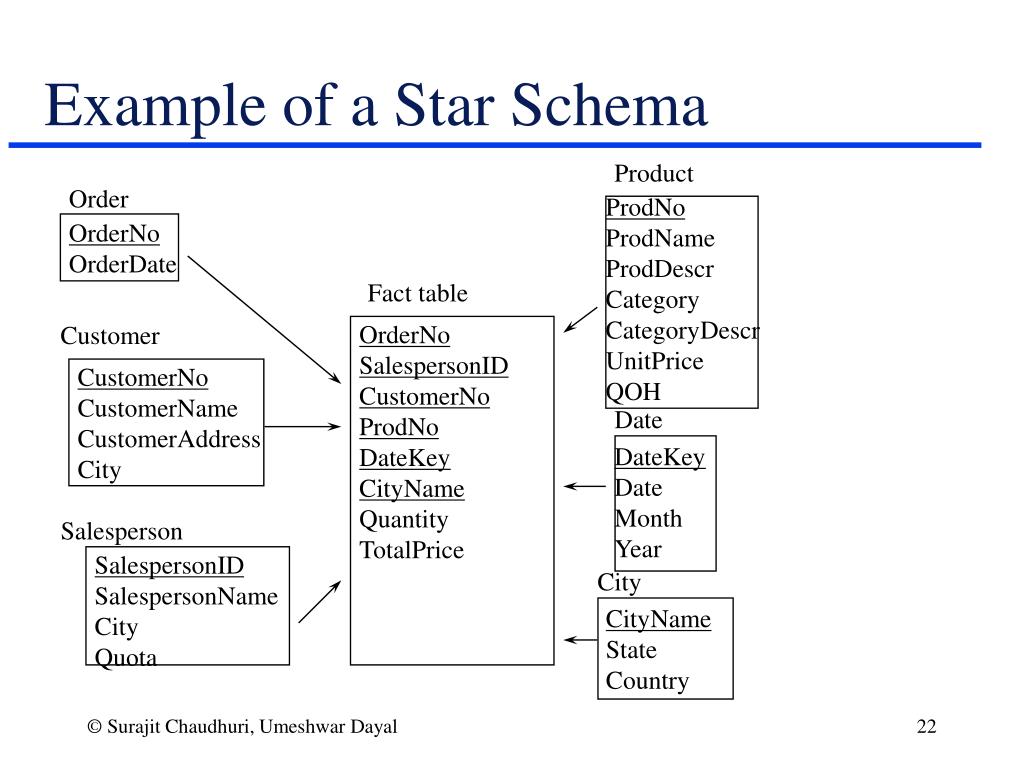

  22. Example of a Star Schema Product Order ProdNo ProdName ProdDescr Category CategoryDescr UnitPrice QOH OrderNo OrderDate Fact table OrderNo SalespersonID CustomerNo ProdNo DateKey CityName Quantity TotalPrice Customer CustomerNo CustomerName CustomerAddress City Date DateKey Date Month Year Salesperson SalespersonID SalespersonName City Quota City CityName State Country • Surajit Chaudhuri, Umeshwar Dayal

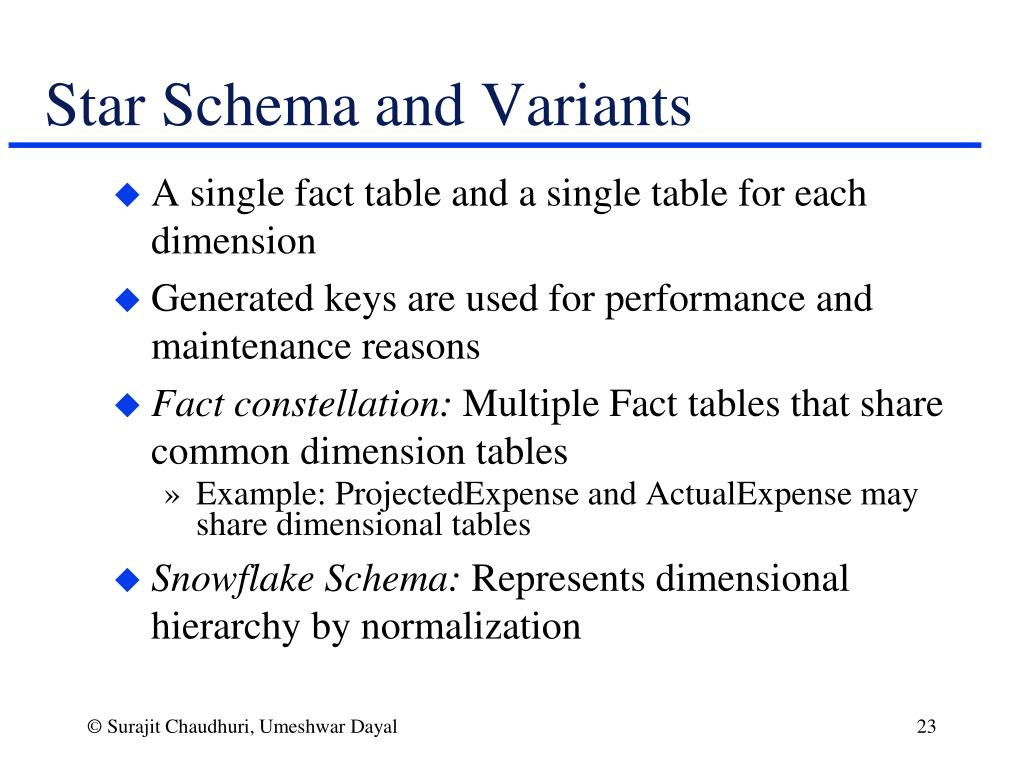

  23. Star Schema and Variants • A single fact table and a single table for each dimension • Generated keys are used for performance and maintenance reasons • Fact constellation: Multiple Fact tables that share common dimension tables • Example: ProjectedExpense and ActualExpense may share dimensional tables • Snowflake Schema: Represents dimensional hierarchy by normalization • Surajit Chaudhuri, Umeshwar Dayal

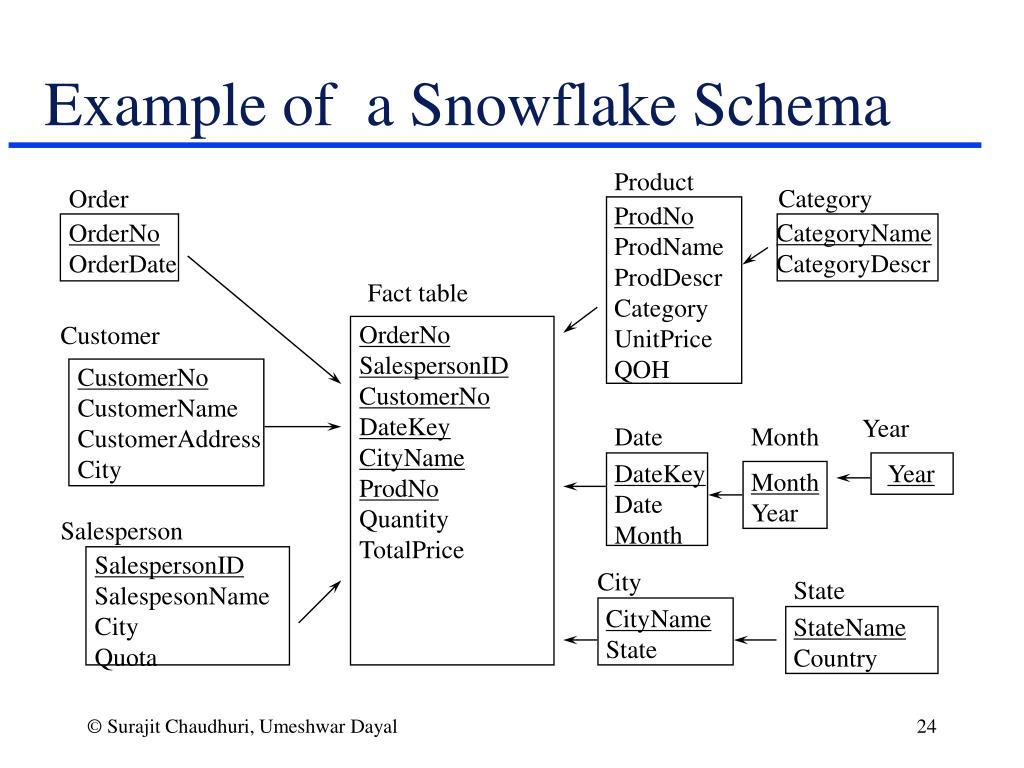

  24. Example of a Snowflake Schema Product Category Order ProdNo ProdName ProdDescr Category UnitPrice QOH CategoryName CategoryDescr OrderNo OrderDate Fact table OrderNo SalespersonID CustomerNo DateKey CityName ProdNo Quantity TotalPrice Customer CustomerNo CustomerName CustomerAddress City Year Date Month DateKey Date Month Year Month Year Salesperson SalespersonID SalespesonName City Quota City State CityName State StateName Country • Surajit Chaudhuri, Umeshwar Dayal

  25. Performance Considerations • Normalization for dimension tables • Read-only data, so no update anomalies • Fewer joins – better performance • Pre-computation of summary tables • Re-use can speed up performance • How can we use pre-computed results effectively? • Data is very large, dimension data often sparse • Crucial to use indexes effectively • Need for new indexing techniques: bitmap indexes, join indexes

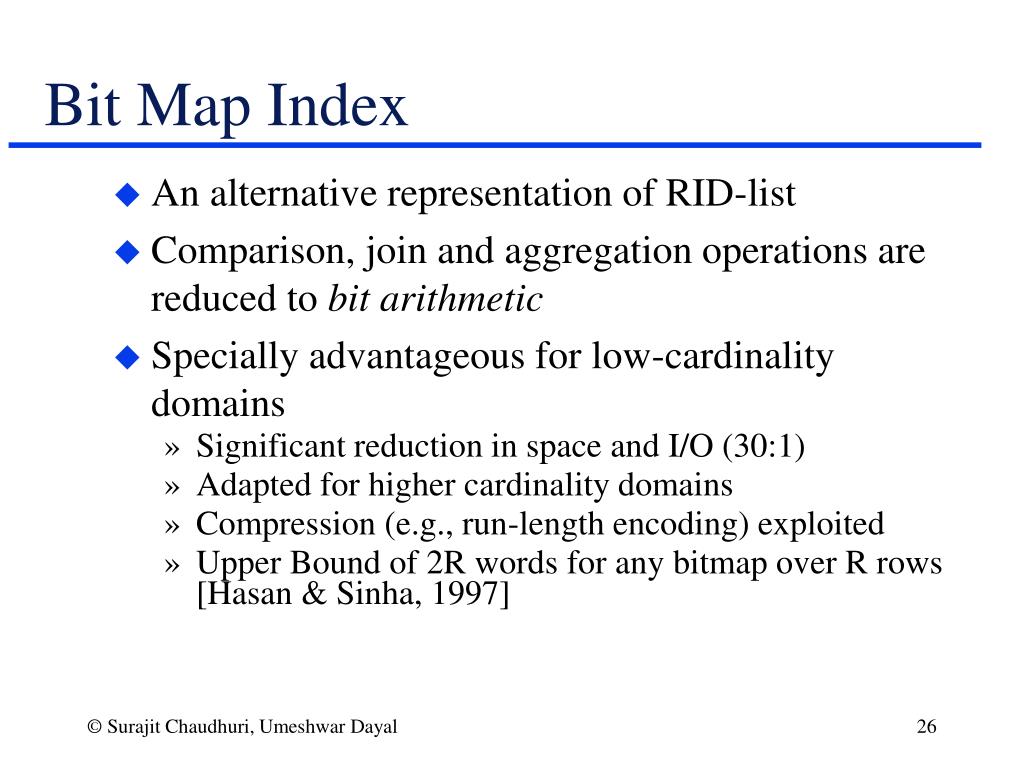

  26. Bit Map Index • An alternative representation of RID-list • Comparison, join and aggregation operations are reduced to bit arithmetic • Specially advantageous for low-cardinality domains • Significant reduction in space and I/O (30:1) • Adapted for higher cardinality domains • Compression (e.g., run-length encoding) exploited • Upper Bound of 2R words for any bitmap over R rows [Hasan & Sinha, 1997] • Surajit Chaudhuri, Umeshwar Dayal

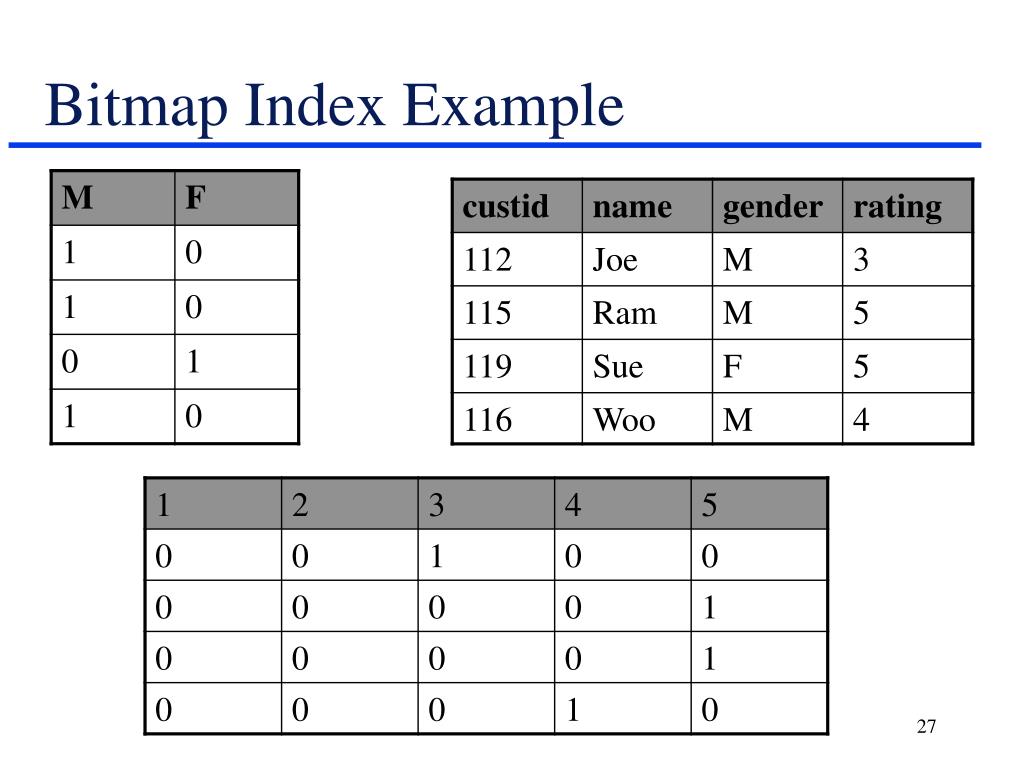

  27. Bitmap Index Example

  28. Join Index • Traditional index maps the value in a column to a list of rows with that value • Join index maintain relationships between attribute value of a dimension and the matching rows in the fact table • Join index may span multiple dimensions (composite join index) • Use join index to identify regions of cartesian product that are of interest • Few people in Southern California may buy umbrellas • Surajit Chaudhuri, Umeshwar Dayal

  29. Algorithm Using Bitmapped Join Indexes • [O’Neil&Graefe95] • Maintain bit mapped join indexes between each dimension table and the fact table • To answer a query over multiple dimensions • Take intersection of join indexes until the set of candidate fact tuples is small • Do foreign key joins with rest of the dimension tables • Look up the fact table • Surajit Chaudhuri, Umeshwar Dayal

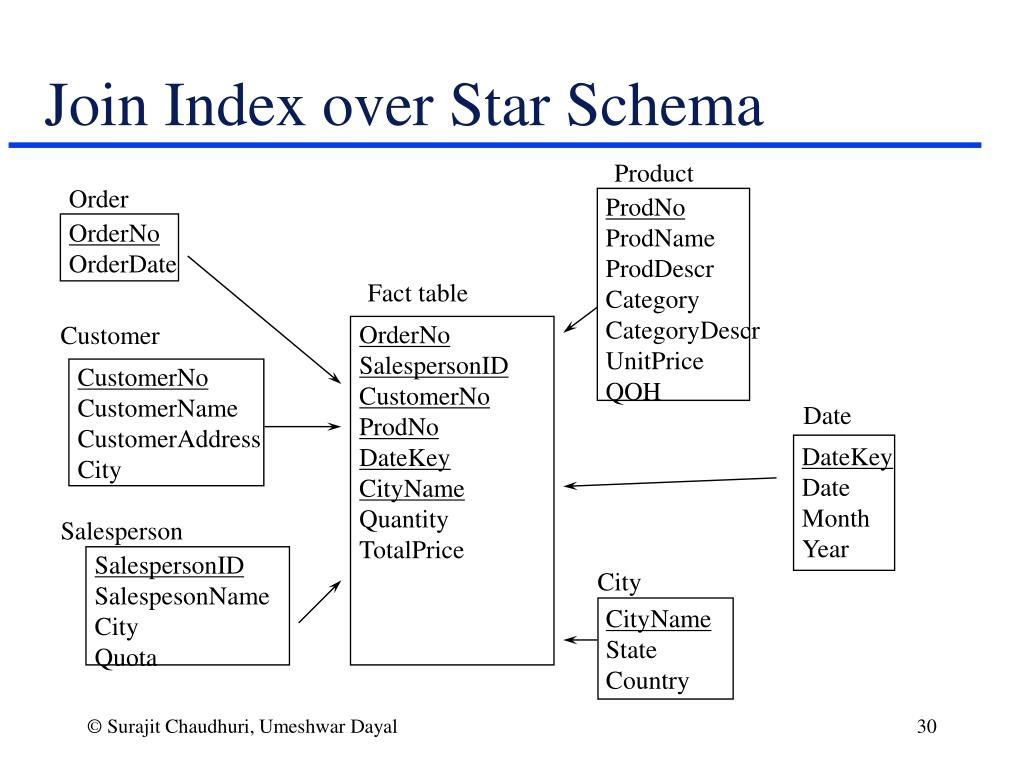

  30. Join Index over Star Schema Product Order ProdNo ProdName ProdDescr Category CategoryDescr UnitPrice QOH OrderNo OrderDate Fact table OrderNo SalespersonID CustomerNo ProdNo DateKey CityName Quantity TotalPrice Customer CustomerNo CustomerName CustomerAddress City Date DateKey Date Month Year Salesperson SalespersonID SalespesonName City Quota City CityName State Country • Surajit Chaudhuri, Umeshwar Dayal

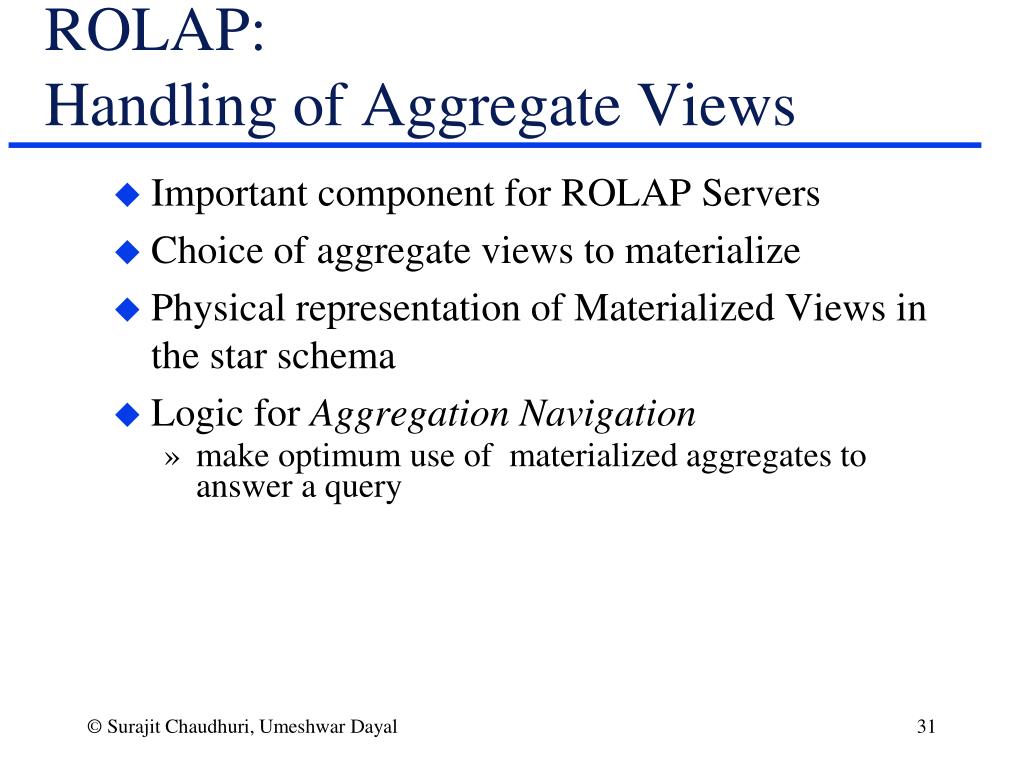

  31. ROLAP:Handling of Aggregate Views • Important component for ROLAP Servers • Choice of aggregate views to materialize • Physical representation of Materialized Views in the star schema • Logic for Aggregation Navigation • make optimum use of materialized aggregates to answer a query • Surajit Chaudhuri, Umeshwar Dayal

  32. ROLAP: Choice of Aggregate Views to Materialize • Storage can increase dramatically if precomputed views are not chosen properly • Must take into account queries in the workload, their frequencies and their costs • The decision must be taken in the broader context of physical database design • e.g., should take into account the choice of indexes • Heuristic approaches adopted in products • Surajit Chaudhuri, Umeshwar Dayal

  33. ROLAP: Using Materialized Views Through Selection • A query can use a view through a selection if • Each selection condition C on each dimension d in the query is • Logically implies a condition C’ on dimension d in the view • Example: A view has sum(sales) by product and by year for products introduced after 1991 • OK to use for sum(sales) by product for products introduced after 1992 • CANNOT use for sum(sales) for products introduced after 1989 • Surajit Chaudhuri, Umeshwar Dayal

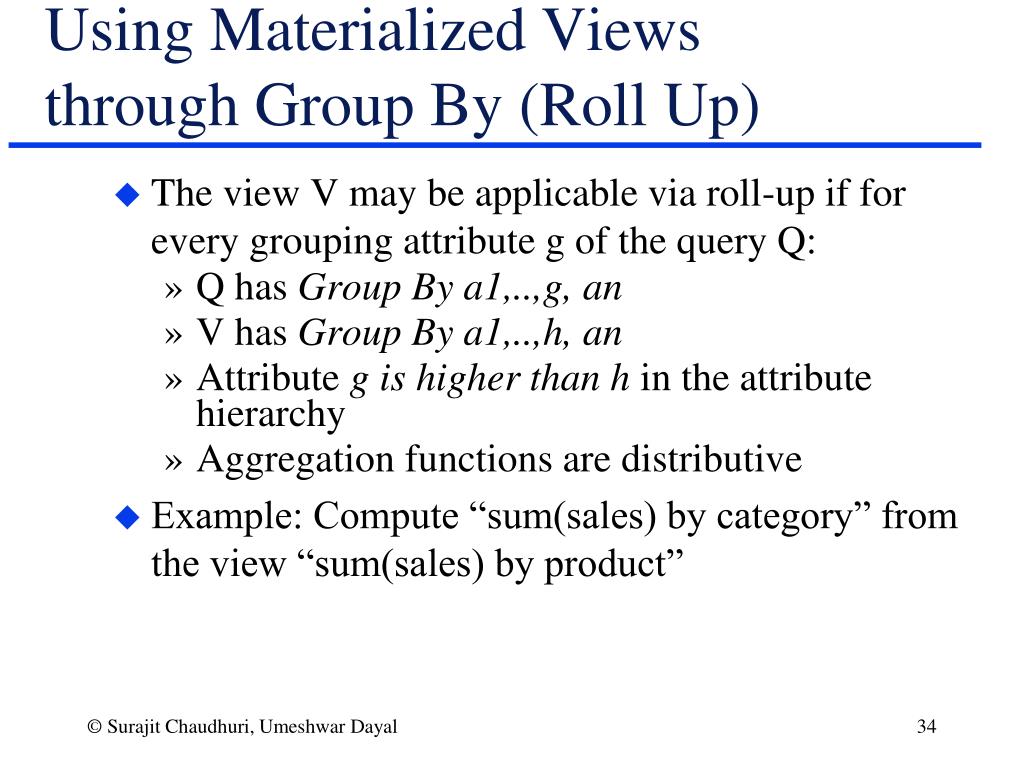

  34. Using Materialized Views through Group By (Roll Up) • The view V may be applicable via roll-up if for every grouping attribute g of the query Q: • Q has Group By a1,..,g, an • V has Group By a1,..,h, an • Attribute g is higher than h in the attribute hierarchy • Aggregation functions are distributive • Example: Compute “sum(sales) by category” from the view “sum(sales) by product” • Surajit Chaudhuri, Umeshwar Dayal

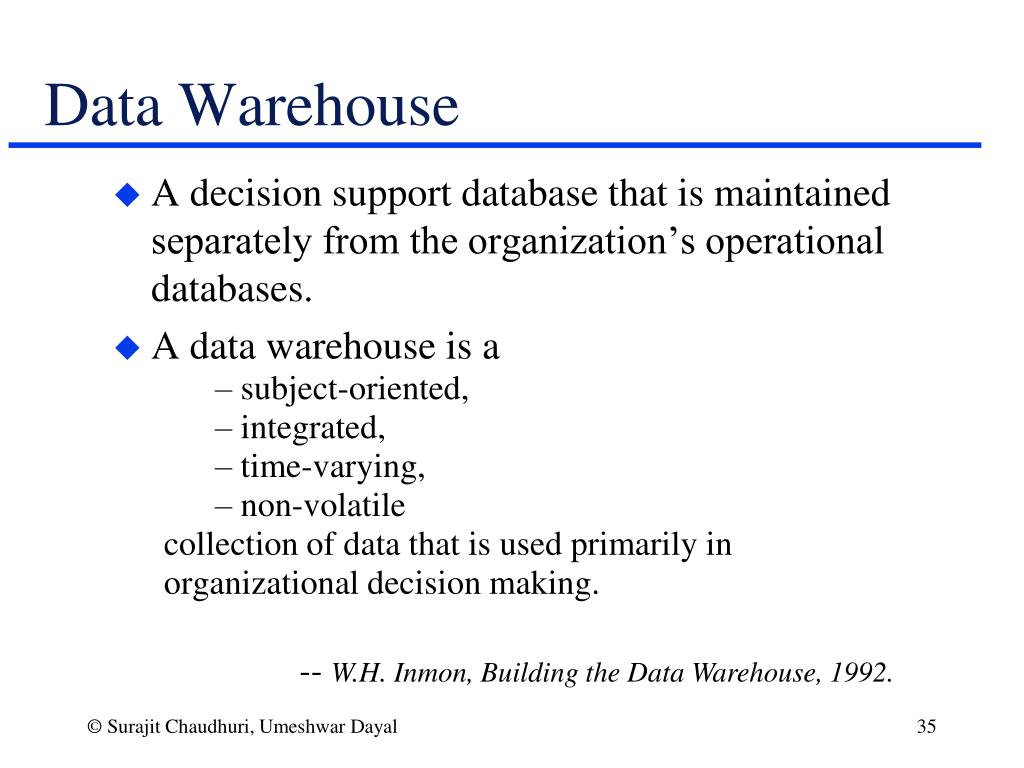

  35. Data Warehouse • A decision support database that is maintained separately from the organization’s operational databases. • A data warehouse is a • subject-oriented, • integrated, • time-varying, • non-volatile collection of data that is used primarily in organizational decision making. -- W.H. Inmon, Building the Data Warehouse, 1992. • Surajit Chaudhuri, Umeshwar Dayal

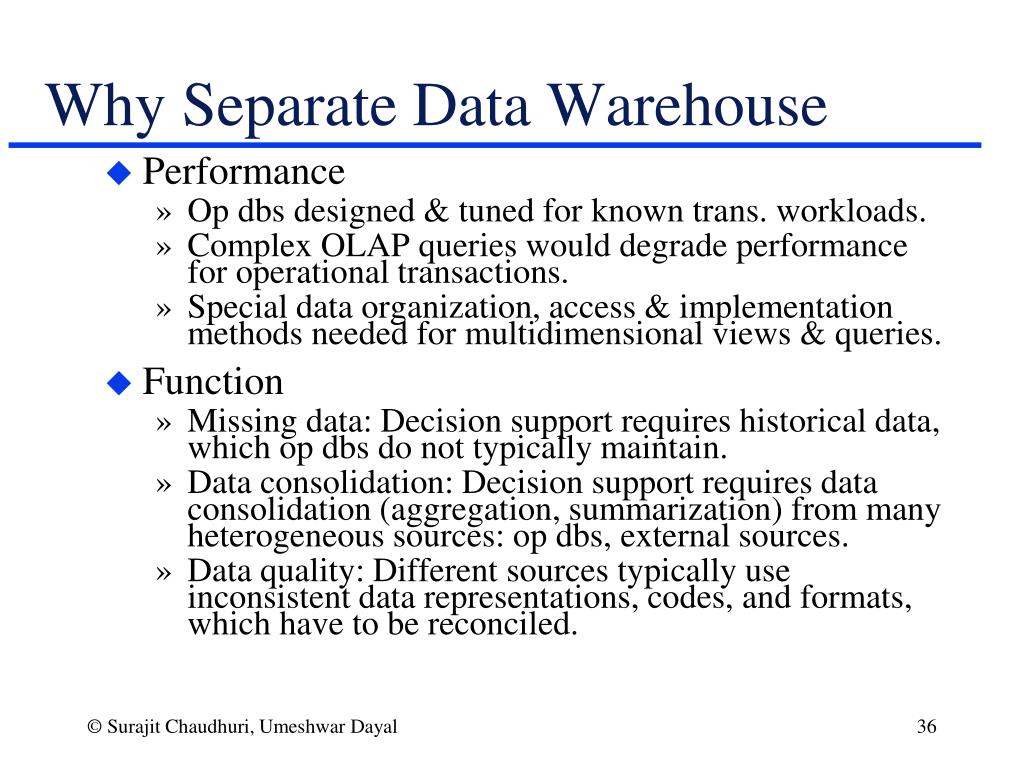

  36. Why Separate Data Warehouse • Performance • Op dbs designed & tuned for known trans. workloads. • Complex OLAP queries would degrade performance for operational transactions. • Special data organization, access & implementation methods needed for multidimensional views & queries. • Function • Missing data: Decision support requires historical data, which op dbs do not typically maintain. • Data consolidation: Decision support requires data consolidation (aggregation, summarization) from many heterogeneous sources: op dbs, external sources. • Data quality: Different sources typically use inconsistent data representations, codes, and formats, which have to be reconciled. • Surajit Chaudhuri, Umeshwar Dayal

  37. External sources Operational dbs Data Warehousing Architecture Monitoring & Administration Metadata Repository OLAP Servers OLAP Data Warehouse Extract Transform Transport Query/Reporting Serve Data Mining Data sources Front-End Tools Data Marts • Surajit Chaudhuri, Umeshwar Dayal

  38. Data Warehouse vs. Data Marts • Enterprise data warehouse: collects all information about subjects (customers, products, sales, assets, personnel) that span the entire organization. • Requires extensive business modeling. • May take years to design and build. • Data Marts: Departmental subsets that focus on selected subjects. • Marketing data mart: customer, products, sales. • Faster roll out, but complex integration in the long run. • Virtual warehouse: views over operational dbs • materialize some summary views for efficient query processing • easier to build • requisite excess capacity on operational db servers. • Surajit Chaudhuri, Umeshwar Dayal

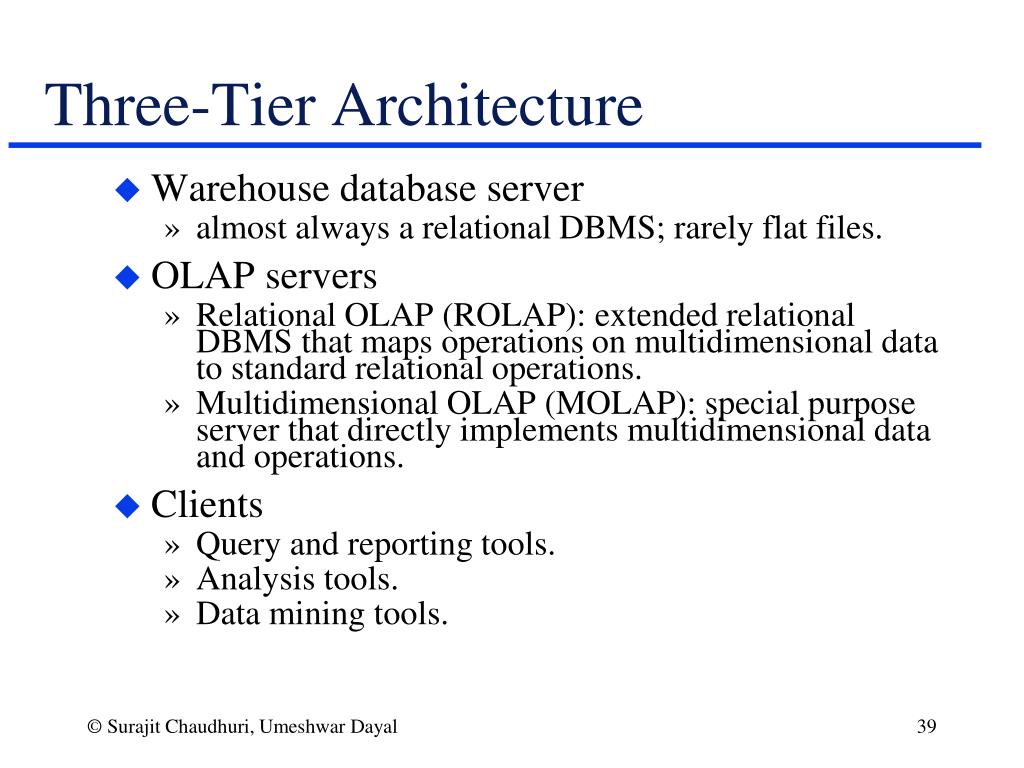

  39. Three-Tier Architecture • Warehouse database server • almost always a relational DBMS; rarely flat files. • OLAP servers • Relational OLAP (ROLAP): extended relational DBMS that maps operations on multidimensional data to standard relational operations. • Multidimensional OLAP (MOLAP): special purpose server that directly implements multidimensional data and operations. • Clients • Query and reporting tools. • Analysis tools. • Data mining tools. • Surajit Chaudhuri, Umeshwar Dayal

  40. Populating & Refreshing the Warehouse • Data extraction • Data cleaning • Data transformation • Convert from legacy/host format to warehouse format • Load • Sort, summarize, consolidate, compute views, check integrity, build indexes, partition • Refresh • Propagate updates from sources to the warehouse. • Surajit Chaudhuri, Umeshwar Dayal

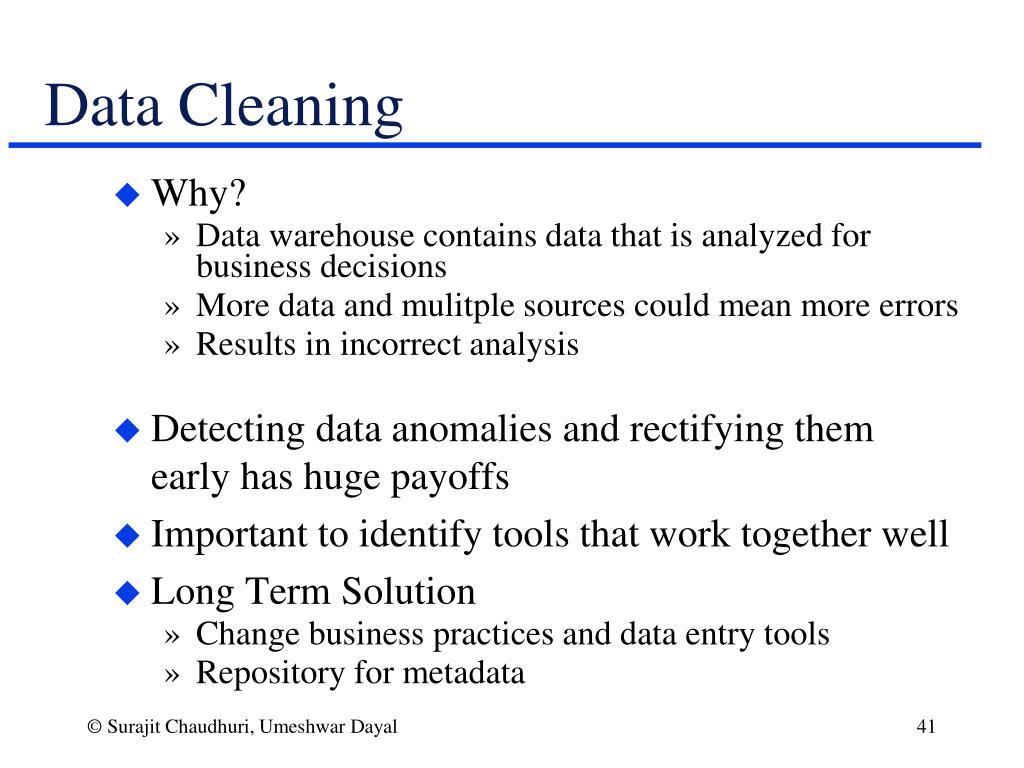

  41. Data Cleaning • Why? • Data warehouse contains data that is analyzed for business decisions • More data and mulitple sources could mean more errors • Results in incorrect analysis • Detecting data anomalies and rectifying them early has huge payoffs • Important to identify tools that work together well • Long Term Solution • Change business practices and data entry tools • Repository for metadata • Surajit Chaudhuri, Umeshwar Dayal

  42. Load • Issues: • huge volumes of data to be loaded • small time window (usually at night) when the warehouse can be taken off-line • when to build indexes and summary tables • allow system administrator to monitor status, cancel suspend, resume load, or change load rate • restart after failure with no loss of data integrity. • Techniques: • batch load utility: sort input records on clustering key and use sequential I/O; build indexes and derived tables • sequential loads still too long (~100 days for TB) • use parallelism and incremental techniques. • Surajit Chaudhuri, Umeshwar Dayal

  43. Parallel Load Pipelined and partitioned parallelism Merge runs Table insert Target tables Source tables Sort runs Scan Build index record Merge runs Index insert Target index Sort runs [Barclay, Barnes, Gray, Sundaresan: Loading Databases Using Dataflow Parallelism] • Surajit Chaudhuri, Umeshwar Dayal

  44. Incremental Load • Full load may still take too long. • entire load is a (long) batch transaction • replace old table with new after transaction commits • use periodic checkpoints; after failure, restart from last checkpoint. • Use incremental loads during refresh to reduce data volume • insert only updated tuples • now, incremental load conflicts with queries • break into sequence of shorter transactions (every ~1000 records, every few seconds) • coordinate this sequence of transactions: must ensure consistency between base tables and derived tables & indices. • Surajit Chaudhuri, Umeshwar Dayal

  45. Refresh • Issues: • when to refresh • on every update: too expensive, only necessary if OLAP queries need current data (e.g., up-to-the-minute stock quotes) • periodically (e.g., every 24 hours, every week) or after “significant” events • refresh policy set by administrator based on user needs and traffic • possibly different policies for different sources. • how to refresh. • Surajit Chaudhuri, Umeshwar Dayal

  46. Refresh Techniques • Full extract from base tables • read entire source table or database: expensive • may be the only choice for legacy databases or files. • Incremental techniques (related to work on active dbs) • detect & propagate changes on base tables: replication servers • snapshots & triggers (Oracle) • transaction shipping (Sybase) • logical correctness • computing changes to star tables • computing changes to derived and summary tables • optimization: only significant changes • transactional correctness: incremental load. • Surajit Chaudhuri, Umeshwar Dayal
