CUSTOM-FPGA DESIGN AND MAPPING FOR DSP TRANSFORMS

1. CUSTOM-FPGA DESIGN AND MAPPING FOR DSP TRANSFORMS BHARATHWAJ V SANKARA SHUBHIKA TANEJA

2. OUTLINE • Mathematics of different DSP algorithms • Generalization of DSP algorithms • Systolic array architecture • Logic block architecture & pipelining • Mapping different algorithms to hardware • Statistics

3. DSP TRANSFORMS • DFT: X(k) = • DCT: X(k) = • DST: X(k) = • DHT: X(k) = 1/√N, k=0 √2/N, k= 1 to N-1 αk =

4. MATH BACKGROUND • Let the Transform function be δ(n,k) then X(k)= Where For k=0; X(0) =

5. For a 4 point transform: X(0) = x(0)δ(0,0) + x(1)δ(1,0) + x(2)δ(2,0) + x(3)δ(3,0) X(1) = x(0)δ(0,1) + x(1)δ(1,1) + x(2)δ(2,1) + x(3)δ(3,1) X(2) = x(0)δ(0,2) + x(1)δ(1,2) + x(2)δ(2,2) + x(3)δ(3,2) X(3) = x(0)δ(0,3) + x(1)δ(1,3) + x(2)δ(2,3) + x(3)δ(3,3)

6. Consider DFT: X(k) = = = This is simillar to Hartley Transform except that the second term is multiplied by –j coefficient. Xh(k) =

7. Generalizing the transforms: • X(k) = • Where: cos(2*pi*nk/2N) – jsin(2*pi*nk/2N) - DFT αkcos[pi(2n+1)k/2N] - DCT • δ(n,k) = • sin[pi(n+1)(k+1)/(N+1)] - DST cos(2*pi*nk/N) + sin(2*pi*nk/N) - DHT

8. LUT ENTRIES δ(n,k) = δ1(n,k) + δ2(n,k)

9. Proposed Architecture

10. SYSTOLIC ARRAY ARCHITECTURE

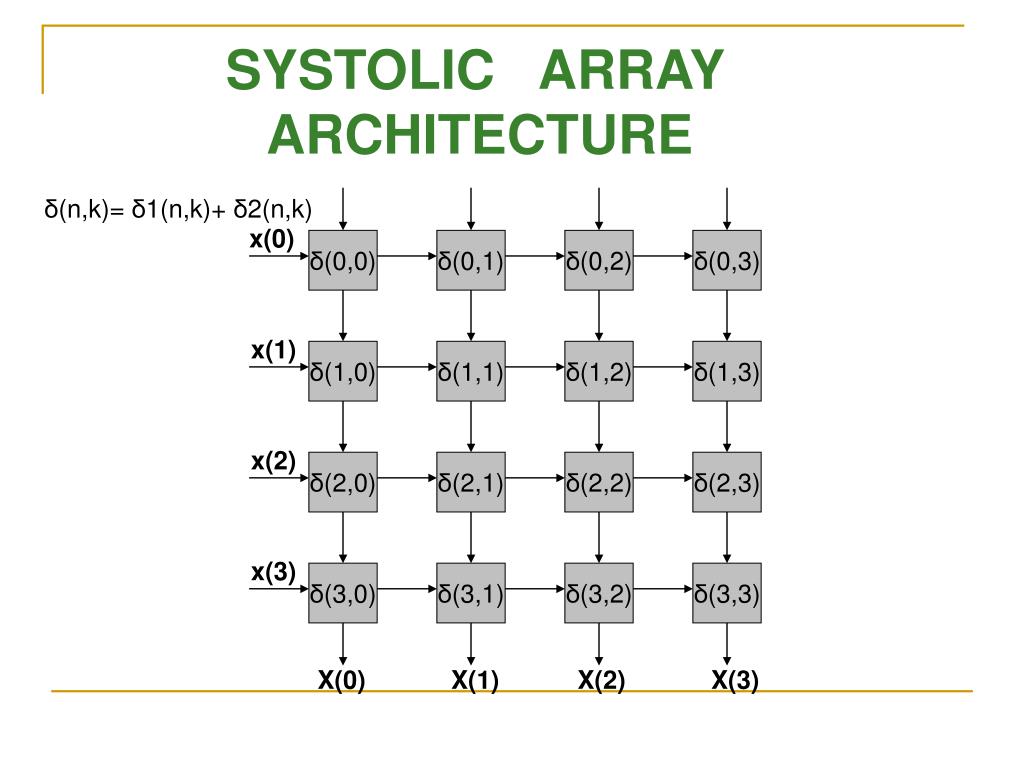

11. SYSTOLIC ARRAY ARCHITECTURE δ(n,k)= δ1(n,k)+ δ2(n,k) δ(0,0) δ(0,1) δ(0,2) δ(0,3) δ(1,0) δ(1,1) δ(1,2) δ(1,3) δ(2,0) δ(2,1) δ(2,2) δ(2,3) δ(3,0) δ(3,1) δ(3,2) δ(3,3)

12. SYSTOLIC ARRAY ARCHITECTURE δ(n,k)= δ1(n,k)+ δ2(n,k) x(0) δ(0,0) δ(0,1) δ(0,2) δ(0,3) x(1) δ(1,0) δ(1,1) δ(1,2) δ(1,3) x(2) δ(2,0) δ(2,1) δ(2,2) δ(2,3) x(3) δ(3,0) δ(3,1) δ(3,2) δ(3,3)

13. SYSTOLIC ARRAY ARCHITECTURE δ(n,k)= δ1(n,k)+ δ2(n,k) x(0) δ(0,0) δ(0,1) δ(0,2) δ(0,3) x(1) δ(1,0) δ(1,1) δ(1,2) δ(1,3) x(2) δ(2,0) δ(2,1) δ(2,2) δ(2,3) x(3) δ(3,0) δ(3,1) δ(3,2) δ(3,3) X(0) X(1) X(2) X(3)

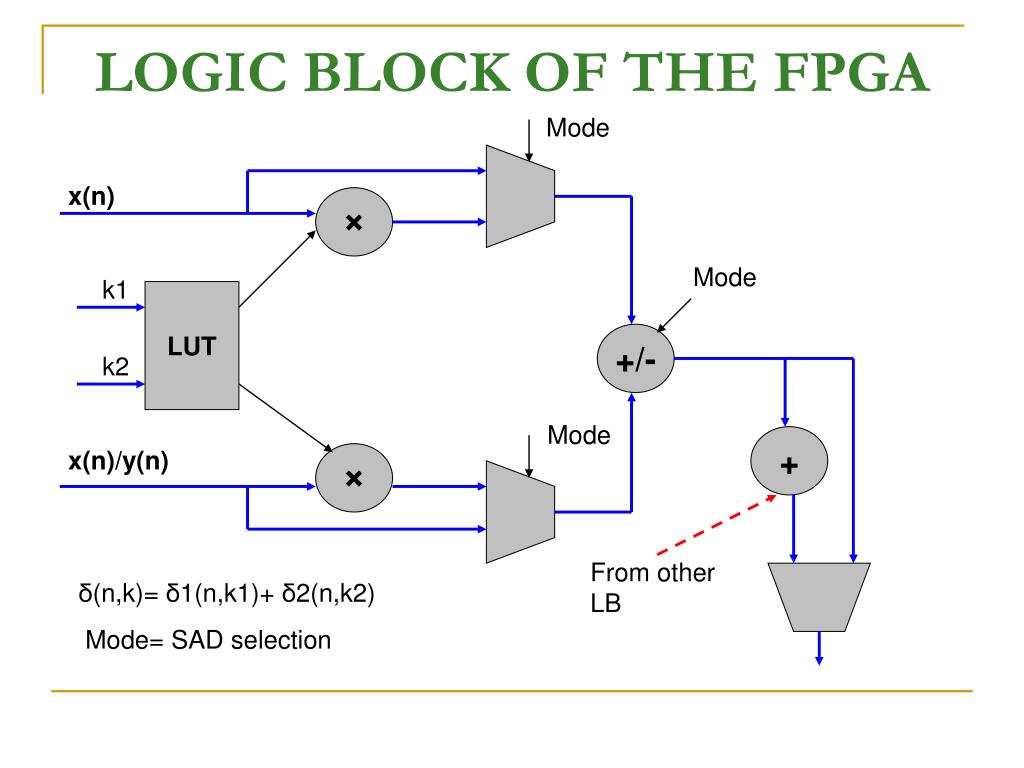

14. LOGIC BLOCK OF THE FPGA Mode x(n) × Mode k1 LUT +/- k2 Mode + x(n)/y(n) × From other LB δ(n,k)= δ1(n,k1)+ δ2(n,k2) Mode= SAD selection

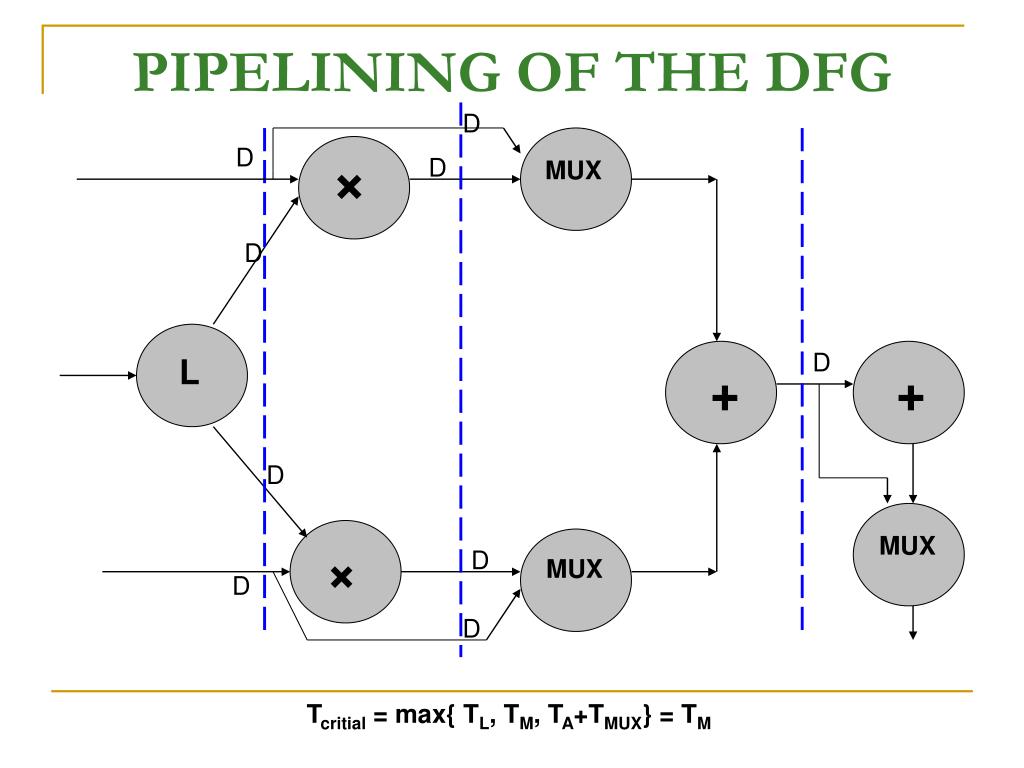

15. PIPELINING OF THE DFG MUX × L + + MUX × MUX

16. PIPELINING OF THE DFG MUX × L + + MUX × MUX

17. PIPELINING OF THE DFG D D D MUX × D D L + + D MUX × D MUX D D

18. PIPELINING OF THE DFG D D D MUX × D D L + + D MUX × D MUX D D Tcritial = max{ TL, TM, TA+TMUX} = TM

19. WHAT’s NEW IN THIS? • Customized for transforms • C-Code CAD - Systolic array architecture – suited for transforms • Easier routing • Specific Data-Path that supports tranforms • Better performance • Better utilization of resources. intuitive

20. MAPPING ALGORITHMS TO FPGA

21. DFT SOFTWARE CODE • //PSEUDOCODE for (i=0;i<N;i++) { X(i) = 0; X*(i) = 0; for (j=0;j<N;j++) { X(i) = X(i) + x(j)*cos(2*pi*i*j/N); X*(i) = X*(i) + x(j)*sin(2*pi*i*j/N); } }

22. DFT – Higher level δ1(0,2) δ1(1,2) δ2(0,2) δ2(1,2) δ1(0,3) δ1(1,3) δ2(0,3) δ2(1,3) δ1(2,2) δ1(3,2) δ2(2,2) δ2(3,2) δ1(2,3) δ1(3,3) δ2(2,3) δ2(3,3) δ1(0,0) δ1(1,0) δ2(0,0) δ2(1,0) δ1(0,1) δ1(1,1) δ2(0,1) δ2(1,1) δ1(2,0) δ1(3,0) δ2(2,0) δ2(3,0) δ1(2,1) δ1(3,1) δ2(2,1) δ2(3,1)

23. DFT – Higher level x(0) δ1(0,2) δ1(1,2) δ2(0,2) δ2(1,2) δ1(0,3) δ1(1,3) δ2(0,3) δ2(1,3) x(1) x(2) δ1(2,2) δ1(3,2) δ2(2,2) δ2(3,2) δ1(2,3) δ1(3,3) δ2(2,3) δ2(3,3) x(3) x(0) δ1(0,0) δ1(1,0) δ2(0,0) δ2(1,0) δ1(0,1) δ1(1,1) δ2(0,1) δ2(1,1) x(1) x(2) δ1(2,0) δ1(3,0) δ2(2,0) δ2(3,0) δ1(2,1) δ1(3,1) δ2(2,1) δ2(3,1) x(3)

24. DFT – Higher level x(0) δ1(0,2) δ1(1,2) δ2(0,2) δ2(1,2) δ1(0,3) δ1(1,3) δ2(0,3) δ2(1,3) x(1) x(2) δ1(2,2) δ1(3,2) δ2(2,2) δ2(3,2) δ1(2,3) δ1(3,3) δ2(2,3) δ2(3,3) x(3) X(2) X*(2) X(3) X*(3) x(0) δ1(0,0) δ1(1,0) δ2(0,0) δ2(1,0) δ1(0,1) δ1(1,1) δ2(0,1) δ2(1,1) x(1) x(2) δ1(2,0) δ1(3,0) δ2(2,0) δ2(3,0) δ1(2,1) δ1(3,1) δ2(2,1) δ2(3,1) x(3) X(0) X*(0) X(1) X*(1)

25. DCT/DST SOFTWARE CODE • //PSEUDOCODE for (i=0;i<N;i++) { X(i) = 0; X*(i) = 0; for (j=0;j<N;j++) { X(i) = X(i) + x(j)*cos(pi*(2n+1)k/2N); } }

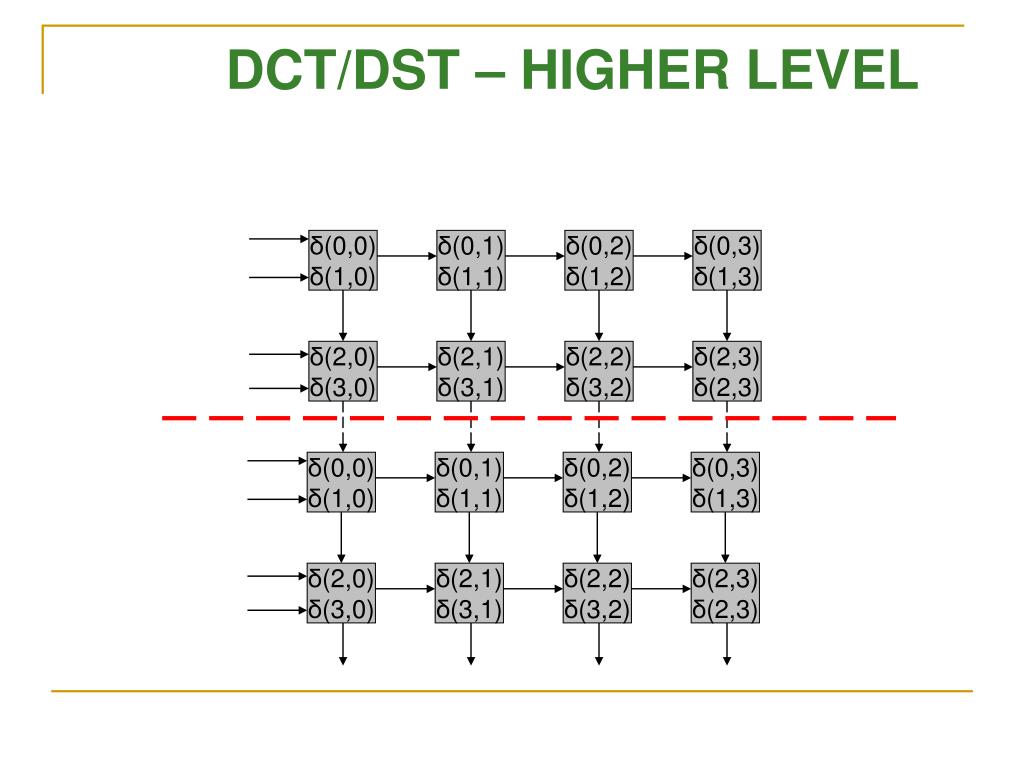

26. DCT/DST – HIGHER LEVEL δ(0,0) δ(1,0) δ(0,1) δ(1,1) δ(0,2) δ(1,2) δ(0,3) δ(1,3) δ(2,0) δ(3,0) δ(2,1) δ(3,1) δ(2,2) δ(3,2) δ(2,3) δ(2,3) δ(0,0) δ(1,0) δ(0,1) δ(1,1) δ(0,2) δ(1,2) δ(0,3) δ(1,3) δ(2,0) δ(3,0) δ(2,1) δ(3,1) δ(2,2) δ(3,2) δ(2,3) δ(2,3)

27. DCT/DST – HIGHER LEVEL x(0) δ(0,0) δ(1,0) δ(0,1) δ(1,1) δ(0,2) δ(1,2) δ(0,3) δ(1,3) x(1) x(2) δ(2,0) δ(3,0) δ(2,1) δ(3,1) δ(2,2) δ(3,2) δ(2,3) δ(2,3) x(3) x(0) δ(0,0) δ(1,0) δ(0,1) δ(1,1) δ(0,2) δ(1,2) δ(0,3) δ(1,3) x(1) x(2) δ(2,0) δ(3,0) δ(2,1) δ(3,1) δ(2,2) δ(3,2) δ(2,3) δ(2,3) x(3)

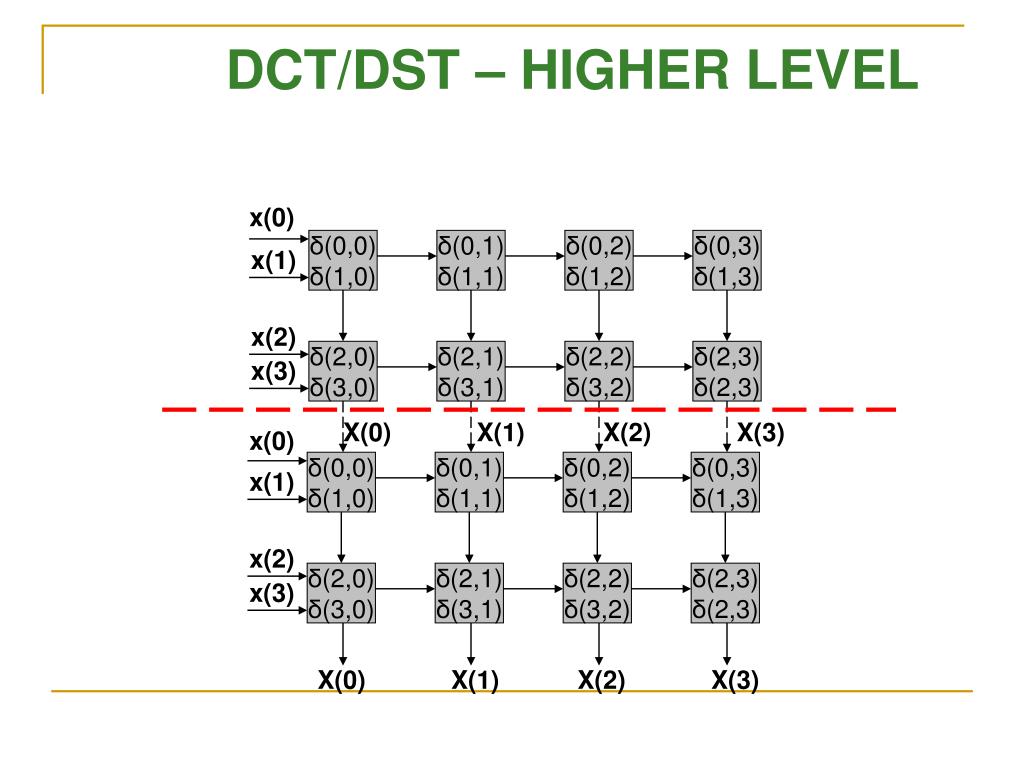

28. DCT/DST – HIGHER LEVEL x(0) δ(0,0) δ(1,0) δ(0,1) δ(1,1) δ(0,2) δ(1,2) δ(0,3) δ(1,3) x(1) x(2) δ(2,0) δ(3,0) δ(2,1) δ(3,1) δ(2,2) δ(3,2) δ(2,3) δ(2,3) x(3) X(0) X(1) X(2) X(3) x(0) δ(0,0) δ(1,0) δ(0,1) δ(1,1) δ(0,2) δ(1,2) δ(0,3) δ(1,3) x(1) x(2) δ(2,0) δ(3,0) δ(2,1) δ(3,1) δ(2,2) δ(3,2) δ(2,3) δ(2,3) x(3) X(0) X(1) X(2) X(3)

29. DCT/DST SOFTWARE CODE • //PSEUDOCODE for (i=0;i<N;i++) { X(i) = 0; X*(i) = 0; for (j=0;j<N;j++) { X(i) = X(i) + x(j)*(cos(2*pi*nk/N)+sin(2*pi*nk/N); } }

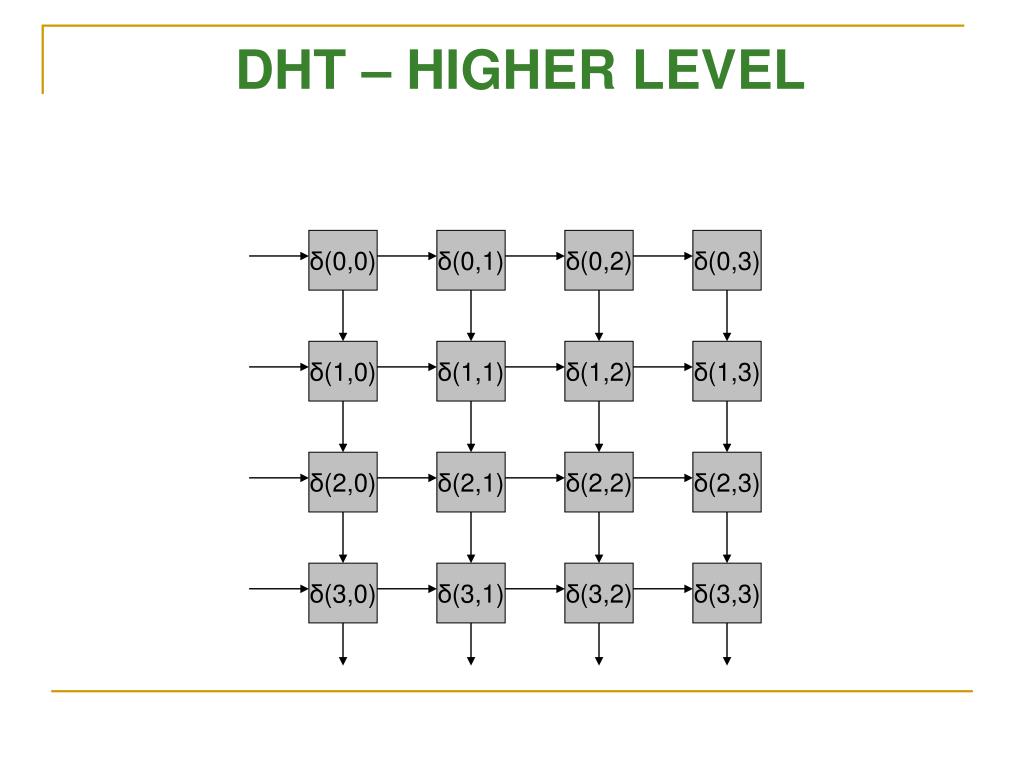

30. DHT – HIGHER LEVEL δ(0,0) δ(0,1) δ(0,2) δ(0,3) δ(1,0) δ(1,1) δ(1,2) δ(1,3) δ(2,0) δ(2,1) δ(2,2) δ(2,3) δ(3,0) δ(3,1) δ(3,2) δ(3,3)

31. DHT – HIGHER LEVEL x(0) δ(0,0) δ(0,1) δ(0,2) δ(0,3) x(1) δ(1,0) δ(1,1) δ(1,2) δ(1,3) x(2) δ(2,0) δ(2,1) δ(2,2) δ(2,3) x(3) δ(3,0) δ(3,1) δ(3,2) δ(3,3)

32. DHT – HIGHER LEVEL x(0) δ(0,0) δ(0,1) δ(0,2) δ(0,3) x(1) δ(1,0) δ(1,1) δ(1,2) δ(1,3) x(2) δ(2,0) δ(2,1) δ(2,2) δ(2,3) x(3) δ(3,0) δ(3,1) δ(3,2) δ(3,3) X(0) X(1) X(2) X(3)

33. MAPPING AT LOGIC BLOCK LEVEL

34. LOGIC BLOCK LEVEL DCT/DFT/DST x1 MUX × θ1 L + + θ2 MUX × MUX x2

35. LOGIC BLOCK LEVEL DCT/DFT/DST x1 MUX × cos(θ1) θ1 L + + θ2 cos(θ1) MUX × MUX x2

36. LOGIC BLOCK LEVEL x1 DCT/DFT/DST x1 MUX × x1cos(θ1) cos(θ1) θ1 L + + θ2 cos(θ2) MUX x2cos(θ2) × MUX x2 x2

37. LOGIC BLOCK LEVEL x1 DCT/DFT/DST x1 MUX × x1cos(θ1) x1cos(θ1) cos(θ1) θ1 X+ L + + θ2 cos(θ2) MUX x2cos(θ2) x2cos(θ2) × MUX x2 X+ x2

38. DHT – LOGIC BLOCK LEVEL x1 x1 MUX × x1cos(θ1) x1cos(θ1) cos(θ1) θ1 X+ L + + 90-θ1 cos(90-θ1) MUX x1cos(90-θ1) × x1cos(90-θ1) MUX x1 X+ x1

39. FPGA OR DSP • SAMPLE RATE > MHZ? FPGA • CONTEXT SWITCH? DSP/FPGA • FLOATING POINT? DSP • C CODE? DSP FUTURE WORK FPGA

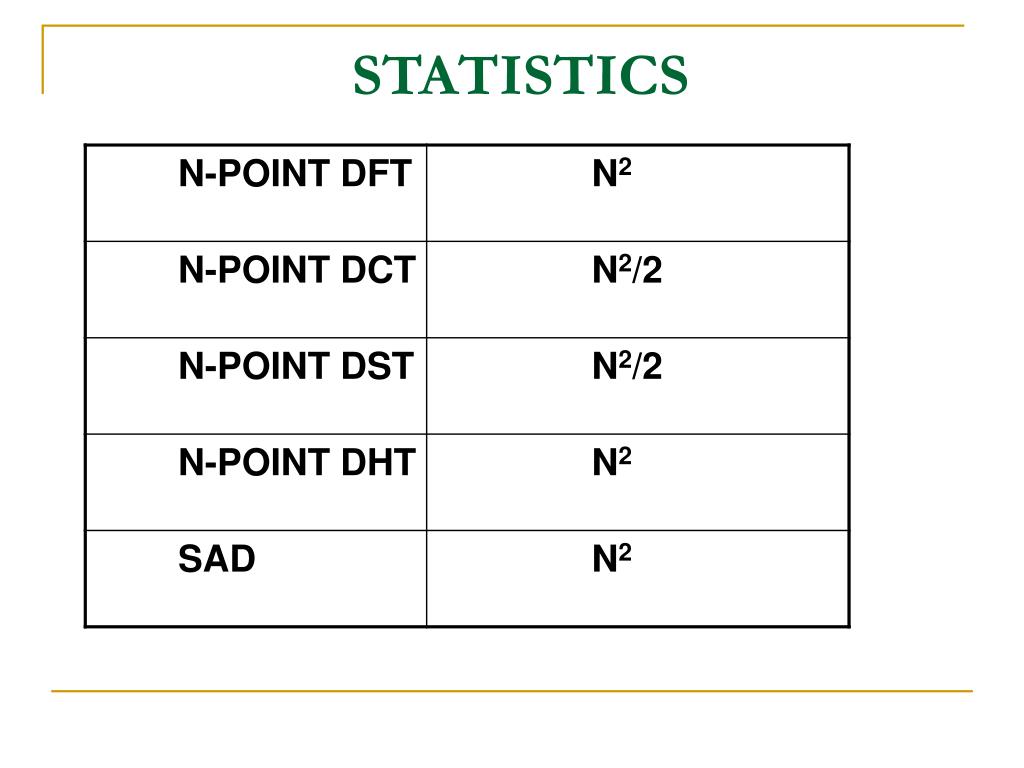

40. STATISTICS
