ee 587 presentation

EE 587 Presentation

Gyroscope Used As Rate Sensor

Instructor: Dr. Lumpp

Presenter: Wei Lu

what is a gyroscope

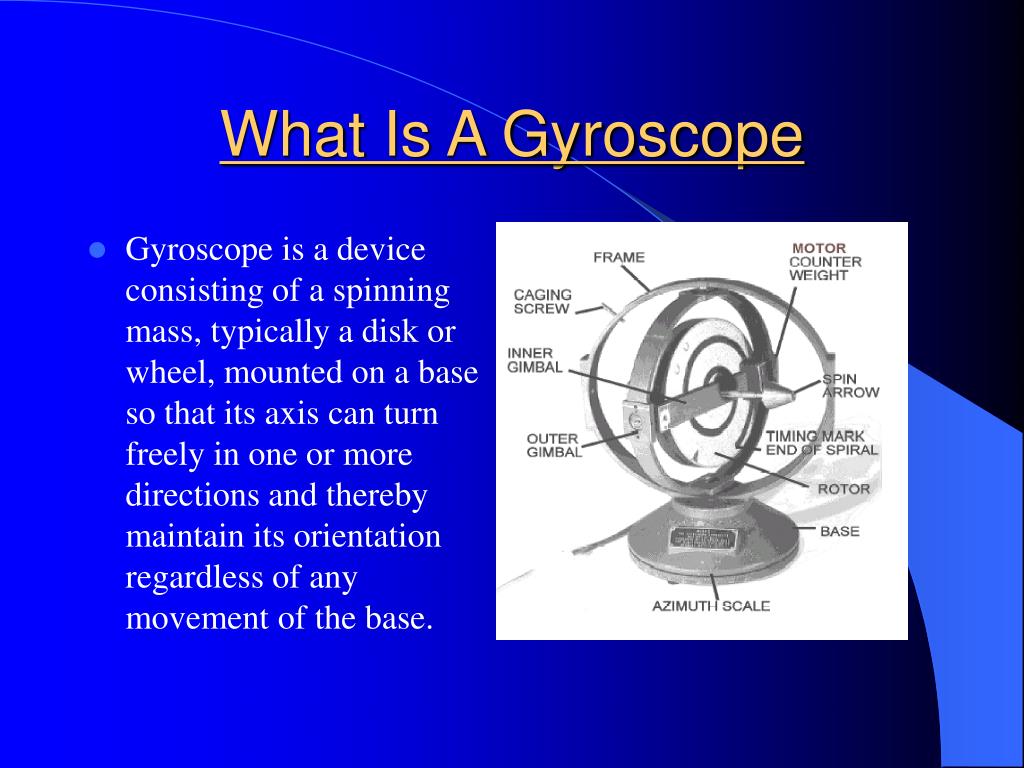

What Is A Gyroscope
  • Gyroscope is a device consisting of a spinning mass, typically a disk or wheel, mounted on a base so that its axis can turn freely in one or more directions and thereby maintain its orientation regardless of any movement of the base.
historical issue
Historical Issue
  • The first modern gyroscope was developed in the first half of the 19th century by the French physicist jean B. L. Foucault, and its first notable use was in a visual demonstration of the earth's rotation.
gyroscopic effect

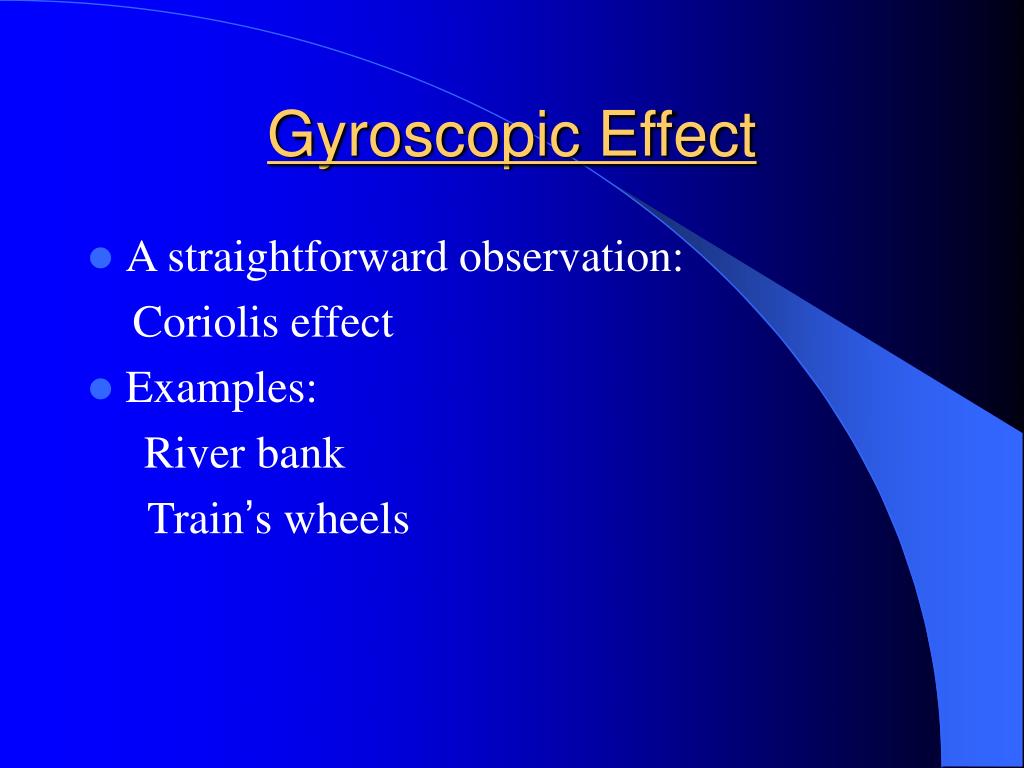

Gyroscopic Effect
  • A straightforward observation:

Coriolis effect

  • Examples:

River bank

Train’s wheels

gyroscope vs rate sensor
Gyroscope Vs. Rate Sensor
  • The major difference: gyroscope can be mounted at any position of the rotational frame to sense the rate of rotation, while the conventional rate sensor needs to have an aligned shaft to be mounted exactly at the centre of the rotational frame.
  • Conclusion: the conventional rate sensor cannot be used in navigation systems where the centre of the rotational frame is unknown.
merits of gyro as rate sensor
Merits of Gyro As Rate Sensor
  • Low power consumption,
  • High sensitivity,
  • Low temperature drift,
  • Good stability
principle of gyro
Principle of Gyro

Coriolis force -- the main physical principal to explain the vibrating gyroscope operation.

In general, when in a rotating frame, there is a force on all moving objects which is given by:

FCoriolis = -2 m (w x vr)

Where w is angular frequency and vr is radial velocity.

The direction of Coriolis force is orthogonal to the velocity vector and the rotation vector.

principle of gyro1
Principle of Gyro
  • The spin axis: the source of the gyroscopic effect
  • The primary axis: conceptually the input or driving axis
  • The secondary axis: output
principle of gyro2

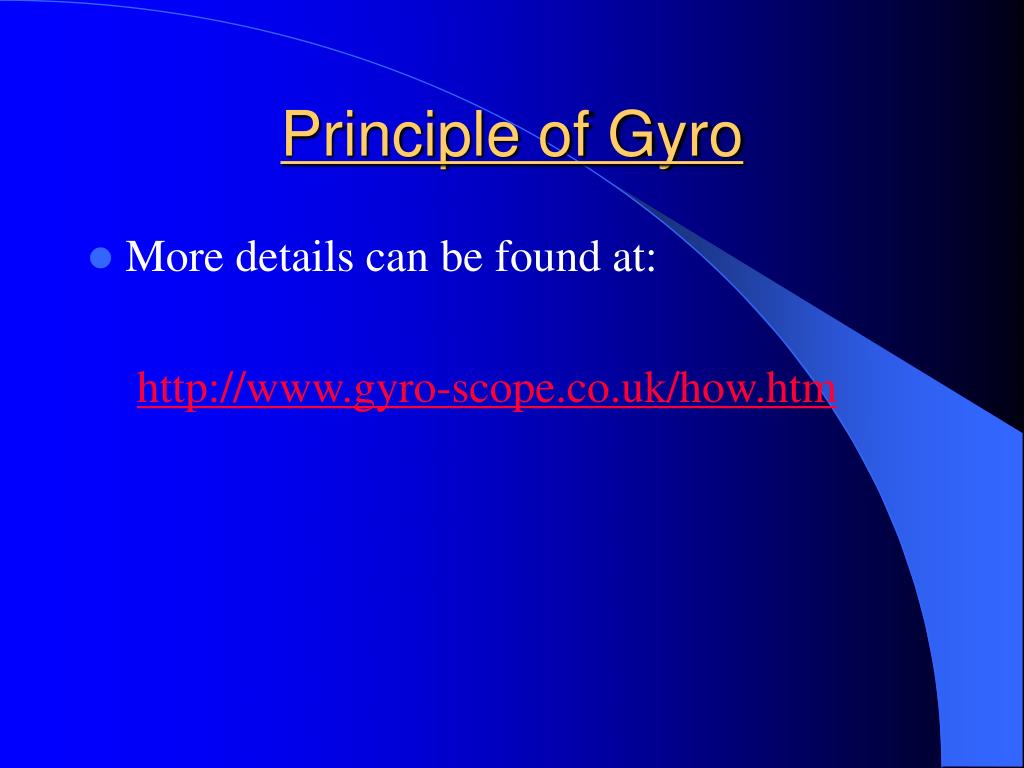

Principle of Gyro
  • More details can be found at:

http://www.gyro-scope.co.uk/how.htm

some types of gyro rate sensor
Some Types of Gyro Rate Sensor
  • Example 1:

Manufacturer: NEC/TOKIN

Model: CG-16D, CG-L43

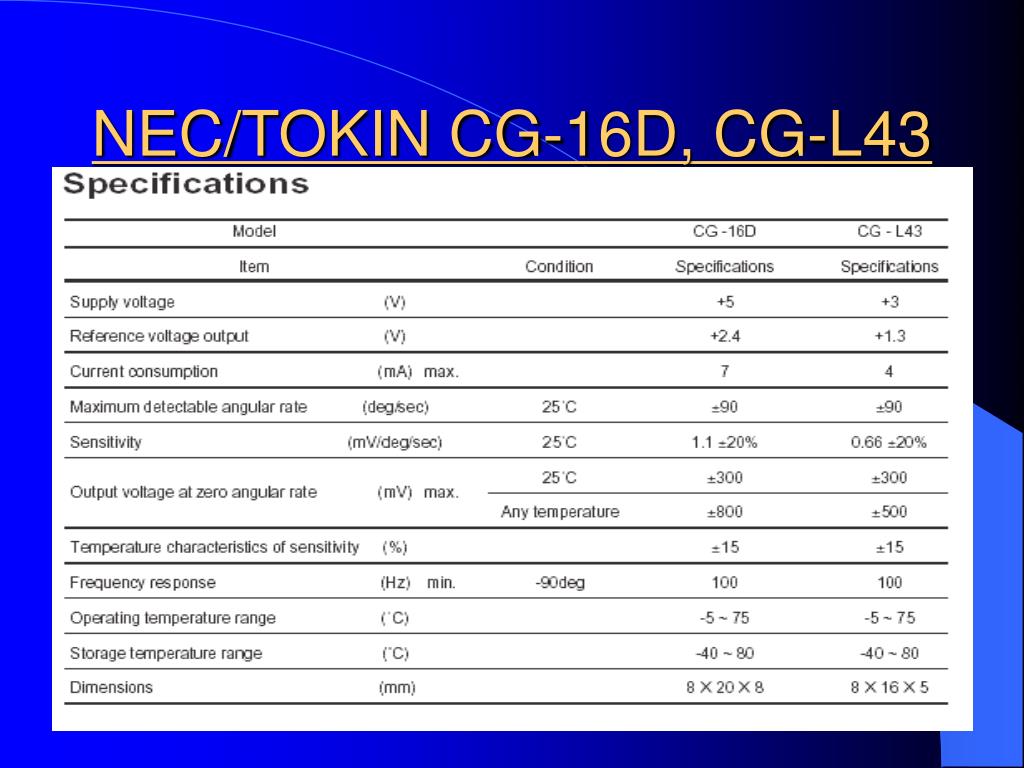

nec tokin cg 16d cg l433
NEC/TOKIN CG-16D, CG-L43
  • Vibrating Element Structure
nec tokin cg 16d cg l434
NEC/TOKIN CG-16D, CG-L43

Shape and Dimension

nec tokin mdp a3u7
NEC/TOKIN MDP-A3U7
  • Example 2:

Manufacturer: NEC/TOKIN

Model: 3D Motion Sensor MDP-A3U7

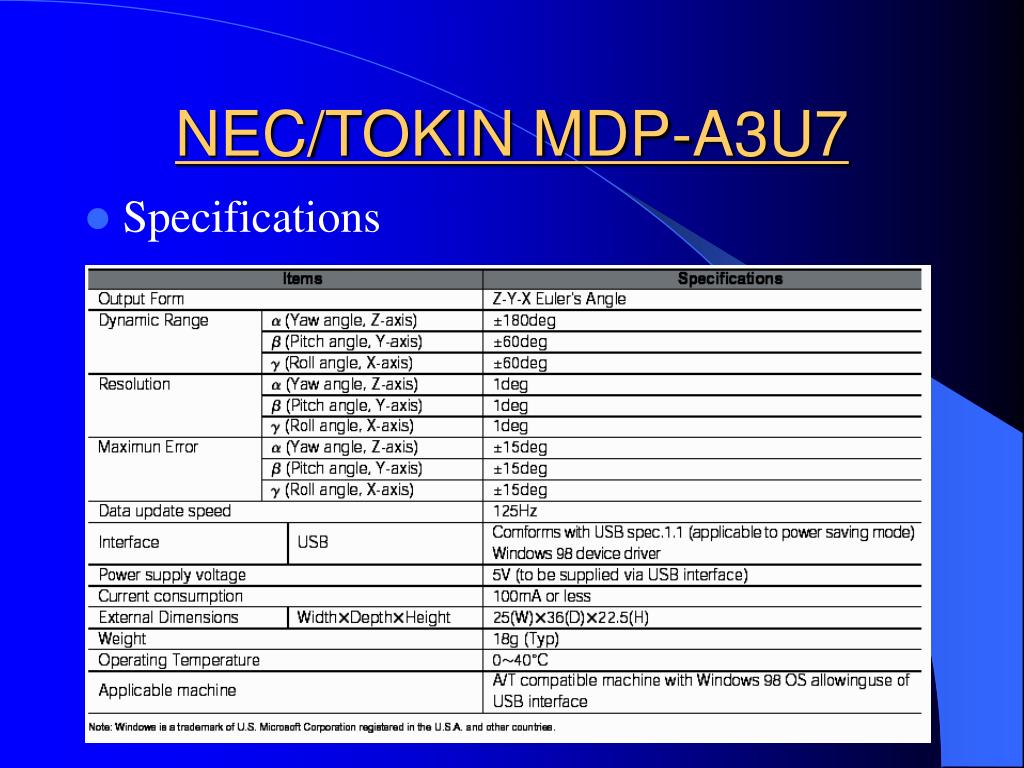

nec tokin mdp a3u73
NEC/TOKIN MDP-A3U7
  • Specifications
nec tokin

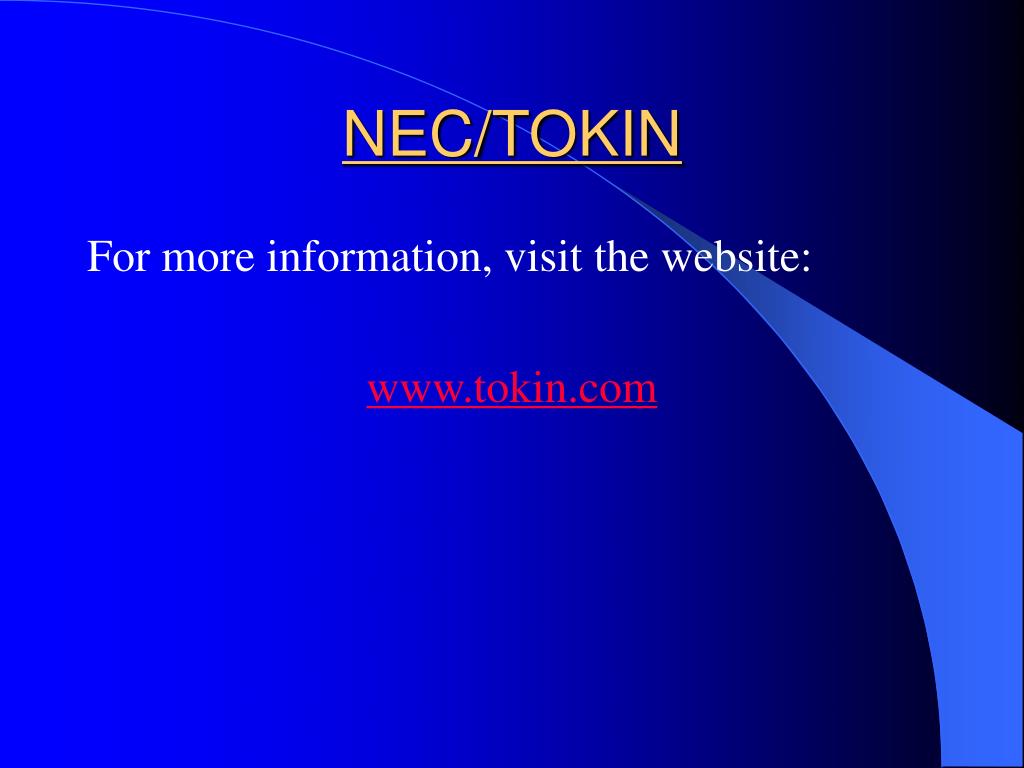

NEC/TOKIN

For more information, visit the website:

www.tokin.com

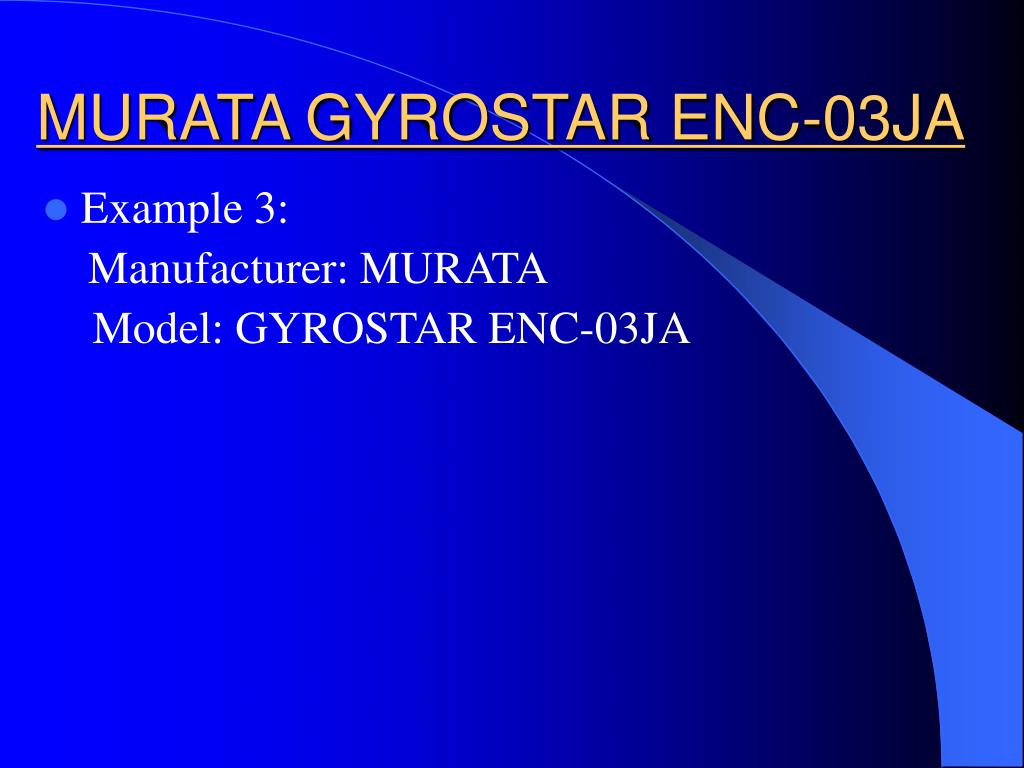

murata gyrostar enc 03ja
MURATA GYROSTAR ENC-03JA
  • Example 3:

Manufacturer: MURATA

Model: GYROSTAR ENC-03JA

murata gyrostar enc 03ja2
MURATA GYROSTAR ENC-03JA
  • Outline:

This product is offers many excellent features such as quick-response when detecting a moving object or the increased flexibility of installment because of its small and light weight design

murata gyrostar enc 03ja3

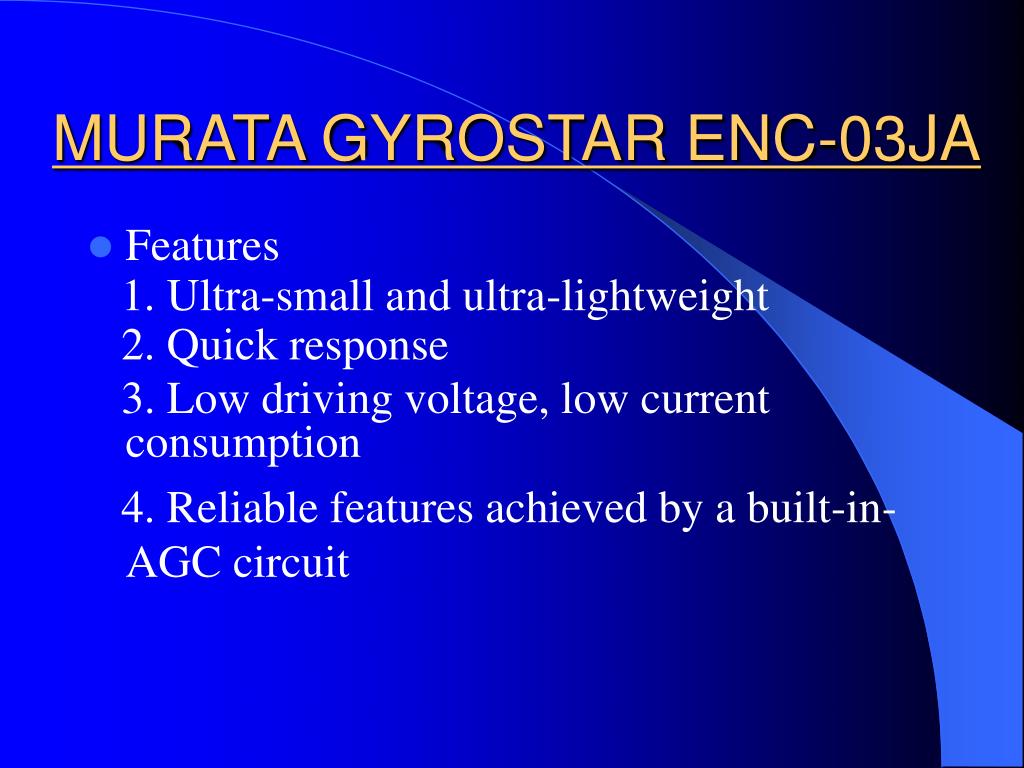

MURATA GYROSTAR ENC-03JA
  • Features

1. Ultra-small and ultra-lightweight

2. Quick response

3. Low driving voltage, low current consumption

4. Reliable features achieved by a built-in-AGC circuit

murata gyrostar enc 03ja4

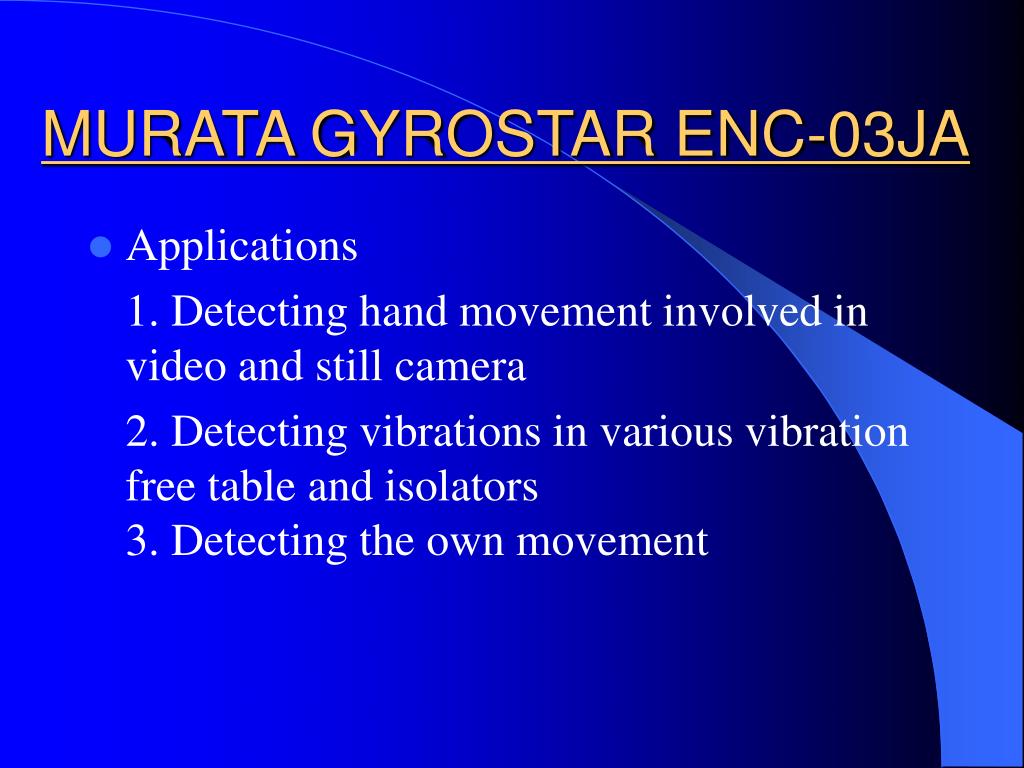

MURATA GYROSTAR ENC-03JA
  • Applications

1. Detecting hand movement involved in video and still camera

2. Detecting vibrations in various vibration free table and isolators

3. Detecting the own movement

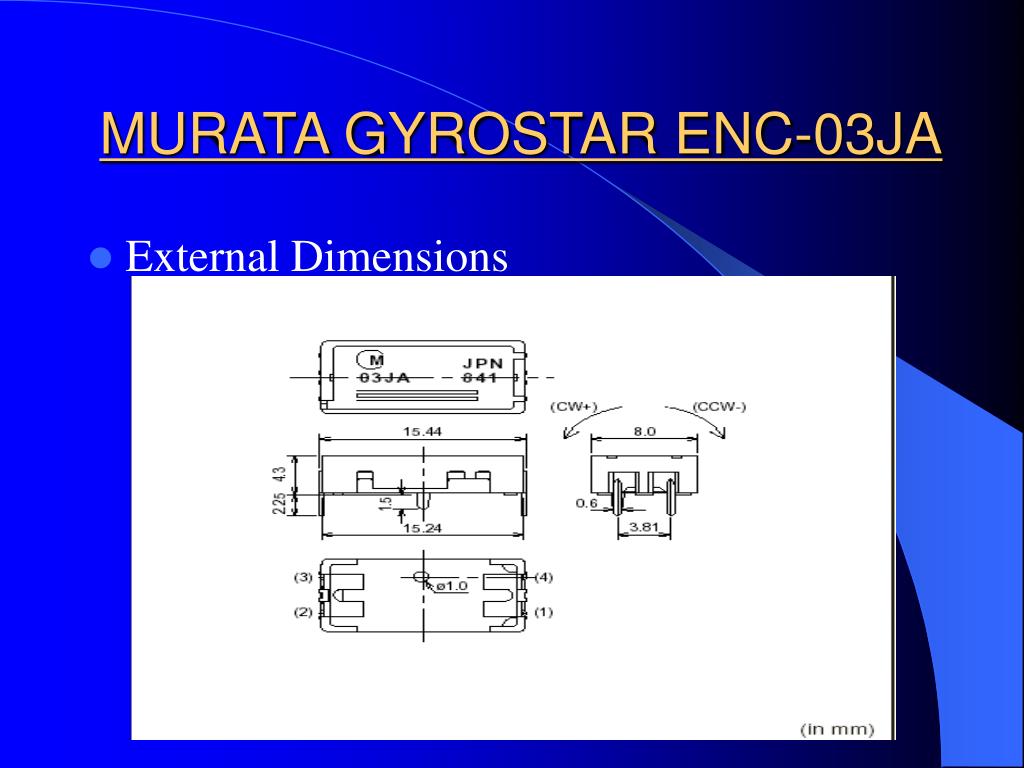

murata gyrostar enc 03ja6
MURATA GYROSTAR ENC-03JA
  • External Dimensions
murata gyrostar enc 03ja7
MURATA GYROSTAR ENC-03JA
  • Terminal Descriptions
murata gyrostar enc 03ja9
MURATA GYROSTAR ENC-03JA

For more information, visit the website:

www.murata.com

some applications of gyro sensors
Some Applications of Gyro Sensors

Gyration Wireless Products & Accessories

  • Ultra Mouse: the world's only in-air motion sensing mouse
some applications of gyro sensors1

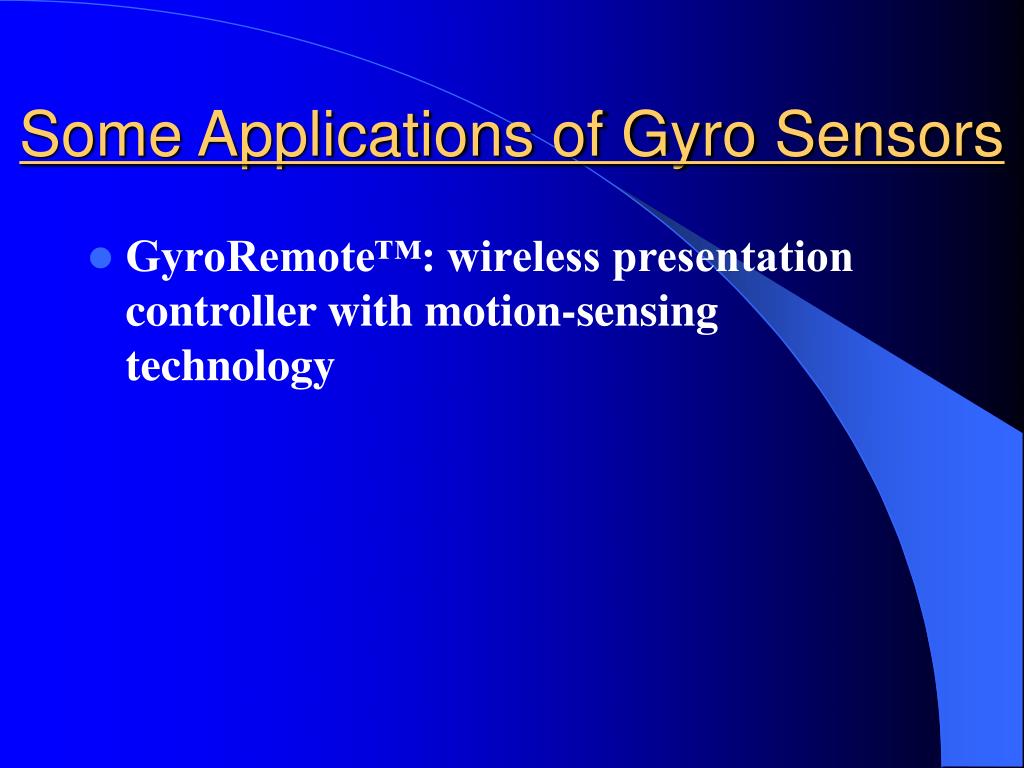

Some Applications of Gyro Sensors
  • GyroRemote™: wireless presentation controller with motion-sensing technology
some applications of gyro sensors2
Some Applications of Gyro Sensors
  • Mobile Keyboard: Wireless RF Keyboard with 100-ft. range and Internet/Multimedia hot keys.
conclusion
Conclusion

Gyroscope is very useful in many applications. To chose the right rate gyro sensor, some features, such as power consumption, weight, dimension, etc., must be taken into consideration.
