  1. EDSEMC Core SRM Mike Sampson Scott Shaffer Ryan Fournier

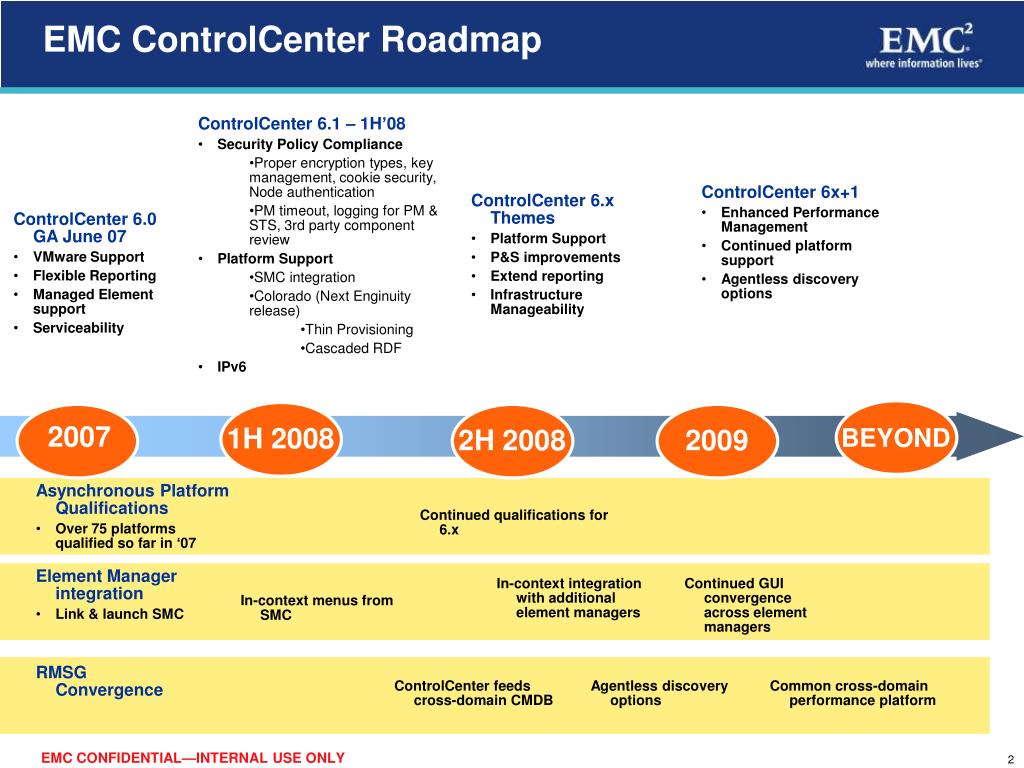

  2. ControlCenter 6.1 – 1H’08 • Security Policy Compliance • Proper encryption types, key management, cookie security, Node authentication • PM timeout, logging for PM & STS, 3rd party component review • Platform Support • SMC integration • Colorado (Next Enginuity release) • Thin Provisioning • Cascaded RDF • IPv6 EMC ControlCenter Roadmap • ControlCenter 6x+1 • Enhanced Performance Management • Continued platform support • Agentless discovery options • ControlCenter 6.x Themes • Platform Support • P&S improvements • Extend reporting • Infrastructure Manageability • ControlCenter 6.0 GA June 07 • VMware Support • Flexible Reporting • Managed Element support • Serviceability 2007 1H 2008 BEYOND 2H 2008 2009 • Asynchronous Platform Qualifications • Over 75 platforms qualified so far in ‘07 Continued qualifications for 6.x • Element Manager integration • Link & launch SMC In-context integration with additional element managers Continued GUI convergence across element managers In-context menus from SMC RMSG Convergence ControlCenter feeds cross-domain CMDB Agentless discovery options Common cross-domain performance platform

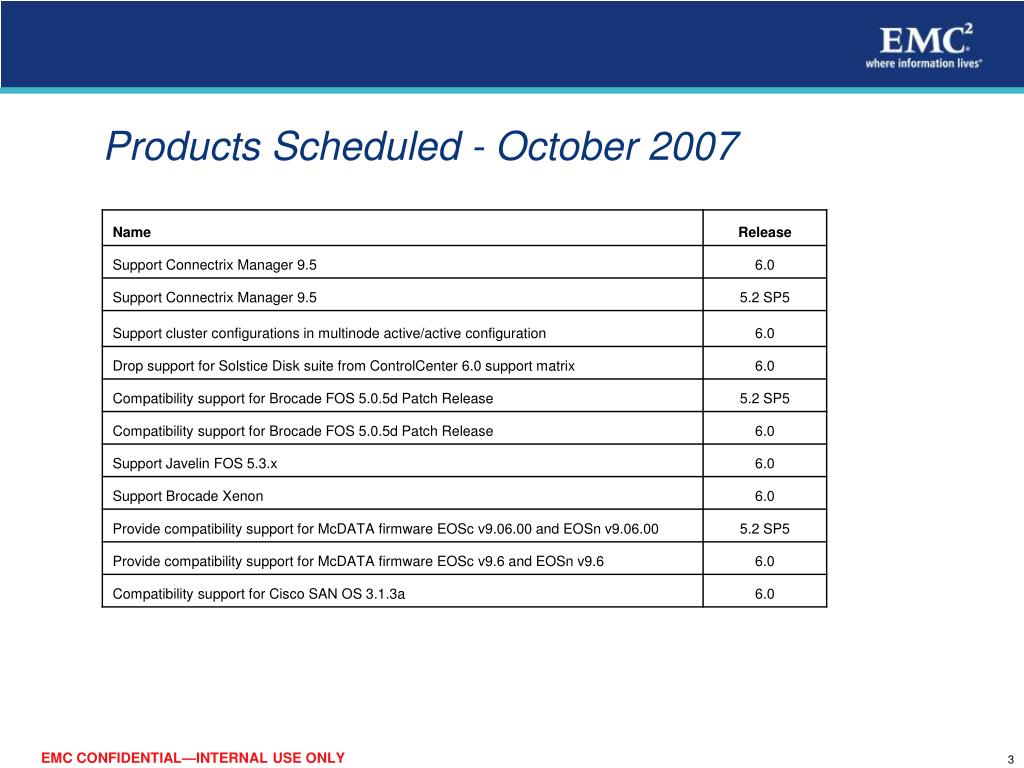

  3. Products Scheduled - October 2007

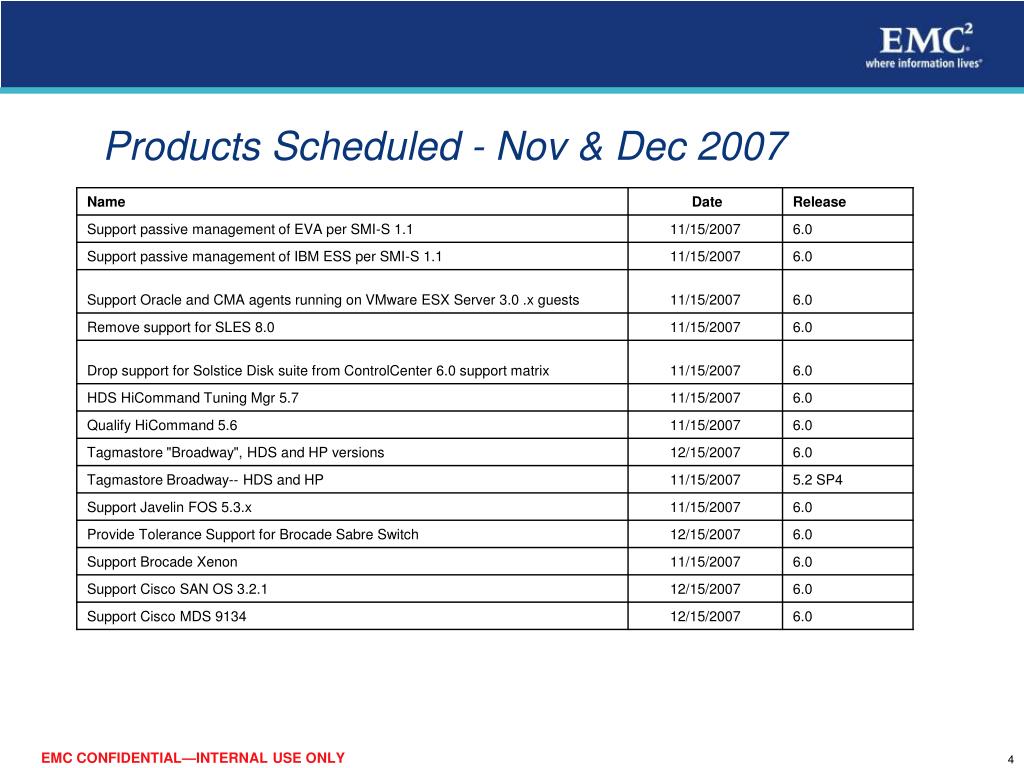

  4. Products Scheduled - Nov & Dec 2007

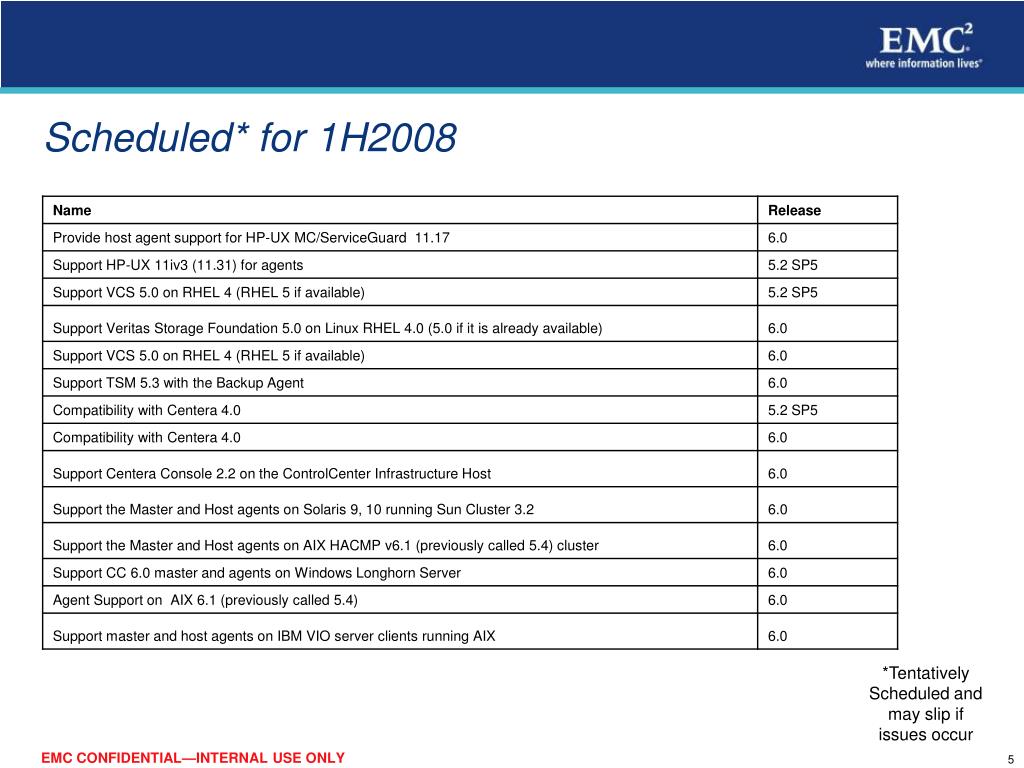

  5. Scheduled* for 1H2008 *Tentatively Scheduled and may slip if issues occur

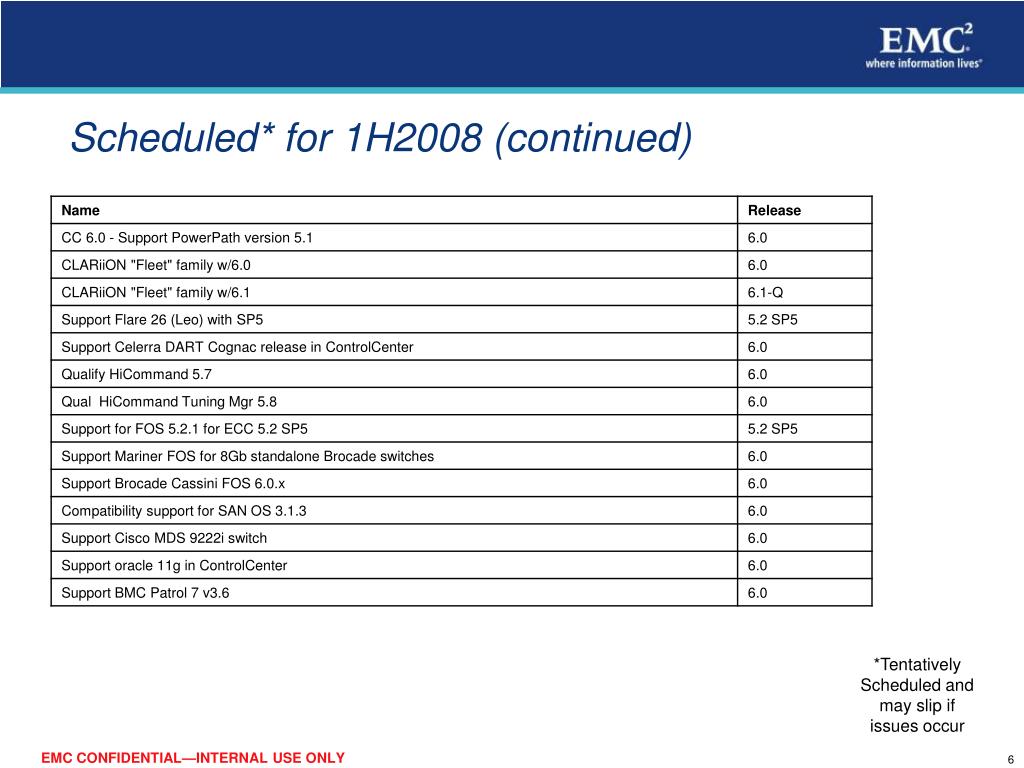

  6. Scheduled* for 1H2008 (continued) *Tentatively Scheduled and may slip if issues occur

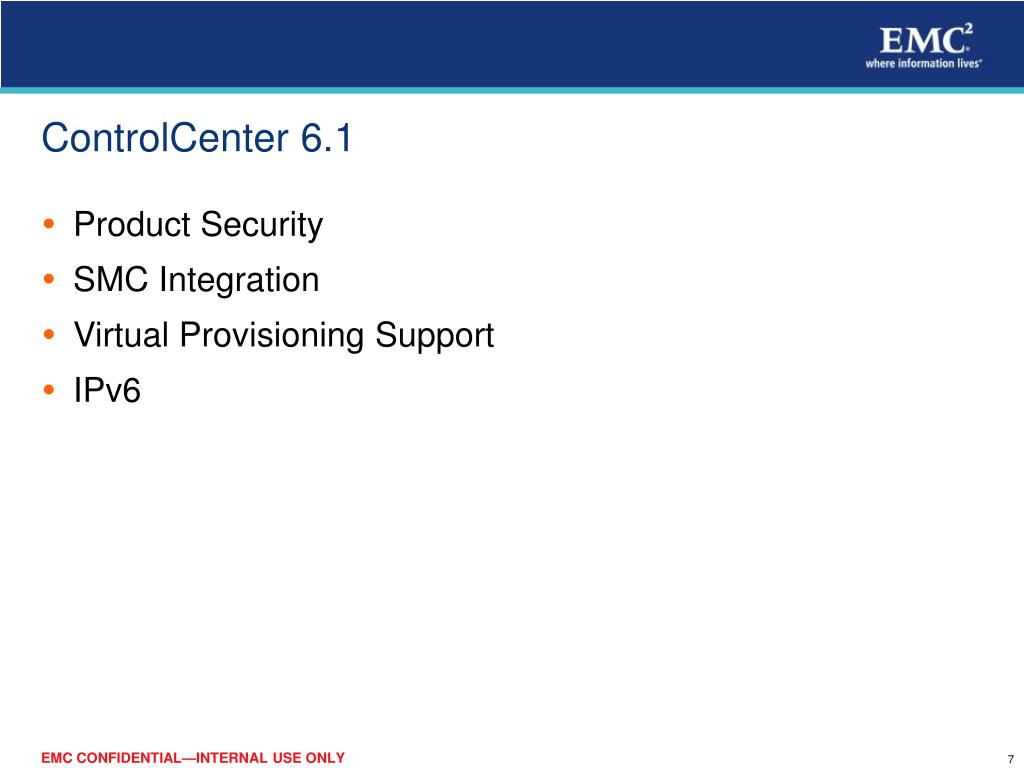

  7. ControlCenter 6.1 • Product Security • SMC Integration • Virtual Provisioning Support • IPv6

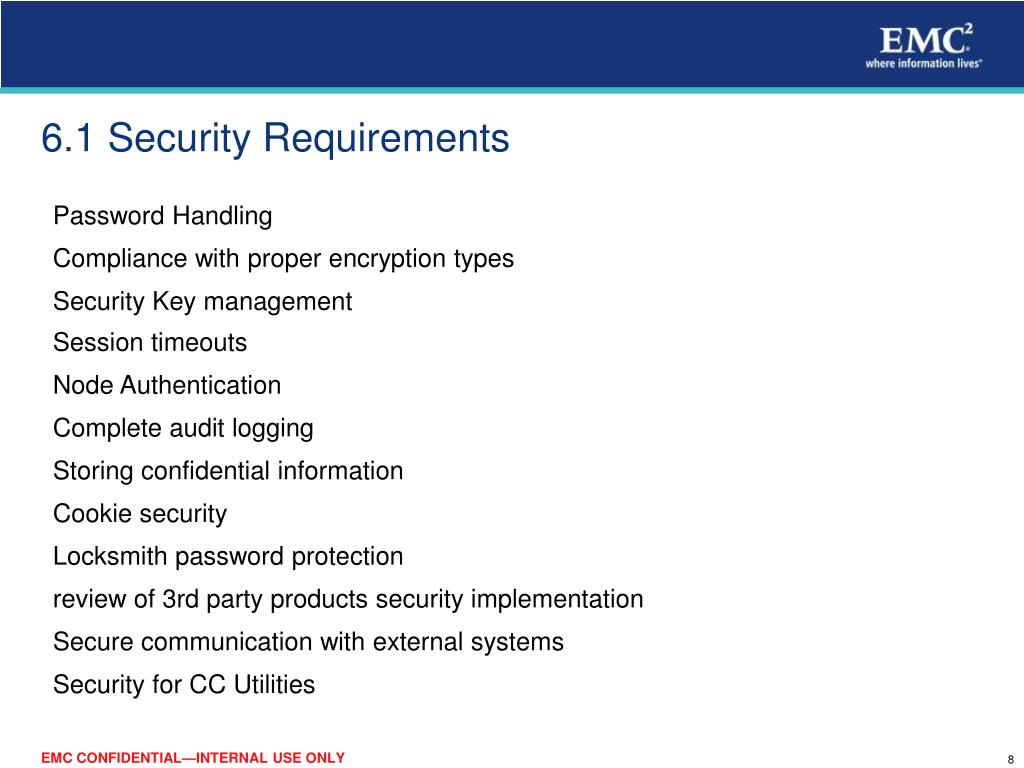

  8. 6.1 Security Requirements

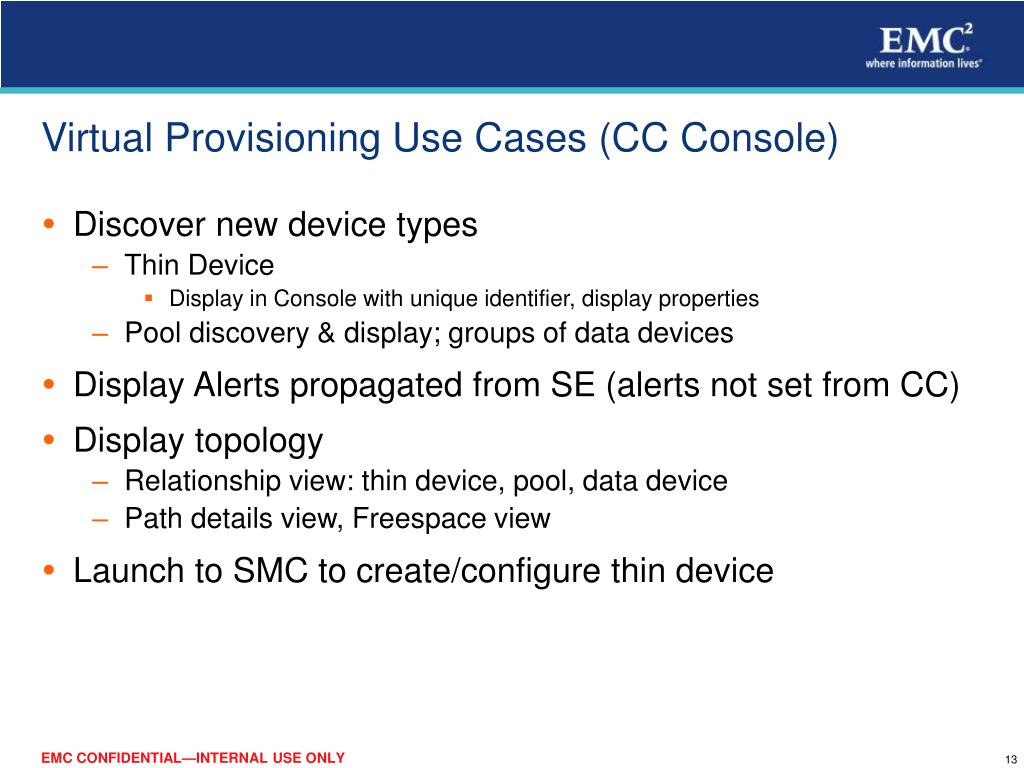

  9. Virtual Provisioning Use Cases (CC Console) • Discover new device types • Thin Device • Display in Console with unique identifier, display properties • Pool discovery & display; groups of data devices • Display Alerts propagated from SE (alerts not set from CC) • Display topology • Relationship view: thin device, pool, data device • Path details view, Freespace view • Launch to SMC to create/configure thin device

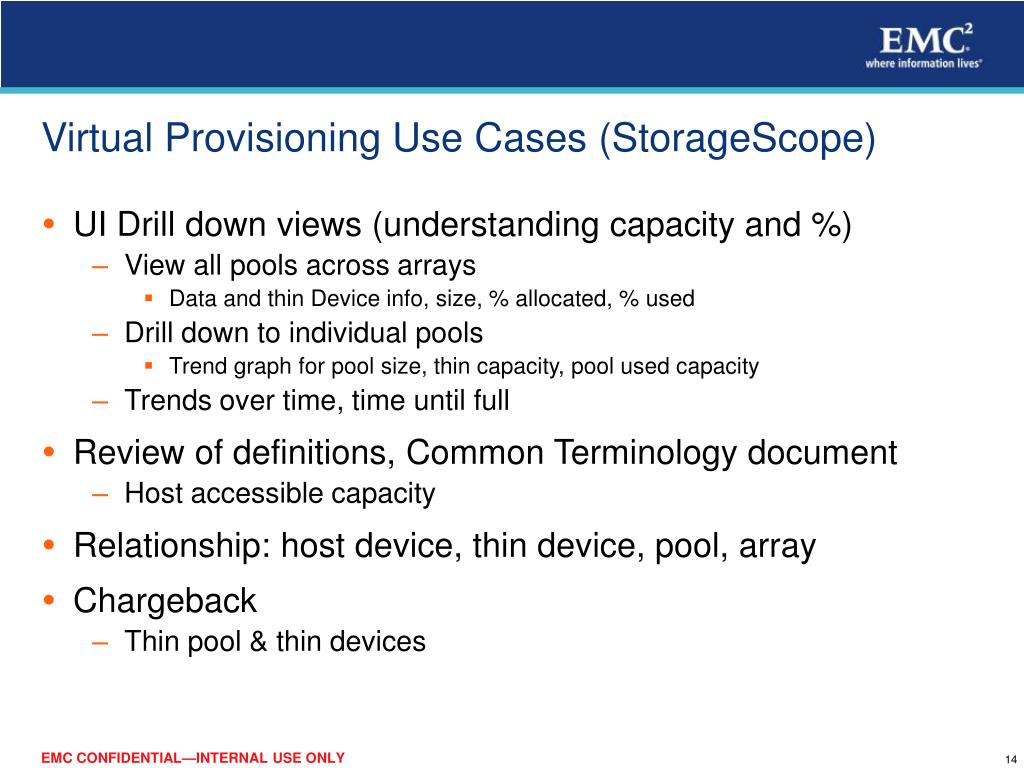

  10. Virtual Provisioning Use Cases (StorageScope) • UI Drill down views (understanding capacity and %) • View all pools across arrays • Data and thin Device info, size, % allocated, % used • Drill down to individual pools • Trend graph for pool size, thin capacity, pool used capacity • Trends over time, time until full • Review of definitions, Common Terminology document • Host accessible capacity • Relationship: host device, thin device, pool, array • Chargeback • Thin pool & thin devices

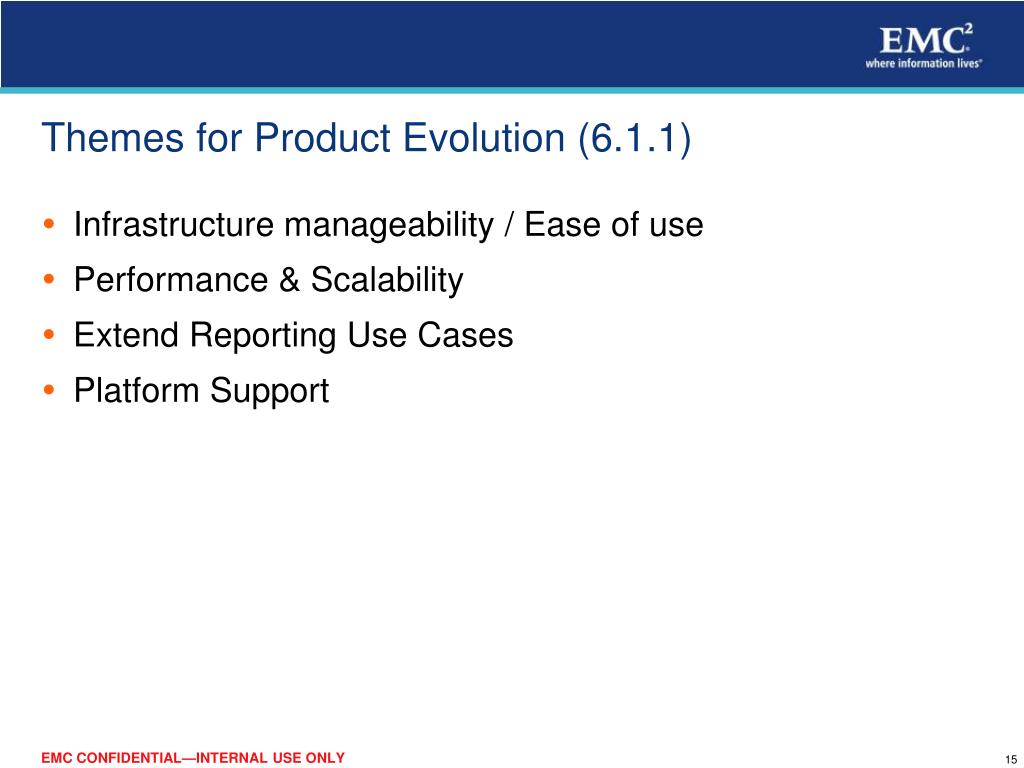

  11. Themes for Product Evolution (6.1.1) • Infrastructure manageability / Ease of use • Performance & Scalability • Extend Reporting Use Cases • Platform Support

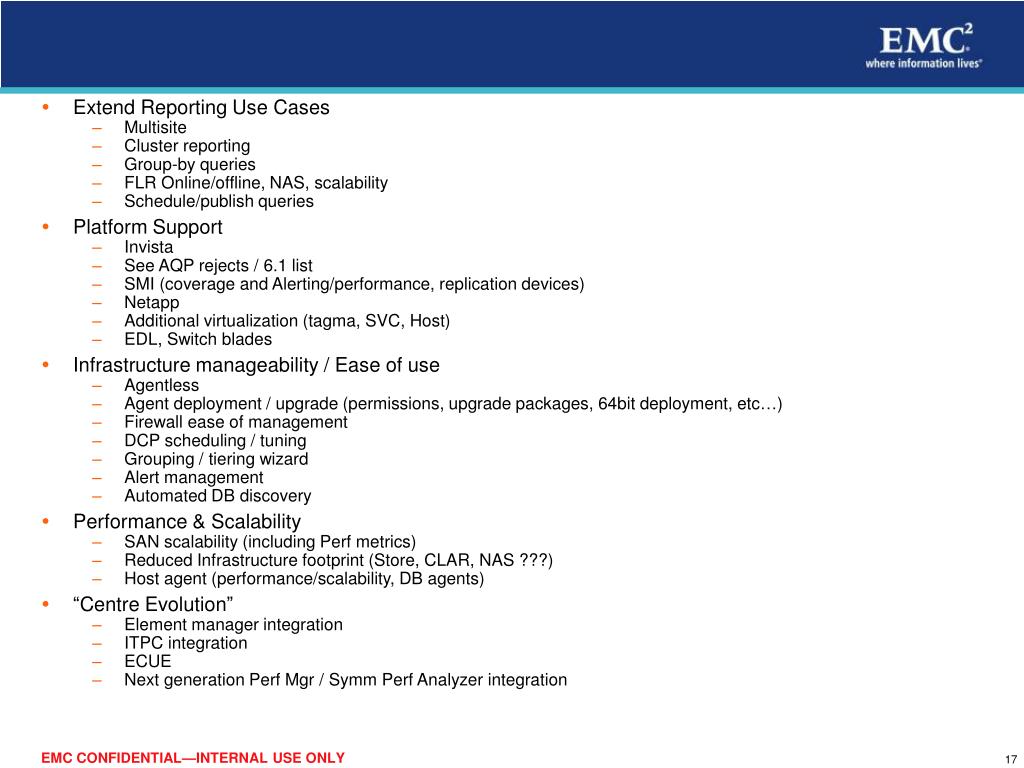

  12. Extend Reporting Use Cases • Multisite • Cluster reporting • Group-by queries • FLR Online/offline, NAS, scalability • Schedule/publish queries • Platform Support • Invista • See AQP rejects / 6.1 list • SMI (coverage and Alerting/performance, replication devices) • Netapp • Additional virtualization (tagma, SVC, Host) • EDL, Switch blades • Infrastructure manageability / Ease of use • Agentless • Agent deployment / upgrade (permissions, upgrade packages, 64bit deployment, etc…) • Firewall ease of management • DCP scheduling / tuning • Grouping / tiering wizard • Alert management • Automated DB discovery • Performance & Scalability • SAN scalability (including Perf metrics) • Reduced Infrastructure footprint (Store, CLAR, NAS ???) • Host agent (performance/scalability, DB agents) • “Centre Evolution” • Element manager integration • ITPC integration • ECUE • Next generation Perf Mgr / Symm Perf Analyzer integration

  13. Platform Support (Server) • Master and Host agent on Windows 2008* • VMware ESX 3.5 • CC infrastructure components and consoles on Windows 2008* • Solaris 10 x64 • Clusters support • Make Host agent install OS version independent • FCC agent on Solaris 10 • Internet Explorer 7.0 for StorageScope • SUSE 10 • Solaris 10 x86 • Agent support on AIX 6.1 • Support AIX VIO server, Solaris Containers and MS virtual server * Qualify common denominator version of OS to support it on 32 bit, x64 and IA 64 platforms

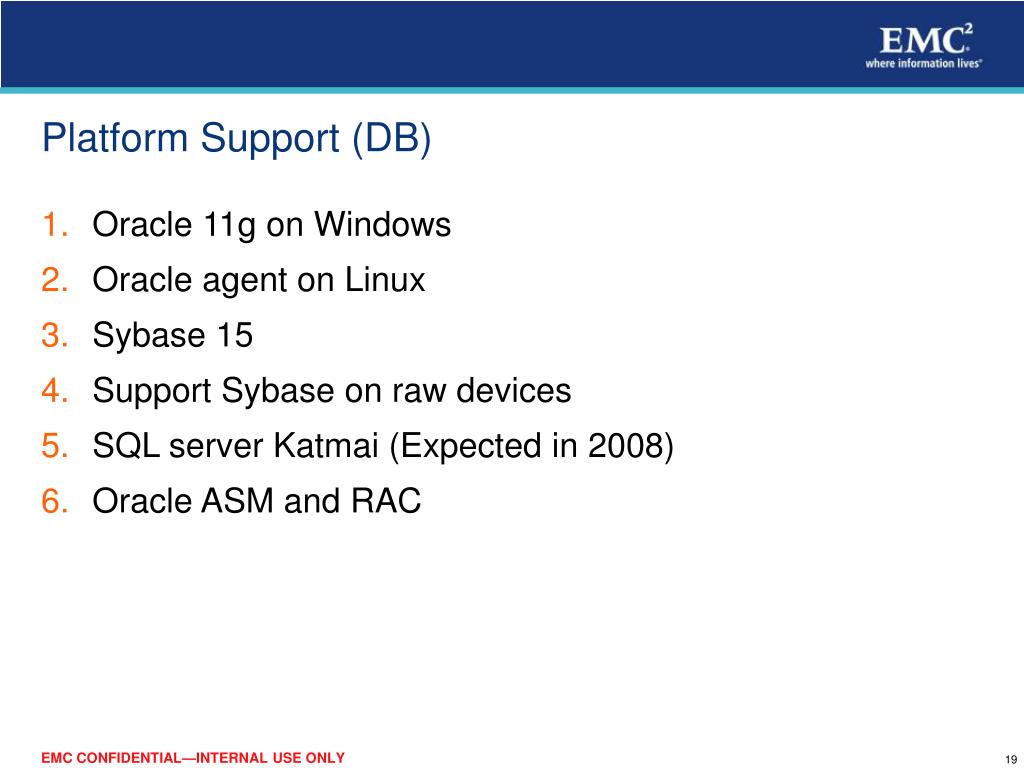

  14. Platform Support (DB) • Oracle 11g on Windows • Oracle agent on Linux • Sybase 15 • Support Sybase on raw devices • SQL server Katmai (Expected in 2008) • Oracle ASM and RAC

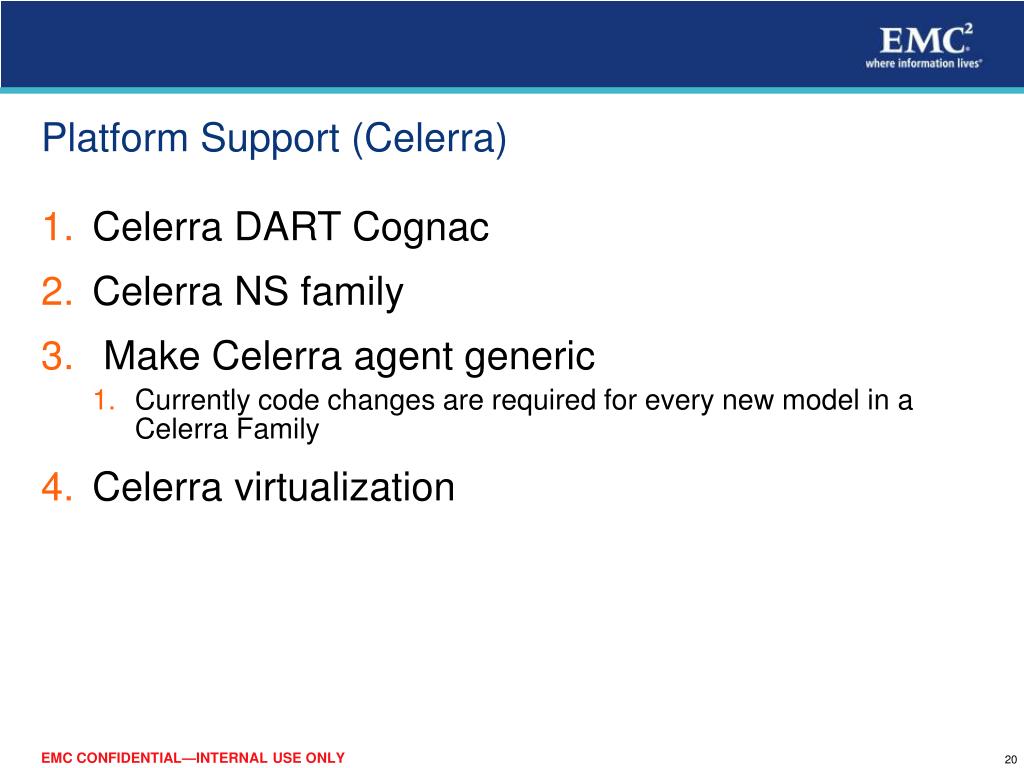

  15. Platform Support (Celerra) • Celerra DART Cognac • Celerra NS family • Make Celerra agent generic • Currently code changes are required for every new model in a Celerra Family • Celerra virtualization

  16. Invista End-to-end discovery & reporting A Basic monitoring A Invista 2.1 A Performance Mgr C Active Zoning C EM launch B Replication config discovery C SMI –S for storage Alerts/indications (try for 6.1) A Performance stats A Discover replication devices and report correctly A Fix host-side discovery problems such as LUN masking A Officially support HDS, EVA, IBM, Engenio A NetApp Discover primary SAN configurations (clusters) A Discover resources used in provisioning use case (flexvols, aggregates) B Transition to SMI-S (work with NetApp; may be too soon) C Additional storage virtualization SVC (via SMI-S) B Tagmastore C EDL Discover comparable to tapedrives A Specific reports B Symm and CLARiiON Tigon WWN A Fill in discovered data gaps for layered apps A CLARiiON RAID 6 discovery A CLARiiON replication discovery A CLARiiON agent scalability B Symm cache partition performance data B Other HP CommandView AE API ? Platform Support (Array/3rd party)

  17. Array AQPs outstanding • HiCommand 5.6-5.8– may need code fix A • EVA via SMI-S A • ESS via SMI-S B • Colorado tolerance in 6.0 and SP5 A • TSM 5.3 with Backup agent C • CLARiiON Fleet A • FLARE 26 (Leo) A • HDS AMS hf A • CLARiiON FLARE Taurus A • CLARiiON AX Mamba A

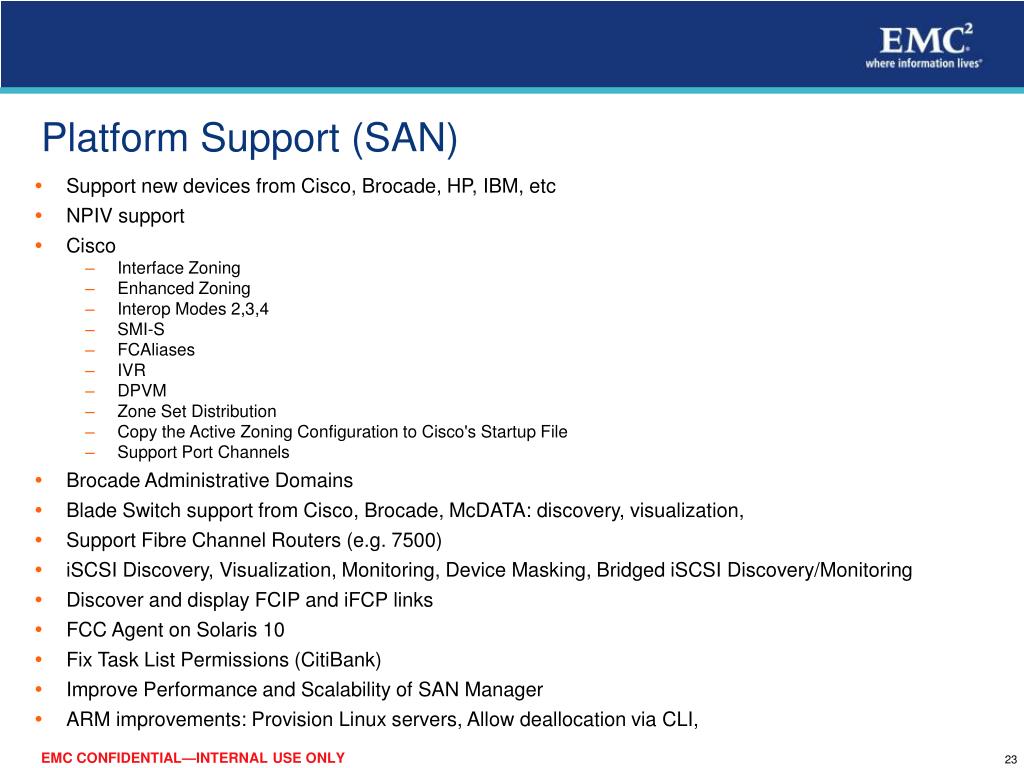

  18. Platform Support (SAN) • Support new devices from Cisco, Brocade, HP, IBM, etc • NPIV support • Cisco • Interface Zoning • Enhanced Zoning • Interop Modes 2,3,4 • SMI-S • FCAliases • IVR • DPVM • Zone Set Distribution • Copy the Active Zoning Configuration to Cisco's Startup File • Support Port Channels • Brocade Administrative Domains • Blade Switch support from Cisco, Brocade, McDATA: discovery, visualization, • Support Fibre Channel Routers (e.g. 7500) • iSCSI Discovery, Visualization, Monitoring, Device Masking, Bridged iSCSI Discovery/Monitoring • Discover and display FCIP and iFCP links • FCC Agent on Solaris 10 • Fix Task List Permissions (CitiBank) • Improve Performance and Scalability of SAN Manager • ARM improvements: Provision Linux servers, Allow deallocation via CLI,

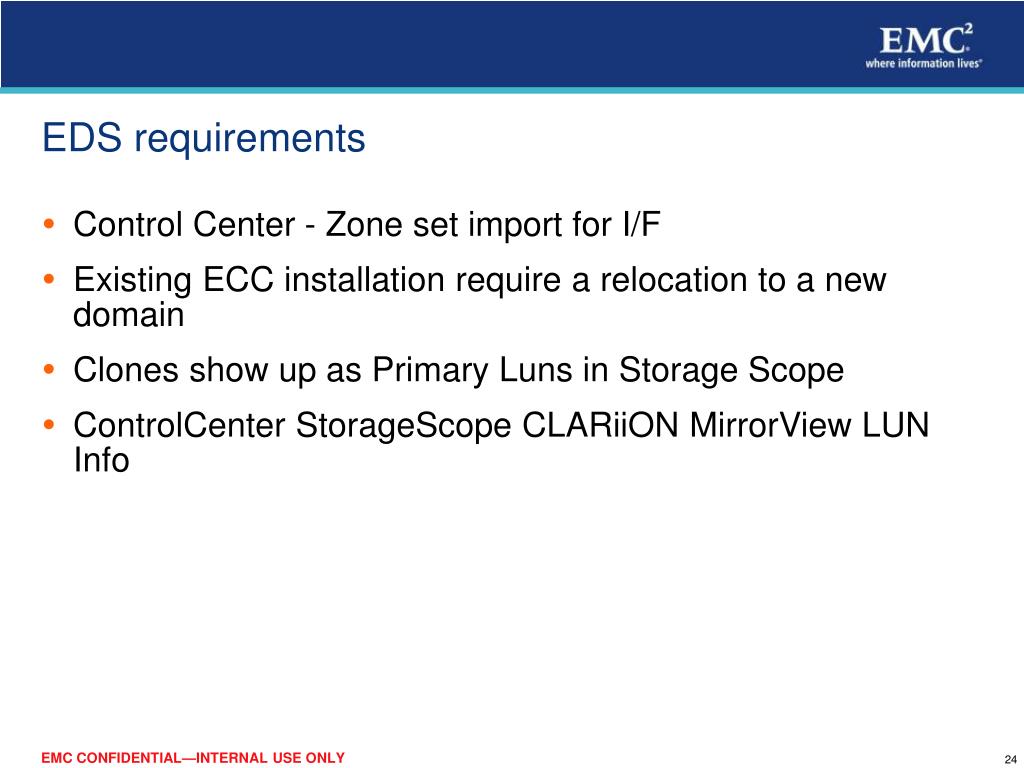

  19. EDS requirements • Control Center - Zone set import for I/F • Existing ECC installation require a relocation to a new domain • Clones show up as Primary Luns in Storage Scope • ControlCenter StorageScope CLARiiON MirrorView LUN Info
