  1. 1H NMR

  2. Assign. Shift (ppm) A 1.29 B 1.27 C 0.89 J(A,C) = 6.9 HZ.

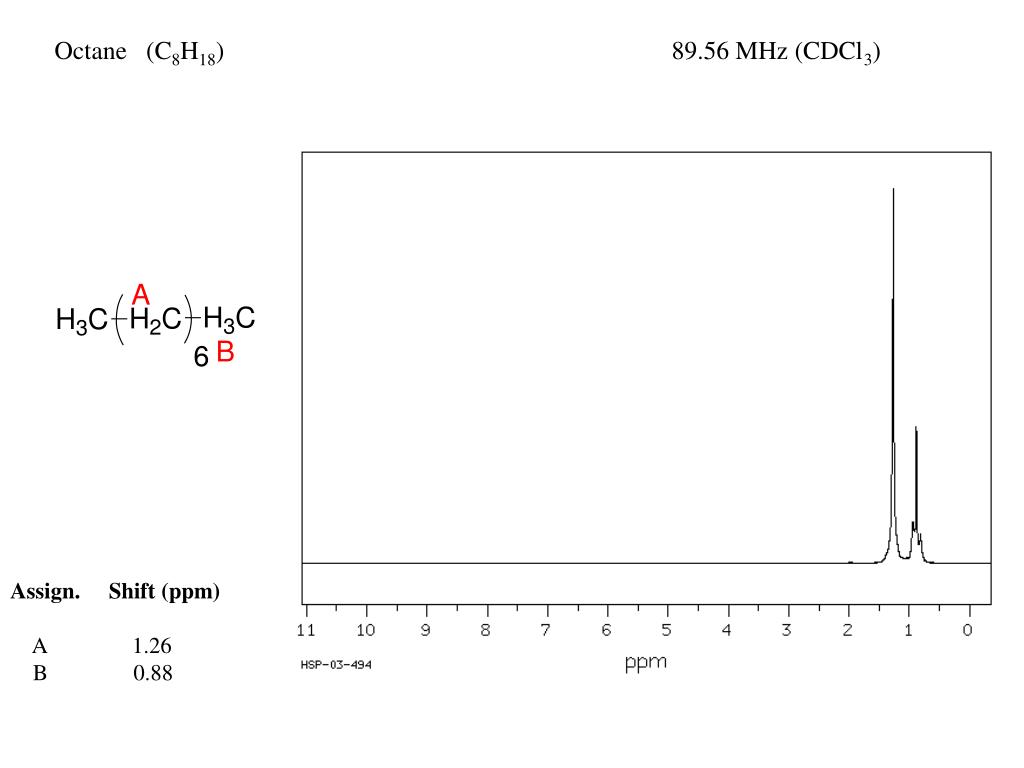

  3. Octane (C8H18) 89.56 MHz (CDCl3) Assign. Shift (ppm) A 1.26 B 0.88

  4. Isopentane (C5H12) 89.56 MHz (CDCl3) Assign. Shift (ppm) A 1.447 B 1.20 C 0.869 D 0.865 J(B,D)=7.3 HZ. J(A,C)=6.6 HZ. J(A,B)=6.6 HZ

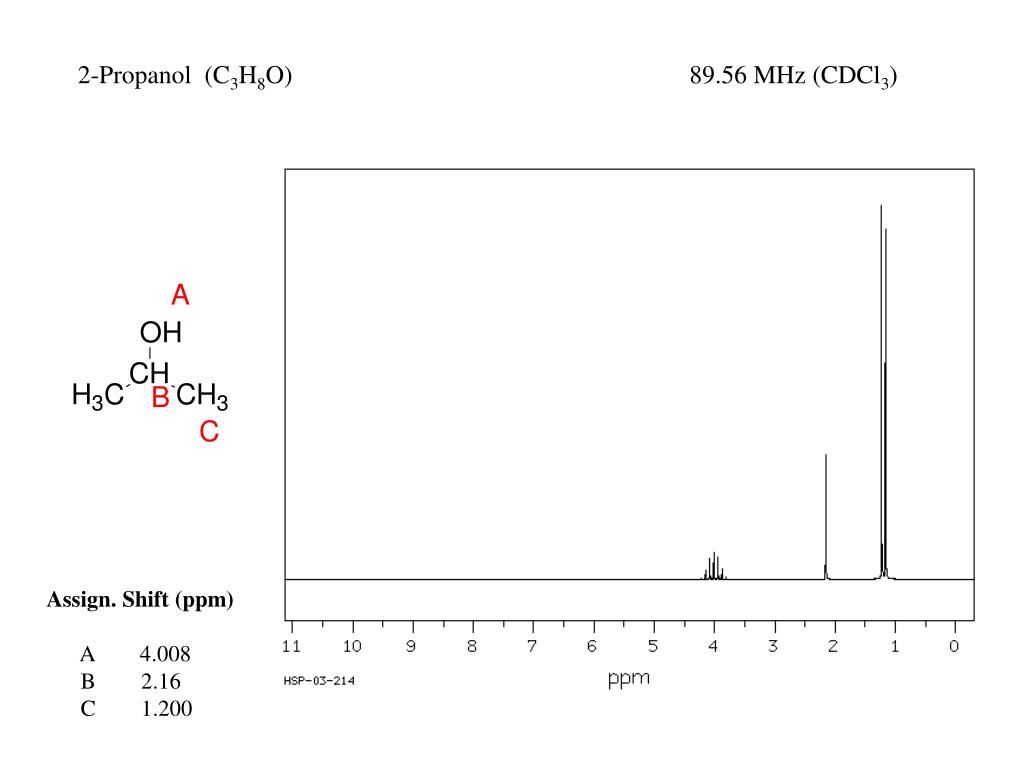

  5. 2-Propanol (C3H8O) 89.56 MHz (CDCl3) Assign. Shift (ppm) A 4.008 B 2.16 C 1.200

  6. 3-Chloro-1-propanol (C3H7ClO) 89.56 MHz (CDCl3) Assign. Shift (ppm) A 3.808 B 3.683 C 2.19 D 2.017

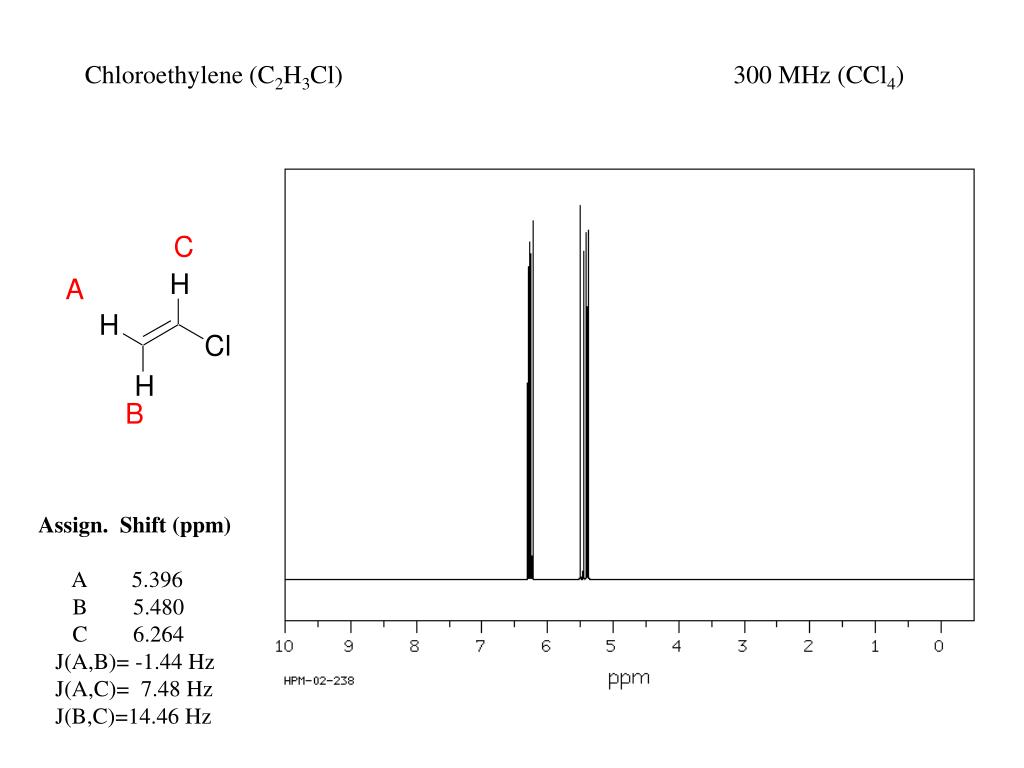

  7. Chloroethylene (C2H3Cl) 300 MHz (CCl4) Assign. Shift (ppm) A 5.396 B 5.480 C 6.264 J(A,B)= -1.44 Hz J(A,C)= 7.48 Hz J(B,C)=14.46 Hz

  8. Styrene (C8H8) 86.59 MHz (CDCl3) Assign. Shift (ppm) A 7.50 to 7.10 B 6.692 C 5.737 D 5.225

  9. p-Xylene (C8H10) 300 MHz (CDCl3) Assign Shift (ppm) A 2.296 B 7.046

  10. 2-Bromo-p-xylene (C8H9Br) 89.56 MHz (CDCl3) Assign. Shift (ppm) A 7.34 B 7.06 C 6.99 D 2.33 E 2.27

  11. Ethyl acetate (C4H8O2) 89.56 MHz (CDCl3) Assign. Shift (ppm) A 4.119 B 2.038 C 1.260 J(A,C)=7.1HZ.

  12. Butyraldehyde (C4H8O) 89.56 MHz (CDCl3) Assign. Shift (ppm) A 9.764 B 2.37 C 1.64 D 0.97

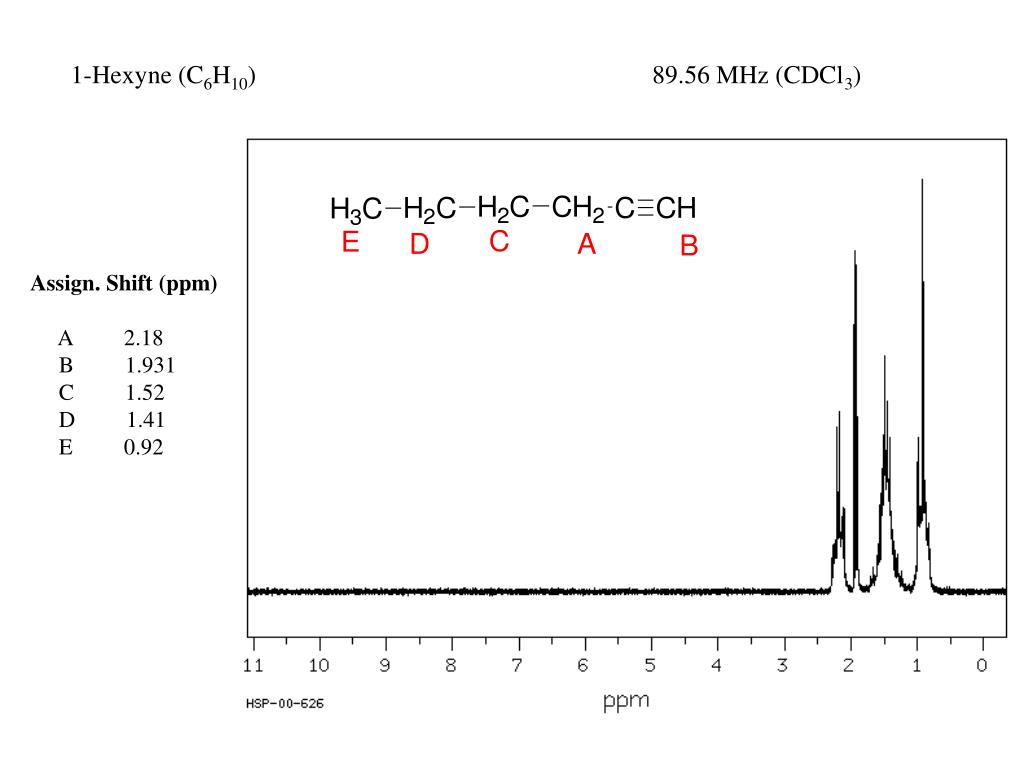

  13. 1-Hexyne (C6H10) 89.56 MHz (CDCl3) Assign. Shift (ppm) A 2.18 B 1.931 C 1.52 D 1.41 E 0.92

  14. Butylamine (C4H11N) 89.56 MHz (CDCl3) Assign. Shift (ppm) A 2.680 B 1.77 C 1.43 D 1.33 E 0.92

  15. Benzoic acid (C7H6O2) 89.56 MHz (CDCl3) Assign. Shift (ppm) A 12.09 B 8.12 C 7.62 D 7.45

  16. 13C NMR

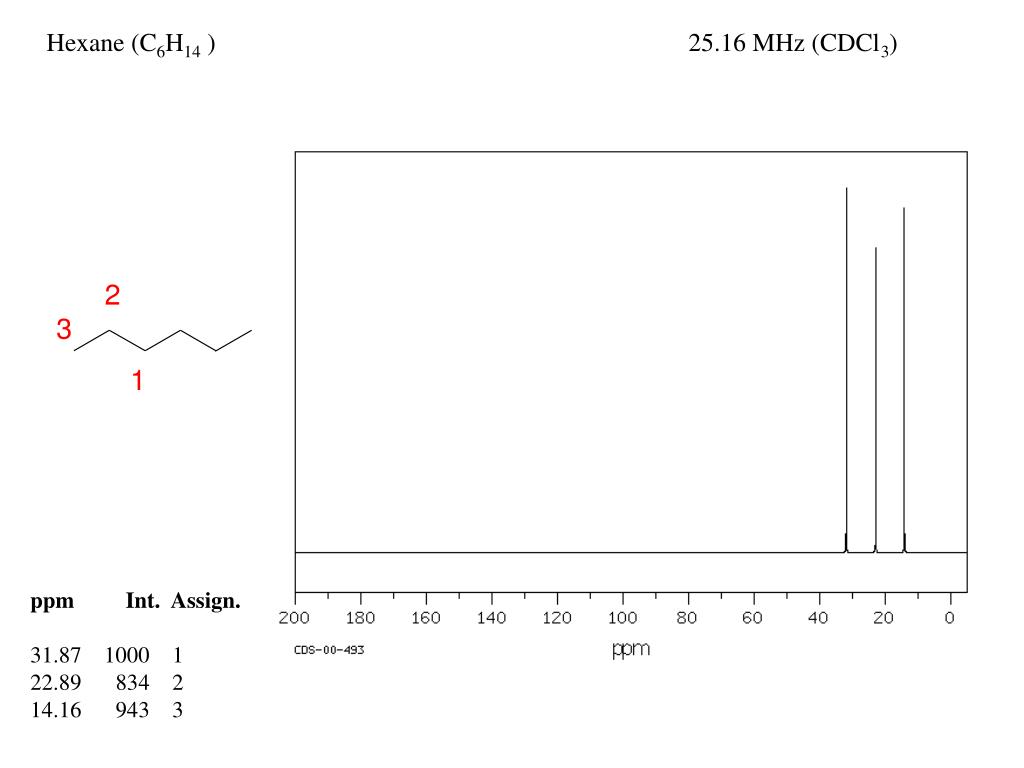

  17. Hexane (C6H14 ) 25.16 MHz (CDCl3) ppm Int. Assign. 31.87 1000 1 22.89 834 2 14.16 943 3

  18. Octane (C8H18 ) 25.16 MHz (CDCl3) ppm Int. Assign. 32.15 1000 1 29.54 960 2 22.88 881 3 14.16 642 4

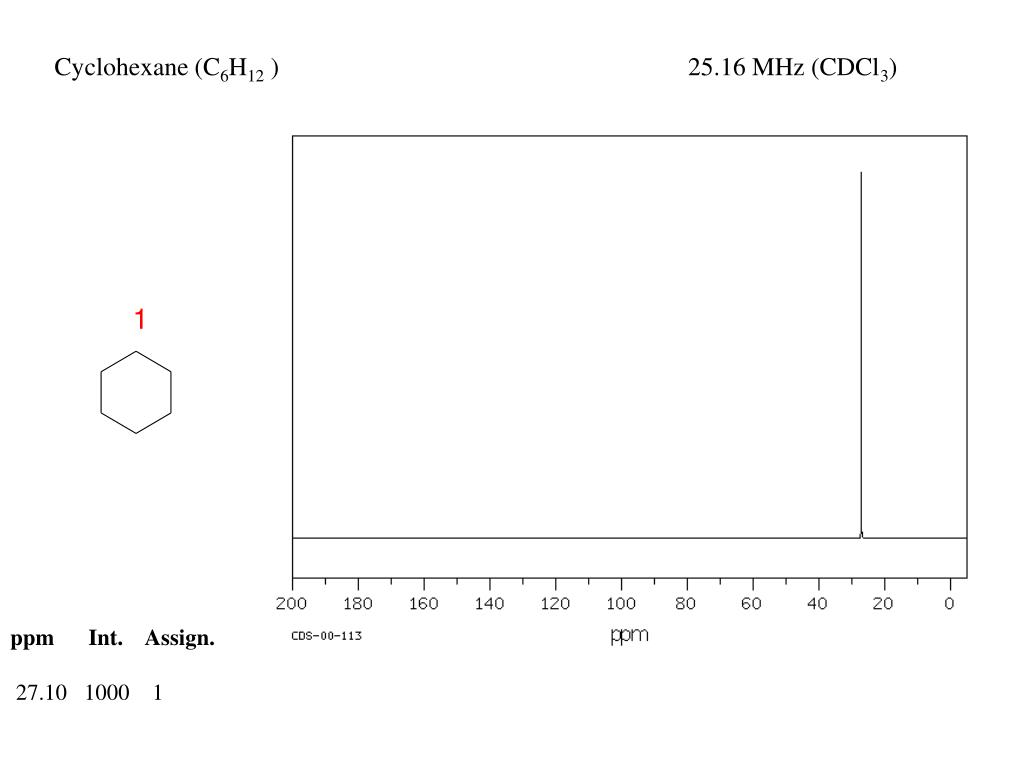

  19. Cyclohexane (C6H12 ) 25.16 MHz (CDCl3) ppm Int. Assign. 27.10 1000 1

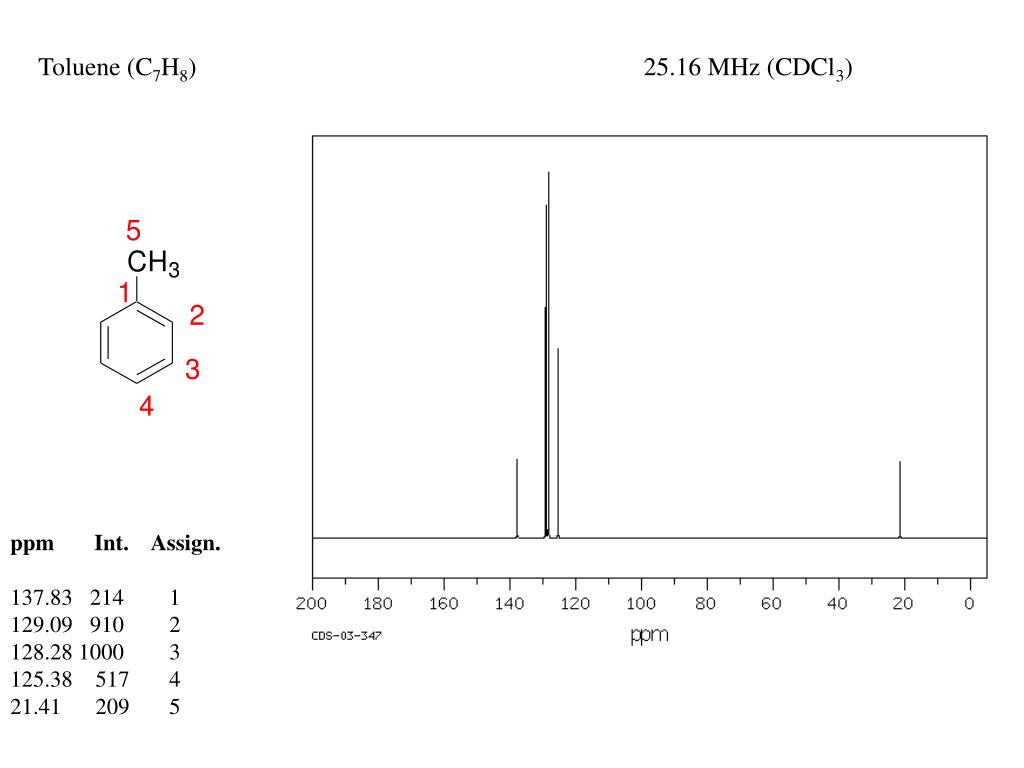

  20. Toluene (C7H8) 25.16 MHz (CDCl3) ppm Int. Assign. 137.83 214 1 129.09 910 2 128.28 1000 3 125.38 517 4 21.41 209 5

  21. p-Xylene (C8H10) 25.16 MHz (CDCl3) ppm Int. Assign. 134.66 239 3 128.97 1000 2 20.90 229 1

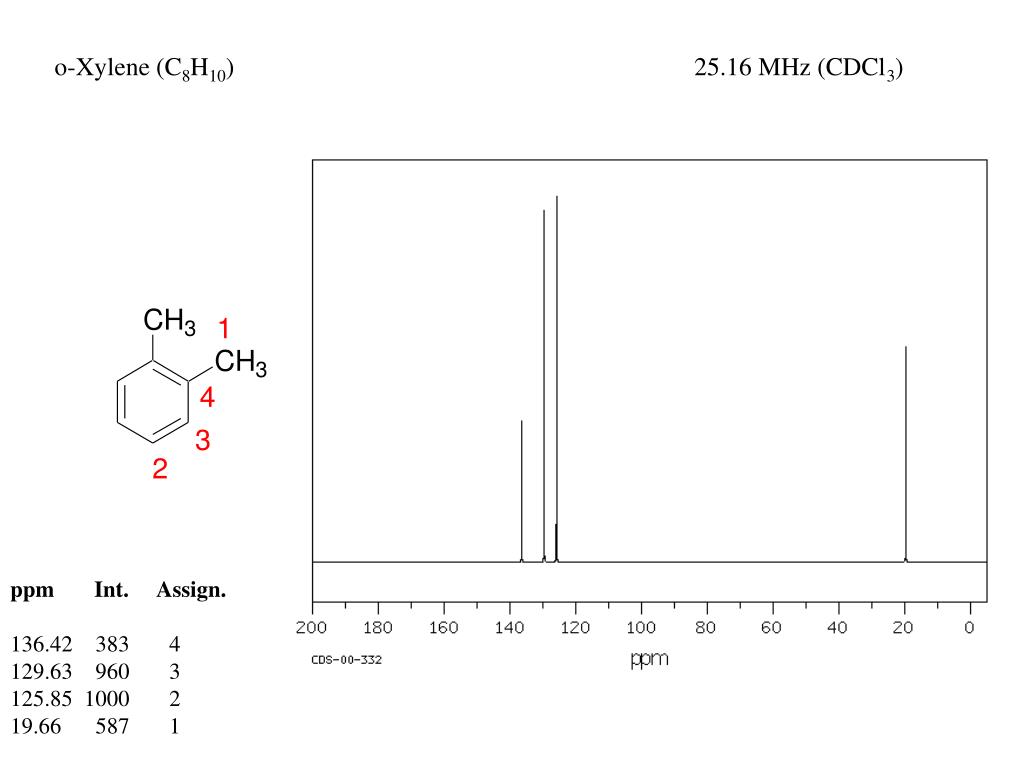

  22. o-Xylene (C8H10) 25.16 MHz (CDCl3) ppm Int. Assign. 136.42 383 4 129.63 960 3 125.85 1000 2 19.66 587 1

  23. m-Xylene (C8H10) 25.16 MHz (CDCl3) ppm Int. Assign. 137.74 547 5 129.96 423 4 128.21 473 3 126.13 1000 2 21.31 403 1

  24. Ethyl acetate (C4H8O2) 15.09 MHz (CDCl3) ppm Int. Assign. 171.08 527 4 60.44 1000 3 21.00 571 2 14.28 857 1

  25. Cyclopentanone (C5H8O) 25.16 MHz (CDCl3) ppm Int. Assign. 220.16 146 1 38.31 888 2 23.31 1000 3

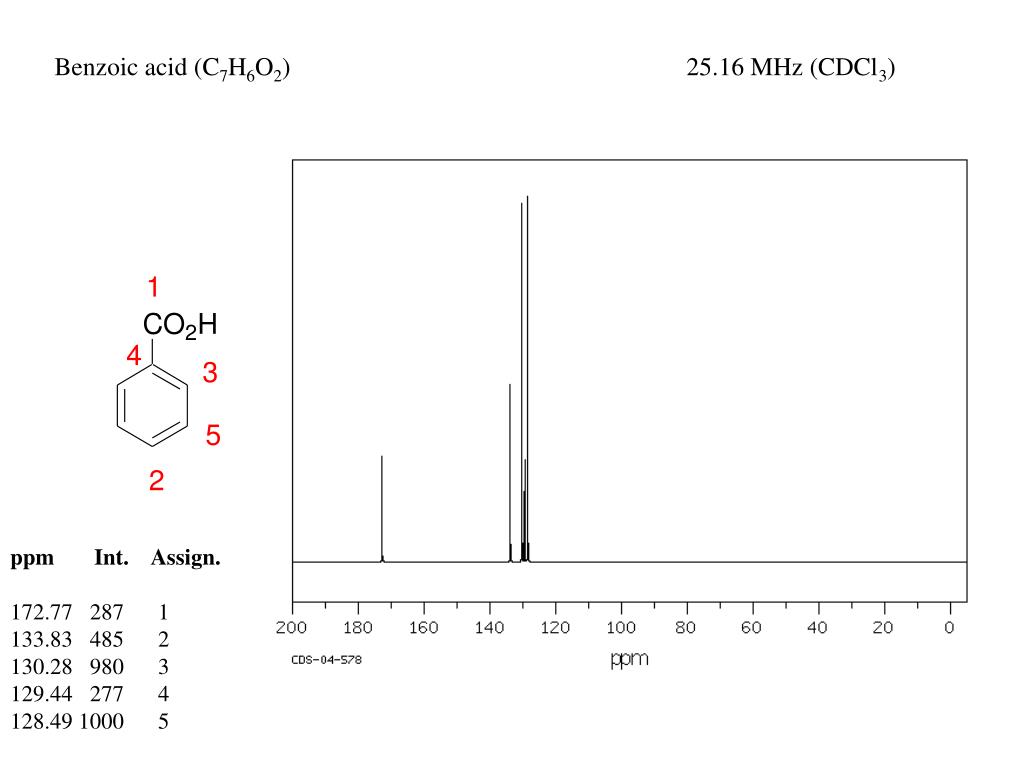

  26. Benzoic acid (C7H6O2) 25.16 MHz (CDCl3) ppm Int. Assign. 172.77 287 1 133.83 485 2 130.28 980 3 129.44 277 4 128.49 1000 5

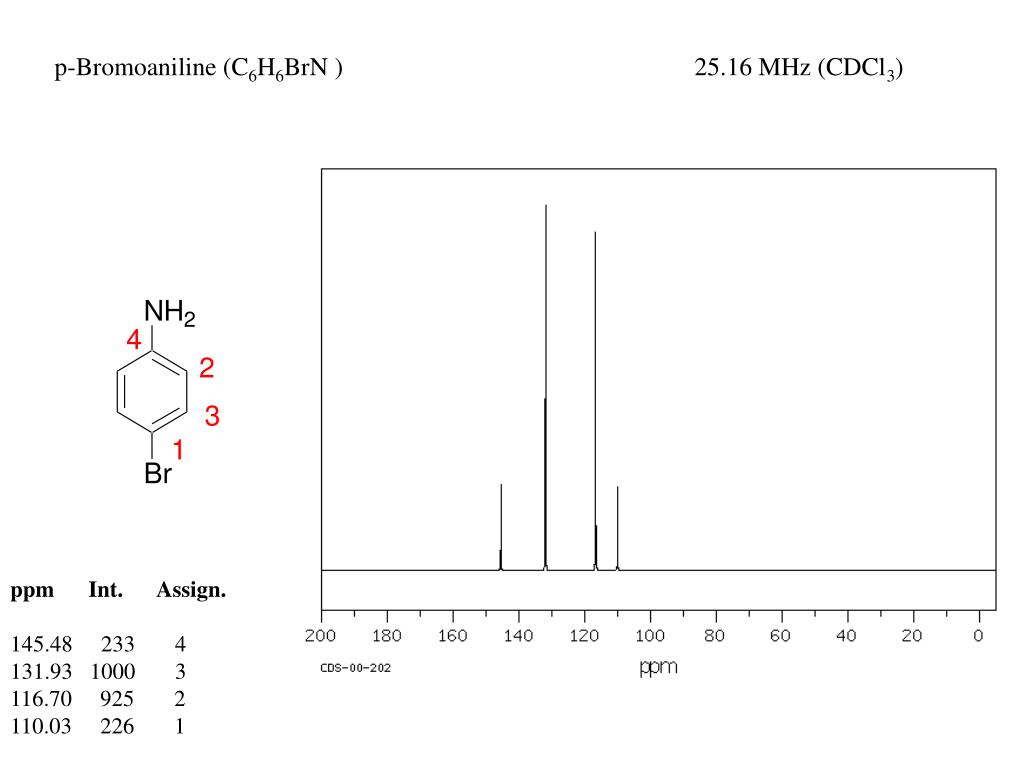

  27. p-Bromoaniline (C6H6BrN ) 25.16 MHz (CDCl3) ppm Int. Assign. 145.48 233 4 131.93 1000 3 116.70 925 2 110.03 226 1

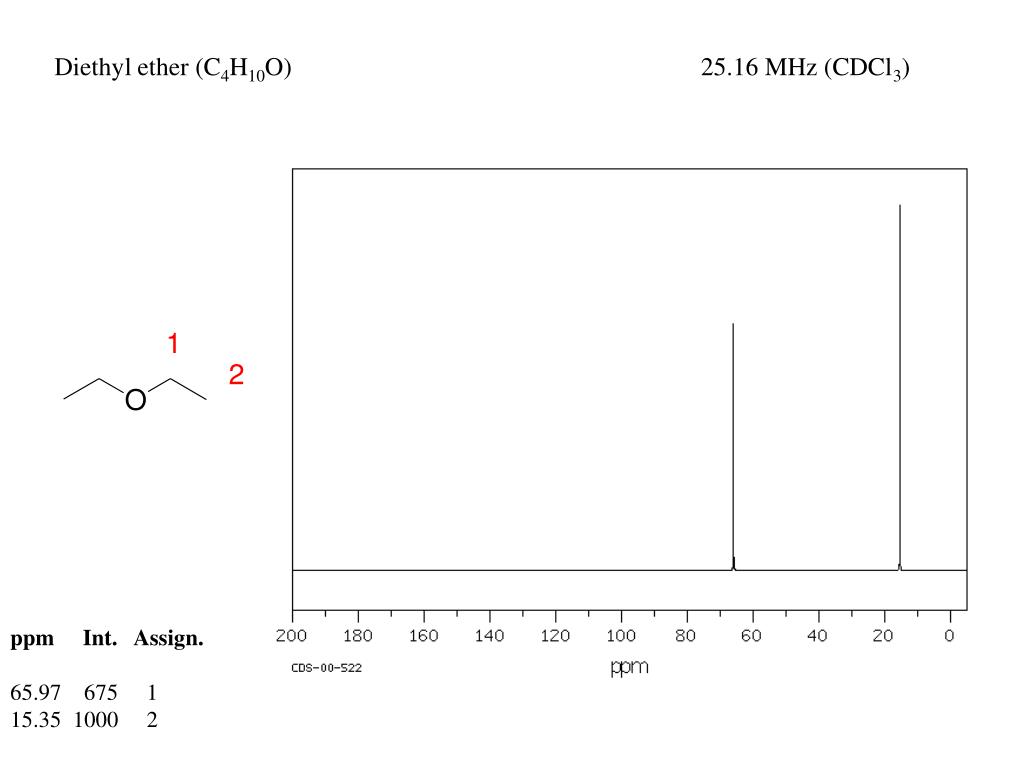

  28. Diethyl ether (C4H10O) 25.16 MHz (CDCl3) ppm Int. Assign. 65.97 675 1 15.35 1000 2
