  1. Introducing ACCC® AZR Conductor Designed to Mitigate Heavy Ice Loadswww.ctcglobal.com Feb 2020

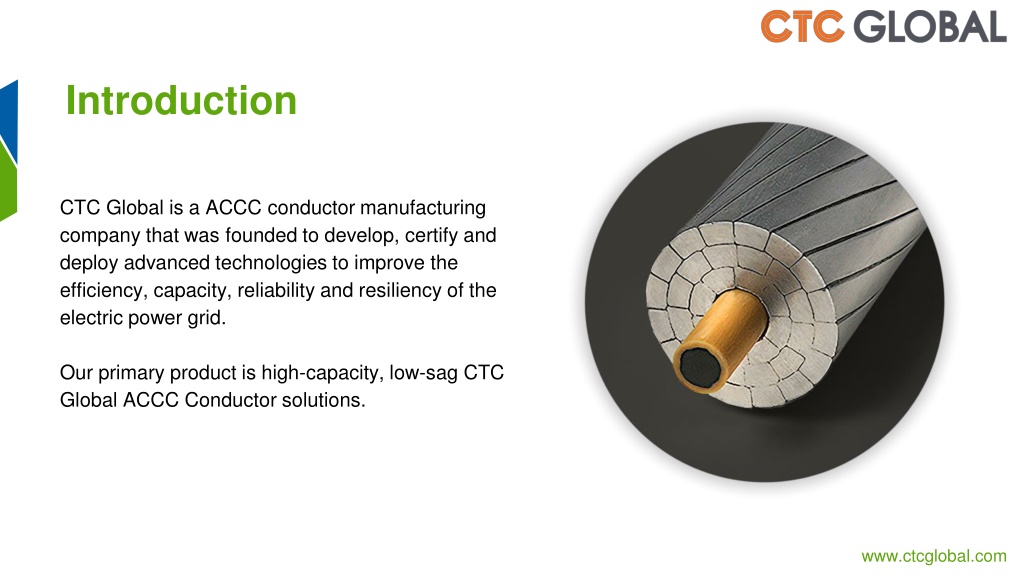

  2. Introduction CTC Global is a ACCC conductor manufacturing company that was founded to develop, certify and deploy advanced technologies to improve the efficiency, capacity, reliability and resiliency of the electric power grid. Our primary product is high-capacity, low-sag CTC Global ACCC Conductor solutions. www.ctcglobal.com

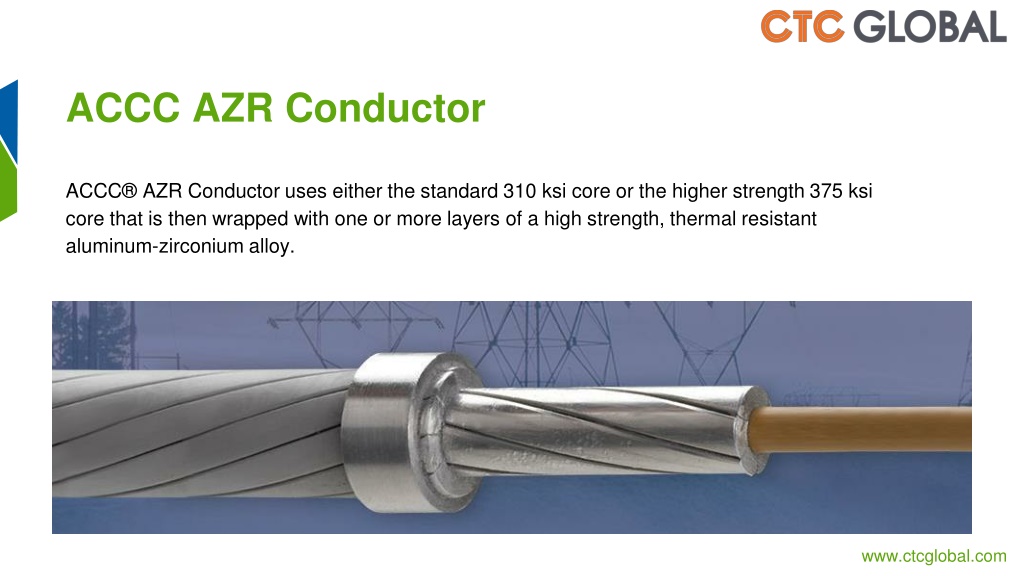

  3. ACCC AZR Conductor ACCC® AZR Conductor uses either the standard 310 ksi core or the higher strength 375 ksi core that is then wrapped with one or more layers of a high strength, thermal resistant aluminum-zirconium alloy.  www.ctcglobal.com

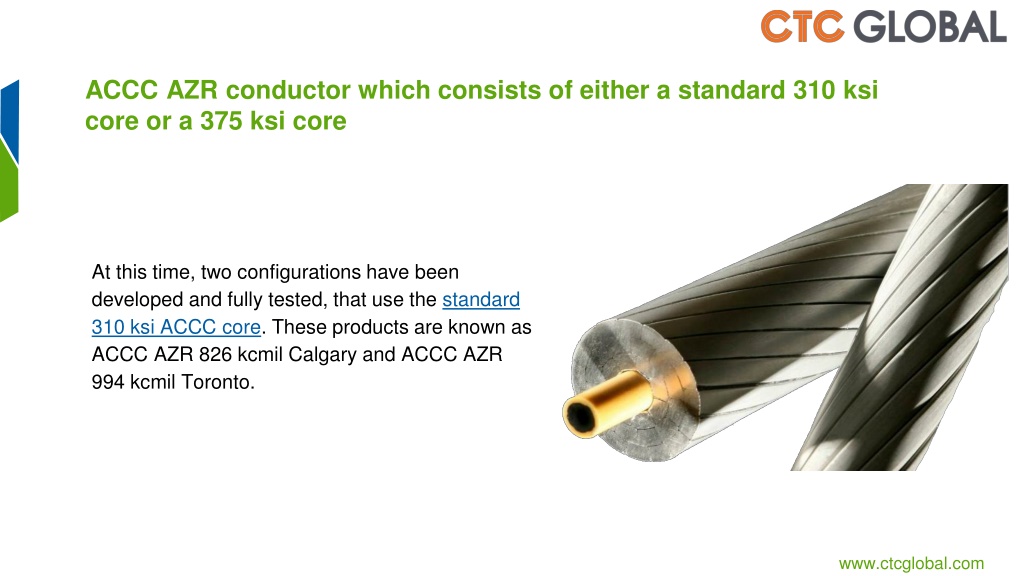

  4. ACCC AZR conductor which consists of either a standard 310 ksi core or a 375 ksi core At this time, two configurations have been developed and fully tested, that use the standard 310 ksi ACCC core. These products are known as ACCC AZR 826 kcmil Calgary and ACCC AZR 994 kcmil Toronto.  www.ctcglobal.com

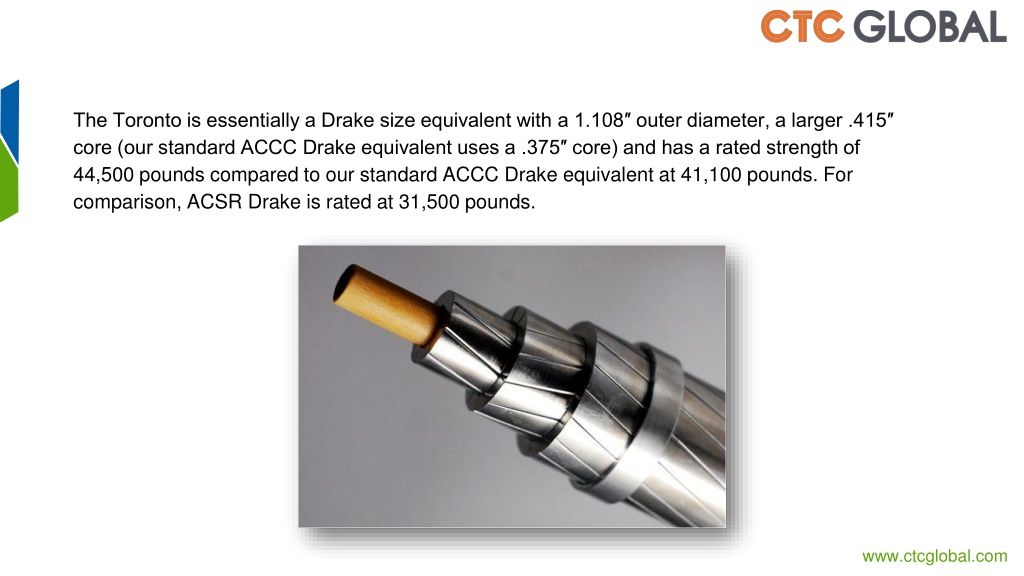

  5. The Toronto is essentially a Drake size equivalent with a 1.108″ outer diameter, a larger .415″ core (our standard ACCC Drake equivalent uses a .375″ core) and has a rated strength of 44,500 pounds compared to our standard ACCC Drake equivalent at 41,100 pounds. For comparison, ACSR Drake is rated at 31,500 pounds. www.ctcglobal.com

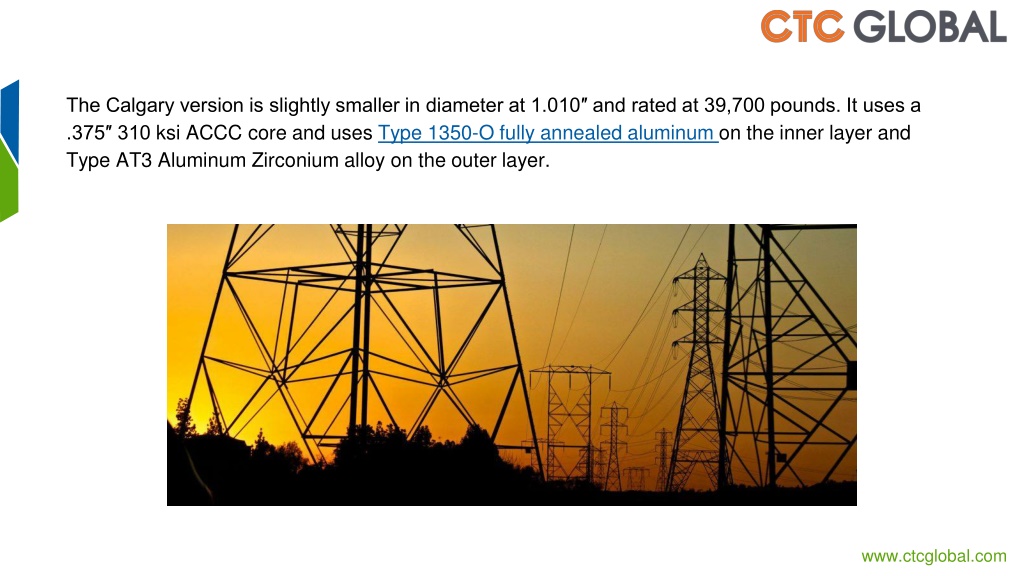

  6. The Calgary version is slightly smaller in diameter at 1.010″ and rated at 39,700 pounds. It uses a .375″ 310 ksi ACCC core and uses Type 1350-O fully annealed aluminumon the inner layer and Type AT3 Aluminum Zirconium alloy on the outer layer.  www.ctcglobal.com

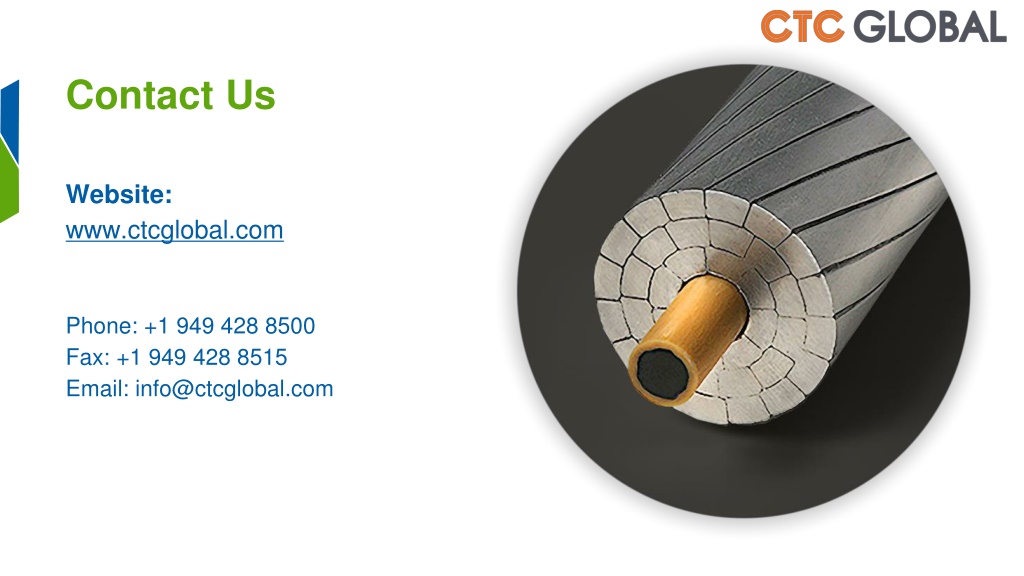

  7. Contact Us Website:www.ctcglobal.com Phone: +1 949 428 8500 Fax: +1 949 428 8515 Email: info@ctcglobal.com

  8. Thank You
