Presentation Transcript
Cleaning decontamination disinfection and sterilization l.jpg

Cleaning/decontamination, disinfection, and sterilization

Kumthorn Malathum, MD

Chair, ICC, Ramathibodi Hospital


Scope l.jpg
Scope

  • Cleaning/decontamination, disinfection, and sterilization of medical devices

  • Environmental cleaning

    • Routine: floor, bed rail, etc.

    • MDR bacteria

    • Respiratory pathogens (virus, mycobacteria)


Slide3 l.jpg

Virulence is not correlated with the ease to be destroyed!

Certain enveloped (lipophilic) viruses (e.g., HSV, HIV, influenza virus, and RSV are susceptible to alcohols. Hepatitis B virus is an enveloped virus that is somewhat less susceptible but is killed by 60%–70% alcohol; hepatitis C virus also is likely killed by this percentage of alcohol.

APIC guidelines Am J Infect Control 1996:24;313-42


Cleaning l.jpg
Cleaning

  • Removing all foreign material from objects by using water and detergents or soaps and washing or scrubbing the object

  • Must be done before any disinfection or sterilization process


Disinfection l.jpg
Disinfection

  • A process that eliminates many or all microorganisms except spores

  • Done with liquid chemicals or by pasteurization

  • Proper contact time and dilution of the disinfectant must be followed


Definitions l.jpg
Definitions

  • High-level disinfection

    • All microorganisms except high numbers of bacterial spores

  • Intermediate disinfection

    • M. tuberculosis, vegetative bacteria, most viruses, and most fungi

    • Not necessarily kill bacterial spores


Sterilization l.jpg
Sterilization

  • A process that completely eliminates or kills all microorganisms



Chemical disinfection l.jpg
Chemical disinfection

  • Aldehydes: glutaraldehyde & ortho-phthaldehyde (OPA)

  • Alcohol

  • Biguanides: chlorhexidine

  • Halogen and halogen releasing agents: chlorine, iodine

  • Quaternary ammonium compound


Glutaraldehyde l.jpg

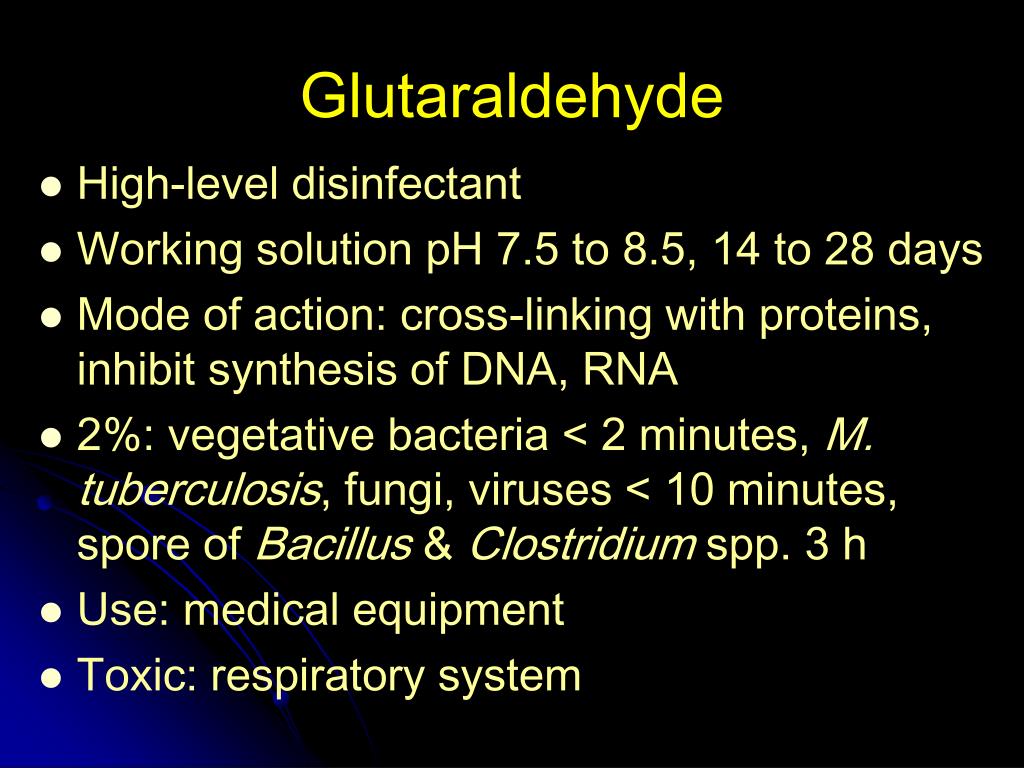

Glutaraldehyde

  • High-level disinfectant

  • Working solution pH 7.5 to 8.5, 14 to 28 days

  • Mode of action: cross-linking with proteins, inhibit synthesis of DNA, RNA

  • 2%: vegetative bacteria < 2 minutes, M. tuberculosis, fungi, viruses < 10 minutes, spore of Bacillus & Clostridium spp. 3 h

  • Use: medical equipment

  • Toxic: respiratory system


Glutaraldehyde11 l.jpg
Glutaraldehyde

  • Advantages

    • Rapid low-temperature disinfection

    • OPA has greater anti-mycobacterial activity, no activation required, less noxious, more stable

  • Disadvantages

    • Irritating

    • Absorbed into plastics leads to toxicity (e.g., colitis)


Alcohol l.jpg
Alcohol

  • Optimal conc. 60% to 80%

  • Not HIGH level (spores and hydrophilic virus are not destroyed)

  • Use: oral and rectal thermometers, small surfaces (multiple dose medication vials), external surface of equipment (stethoscope, ventilators, manual ventilation bags)


Biguanides l.jpg

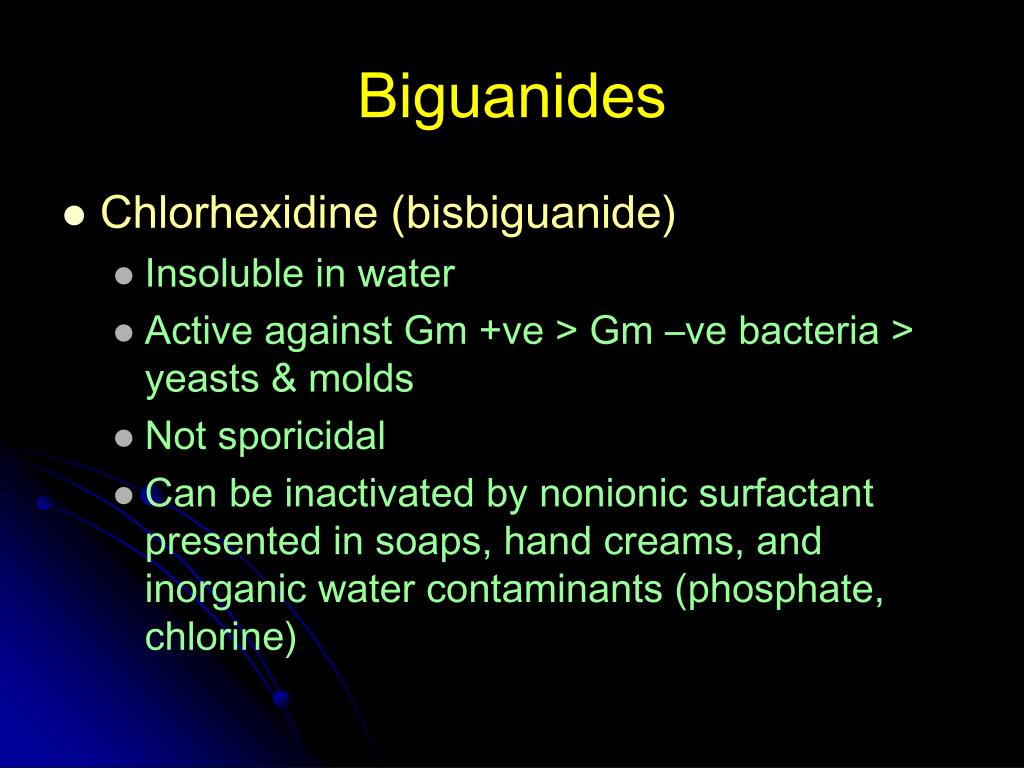

Biguanides

  • Chlorhexidine (bisbiguanide)

    • Insoluble in water

    • Active against Gm +ve > Gm –ve bacteria > yeasts & molds

    • Not sporicidal

    • Can be inactivated by nonionic surfactant presented in soaps, hand creams, and inorganic water contaminants (phosphate, chlorine)


Chlorine compound l.jpg
Chlorine compound

  • Concentration dependent:

    • 25 ppm: mycoplasma and vegetative bacteria (<1 ppm) within seconds

    • 100 ppm: Bacillus subtilis spores within 5 minutes, fungus < 1 h

    • 1000 ppm: M. tuberculosis

  • Household bleach 5.25% = 52,500 ppm


Iodophors l.jpg
Iodophors

  • Tincture of iodine

  • 7.5% Povidone-iodine (PVP-I), 0.7% available iodine

    • Bactericidal, fungicidal, tuberculocidal, and virucidal

    • Short time residual effect


Quaternary ammonium compound benzalkonium chloride l.jpg
Quaternary ammonium compound: benzalkonium chloride

  • Associated with many outbreaks including non-tuberculous Mycobacterium & GNR

  • Not recommended for use as skin and tissue disinfectant

  • Use: environmental sanitation of noncritical surfaces (floors, furniture, walls)


Problems associated with the use of disinfectants l.jpg
Problems associated with the use of disinfectants

  • Ineffective cleaning

  • Too low concentration

    • Contaminants unlikely to survive in recommended use-dilution


The amount of use and costs of antiseptics disinfectants per bed per year l.jpg
The amount of use and costs of antiseptics/disinfectants per bed per year

Danchaivijitr S et al. J Med Assoc Thai 2005; 88 (Suppl 10): S133-9


Places where antiseptics disinfectants were prepared l.jpg
Places where antiseptics/disinfectants were prepared bed per year

Danchaivijitr S et al. J Med Assoc Thai 2005; 88 (Suppl 10): S133-9


Persons who prepared antiseptics disinfectants used in wards l.jpg
Persons who prepared antiseptics/disinfectants used in wards bed per year

Danchaivijitr S et al. J Med Assoc Thai 2005; 88 (Suppl 10): S133-9


Microbial contamination l.jpg
Microbial contamination (%) bed per year

Danchaivijitr S et al. J Med Assoc Thai 2005; 88 (Suppl 10): S133-9



Infection control in flexible endoscopy l.jpg
Infection control in flexible endoscopy S133-9

Alvarado C et al. Am J Infect Control 2000;28:138-55.


Agents recommended for high level disinfection of flexible endoscopes l.jpg
Agents recommended for high-level disinfection of flexible endoscopes

  • Glutaraldehyde preparations

  • Peracetic acid

  • Orthophalaldehyde

Alvarado C et al. Am J Infect Control 2000;28:138-55.


Agents not recommended for disinfection of flexible endoscopes l.jpg
Agents not recommended for disinfection of flexible endoscopes

  • Hypochlorites

  • Quaternary ammonium compounds

    • Not sporicidal, tuberculocidal, or viricidal against hydrophilic viruses

  • Phenolics

    • Intermediate-level disinfectants

Alvarado C et al. Am J Infect Control 2000;28:138-55.


Disinfection of a probe used in ultrasound guided prostate biopsy l.jpg
Disinfection of a Probe Used in Ultrasound-Guided Prostate Biopsy

Rutala WA., et al. Infect Control Hosp Epidemiol 2007; 28:916-919


Main findings l.jpg
Main findings Biopsy

  • Disinfection (i.e., a reduction in bacterial load of greater than 7 log10 CFU) could be achieved if the needle guide was removed from the probe

Rutala WA., et al. Infect Control Hosp Epidemiol 2007; 28:916-919


Main findings30 l.jpg
Main findings Biopsy

  • If the needle guide was left in the probe channel during immersion in 2% glutaraldehyde, disinfection was not achieved (i.e., the reduction was approximately 1 log10 CFU)

Rutala WA., et al. Infect Control Hosp Epidemiol 2007; 28:916-919


Treatment of endoscope after disinfection or sterilization l.jpg
Treatment of endoscope after disinfection or sterilization Biopsy

  • Rinsing

    • Sterile water

    • Alcohol rinse followed by complete drying

    • Only sterile water should be used for endoscopes that pass through sterile tissues.

Alvarado C et al. Am J Infect Control 2000;28:138-55.


Treatment of endoscope after disinfection or sterilization32 l.jpg
Treatment of endoscope after disinfection or sterilization Biopsy

  • Drying

    • Drying with alcohol and compressed air should be done between each patient use when tap water is used to rinse the endoscope channels and before storage whether tap water or sterile water is used.

  • Storage

Alvarado C et al. Am J Infect Control 2000;28:138-55.


Sterilization33 l.jpg
Sterilization Biopsy

  • Heat sterilization

    • Dry heat

    • Moist heat: pressure steam sterilizer (autoclave)

  • Chemical

    • Ethylene oxide

    • Glutaraldehyde


Autoclave l.jpg
Autoclave Biopsy

  • Steam must come into direct contact with the surface

  • Air must be completely removed

    • Downward displacement

    • Pre-vaccuum


Flash sterilization l.jpg

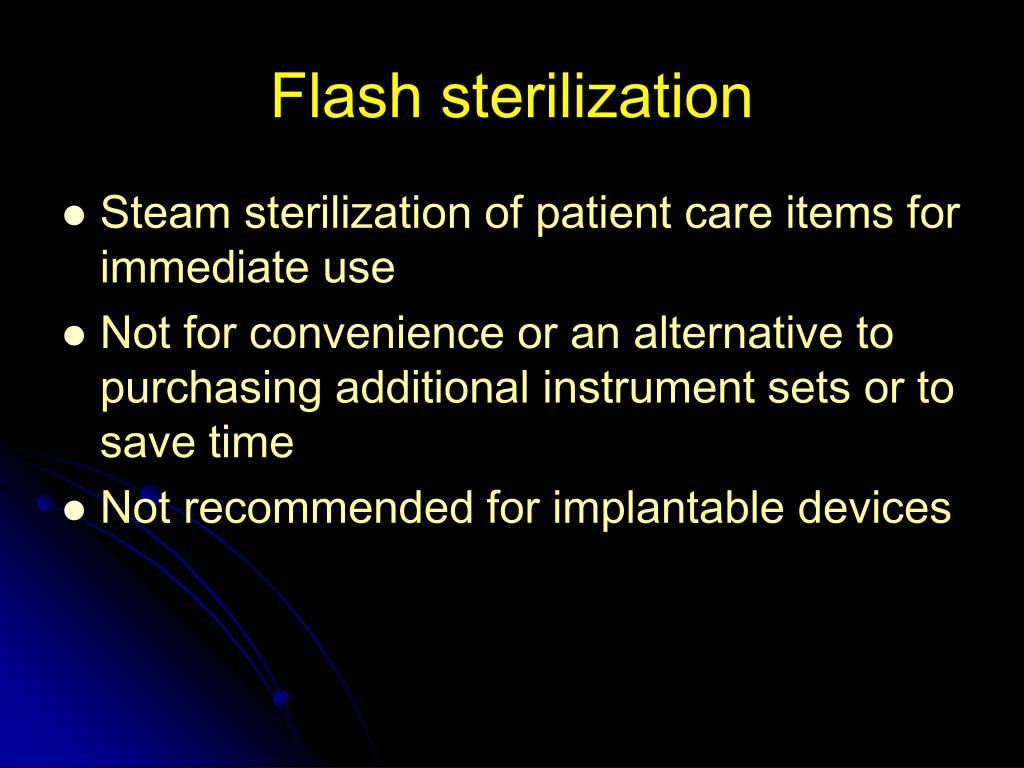

Flash sterilization Biopsy

  • Steam sterilization of patient care items for immediate use

  • Not for convenience or an alternative to purchasing additional instrument sets or to save time

  • Not recommended for implantable devices


Flash sterilization36 l.jpg
Flash sterilization Biopsy

  • Lack of timely biologic indicators to monitor performance, absence of protective packaging following sterilization, possibility for contamination of processed items during transportation to operating rooms, and use of minimal sterilization cycle parameters (i.e., time, temperature, pressure)



Ethylene oxide l.jpg
Ethylene oxide Biopsy

  • Extremely penetrative

  • Non-corrosive

  • Toxic, irritant, and explosive when mixed with air at conc. >3%

  • Odorless


Quality assurance for sterilization l.jpg

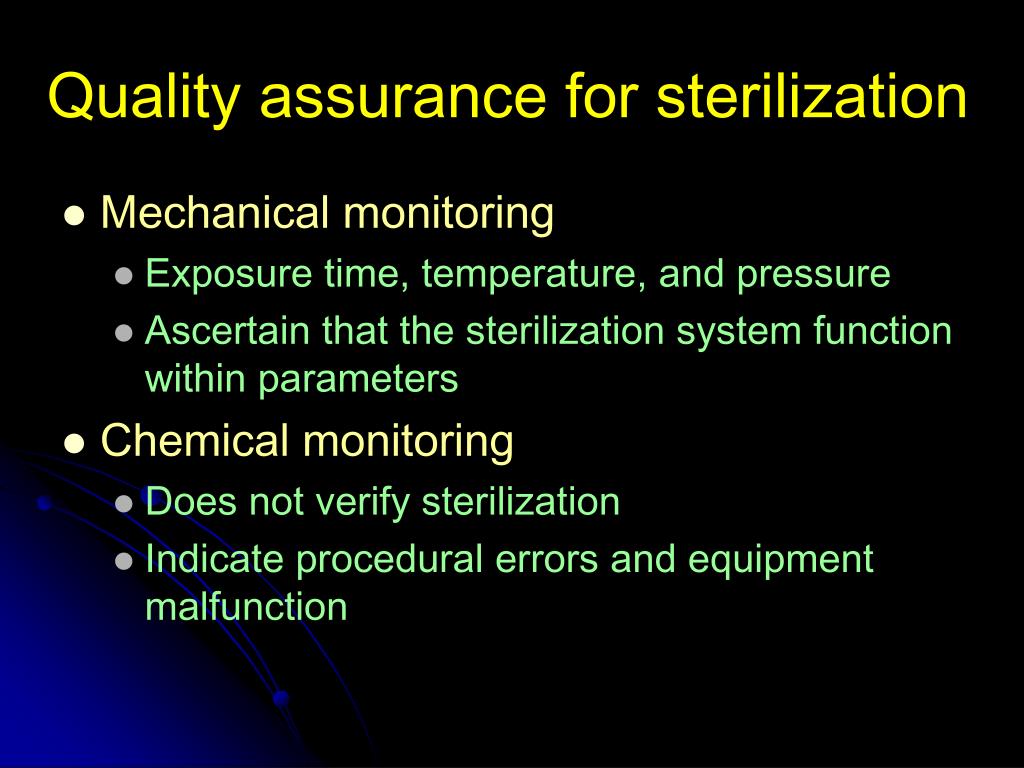

Quality assurance for sterilization Biopsy

  • Mechanical monitoring

    • Exposure time, temperature, and pressure

    • Ascertain that the sterilization system function within parameters

  • Chemical monitoring

    • Does not verify sterilization

    • Indicate procedural errors and equipment malfunction



Definition of a chemical indicators l.jpg
Definition of a chemical indicators Biopsy

  • CI – System that reveals a change in one or more predefined process variables based on a chemical or physical change resulting from exposure to a process.


Ci classes l.jpg
CI classes Biopsy

  • Class 1 – Process Indicators

    • Used to show exposure to a process. No information about the success or failure of the process

  • Class 2 – Specific Test Indicators (e.g. BDT)

  • Class 3 – Single variable indicators

    • Respond to a single variable in the process e.g. temperature


Ci classes43 l.jpg
CI classes Biopsy

  • Class 4 – Multivariable Indicators

    • Respond to two or more variables in the process

  • Class 5 – Integrating Indicators (Chemical Biological Indicators)

    • Respond in a way which mimics the response of a BI if used in the same process


Ci classes44 l.jpg
CI classes Biopsy

  • Class 6 – Emulating Indicators (Cycle Verification Indicators -Chemical Chart Recorders)

    • Respond to all critical variables of the process at levels associated with acceptable sterilizing conditions e.g. 134 for 5 mins.


Quality assurance for sterilization45 l.jpg
Quality assurance for sterilization Biopsy

  • Bowie-Dick test

    • Performed daily, with pre-vacuum system, in an empty chamber

    • Detect residual air in the sterilizer chamber


Biologic monitoring of steam sterilization l.jpg
Biologic monitoring of steam sterilization Biopsy

  • Biologic indicators demonstrated bacterial growth from spore strips on 15 (12%) out of 125 cycles

  • Chemical indicators revealed a change of color to black after all 125 cycles

Kelkar U et al AJIC 2004, 512-513


Bi changes l.jpg
BI – changes Biopsy

  • Bacillus subtilis renamed to B. atrophaeus

  • Bacillus stearothermophilus renamed to Geobacillus stearothermophilus


Qa for sterilization l.jpg
QA for sterilization Biopsy

  • Whenever sterilizers are used, they should be routinely tested with biological indicators to ensure they are working correctly

  • Items that are sterilized should remain sterile until the package is torn, wet, or damaged. Sterility is a function of intact packaging, not time.


Slide49 l.jpg

ขั้นตอนการตรวจสอบด้วยสปอร์เทสต์ขั้นตอนการตรวจสอบด้วยสปอร์เทสต์

นำสปอร์เทสต์มาทำการอุ่นเชื้อในเครื่องอุ่นเชื้อที่สามารถควบคุมอุณหภูมิให้มีความเหมาะสมในการเจริญเติบโตได้ดี

Steam 56  1oC

EtO 37  1 oC


Slide50 l.jpg
การอ่านผลการตรวจสอบขั้นตอนการตรวจสอบด้วยสปอร์เทสต์

  • ตรวจดูการเปลี่ยนแปลงสีของน้ำเลี้ยงเชื้อทุก 8, 12, 24 และ 48ชม

  • การเปลี่ยนแปลงสีเป็นสีเหลืองแสดงว่าการทำให้ปราศจากเชื้อไม่สมบูรณ์เชื้อโรคถูกฆ่าตายไม่หมด

  • ไม่มีการเปลี่ยนแปลงสีแสดงว่าการทำให้ปราศจากเชื้อสมบูรณ์เชื้อโรคถูกฆ่าตายหมด


Slide51 l.jpg

Successful Sterilization Processขั้นตอนการตรวจสอบด้วยสปอร์เทสต์

Failed Sterilization Process

การอ่านผล

อ่านผล จากการเปลี่ยนแปลงสีของน้ำเลี้ยงเชื้อภายหลังการอุ่นเชื้อที่ 8, 12, 24, 48 ชั่วโมง ถ้ามีการเปลี่ยนแปลงสีเป็นเหลืองให้ทำการอ่านผลได้เลย


Slide52 l.jpg
ปัญหาที่พบบ่อยขั้นตอนการตรวจสอบด้วยสปอร์เทสต์

  • แช่ก่อนล้าง

  • แช่ของที่ควรนึ่ง หรืออบแก๊ส

  • การระบายอากาศในห้องที่ใช้ Glutaraldehyde ระบบการตรวจสอบการทำงานของเครื่องนึ่ง/เครื่องอบแก๊ส

  • โครงสร้าง

    • บุคคล

    • สถานที่
