  1. Overview of Earth System Modeling and Fluid Dynamical Issue Model and Data Hierarchies for Simulating and Understanding Climate Marco A. Giorgetta

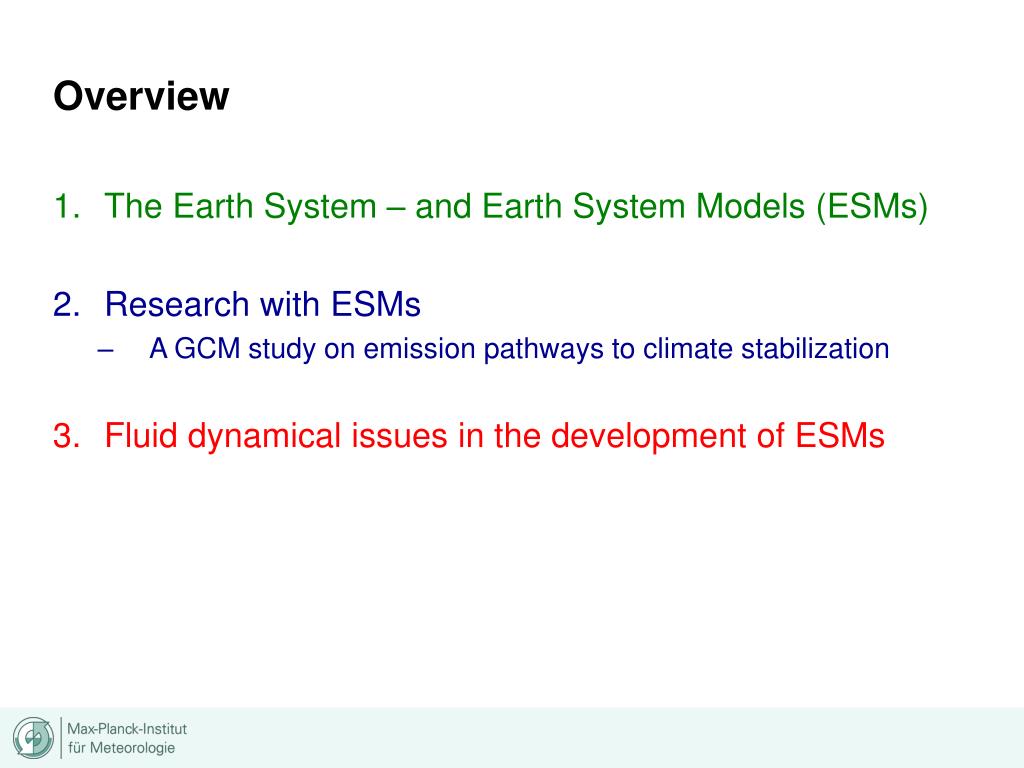

  2. Overview • The Earth System – and Earth System Models (ESMs) • Research with ESMs • A GCM study on emission pathways to climate stabilization • Fluid dynamical issues in the development of ESMs

  3. 1. The Earth System – and Earth System Models (ESMs)

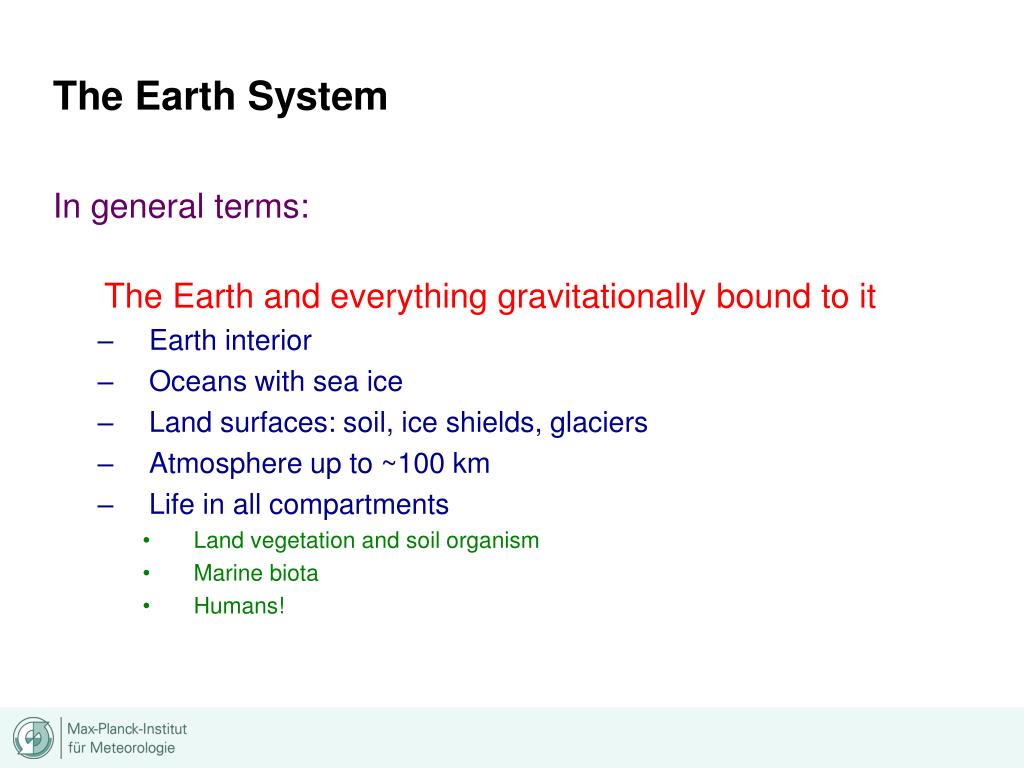

  4. The Earth System In general terms: The Earth and everything gravitationally bound to it • Earth interior • Oceans with sea ice • Land surfaces: soil, ice shields, glaciers • Atmosphere up to ~100 km • Life in all compartments • Land vegetation and soil organism • Marine biota • Humans!

  5. The Earth System In climate science: A relatively new term, chosen to describe: • The physical climate system … • … and geo-bio-chemical processes … • … as necessary to understand the climate of the past … • … and to “predict” the future climate of the next ~100 years … • … where climate = [T, wind, q, precipitation] Explicitly account for the interaction of bio-geo-chemical processes with climate, and anthropogenic influences.

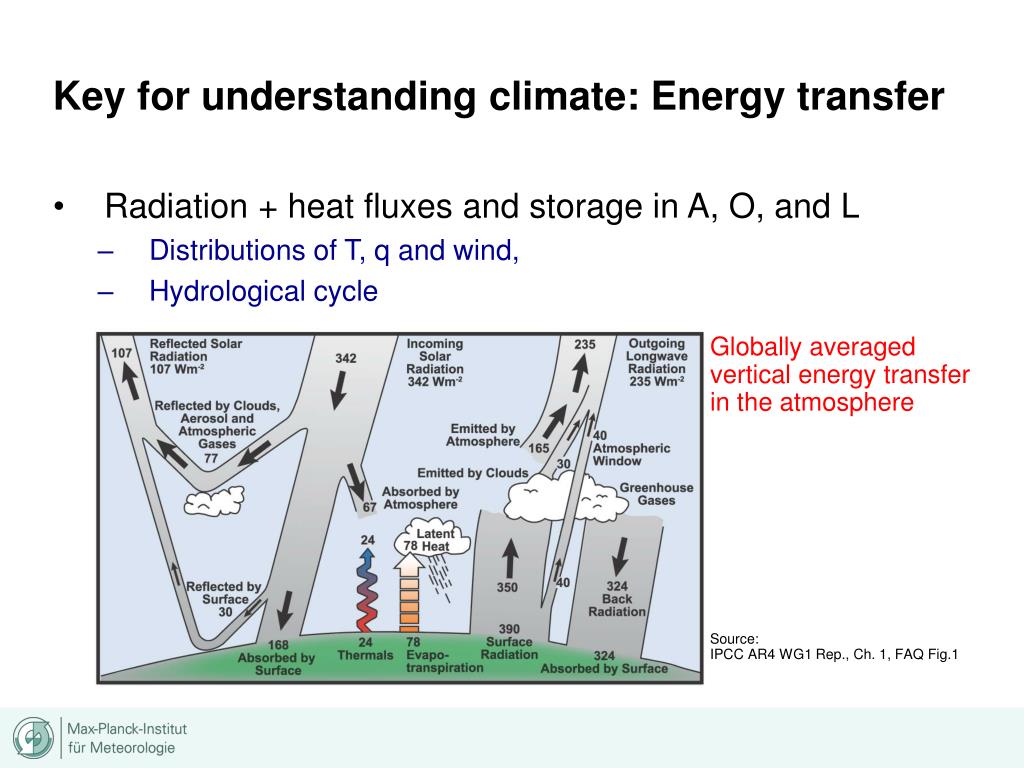

  6. Key for understanding climate: Energy transfer • Radiation + heat fluxes and storage in A, O, and L • Distributions of T, q and wind, • Hydrological cycle Globally averaged vertical energy transfer in the atmosphere Source:IPCC AR4 WG1 Rep., Ch. 1, FAQ Fig.1

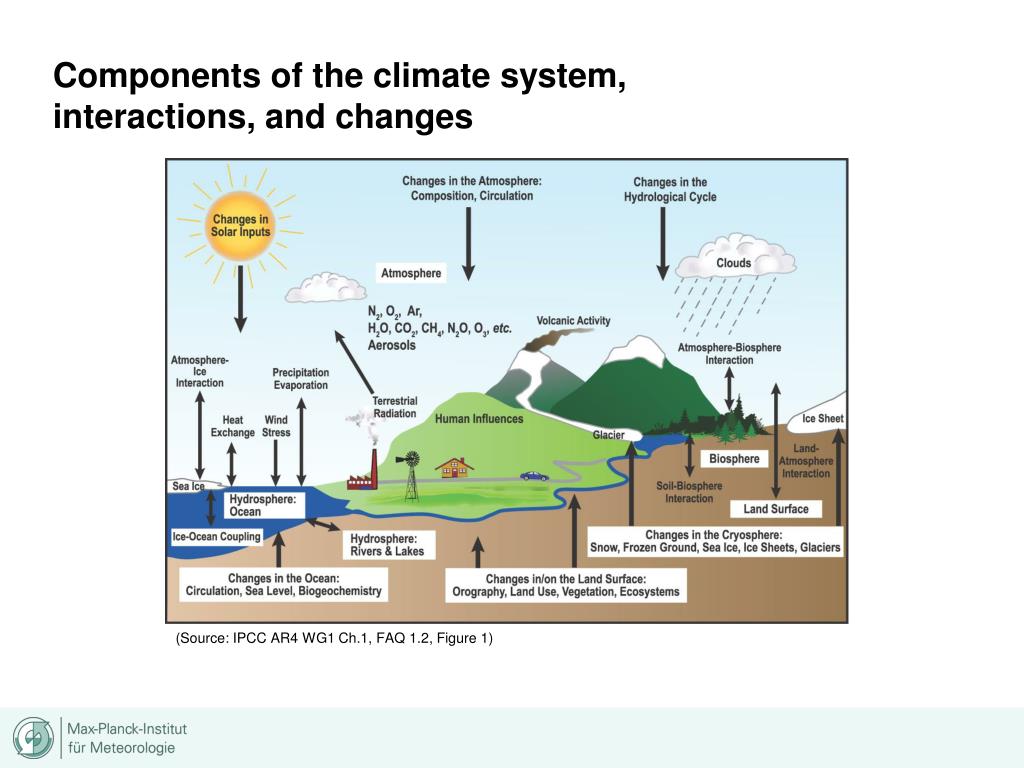

  7. Components of the climate system, interactions, and changes (Source: IPCC AR4 WG1 Ch.1, FAQ 1.2, Figure 1)

  8. Earth System Models (ESMs) • Simplified/idealized descriptions of the ES[Cf. “Model” in architecture, fashion, engineering, …] • Test understanding of the functioning of the ES • Explain observed features • Formal description, allowing for computational experiments  What if … • Turbulent mixing in oceans was stronger • “Major” volcanic eruptions happened? • … • Highly complex models within the model hierarchy • Fortran code of ~105 lines

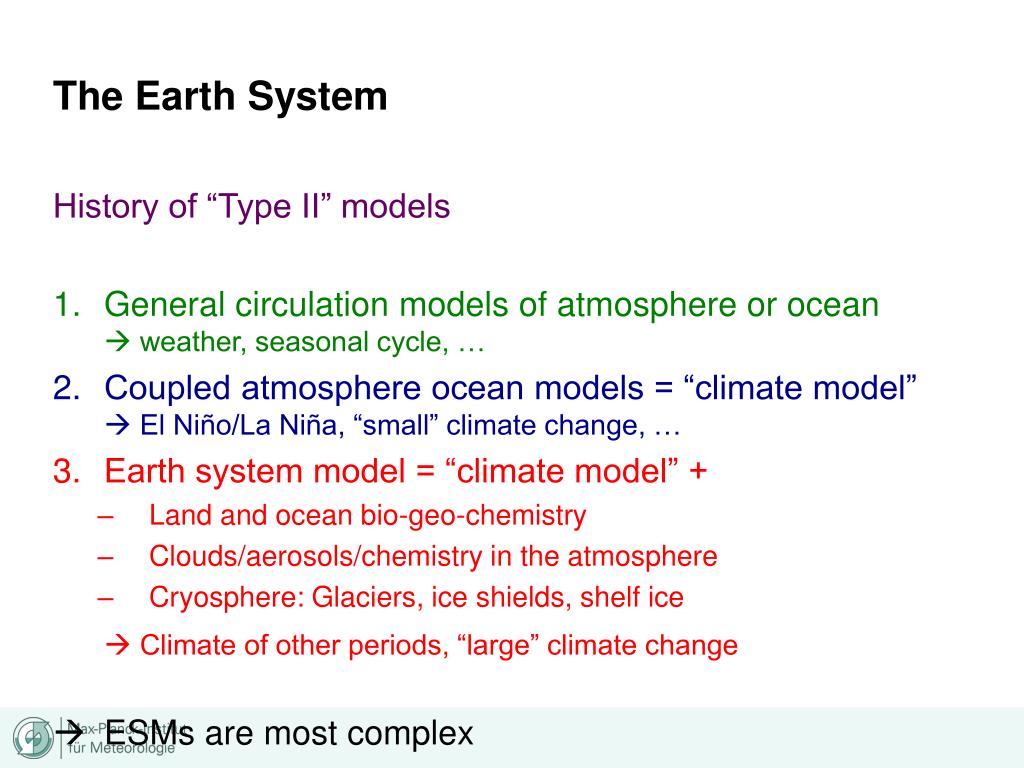

  9. The Earth System History of “Type II” models • General circulation models of atmosphere or ocean weather, seasonal cycle, … • Coupled atmosphere ocean models = “climate model” El Niño/La Niña, “small” climate change, … • Earth system model = “climate model” + • Land and ocean bio-geo-chemistry • Clouds/aerosols/chemistry in the atmosphere • Cryosphere: Glaciers, ice shields, shelf ice  Climate of other periods, “large” climate change  ESMs are most complex

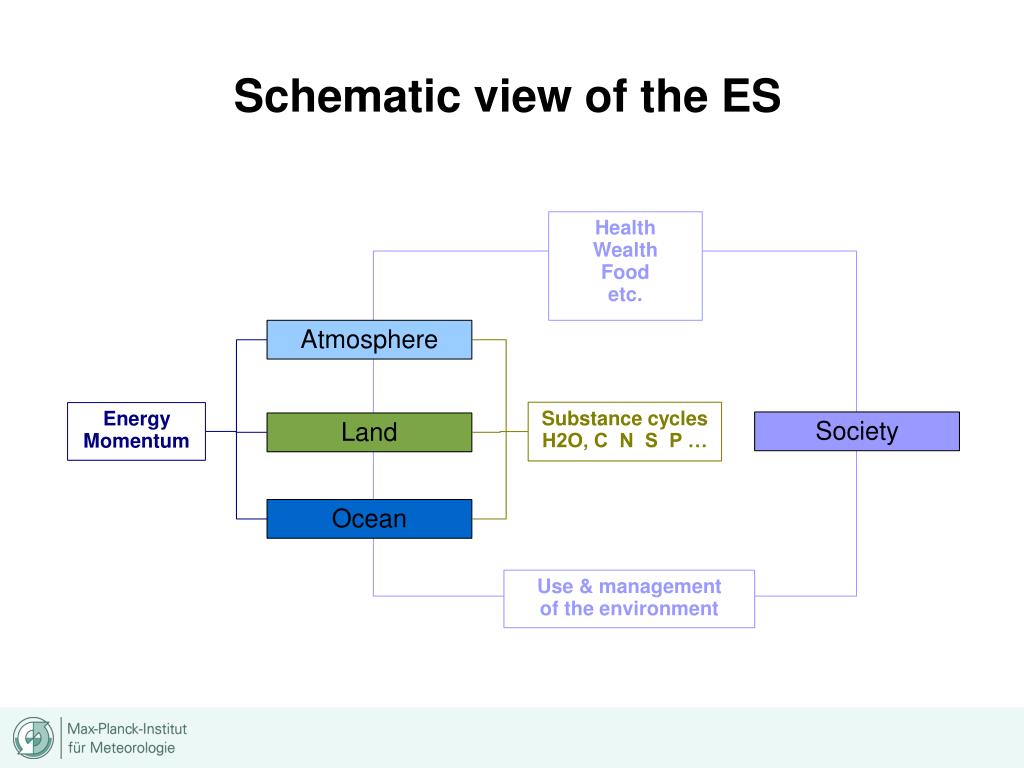

  10. Schematic view of the ES HealthWealthFood etc. Atmosphere Substance cyclesH2O, C N S P … EnergyMomentum Society Land Ocean Use & management of the environment

  11. Construction of ESMs 1. Decide on spatial and temporal scales, and on processes, which are scientifically relevant and practically feasible ( model hierarchies) • Length of simulations ~102 years • Required turnover rate ~102 years/week • ~200 km horizontal resolution 2. Equations for the dynamics of atmosph., ocean, and ice • 200 km  Primitive equations • Numerical methods  discretized, i.e. computable, equations • “Dynamical core”  Christiane’s talk

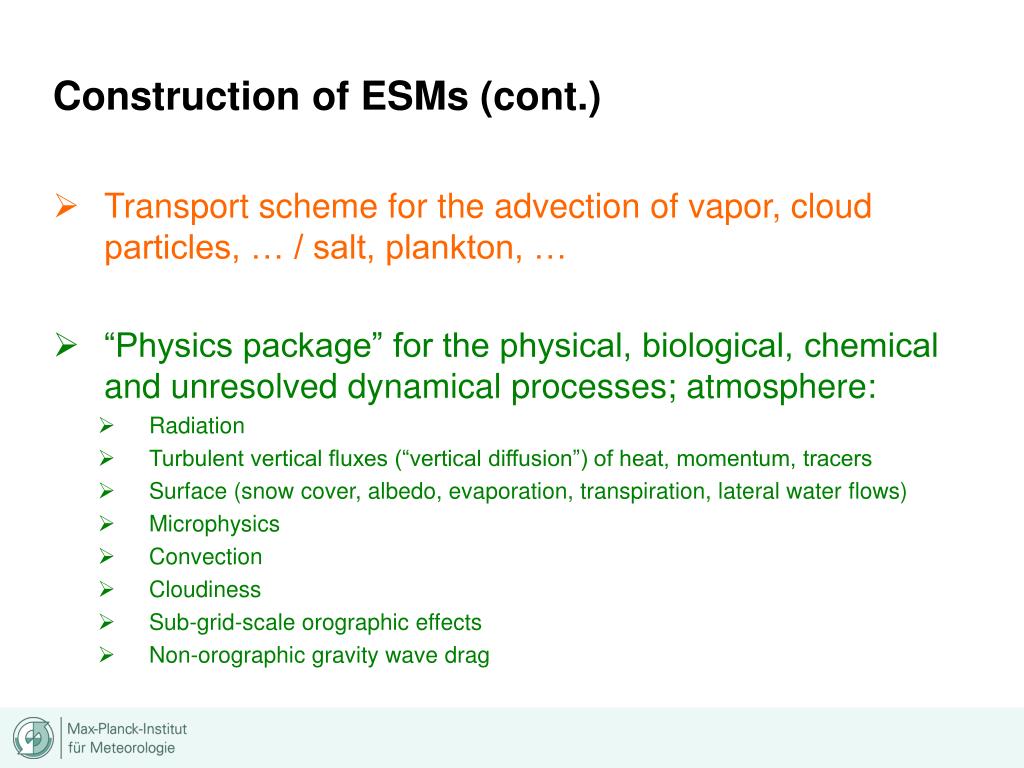

  12. Construction of ESMs (cont.) • Transport scheme for the advection of vapor, cloud particles, … / salt, plankton, … • “Physics package” for the physical, biological, chemical and unresolved dynamical processes; atmosphere: • Radiation • Turbulent vertical fluxes (“vertical diffusion”) of heat, momentum, tracers • Surface (snow cover, albedo, evaporation, transpiration, lateral water flows) • Microphysics • Convection • Cloudiness • Sub-grid-scale orographic effects • Non-orographic gravity wave drag

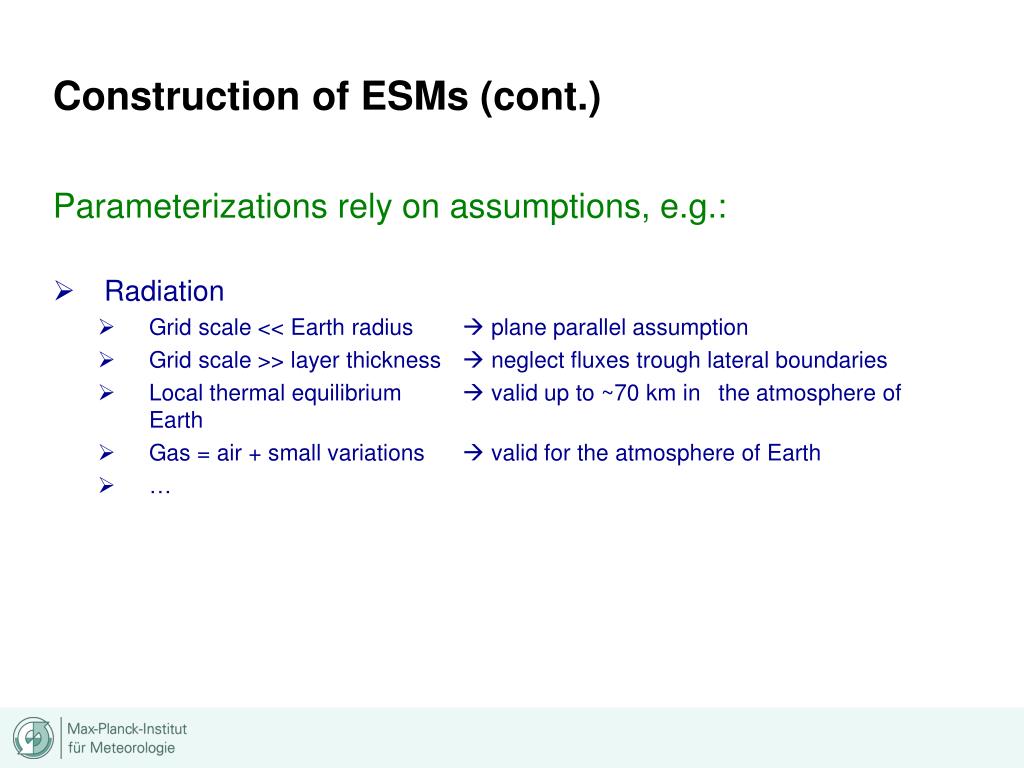

  13. Construction of ESMs (cont.) Parameterizations rely on assumptions, e.g.: • Radiation • Grid scale << Earth radius  plane parallel assumption • Grid scale >> layer thickness  neglect fluxes trough lateral boundaries • Local thermal equilibrium  valid up to ~70 km in the atmosphere of Earth • Gas = air + small variations  valid for the atmosphere of Earth • …

  14. 2. Research with ESMs

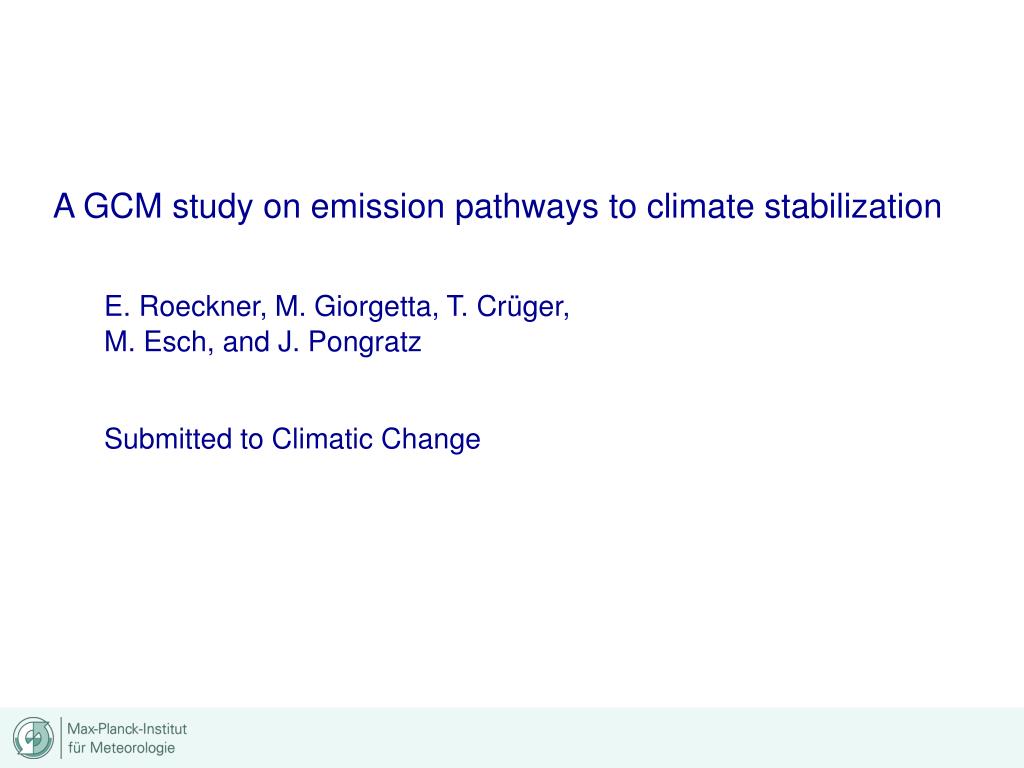

  15. A GCM study on emission pathways to climate stabilization E. Roeckner, M. Giorgetta, T. Crüger, M. Esch, and J. Pongratz Submitted to Climatic Change

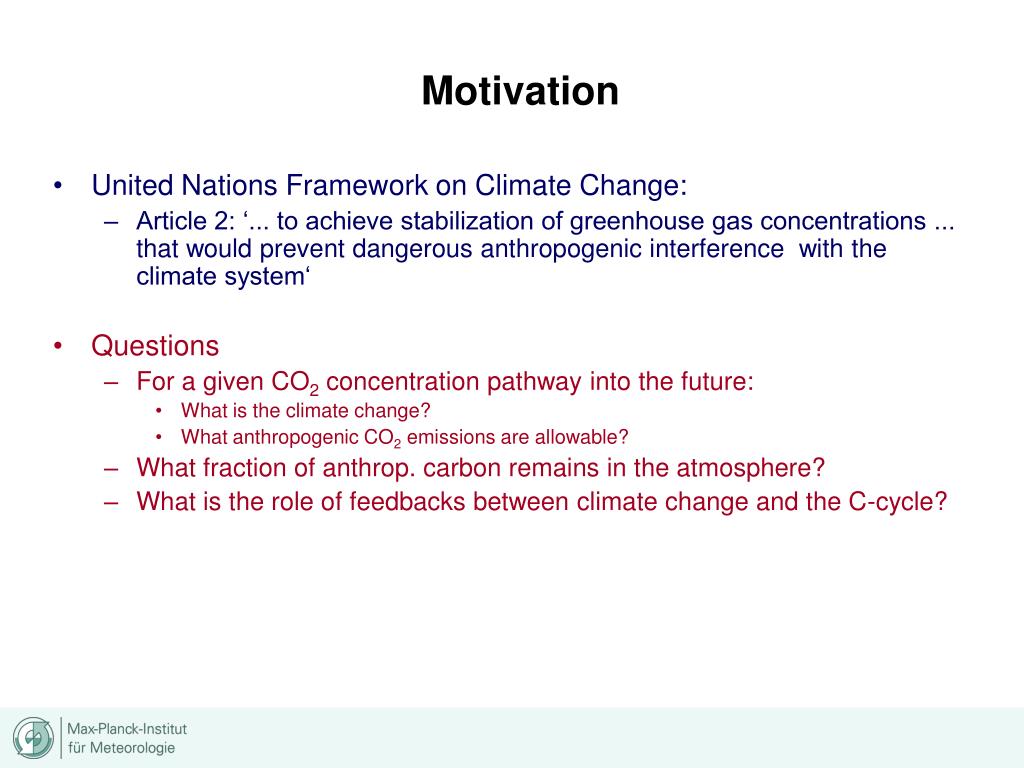

  16. Motivation • United Nations Framework on Climate Change: • Article 2: ‘... to achieve stabilization of greenhouse gas concentrations ... that would prevent dangerous anthropogenic interference with the climate system‘ • Questions • For a given CO2 concentration pathway into the future: • What is the climate change? • What anthropogenic CO2 emissions are allowable? • What fraction of anthrop. carbon remains in the atmosphere? • What is the role of feedbacks between climate change and the C-cycle?

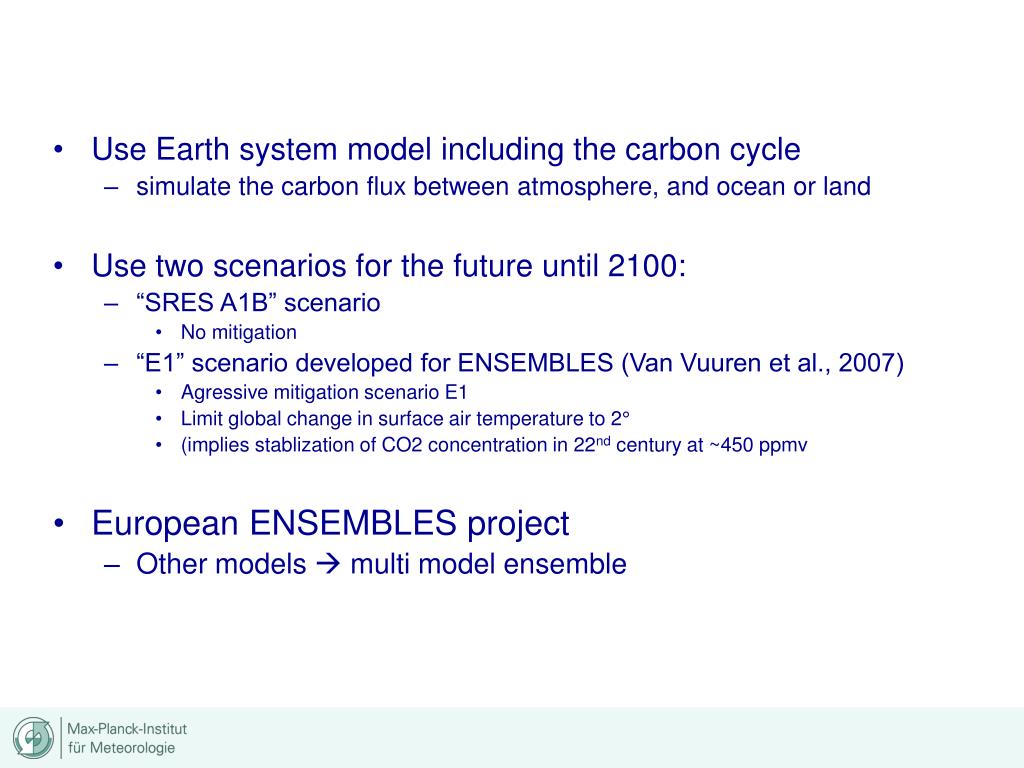

  17. Use Earth system model including the carbon cycle • simulate the carbon flux between atmosphere, and ocean or land • Use two scenarios for the future until 2100: • “SRES A1B” scenario • No mitigation • “E1” scenario developed for ENSEMBLES (Van Vuuren et al., 2007) • Agressive mitigation scenario E1 • Limit global change in surface air temperature to 2° • (implies stablization of CO2 concentration in 22nd century at ~450 ppmv • European ENSEMBLES project • Other models  multi model ensemble

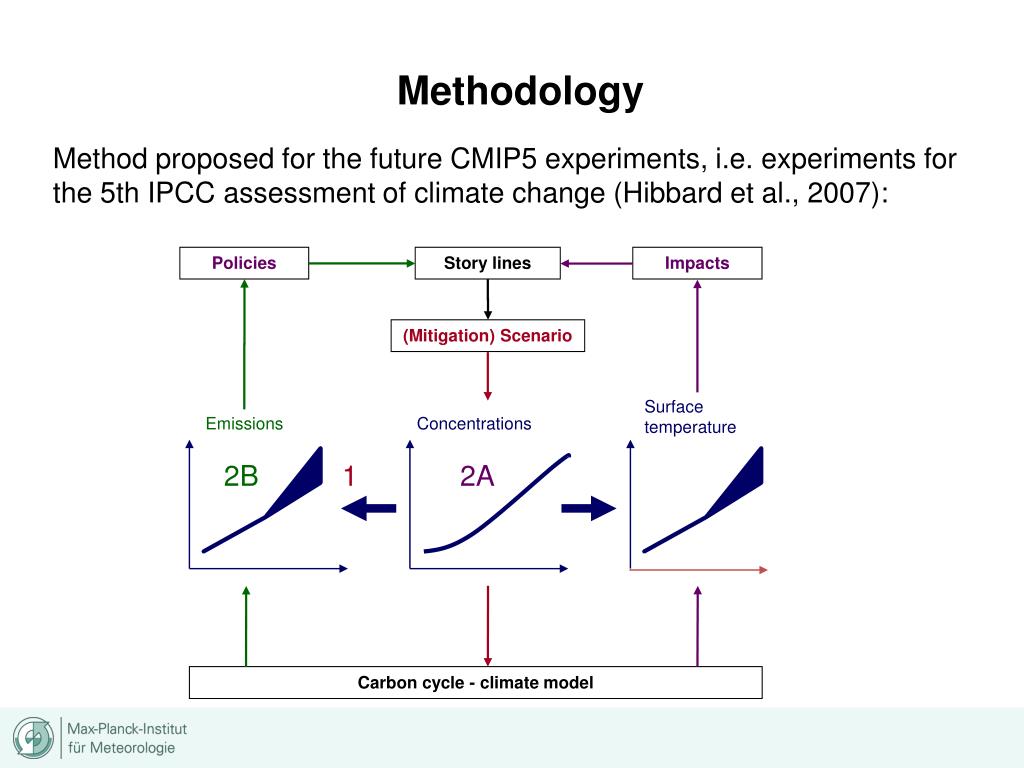

  18. Policies Story lines Impacts (Mitigation) Scenario Surface temperature Emissions Concentrations 2B 1 2A Carbon cycle - climate model Methodology Method proposed for the future CMIP5 experiments, i.e. experiments for the 5th IPCC assessment of climate change (Hibbard et al., 2007):

  19. 1860 1900 1950 2000 2050 2100 Experiments Control“1860”1000 yr Historic1860-2005 SRES A1B Ensembles of 5 realizations E1 450 ppm : full coupling; : C-cycle decoupled

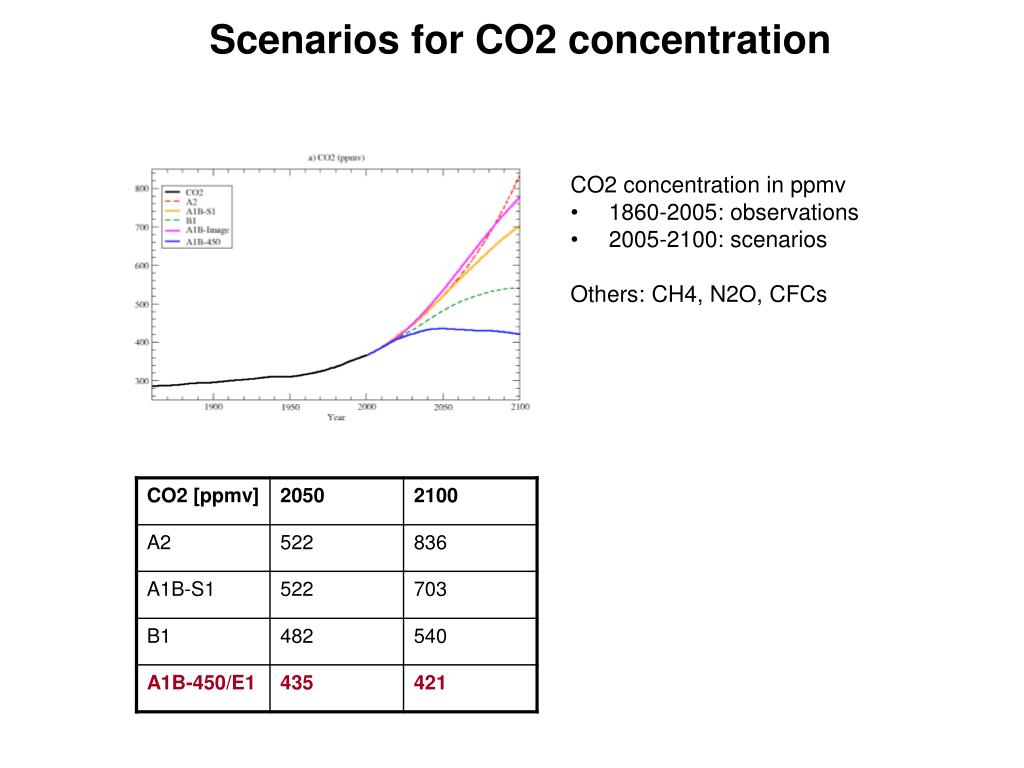

  20. Scenarios for CO2 concentration CO2 concentration in ppmv • 1860-2005: observations • 2005-2100: scenarios Others: CH4, N2O, CFCs

  21. … and of the model used here X (no feedback) A: ECHAM Substance cyclesH2O, C EnergyMomentum Society L: JSBACH O: MPIOM + HAMOCC Prescribed BCs fromobservations+scenarios

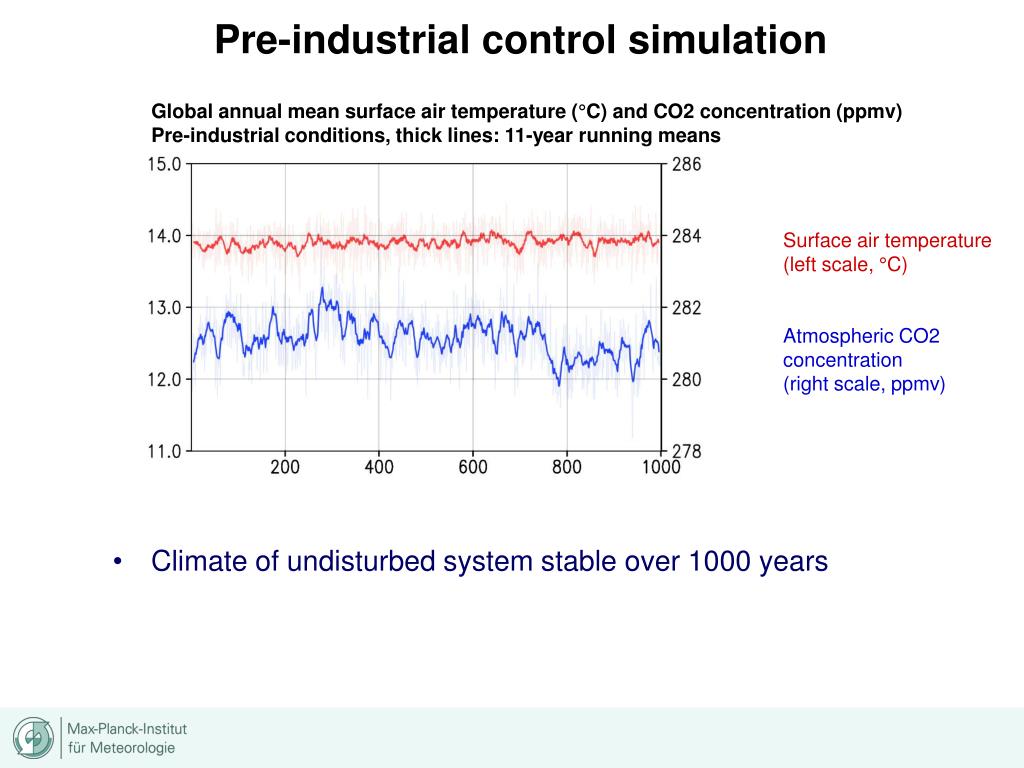

  22. Pre-industrial control simulation Global annual mean surface air temperature (°C) and CO2 concentration (ppmv) Pre-industrial conditions, thick lines: 11-year running means • Climate of undisturbed system stable over 1000 years • Surface air temperature(left scale, °C) • Atmospheric CO2 concentration (right scale, ppmv)

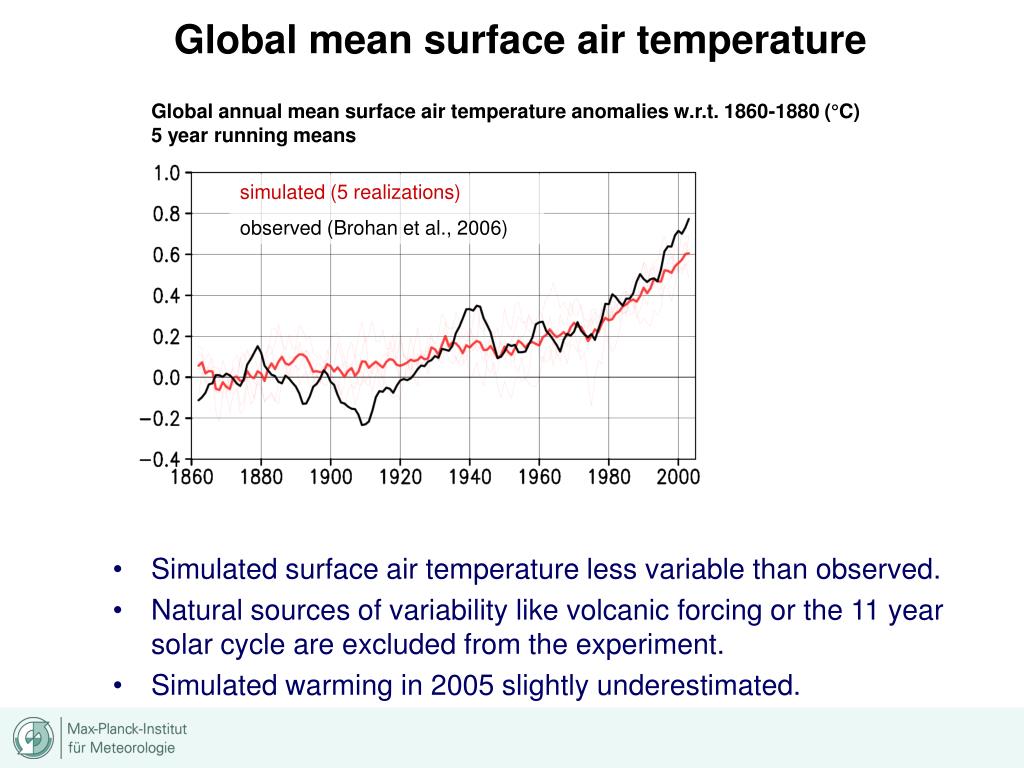

  23. Global mean surface air temperature Global annual mean surface air temperature anomalies w.r.t. 1860-1880 (°C)5 year running means simulated (5 realizations) observed (Brohan et al., 2006) • Simulated surface air temperature less variable than observed. • Natural sources of variability like volcanic forcing or the 11 year solar cycle are excluded from the experiment. • Simulated warming in 2005 slightly underestimated.

  24. Global mean CO2 emissions 1860 to 2005 CO2 emissions from fossil fuel combustion and cement production (GtC/yr)Global annual mean; 11-year running means • Model allows for relatively higher emissions before 1930. • Minimum in 1940s • Similar emissions in 2000. Implied emissions from simulations Observed (Marland et al., 2006)

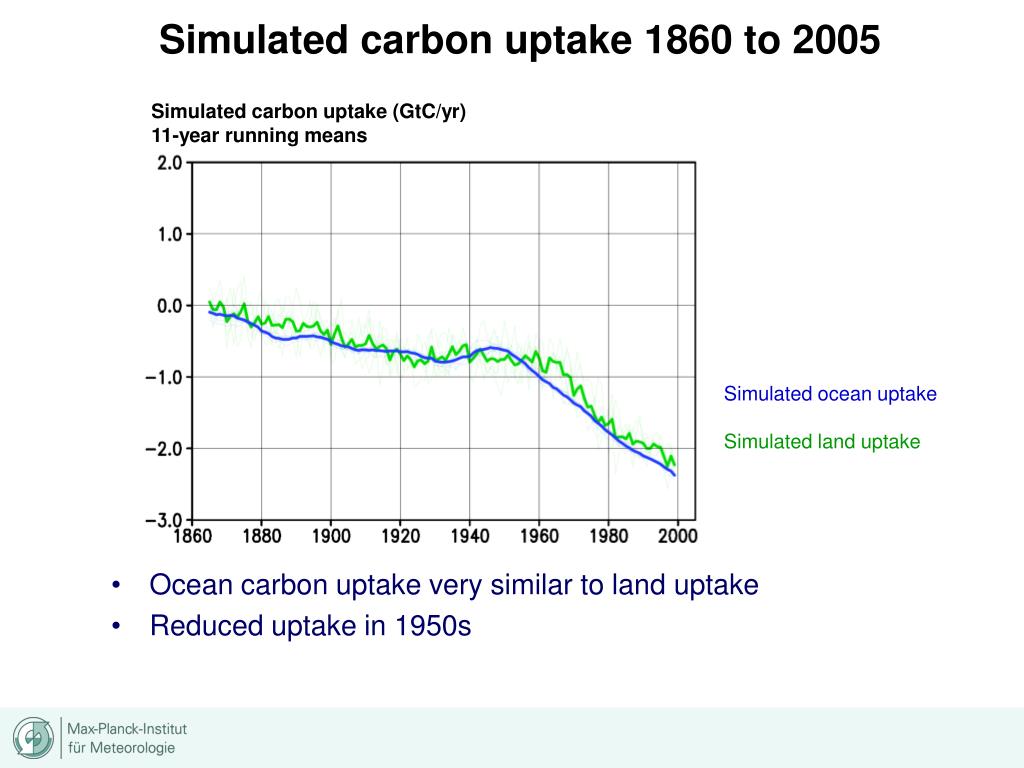

  25. Simulated carbon uptake 1860 to 2005 Simulated carbon uptake (GtC/yr)11-year running means • Ocean carbon uptake very similar to land uptake • Reduced uptake in 1950s Simulated ocean uptake Simulated land uptake

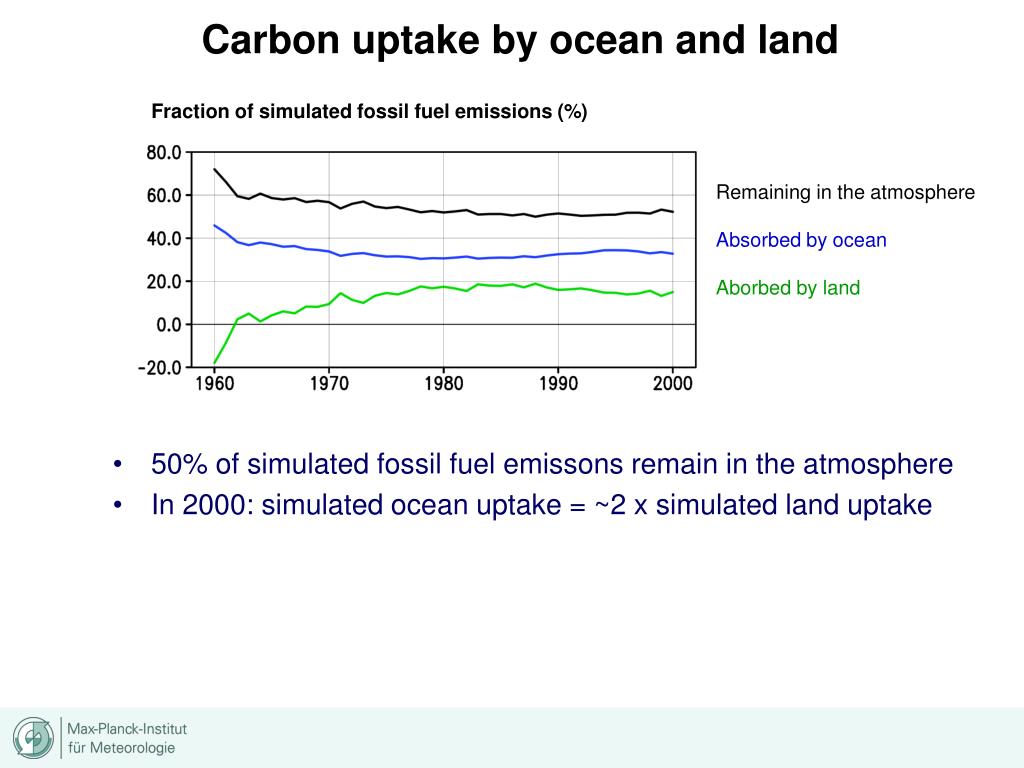

  26. Carbon uptake by ocean and land Fraction of simulated fossil fuel emissions (%) Remaining in the atmosphere Absorbed by ocean Aborbed by land • 50% of simulated fossil fuel emissons remain in the atmosphere • In 2000: simulated ocean uptake = ~2 x simulated land uptake

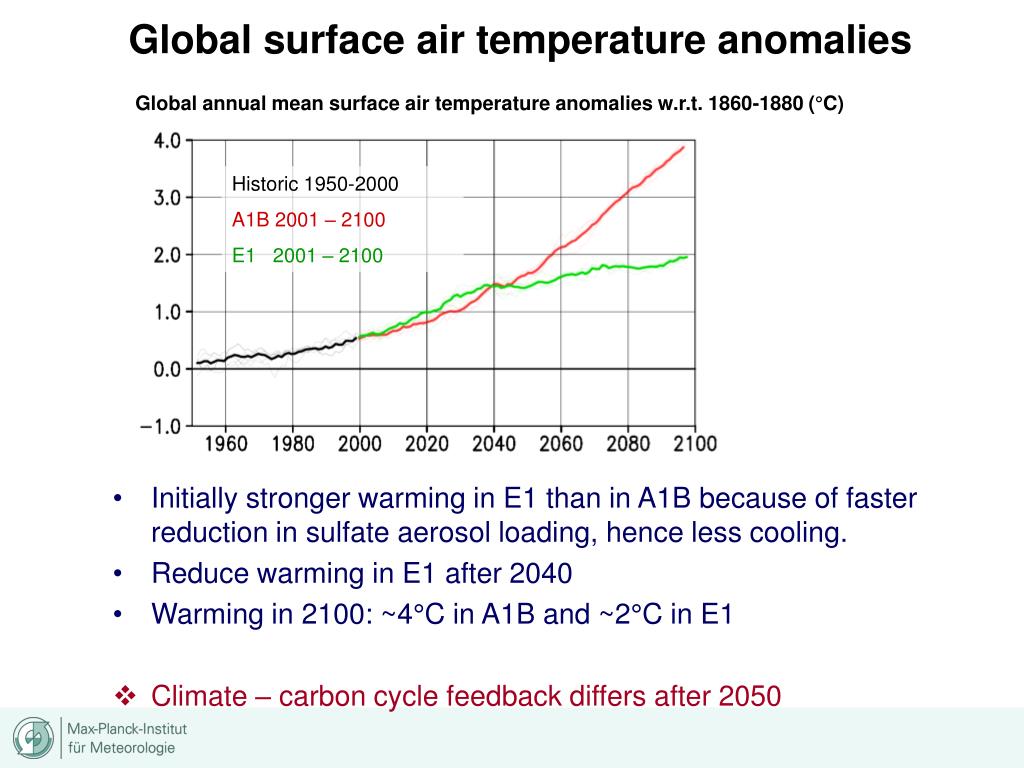

  27. Global surface air temperature anomalies Global annual mean surface air temperature anomalies w.r.t. 1860-1880 (°C) Historic 1950-2000 A1B 2001 – 2100 E1 2001 – 2100 • Initially stronger warming in E1 than in A1B because of faster reduction in sulfate aerosol loading, hence less cooling. • Reduce warming in E1 after 2040 • Warming in 2100: ~4°C in A1B and ~2°C in E1 • Climate – carbon cycle feedback differs after 2050

  28. without feedback with feedback Implied CO2 emissions 1950 to 2100 Implied CO2 emissions with and without climate – carbon cycle feedback (GtC/yr) Historic 1950 – 2000 A1B 2001 – 2100 E1 2001 – 2100 • Implied CO2 emissions of E1 scenario drop sharply after ~2015 (unlike emissions for A1B scenario) • Implied emissions are reduced by feedbackIn 2100: -2 GtC/yr in E1 and -4.5 GtC/yr in A1B • Implied emissions of E1 close to 0 in 2100.

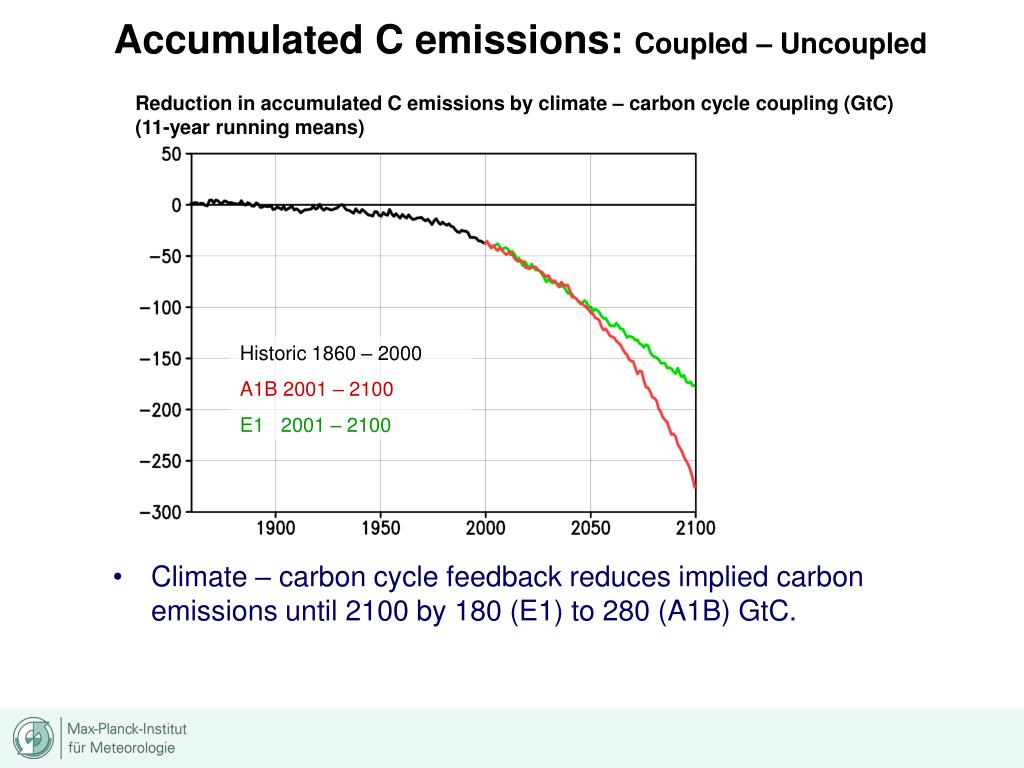

  29. Accumulated C emissions: Coupled – Uncoupled Reduction in accumulated C emissions by climate – carbon cycle coupling (GtC)(11-year running means) • Climate – carbon cycle feedback reduces implied carbon emissions until 2100 by 180 (E1) to 280 (A1B) GtC. Historic 1860 – 2000 A1B 2001 – 2100 E1 2001 – 2100

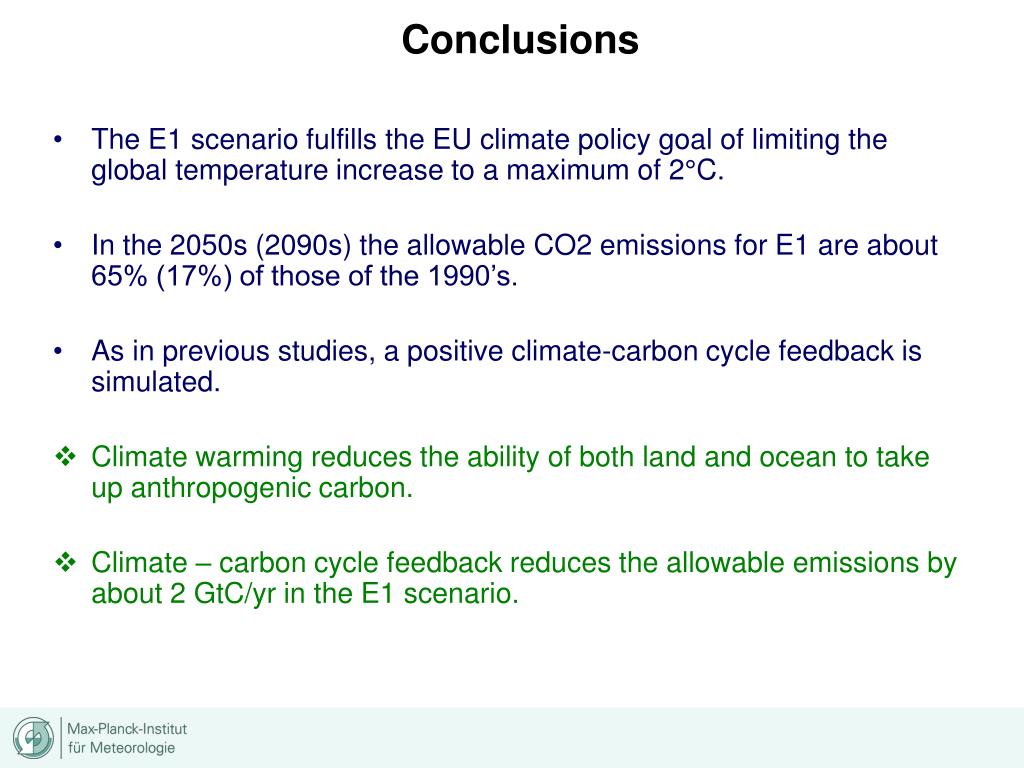

  30. Conclusions • The E1 scenario fulfills the EU climate policy goal of limiting the global temperature increase to a maximum of 2°C. • In the 2050s (2090s) the allowable CO2 emissions for E1 are about 65% (17%) of those of the 1990’s. • As in previous studies, a positive climate-carbon cycle feedback is simulated. • Climate warming reduces the ability of both land and ocean to take up anthropogenic carbon. • Climate – carbon cycle feedback reduces the allowable emissions by about 2 GtC/yr in the E1 scenario.

  31. 3. Fluid dynamical issues in the development of ESMs

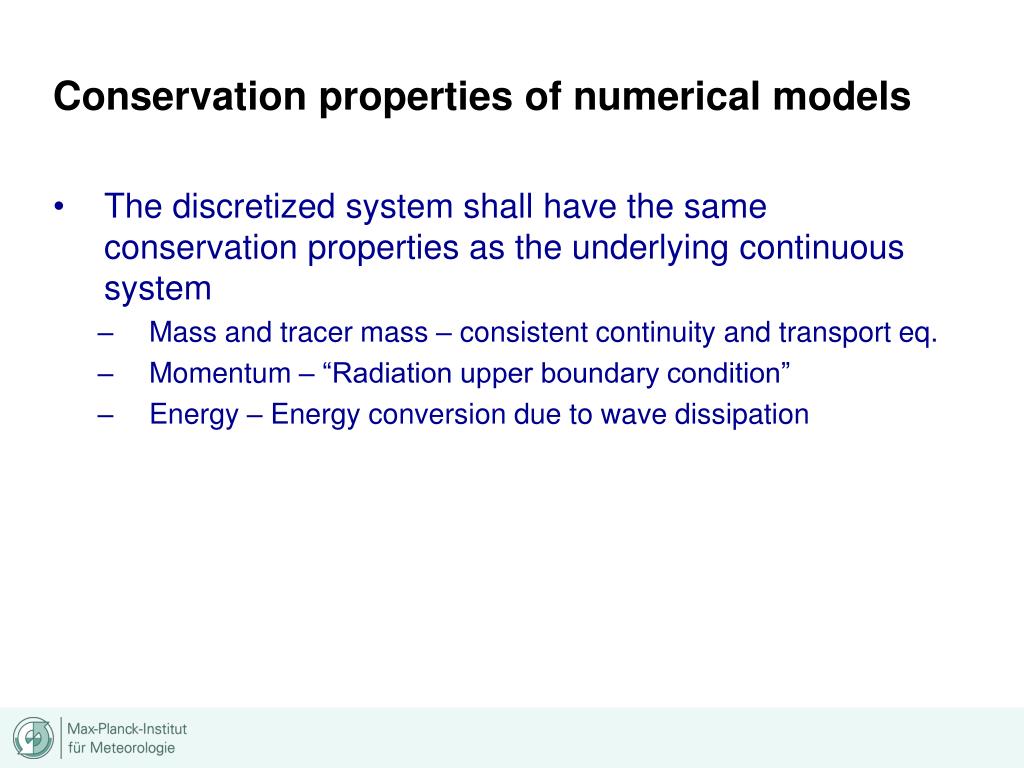

  32. Conservation properties of numerical models • The discretized system shall have the same conservation properties as the underlying continuous system • Mass and tracer mass – consistent continuity and transport eq. • Momentum – “Radiation upper boundary condition” • Energy – Energy conversion due to wave dissipation

  33. Adaptivity • Grid refinement • static or dynamic? • Redistribute grid points or create/destroy grid points? • 2d or 3d? • Single time integration scheme or recursive schemes? • Conservation properties? • Dynamical core • Adjust scheme to expected errors ( FE schemes) • Parameterizations: • Submodels: embedded dynamical models – “super-parameterizations” • Cost function • How to predict the need for refinement, and what for? • How to confine cost?

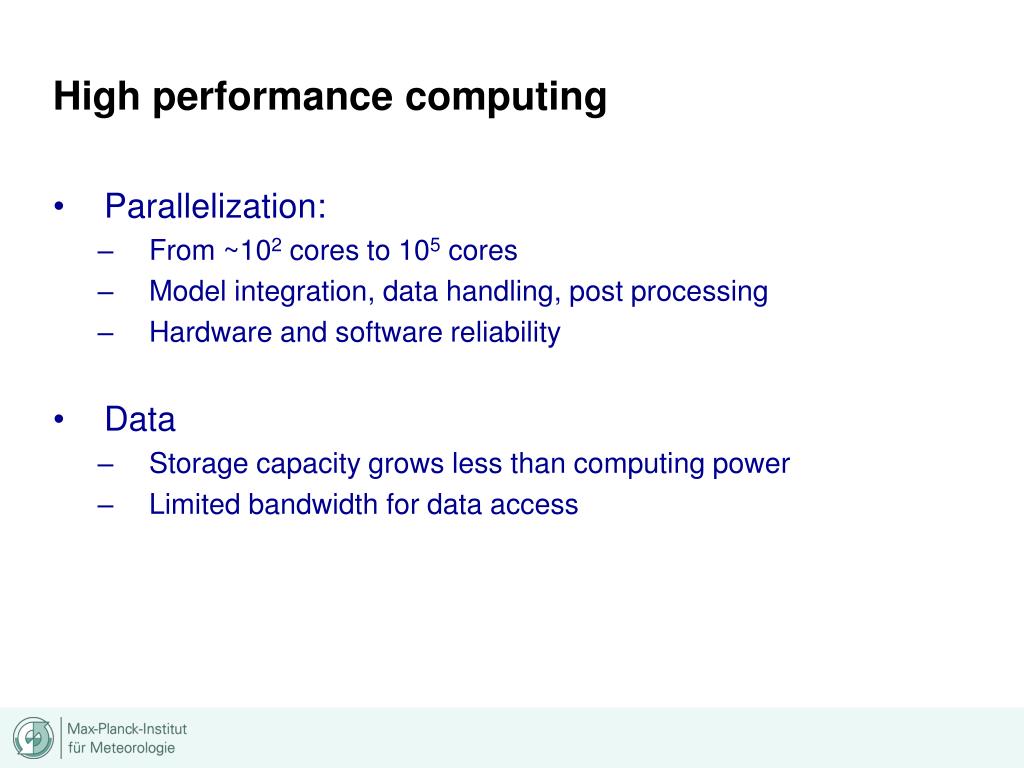

  34. High performance computing • Parallelization: • From ~102 cores to 105 cores • Model integration, data handling, post processing • Hardware and software reliability • Data • Storage capacity grows less than computing power • Limited bandwidth for data access
