  1. Minnesota Trunk Highway 55 and Hiawatha LRT under Minnehaha Park, Minneapolis, MinnesotaTransportation Research BoardBridge AestheticsCommittee AFF10 (2)Presented by:Jay WetmoreEdwards and Kelcey, Inc.

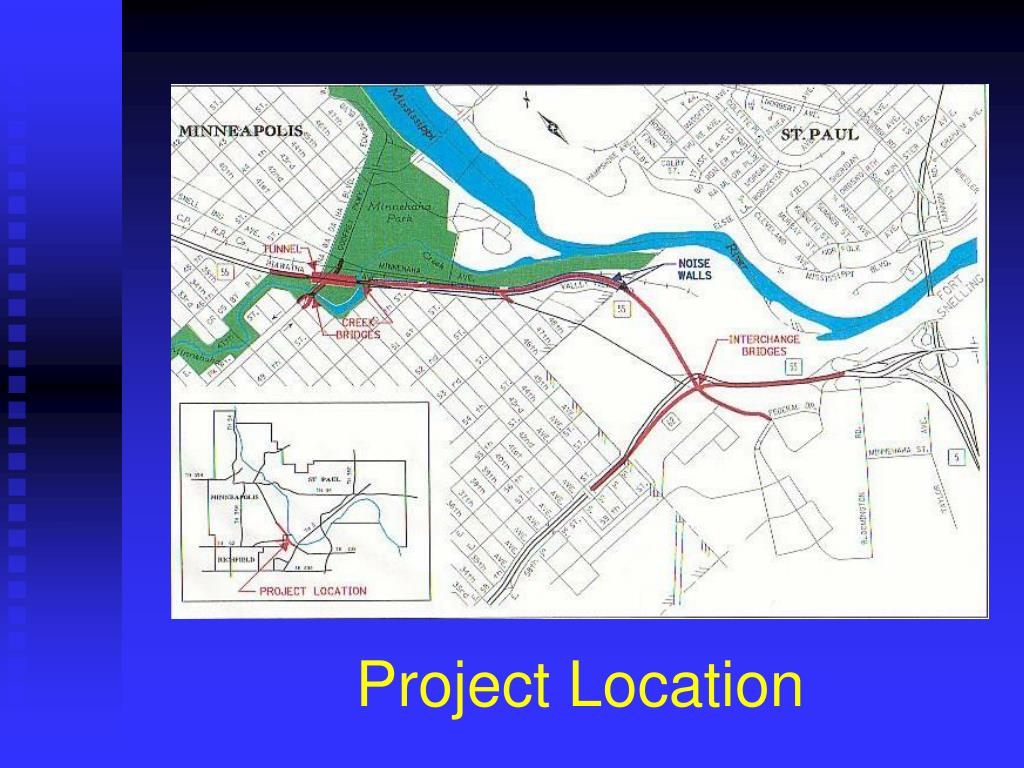

  2. Project Location

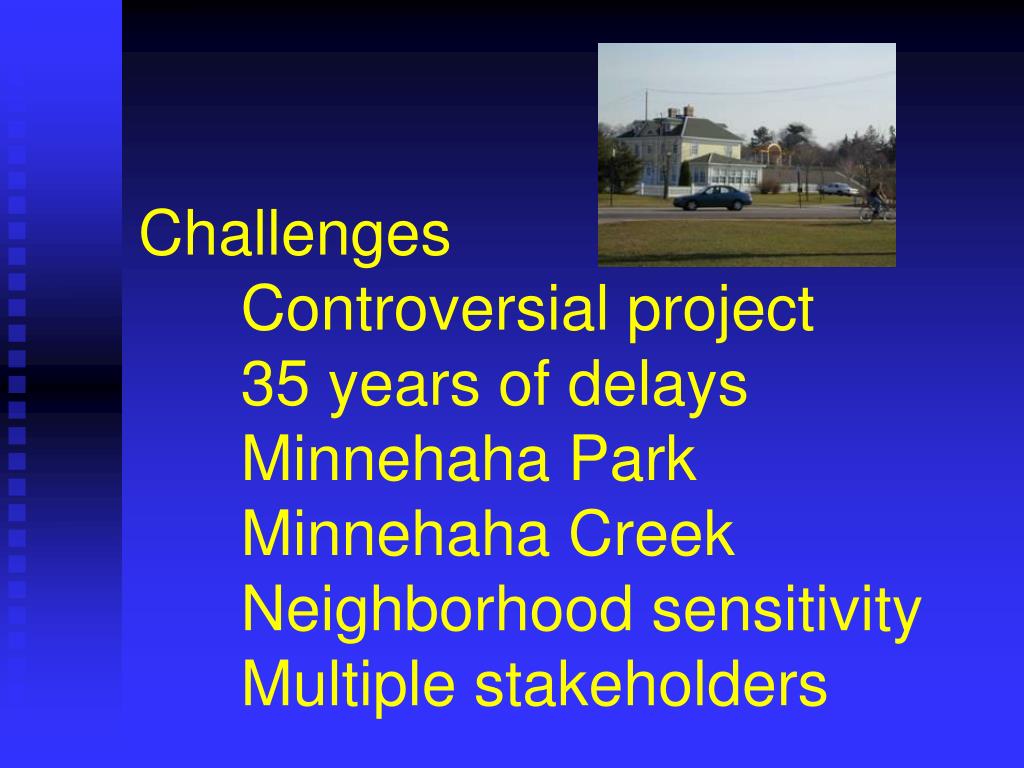

  3. Challenges Controversial project 35 years of delays Minnehaha Park Minnehaha Creek Neighborhood sensitivity Multiple stakeholders

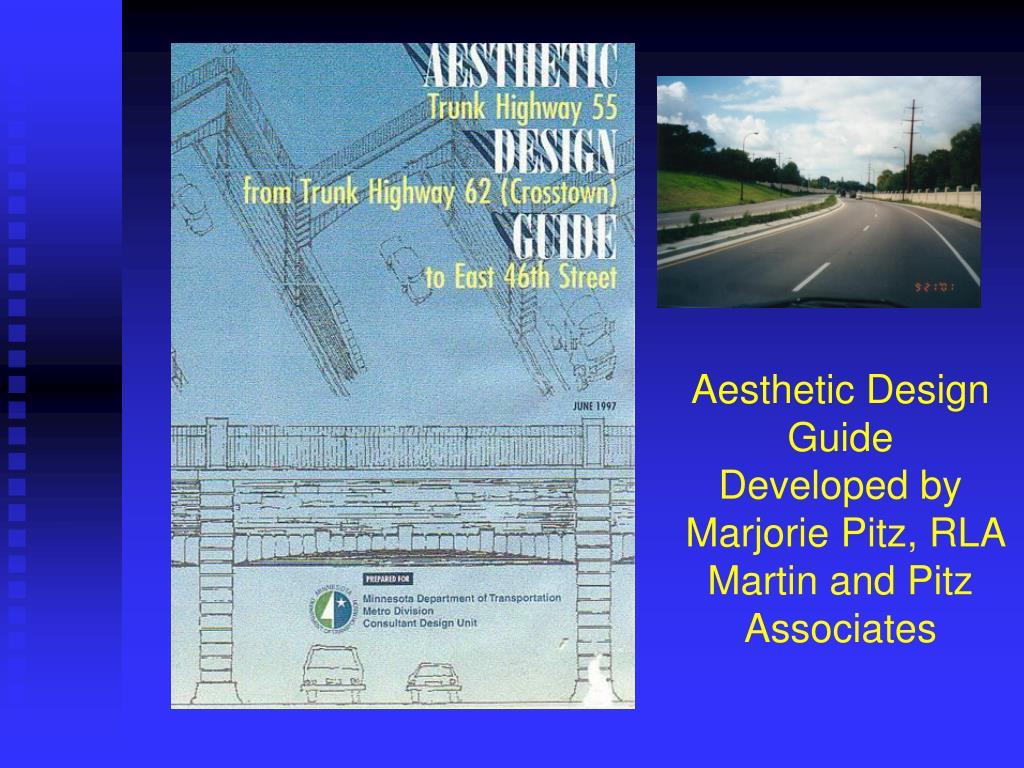

  4. Aesthetic Design GuideDeveloped by Marjorie Pitz, RLAMartin and Pitz Associates

  5. Directions from Mn/DOTThink “Outside of the box.”Input from:Minneapolis Parks and Recreation Department Sanders, Wacker, Wehrman and Bergley State Historic Preservation Office Minnesota Department of Transportation Office of Environmental Services Office of Bridges and Structures Office of Technical Support Metro Division Preliminary Design Consultant Design

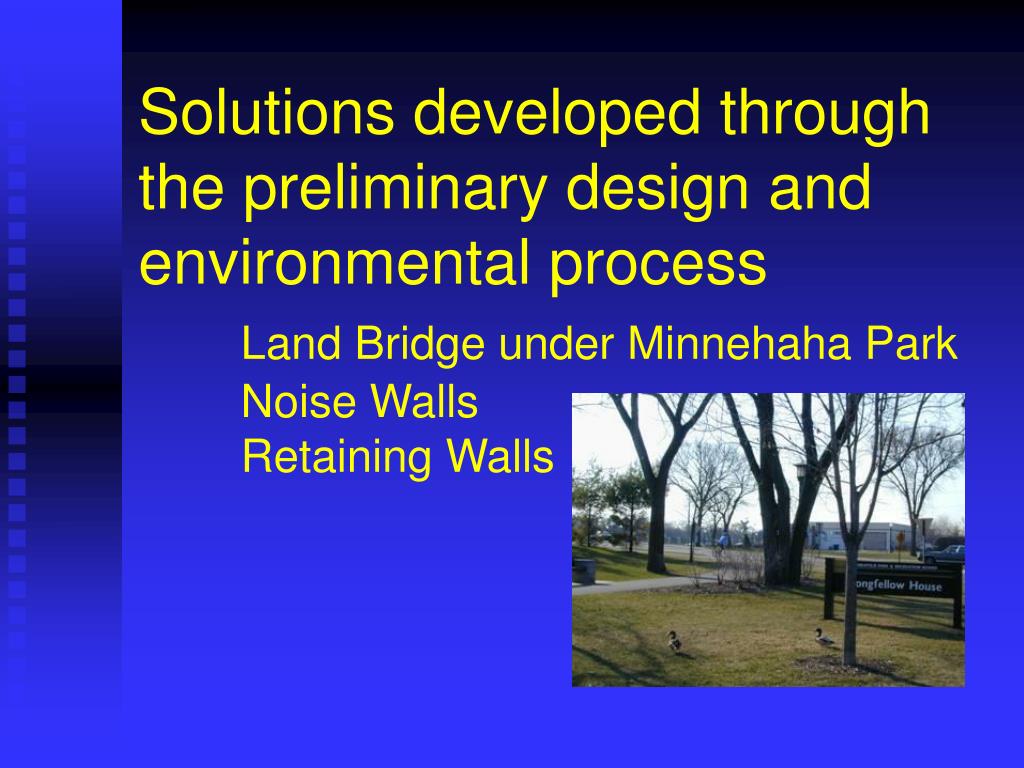

  6. Solutions developed through the preliminary design and environmental processLand Bridge under Minnehaha Park Noise Walls Retaining Walls

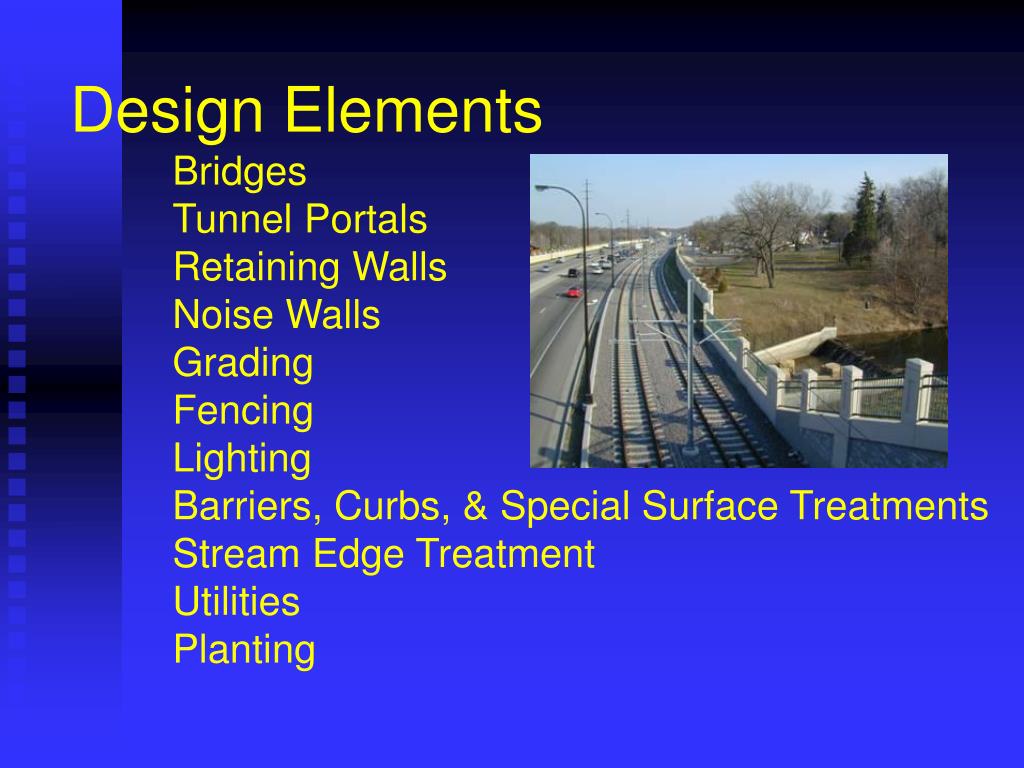

  7. Design ElementsBridges Tunnel Portals Retaining Walls Noise Walls Grading Fencing Lighting Barriers, Curbs, & Special Surface Treatments Stream Edge Treatment Utilities Planting

  8. Computer Photo Rendering

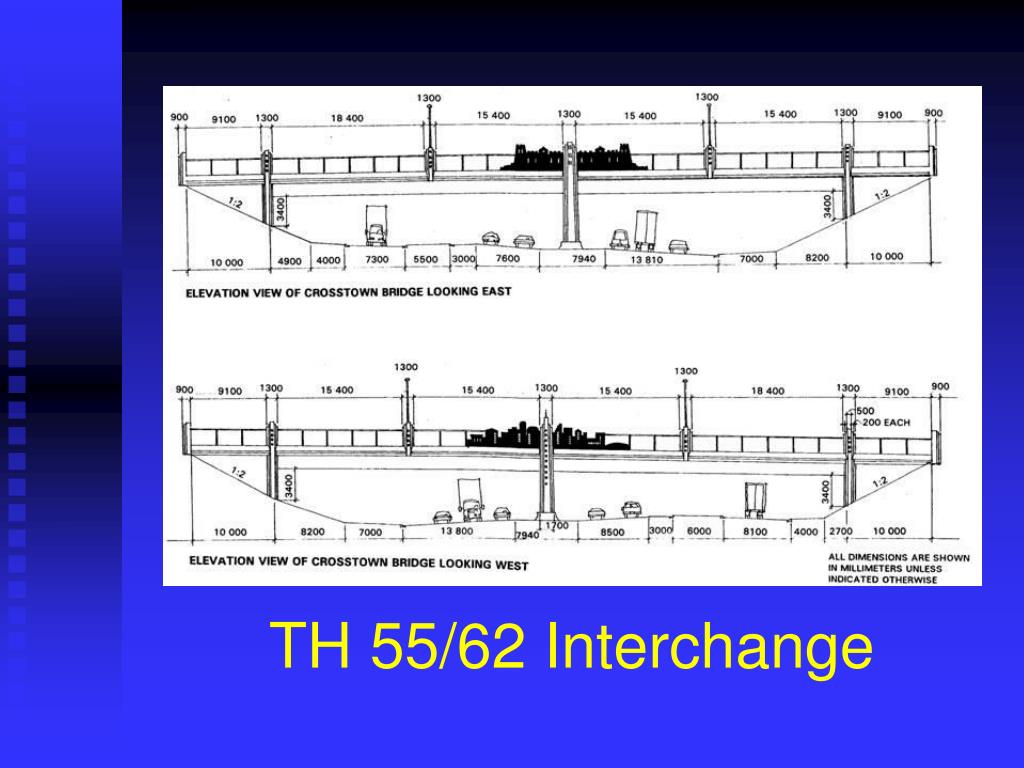

  9. TH 55/62 Interchange

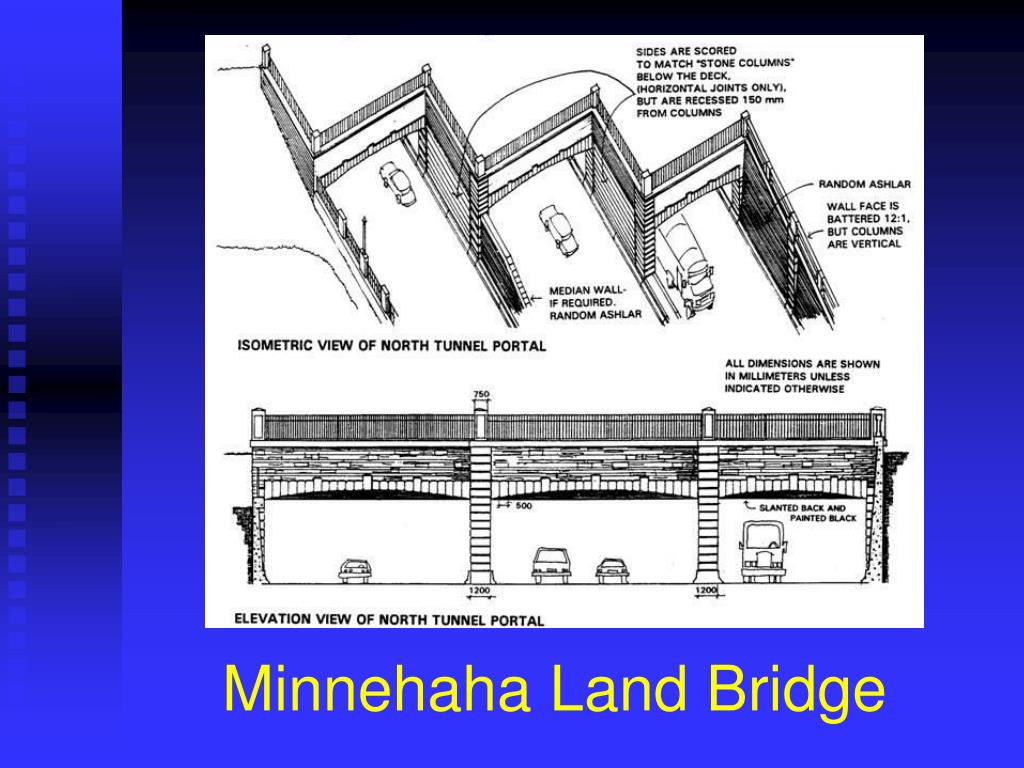

  10. Minnehaha Land Bridge

  11. Aerial View Minnehaha Land Bridge

  12. Tunnel Portal Section

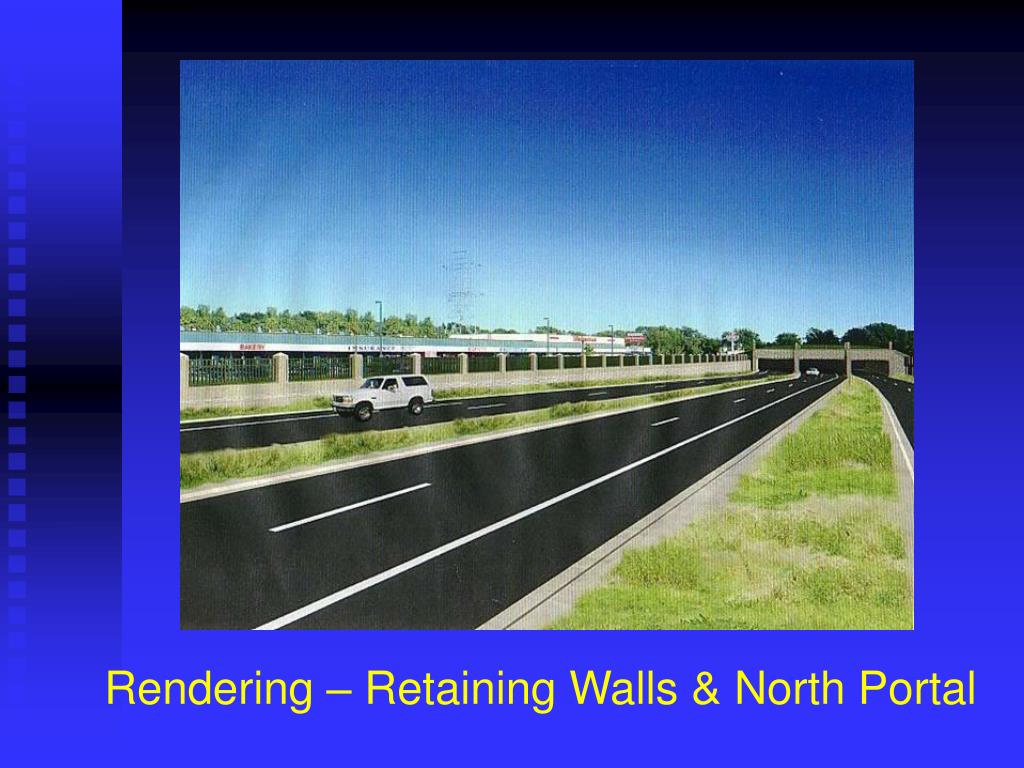

  13. Rendering – Retaining Walls & North Portal

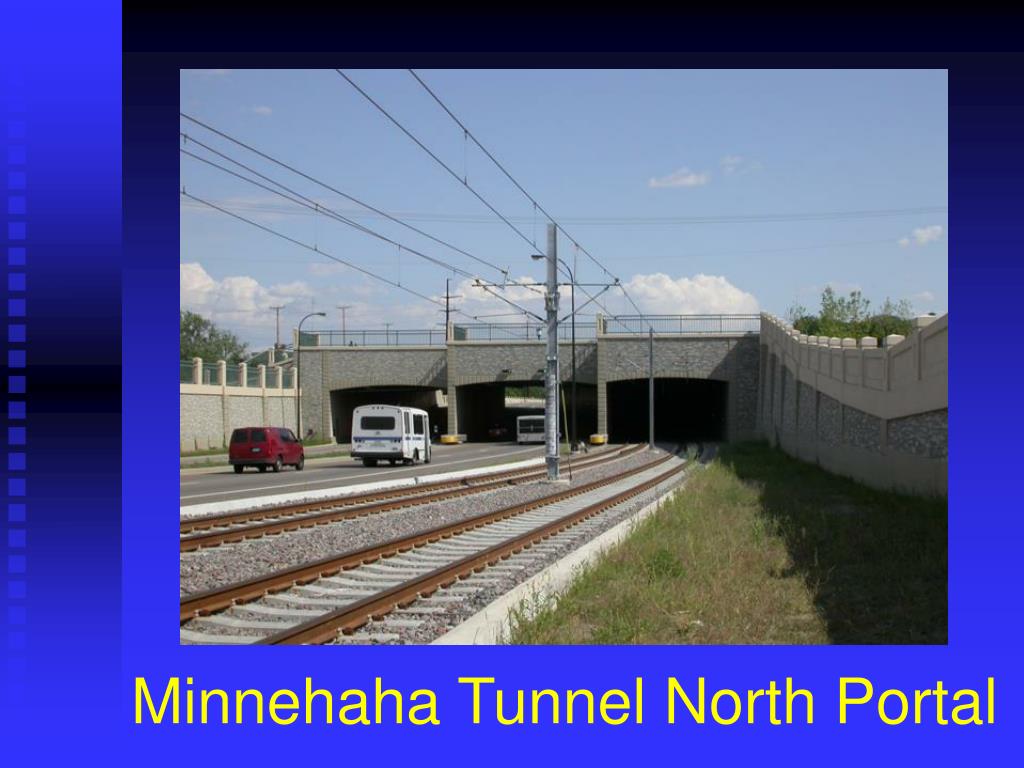

  14. Minnehaha Tunnel North Portal

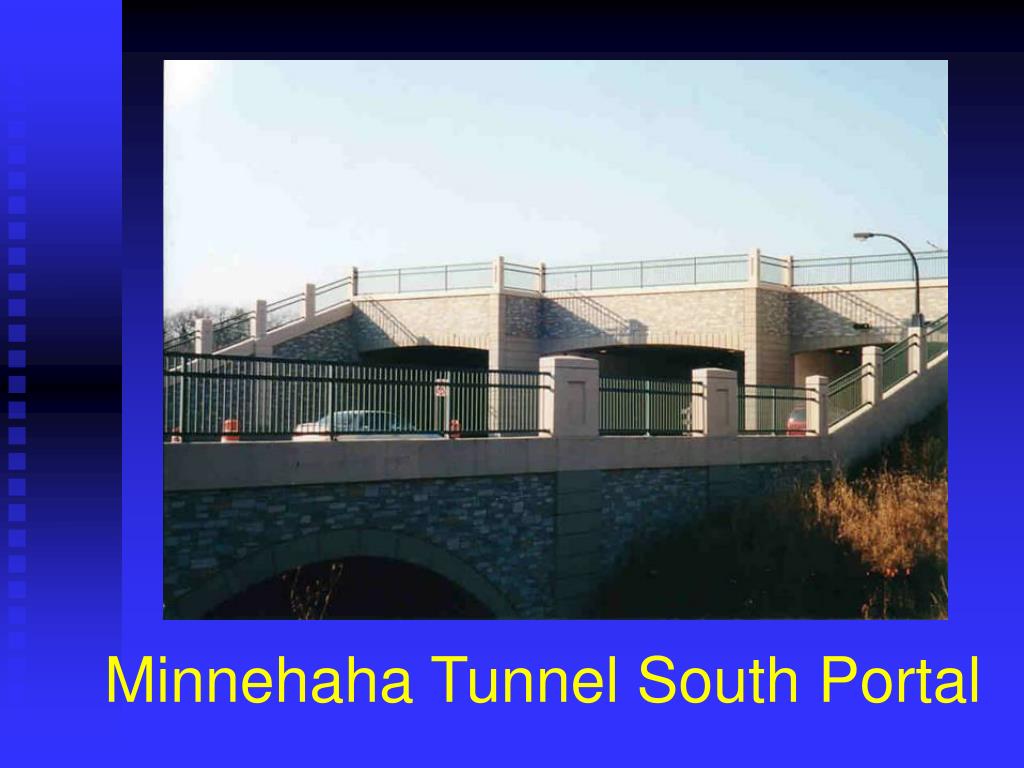

  15. Minnehaha Tunnel South Portal

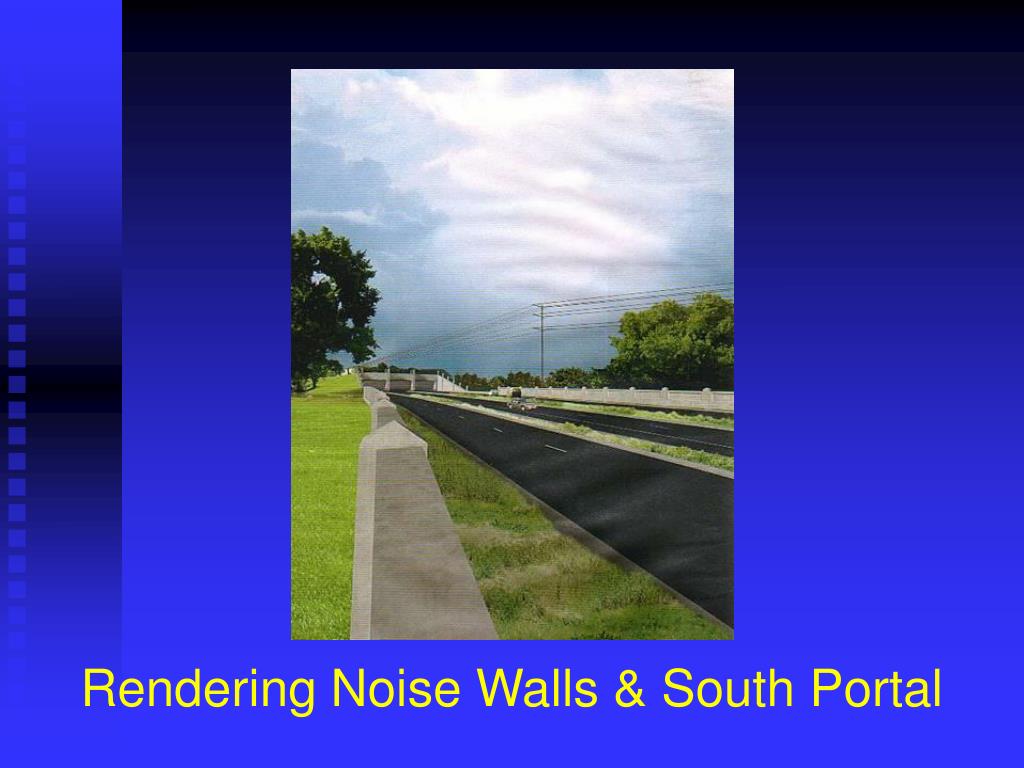

  16. Rendering Noise Walls & South Portal

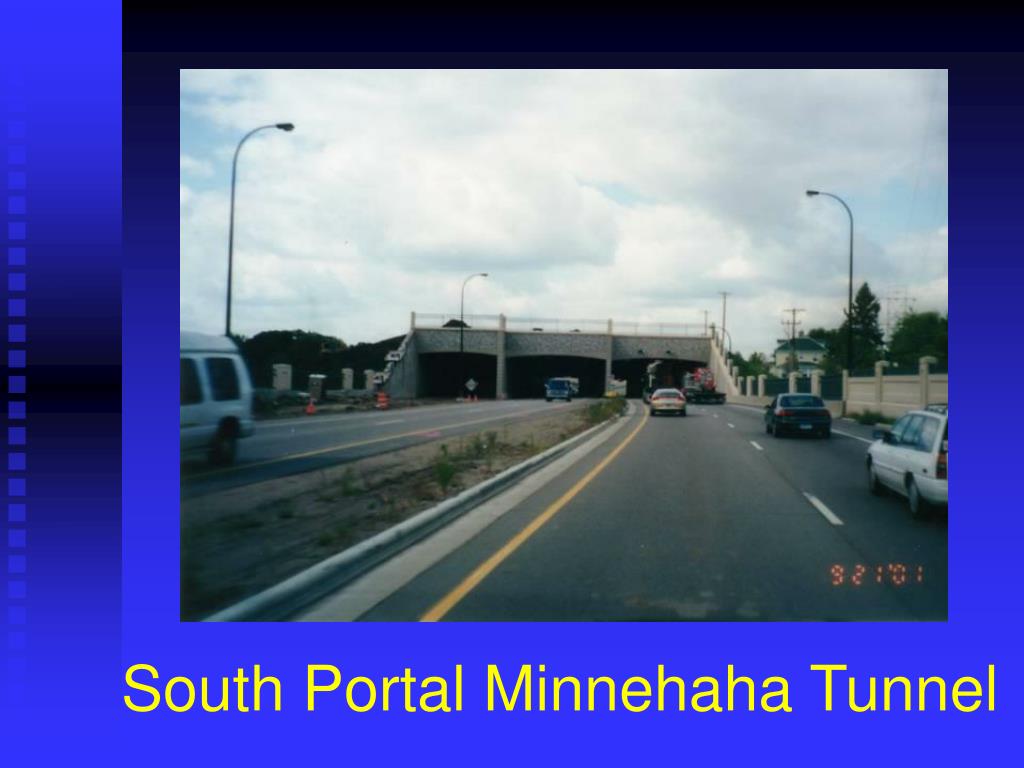

  17. South Portal Minnehaha Tunnel

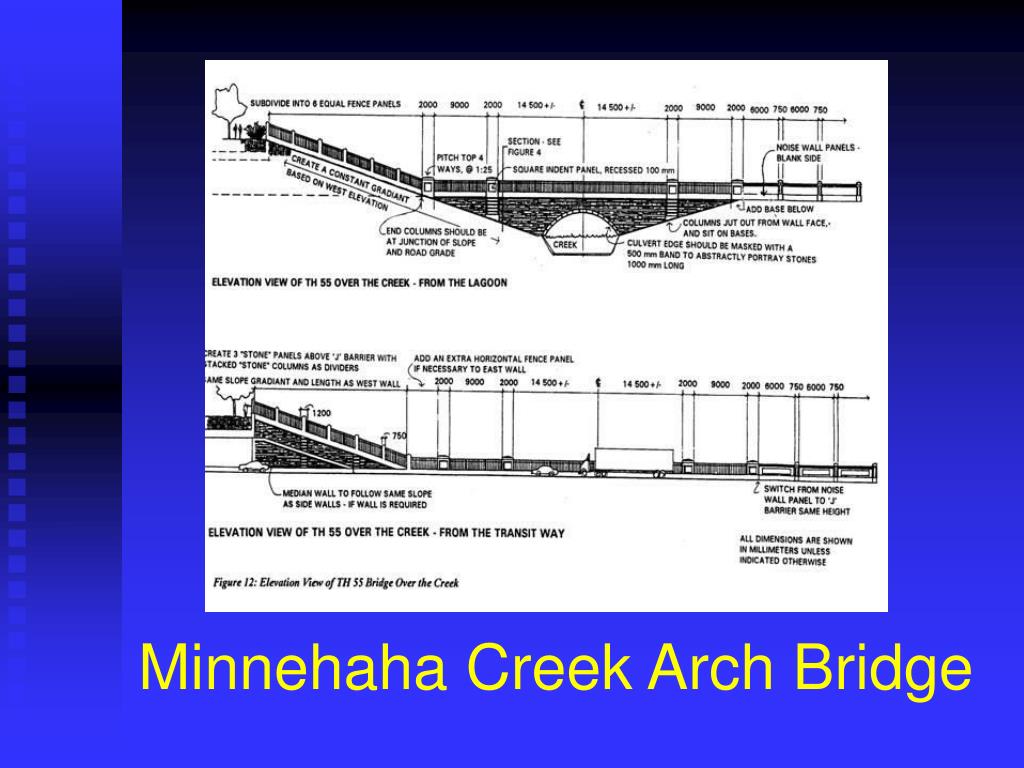

  18. Minnehaha Creek Arch Bridge

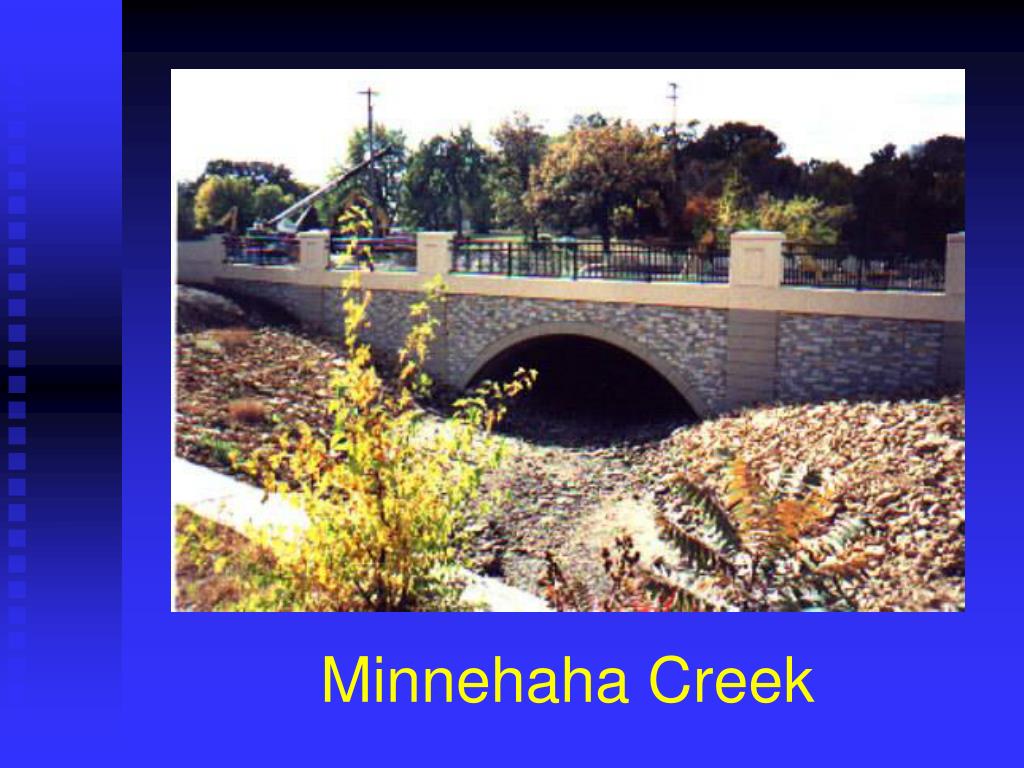

  19. Minnehaha Creek

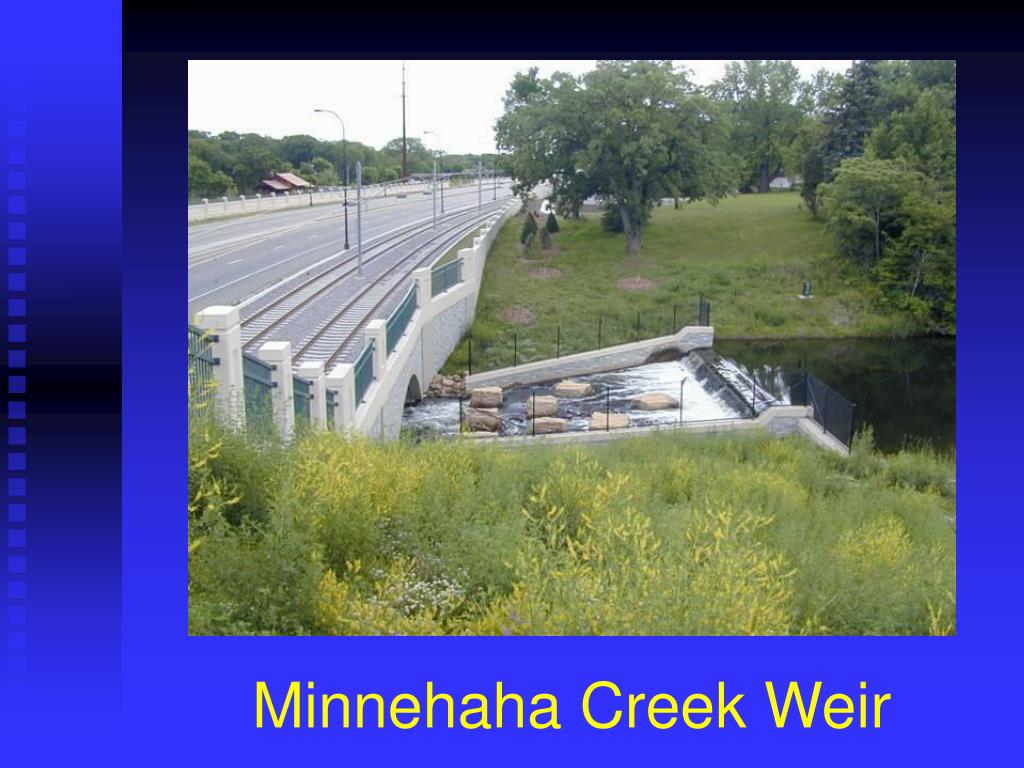

  20. Minnehaha Creek Weir

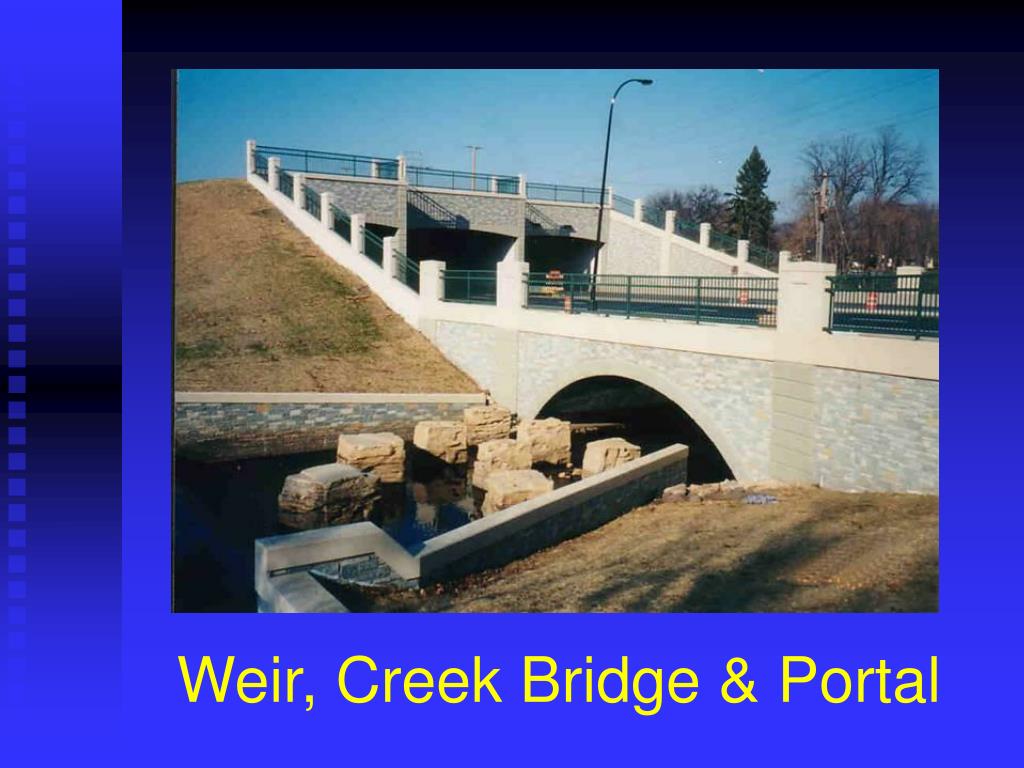

  21. Weir, Creek Bridge & Portal

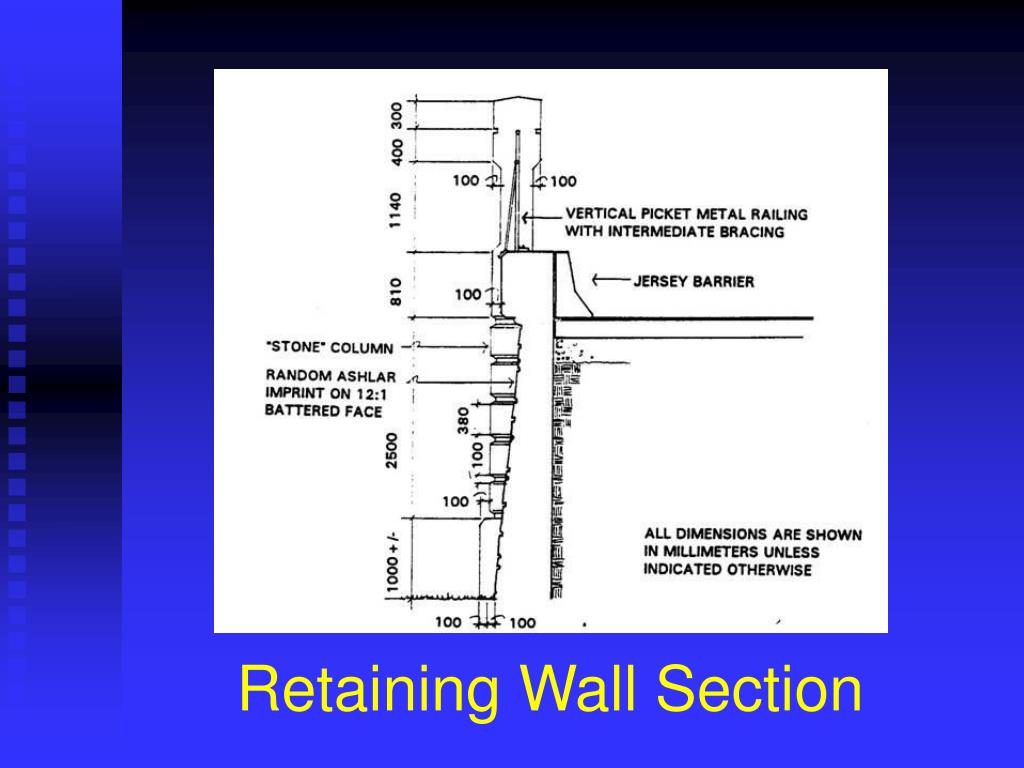

  22. Retaining Wall Section

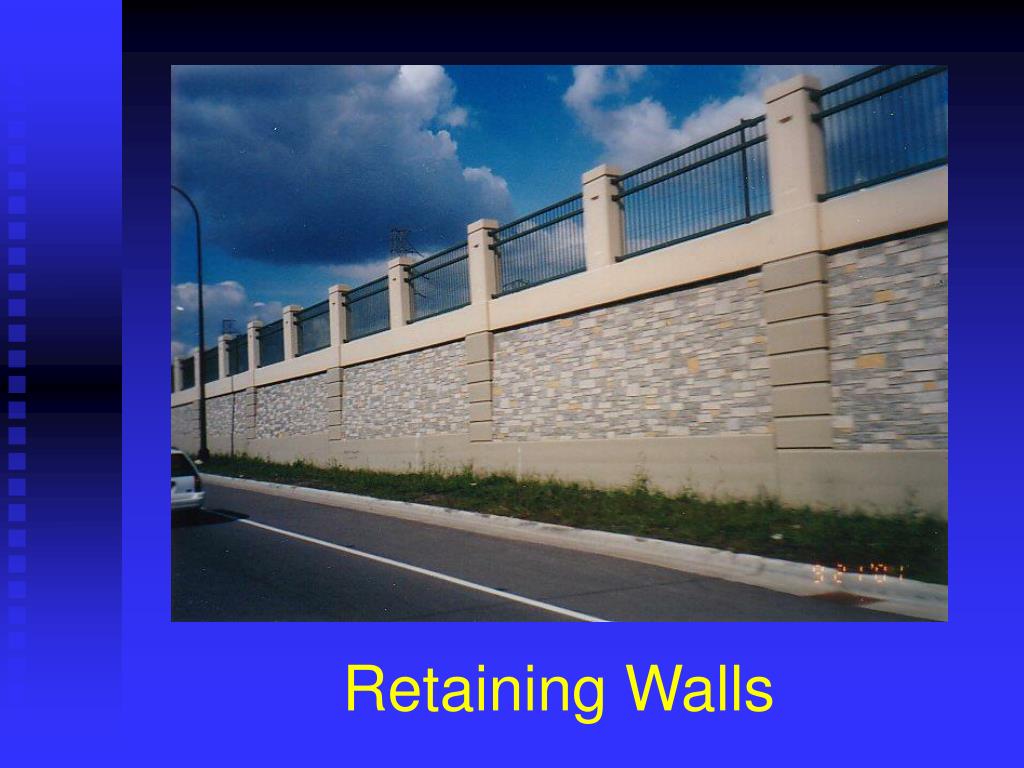

  23. Retaining Walls

  24. Noise Walls

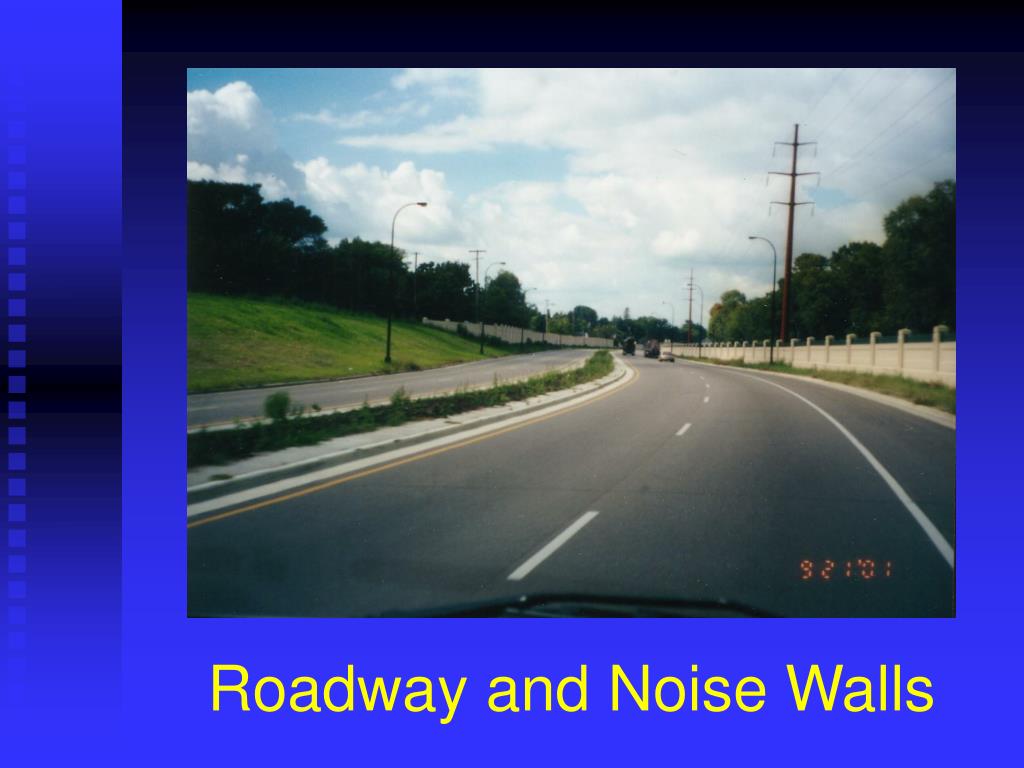

  25. Roadway and Noise Walls

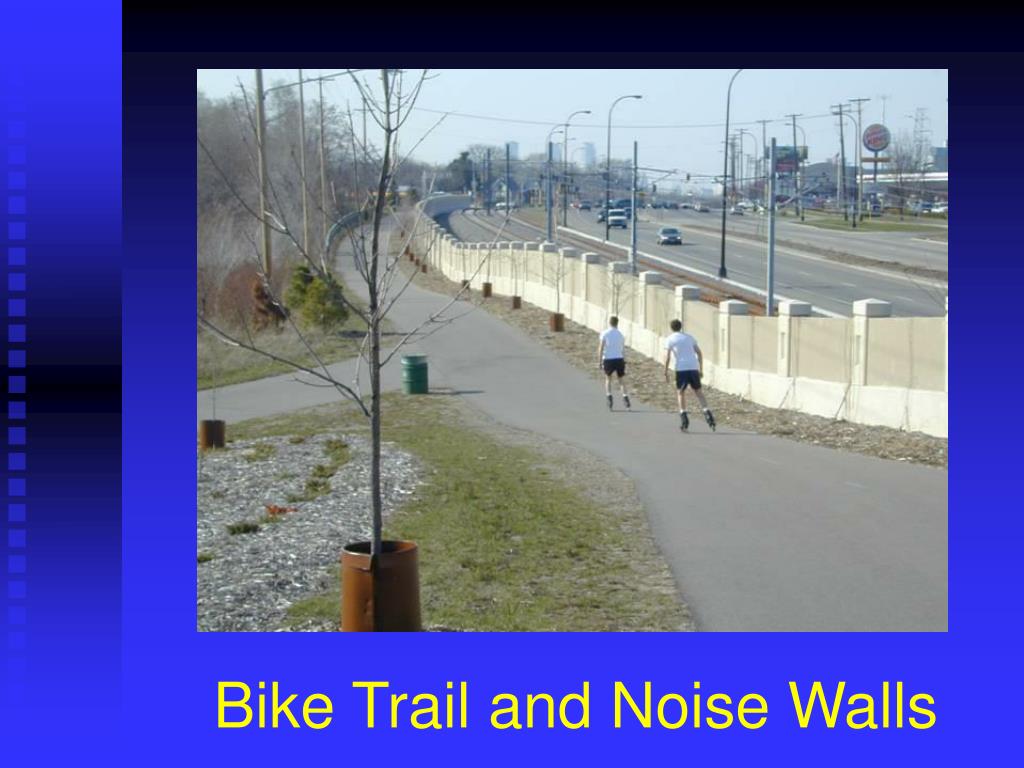

  26. Bike Trail and Noise Walls

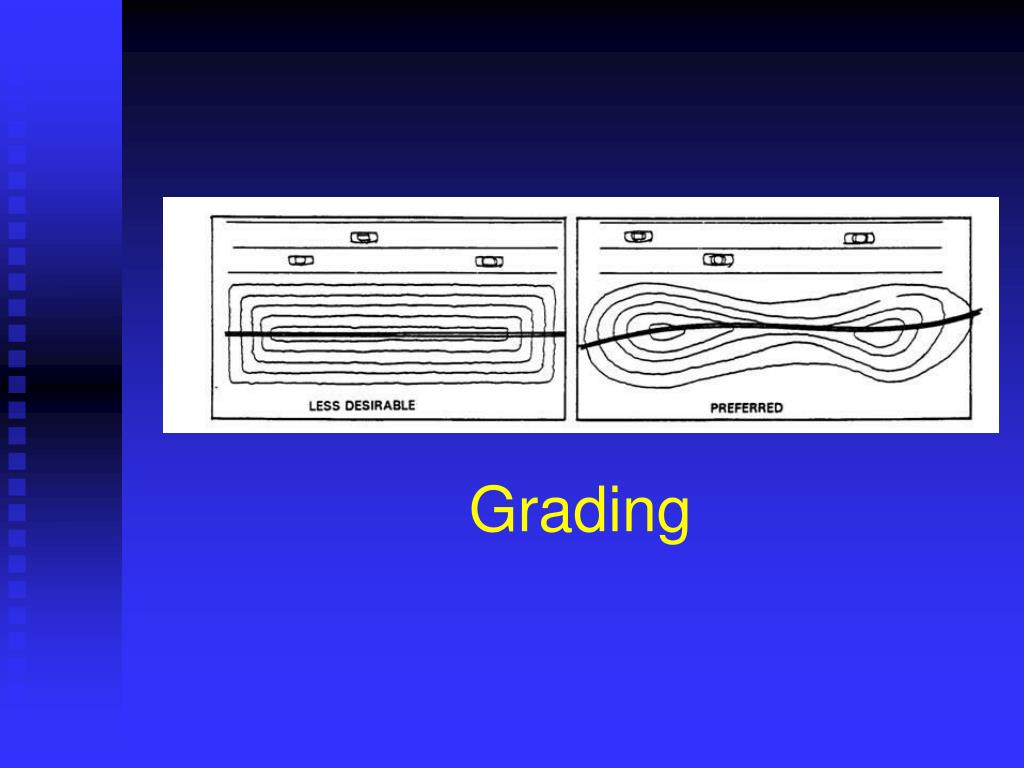

  27. Grading

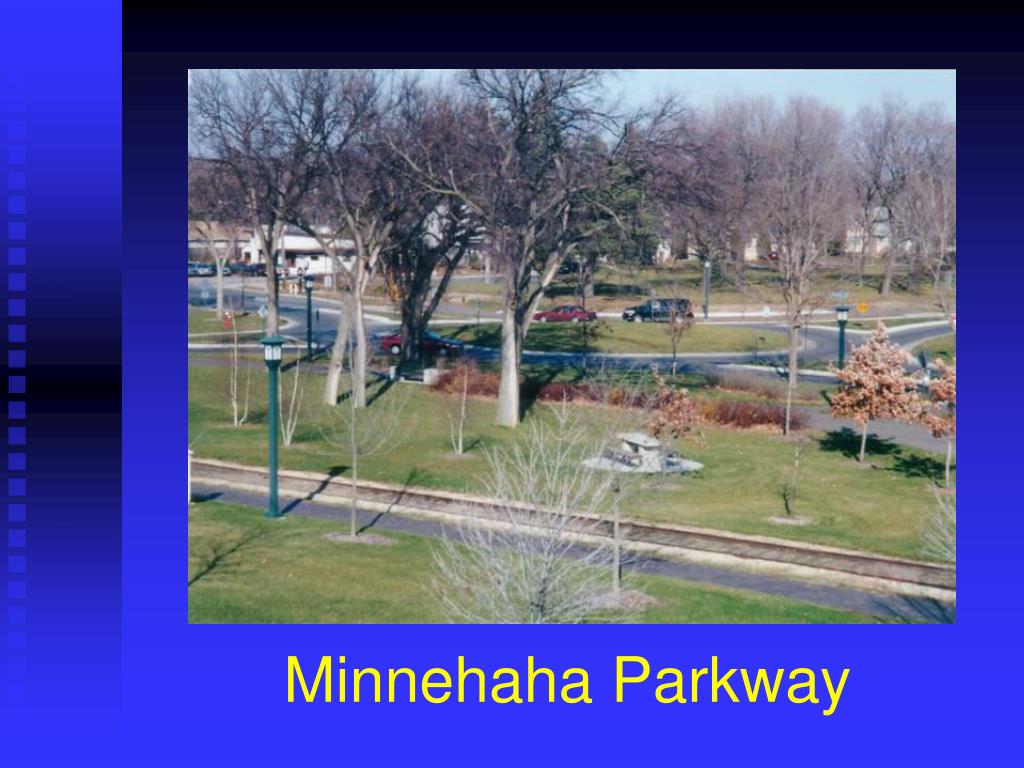

  28. Minnehaha Parkway

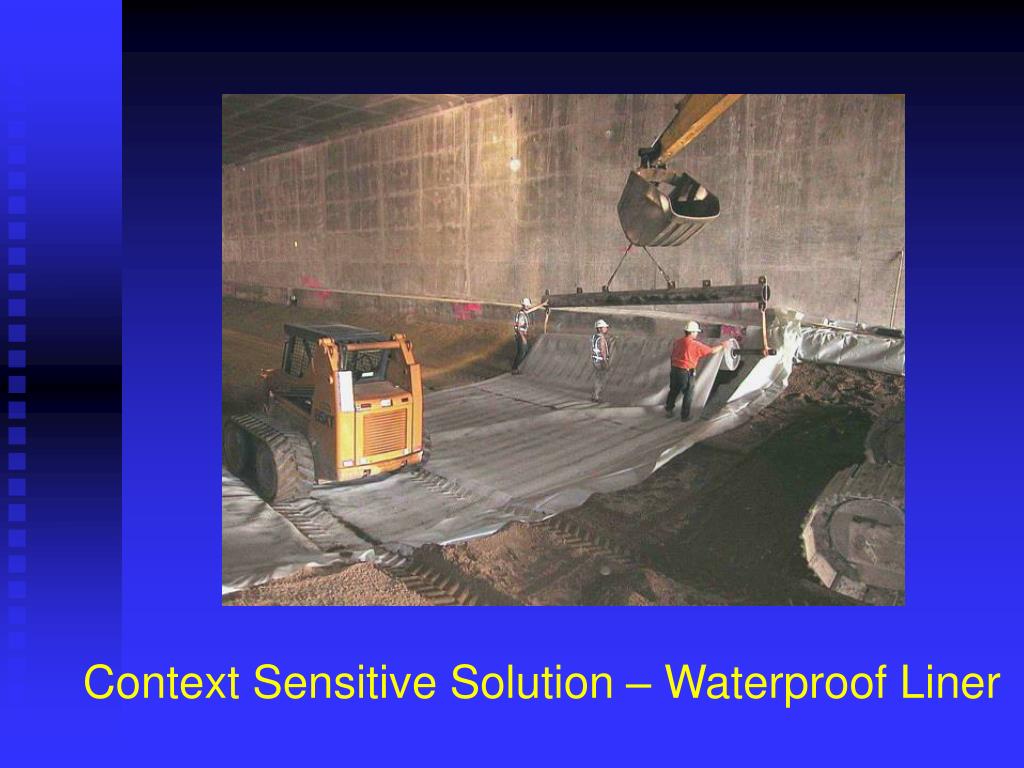

  29. Context Sensitive Solution – Waterproof Liner

  30. Thank You for your AttentionComments?
