The 7 Steps to Complete an Arc Flash Analysis

Completing an arc flash analysis with rigorous testing and inspections at every stage helps safeguard employees, protect equipment, and ensure compliance with safety standards like NFPA 70E. By following these seven steps, organizations can proactively manage electrical risks and create a safer work environment.<br>

cornerstonemiddleeast
Download Presentation

The 7 Steps to Complete an Arc Flash Analysis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. The 7 Steps to Complete an Arc Flash Analysis

  2. TABLE OF CONTENT Acquire As-Built Documentation 01 • Field Verify 02 • Load Information 03 • Run a Short Circuit Study 04 • Perform a Coordination Study 05 • Evaluate Arc Flash 06 • Evaluate the System 07

  3. Performing a thorough arc flash analysis is essential for workplace safety and compliance with electrical safety standards. Testing and inspections at every stage ensure accuracy, reducing the risk of hazardous incidents. Let’s break down each step to understand how to conduct a complete analysis, from data collection to system evaluation. 01

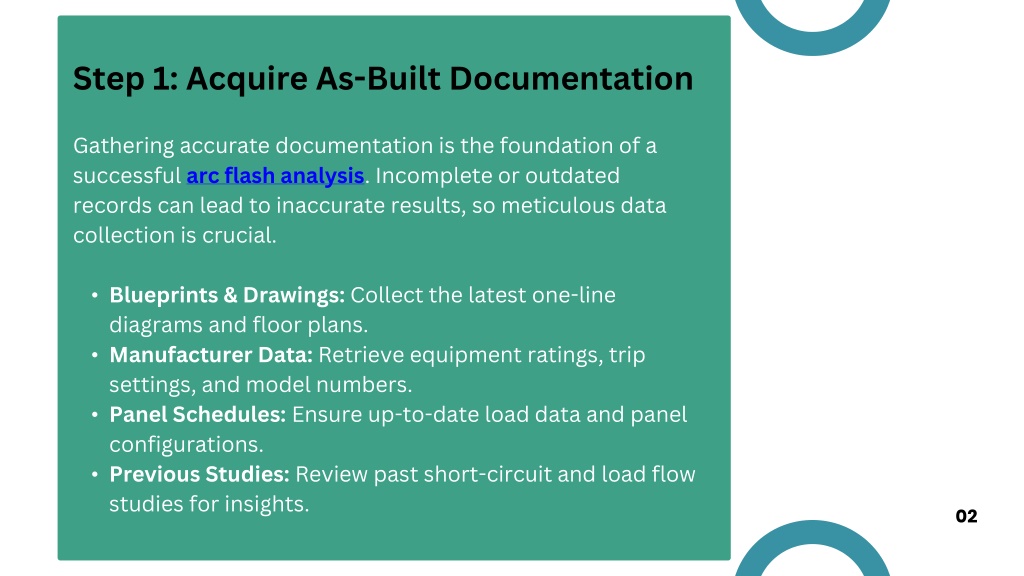

  4. Step 1: Acquire As-Built Documentation • Gathering accurate documentation is the foundation of a successful arc flash analysis. Incomplete or outdated records can lead to inaccurate results, so meticulous data collection is crucial. • Blueprints & Drawings: Collect the latest one-line diagrams and floor plans. • Manufacturer Data: Retrieve equipment ratings, trip settings, and model numbers. • Panel Schedules: Ensure up-to-date load data and panel configurations. • Previous Studies: Review past short-circuit and load flow studies for insights. 02

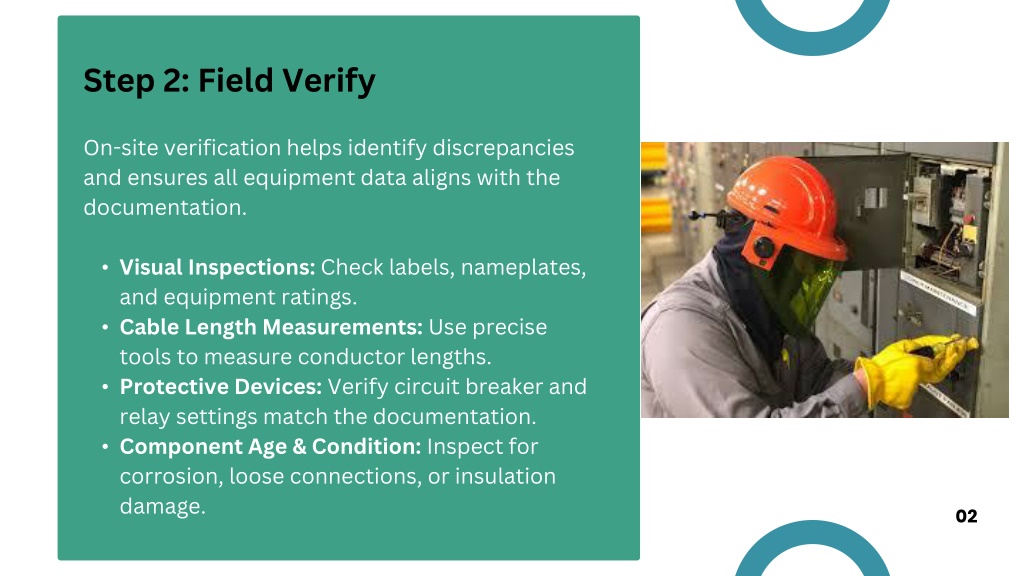

  5. Step 2: Field Verify • On-site verification helps identify discrepancies and ensures all equipment data aligns with the documentation. • Visual Inspections: Check labels, nameplates, and equipment ratings. • Cable Length Measurements: Use precise tools to measure conductor lengths. • Protective Devices: Verify circuit breaker and relay settings match the documentation. • Component Age & Condition: Inspect for corrosion, loose connections, or insulation damage. 02

  6. Step 3: Load Information • Accurate load data is key to precise arc flash analysis calculations, helping assess system performance under real-world conditions. • Current Load Measurements: Use power meters to capture real-time values. • Peak Demand Data: Analyze historical demand to account for extreme scenarios. • Harmonics & Power Factor: Measure distortions and inefficiencies that affect calculations. • Backup Power Systems: Include the impact of generators, ATS switches, and UPS systems. 04

  7. Step 4: Run a Short Circuit Study • Calculating fault currents helps determine the potential severity of an arc flash incident and ensures equipment is properly rated. • Fault Current Calculations: Use software to model various fault conditions. • Utility Contribution: Collaborate with the utility provider to get accurate fault current data. • Worst-Case Scenarios: Simulate equipment failures and extreme loads. • Equipment Ratings Check: Ensure switchgear, cables, and transformers can handle fault currents without failure. 05

  8. Step 5: Perform a Coordination Study • A coordination study fine-tunes protective devices to clear faults quickly, minimizing damage and injury risks. • Time-Current Curves: Overlay curves to understand breaker and relay trip sequences. • Protection Zones: Define zones of protection to avoid cascading failures. • Device Settings: Adjust trip points, delays, and relay curves for optimal protection. • Selective Coordination: Balance safety with operational uptime by coordinating settings to isolate faults. 05

  9. Step 6: Evaluate Arc Flash • Calculating the incident energy is a core part of arc flash analysis, as it determines the level of hazard and necessary safety measures. • Incident Energy Calculations: Use IEEE 1584 standards for precise results. • Arc Flash Boundaries: Define distances where PPE is required to prevent injury. • PPE Requirements: Specify the exact class of protective clothing, gloves, and face shields. • Labeling & Signage: Create detailed warning labels with incident energy, approach limits, and required PPE. 05

  10. Step 7: Evaluate the System • The final step is a thorough system review to ensure all findings are accurate, safety measures are in place, and personnel are trained. • Final Inspections: Conduct detailed walkthroughs to verify all components. • Documentation Updates: Update one-line diagrams, study reports, and device settings. • Training & Safety Plans: Educate staff on how to interpret arc flash labels and use PPE correctly. • Periodic Reviews: Schedule regular inspections and re-evaluate after equipment changes. 05

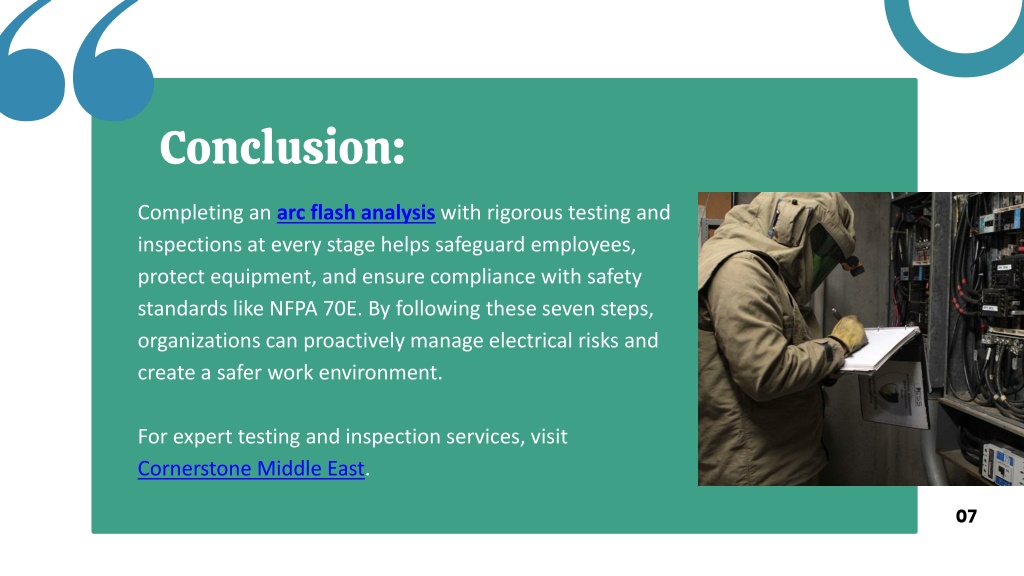

  11. Conclusion: Completing an arc flash analysis with rigorous testing and inspections at every stage helps safeguard employees, protect equipment, and ensure compliance with safety standards like NFPA 70E. By following these seven steps, organizations can proactively manage electrical risks and create a safer work environment. For expert testing and inspection services, visit Cornerstone Middle East. 07

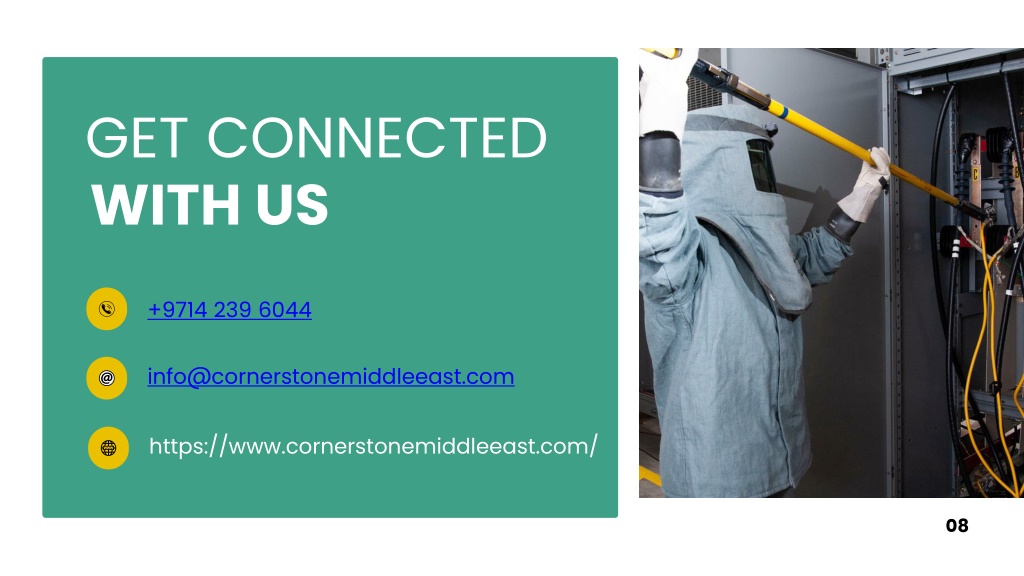

  12. GET CONNECTED WITH US +9714 239 6044 info@cornerstonemiddleeast.com https://www.cornerstonemiddleeast.com/ 08
