RF2TTC ReviewMay 2006

TTC meeting, 2nd of May 2006

slide2
Receiver Crate
  • Functionalities
  • Design
  • AOB

TTC meeting, 2nd of May 2006

receiver crate overview

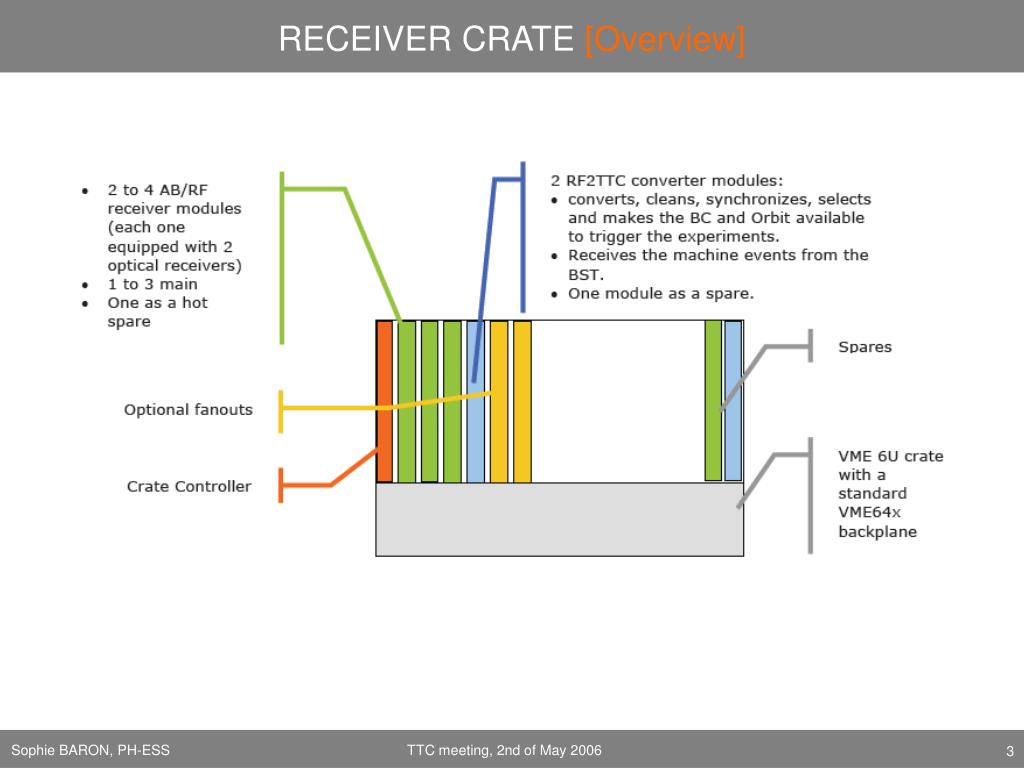

RECEIVER CRATE [Overview]

TTC meeting, 2nd of May 2006

receiver crate location

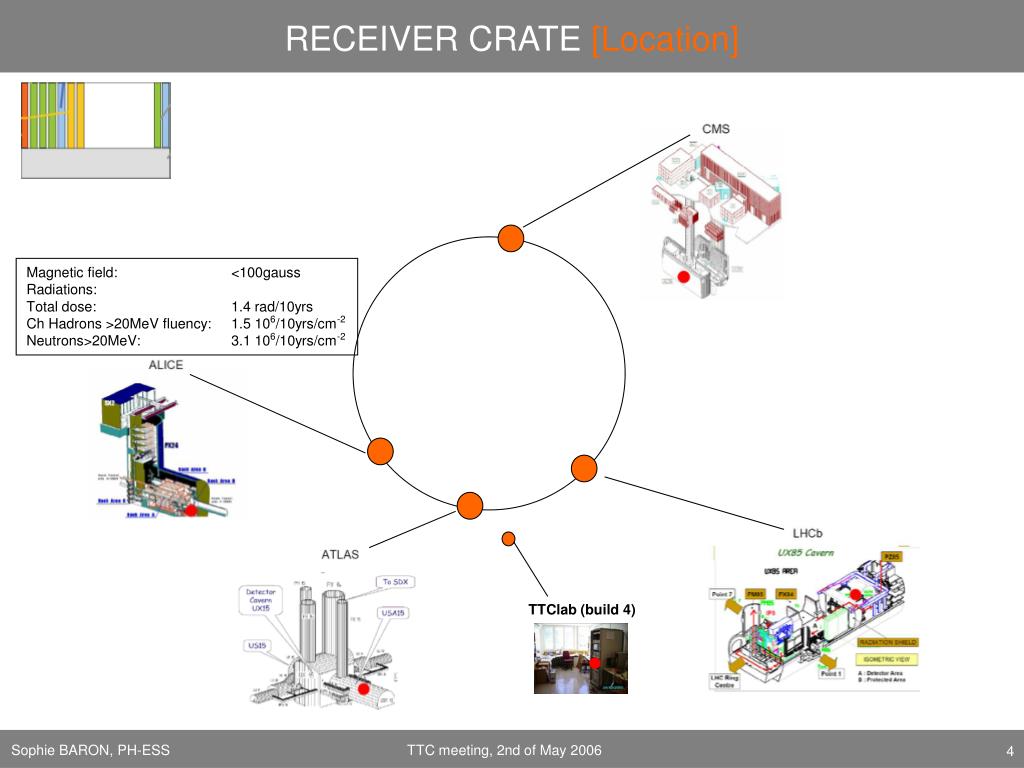

RECEIVER CRATE [Location]

Magnetic field: <100gauss

Radiations:

Total dose: 1.4 rad/10yrs

Ch Hadrons >20MeV fluency: 1.5 106/10yrs/cm-2

Neutrons>20MeV: 3.1 106/10yrs/cm-2

TTClab (build 4)

TTC meeting, 2nd of May 2006

receiver crate crates
RECEIVER CRATE [Crates]
  • ATLAS, CMS, LHCb:
    • 1 LHC standard 6U VME crate per experiment
    • Power supply type OP06.0710 (+3.3V/100A, +5V/100A, +-12V/10A, 48V/12A)
  • ALICE:
    • 1 ALICE Trigger standard 6U VME crate (water cooled)
    • Power supply type changed from 0P17.0711 to 0P17.0701(+3.3V/100A, +5V/100A, +/-12V/10A)
  • TTC lab:
    • 1 LHC standard 6U VME crate per experiment
    • Power supply type OP06.0710 (+3.3V/100A, +5V/100A, +-12V/10A, 48V/12A)
  • RF:
    • Use VME64 crates (no P3V3).
    • RF2TTC and fanout modules use +3V3, +5V and +-12V
    • RF_Tx and RF_Rx use only +5V and +-12V

TTC meeting, 2nd of May 2006

receiver crate crate controllers
RECEIVER CRATE [Crate Controllers]
  • ALICE:
    • Standard VP315/317 from CCT
  • ATLAS:
    • Standard VP110 from CCT
  • CMS:
    • CAEN PCI-controller card A2818 + V2718 VME-PCI optical bridge
  • LHCb:
    • CAEN V1718 VME-USB bridge

All these modules are POOL items. One of each will be reserved as from August 06.

The TTClab is equipped with a VP110.

TTC meeting, 2nd of May 2006

receiver crate rf analog links
RECEIVER CRATE [RF Analog Links]
  • Analog Modules
    • Transmitter module: RF_Tx_A (EDA-01331)
    • Receiver module: RF_Rx_A (EDA-01332)
  • Miteq links validated
      • Specs:
        • Freq max: 3GHz (typ)
        • Vin: 10dBm (max)
        • Vout: 10dBm (max)
      • Measured Phase Noise:
        • 400MHz -> 0.4ps (pkpk)
        • 40MHz -> 0.4ps (pkpk)
        • 10MHz -> 13ps (pkpk)

More results in the evaluation report

      • Typical output levels:
        • Bunch Clock = 0dBm continuous sinewave
        • Orbit = 1Vpk pulse on 50 Ohms
      • Quantities:
        • 10 links have been ordered in November05
        • 10 to be ordered soon

=> Enough to work until 2007

TTC meeting, 2nd of May 2006

receiver crate rf analog links1
RECEIVER CRATE [RF Analog Links]
  • 6U 4TE VME (VME 64x and VME 64 compatible)
    • 3 internal registers
      • Power warning led threshold (RW)
      • CH1Power monitoring (Read Only)
      • CH2 Power monitoring (Read Only)
    • Manual or geographical addresses
    • Emi Filters on each laser power pin
    • FPGA programmed using VHDL/ Visual Elite to match the AB/RF requirements
    • Heat sink required to keep the Miteq Rx and Tx at about 35 C Deg.

TTC meeting, 2nd of May 2006

receiver crate rf analog links2
RECEIVER CRATE [RF Analog Links]
  • Power consumption:
  • Component price/ dual module
  • Some layout changes on-going
  • following the review done with AB/RF
  • PCB manufacture to begin this week

TTC meeting, 2nd of May 2006

receiver crate rf digital links
RECEIVER CRATE [RF Digital Links]
  • Digital Modules (RF_Tx_D and RF_Rx_D)
    • First test boards made with PHOTON 155Mbps/TRR-1B43 pair
      • Performance evaluated on the same setup than the analog links
      • Results available in the test report
      • AB/RF agreed that this could be a cheaper solution for 70% of the links, including the TTC
      • If the final results are as good as expected, they will use this solution for these 70% and maintain the boards the same way.
    • Optical components identified and ordered
      • Photon getting obsolete
      • AMS components pin compatible components
      • Price:
        • Orbit, 10MHz, 40MHz: 156Mbps links
        • 400MHz: 1.2Gbps
    • Design on-going (PH/ESS).
      • Close to the analog boards, but higher density.

TTC meeting, 2nd of May 2006

receiver crate client modules
RECEIVER CRATE [Client modules]

Custom modules:

  • ATLAS CTP
  • TTCci
  • ..
  • To have a full compatibility with all the client modules,
  • The BC_out signals can be ECL AC coupled
  • The Orbit_out signals need to be NECL DC coupled

TTC meeting, 2nd of May 2006

receiver crate ttc clock fanout
RECEIVER CRATE [TTC Clock fanout]
  • TTC Clock fanout(EDA-01240-V1, PH/MIC)
    • Dual 1:18 ECL fanout
    • 4 NIM outputs per input (ALICE requirement)
    • 1 status led per input (presence of clock).
    • Maximum density
    • The 2 dual modules can be daisy chained.
    • Fully AC coupled

Prototype produced

  • Power: 5V-5A,
  • Jitter: In/Out skew=8ps rms, Cy2Cy=11ps rms
  • Skew between outputs: a few ps

Design needs to be adjusted to be ‘orbit-compliant’ (AC -> DC coupling)

TTC meeting, 2nd of May 2006

slide13
Receiver Crate
  • Functionalities
  • Design
  • AOB

TTC meeting, 2nd of May 2006

functionalities inputs outputs
FUNCTIONALITIES [Inputs/Outputs]
  • VME 6U module
  • 1 slot if possible
  • Inputs
    • 3 BC inputs (SMA or Lemo00) (RF signals)
    • 2 Orbit inputs (RF signals)
    • 1 Optical input for the BST signals
  • Outputs (can be discussed)
    • 4 ECL BC outputs (BC1, BC2, BCref, MainBC)
      • AC coupled
    • 4 NIM copies
    • 3 NECL Orbit outputs (Orb1, Orb2, MainOrb)
      • DC coupled
      • Synchronised respectively to BC1, BC2, MainBC
    • 3 NIM copies
  • Status leds

TTC meeting, 2nd of May 2006

functionalities block diagram
FUNCTIONALITIES [Block Diagram]

Adjustable

Reset possible

Monitored via a

VME register

Status Led

TTC meeting, 2nd of May 2006

functionalities vme interface
FUNCTIONALITIES [VME Interface]
  • VME Interface
    • D32/A32 access mode (AM 0x09)
    • 8 bits of board address (A31-A24) (2 rotary switches).
    • Geographical addresses usable if the manual address is 0x00 (reloaded at power up or by sysreset)
    • Interrupts are possible, but have to remain optional. They may not be handled by every types of VME controllers.

TTC meeting, 2nd of May 2006

functionalities signal adjustments
FUNCTIONALITIES [Signal Adjustments]
  • Adjustable parameters (via VME registers)
    • BC1, BC2, BCref
      • Adjustable level on the comparator input
      • Multiplexing between each input and the internal 40.078MHz clock
      • Adjustable phase shift (steps of 0.5ns)
    • Main BC
      • Multiplexing between BC1, BC2, BCref and internal clock
      • Adjustable phase shift (steps of 0.5ns)
    • Orbit1 and Orbit2
      • Adjustable level on the comparator input to match various types of signals
      • Adjustable phase shift before the latching with the corresponding BC
      • Multiplexing between each input and an internal counter
      • Adjustable length
      • Adjustable coarse delay (steps of 25ns)
      • Adjustable phase shift (steps of 0.5ns) before the output
    • Main Orbit
      • Multiplexing between the two orbit sources and an internal counter
      • Adjustable length
      • Adjustable coarse delay (steps of 25ns)
      • Adjustable phase shift (steps of 0.5ns) before the output

TTC meeting, 2nd of May 2006

functionalities status remote control
FUNCTIONALITIES [Status & Remote Control]
  • Board status data
    • Read only registers: Orbit available, QPLL lock, TTC ready, machine mode
    • Leds: selected signals, QPLL lock, available orbit, VME access, VME berr, BST signal ready...
  • Remote control of the adjustments
    • Orbit comparator level/ orbit dephasing: FIFO containing the 128 last BC counts between two consecutive Orbit signals (ideally 3564 each). The content of this FIFO can indicate a bad level on the comparator, a dephasing, a wrong synchronisation. This FIFO is filled at reception of a VME command.
    • Clock status: QPLL status indicates if the clock is absent or if the comparator level is wrong. Would some other ways being required?
    • Orbit counter, 32 bits (106 hours). Could be reset, either manually, or at the beginning of a run if required

TTC meeting, 2nd of May 2006

functionalities working modes
FUNCTIONALITIES [Working modes]

Beam Dump

Beam Dump

E(450GeV -> 7TeV)

E(450GeV -> 7TeV)

time

injection

~15 min

ramping

~28 min

squeeze

~15 min

physics

~10-20 H

  • Manual and automatic modes for signal selection
    • Manual mode: the source of each output signal is manually selected
    • Automatic mode:
      • Change the selected sources according to the machine mode
      • 2 types of parameters must be configured:
        • Which machine mode is considered to be ‘run’ (ex: ramping, adjust, collide..) or ‘no run’ (beam dump, no beam, …)
        • Which source for each signal must be selected during ‘run’ or ‘no run’. Example for the Main BC: Internal clock during ‘no run’ periods, and BCref during run periods
      • 3 different configurations can be defined for the signal selection.
    • Which means:
      • 1 register to define in which mode we are (manual, auto1, auto2, auto3)
      • 1 register to define which machine mode corresponds to which state
      • 1 register to define the sources set when ‘no run’…………………
      • 3 registers to define the sources set when ‘run’ (1 per auto mode)…

Run/no run

Automode1

Automode2

Automode3

TTC meeting, 2nd of May 2006

functionalities state machine
FUNCTIONALITIES [State Machine]

Beam Dump

Beam Dump

E(450GeV -> 7TeV)

E(450GeV -> 7TeV)

time

injection

~15 min

ramping

~28 min

squeeze

~15 min

physics

~10-20 H

Run/no run

Automode1

Automode2

Automode3

Manual

TTC meeting, 2nd of May 2006

functionalities register map 1
FUNCTIONALITIES [register map -1]

Bunch Clocks registers

TTC meeting, 2nd of May 2006

functionalities register map 2
FUNCTIONALITIES [register map -2]

Orbit registers

TTC meeting, 2nd of May 2006

functionalities register map 3
FUNCTIONALITIES [register map -3]

Orbit registers

TTC meeting, 2nd of May 2006

functionalities register map 4
FUNCTIONALITIES [register map -4]

BST registers

TTC meeting, 2nd of May 2006

functionalities register map 5
FUNCTIONALITIES [register map -5]

General registers

TTC meeting, 2nd of May 2006

functionalities register map 6
FUNCTIONALITIES [register map -6]

Commands

TTC meeting, 2nd of May 2006

slide27
Receiver Crate
  • Functionalities
  • Design
  • AOB

TTC meeting, 2nd of May 2006

design block diagram
DESIGN [Block Diagram]

TTC meeting, 2nd of May 2006

design technology choices
DESIGN [Technology choices]
  • ECL/LVDS components
  • LVDS 2 ECL conversion application note

ECL

(NECL, PECL, LVPECL)

LVDS (2.5V)

LVCMOS-LVTTL (3.3V)

LVCMOS (2.5V)

TTC meeting, 2nd of May 2006

design schematics features
DESIGN [Schematics & Features]

See schematics

  • Coupling considerations
  • Conversions
    • ECL2LVDS
    • LVDS2PECL
    • PECL2NIM
    • NECL2NIM
    • ECL2CMOS
  • BC & Orbit inputs
    • Coupling
    • Comparator choice
    • Voltage reference adjustment
  • Internal clock
    • Fixed oscillator
    • ECL differential clock lines
  • Orbit synchronisation process
    • Pulse lengthening

TTC meeting, 2nd of May 2006

design schematics features1
DESIGN [Schematics & Features]

See schematics

  • Use of CERN ASICS
    • Delay25
    • QPLL
  • FPGA
    • Device choice
    • Programming modes
    • Signal levels
    • Pinout and I/o Banks
    • Firmware consideration
      • VME interface => implemented in the ATLAS TRT-TTC board
      • Triple logic necessary for critical registers? (working modes, auto_config)
  • Internal communication busses
    • I2C
  • ECL output drivers
    • MC100EL89 coax cable drivers

TTC meeting, 2nd of May 2006

design schematics features2
DESIGN [Schematics & Features]

See schematics

  • Power considerations
    • Estimation
    • Solutions
  • Debugging facilities
    • Test points
    • Spare connector
    • Signal tap
  • Bugs to be corrected
    • Missing pull-up resistors
  • PCB design
    • Front Panel
    • Layout
  • Prototyping
    • Price estimation: components about 830 $
    • Quantities
    • Component procurement
    • Schedules

TTC meeting, 2nd of May 2006

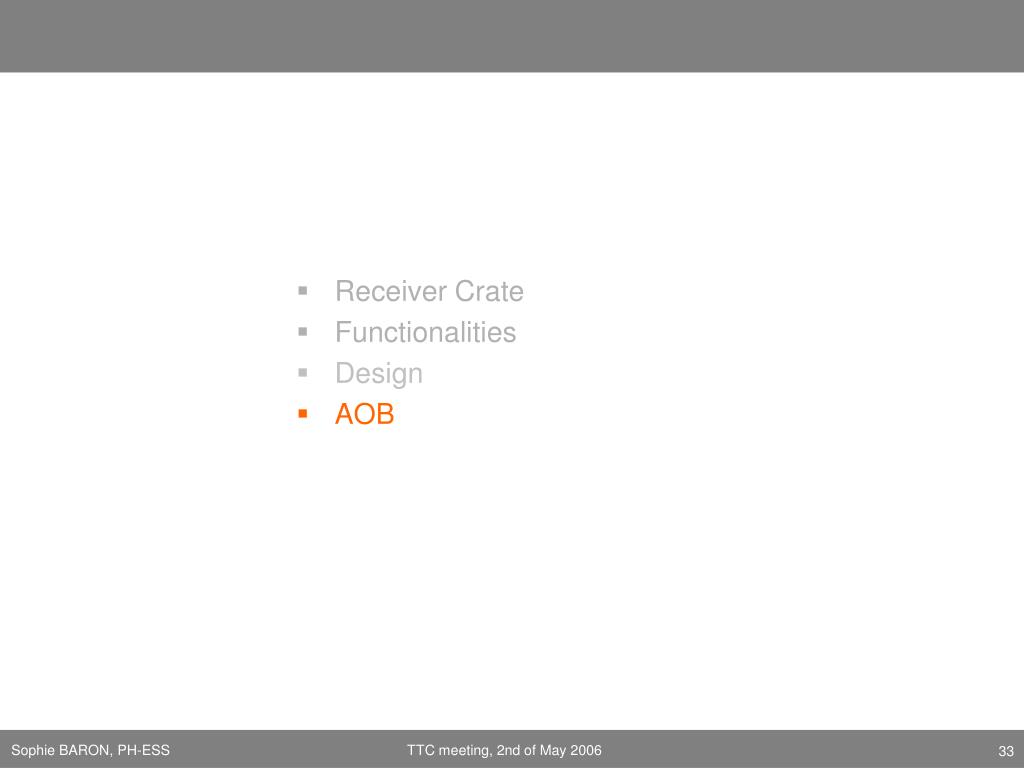

slide33
Receiver Crate
  • Functionalities
  • Design
  • AOB

TTC meeting, 2nd of May 2006
