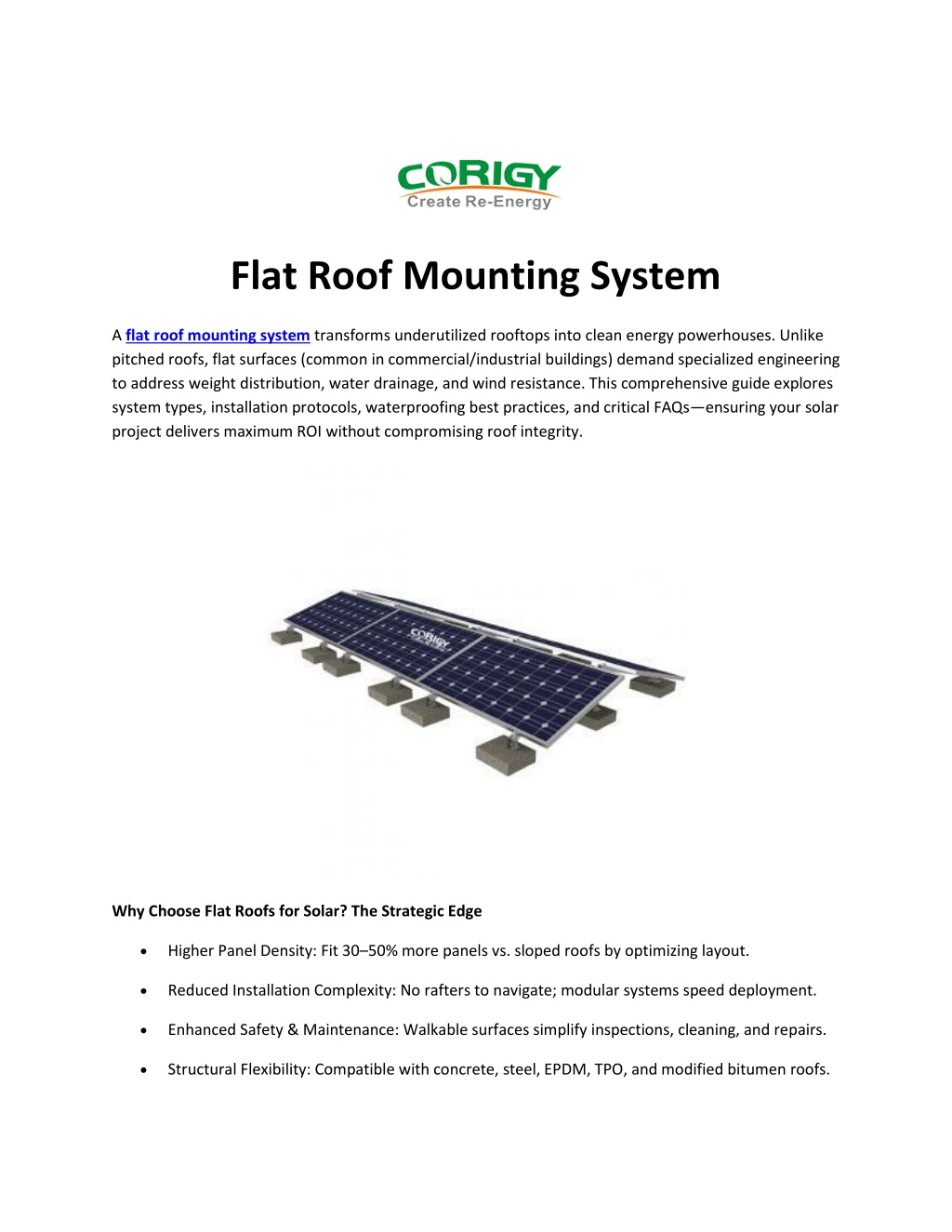

1. Flat Roof Mounting System A flat roof mounting system transforms underutilized rooftops into clean energy powerhouses. Unlike pitched roofs, flat surfaces (common in commercial/industrial buildings) demand specialized engineering to address weight distribution, water drainage, and wind resistance. This comprehensive guide explores system types, installation protocols, waterproofing best practices, and critical FAQs—ensuring your solar project delivers maximum ROI without compromising roof integrity. Why Choose Flat Roofs for Solar? The Strategic Edge  Higher Panel Density: Fit 30–50% more panels vs. sloped roofs by optimizing layout.  Reduced Installation Complexity: No rafters to navigate; modular systems speed deployment.  Enhanced Safety & Maintenance: Walkable surfaces simplify inspections, cleaning, and repairs.  Structural Flexibility: Compatible with concrete, steel, EPDM, TPO, and modified bitumen roofs.

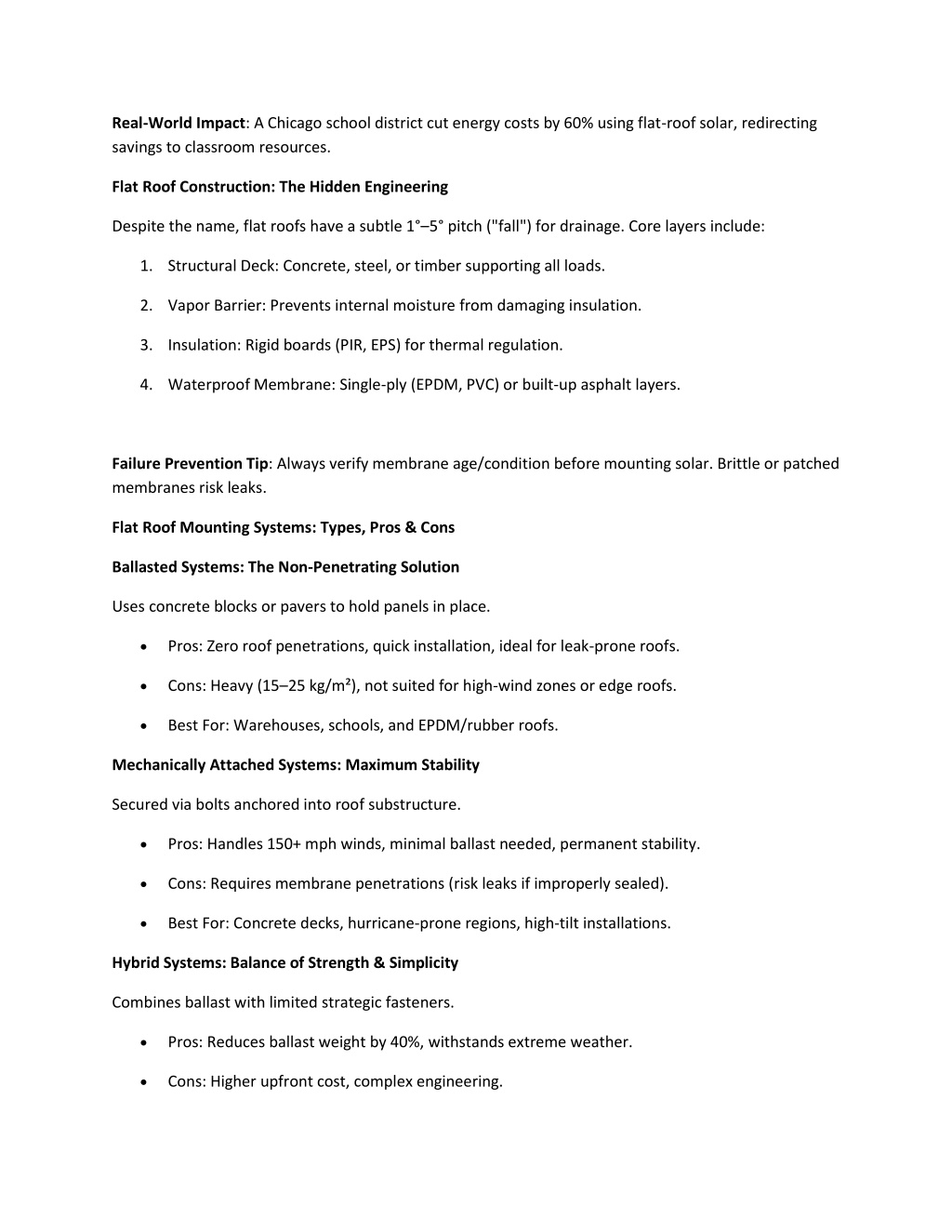

2. Real-World Impact: A Chicago school district cut energy costs by 60% using flat-roof solar, redirecting savings to classroom resources. Flat Roof Construction: The Hidden Engineering Despite the name, flat roofs have a subtle 1°–5° pitch ("fall") for drainage. Core layers include: 1.Structural Deck: Concrete, steel, or timber supporting all loads. 2.Vapor Barrier: Prevents internal moisture from damaging insulation. 3.Insulation: Rigid boards (PIR, EPS) for thermal regulation. 4.Waterproof Membrane: Single-ply (EPDM, PVC) or built-up asphalt layers. Failure Prevention Tip: Always verify membrane age/condition before mounting solar. Brittle or patched membranes risk leaks. Flat Roof Mounting Systems: Types, Pros & Cons Ballasted Systems: The Non-Penetrating Solution Uses concrete blocks or pavers to hold panels in place.  Pros: Zero roof penetrations, quick installation, ideal for leak-prone roofs.  Cons: Heavy (15–25 kg/m²), not suited for high-wind zones or edge roofs.  Best For: Warehouses, schools, and EPDM/rubber roofs. Mechanically Attached Systems: Maximum Stability Secured via bolts anchored into roof substructure.  Pros: Handles 150+ mph winds, minimal ballast needed, permanent stability.  Cons: Requires membrane penetrations (risk leaks if improperly sealed).  Best For: Concrete decks, hurricane-prone regions, high-tilt installations. Hybrid Systems: Balance of Strength & Simplicity Combines ballast with limited strategic fasteners.  Pros: Reduces ballast weight by 40%, withstands extreme weather.  Cons: Higher upfront cost, complex engineering.

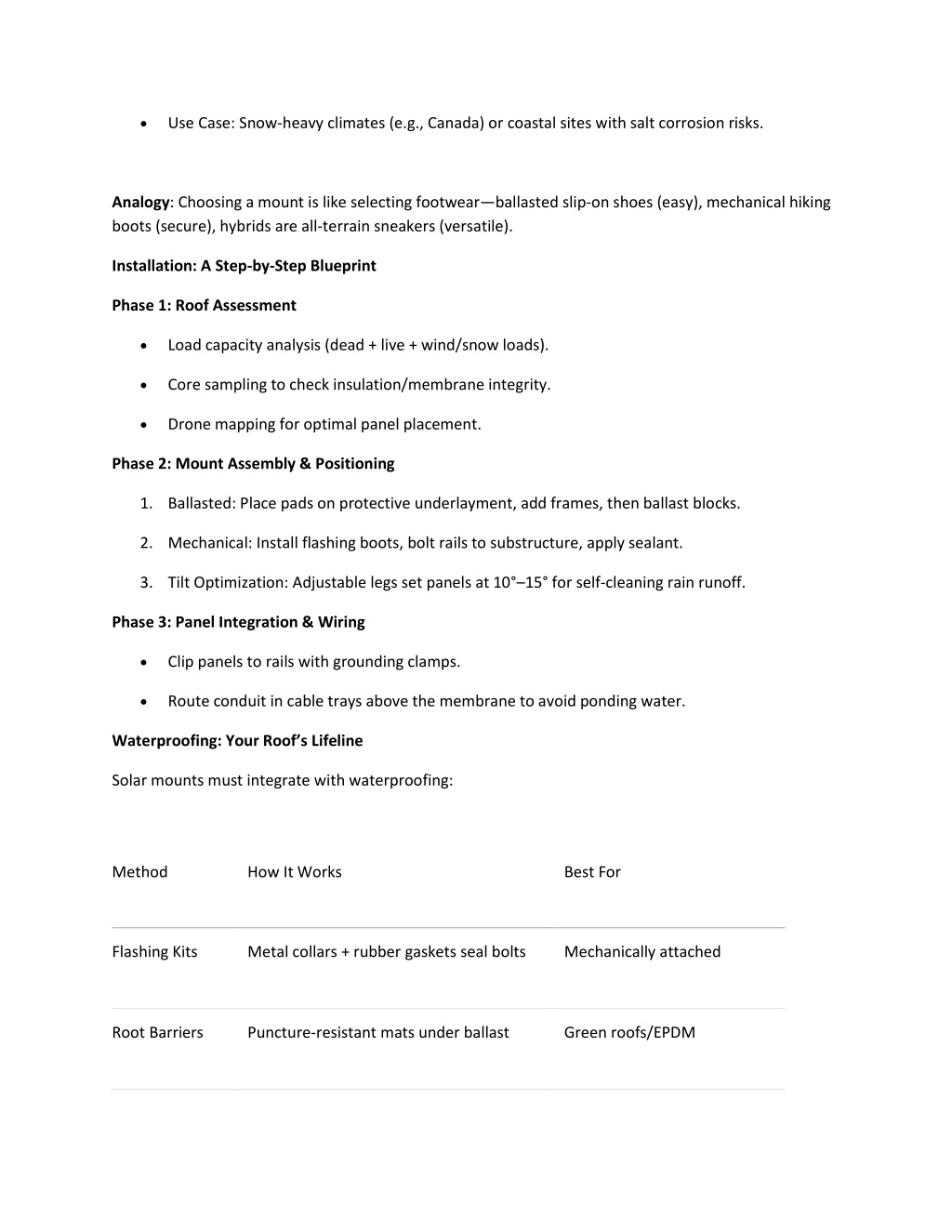

3.  Use Case: Snow-heavy climates (e.g., Canada) or coastal sites with salt corrosion risks. Analogy: Choosing a mount is like selecting footwear—ballasted slip-on shoes (easy), mechanical hiking boots (secure), hybrids are all-terrain sneakers (versatile). Installation: A Step-by-Step Blueprint Phase 1: Roof Assessment  Load capacity analysis (dead + live + wind/snow loads).  Core sampling to check insulation/membrane integrity.  Drone mapping for optimal panel placement. Phase 2: Mount Assembly & Positioning 1.Ballasted: Place pads on protective underlayment, add frames, then ballast blocks. 2.Mechanical: Install flashing boots, bolt rails to substructure, apply sealant. 3.Tilt Optimization: Adjustable legs set panels at 10°–15° for self-cleaning rain runoff. Phase 3: Panel Integration & Wiring  Clip panels to rails with grounding clamps.  Route conduit in cable trays above the membrane to avoid ponding water. Waterproofing: Your Roof’s Lifeline Solar mounts must integrate with waterproofing: Method How It Works Best For Flashing Kits Metal collars + rubber gaskets seal bolts Mechanically attached Root Barriers Puncture-resistant mats under ballast Green roofs/EPDM

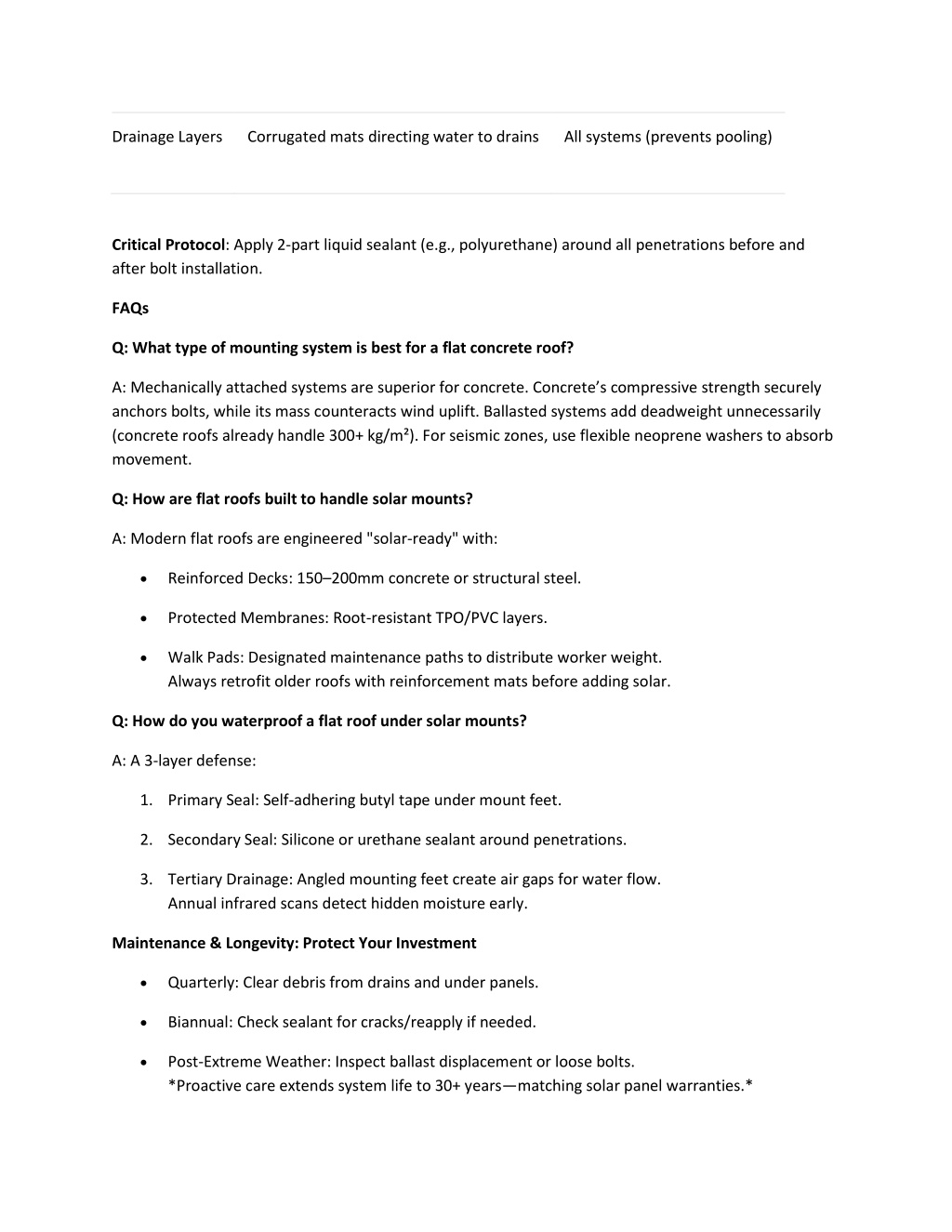

4. Drainage Layers Corrugated mats directing water to drains All systems (prevents pooling) Critical Protocol: Apply 2-part liquid sealant (e.g., polyurethane) around all penetrations before and after bolt installation. FAQs Q: What type of mounting system is best for a flat concrete roof? A: Mechanically attached systems are superior for concrete. Concrete’s compressive strength securely anchors bolts, while its mass counteracts wind uplift. Ballasted systems add deadweight unnecessarily (concrete roofs already handle 300+ kg/m²). For seismic zones, use flexible neoprene washers to absorb movement. Q: How are flat roofs built to handle solar mounts? A: Modern flat roofs are engineered "solar-ready" with:  Reinforced Decks: 150–200mm concrete or structural steel.  Protected Membranes: Root-resistant TPO/PVC layers.  Walk Pads: Designated maintenance paths to distribute worker weight. Always retrofit older roofs with reinforcement mats before adding solar. Q: How do you waterproof a flat roof under solar mounts? A: A 3-layer defense: 1.Primary Seal: Self-adhering butyl tape under mount feet. 2.Secondary Seal: Silicone or urethane sealant around penetrations. 3.Tertiary Drainage: Angled mounting feet create air gaps for water flow. Annual infrared scans detect hidden moisture early. Maintenance & Longevity: Protect Your Investment  Quarterly: Clear debris from drains and under panels.  Biannual: Check sealant for cracks/reapply if needed.  Post-Extreme Weather: Inspect ballast displacement or loose bolts. *Proactive care extends system life to 30+ years—matching solar panel warranties.*

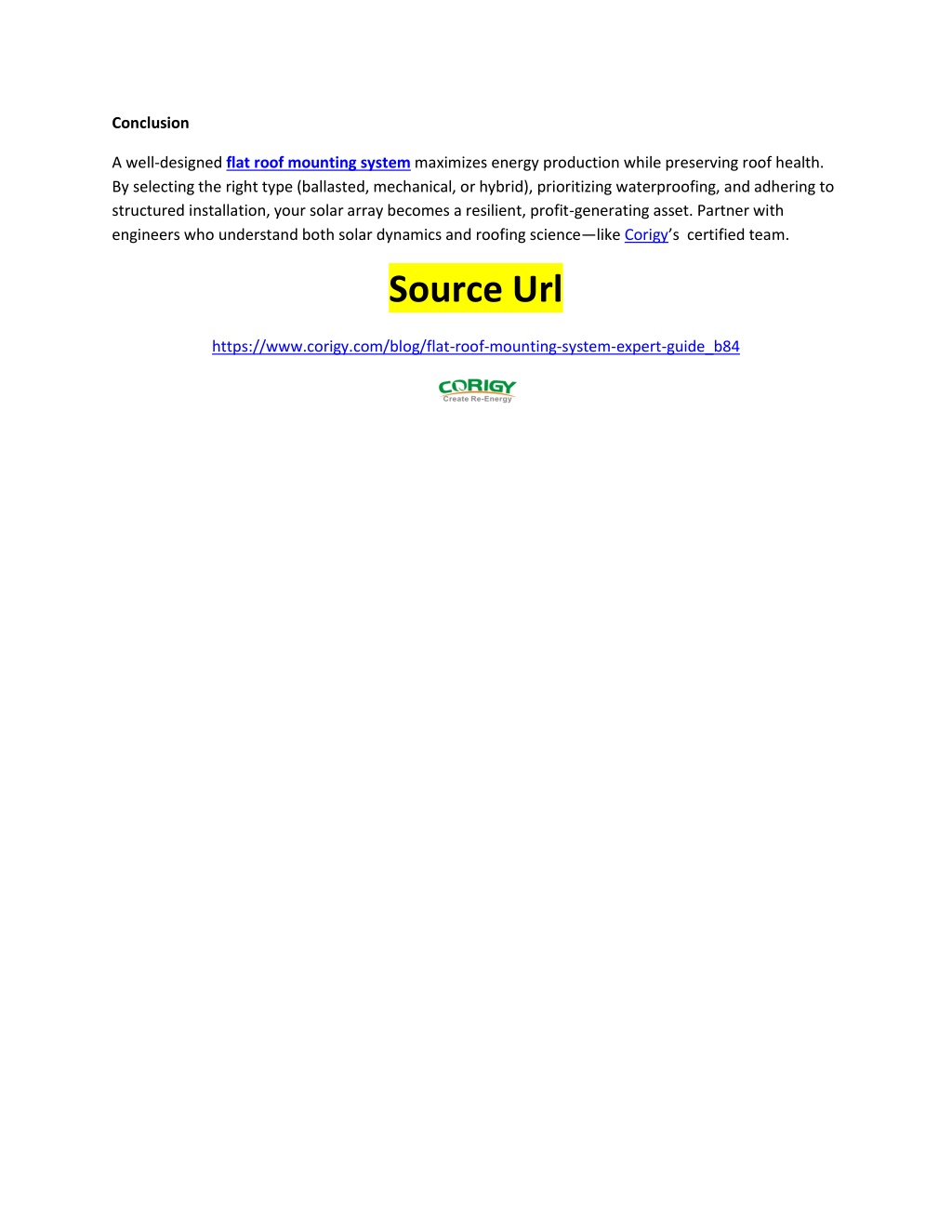

5. Conclusion A well-designed flat roof mounting system maximizes energy production while preserving roof health. By selecting the right type (ballasted, mechanical, or hybrid), prioritizing waterproofing, and adhering to structured installation, your solar array becomes a resilient, profit-generating asset. Partner with engineers who understand both solar dynamics and roofing science—like Corigy’s certified team. Source Url https://www.corigy.com/blog/flat-roof-mounting-system-expert-guide_b84
