Single-Channel-ECG-Machine-MD-SEM-1000

: Medical Deals Single Channel ECG machine has a touch screen display and supports multiple languages for user-friendly operation. It functions within temperatures of 5u2103 to 35u2103 and up to 80% humidity. Built with floating input and defibrillation protection, ensuring safe and accurate monitoring.<br>

coraldean
Download Presentation

Single-Channel-ECG-Machine-MD-SEM-1000

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

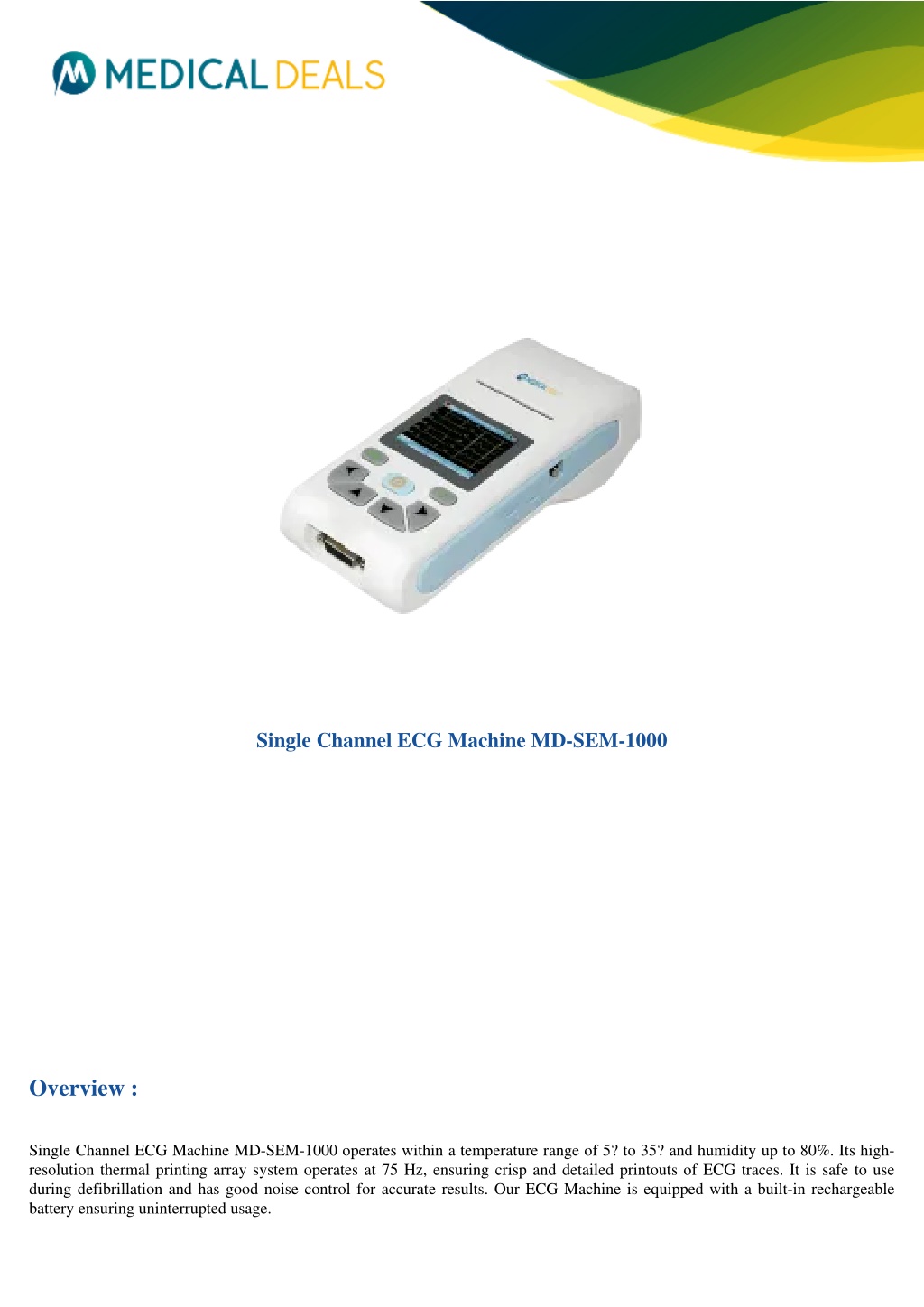

  1. Single Channel ECG Machine MD-SEM-1000 Overview : Single Channel ECG Machine MD-SEM-1000 operates within a temperature range of 5? to 35? and humidity up to 80%. Its high- resolution thermal printing array system operates at 75 Hz, ensuring crisp and detailed printouts of ECG traces. It is safe to use during defibrillation and has good noise control for accurate results. Our ECG Machine is equipped with a built-in rechargeable battery ensuring uninterrupted usage.

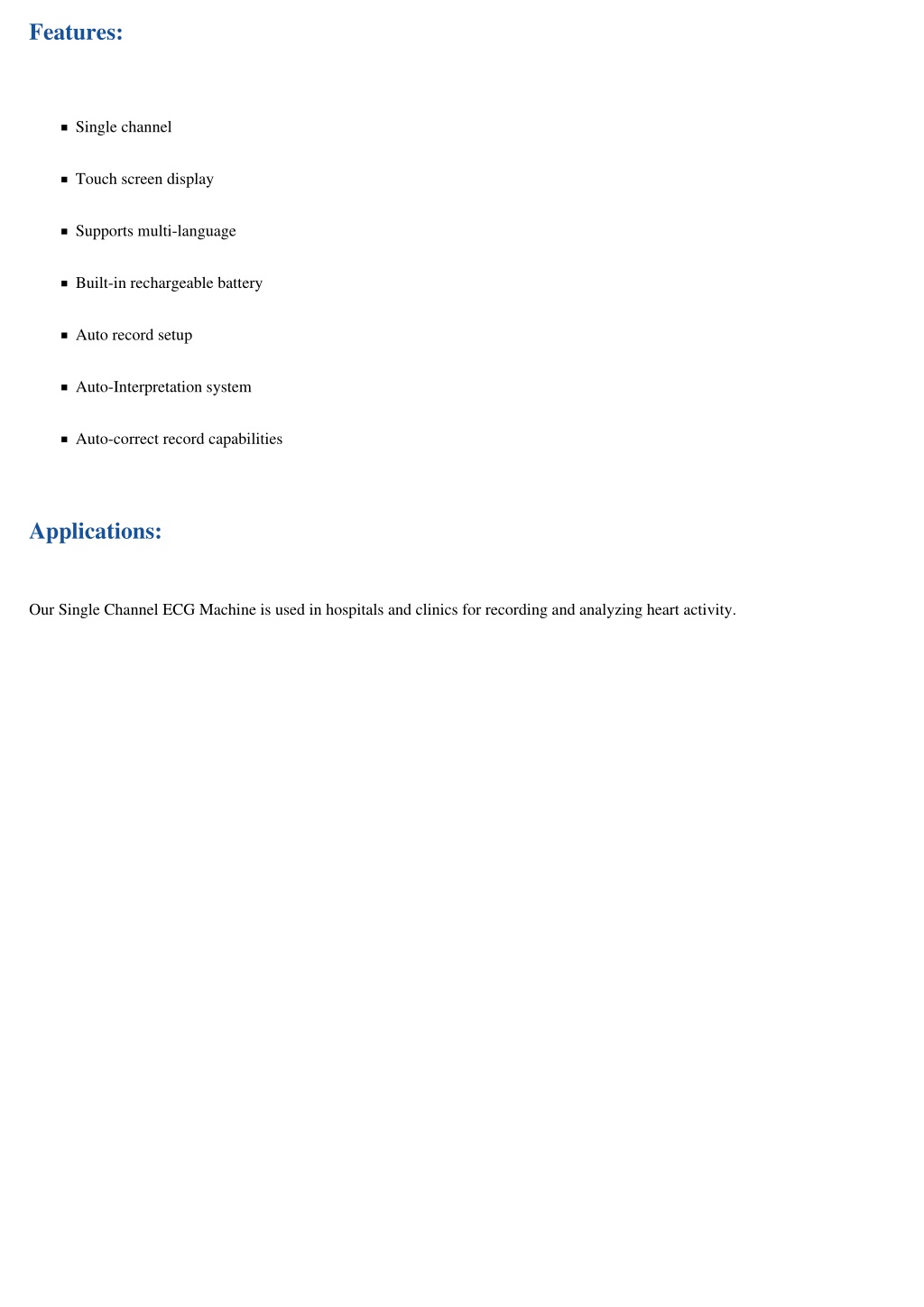

  2. Features: Single channel Touch screen display Supports multi-language Built-in rechargeable battery Auto record setup Auto-Interpretation system Auto-correct record capabilities Applications: Our Single Channel ECG Machine is used in hospitals and clinics for recording and analyzing heart activity.

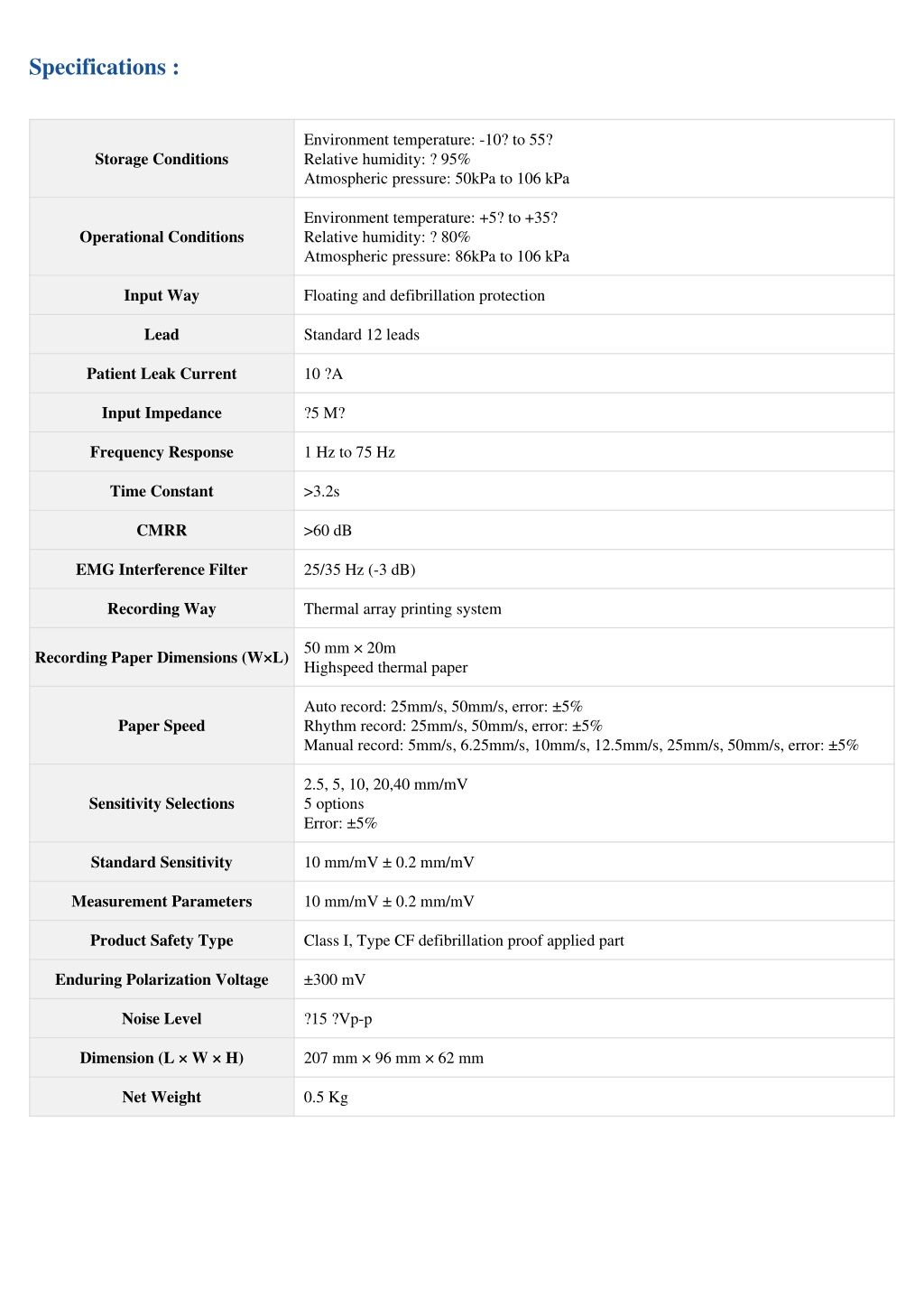

  3. Specifications : Environment temperature: -10? to 55? Relative humidity: ? 95% Atmospheric pressure: 50kPa to 106 kPa Storage Conditions Environment temperature: +5? to +35? Relative humidity: ? 80% Atmospheric pressure: 86kPa to 106 kPa Operational Conditions Input Way Floating and defibrillation protection Lead Standard 12 leads Patient Leak Current 10 ?A Input Impedance ?5 M? Frequency Response 1 Hz to 75 Hz Time Constant >3.2s CMRR >60 dB EMG Interference Filter 25/35 Hz (-3 dB) Recording Way Thermal array printing system 50 mm × 20m Highspeed thermal paper Recording Paper Dimensions (W×L) Auto record: 25mm/s, 50mm/s, error: ±5% Rhythm record: 25mm/s, 50mm/s, error: ±5% Manual record: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s, error: ±5% Paper Speed 2.5, 5, 10, 20,40 mm/mV 5 options Error: ±5% Sensitivity Selections Standard Sensitivity 10 mm/mV ± 0.2 mm/mV Measurement Parameters 10 mm/mV ± 0.2 mm/mV Product Safety Type Class I, Type CF defibrillation proof applied part Enduring Polarization Voltage ±300 mV Noise Level ?15 ?Vp-p Dimension (L × W × H) 207 mm × 96 mm × 62 mm Net Weight 0.5 Kg

  4. 156 Great Charles Street, Queensway, Birmingham, West Midlands B3 3HN, Uk Email: info@medicaldeals.com | Website: www.medicaldeals.com | Phone: +1 506 699 0674
