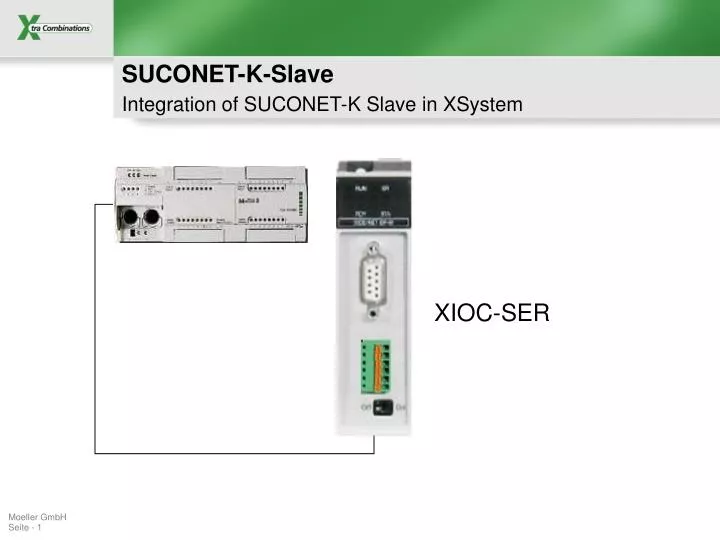

  1. SUCONET-K-Slave Integration of SUCONET-K Slave in XSystem XIOC-SER Moeller GmbH Seite - 1

  2. XIOC-SER Suconet-K Slave Product- History Moeller GmbH Seite - 2

  3. XIOC-SER Suconet-K Slave Product- Feature • XC100, XC200 • up to 2 modules in XC100 • up to 4 modules in XC200 • Interface • RS485 interface is used for Suconet-K-Slave • Removable cage clamp connector • Bus termination on board • Data exchange • 120/120 Byte for Send- / Receive data • Baud rate 187,5 / 375KB • Programming • Actual SUCOsoft S40 can be used without any changes • XSoft V2.3.2 from servicepack xc_update_04_04 Moeller GmbH Seite - 3

  4. XIOC-SER Suconet-K SlaveSystem- Feature PS4-201,341,416 • All Suconet-K1/K Master can be used • Compact PLC PS4 • Modular PLC PS416 • XC100,200 with XIOC-NET-SK-M • SUCONET-K Identification • Generic Identification A0EF is used • Next step: Identification can be set by user. Every SUCONET Station can be simulated by XC100 / XC200 EM4-201 XC100, XC200 XIOC-SER Moeller GmbH Seite - 4

  5. XIOC-SER Suconet-K SlaveConfiguration SUCOSOFT Moeller GmbH Seite - 5

  6. XIOC-SER Suconet-K SlaveConfiguration XSOFT Moeller GmbH Seite - 6

  7. XIOC-SER Suconet-K SlaveProgramming Sucosoft XSoft Moeller GmbH Seite - 7

  8. Add new technology functions XIOC-SER Suconet-K SlaveApplication example (1) Extension of existing PS4 solution with XSystem EM4-201 XC100, XC200 Moeller GmbH Seite - 8

  9. Data logging with MMC Ethernet Gateway, OPC Server, WEB-Server Ethernet XIOC-SER Suconet-K SlaveApplication example (2) Moeller GmbH Seite - 9

  10. XIOC-SER Suconet-K SlaveTechnical Data Article number: 267191 List price: 250€ LE4-501-BS1*: 360€ PS416-NET-400*: 419€ * No pure slave module for PS4/PS416 available Moeller GmbH Seite - 10

  11. XIOC-SER Suconet-K SlavePrecondition • PS4,416 : all • SUCOSOFT 4.x, 5.x • XC100: Version >= 02, Firmware >= 2.10 • XC200 Version >=04, Firmware >= 1.02 • XSoft V2.3.2 + xc_update_04_04 • Documentation: • XIOC-Signal modules AWB 2725-1452 • Funktion blocks for XSOFT AWB 2786-1456 Moeller GmbH Seite - 11
