Presentation Transcript

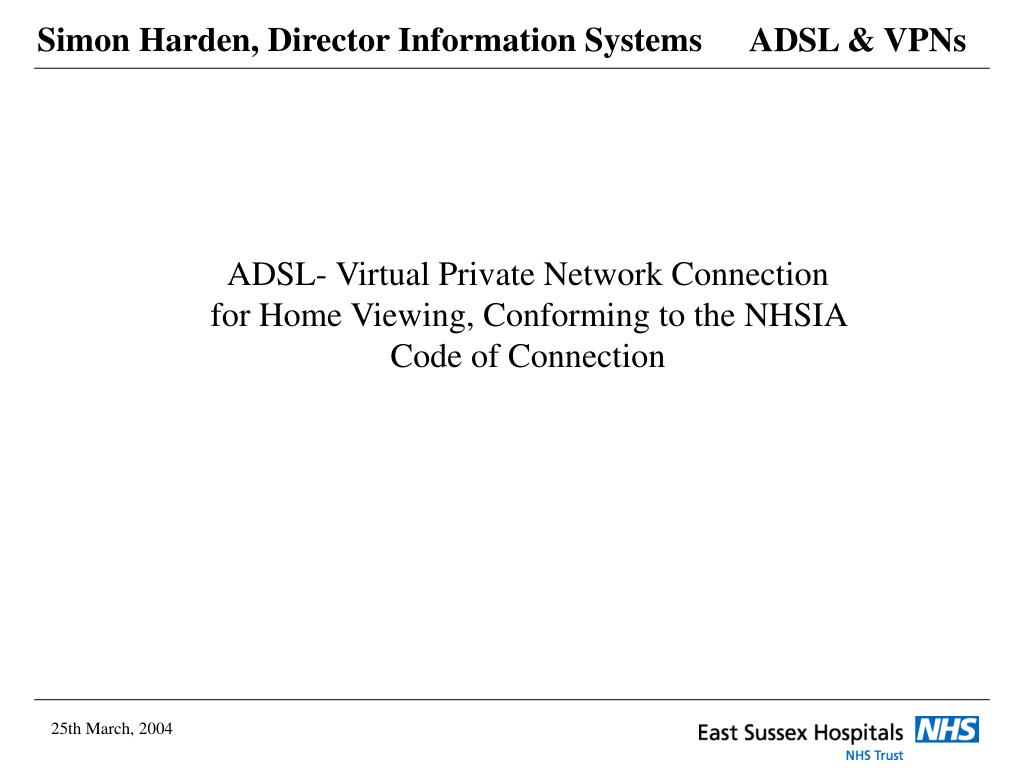

slide1

Simon Harden, Director Information Systems

ADSL- Virtual Private Network Connection for Home Viewing, Conforming to the NHSIA Code of Connection

slide2

N3 – serving the health community

N3

ADSL

Acute trust

PCT

Community site

GP

Social services

Pharmacists

Dentists

Prison services etc.

Connect over local LANs and WANs or direct to N3 as appropriate

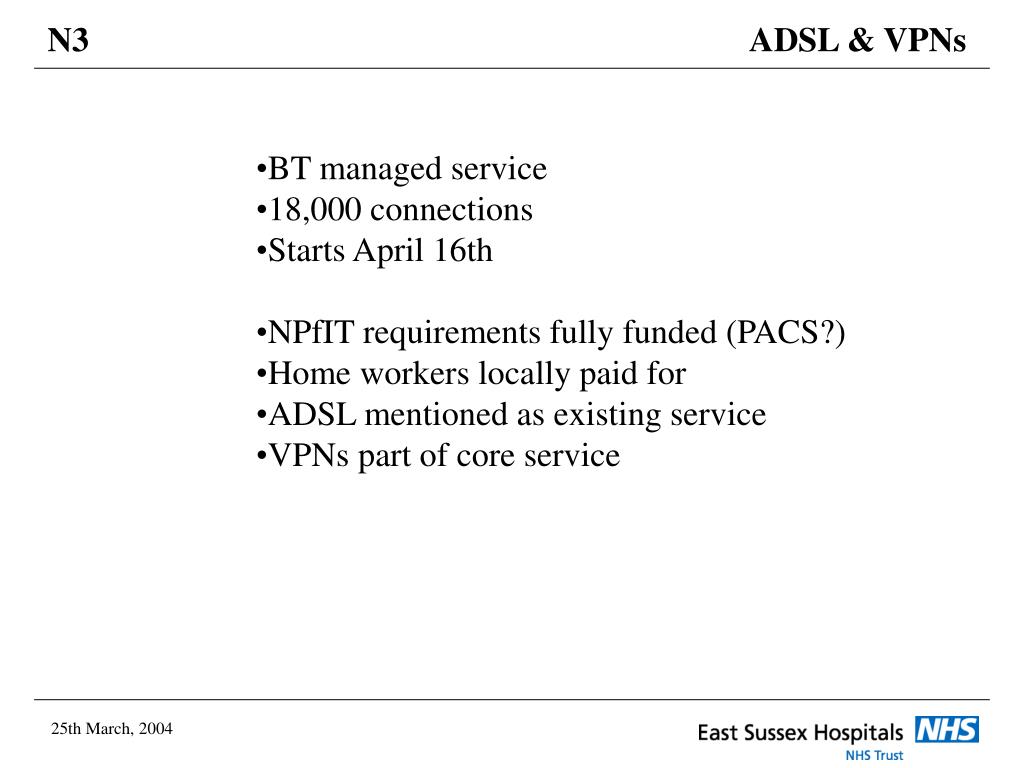

slide3

N3

  • BT managed service
  • 18,000 connections
  • Starts April 16th
  • NPfIT requirements fully funded (PACS?)
  • Home workers locally paid for
  • ADSL mentioned as existing service
  • VPNs part of core service
slide4

Initials

  • Asynchronous Digital Subscriber Line
  • 512Kb – 2Mb
  • Who is ISP?
  • Virtual Private Network
  • As if on main network
  • Encrypted
slide5

Broadband Connections

  • DSL (512Kbs upwards)
  • ISDN (128Kbs upwards)
  • Satellite (what you pay for)
  • 3MB image:
    • 56Kbs modem – 6.5m
    • 128Kbs – 3+m
    • 512Kbs - 48s
    • 2Mbs - 12s
slide6

What’s the Problem?

  • Data Protection Act
  • Caldicott confidentiality rules
  • NHSnet Code of Connection
  • Patient history
slide7

Public ADSL

  • Secure ID token or biometrics
  • Firewall with NHSIA approved rules
  • VPN to NHSIA standards
  • Independent penetration testing
  • NHS owned and managed PC
  • Firewall on PC
  • Adapted security policy
slide8

Private ADSL

  • Talk to NHSIA
  • ADSL
    • IP Central
    • Dedicated line at home
  • Simplifies some of the security
  • Can also be used for
    • Small remote sites
    • Teleradiology between sites
  • Will be superseded eventually by N3

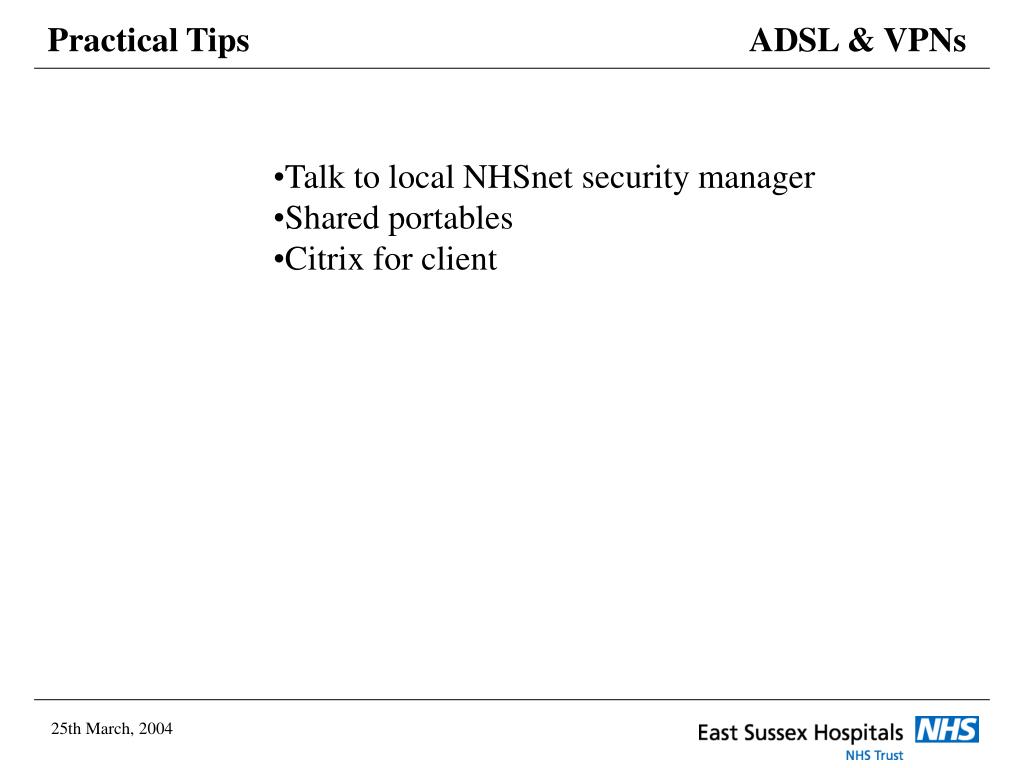

slide9

Practical Tips

  • Talk to local NHSnet security manager
  • Shared portables
  • Citrix for client
slide10


In Trust but insecure

VPN connection

& encryption

ADSL

‘modem’

Home

Firewall

In Trust and secure

NHSnet connection

Trust network

slide11

Links

General Security Guidance

http://nww.nhsia.nhs.uk/security/pages/syops/default.asp

NHSnet Code of Connection

http://nww.nhsia.nhs.uk/security/pages/syops/docs/coc.asp

Rules For Broadband Access

http://nww.nhsia.nhs.uk/nhsnet/pages/connecting/standards/default

Use of consumer broadband to Access NHSnet over the Internet

http://nww.nhsia.nhs.uk/nhsnet/pages/using/suppliers/vpn_trials.asp

N3

http://www.n3.nhs.uk
