    1. ebXML Messaging Version 3Core Specification, AS4 Profile, new Advanced Features OASIS ebXML Messaging TC

    2. Overview • Part 1: Core Specification • OASIS Standard, October 2007 • AS4 Profile • OASIS Committee Specification, April 2010 • Part 2: Advanced Features (2010) • OASIS Public Review Draft, August 2010

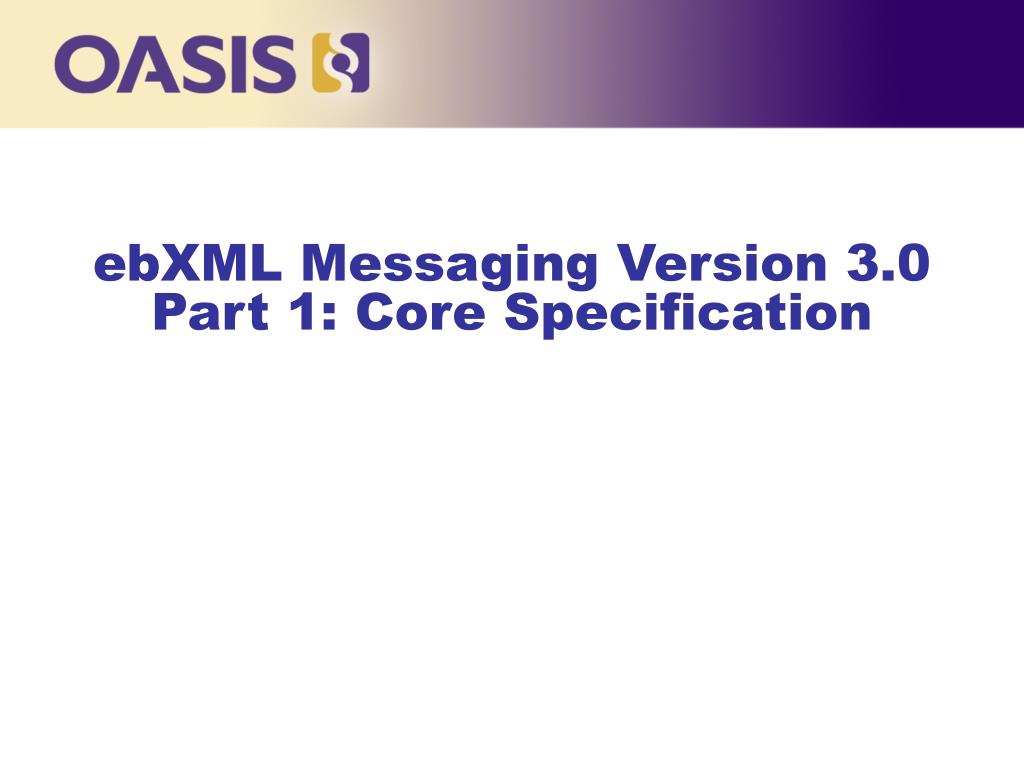

    3. ebXML Messaging Version 3.0Part 1: Core Specification

    4. ebXML Messaging 2.0 & 3.0 • Message Header with Business Metadata • Identifies Business Partners, Transaction Semantics, Context, Agreement, Properties, Payloads • Reliable Message Delivery • At-Least-Once, At-Most-Once, In-Order delivery • Security • Digital Signature and Payload Encryption • Support for Non-Repudiation of Origin & Receipt • Leverages SOAP, MIME envelopes • XML, EDI, multimedia payloads • Multiple payloads per message • Transport Protocol Mappings for HTTP and SMTP • Composition with other eBusiness Components

    5. New in ebMS 3.0 Core • Further Web Services Convergence • SOAP 1.1 or SOAP 1.2 • SOAP with Attachments or MTOM • WS-Security 1.0 or 1.1 • WS-Reliability 1.1 or WS-ReliableMessaging 1.1/1.2 • Compatible with WS-I profiles • Meets new user requirements • SME endpoints, message partitioning

    6. New ebMS 3.0 Concepts & Features • Processing Modes • Parameters for capturing, expressing, sharing configuration choices, message QoS. • Message Pull Feature • Message Receiver is Polling the Message Sender • Consumer “receives” messages by pulling them from Sender • Benefit: Supports Small and Medium Size Enterprises • Occasionally connected, no fixed IP address, behind firewalls • Message Partition Channels • Messages assigned to channels • Supports priority handling

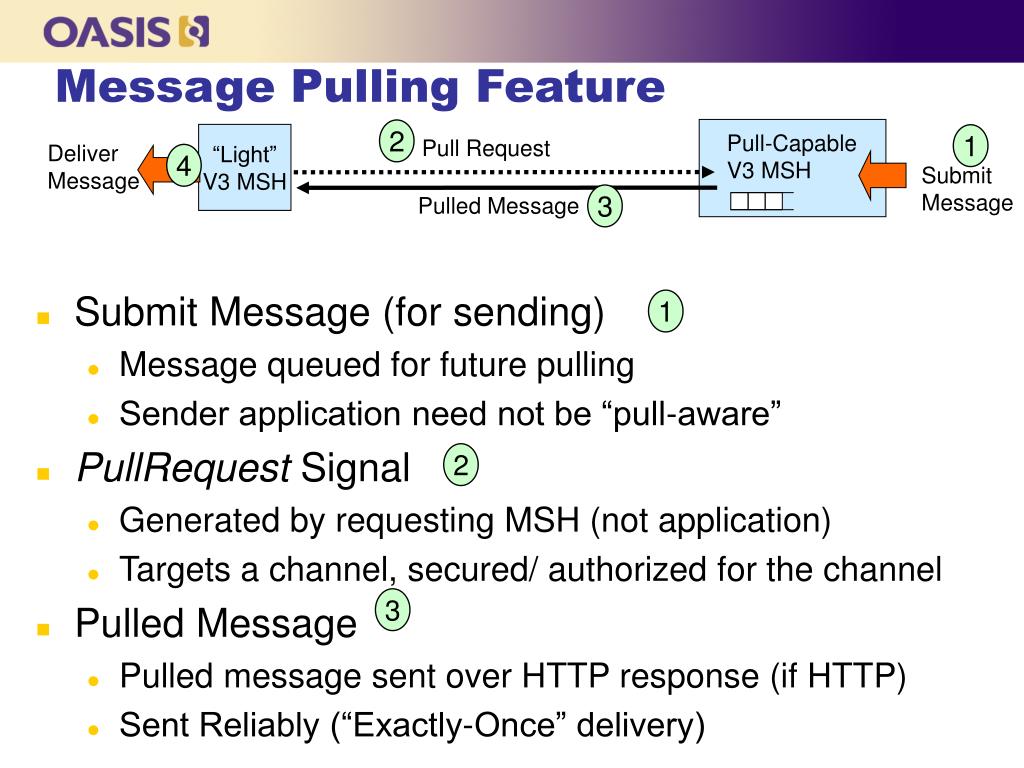

    7. Message Pulling Feature 2 Pull-Capable V3 MSH “Light” V3 MSH 1 Pull Request Deliver Message 4 Submit Message • Submit Message (for sending) • Message queued for future pulling • Sender application need not be “pull-aware” • PullRequest Signal • Generated by requesting MSH (not application) • Targets a channel, secured/ authorized for the channel • Pulled Message • Pulled message sent over HTTP response (if HTTP) • Sent Reliably (“Exactly-Once” delivery) 3 Pulled Message 1 2 3

    8. Pull Signal Submit Response Pulled Response Pulled Message Light MSH 2 Restricted / Intermittent Connectivity Light MSH 1 Application Pushed Message Deliver MSH 3 Roaming endpoints (e.g. no static IP address), or intermittently connected

    9. AS4 Profile • Timothy ??

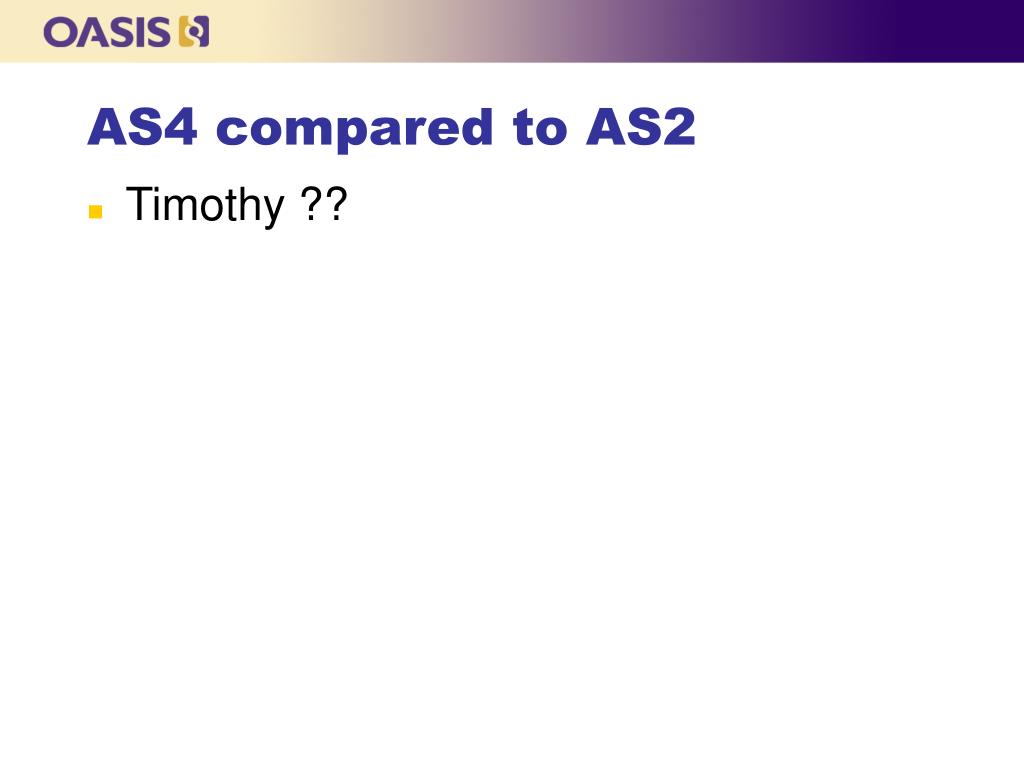

    10. AS4 compared to AS2 • Timothy ??

    11. ebMS3/AS4 Implementations • OASIS successful use statements (2007): • Axway, Fujitsu, NEC • Implementations • Cisco, Data Applications Limited, ENEA, Flame Computing, Fujitsu • (Some others not yet public – to be confirmed by Timothy) • Open Source: Holodeck • http://holodeck-b2b.sourceforge.net/

    12. End User Adoption • Japan, Electronic Commerce ALliance for Global Business Activity (ECALGA) • Japan Electronics and Information Technologies Association (JEITA) • http://ec.jeita.or.jp/eng/modules/contents01/index.php?id=3 • HL7 Version 3 Standard: Transport Specification - ebXML • http://www.hl7.org/v3ballot/html/infrastructure/transport/transport-ebxml.htm • Textile, clothing, footwear industry in Europe • http://www.ebiz-tcf.eu/

    13. ebXML Messaging 3.0 Part 2: Advanced Features OASIS ebXML Messaging TC

    14. New features in Part 2 • Multi-hop messaging (not in this presentation) • Messaging across ebMS intermediaries • Supports SME-to-SME exchanges • Message Bundling • Messages containing multiple user message units • Large Message Handling • AS2 restart and AS4 compression • New splitting, joining and message compression protocol • Variants in MEP Execution • Selective pulling, alternate MEPs

    15. Message Bundling

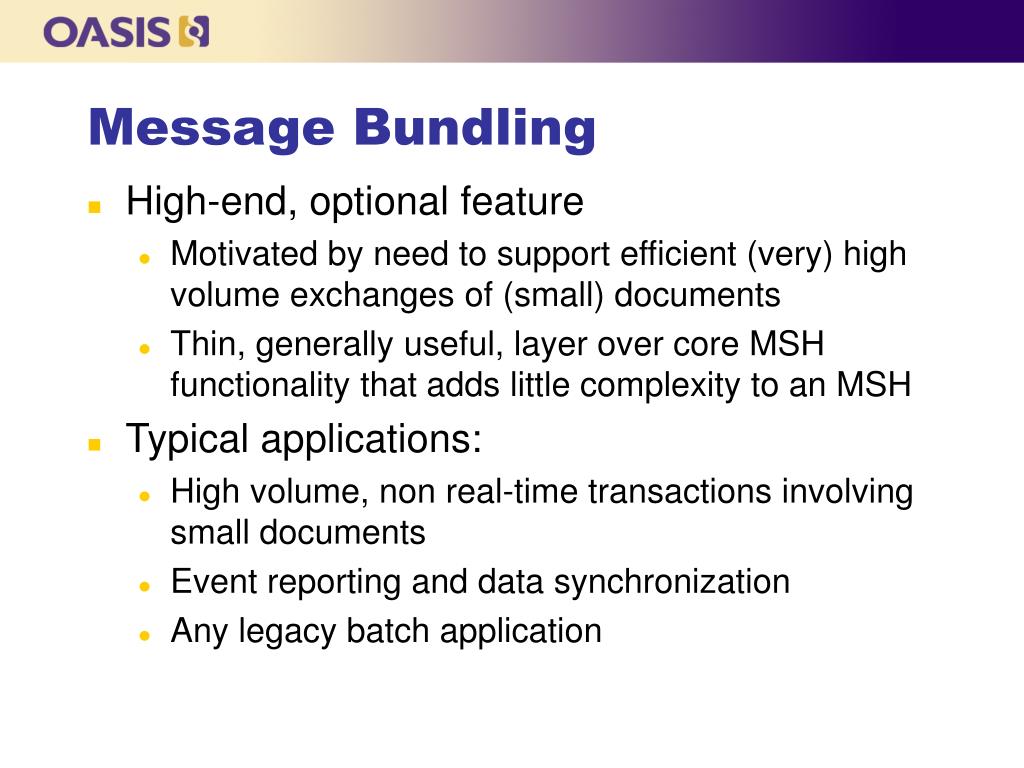

    16. Message Bundling • High-end, optional feature • Motivated by need to support efficient (very) high volume exchanges of (small) documents • Thin, generally useful, layer over core MSH functionality that adds little complexity to an MSH • Typical applications: • High volume, non real-time transactions involving small documents • Event reporting and data synchronization • Any legacy batch application

    17. A ebMS “bundle” contains multiple “user messages” Similar to EDIFACT concept of “exchanges” containing “messages” A “bundle” has no identity: Routing and processing configuration is based on a designated user message unit (the primary) Primary unit is first unit in eb3:Messaging container Other units are added as secondary units SOAP with Attachments: MIME envelope MIME part SOAP envelope / header eb3:Messaging Primary unit header Secondary unit(s) header Other SOAP header(s) for security, reliability etc. SOAP Body MIME part(s) Payload(s) related to primary message unit MIME part(s) Payload(s) related to secondary message unit(s) Message Bundling

    18. Requirements and goals • Reduce MSH processing overhead (transport, security, reliable messaging) • Bundled units are sent, forwarded and received as a whole • Both push and pull supported (sync not recommended) • Units are submitted and delivered individually • Consistent interface for applications • Bundling configuration is a partner agreement feature • Specify “compatible” units, max delay, size etc. • Error to report inconsistent bundles • Error and receipt signals reference individual units • Delivery policies define dependencies among units

    19. Bundling and SOAP Processing • SOAP processing requirements: • Bundling feature should impose limited changes to an existing Core v3 engine and its security and reliability modules • Bundling should compose with multi-hop and split, join, message compression features • Security • Single XML Signature covers payloads and the eb3:Messaging (including all units) and other SOAP headers • WS-Security signing and encryption keys are specified by primary unit Pmode • Receipt signals are generated for each unit separately • Reliable Messaging • Bundling precedes RM processing: a bundle is a single RM unit • Compatible with In-Order contract

    20. Example • Message unit type A • Compatible with A only • Max delay 60 seconds, max bundle size 5 MB • Size ranges from 10 to 40 KB • A messages units will never be secondary units, except with other A units • Message unit type B and C • Compatible with A, B and C • Max delay 10 minutes, max bundle size 5 MB • Size ranges from to 20 to 60 KB • B and C message units will be typically bundled with an A message unit if one is submitted within 9 minutes; otherwise as B/C bundles • Message unit type D • Compatible with A, B, C and D • Max delay 15 minutes, max bundle size 5 MB • Size ranges from 1 MB to 8 MB • D message units may bundle with other units if they are small, otherwise they will transmit as standalone messages

    21. Sample log file fragment from a bundling MSH (Sending MSH) 2010-08-02 22:16:12,006 INFO [bsi.handleTimeouts:2609] Expired: 7518ffa5-7366-42cf-a598-c14878af81b2@example.com (no outstanding requests) 2010-08-02 22:16:12,006 INFO [app.apply_bundling:35] Checking 4 units as candidate secondary message units for 7518ffa5-7366-42cf-a598-c14878af81b2@example.com pmode a size 18 2010-08-02 22:16:12,007 INFO [app.apply_bundling:44] 1280780220 Not bundling unit e611ae8c-5454-457d-96df-01550be752ec@example.com compatible pmode d time left 48 but size is 5798 so combined size 5816 > maxsize 5000 2010-08-02 22:16:12,007 INFO [app.apply_bundling:47] 1280780665 Bundling secondary unit 1 2d96b46f-3e63-4466-ad8b-5b8a0d752239@example.com compatible pmode d time left 493 size now 3413 2010-08-02 22:16:12,009 INFO [app.apply_bundling:47] 1280780675 Bundling secondary unit 2 3b767852-957d-4cb7-83e1-5e56ed7b1db1@example.com compatible pmode b time left 503 size now 3455 2010-08-02 22:16:12,009 INFO [app.apply_bundling:47] 1280780771 Bundling secondary unit 3 cc874b4f-0851-4249-8694-80aa5bb8fdb6@example.com compatible pmode c time left 599 size now 3477 2010-08-02 22:16:12,009 INFO [app.apply_bundling:55] Formed a bundle containing 4 unit(s): 7518ffa5-7366-42cf-a598-c14878af81b2@example.com 2d96b46f-3e63-4466-ad8b-5b8a0d752239@example.com 3b767852-957d-4cb7-83e1-5e56ed7b1db1@example.com cc874b4f-0851-4249-8694-80aa5bb8fdb6@example.com

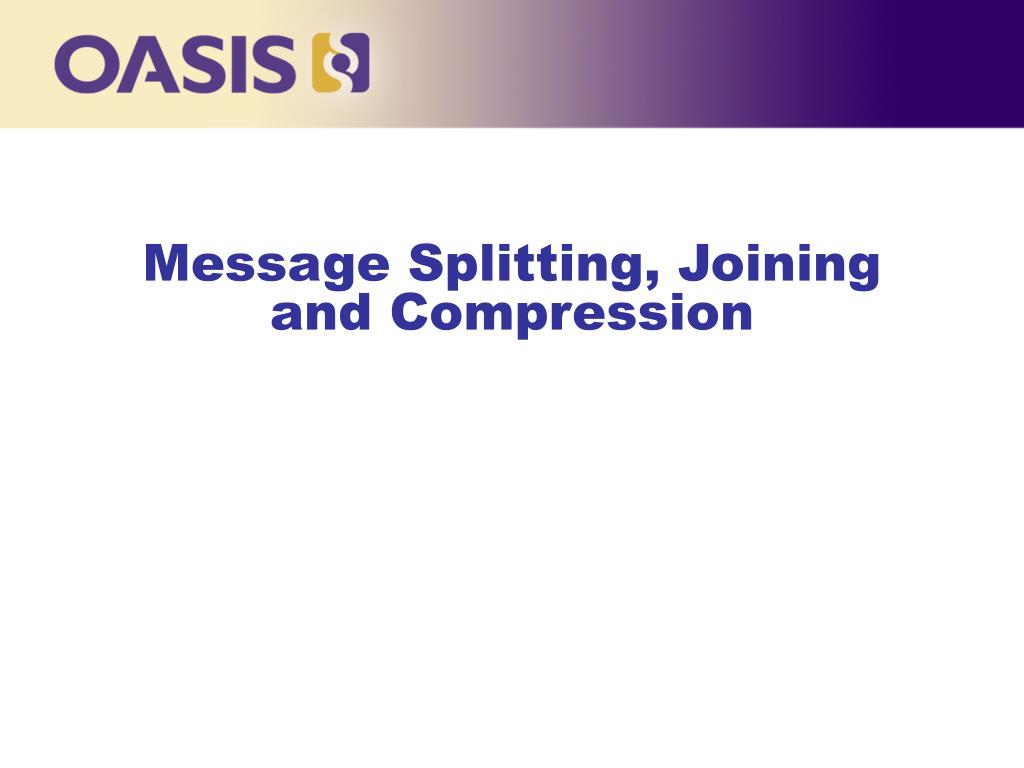

    22. Message Splitting, Joining and Compression

    23. Background and context • Size of B2B messages continues to increase… • Operational issues of (very) large messages: • Failed transfers cause unnecessary retransmission of data • (Network) components impose size limits • Temporary storage of MSH • Delays in store-and-forward intermediaries become unacceptable • Expensive overlap in infrastructures: • Web Services / ebXML / SOA-based exchanges • EDI / ebXML • Managed File Transfer (MFT) and its protocols

    24. Large File Handling in ebMS 3 • AS2 Restart feature • HTTP feature rather than AS2 feature • Limited to “push”, no support for “pull” mode • AS4 compression • Per payload compression • Split, Join, Compress protocol • Large message is split by sending MSH and reassembled by (ultimate) receiving MSH • MSHs exchange “fragment” SOAP messages, controlled by new MessageFragment SOAP header • Optional full message compression feature

    25. SOAP Processing • MessageFragment can be used by non-ebMS protocols • In ebMS 3 binding, splitting occurs: • After ebMS packaging (SOAP, MIME) • After bundling, if bundling is used • Prior to security and RM processing • Each fragment contains: • In ebMS 3 binding, a subset of the eb3:Messaging header to support routing across intermediaries • A MessageFragment header • One payload containing a subrange of the input message • Compression option • Algorithm agreed among partners • Applies to complete MIME package (all payloads and headers) • Supports push and pull

    26. Compose with Bundling • GDSN Case Study: • 23 sample GDSN 2.7 messages, total 306K • ebMS3 eb3:UserMessage header info added: adds 19K (6%) • Total after bz2 compression: 13K, i.e. 4% • Other case studies • eCom 2.6 order (11 docs, 83K), UBL 2.0 (13 docs, 11.8K), bz2/zlib compression: worst case 8% • Comparison with payload compression: • Best case 14%; worst case 25% • Bundle and split to “optimize” message sizes • E.g. rearrange 1000 messages, sizes ranging from 5K to 800MB, into 10MB fragments

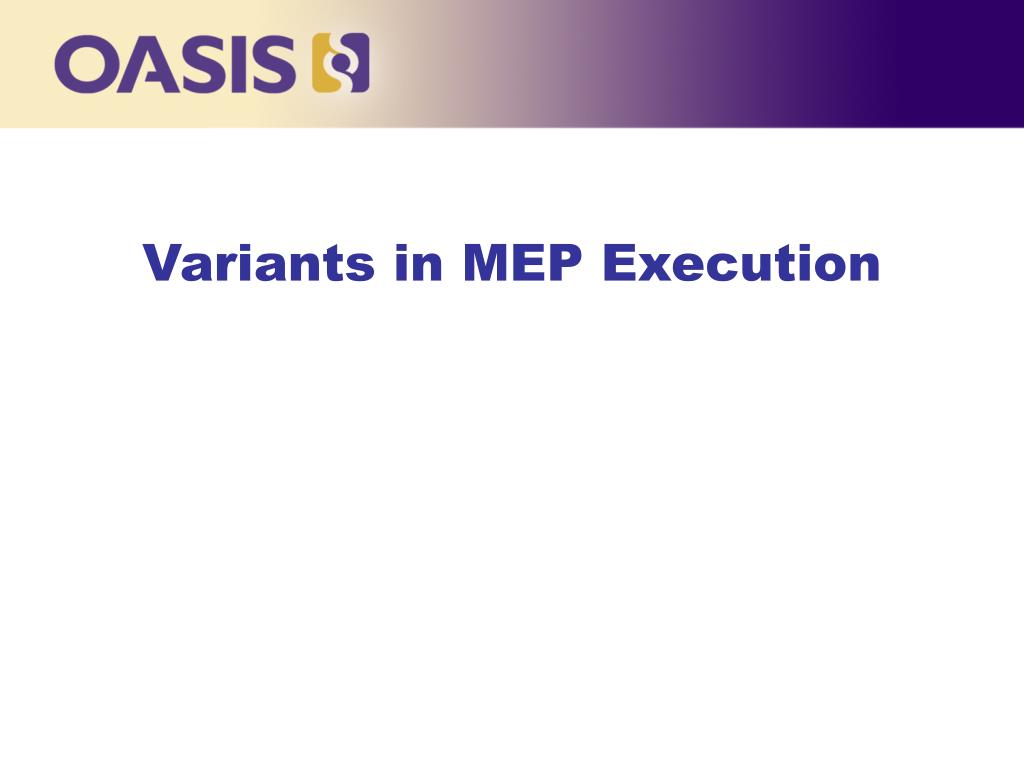

    27. Variants in MEP Execution

    28. Selective Pulling • Selective Pulling • New mechanism to “pull” a specific message • E.g., the response message to a request (using its eb3:RefToMessageId), • E.g. a subsequent related message (based on eb3:ConversationId) • Alternate MEPs • New fallback mechanism for synchronous exchanges • Mechanism to pull a response, if the MSH is aware it is unable to produce a timely synchronous response

    29. Summary

    30. ebMS 3.0 (and AS4) • …..

    31. Part 2: Advanced Features • Intermediaries • SME-to-SME message exchange • Bundling • Efficient high-volume message exchange • Split, join, compress and AS2 restart • Transfer very large messages and bundles efficiently • Important functionality that today: • Only exists in (industry-specific) niche protocols • Is not in any WS-* based spec • Is now typically handled (and duplicate) at the application layer

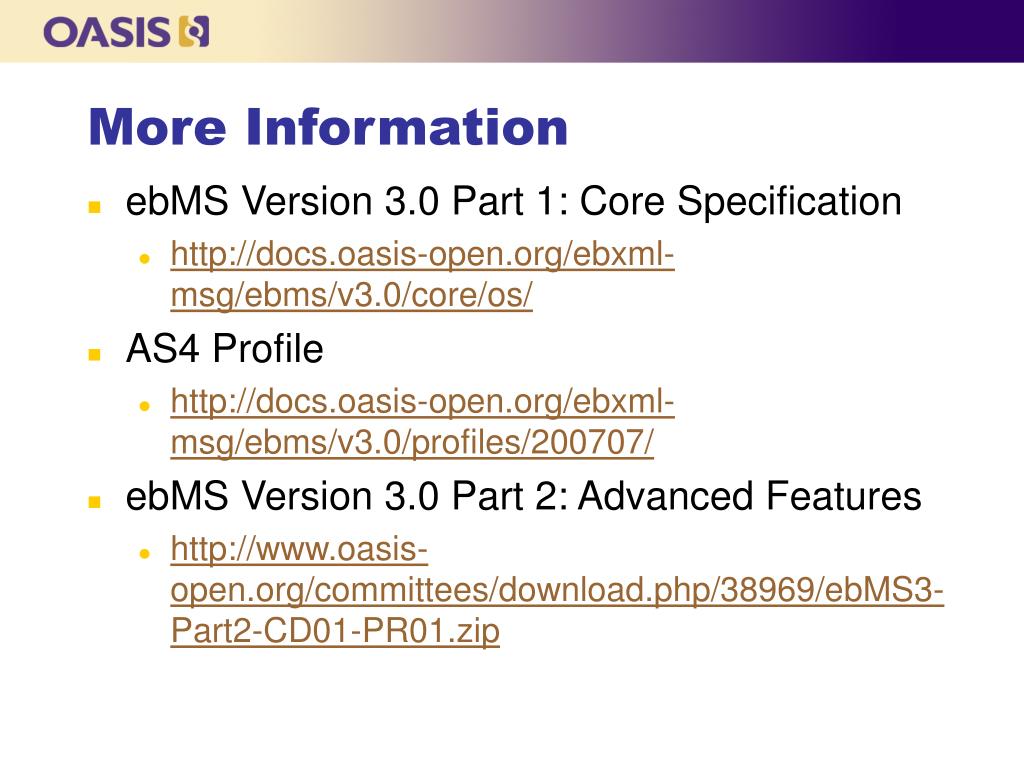

    32. More Information • ebMS Version 3.0 Part 1: Core Specification • http://docs.oasis-open.org/ebxml-msg/ebms/v3.0/core/os/ • AS4 Profile • http://docs.oasis-open.org/ebxml-msg/ebms/v3.0/profiles/200707/ • ebMS Version 3.0 Part 2: Advanced Features • http://www.oasis-open.org/committees/download.php/38969/ebMS3-Part2-CD01-PR01.zip

    33. Backup Slides

    34. Request Web Service A Response One-Way Web Service B Async Response Light MSH 2 Web Service C JMS, MQ.. B2B Gateway Gateway Or ESB MSH 1 MSH 3 Internet

    35. Message Partition Channels Pull signal Low-priority ServiceRequest MSH MSH High priority ServiceRequest Customer Service Support Center • Channels used for: • Selective Transfer • DataType Channels • QoS Channels ? • Yes, but not 1-1 with QoS ProcessingMode Channel QoS

    36. 1.How does ebMS(V3) relate to other ebXML specifications?2. if ebMS 3 is so heavily based on WS standards, what value does it add to using just plain WS? 3. How does ebMS V3 relate to WS-I Profiles?4. What does ebMS V2/V3 do that AS2 doesn’t?5. Isn't pulling replicating what POP3 servers do? Questions? In addition to common questions:

    37. Question 1 How does ebMS(V3) relate to other ebXML specifications? • Compose with each other, but can be deployed separately (no dependencies on each other)‏ • Integration points: • V3 Message Exchange Patterns map to ebBP Business Transactions • V3 Processing Modes map to CPPA • CPAs used to configure MSH may be stored in, and retrieved from, Registry

    38. Question 2 If ebMS 3 is so heavily based on WS standards, what value does it add to using just plain WS? • Business Headers • Channels, Pulling, Non-repudiation of Receipt • Different message consumption styles (WSDL not always appropriate) • Allows for a gateway architecture to decouple external B2B and internally deployed WS • Future features (Part 2: routing, bundling…)

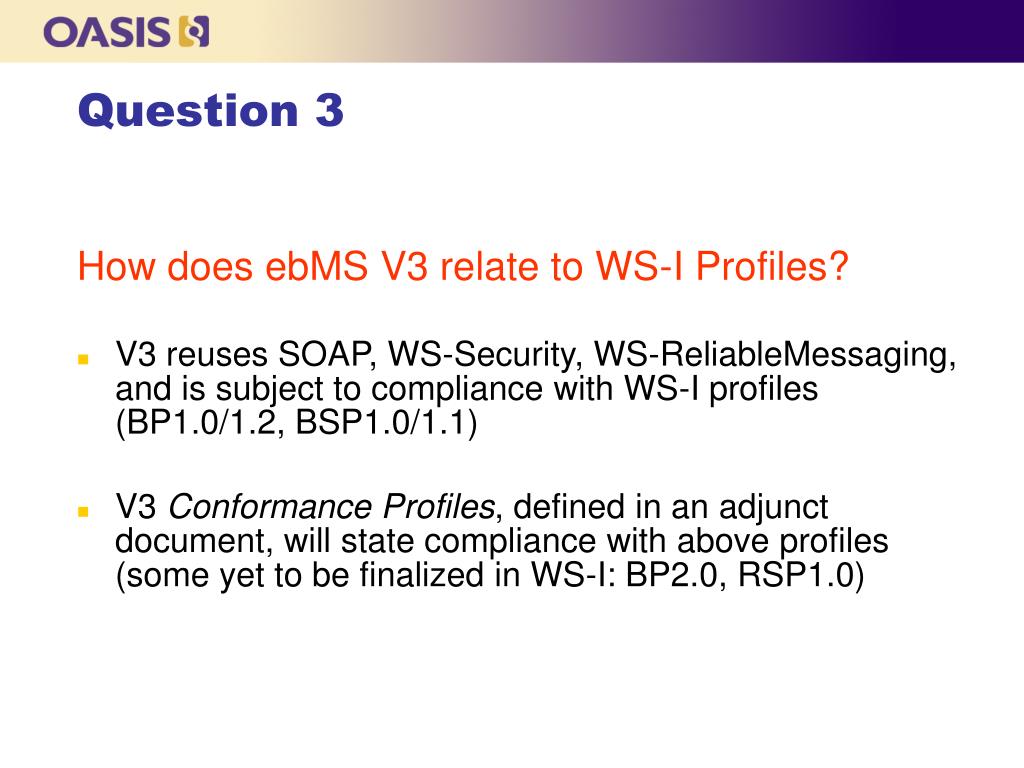

    39. Question 3 How does ebMS V3 relate to WS-I Profiles? • V3 reuses SOAP, WS-Security, WS-ReliableMessaging, and is subject to compliance with WS-I profiles (BP1.0/1.2, BSP1.0/1.1) • V3 Conformance Profiles, defined in an adjunct document, will state compliance with above profiles (some yet to be finalized in WS-I: BP2.0, RSP1.0)

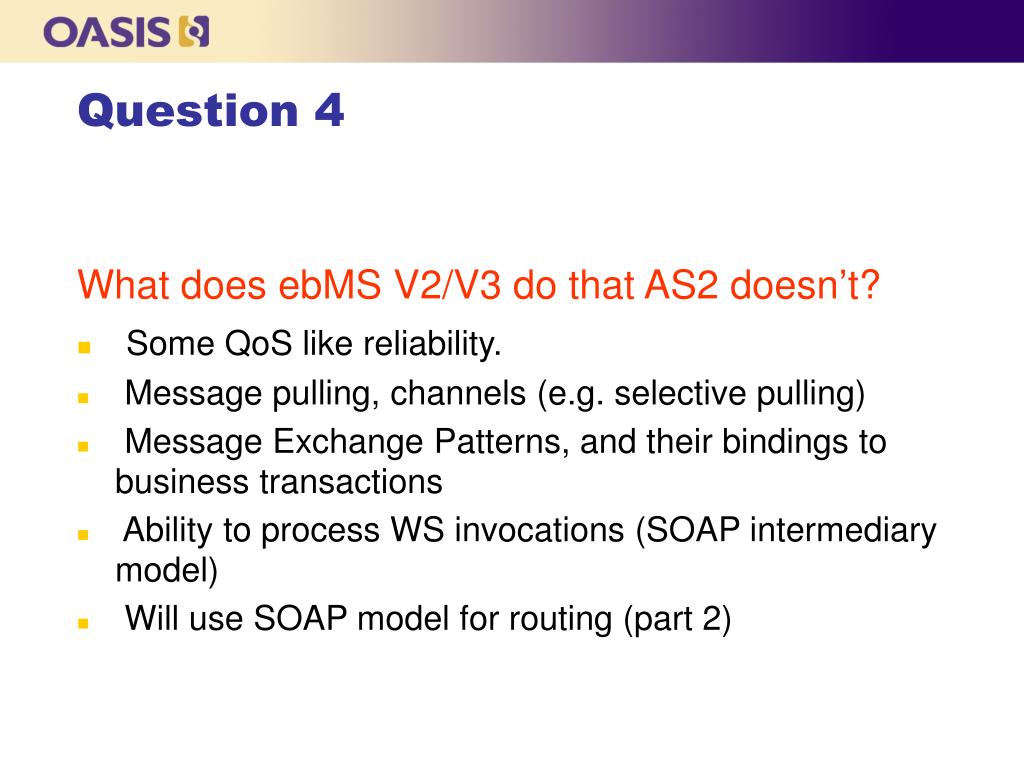

    40. Question 4 What does ebMS V2/V3 do that AS2 doesn’t? • Some QoS like reliability. • Message pulling, channels (e.g. selective pulling)‏ • Message Exchange Patterns, and their bindings to business transactions • Ability to process WS invocations (SOAP intermediary model) • Will use SOAP model for routing (part 2)‏

    41. Question 5 Isn't pulling replicating what POP3 servers do? • There have been issues with SPAM on SMTP-based solutions. • Pull feature is desirable, regardless of protocol used. • May not want to rely on 3rd-party (ISP) infrastructure. • Pull allows a better understanding and control of message location and status at all times.

    42. ebXML Message and WS-*

    43. SOAP 1.1 SWA ebMS1 ebMS2 BIP SOAP 1.2 BP 1.0 ISO 15000 BP 1.1 SSBP AP SOAP 1.22nd ebMS3 Core BP 1.2 BP 2.0 ebMS3 Part 2 2000 2001 2002 2003 2004 MTOM 2005 2006 WS-A 2007 2008 2009 2010

    44. SWA S/MIME ebMS1 XML DSIG ebMS2 XML ENCR BIP BP 1.0 ISO 15000 WSS 1.0 WSS 1.1 BP 1.1 SSBP AP BSP 1.0 WSSC 1.4 BSP 1.1 ebMS3 Part 2 RSP 1.0 2000 2001 2002 2003 2004 2005 2006 ebMS3 Core 2007 2008 2009 2010

    45. ebMS1 ebMS2 BIP ISO 15000 WS-Reliability 1.1 WS-RM 1.1 ebMS3 Core WS-RM 1.2 ebMS3 Part 2 RSP 1.0 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010
