Presentation Transcript
Slide1 l.jpg



Dr Andrew J Norton

Slide6 l.jpg

Carl von Sternberg 1872-1935

Reed-Sternberg cell or Sternberg-Reed cell

Dorothy Reed Mendenhall 1874-1964

Hodgkin s disease histological subtypes l.jpg

Lymphocyte predominant

Mixed cellularity

Lymphocyte depleted

Nodular sclerosis

Classical hodgkin lymphoma l.jpg

  • A term to cover all types of HD other than nodular LP due to shared phenotypic and genetic properties.

  • Presents in axial nodes with contiguous nodal spread. Splenic disease tends to precede bone marrow and/or liver disease.

  • Primary mesenteric nodal or extranodal disease is hardly ever seen.

  • RS-cells are variably mixed with lymphocytes, plasma cells, eosinophils, neutrophils and histiocytes.

  • CD15+ (75%), CD30+ (100%). EBV mainly in MC-HD (75%).

  • >95% of cases arise from a “crippled” B-cell precursor:

    • Infrequent expression of B-cell markers, no Ig synthesis.

Nodular lymphocyte predominant hodgkin lymphoma l.jpg

  • Commonly presents with stage 1A disease – often below the diaphragm.

  • The most B-cell committed form of HD:

    • Architecturally tumour arises in abnormal follicles / nodules.

    • Expression of wide range of B-cell markers including Ig.

    • Does not express markers of classical HD and is EBV –ve.

    • Transformation to DLBCL in ~7% over time.

Lymphomas other than hodgkin s disease l.jpg

  • Non-Hodgkin lymphomas:

    • 14% Hodgkin lymphoma

    • 80% B-cell lymphomas

    • 6% T-cell lymphomas

Slide15 l.jpg

B-areas and cell types

T-areas and cell types

Slide17 l.jpg

Proposal for an International Consensus on the Classification of Lymphomas

International Lymphoma Study Group

We came to the conclusion that the most practical approach to lymphoma categorization at this time is simply to define the diseases that we think we can recognize with available morphologic, immunologic, and genetic techniques. Thus, a lymphoma classification becomes simply a list of well-defined, “real” disease entities.

Blood 84: 1361, 1994

Slide18 l.jpg

2001 Classification of Lymphomas

Slide19 l.jpg

2008 Classification of Lymphomas

Slide20 l.jpg
World Health Organization Classification of Neoplastic Diseases of the Haematopoietic and Lymphoid Tissues

B-cell neoplasms

Chronic lymphocytic leukaemia / small lymphocytic lymphoma

B-cell prolymphocytic leukaemia

Lymphoplasmacytic lymphoma

Splenic B-cell marginal zone lymphoma

Hairy cell leukaemia

Plasma cell myeloma / plasmacytoma - solitary osseous, extraosseous

Extranodal marginal zone B-cell lymphoma of MALT

Nodal marginal zone B-cell lymphoma

Follicular lymphoma, grades 1-3a & 3b

Primary cutaneous follicle centre lymphoma

Mantle cell lymphoma

Diffuse large B-cell lymphoma (12 specific variants and NOS)

Burkitt lymphoma

Slide21 l.jpg
World Health Organization Classification of Neoplastic Diseases of the Haematopoietic and Lymphoid Tissues

T-cell and NK-cell neoplasms

T-cell prolymphocytic leukaemia

T-cell large granular lymphocytic leukaemia

Aggressive NK-cell leukaemia

Systemic EBV positive lymphoproliferative disease of childhood

Hydroa vaccineforme-like lymphoma

Adult T-cell leukaemia / lymphoma

Extranodal NK / T-cell lymphoma, nasal type

Enteropathy-associated T-cell lymphoma

Hepatosplenic T-cell lymphoma

Subcutaneous panniculitis-like T-cell lymphoma

Mycosis fungoides

Sézary syndrome

Primarycutaneous anaplastic large cell lymphoma

Primary cutaneous gamma delta T-cell lymphoma

Peripheral T-cell lymphoma, NOS

Angioimmunoblastic T-cell lymphoma

Anaplastic large cell lymphoma, ALK positive

Anaplastic large cell lymphoma, ALK negative

Important practical diagnostic points l.jpg
IMPORTANT PRACTICAL DIAGNOSTIC POINTS Diseases of the Haematopoietic and Lymphoid Tissues

  • Immunophenotyping for cell surface antigens is mandatory.

  • Certain entities require evidence of a marker chromosomal abnormality for a firm diagnosis:

    • Mantle cell lymphoma; t(11;14)

    • Burkitt lymphoma; CMYC translocation, t(8;14) or variants.

  • Certain entities require clonal cytogenetic or molecular evidence for diagnosis:

    • Cutaneous and nodal mycosis fungoides

    • Sézary syndrome

Slide24 l.jpg

Follicular Lymphoma Diseases of the Haematopoietic and Lymphoid Tissues

CD10, CD20, bcl-2, bcl-6 positive

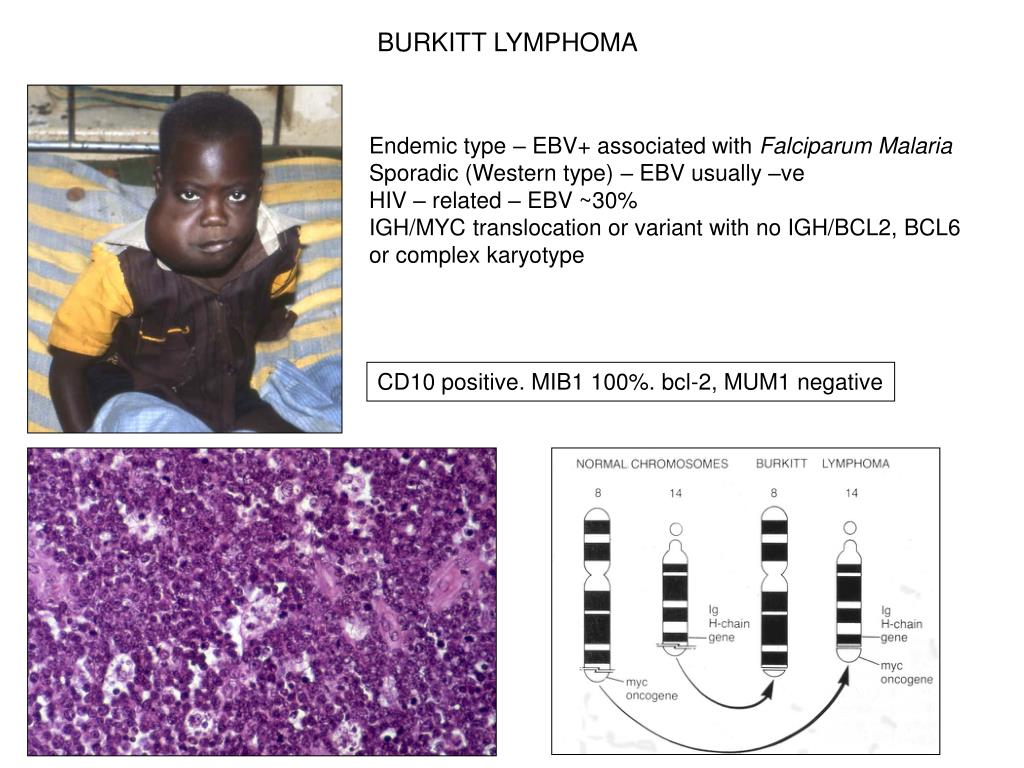

Slide25 l.jpg

BURKITT LYMPHOMA Diseases of the Haematopoietic and Lymphoid Tissues

Endemic type – EBV+ associated with Falciparum Malaria

Sporadic (Western type) – EBV usually –ve

HIV – related – EBV ~30%

IGH/MYC translocation or variant with no IGH/BCL2, BCL6 or complex karyotype

CD10 positive. MIB1 100%. bcl-2, MUM1 negative

Important diagnostic points l.jpg
IMPORTANT DIAGNOSTIC POINTS Diseases of the Haematopoietic and Lymphoid Tissues

  • Certain entities require a multidisciplinary approach to establish a diagnosis e.g.:

    • Mediastinal large B-cell lymphoma

    • Cutaneous follicle centre lymphoma

    • Diffuse large B-cell lymphoma, leg-type

    • Primary effusion lymphoma

    • Post-transplant lymphoproliferative disorders

Slide27 l.jpg

“Low grade” or small cell lymphomas – age incidence Diseases of the Haematopoietic and Lymphoid Tissues

“High grade” or large cell lymphomas – age incidence

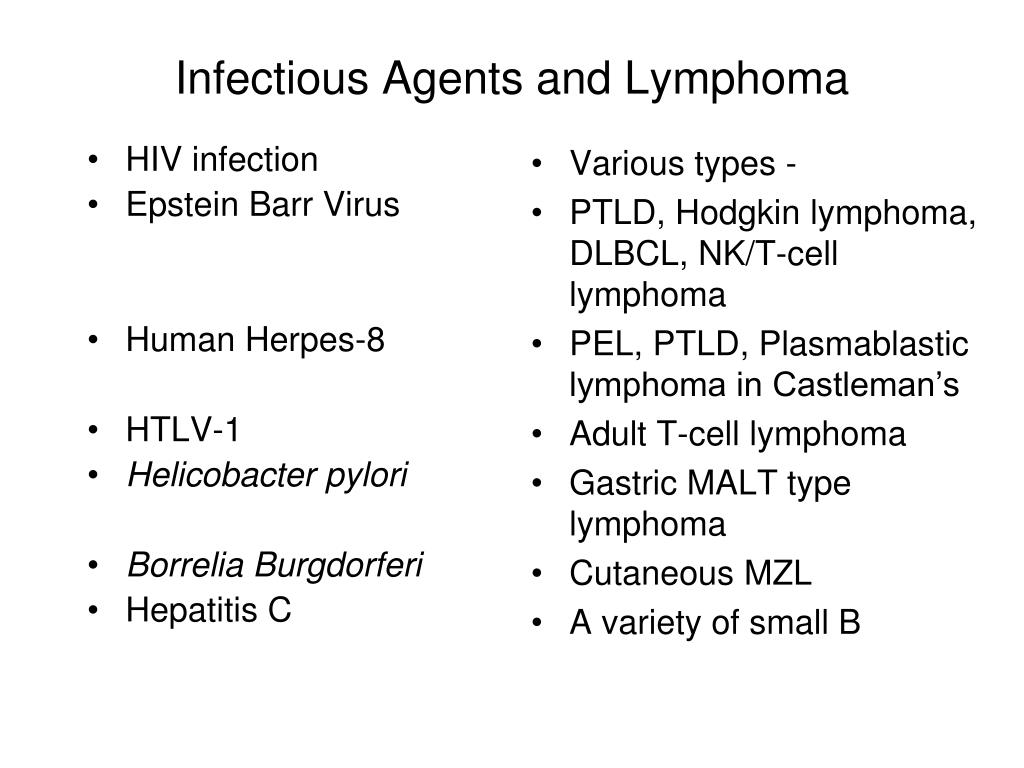

Infectious agents and lymphoma l.jpg

HIV infection Diseases of the Haematopoietic and Lymphoid Tissues

Epstein Barr Virus

Human Herpes-8


Helicobacter pylori

Borrelia Burgdorferi

Hepatitis C

Various types -

PTLD, Hodgkin lymphoma, DLBCL, NK/T-cell lymphoma

PEL, PTLD, Plasmablastic lymphoma in Castleman’s

Adult T-cell lymphoma

Gastric MALT type lymphoma

Cutaneous MZL

A variety of small B

Infectious Agents and Lymphoma

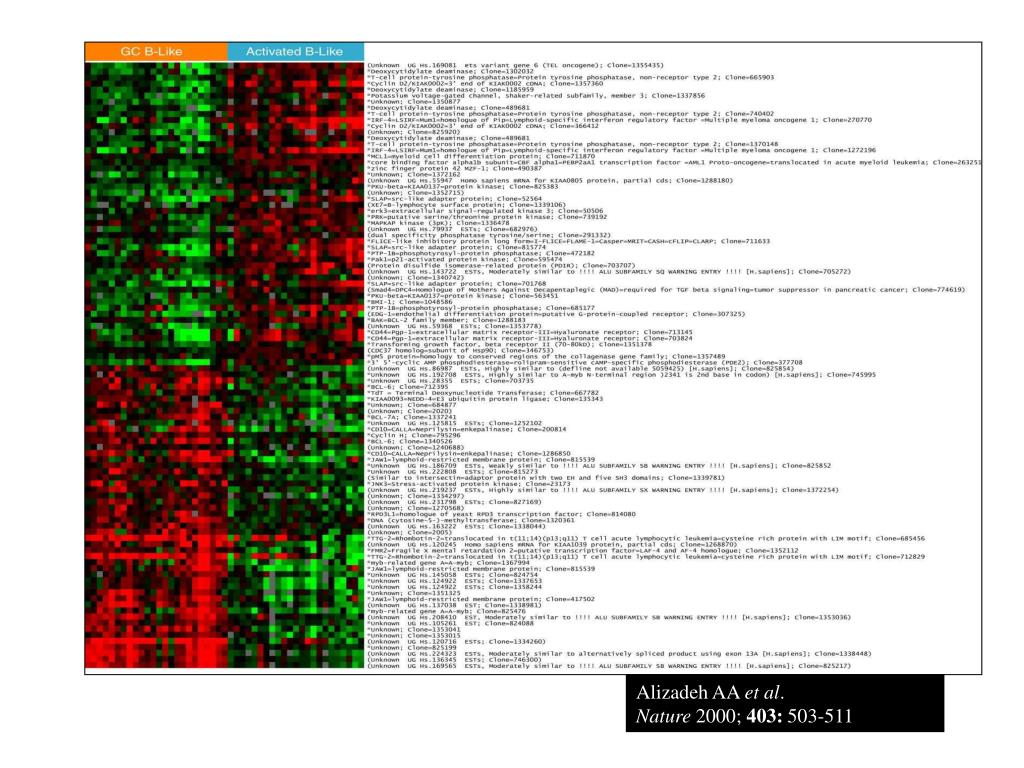

Slide31 l.jpg

Alizadeh AA & London)et al.

Nature 2000; 403: 503-511

Germinal centre profile dlbcl have a superior survival to activated b cell profile dlbcl l.jpg
Germinal Centre profile DLBCL have a superior survival to Activated B-cell profile DLBCL



A gene expression-based method to diagnose clinically distinct subgroups of diffuse large B cell lymphoma

Wright G, et al

Proc Natl Acad Sci U S A. 2003 August 19; 100(17): 9991–9996.

Slide33 l.jpg

Global incidence of non-Hodgkin lymphoma in men: age standardized incidence / 100,000 population

World Cancer Report 2003

Follicular lymphoma l.jpg

USA and Europe standardized incidence / 100,000 population

Middle East, Far East, India

3.5 / 100,000

~0.5 / 100,000

Diffuse Large B-cell Lymphoma

Follicular Lymphoma

Europe and USA.

Middle East, Far East, India

5.0 / 100,000

2-3 / 100,000

NK/T-cell lymphoma, nasal type

Europe and USA

Hong Kong, Taiwan S. America, etc

0.04 /100,000

0.4 / 100,000

Henry rappaport on lymphoma classification l.jpg
Henry Rappaport on Lymphoma Classification standardized incidence / 100,000 population

“(A classification should be) … clinically useful, scientifically accurate, reproducible, easily taught and readily learnt.”

Slide36 l.jpg

NHS standardized incidence / 100,000 population

National Institute for

Clinical Excellence

Guidance on Cancer Services

Improving Outcomes in

Haematological Cancers

The Manual

Guidance on Cancer Services – Improving Outcomes in Haematological Cancers – The Manual

Haematological cancers service guidance

Cancer service guidance supports the implementation of The NHS Cancer Plan for England,and the NHS Plan for Wales Improving Health in Wales.The service guidance programme was initiated in 1995 to follow on from the Calman and Hine Report, A Policy Framework for Commissioning Cancer Services.3 The focus of the cancer service guidance is to guide the Commissioning of services and is therefore different from clinical practice guidelines. Health services in England and Wales have organisational arrangements in place for securing improvements in cancer services and those responsible for their operation should take this guidance into account when planning, commissioning and organising services for cancer patients. The recommendations in the guidance concentrate on aspects of services that are likely to have significant impact on health outcomes. Both the anticipated benefits and the resource implications of implementing the recommendations are considered. This guidance can be used to identify gaps in local provision and to check the appropriateness of existing services.

Published by the National Institute for Clinical Excellence

October 2003

Slide37 l.jpg

standardized incidence / 100,000 populationAll patients with haematological cancer should be managed by

multi-disciplinary haemato-oncology teams which serve

populations of 500,000 or more.

• In order to reduce errors, every diagnosis of possible haematological malignancy should be reviewed by specialists in diagnosis of haematological malignancy. Results of tests should be integrated and interpreted by experts who work with local haemato-oncology multi-disciplinary teams (MDTs) and provide a specialised service at network level. This is most easily achieved by locating all specialist haemato-pathology diagnostic services in a single laboratory.

Guidance on Cancer Services – Improving Outcomes in Haematological Cancers – The Manual

Slide38 l.jpg

Greater Manchester & Cheshire standardized incidence / 100,000 population

Haematological Malignancy Diagnostic Service (GMCHMD)

A regional service for the diagnosis of lymphoma on paraffin embedded blocks in Phase 1 for the Greater Manchester & Cheshire Cancer Network.

Christie Hospital Manchester Royal Infirmary

The GMCHMD service is a joint initiative between Central Manchester and Manchester Children’s University NHS Trust and The Christie NHS Foundation Trust and is in line with current NICE Improving Outcomes Guidance for Haematological cancers.

Information packs have been sent to all hospitals in the Greater Manchester area.

If further information is required, please phone the GMCHMD enquiry Tel No: 0161 446 3277

Slide39 l.jpg

Population >3.5M standardized incidence / 100,000 population

Slide40 l.jpg

RESULTS OF AN AUDIT OF FIRST SIX MONTH’S ACTIVITY standardized incidence / 100,000 population

Total Errors - all Trusts (n=198)

15.2% errors with an impact on patient management

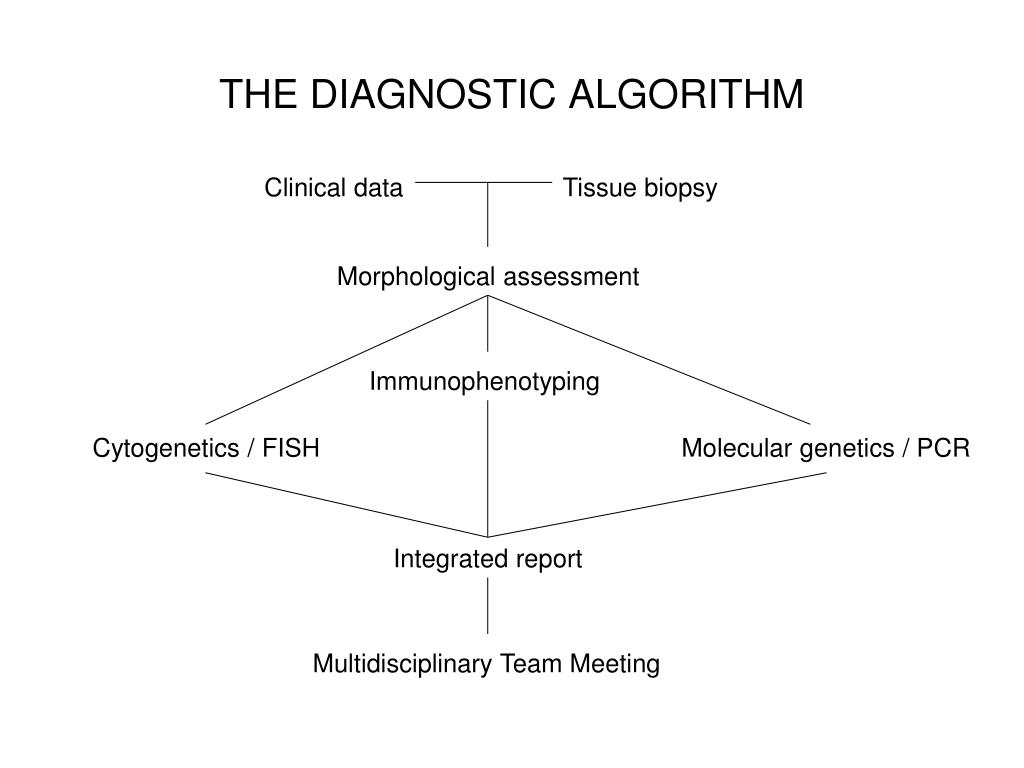

The diagnostic algorithm l.jpg
THE DIAGNOSTIC ALGORITHM standardized incidence / 100,000 population

Clinical data

Tissue biopsy

Morphological assessment


Cytogenetics / FISH

Molecular genetics / PCR

Integrated report

Multidisciplinary Team Meeting

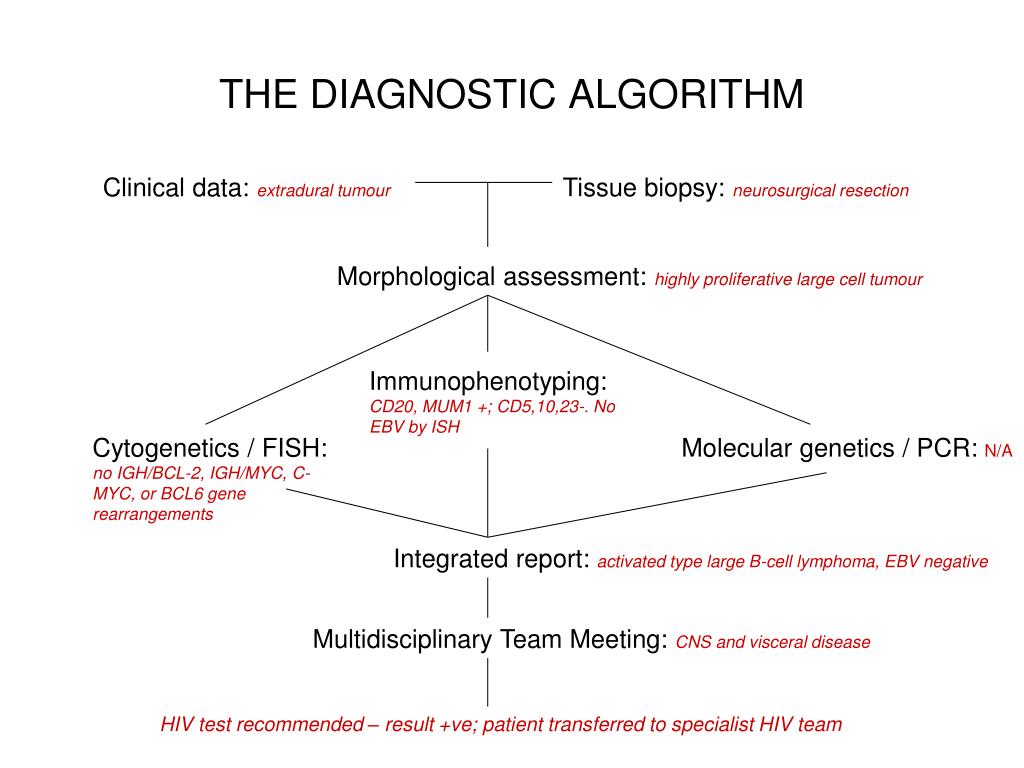

The diagnostic algorithm42 l.jpg
THE DIAGNOSTIC ALGORITHM standardized incidence / 100,000 population

Clinical data: extradural tumour

Tissue biopsy: neurosurgical resection

Morphological assessment: highly proliferative large cell tumour

Immunophenotyping: CD20, MUM1 +; CD5,10,23-. No EBV by ISH

Cytogenetics / FISH: no IGH/BCL-2, IGH/MYC, C-MYC, or BCL6 gene rearrangements

Molecular genetics / PCR: N/A

Integrated report: activated type large B-cell lymphoma, EBV negative

Multidisciplinary Team Meeting: CNS and visceral disease

HIV test recommended – result +ve; patient transferred to specialist HIV team
