sam aggregated topology provider

SAM Aggregated Topology Provider

pedro.andrade@cern.ch

5 June 2013

IT/SDC/MI section meeting

history

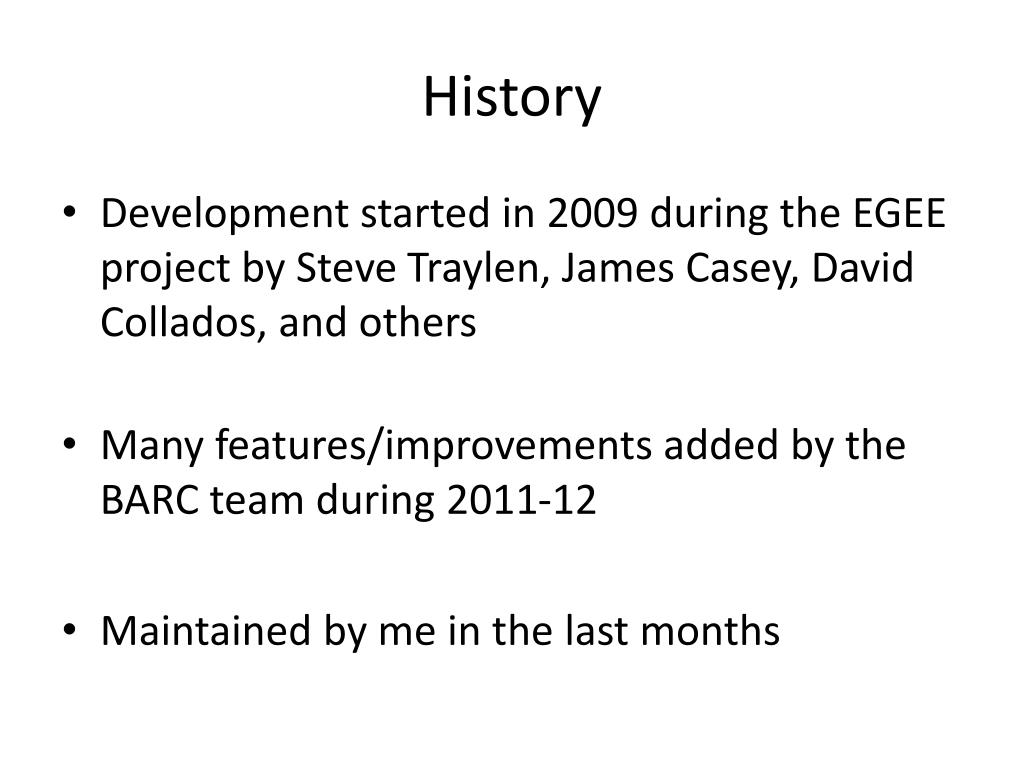

History
  • Development started in 2009 during the EGEE project by Steve Traylen, James Casey, David Collados, and others
  • Many features/improvements added by the BARC team during 2011-12
  • Maintained by me in the last months
overview
Overview
  • ATP scope is:
    • Aggregate grid topology info from different sources
    • Single authoritative source of grid topology info
    • Manage groups of resources from VO perspective
architecture

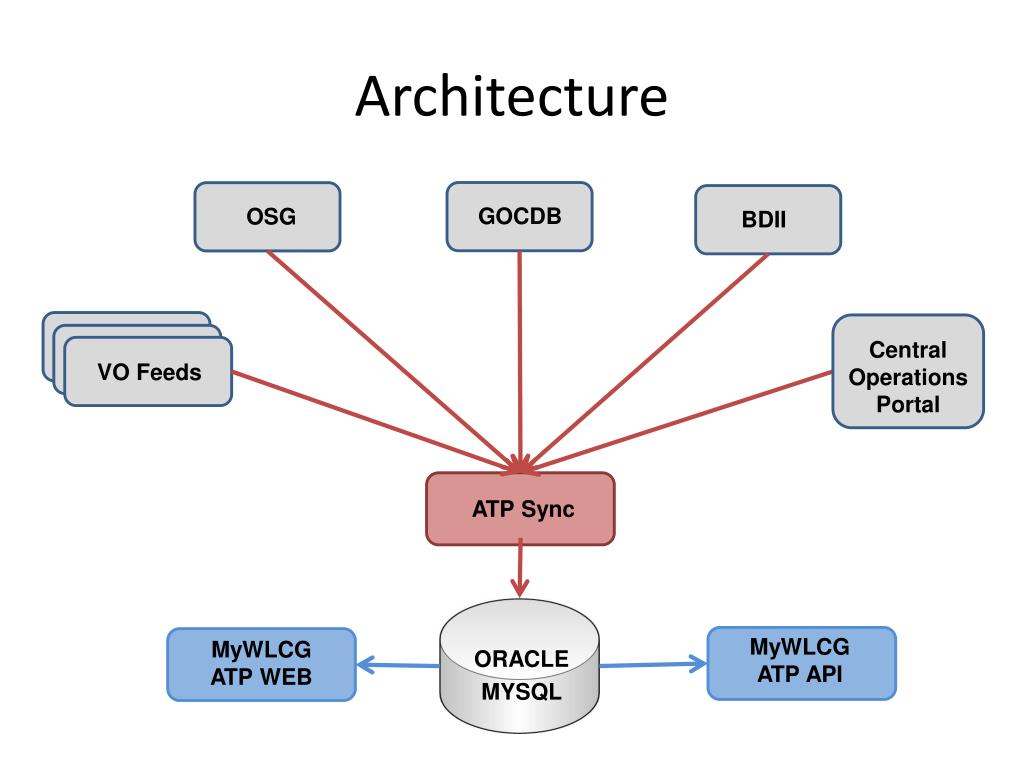

Architecture

GOCDB

BDII

OSG

Central Operations Portal

ATP Sync

VO Feeds

MyWLCG ATP API

MyWLCG ATP WEB

ORACLE

MYSQL

architecture1

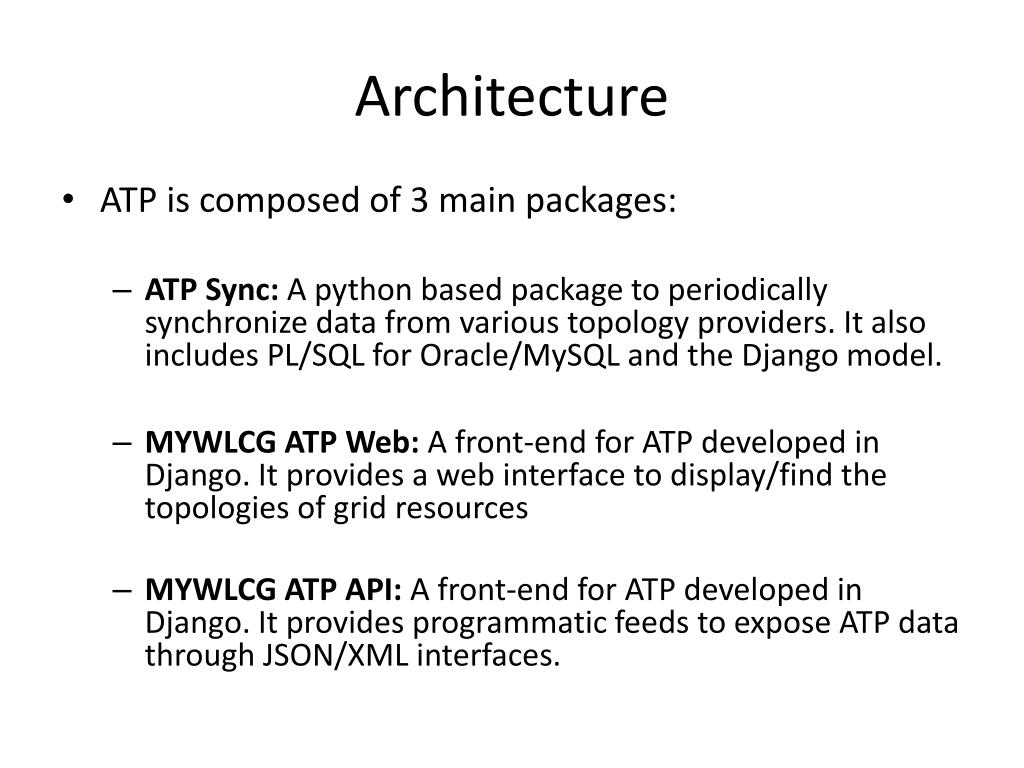

Architecture
  • ATP is composed of 3 main packages:
    • ATP Sync: A python based package to periodically synchronize data from various topology providers. It also includes PL/SQL for Oracle/MySQL and the Django model.
    • MYWLCG ATP Web: A front-end for ATP developed in Django. It provides a web interface to display/find the topologies of grid resources
    • MYWLCG ATP API: A front-end for ATP developed in Django. It provides programmatic feeds to expose ATP data through JSON/XML interfaces.
input
Input
  • CIC Portal
    • VOs
  • VOMS
    • VO contacts
  • GOCDB (EGI)
    • Sites, Services
    • Flavours, Downtimes
    • Site and region contacts
  • RSV (OSG)
    • Sites, Services
    • Flavours, Downtimes
    • Capacity
  • GStat:
    • Capacity
  • REBUS:
    • WLCG federations
    • WLCG tiers
  • BDII:
    • Service endpoints
    • Services/VOs mapping
    • MPI info
  • VO Feeds
    • VO groups of services
clients

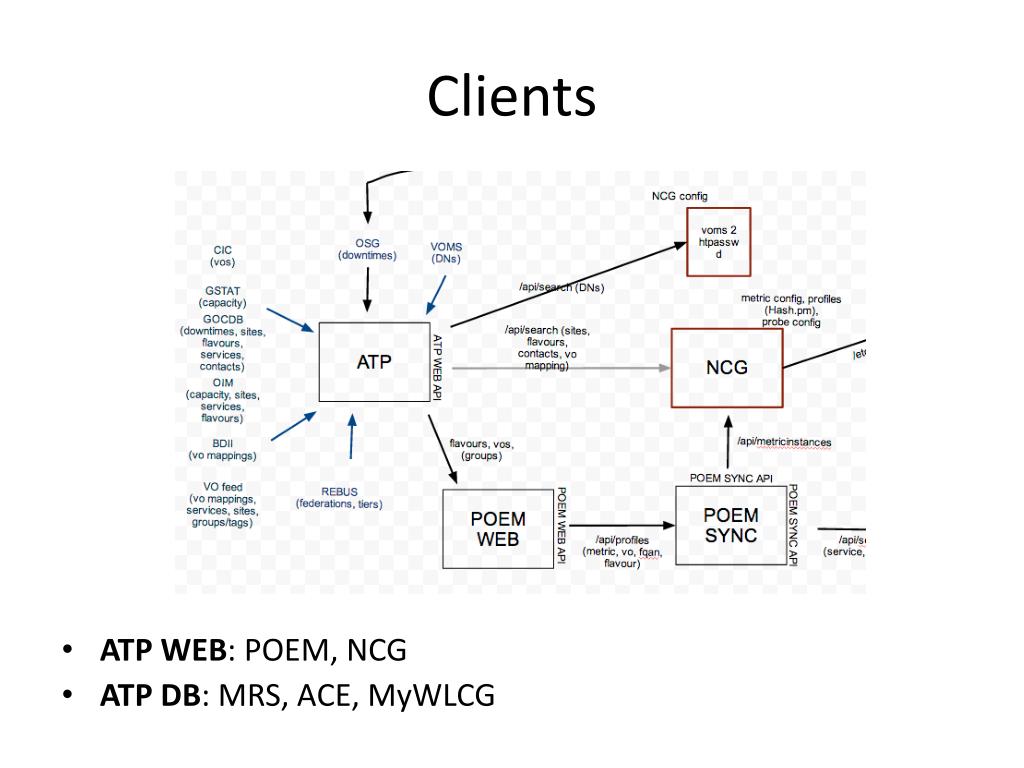

Clients
  • ATP WEB: POEM, NCG
  • ATP DB: MRS, ACE, MyWLCG
source code
Source Code

Repo: http://svnweb.cern.ch/world/wsvn/sam/trunk/atp/

Doc: http://sam-doc.web.cern.ch/sam-doc/atp/doc/build/html/

configuration
Configuration
  • Default configuration structure distributed in ATP package
  • atp_synchro.conf : main configuration file
  • atp_db.conf : database connection configuration
  • atp_logging_files.conf : location of log configuration file
  • atp_logging_parameters_config.conf : log configuration
  • roc.conf : list of enabled regions
  • vo_feeds.conf : list of enabled vo feeds
execution
Execution
  • Cronjob running ATP daemon:

[root@samnag031 ~]# cat /etc/cron.d/atp-sync

50 * * * * edguser [ -f /var/lock/subsys/atp_synchro ] && ( /usr/bin/atp_synchro -d /etc/atp/atp_db.conf -c /etc/atp/atp_synchro.conf -l /etc/atp/atp_logging_files.conf ) > /dev/null 2>&1

  • ATP sync execution is structured in synchronizers:

[root@samnag031 ~]# cat /etc/atp/atp_synchro.conf

cic_portal = Yes

gocdb_topology = Yes

gocdb_downtime = Yes

osg = Yes

osg_downtime = Yes

gstat = Yes

bdii = Yes

vo_feeds = Yes

slide11
Logs
  • Log of last execution: /var/log/atp/atp.log
  • Log of all executions: /var/log/atp/atp_full.log (logrotate)
  • Errors are also sent to system logging
  • Six levels of debugging:
    • CRITICAL, ERROR, WARNING, INFO, DEBUG, NOTSET
    • Default configuration is on INFO (20)
  • Standard log file line:
    • “2012-03-22 15:24:02,308 - ATP - INFO - CIC - Execution – Starting”
    • CIC: synchronizer name (e.g. CIC, GOCDB Topology, VOFeeds, etc)
    • Execution: task type (e.g. configuration, validation, execution)
    • Starting: action description
debug tips
Debug Tips
  • The atp.log is quite useful to understand problems:
    • It will at least help to locate the affected synchronizer
  • However ATP is based on many PL/SQL procedures/functions:
    • SQL developer will help ;)
  • ATP synchronizes from distinct external data sources. ATP execution fails due to “invalid” or “not available” input data:
    • Check the “aalidation” tag in atp.log to understand which data source was not reachable or was providing invalid data
problems

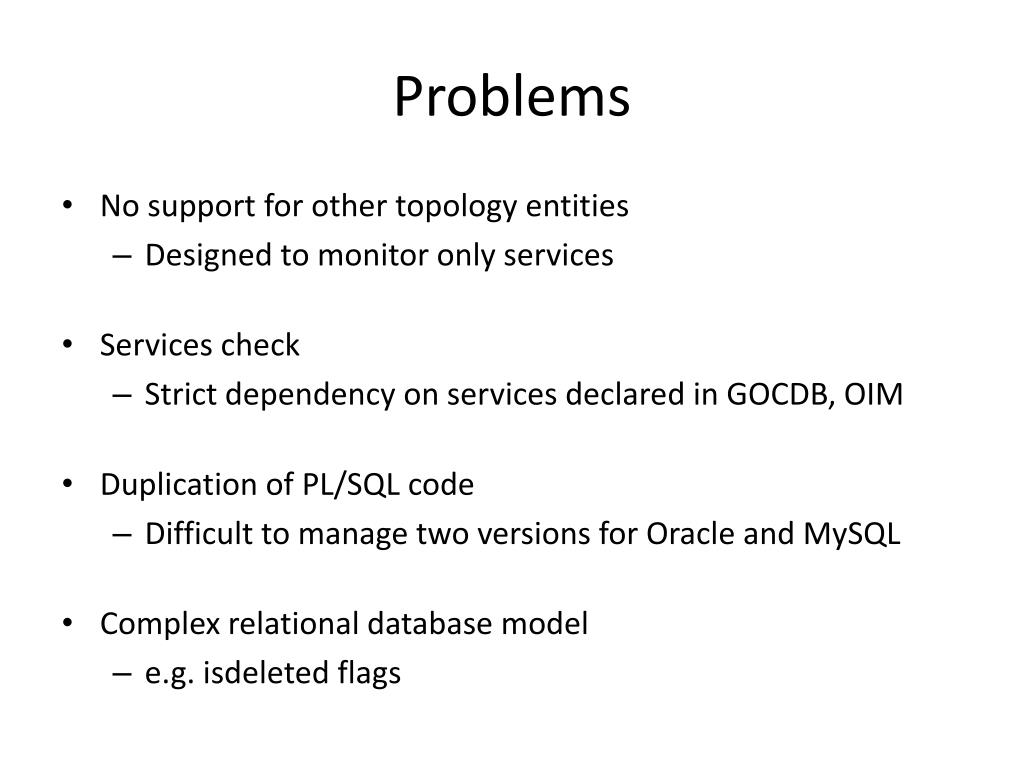

Problems
  • No support for other topology entities
    • Designed to monitor only services
  • Services check
    • Strict dependency on services declared in GOCDB, OIM
  • Duplication of PL/SQL code
    • Difficult to manage two versions for Oracle and MySQL
  • Complex relational database model
    • e.g. isdeleted flags
suggestions
Suggestions
  • ATP was started in Sep 2009… 4 years ago 
    • Perhaps it is ready for retirement
  • The grid topology is always evolving
    • Perhaps less focus on state, and more on history
  • Support for two RDBMS is hard
    • Perhaps no RDBMS can be even better
