Presentation Transcript
slide1

22

AIDS TO NAVIGATION

slide2

INTRODUCTION

DEFINITION

TYPES OF AIDS

LATERAL BUOY SYSTEM

IALA B, ICW

R,R,R CONVENTION

BUOYS (FLOATING AIDS)

COLOR, SHAPES, POSITION,

PURPOSE, TRAVEL

MARKS HORIZONTAL

MARKS VERTICAL

slide3

DAYMARKS

COLOR, SHAPES, POSITION,

PURPOSE, TRAVEL

MARKS HORIZONTAL

MARKS VERTICAL

LIGHTED AIDS

COLOR

BUOYS, LIGHTHOUSES,

SECTOR LIGHTS,

LIGHT RHYTHMS

BRIDGE LIGHTING

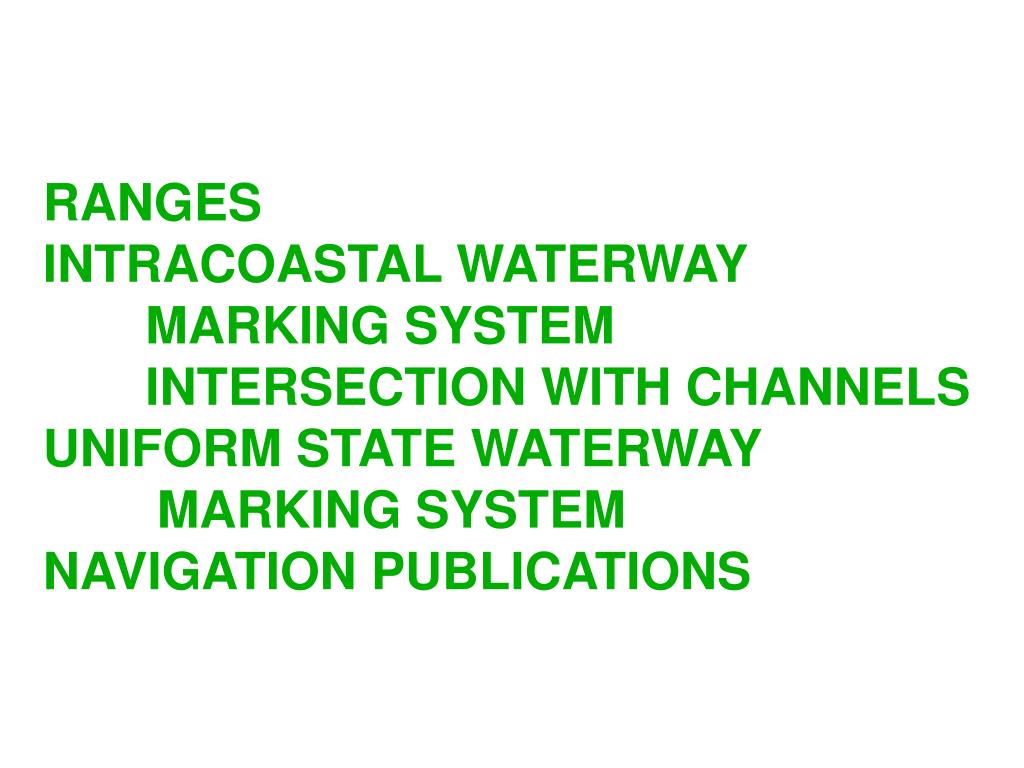

slide4

RANGES

INTRACOASTAL WATERWAY

MARKING SYSTEM

INTERSECTION WITH CHANNELS

UNIFORM STATE WATERWAY

MARKING SYSTEM

NAVIGATION PUBLICATIONS

slide5

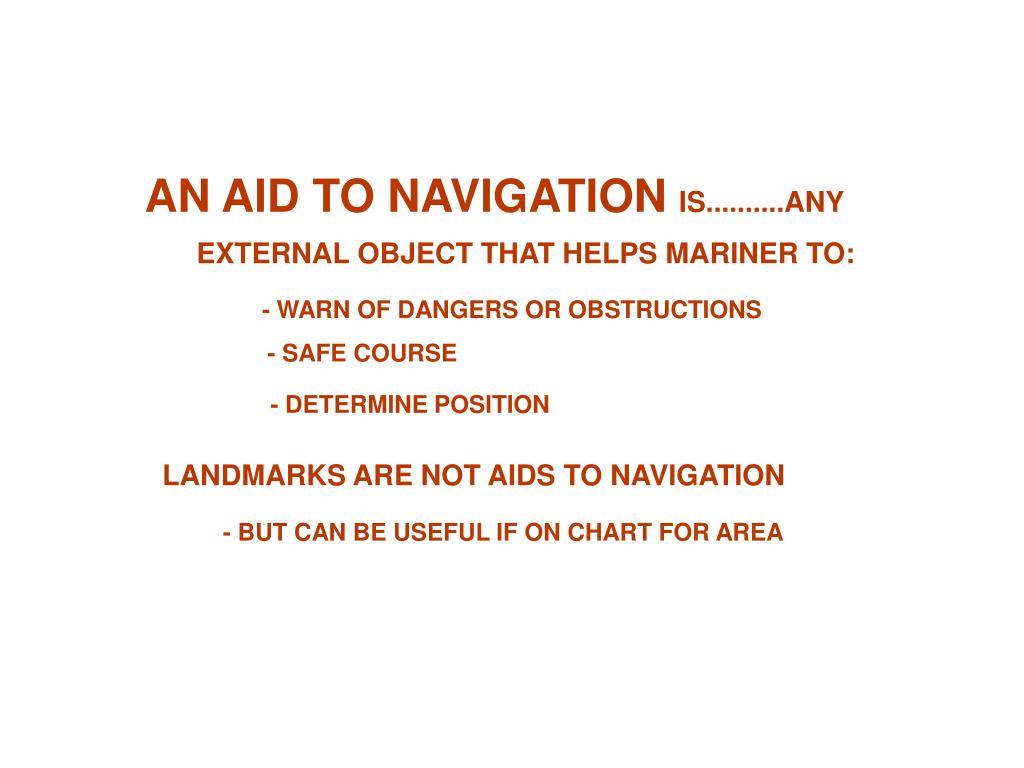

AN AID TO NAVIGATION IS..........ANY

EXTERNAL OBJECT THAT HELPS MARINER TO:

- WARN OF DANGERS OR OBSTRUCTIONS

- SAFE COURSE

- DETERMINE POSITION

LANDMARKS ARE NOT AIDS TO NAVIGATION

- BUT CAN BE USEFUL IF ON CHART FOR AREA

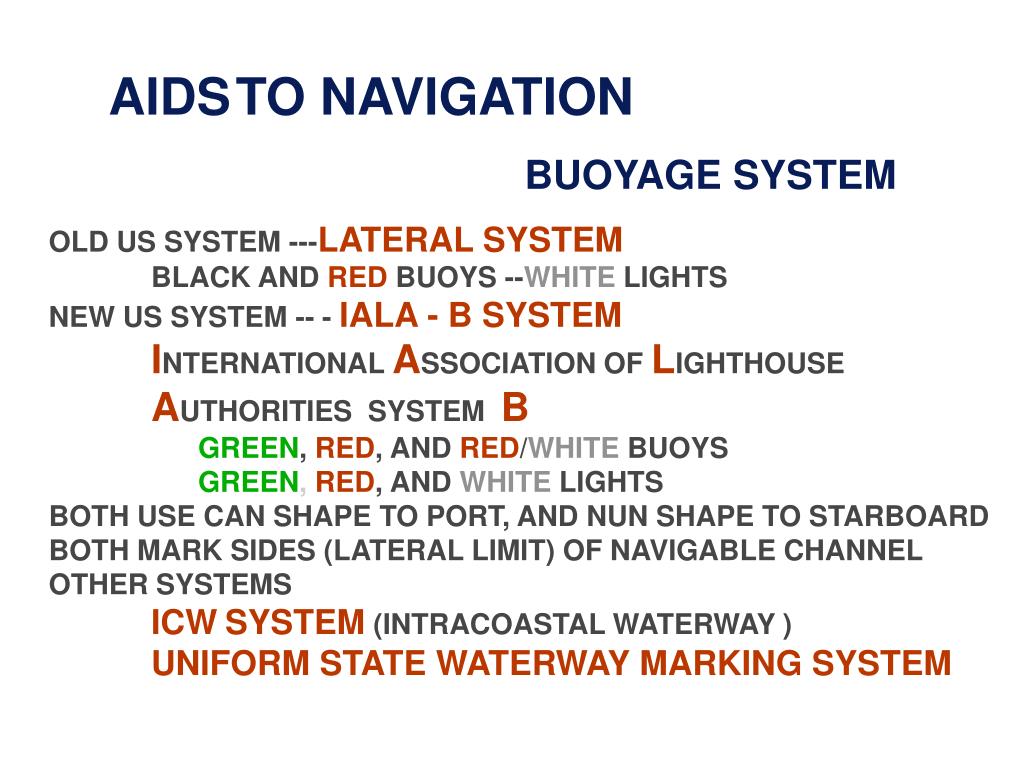

slide6

AIDSTO NAVIGATION

BUOYAGE SYSTEM

OLD US SYSTEM ---LATERAL SYSTEM

BLACK AND RED BUOYS --WHITE LIGHTS

NEW US SYSTEM -- - IALA - B SYSTEM

INTERNATIONAL ASSOCIATION OF LIGHTHOUSE

AUTHORITIES SYSTEM B

GREEN, RED, AND RED/WHITE BUOYS

GREEN, RED, AND WHITE LIGHTS

BOTH USE CAN SHAPE TO PORT, AND NUN SHAPE TO STARBOARD

BOTH MARK SIDES (LATERAL LIMIT) OF NAVIGABLE CHANNEL

OTHER SYSTEMS

ICWSYSTEM (INTRACOASTAL WATERWAY )

UNIFORM STATE WATERWAY MARKING SYSTEM

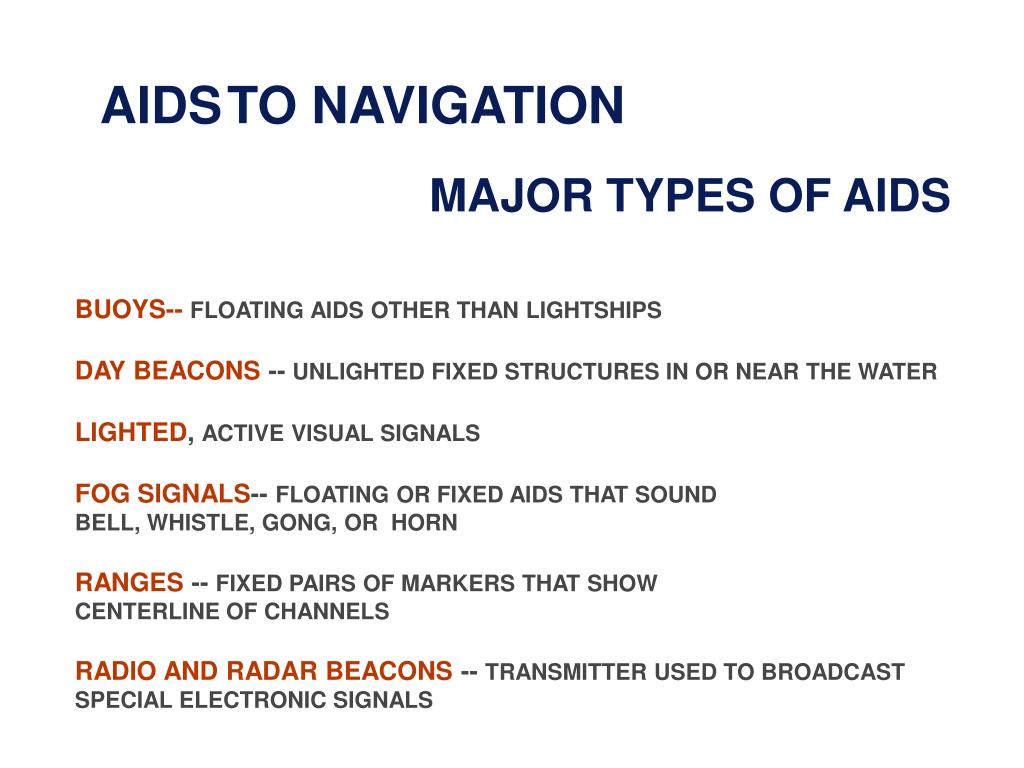

slide7

AIDSTO NAVIGATION

MAJOR TYPES OF AIDS

BUOYS-- FLOATING AIDS OTHER THAN LIGHTSHIPS

DAY BEACONS -- UNLIGHTED FIXED STRUCTURES IN OR NEAR THE WATER

LIGHTED, ACTIVE VISUAL SIGNALS

FOG SIGNALS-- FLOATING OR FIXED AIDS THAT SOUND

BELL, WHISTLE, GONG, OR HORN

RANGES -- FIXED PAIRS OF MARKERS THAT SHOW

CENTERLINE OF CHANNELS

RADIO AND RADAR BEACONS -- TRANSMITTER USED TO BROADCAST

SPECIAL ELECTRONIC SIGNALS

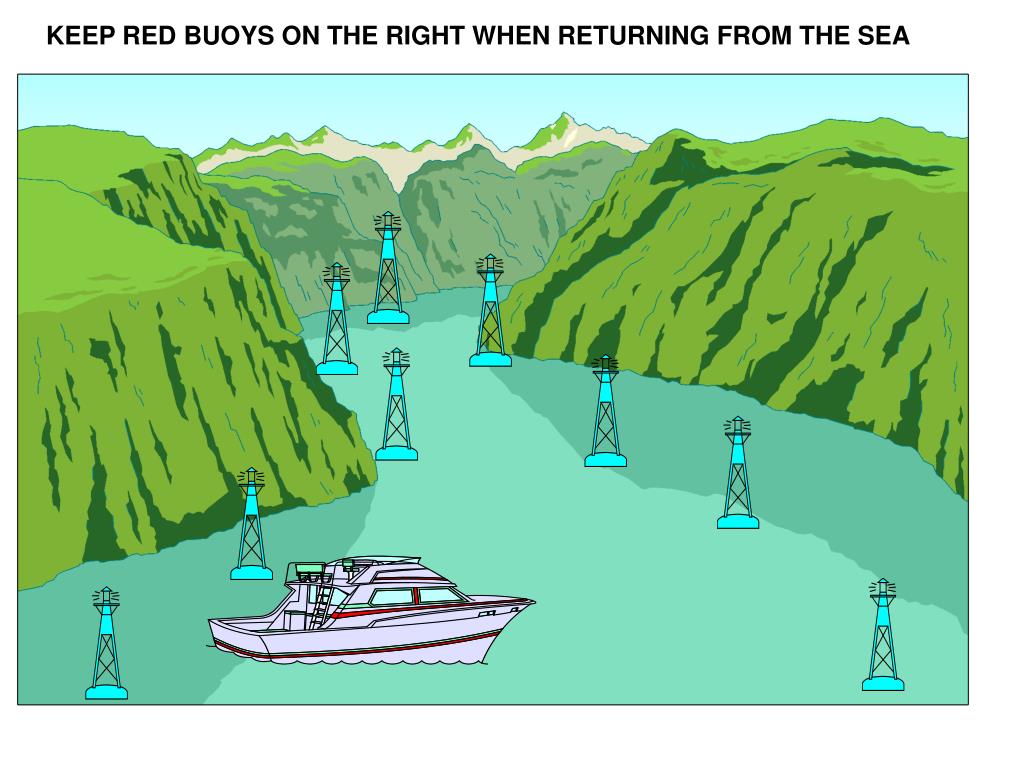

slide8

22

22

22

RED

KEEP

RIGHT

ON YOUR

RETURNING

WHEN YOU ARE

FROM THE SEA

slide10

ARBITRARY DIRECTION FROM SEAWARD

IN COASTAL WATERS

PROCEEDING IN A CLOCKWISE MOVEMENT

WILL PUT RED BUOY ON RIGHT (STARBOARD)

slide11

8

NUN BUOY

N 8

KEEP TO STARBOARD SIDE

OF VESSEL

WHEN RETURNING FROM THE SEA

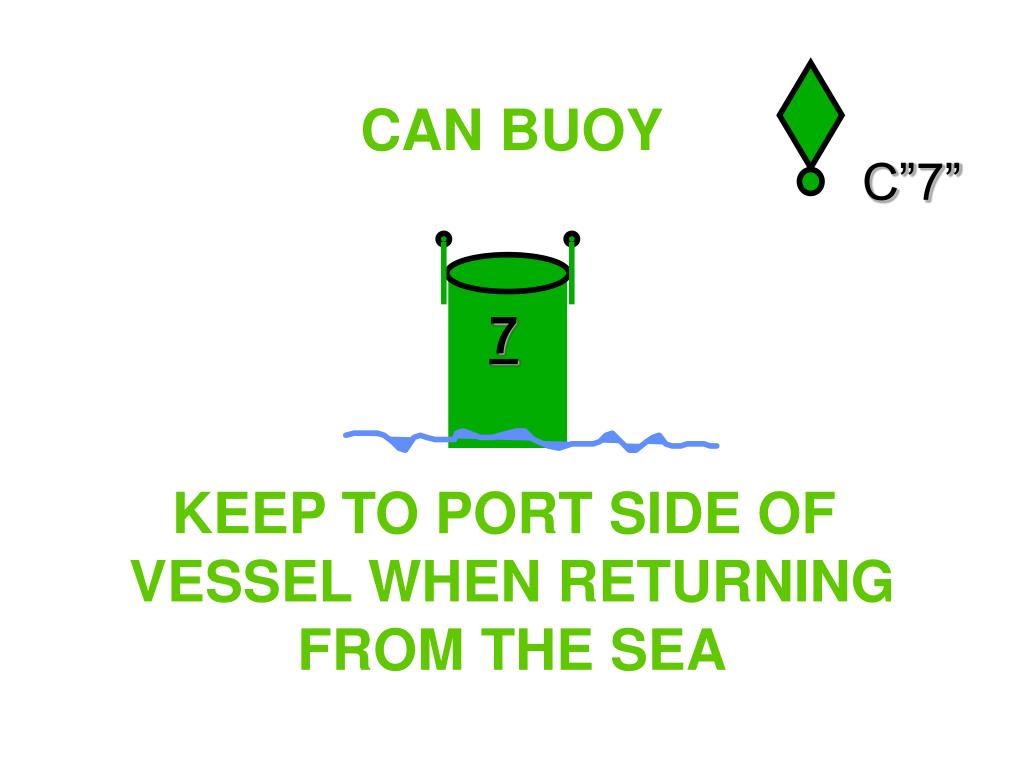

can buoy
CAN BUOY
  • C”7”

7

KEEP TO PORT SIDE OF

VESSEL WHEN RETURNING

FROM THE SEA

slide14

7

GREEN,

7

  • IF UPPER BAND IS
  • THE PREFERRED
    • CHANNEL WHEN

“GR”

IF

UPPER

BAND IS

RED,THE

PREFERRED

CHANNEL WHEN

PROCEEDING

FROM THE

SEA IS FOLLOWED

PROCEEDING FROM

THE SEA IS FOLLOWED

BY KEEPING THE MARK

ON THE PORT

SIDE OF THE

VESSELL

BY

KEEPING THE

MARK ON THE

STARBOARD SIDE

OF THE VESSEL

8

8

“RG”

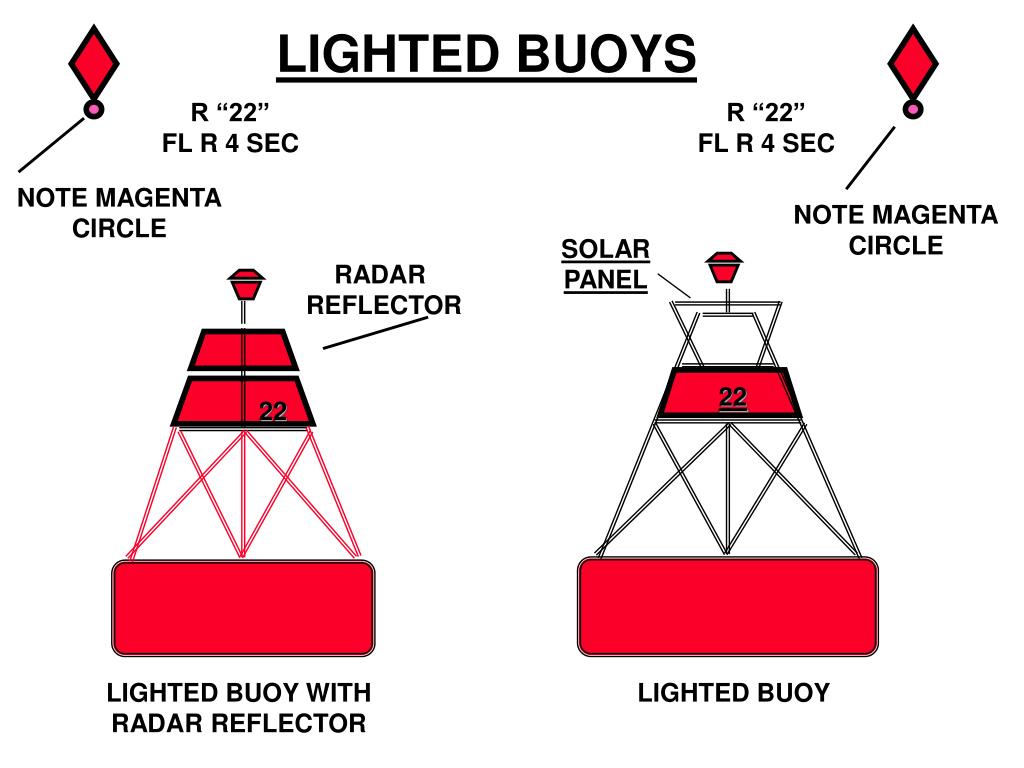

slide15

22

LIGHTED BUOYS

R “22”

FL R 4 SEC

R “22”

FL R 4 SEC

NOTE MAGENTA

CIRCLE

NOTE MAGENTA

CIRCLE

SOLAR

PANEL

RADAR

REFLECTOR

22

LIGHTED BUOY WITH

RADAR REFLECTOR

LIGHTED BUOY

slide18

LIGHT RHYTHMS

FIXED LIGHT

STAYS ON ALL THE TIME

LESS THAN

50

FLASHES / MINUTE

FLASHING

QUICK

FLASHING

GREATER THAN 50

LESS THAN 80

FLASHES / MINUTE

STAYS ON LONGER

THAN OFF

OCCULTING

STAYS ON AS LONG

AS IT IS OFF

ISO

GROUP FLASHING (2)

GROUP FLASHING (3)

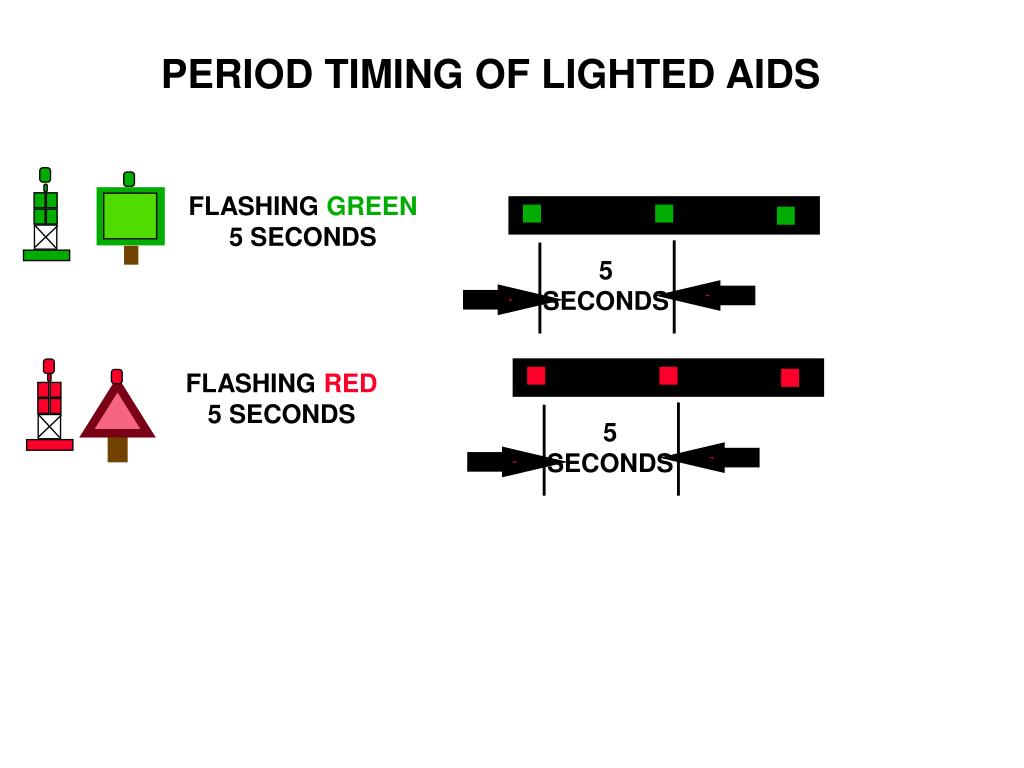

slide19

5

SECONDS

PERIOD TIMING OF LIGHTED AIDS

FLASHING GREEN

5 SECONDS

FLASHING RED

5 SECONDS

5

SECONDS

slide20

LIGHT RHYTHMS

PREERRED CHANNEL LIGHTED AIDS

COMPOSITE GROUP FLASHING

FL(2+1) G 6S

WILL FOLLOW TOP

MOST COLOR

6 SECONDS

FL(3+1) R 8S

WILL FOLLOW TOP

MOST COLOR

8 SECONDS

MID CHANNEL

MORSE “A”

WILL BE WHITE

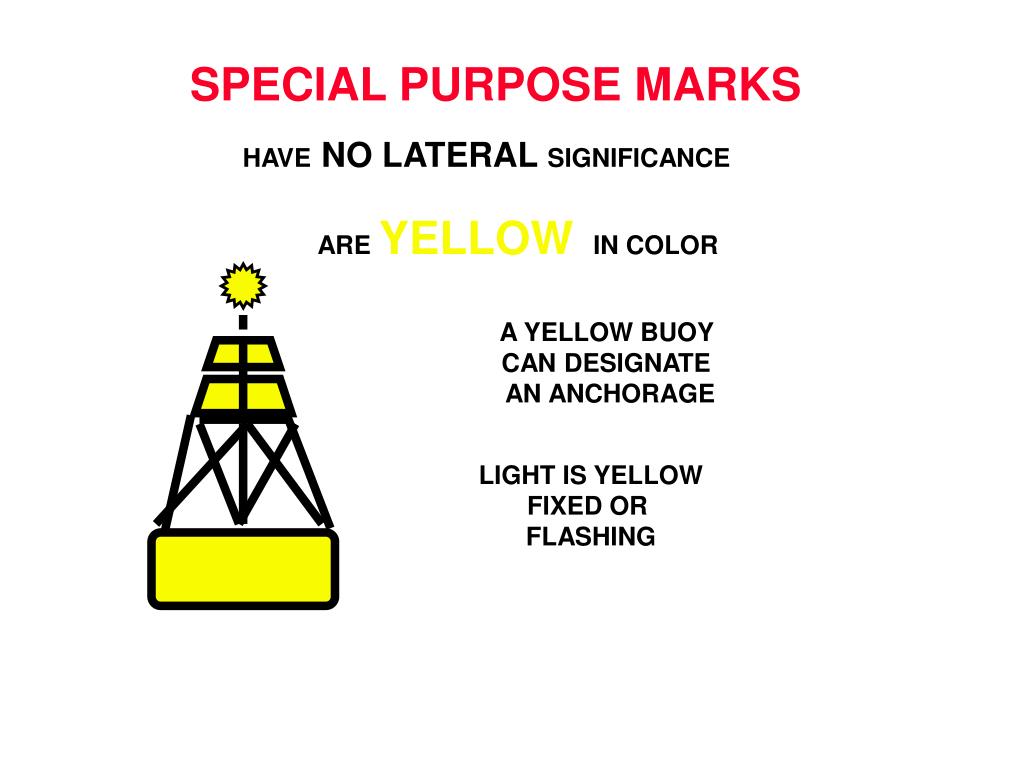

slide23

SPECIAL PURPOSE MARKS

HAVE NO LATERAL SIGNIFICANCE

ARE YELLOW IN COLOR

A YELLOW BUOY

CAN DESIGNATE

AN ANCHORAGE

LIGHT IS YELLOW

FIXED OR

FLASHING

slide24

OCEAN DATA

ACQUISITION

SYSTEM BUOY

slide25

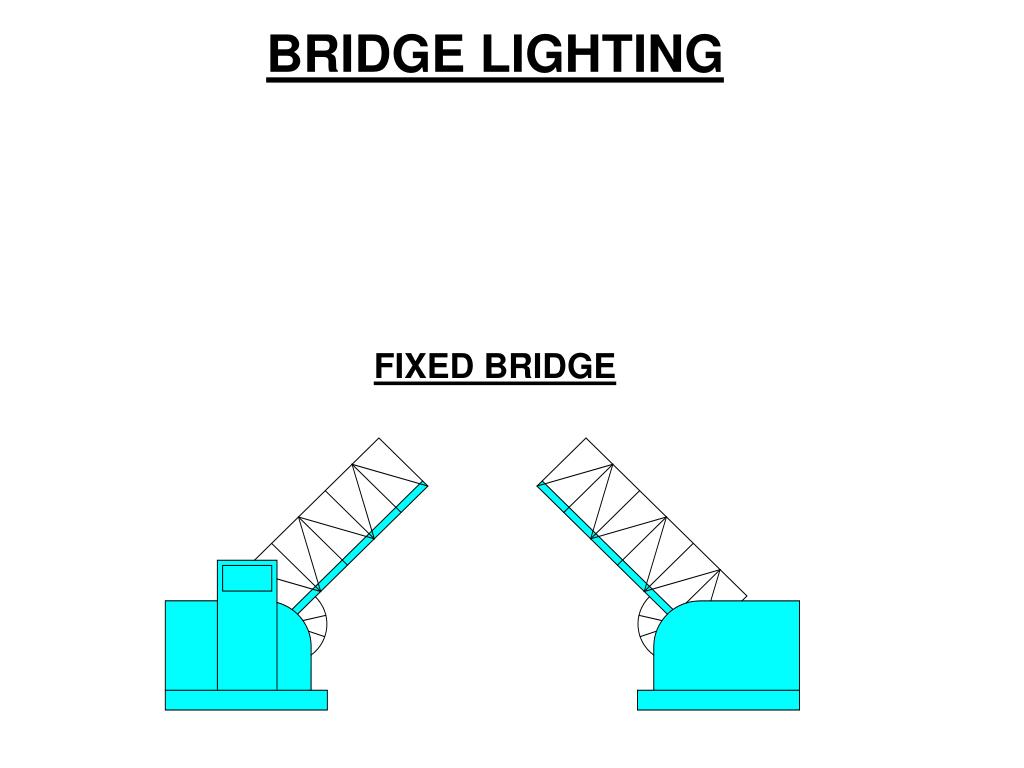

BRIDGE LIGHTING

FIXED BRIDGE

slide27

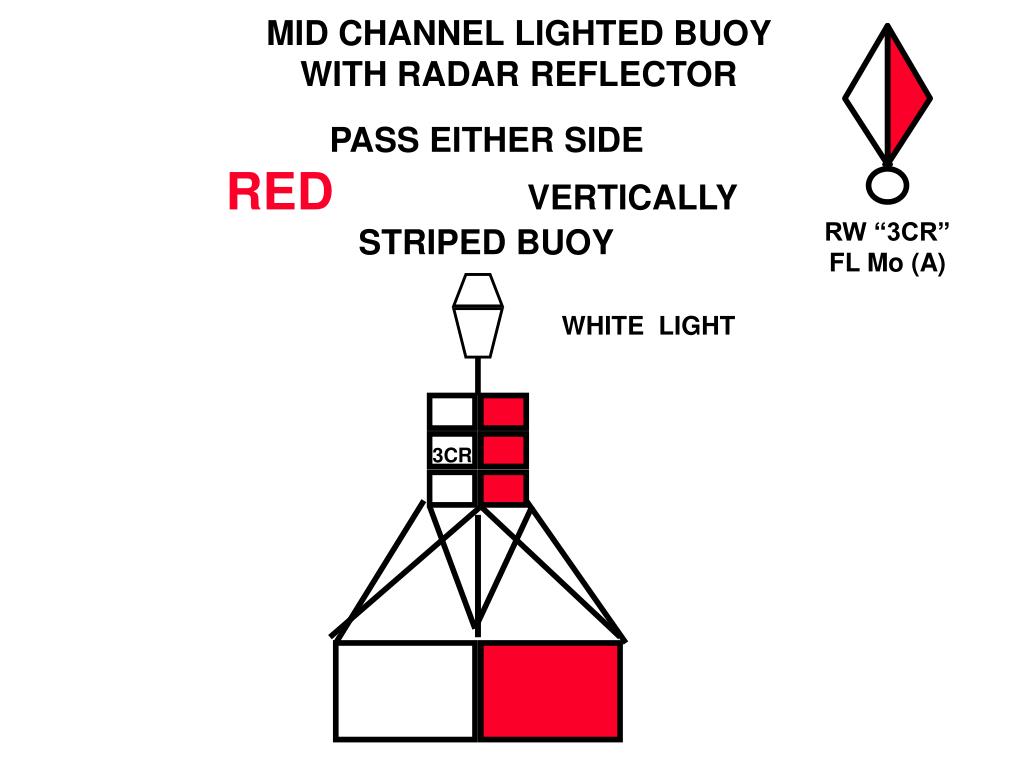

MID CHANNEL LIGHTED BUOY

WITH RADAR REFLECTOR

PASS EITHER SIDE

RED/WHITEVERTICALLY

STRIPED BUOY

RW “3CR”

FL Mo (A)

WHITE LIGHT

3CR

slide31

SPHERICAL BUOY

SP

“G”

G

MARKS MIDDLE OF SAFE WATER

PASS EITHER SIDE

slide32

SPAR BUOY

S

VERTICALLY STRIPED BUOYS

MARK THE FAIRWAY OF MID CHANNEL

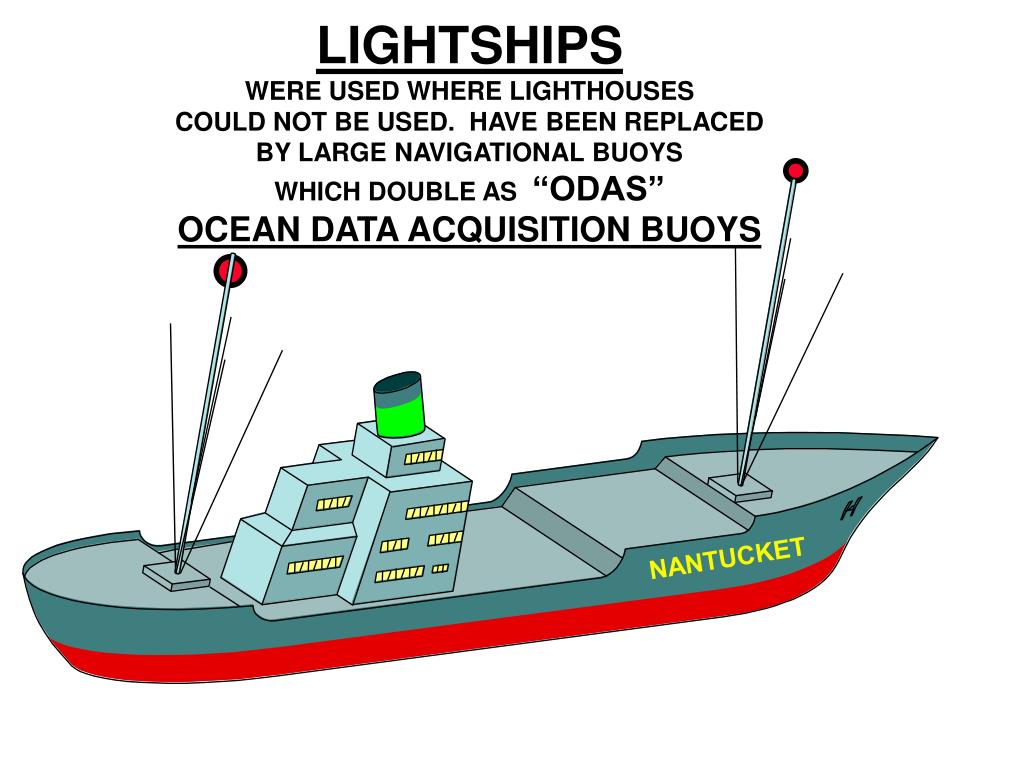

slide33

LIGHTSHIPS

WERE USED WHERE LIGHTHOUSES

COULD NOT BE USED. HAVE BEEN REPLACED

BY LARGE NAVIGATIONAL BUOYS

WHICH DOUBLE AS “ODAS”

OCEAN DATA ACQUISITION BUOYS

NANTUCKET

NANTUCKET SHOALS

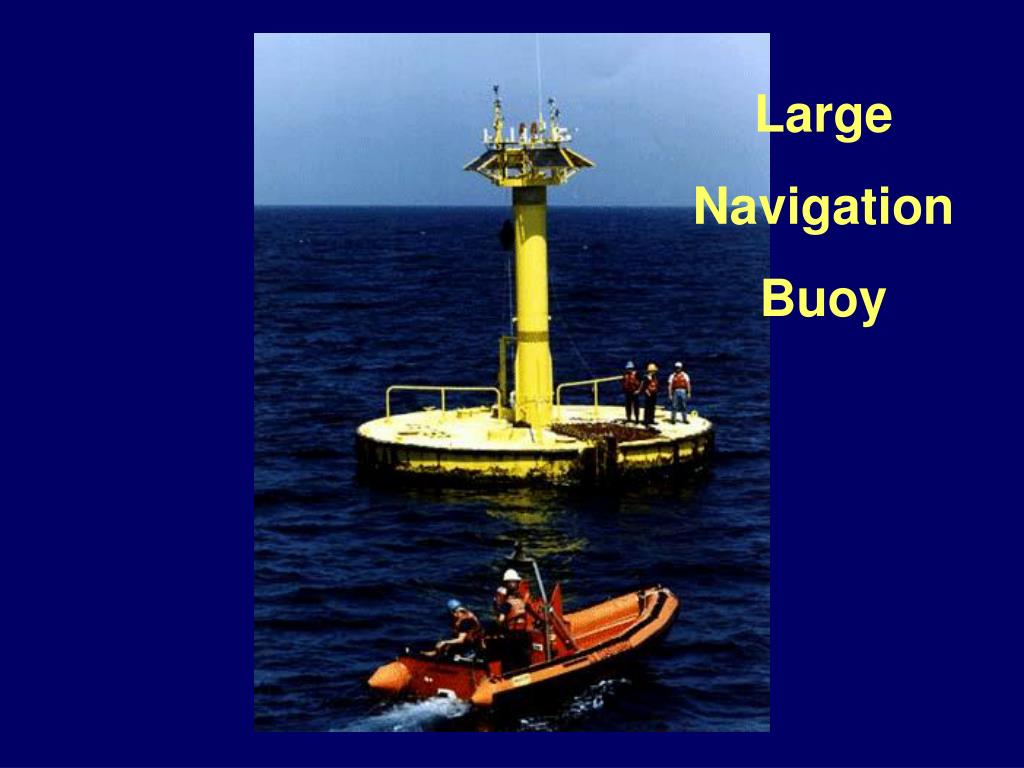

slide34

Large

Navigation

Buoy

slide35

RANGES

IF

YOU SEE

RANGE

IF

YOU SEE

RANGE

IF

YOU SEE

RANGE

YOU

ARE

HERE

YOU

ARE

HERE

YOU

ARE

HERE

TO LEFT

OF CHANNEL

ON CENTER

OF CHANNEL

TO RIGHT

OF CHANNEL

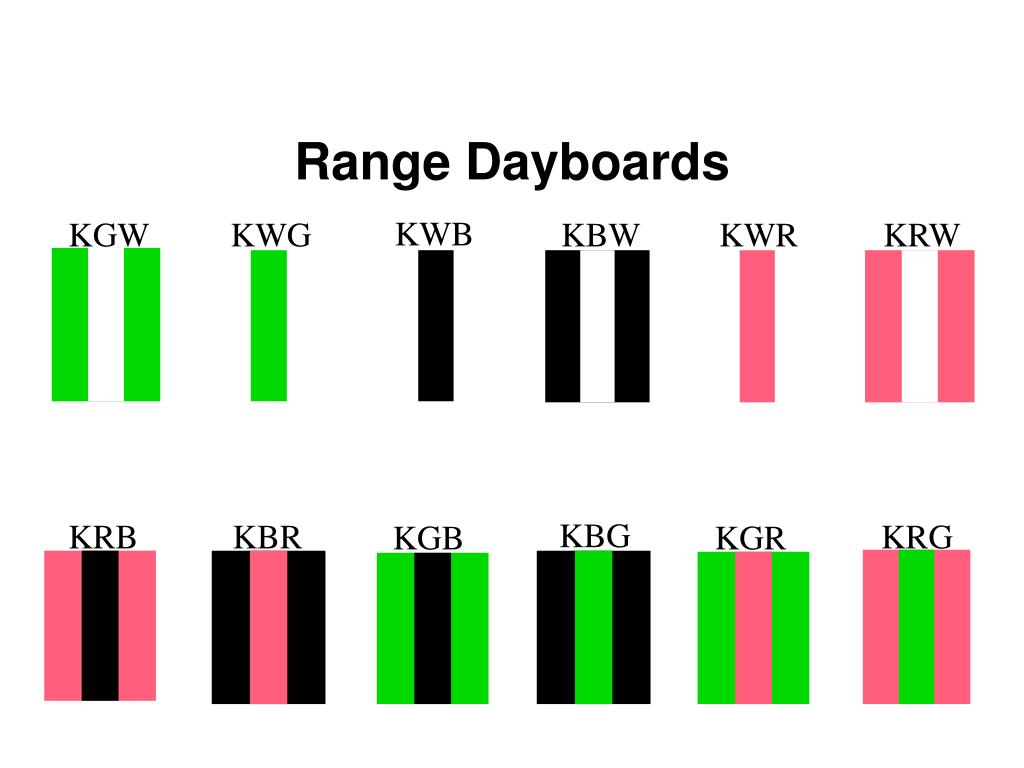

range dayboards
Range Dayboards

KWB

KGW

KWG

KBW

KWR

KRW

KBG

KRB

KBR

KRG

KGB

KGR

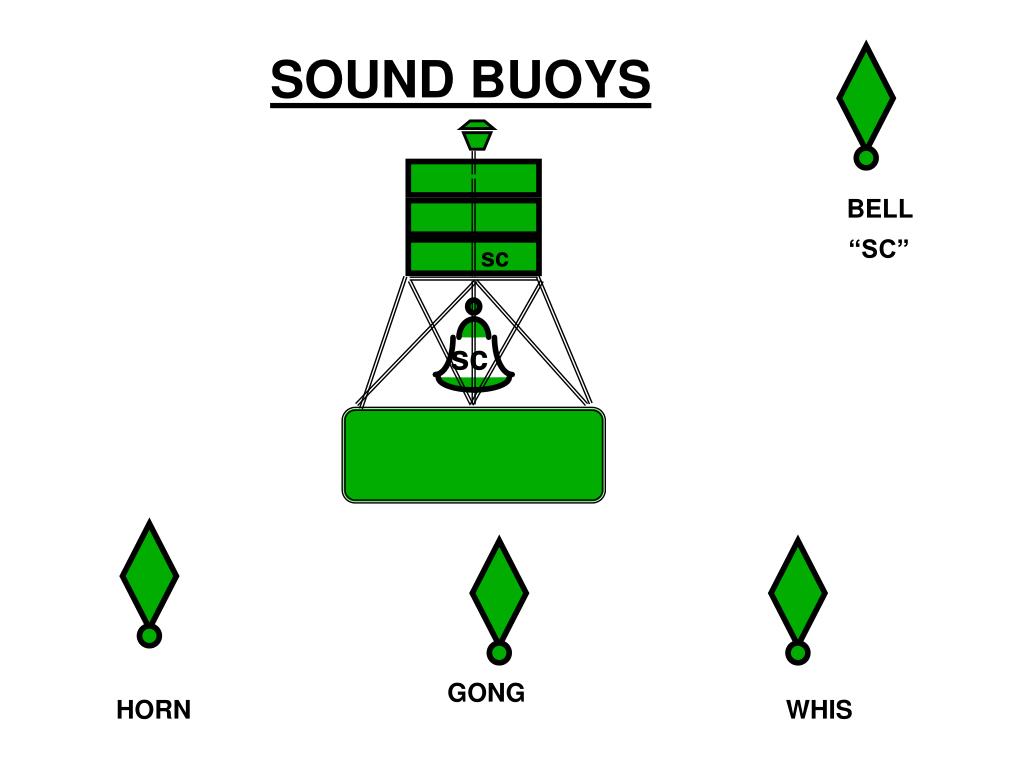

slide37

SOUND BUOYS

BELL

“SC”

sc

sc

GONG

HORN

WHIS

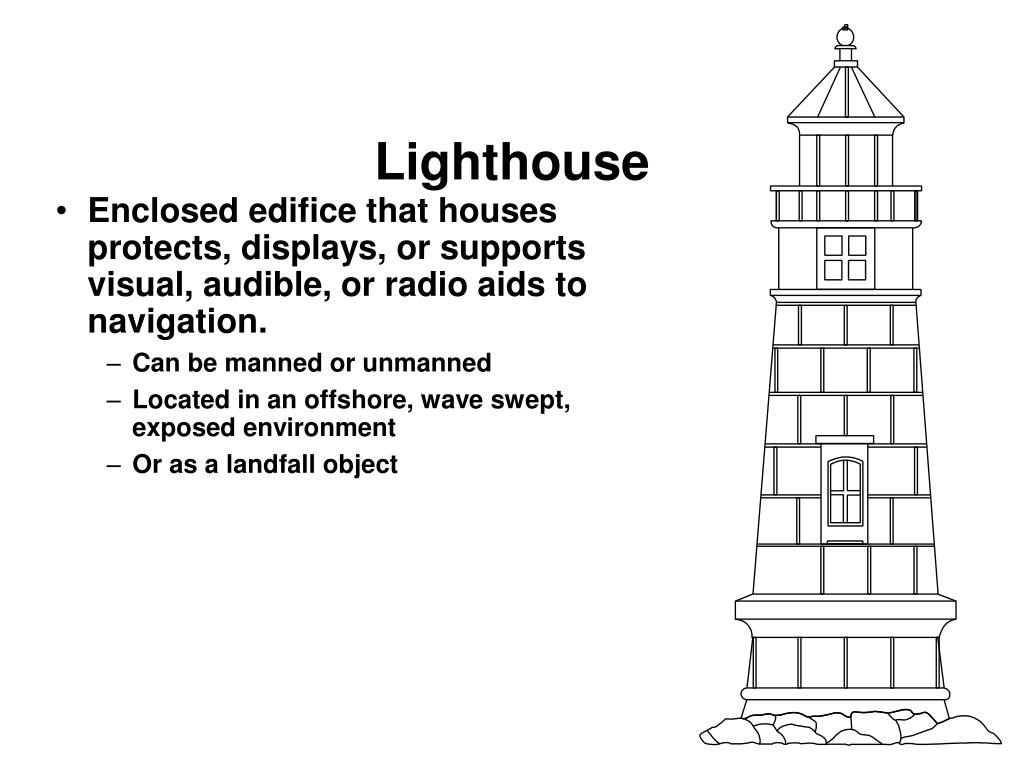

lighthouse
Lighthouse
  • Enclosed edifice that houses protects, displays, or supports visual, audible, or radio aids to navigation.
    • Can be manned or unmanned
    • Located in an offshore, wave swept, exposed environment
    • Or as a landfall object
single pile

2

Single Pile
  • Used in protected or semi exposed locations where fixity can be attained
dolphin

1

Dolphin
  • Battered pile
    • Three to seven piles driven at an angle with the bottoms spread and the tops secured with wire rope or bolts and shear connectors
slide43

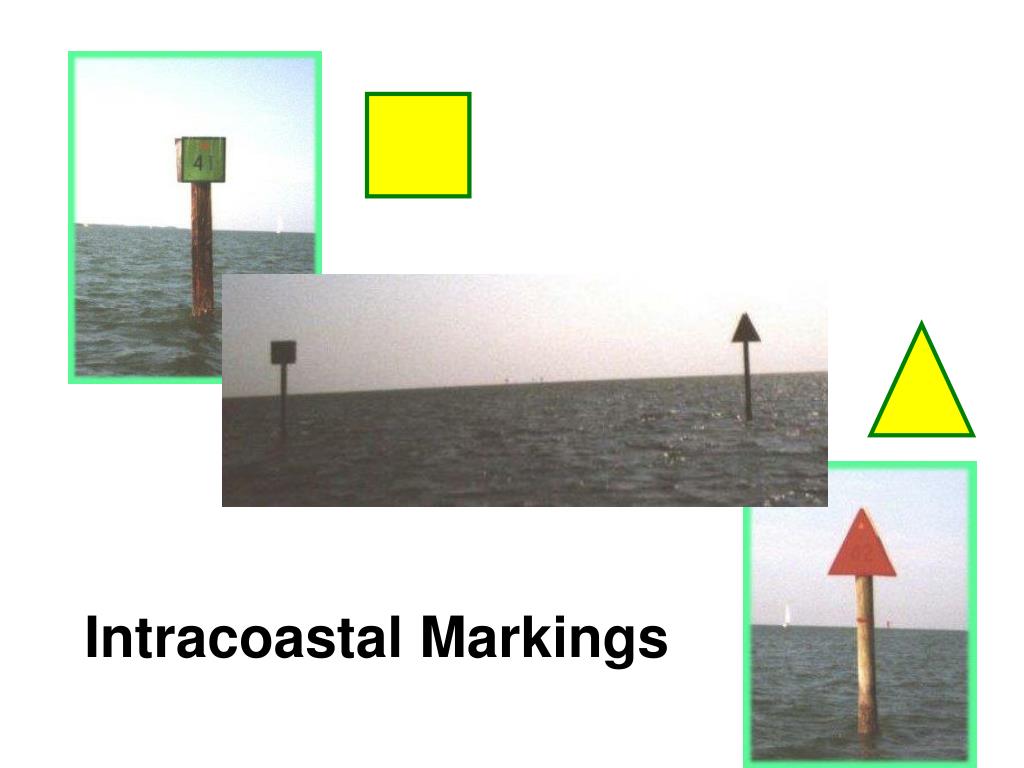

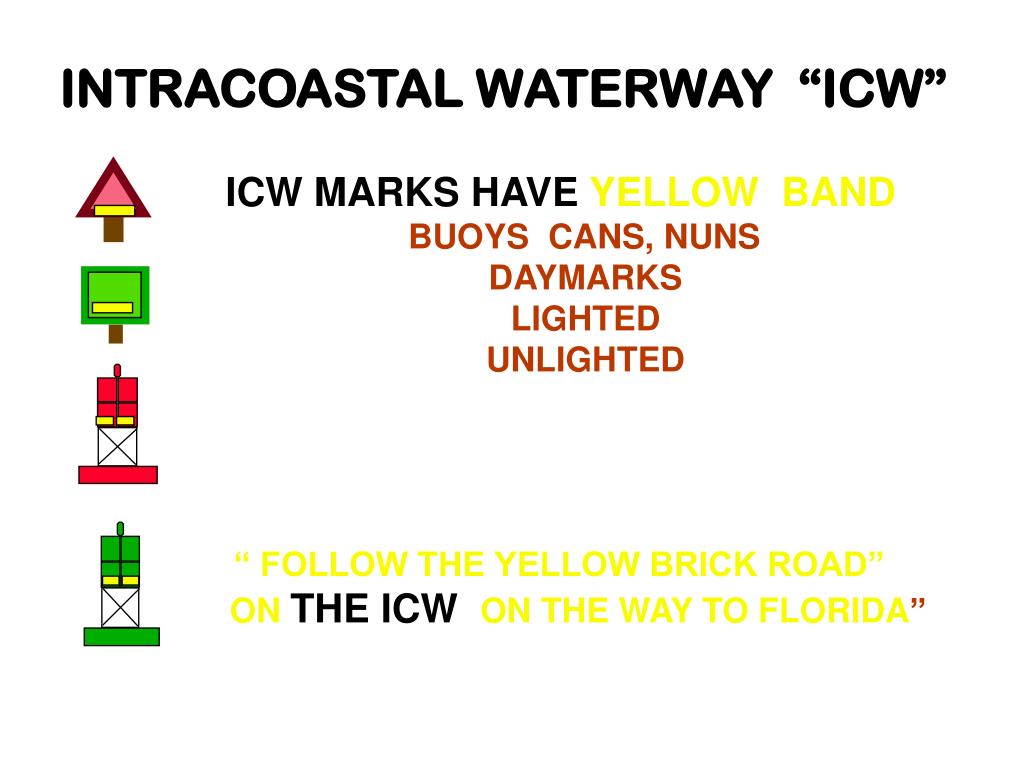

INTRACOASTAL WATERWAY “ICW”

ICW MARKS HAVE YELLOW BAND

BUOYS CANS, NUNS

DAYMARKS

LIGHTED

UNLIGHTED

“ FOLLOW THE YELLOW BRICK ROAD”

ON THE ICW ON THE WAY TO FLORIDA”

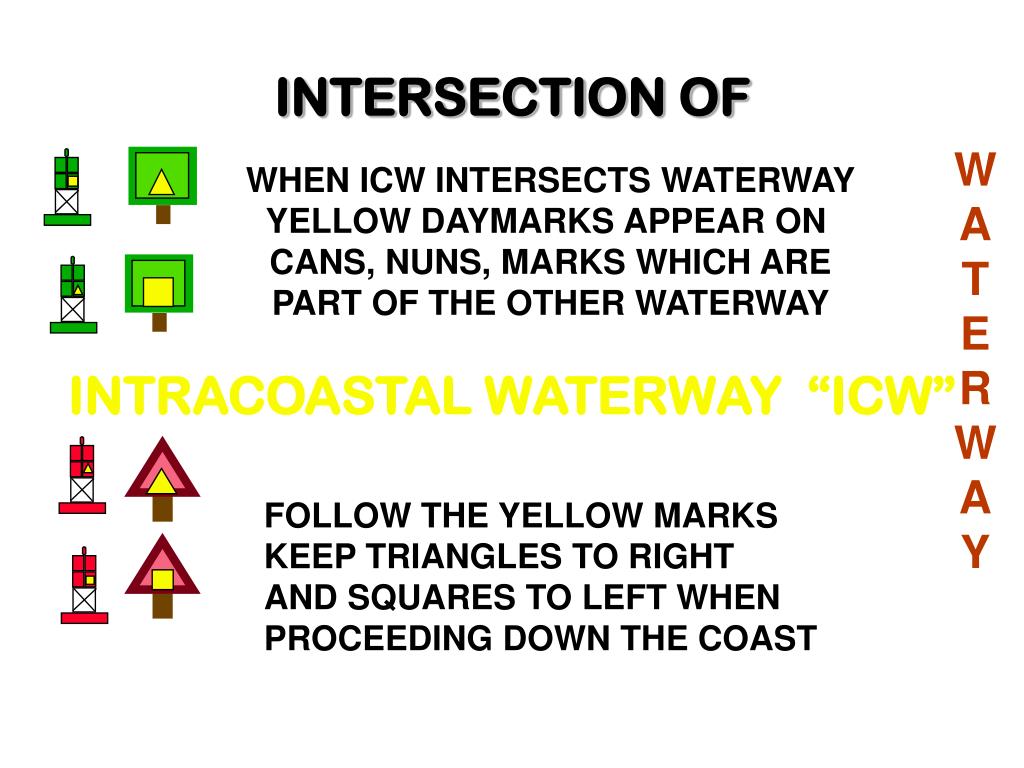

slide45

INTERSECTION OF

W

A

T

E

R

W

A

Y

WHEN ICW INTERSECTS WATERWAY

YELLOW DAYMARKS APPEAR ON

CANS, NUNS, MARKS WHICH ARE

PART OF THE OTHER WATERWAY

INTRACOASTAL WATERWAY “ICW”

FOLLOW THE YELLOW MARKS

KEEP TRIANGLES TO RIGHT

AND SQUARES TO LEFT WHEN

PROCEEDING DOWN THE COAST

slide46

PREFERRED CHANNEL

ICW ROUTE

SECONDARY ROUTE

slide47

UNIFORM STATE WATERWAY MARKING SYSTEM

EXCLUSION

OR

PROHIBITED

AREA

DANGER

DAM

RAPIDS

SWIM AREA

WATER INTAKE

DAM

SPILLWAY

ROCK

WRECK

SHOAL

ROCK

SWIM AREA

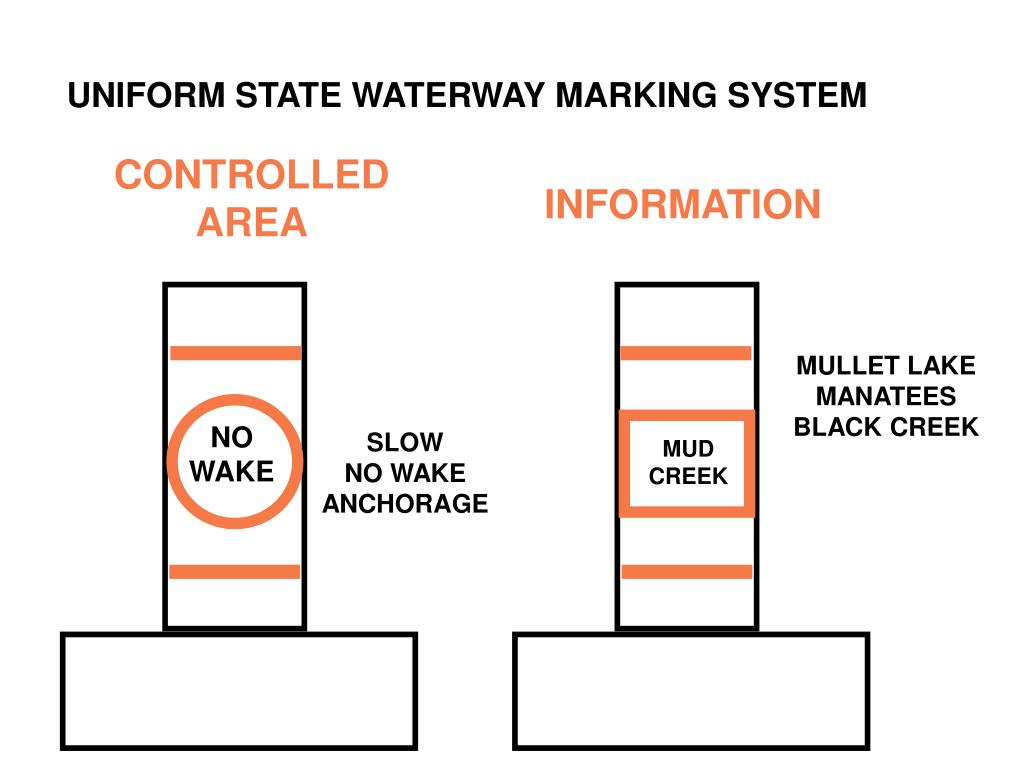

slide48

UNIFORM STATE WATERWAY MARKING SYSTEM

CONTROLLED

AREA

INFORMATION

MULLET LAKE

MANATEES

BLACK CREEK

NO

WAKE

SLOW

NO WAKE

ANCHORAGE

MUD

CREEK

information and regulatory markers
Information and Regulatory Markers

Exclusion

Area

Controlled

Area

Danger

slide52

AIDSTO NAVIGATION

NAVIGATION PUBLICATIONS

CURRENT CHART OF BOATING AREA

USCG -- NOTICE TO MARINERS

GET FREE FROM COAST GUARD DISTRICT

THIS KEEPS YOUR CHART CURRENT

LIGHT LIST

BACKGROUND INFORMATION ON ALL

LIGHTED AIDS

OBTAIN AT:

MARINE STORES OR

US GOVERNMENT

SUPERINTENDENT OF DOCUMENTS

US PRINTING OFFICE

WASHINNGTON D.C. 20402
