Hyperbolicity in Multi-Fluid Systems: Mathematical Issues and Numerical Methods

This study delves into the mathematical challenges surrounding hyperbolicity and non-conservativeness in multi-fluid systems. It explores the effectiveness of field equations, uniqueness of discontinuous solutions, pressure oscillations, stability, and remedies for non-hyperbolic systems. The text discusses the impact of hyperbolicity on solution convergence with practical examples like the Faucet Problem and the necessity of Virtual Mass (VM) in the absence of Interfacial Pressure (IP). The numerical method employed is an extension of single-phase AUSM+-up, implemented in the All Regime Multiphase Simulator (ARMS) with structured adaptive mesh refinement and parallelization for efficient calculations. The current and future works include further exploration of hyperbolicity, adaptive mesh refinement integration, and development of 3D problem-solving capabilities in Music-ARMS, along with the introduction of physical models like surface tension and turbulence models for real-world applications.

conley
Download Presentation

Hyperbolicity in Multi-Fluid Systems: Mathematical Issues and Numerical Methods

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Two-Fluid Effective-Field Equations

  2. Mathematical Issues • Non-conservative: • Uniqueness of Discontinuous solution? • Pressure oscillations • Non-hyperbolic system: Ill-posedness? • Stability • Uniqueness • How to sort it out?

  3. Remedy for hyperbolicity: Interfacial pressure correction term and virtual mass term

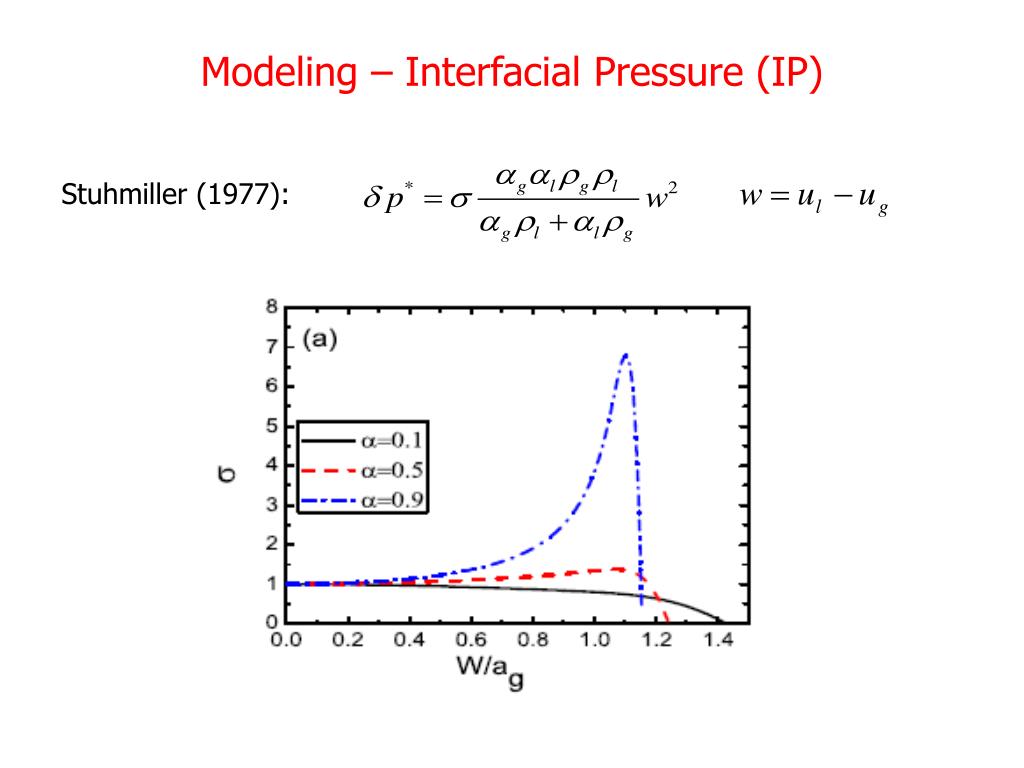

  4. Modeling – Interfacial Pressure (IP) Stuhmiller (1977):

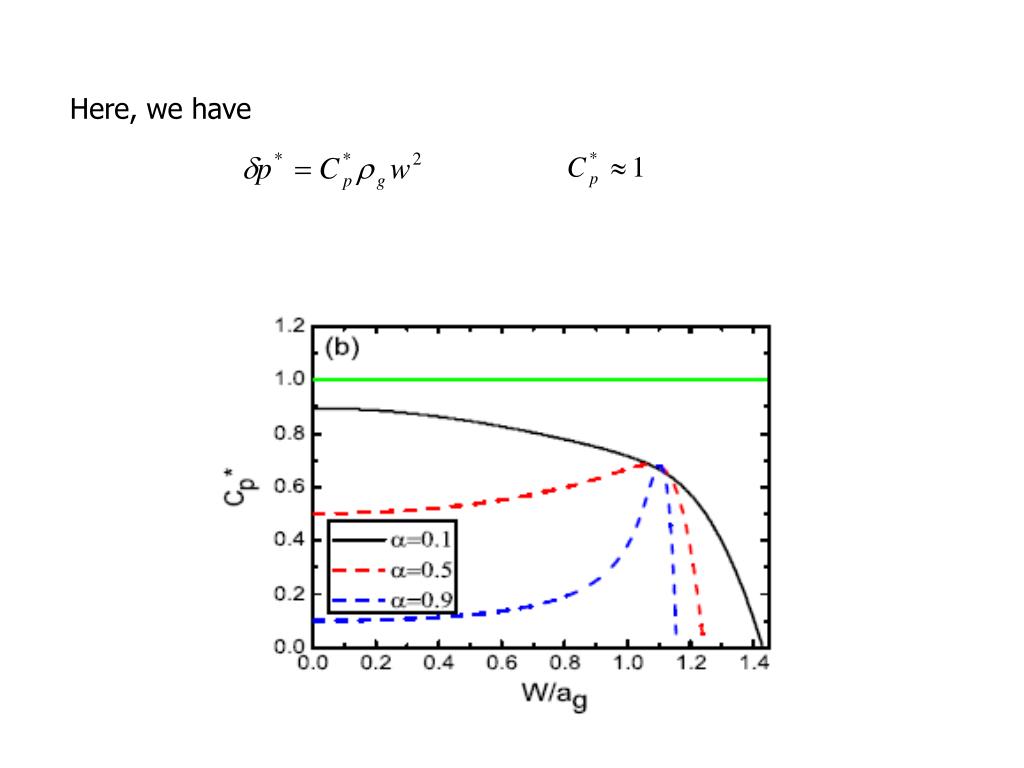

  5. Here, we have

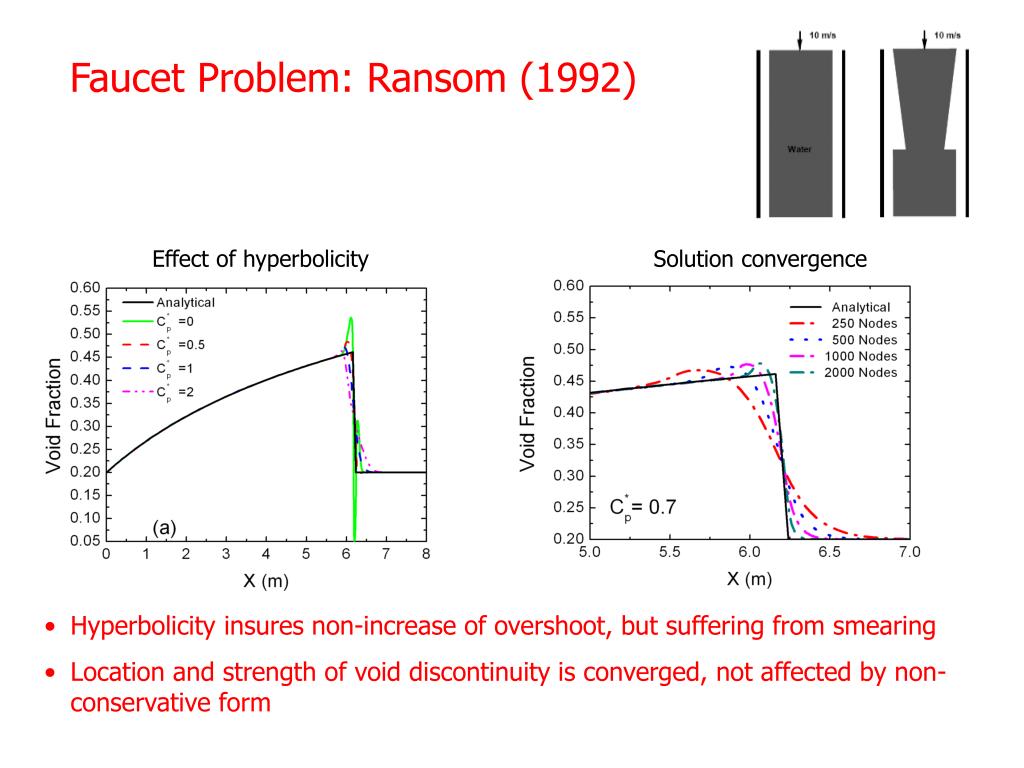

  6. Effect of hyperbolicity Solution convergence Faucet Problem: Ransom (1992) • Hyperbolicity insures non-increase of overshoot, but suffering from smearing • Location and strength of void discontinuity is converged, not affected by non-conservative form

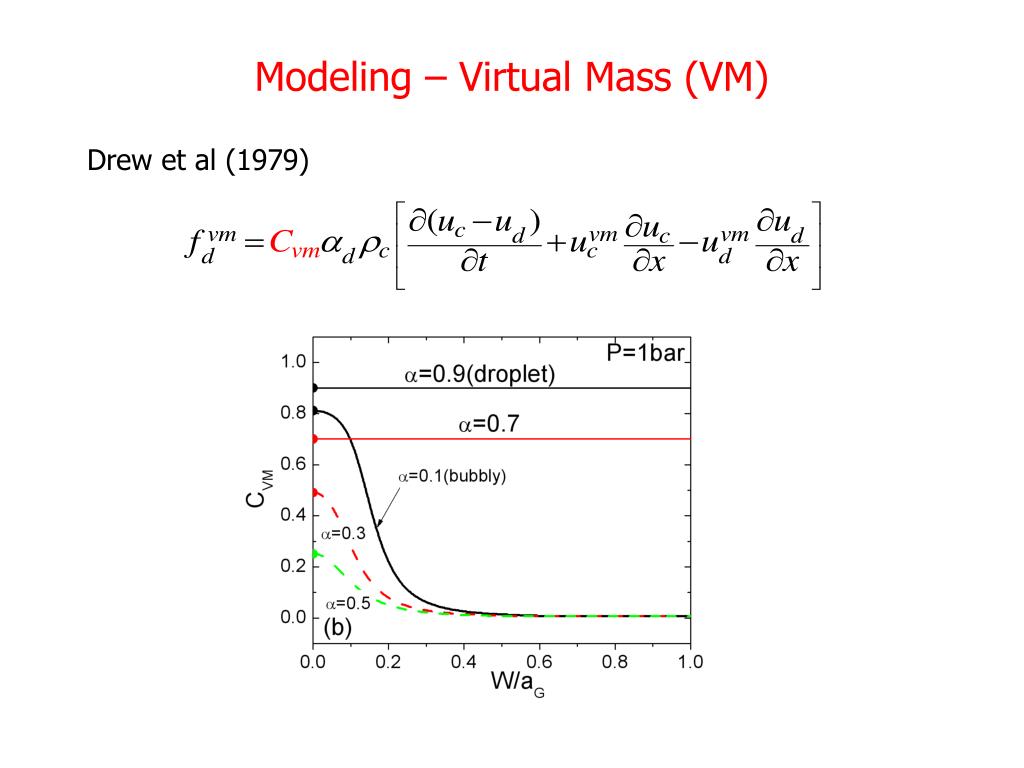

  7. Modeling – Virtual Mass (VM) Drew et al (1979)

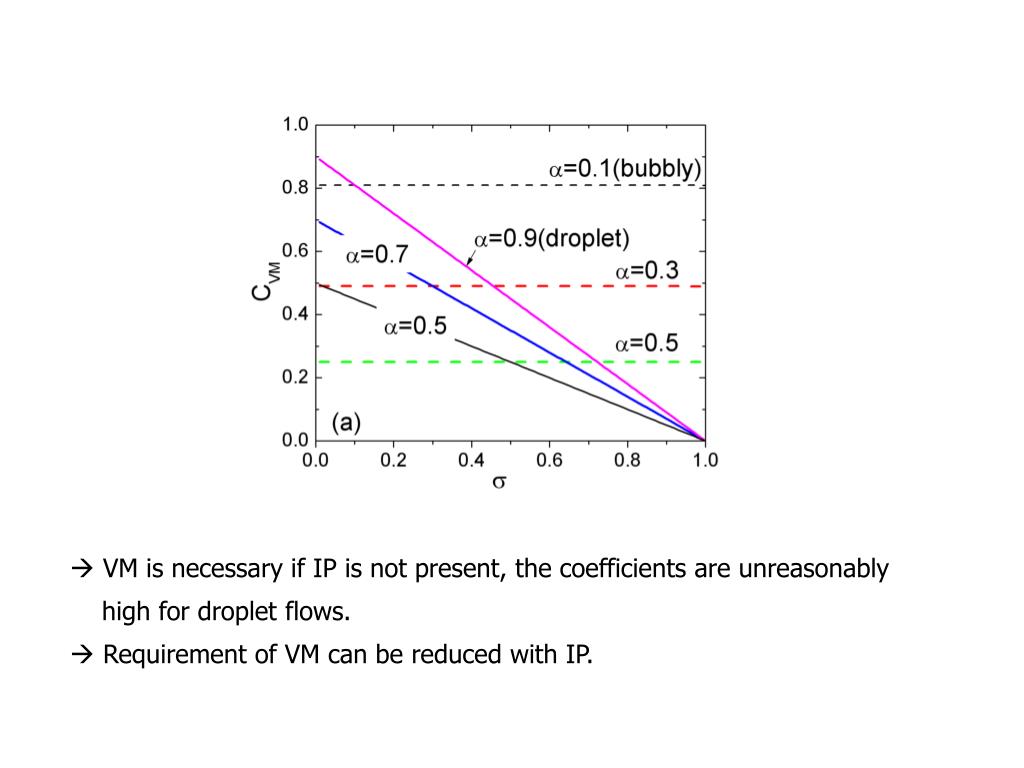

  8.  VM is necessary if IP is not present, the coefficients are unreasonably high for droplet flows. Requirement of VM can be reduced with IP.

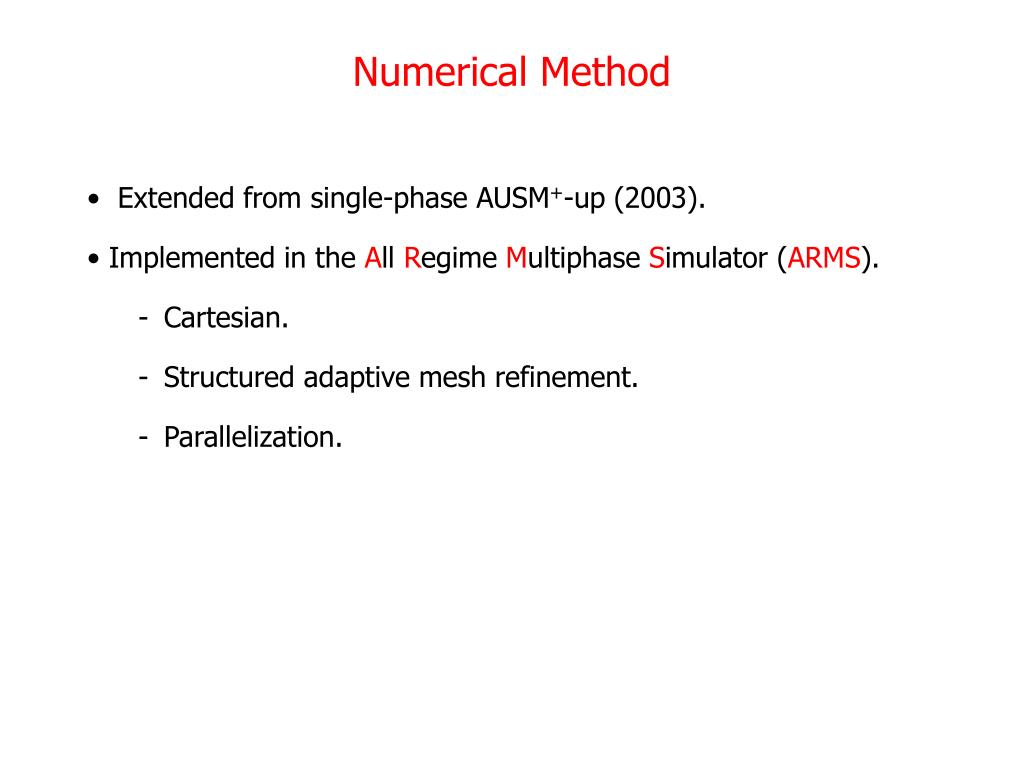

  9. Numerical Method • Extended from single-phase AUSM+-up (2003). • Implemented in the All Regime Multiphase Simulator (ARMS). • Cartesian. • Structured adaptive mesh refinement. • Parallelization.

  10. A case with 40% liquid fraction ( Grid size 10cm, calculation time :0-150ms Calculation domain:,L=60m,R=12m ) L=60m Ugas=1km/s R=12m Axis aL=0.4, liquid mass =400kg VL=150m/s(in radial) Liquid area: l=2m, r=0.4m

  11. Liquid fraction, pressure and velocity contours of particle cloud for time 0-150 ms. Lquid fraction (Min:10-8 -Max:10-3) Pressure (Min:1bar-Max:7bar) Gas Velocity (Min:0m/s -Max:1,000m/s)

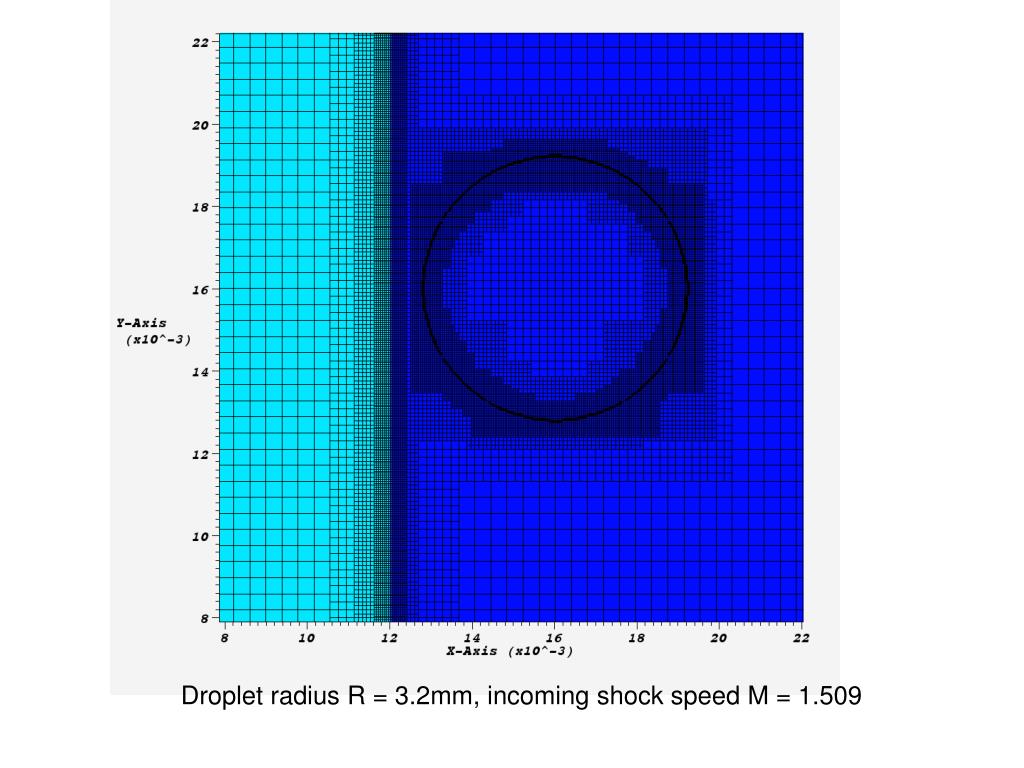

  12. Droplet radius R = 3.2mm, incoming shock speed M = 1.509

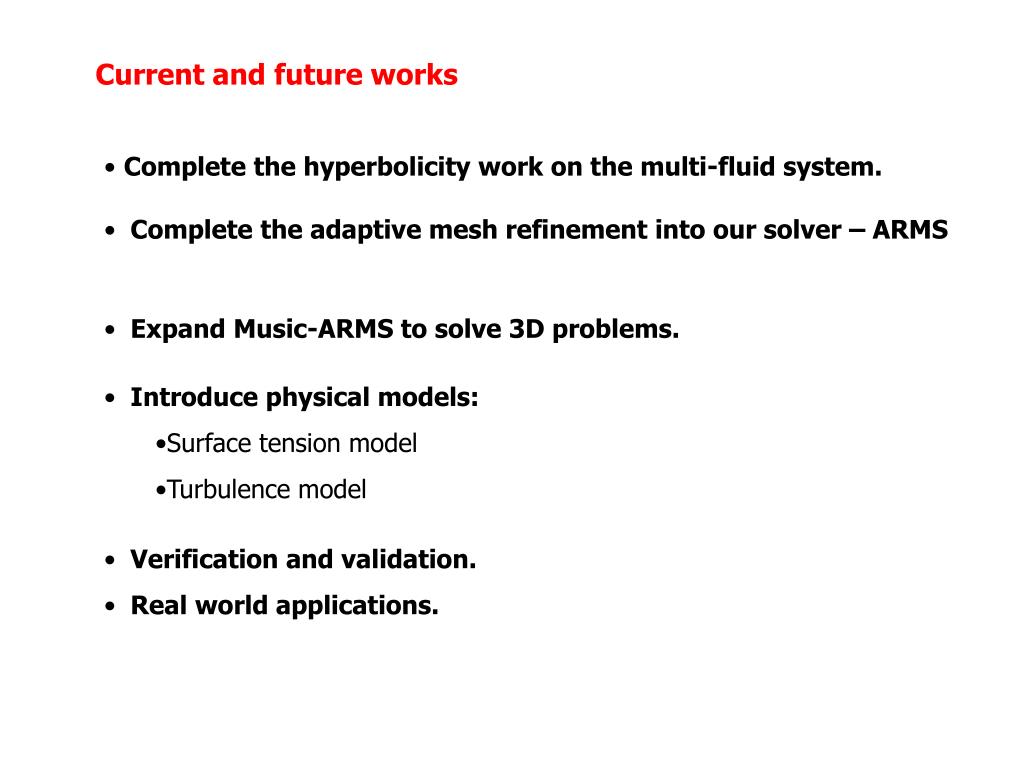

  13. Current and future works • Complete the hyperbolicity work on the multi-fluid system. • Complete the adaptive mesh refinement into our solver – ARMS • Expand Music-ARMS to solve 3D problems. • Introduce physical models: • Surface tension model • Turbulence model • Verification and validation. • Real world applications.
