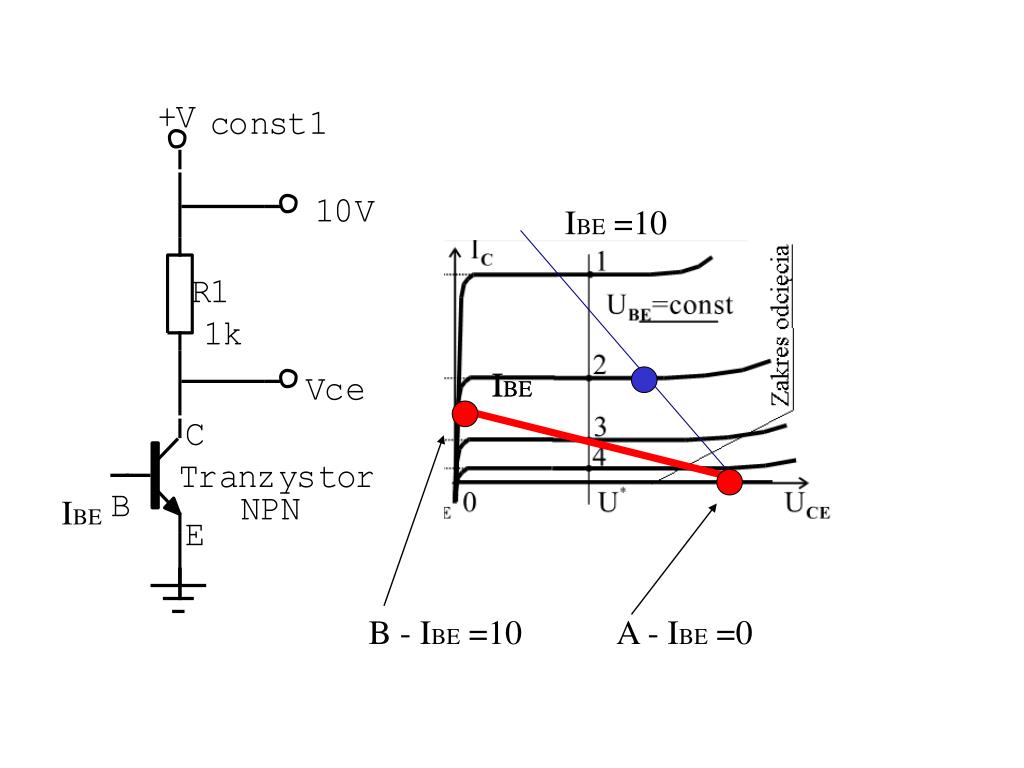

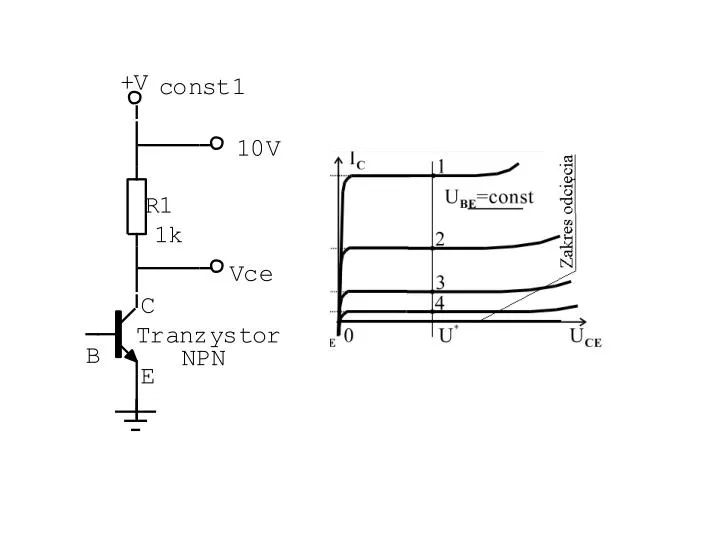

  1. IBE =10 IBE IBE IBE B - IBE =10 A - IBE =0

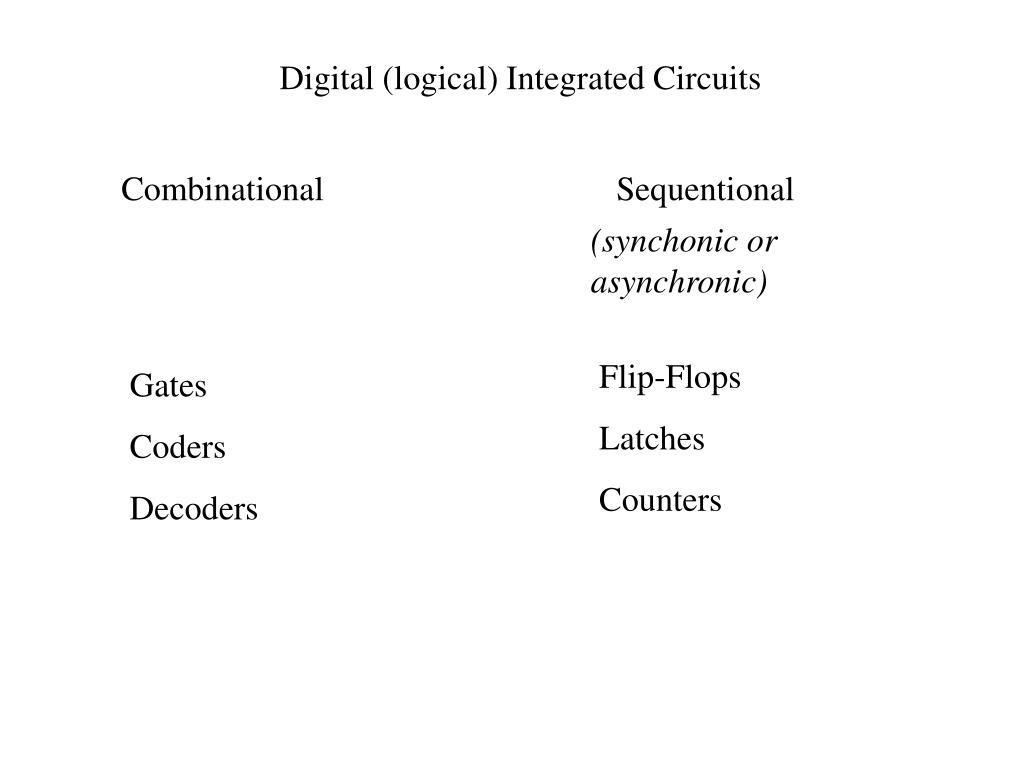

  2. Digital (logical) Integrated Circuits Combinational Sequentional (synchonic or asynchronic) Flip-Flops Latches Counters Gates Coders Decoders

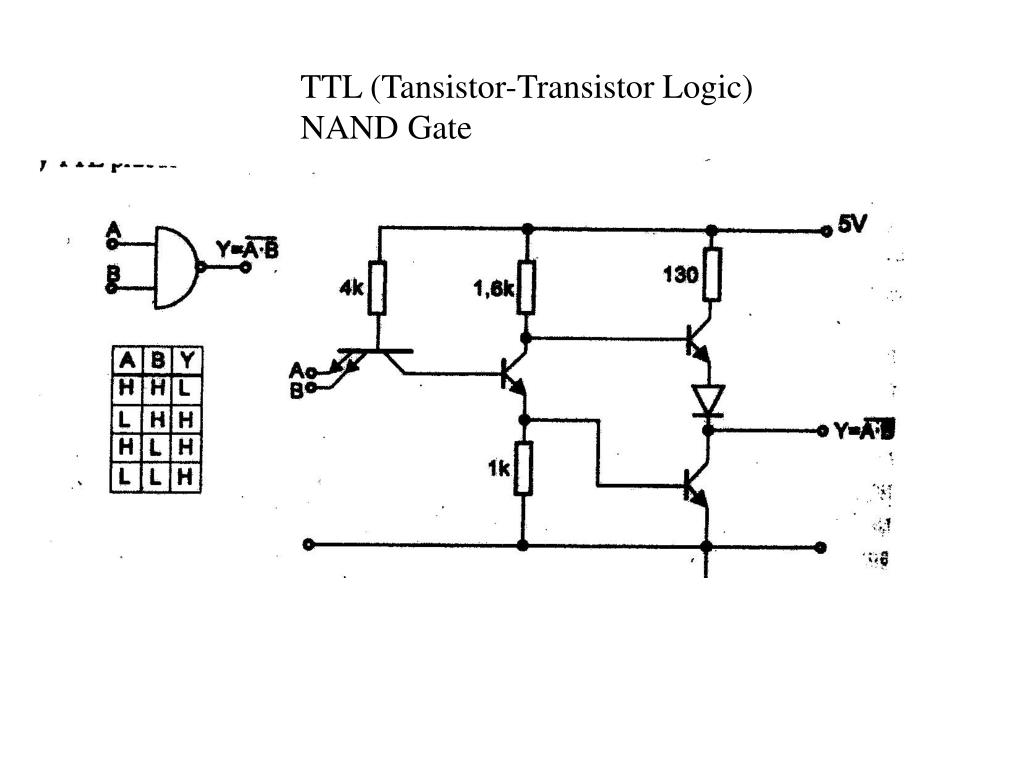

  3. TTL (Tansistor-Transistor Logic) NAND Gate

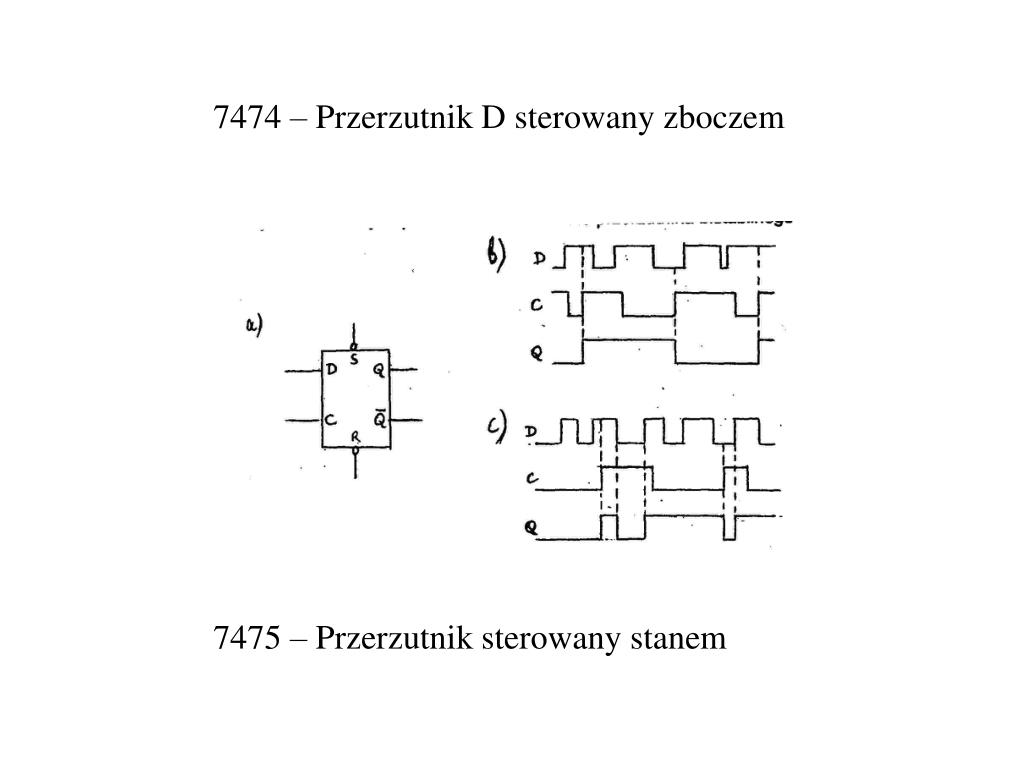

  4. 7474 – Przerzutnik D sterowany zboczem 7475 – Przerzutnik sterowany stanem

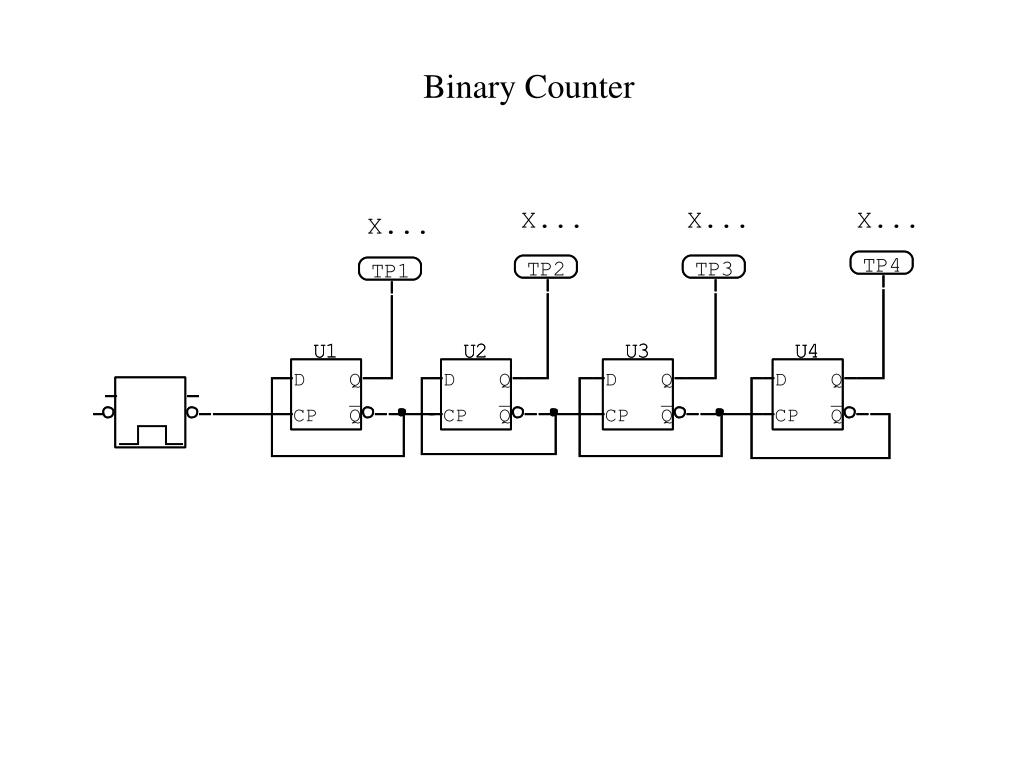

  5. Binary Counter

  6. Licznik bbinarny (przerzutniki JK)
