cst particle studio analysis of step out olav berrig n.
Download
Skip this Video
Loading SlideShow in 5 Seconds..
CST Particle studio. Analysis of “STEP-OUT ” Olav Berrig PowerPoint Presentation
Download Presentation
CST Particle studio. Analysis of “STEP-OUT ” Olav Berrig

Loading in 2 Seconds...

play fullscreen
1 / 11

CST Particle studio. Analysis of “STEP-OUT ” Olav Berrig - PowerPoint PPT Presentation


  • 208 Views
  • Uploaded on

CST Particle studio. Analysis of “STEP-OUT ” Olav Berrig. Thanks to Benoit Salvant. Device under analysis. Graphite(S=30000, e r =1 , m r =1 ), r_exterior =5. Device under analysis. Vacuum inside: r_small =1 cm, r_big =2 cm. Radius gets bigger: STEP-OUT. Device under analysis.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'CST Particle studio. Analysis of “STEP-OUT ” Olav Berrig' - columbia-adriel


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
device under analysis
Device under analysis

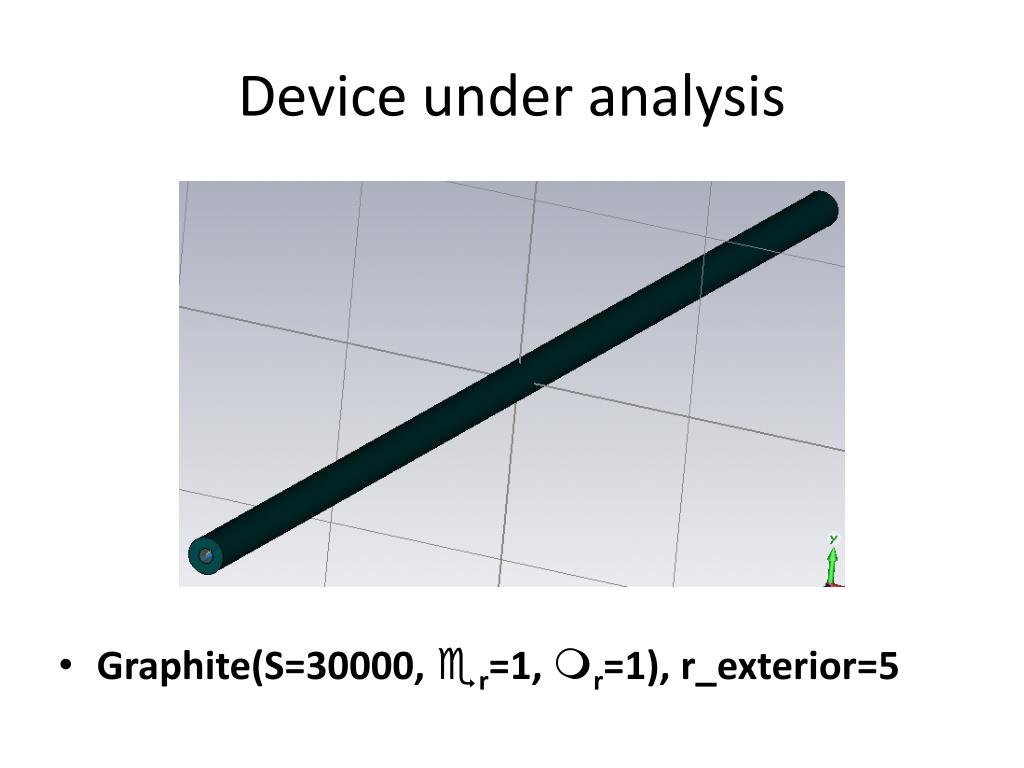

  • Graphite(S=30000, er=1, mr=1), r_exterior=5
device under analysis1
Device under analysis

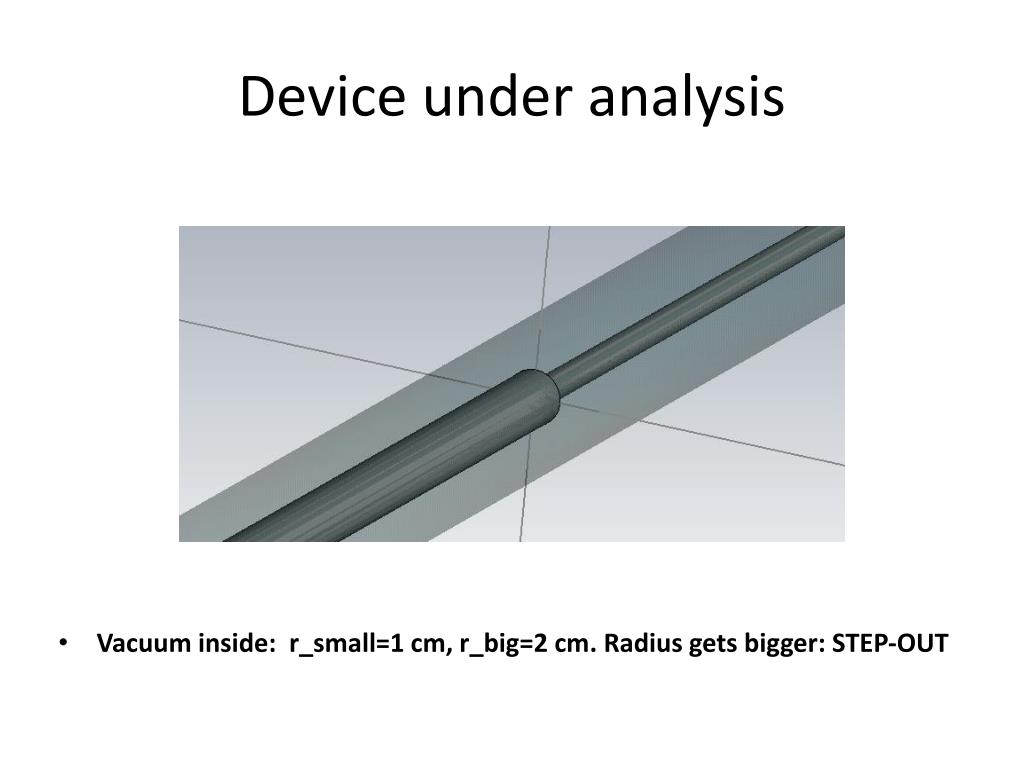

  • Vacuum inside: r_small=1 cm, r_big=2 cm. Radius gets bigger: STEP-OUT
device under analysis2
Device under analysis

Gausian Beam: longitudinal sigma=1.5cm, charge=1*10^-9C. Max beam freq. =11.8231 GHz, Beta=1, measuring particle at x=0,y=0.5. Beam direction=z.

  • Background consists of PEC (Perfect conductor).
slide5

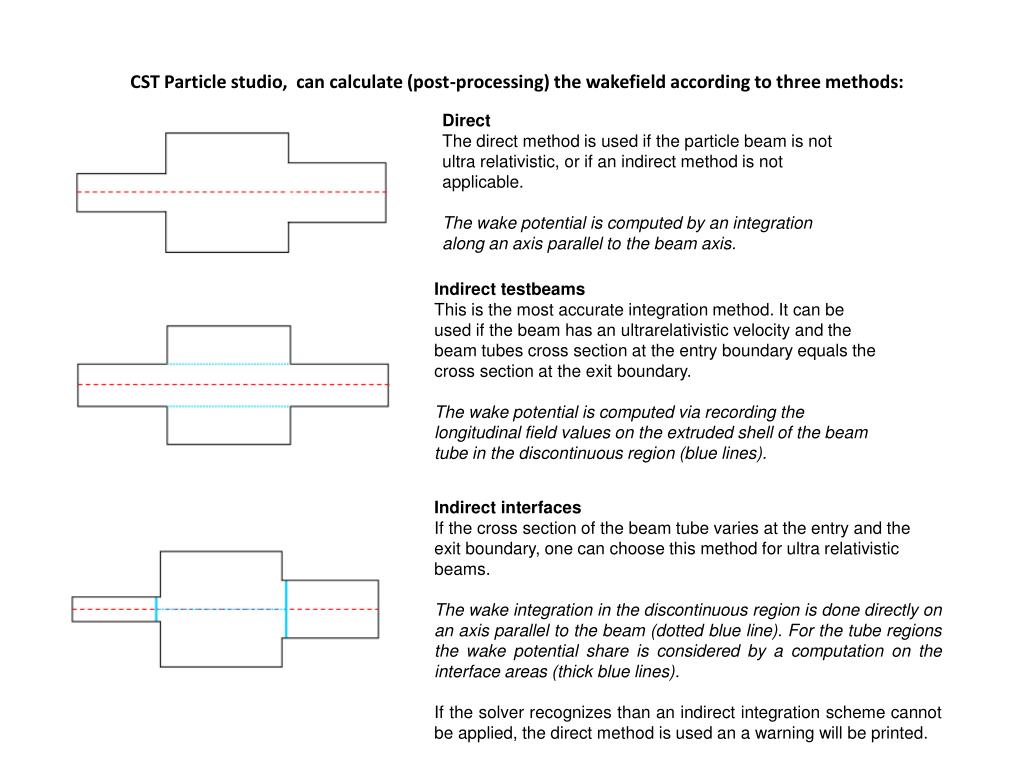

CST Particle studio, can calculate (post-processing) the wakefield according to three methods:

  • Direct
  • The direct method is used if the particle beam is not ultra relativistic, or if an indirect method is not applicable.

The wake potential is computed by an integration along an axis parallel to the beam axis.

  • Indirect testbeams
  • This is the most accurate integration method. It can be used if the beam has an ultrarelativistic velocity and the beam tubes cross section at the entry boundary equals the cross section at the exit boundary.

The wake potential is computed via recording the longitudinal field values on the extruded shell of the beam tube in the discontinuous region (blue lines).

  • Indirect interfaces
  • If the cross section of the beam tube varies at the entry and the exit boundary, one can choose this method for ultra relativistic beams.

The wake integration in the discontinuous region is done directly on an axis parallel to the beam (dotted blue line). For the tube regions the wake potential share is considered by a computation on the interface areas (thick blue lines).

If the solver recognizes than an indirect integration scheme cannot be applied, the direct method is used an a warning will be printed.

other configurations calculated for comparisons

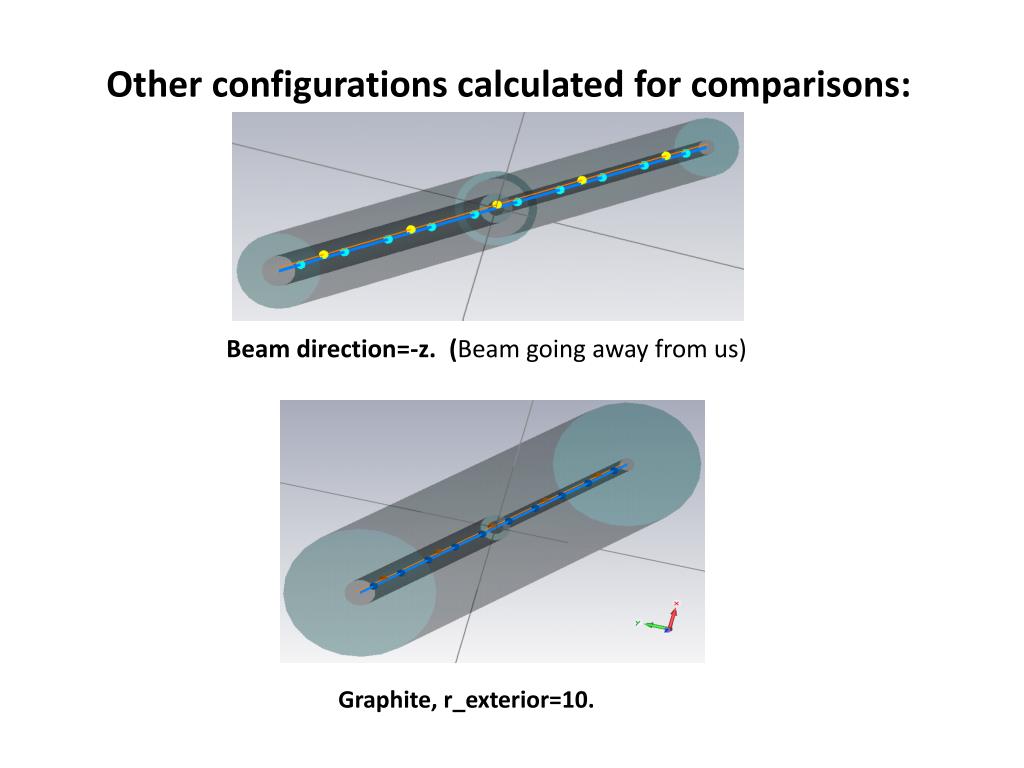

Other configurations calculated for comparisons:

PEC(S=,e=undefined, mu=1), r_exterior_small=4, r_exterior_large=5. Normal background. With vacuum between small cylinder and background.

  • Graphite, r_exterior_small=4, r_exterior_large=5. Normal background. With vacuum between small cylinder and background.
other configurations calculated for comparisons1
Other configurations calculated for comparisons:

Beam direction=-z. (Beam going away from us)

  • Graphite, r_exterior=10.
slide8

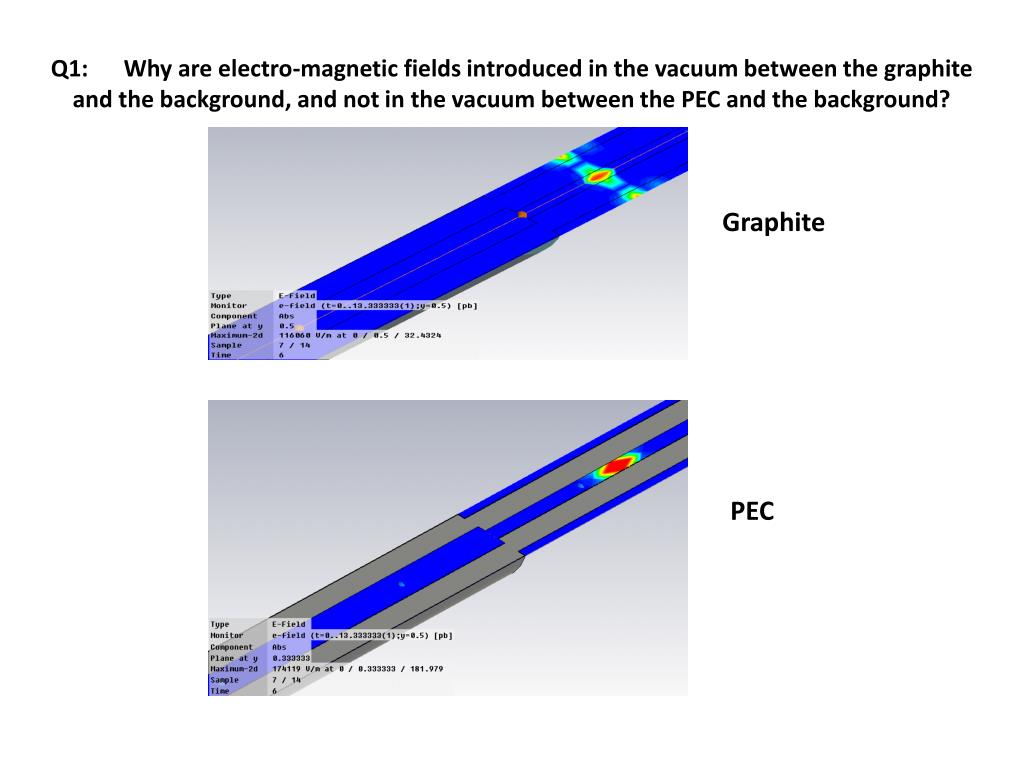

Q1: Why are electro-magnetic fields introduced in the vacuum between the graphite and the background, and not in the vacuum between the PEC and the background?

Graphite

PEC

slide9

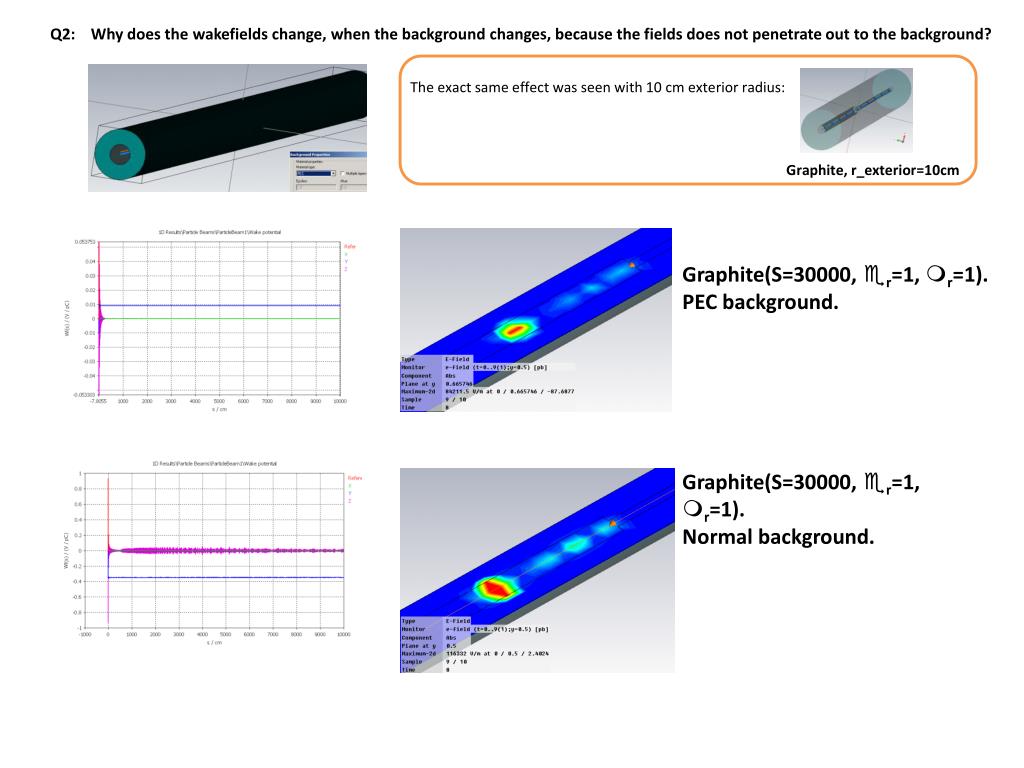

Q2: Why does the wakefields change, when the background changes, because the fields does not penetrate out to the background?

The exact same effect was seen with 10 cm exterior radius:

Graphite, r_exterior=10cm

  • Graphite(S=30000, er=1, mr=1).
  • PEC background.
  • Graphite(S=30000, er=1, mr=1).

Normal background.

slide10

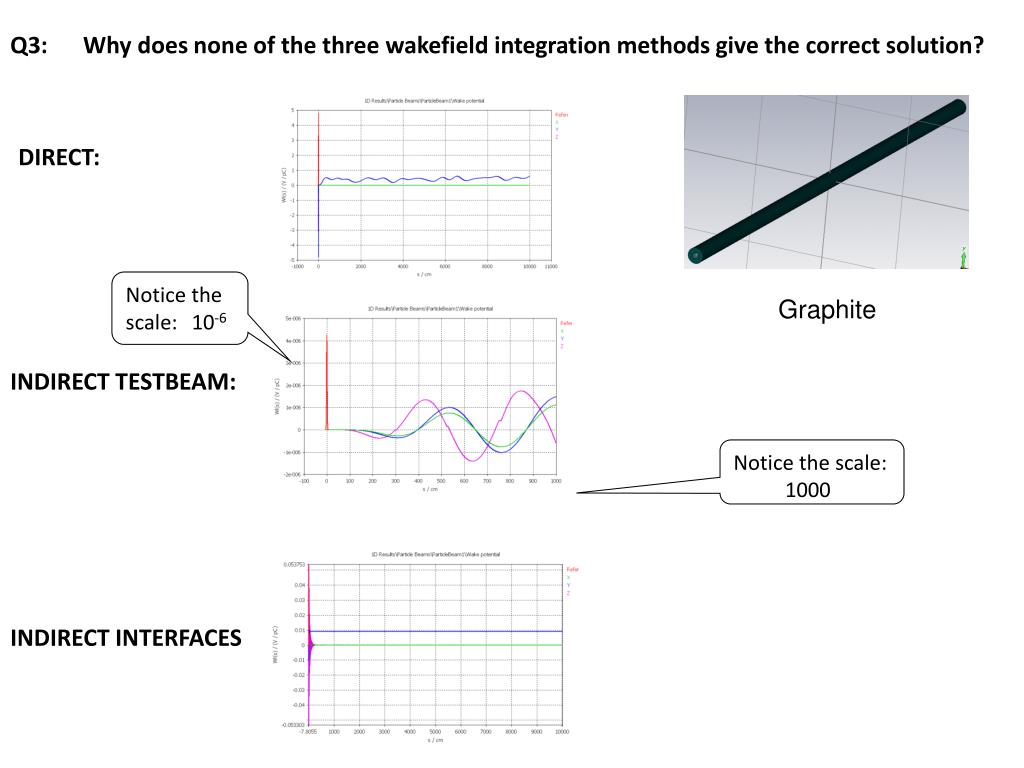

Q3: Why does none of the three wakefield integration methods give the correct solution?

  • DIRECT:

Notice the scale:10-6

Graphite

INDIRECT TESTBEAM:

Notice the scale:

1000

INDIRECT INTERFACES

addition to q2
Addition to Q2

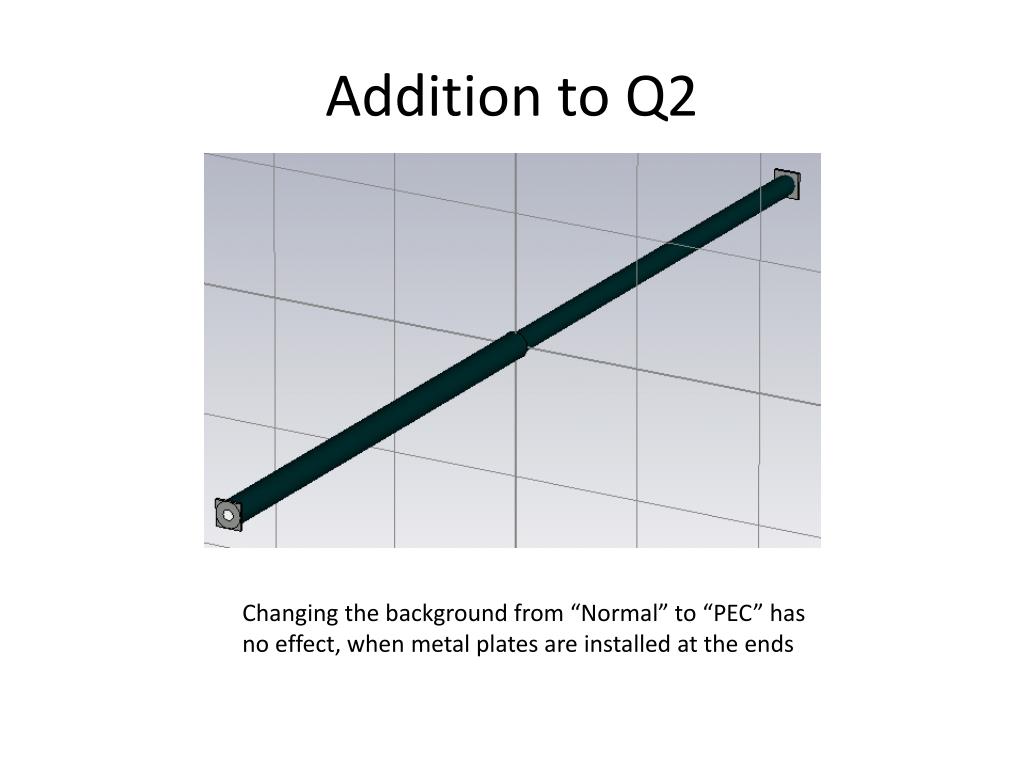

Changing the background from “Normal” to “PEC” has no effect, when metal plates are installed at the ends
