  1. Transporting Molecules

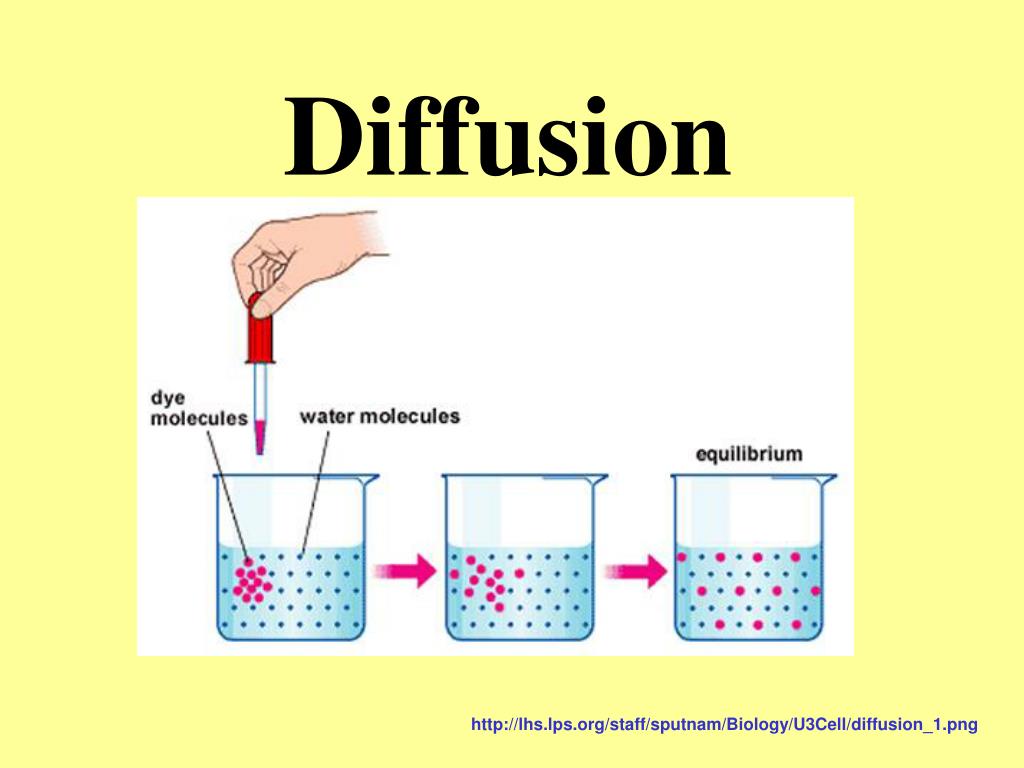

  2. Diffusion http://lhs.lps.org/staff/sputnam/Biology/U3Cell/diffusion_1.png

  3. Animatioin from: http://www.biologycorner.com/resources/diffusion-animated.gif Molecules move from “where there’s A LOT” to “where there’s NOT”

  4. DIFFUSION across a space DIFFERENCE Happens anytime there is a _____________ in concentration in one place compared to another (________________________) = Concentration gradient

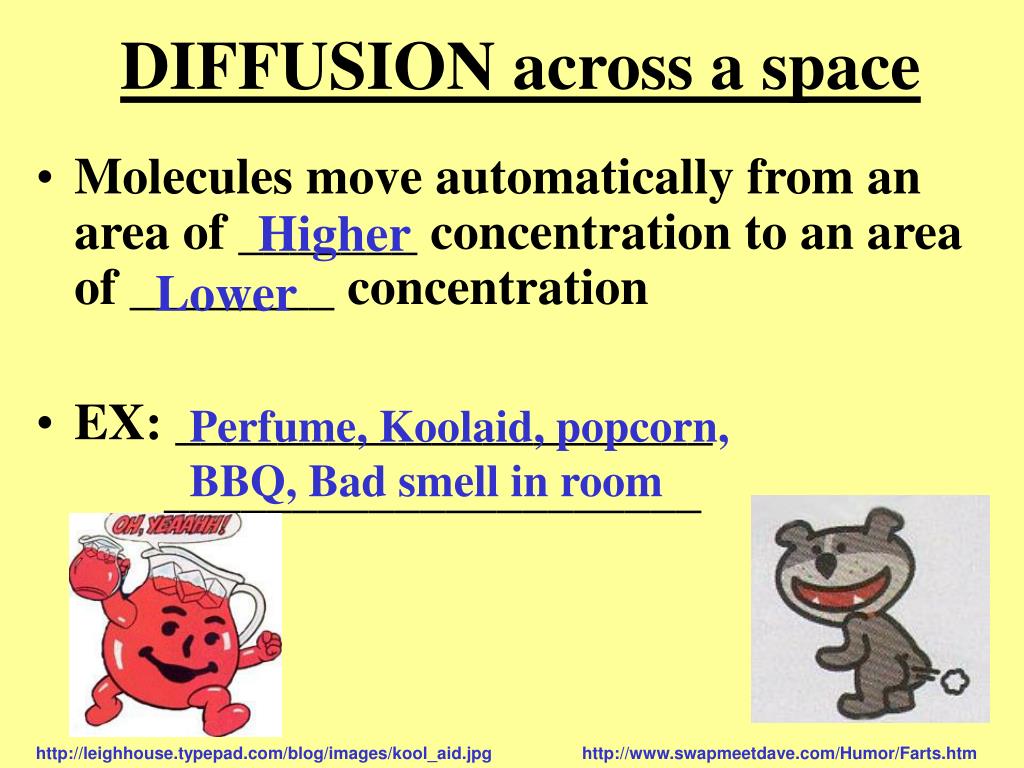

  5. DIFFUSION across a space Higher • Molecules move automatically from an area of _______ concentration to an area of ________ concentration • EX: _____________________ _____________________ Lower Perfume, Koolaid, popcorn, BBQ, Bad smell in room http://leighhouse.typepad.com/blog/images/kool_aid.jpg http://www.swapmeetdave.com/Humor/Farts.htm

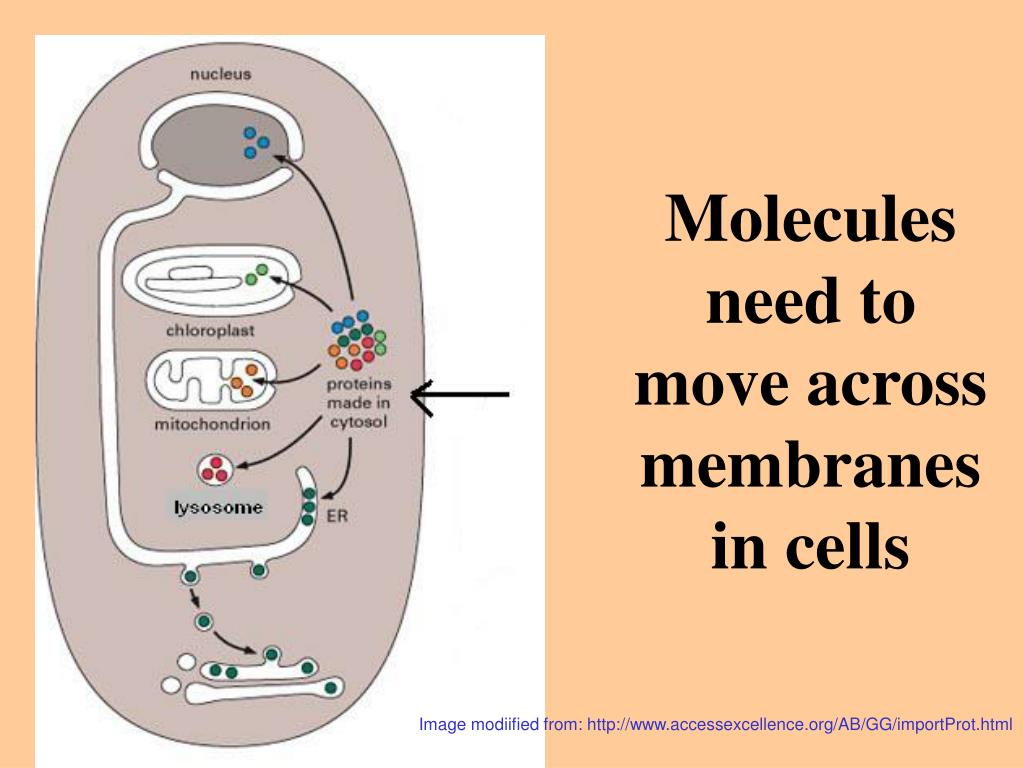

  6. Molecules need to move across membranes in cells Image modiified from: http://www.accessexcellence.org/AB/GG/importProt.html

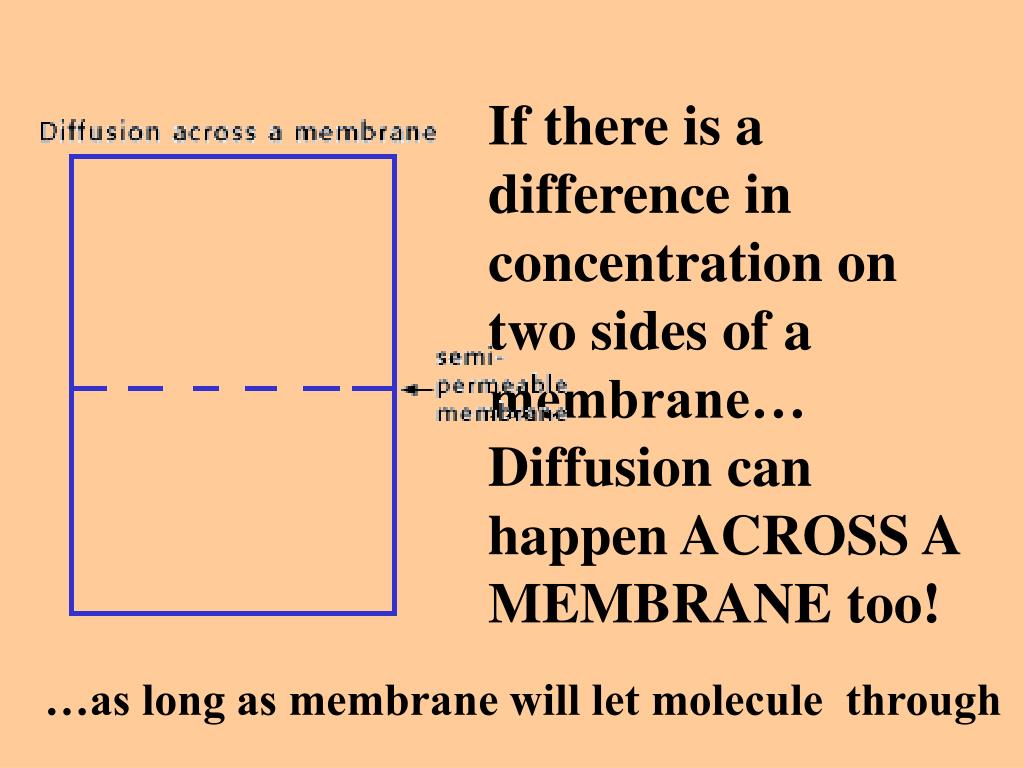

  7. If there is a difference in concentration on two sides of a membrane…Diffusion can happen ACROSS A MEMBRANE too! …as long as membrane will let molecule through

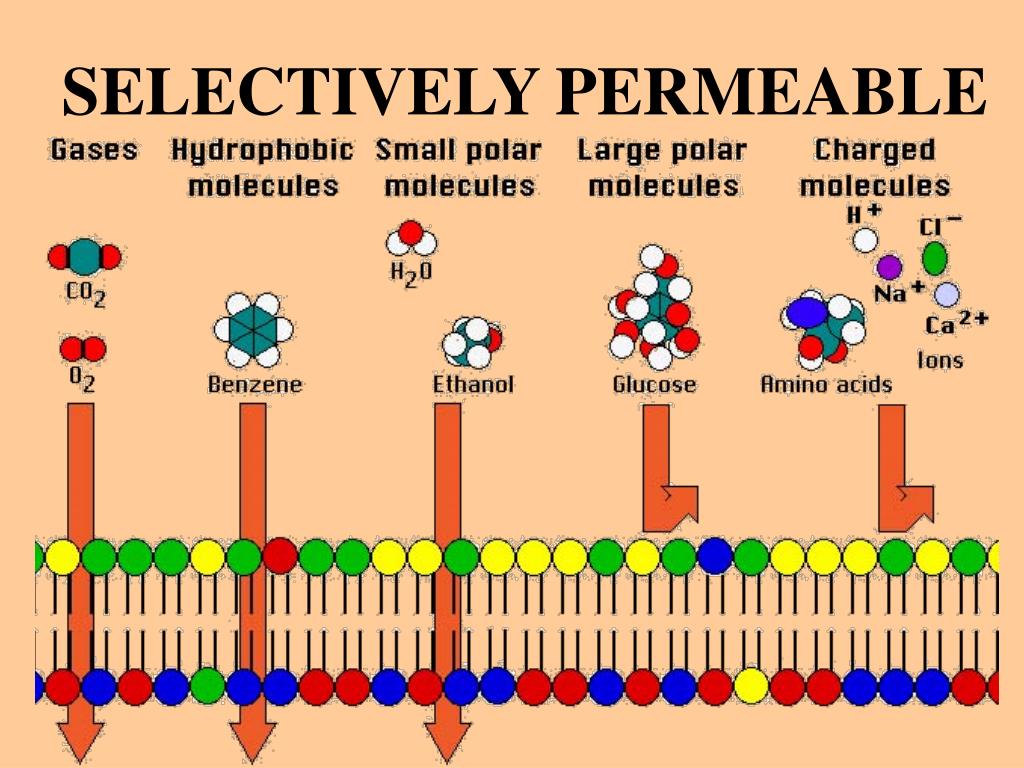

  8. SELECTIVELY PERMEABLE

  9. Image modified from: http://www.medaille.edu/vmacer/120_graphic_05oxygen.gif EXAMPLE: Oxygen molecules move automatically from lungs into blood DIFFUSION moves them from HIGHER (lungs) concentration to LOWER concentration (blood)

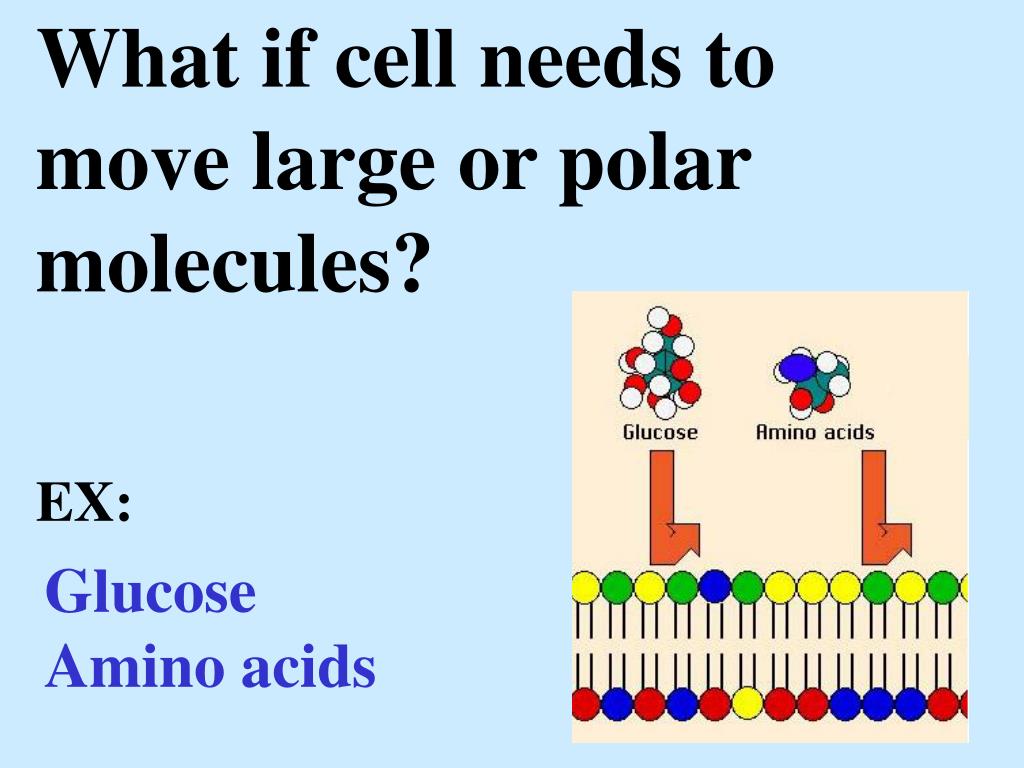

  10. What if cell needs to move large or polar molecules? EX: Glucose Amino acids

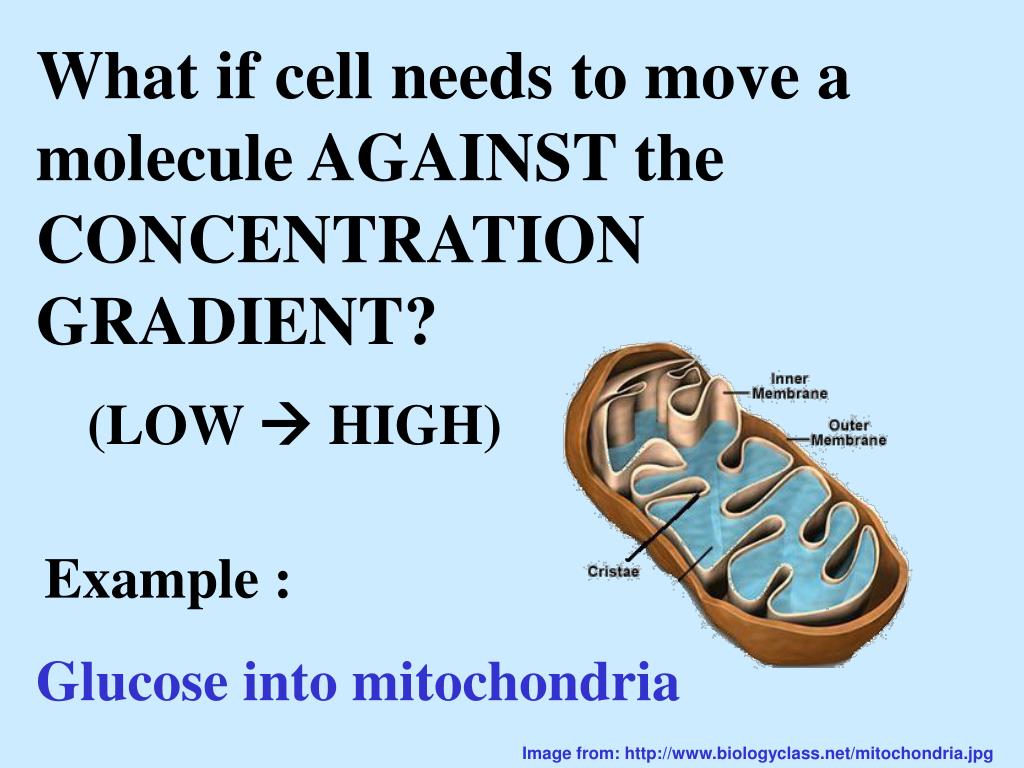

  11. What if cell needs to move a molecule AGAINST the CONCENTRATION GRADIENT? Example : (LOW HIGH) Glucose into mitochondria Image from: http://www.biologyclass.net/mitochondria.jpg

  12. What if cell needs to move molecules really FAST? (can’t wait for it to diffuse) Example in cells: Movement of Na + & K+ ions sends nerve signals http://www.steve.gb.com/images/science/neuron.png

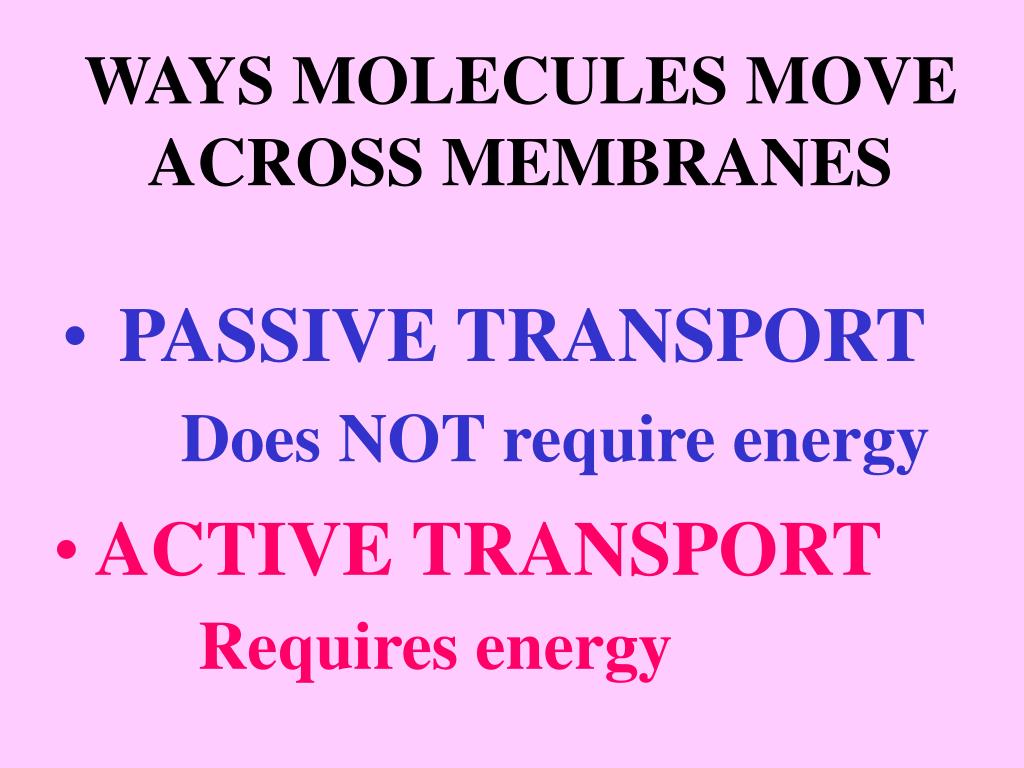

  13. WAYS MOLECULES MOVE ACROSS MEMBRANES • PASSIVE TRANSPORT Does NOT require energy • ACTIVE TRANSPORT Requires energy

  14. Kidspiration by: Riedell

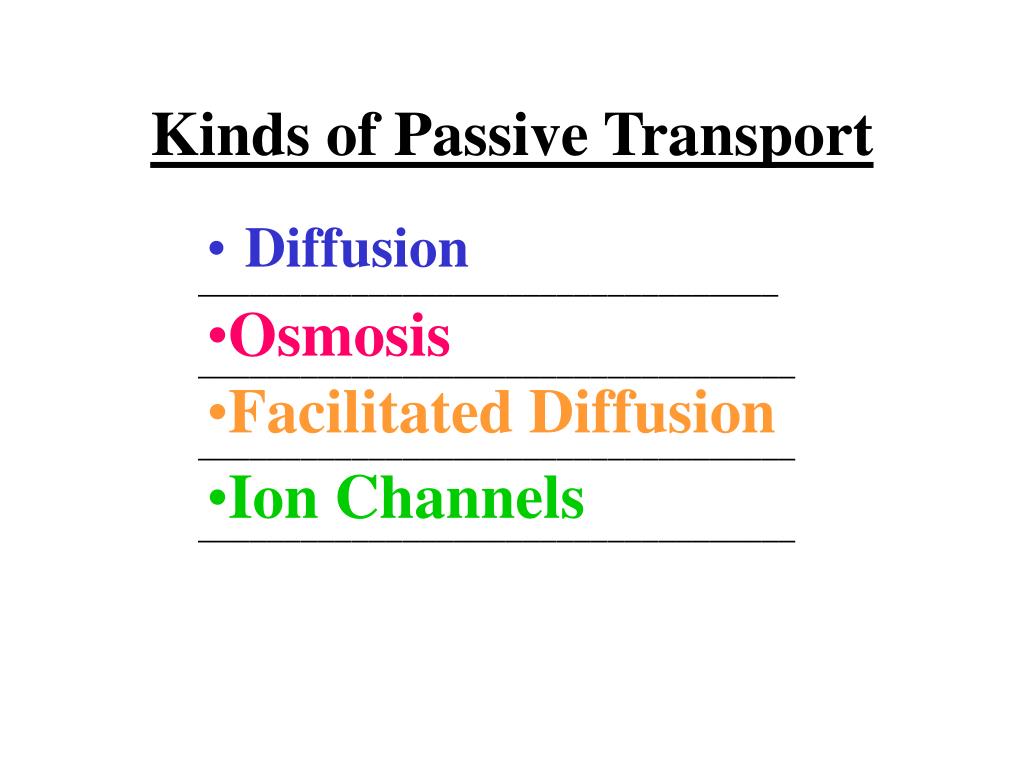

  15. Kinds of Passive Transport __________________________________ ___________________________________ ___________________________________ ___________________________________ • Diffusion • Osmosis • Facilitated Diffusion • Ion Channels

  16. DIFFUSION across a membrane • Moves from: HIGHER concentration LOWER Any kind of molecule that can pass through the membrane can do this. EX: ______________ ______________ OXYGEN CARBON DIOXIDE http://www.lionden.com/cell_animations.htm

  17. OSMOSIS • MOVES WATER MOLECULES • Across a SEMI-PERMEABLE MEMBRANE • Moves from HIGHER  LOWER http://www.Isbu.ac.uk/water/molecule.html

  18. What if there is a difference in concentration but solute molecules can’t move across a membrane? WATER will move until concentration reaches equilibrium

  19. Osmosis1 http://www.sidwell.edu/us/science/vlb6/labs/a_osmosis.gif

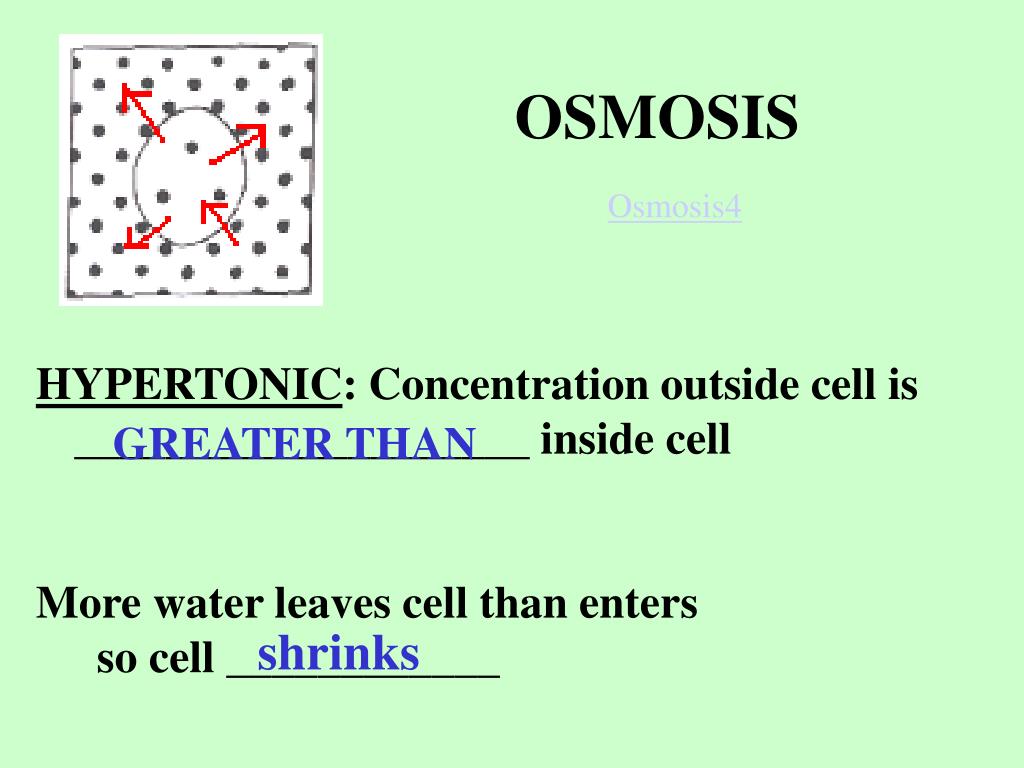

  20. OSMOSIS Osmosis4 HYPERTONIC: Concentration outside cell is ____________________ inside cell More water leaves cell than enters so cell ____________ GREATER THAN shrinks

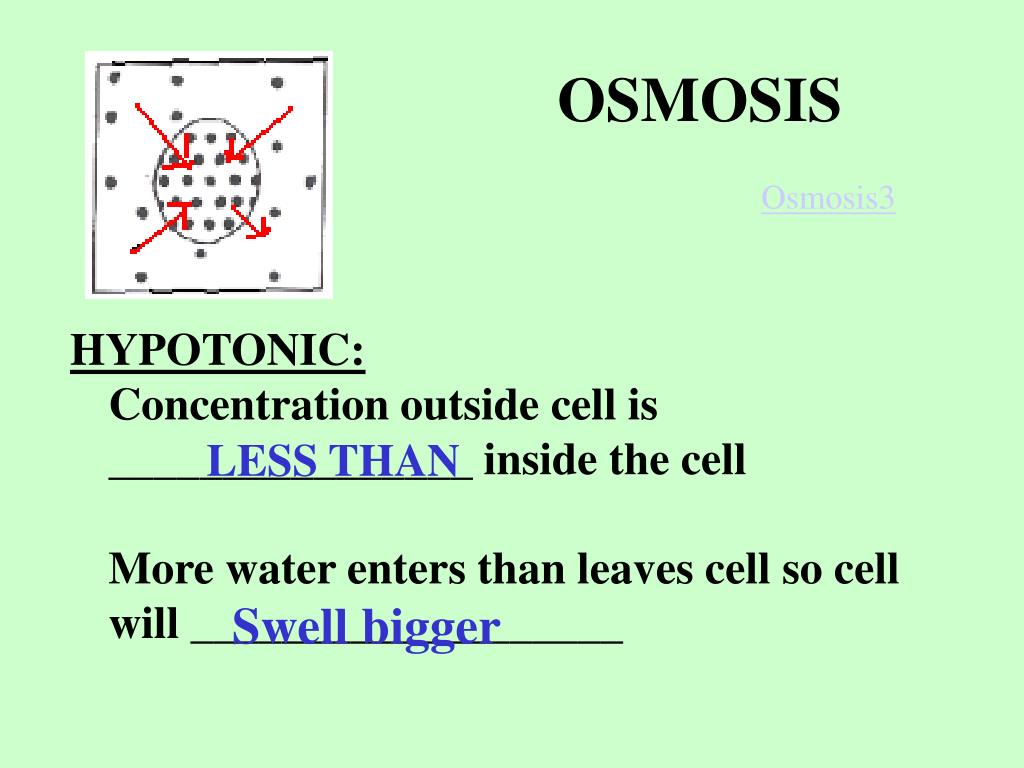

  21. OSMOSIS Osmosis3 HYPOTONIC:Concentration outside cell is ________________ inside the cellMore water enters than leaves cell so cellwill ___________________ LESS THAN Swell bigger

  22. OSMOSIS ISOTONIC: Concentration outside cell ____________ concentration inside cell Water entering = water leavingso cell _____________________ EQUALS STAYS THE SAME SIZE

  23. Animal cells = crenation = cytolysis http://www.stchs.org/science/courses/sbioa/metenergy/bloodcells.gif

  24. http://www.stchs.org/science/courses/sbioa/metenergy/aplantturgor.gifhttp://www.stchs.org/science/courses/sbioa/metenergy/aplantturgor.gif Plant cells = Plasmolysis No cytolysis/cell wall keeps it from bursting

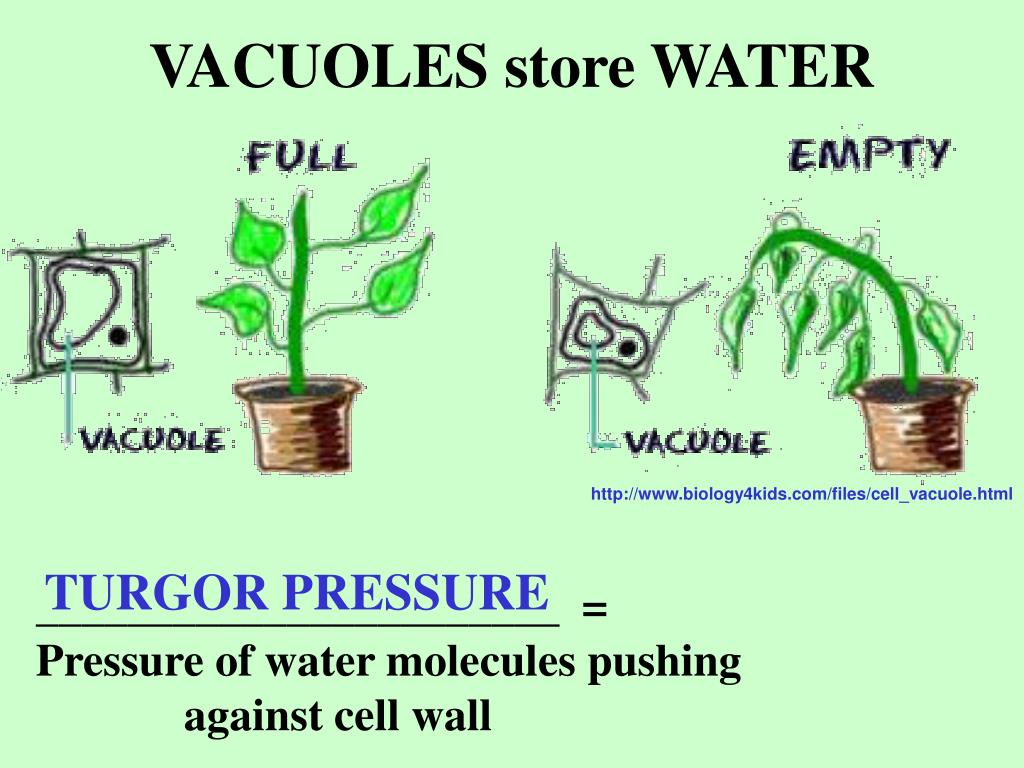

  25. VACUOLES store WATER http://www.biology4kids.com/files/cell_vacuole.html TURGOR PRESSURE _______________________ = Pressure of water molecules pushing against cell wall

  26. SO WHAT?

  27. SO WHAT? Bath water is HYPOTONIC compared to you Sitting in the bathtub causes your fingers and toes to wrinkle up when water enters your skin cells by osmosis

  28. Kinds of Passive Transport __________________________________ ___________________________________ ___________________________________ ___________________________________ • Diffusion • Osmosis • Facilitated Diffusion • Ion Channels

  29. Facilitated DiffusionCarrier proteins help diffusion go faster

  30. FACILITATED DIFFUSION NO energy required • Passive = ____________________ • Moves from ________________________ • _____________________ bind molecule, change shape, and release it on other side of membrane (Carrier proteins are _______________ proteins) • Molecules that move this way in cells: _______________________ HIGH  LOW Carrier Proteins Integral GLUCOSE

  31. Facilitated Diffusion Animation from: http://bio.winona.edu/berg/ANIMTNS/facdifan.gif

  32. Kinds of Passive Transport __________________________________ ___________________________________ ___________________________________ ___________________________________ • Diffusion • Osmosis • Facilitated Diffusion • Ion Channels

  33. ION CHANNEL

  34. ION CHANNELS PASSIVE HIGH  LOW • _____________transport (no energy required) • Molecules move from ___________________ • Small passageways for _______ to get through membrane • Each ion has own kind of passageway • Examples in cells: Na+, Cl- , Ca + + , K + IONS

  35. ION CHANNELS Some channels always open Some channels have “gates” that open or close in response to signals • SIGNALS: • stretching of cell membrane • electrical signals • chemicals Animation from: http://www2.uic.edu/~myilma1/ionchannel.gif

  36. Kidspiration by: Riedell

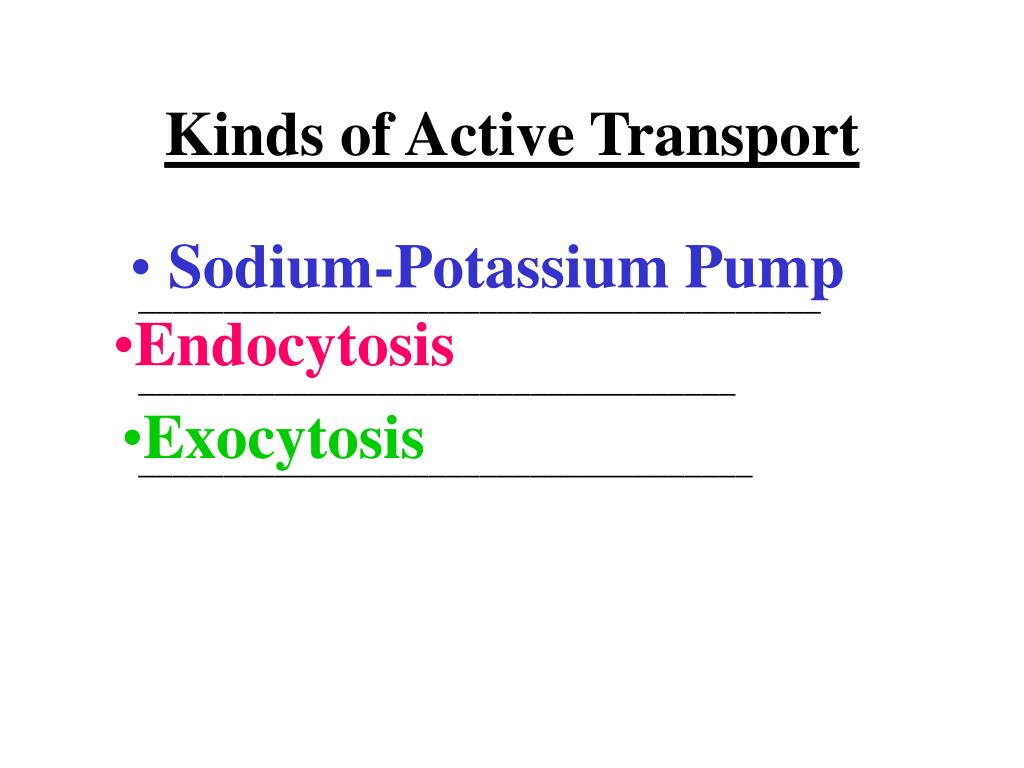

  37. Kinds of Active Transport • Sodium-Potassium Pump ________________________________________ ___________________________________ ____________________________________ • Endocytosis • Exocytosis

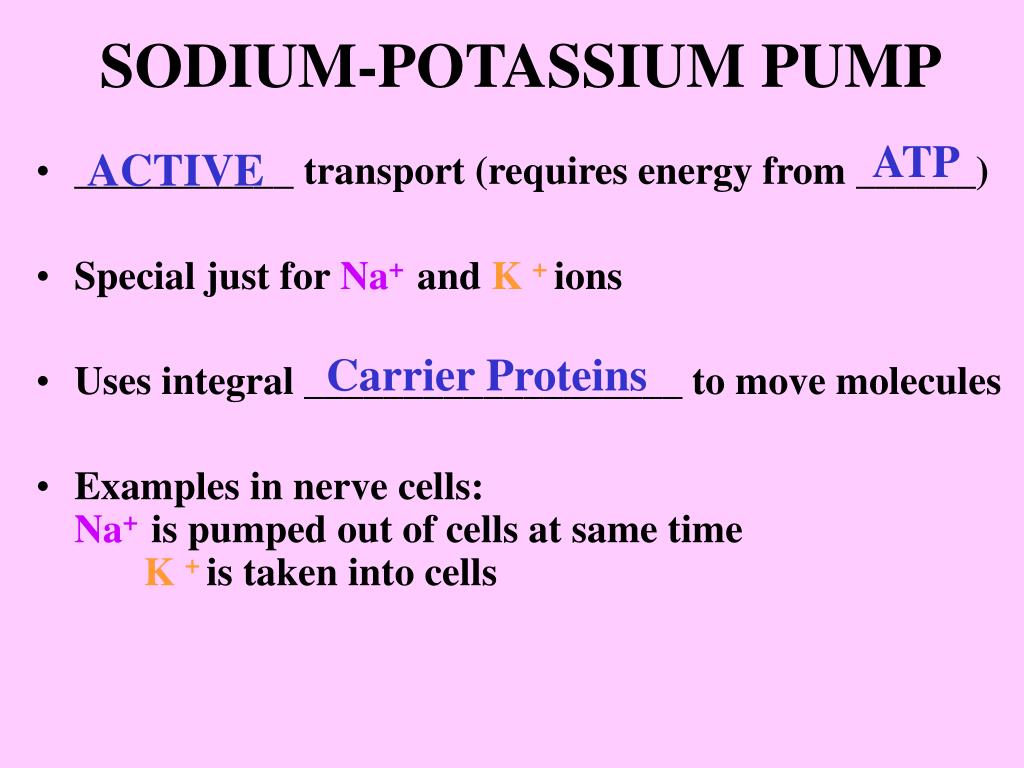

  38. SODIUM-POTASSIUM PUMP ATP ACTIVE • ___________ transport (requires energy from ______) • Special just for Na+and K +ions • Uses integral ___________________ to move molecules • Examples in nerve cells: Na+is pumped out of cells at same time K +is taken into cells Carrier Proteins

  39. Na+and K + PUMP Animation from: http://www.lionden.com/cell_animations.htm

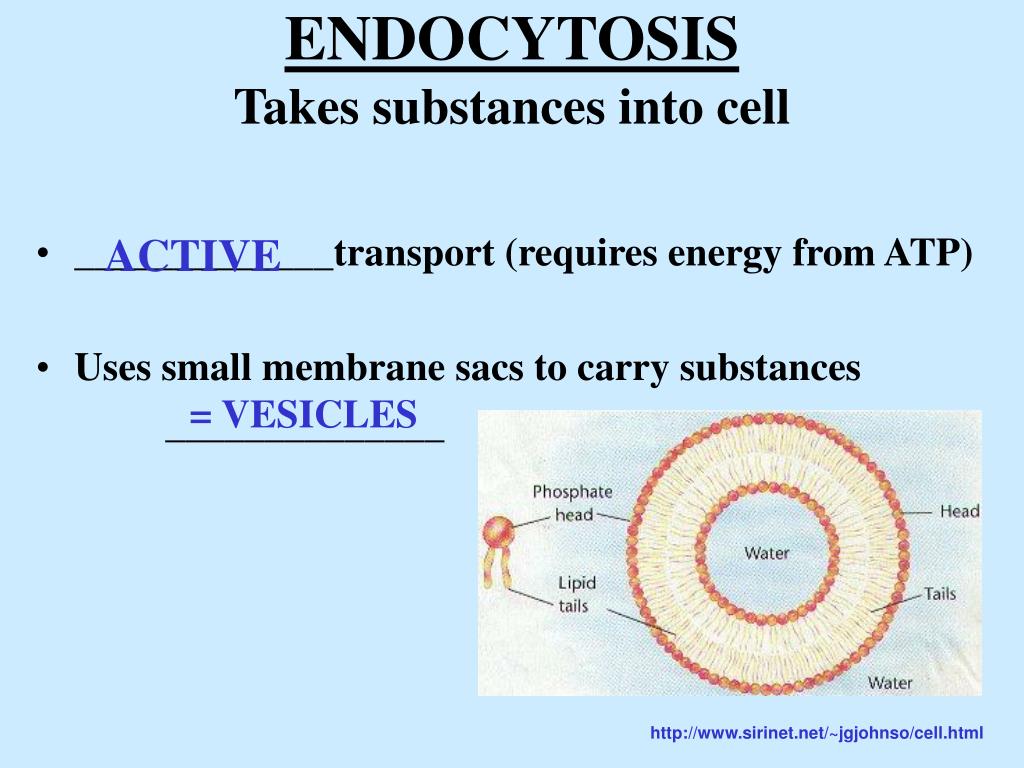

  40. ENDOCYTOSISTakes substances into cell • _____________transport (requires energy from ATP) • Uses small membrane sacs to carry substances ______________ ACTIVE = VESICLES http://www.sirinet.net/~jgjohnso/cell.html

  41. 2 KINDS of ENDOCYTOSISTakes substances into cell If taking in: fluid, molecules = ____________________ large particles or whole cells = __________________ • Examples in cells: • one celled organisms eat this way • white blood cells get rid of bacteria this way PINOCYTOSIS PHAGOCYTOSIS

  42. ENDOCYTOSIS Animation from: http://academic.brooklyn.cuny.edu/biology/bio4fv/page/cell-movement.html http://www.accs.net/users/kriel/chapter%20nine/

  43. PHAGOCYTOSIS White blood cell destroying germs

  44. EXOCYTOSISSubstances released outside of cell • __________ transport (requires energy) • Substances move in____________ • Examples in cells: • Golgi release packaged proteins ACTIVE VESICLES

  45. Exocytosis http://www.emc.maricopa.edu/faculty/farabee/BIOBK/BioBooktransp.html

  46. GOLGI BODIES USE EXOCYTOSIS Animation from: http://www.franklincollege.edu/bioweb/A&Pfiles/week04.html

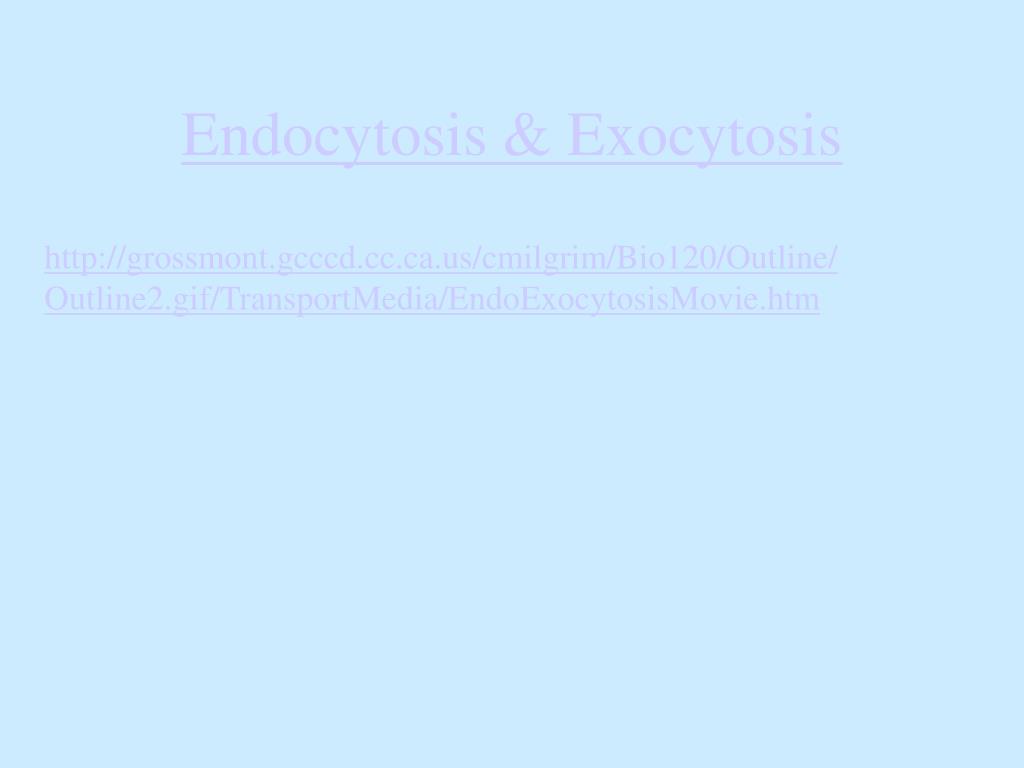

  47. Endocytosis & Exocytosis http://grossmont.gcccd.cc.ca.us/cmilgrim/Bio120/Outline/Outline2.gif/TransportMedia/EndoExocytosisMovie.htm
