Presentation Transcript
paperwork

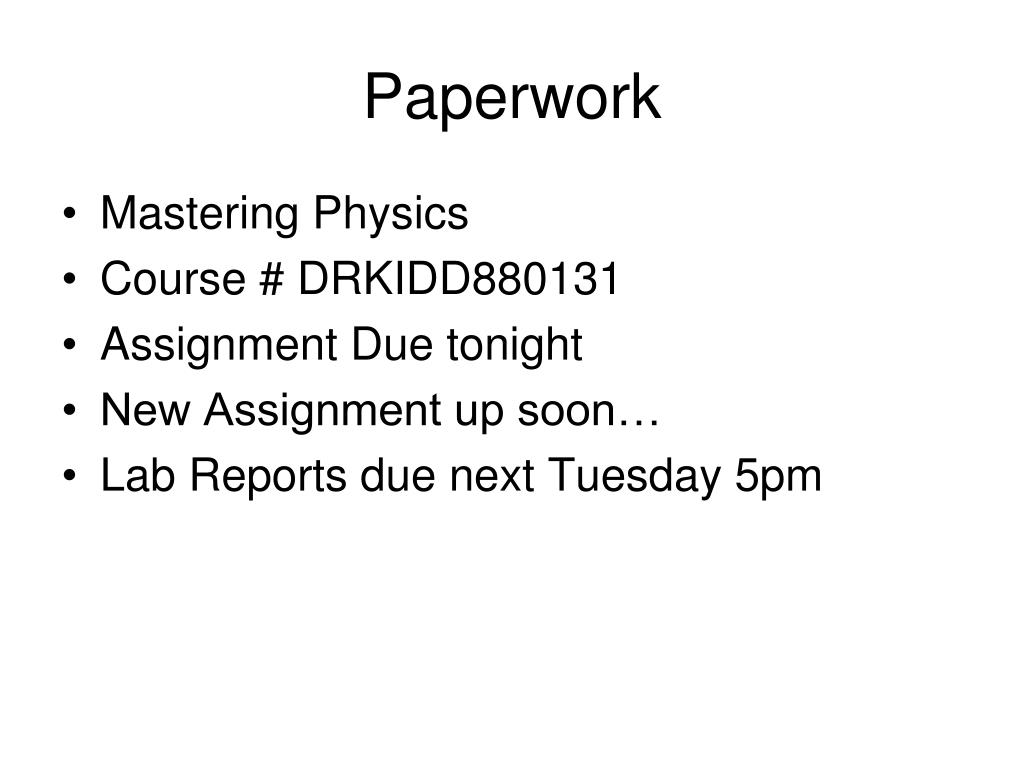

Paperwork
  • Mastering Physics
  • Course # DRKIDD880131
  • Assignment Due tonight
  • New Assignment up soon…
  • Lab Reports due next Tuesday 5pm
schedule short term

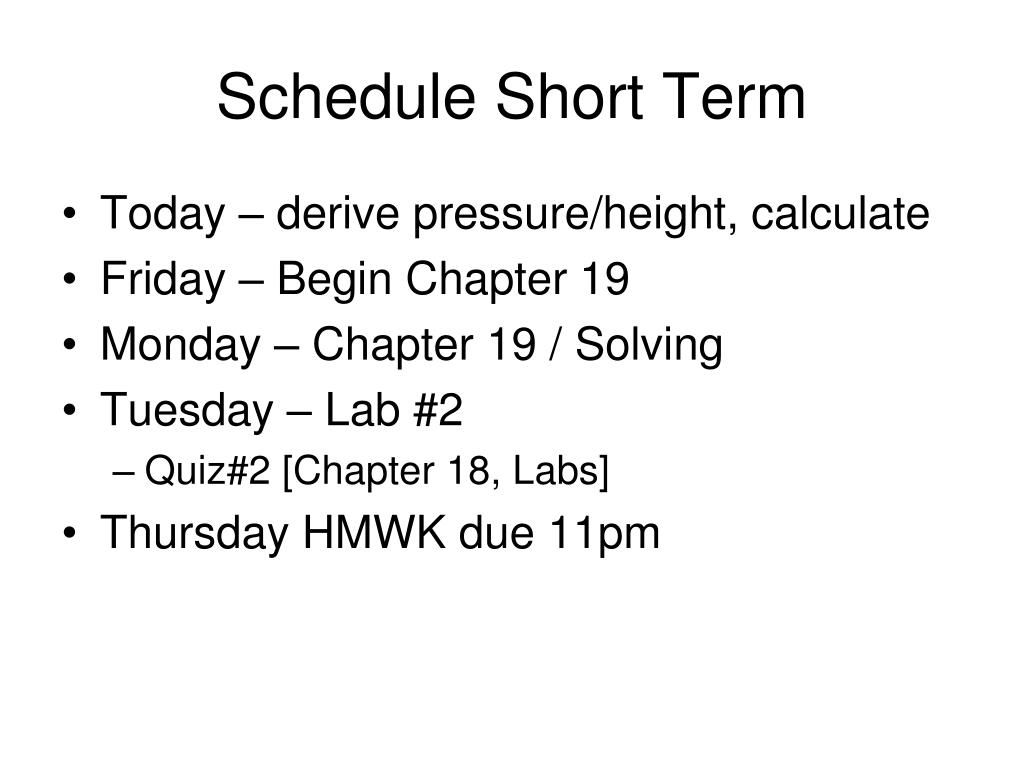

Schedule Short Term
  • Today – derive pressure/height, calculate
  • Friday – Begin Chapter 19
  • Monday – Chapter 19 / Solving
  • Tuesday – Lab #2
    • Quiz#2 [Chapter 18, Labs]
  • Thursday HMWK due 11pm
pressure vs height

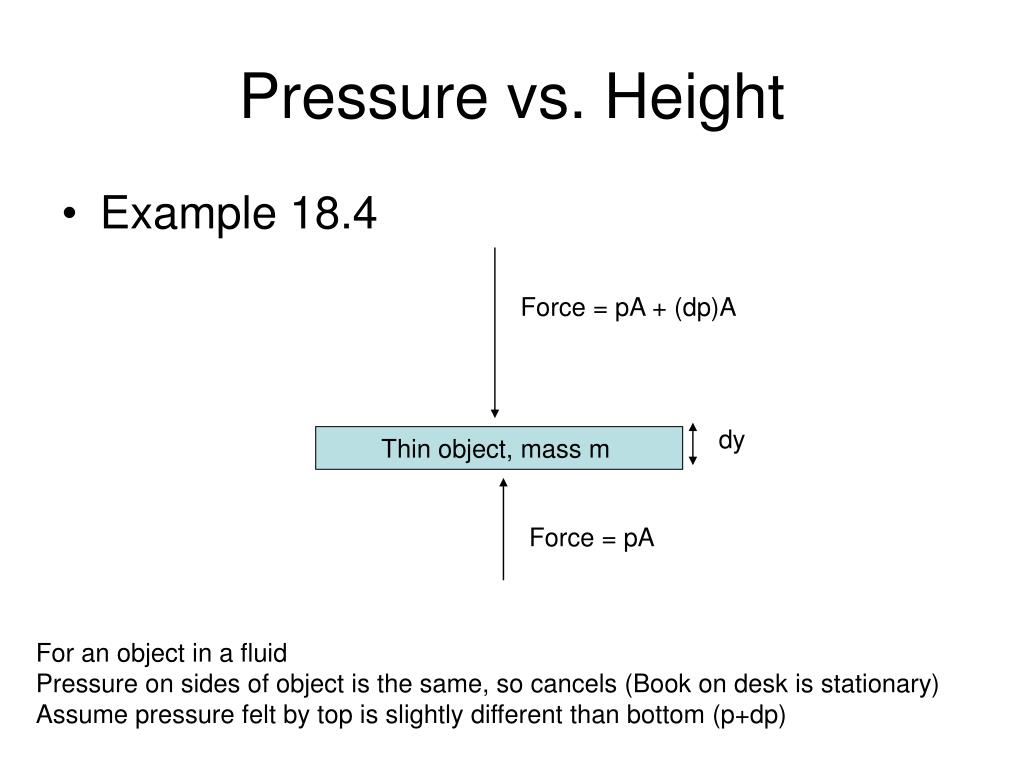

Pressure vs. Height
  • Example 18.4

Force = pA + (dp)A

dy

Thin object, mass m

Force = pA

For an object in a fluid

Pressure on sides of object is the same, so cancels (Book on desk is stationary)

Assume pressure felt by top is slightly different than bottom (p+dp)

pressure vs height1
Pressure vs. Height
  • Example 18.4

Force = pA + (dp)A

dy

Thin object, mass m

Force = pA

For an object in a fluid

Pressure on sides of object is the same, so cancels (Book on desk is stationary)

Assume pressure felt by top is slightly different than bottom (p+dp)

dp can be +, - or even zero. Just much smaller than p for thin object

Let’s say this object is stationary – floating in the fluid.

What is sum of all forces on object?

What are all forces on object?

What if “Object” was just a portion of the fluid itself?

pressure vs height2

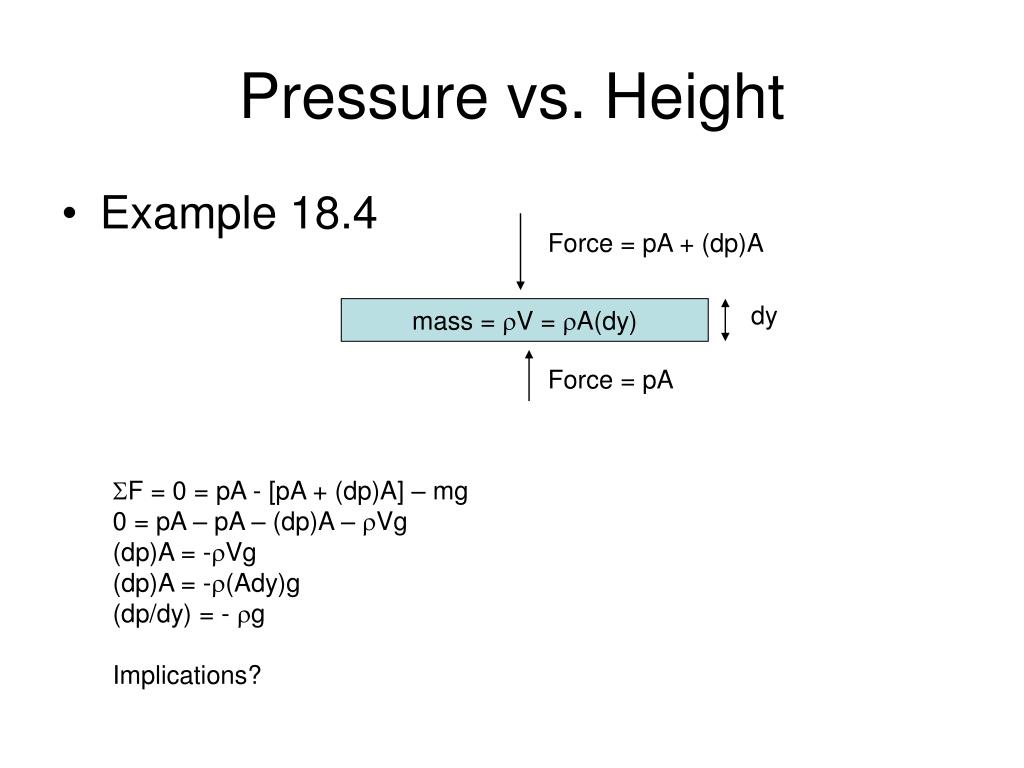

Pressure vs. Height
  • Example 18.4

Force = pA + (dp)A

dy

mass = rV = rA(dy)

Force = pA

SF = 0 = pA - [pA + (dp)A] – mg

0 = pA – pA – (dp)A – rVg

(dp)A = -rVg

(dp)A = -r(Ady)g

(dp/dy) = - rg

Implications?

pressure vs height3
Pressure vs. Height
  • Example 18.4

Force = pA + (dp)A

dy

mass = rV = rA(dy)

Force = pA

SF = 0 = pA - [pA + (dp)A] – mg

0 = pA – pA – (dp)A – rVg

(dp)A = -rVg

(dp)A = -r(Ady)g

(dp/dy) = - rg

For Ideal Gas

r = m/V = pM/(RT)

(dp/dy) = - rg

pressure vs height4
Pressure vs. Height
  • Example 18.4

Force = pA + (dp)A

dy

mass = rV = rA(dy)

Force = pA

Pressure vs. Height

Any Fluid

(dp/dy) = - rg

For Fluid that is an Ideal Gas

r = m/V = pM/(RT)

(dp/dy) = - pgM/(RT)

pressure vs height5
Pressure vs. Height
  • (dp/dy) = - pgM/(RT)
  • Now need to set up equation to solve
  • (dp/p) = -(gM/RT)(dy)
    • Assume a constant temperature (?)
pressure vs height6

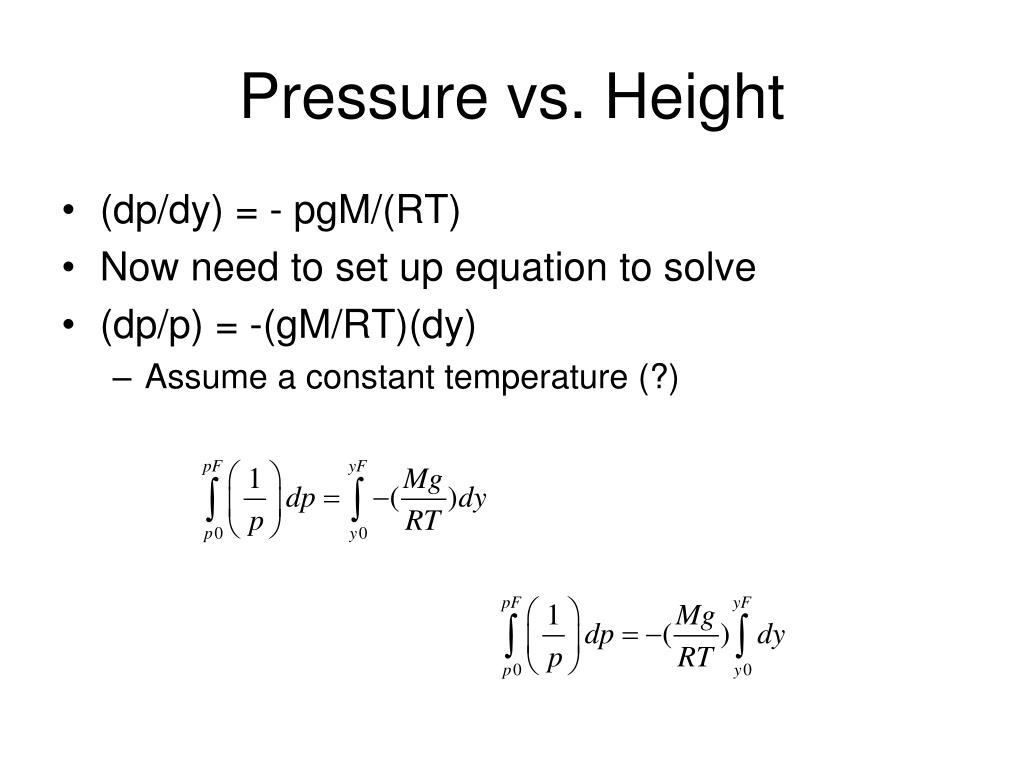

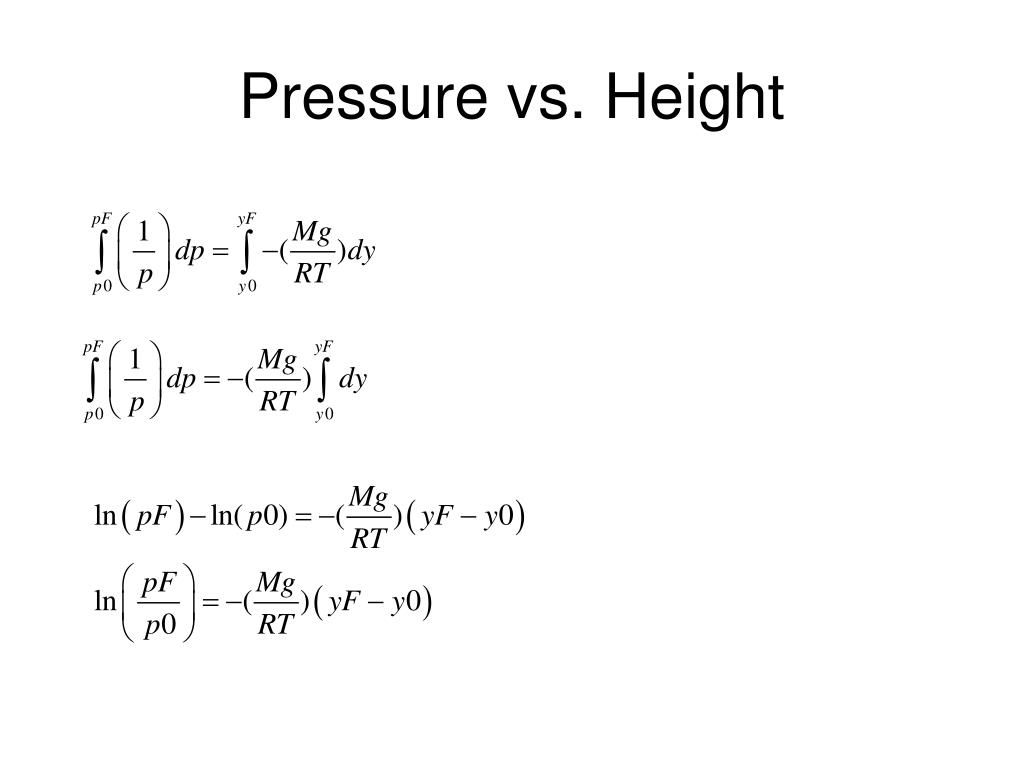

Pressure vs. Height
  • (dp/dy) = - pgM/(RT)
  • Now need to set up equation to solve
  • (dp/p) = -(gM/RT)(dy)
    • Assume a constant temperature (?)
pressure vs height8

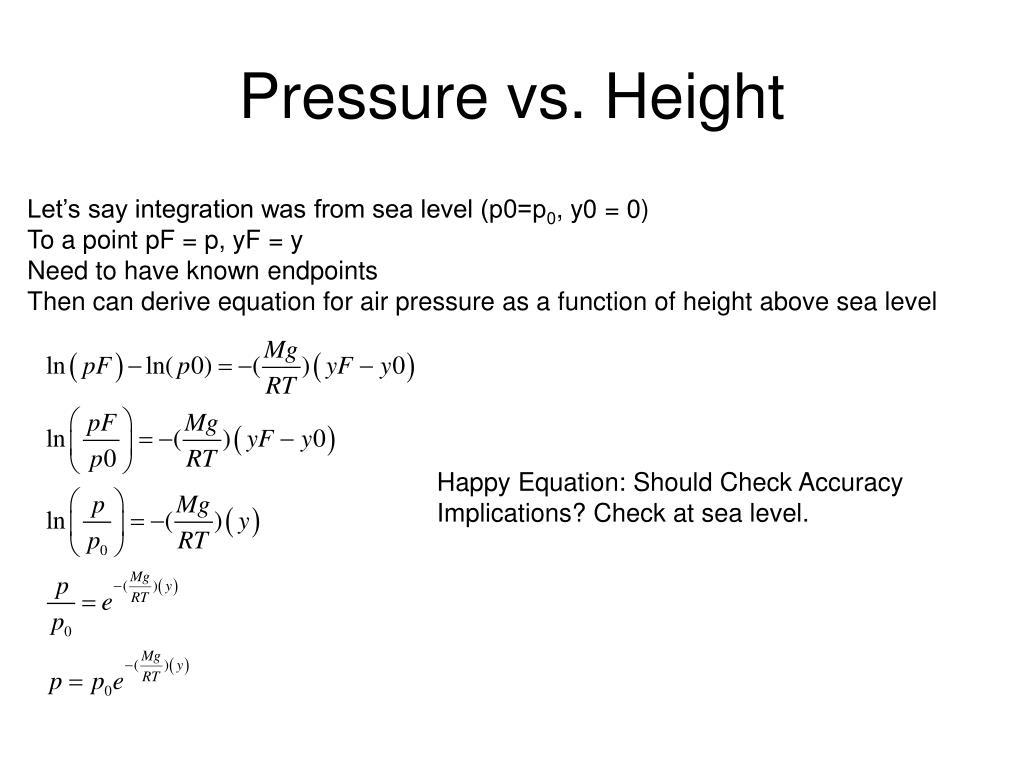

Pressure vs. Height

Let’s say integration was from sea level (p0=p0, y0 = 0)

To a point pF = p, yF = y

Need to have known endpoints

Then can derive equation for air pressure as a function of height above sea level

Happy Equation: Should Check Accuracy

Implications? Check at sea level.

molecular motion

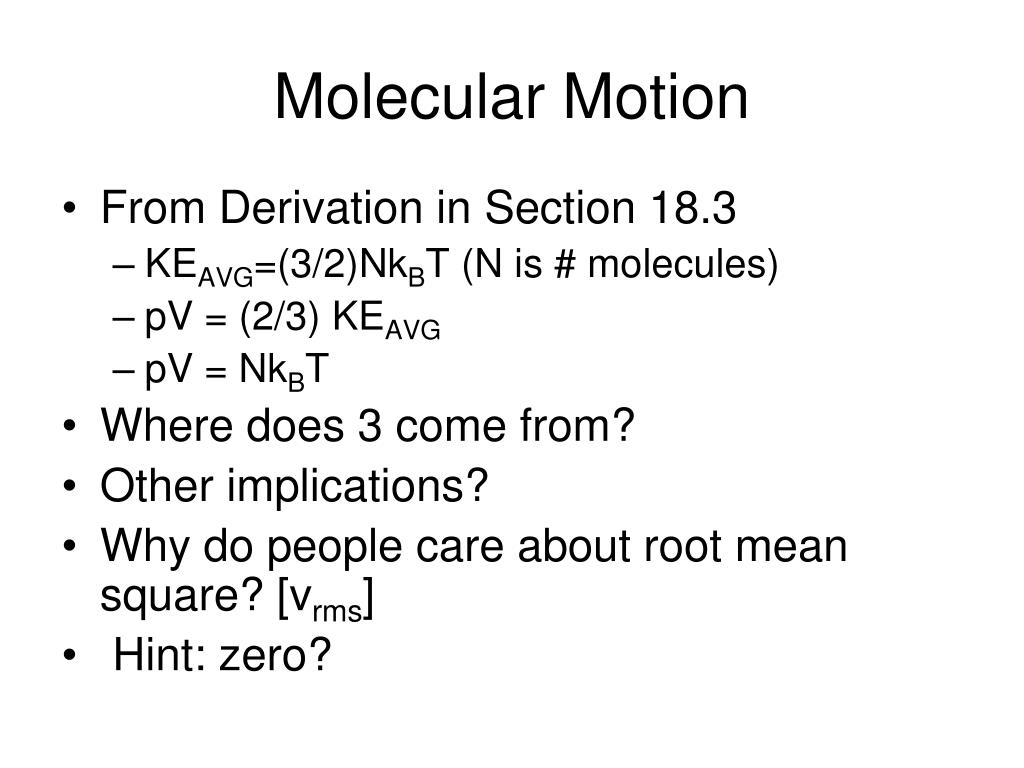

Molecular Motion
  • From Derivation in Section 18.3
    • KEAVG=(3/2)NkBT (N is # molecules)
    • pV = (2/3) KEAVG
    • pV = NkBT
  • Where does 3 come from?
  • Other implications?
  • Why do people care about root mean square? [vrms]
  • Hint: zero?
mean free path lifetime mean free time

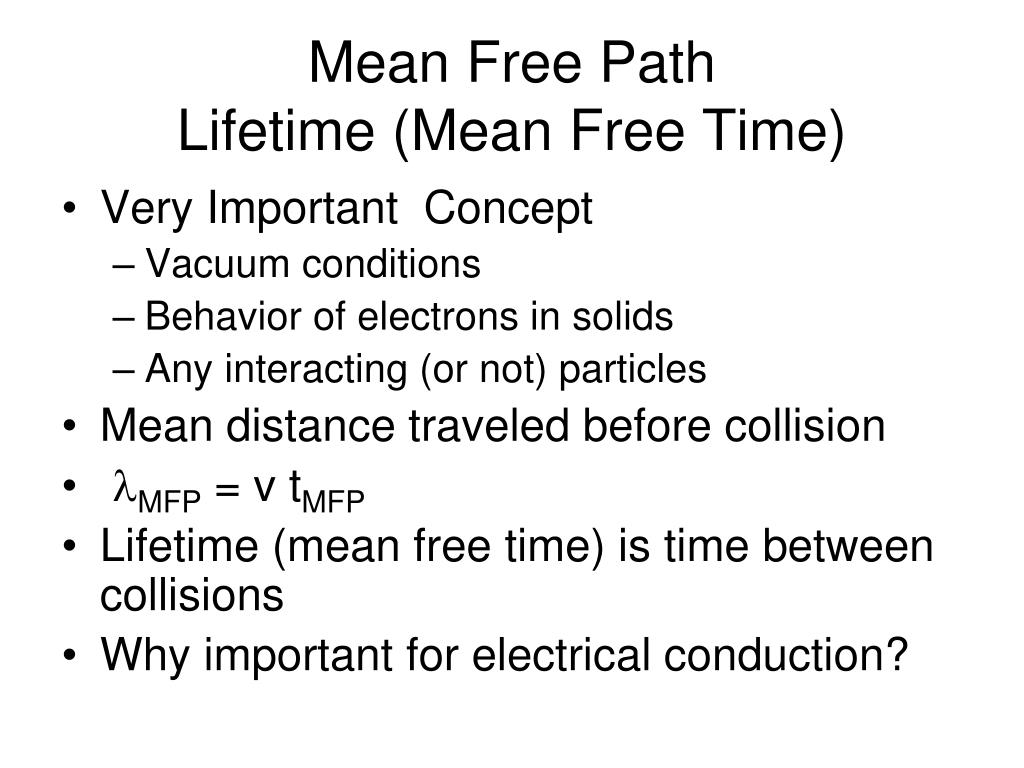

Mean Free PathLifetime (Mean Free Time)
  • Very Important Concept
    • Vacuum conditions
    • Behavior of electrons in solids
    • Any interacting (or not) particles
  • Mean distance traveled before collision
  • lMFP = v tMFP
  • Lifetime (mean free time) is time between collisions
  • Why important for electrical conduction?
lots of averages
Lots of Averages…
  • Gas at temperature 500K
  • Average KE of One Mole
  • KEAVG = (3/2)nRT = (3/2)RT
    • 8.31 J / (mole K)
  • KEAVG = 6232 J
  • Say gas is N2 (MM = 0.028kg / mole)
  • KEAVG = (1/2)m(v2)AVG

What is max speed?

phase diagram
Phase Diagram

Describes P&T conditions for materials

Interesting Points, What is this at STP?

phase diagram1
Phase Diagram

Supercritical Fluid?

Neat – can dissolve things like a liquid & Diffuse through solids like a gas…

discussion q18 10 start

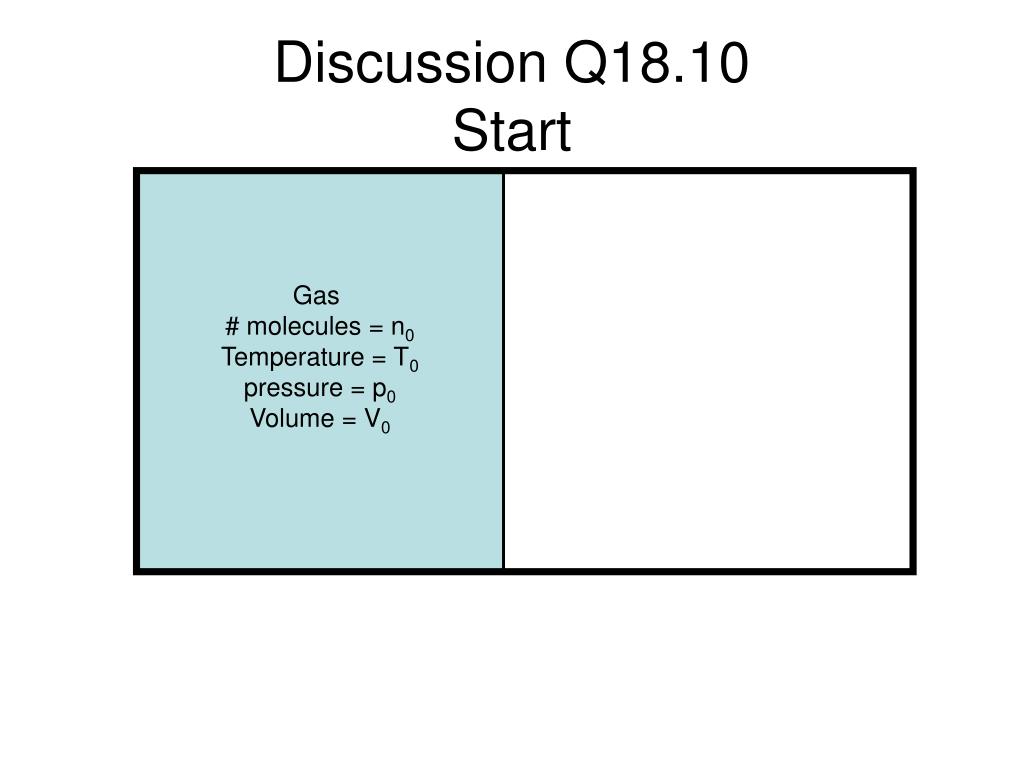

Discussion Q18.10Start

Gas

# molecules = n0

Temperature = T0

pressure = p0

Volume = V0

discussion q18 10 sudden hole in wall
Discussion Q18.10“Sudden” Hole in wall

Gas Initial State

# molecules = n0

Temperature = T0

pressure = p0

Volume = V0

Gas Final State

# molecules = ?

Temperature = ?

pressure = ?

Volume = ?

What Happens here?

schedule short term1
Schedule Short Term

Today – derive pressure/height, calculate

Friday – Begin Chapter 19

Monday – Chapter 19 / Solving

Tuesday – Lab #2

Quiz#2 [Chapter 18, Labs]

Thursday HMWK due 11pm
