  1. Chapter 12 Oscillator Dr.Debashis De Associate Professor West Bengal University of Technology

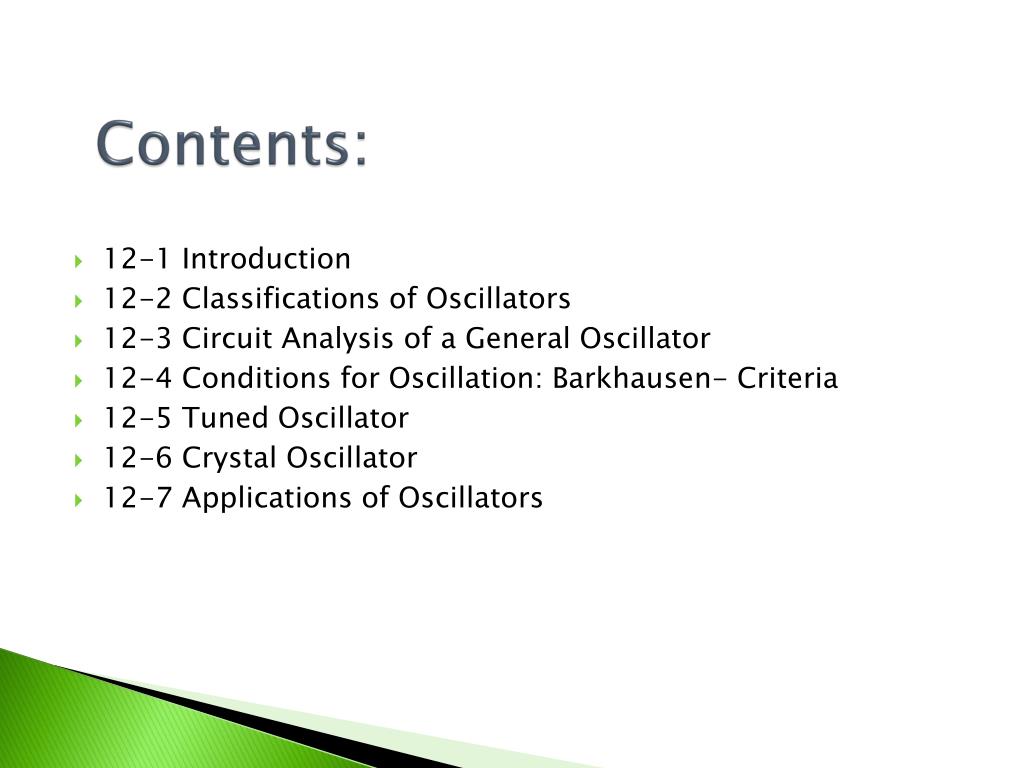

  2. Contents: • 12-1 Introduction • 12-2 Classifications of Oscillators • 12-3 Circuit Analysis of a General Oscillator • 12-4 Conditions for Oscillation: Barkhausen- Criteria • 12-5 Tuned Oscillator • 12-6 Crystal Oscillator • 12-7 Applications of Oscillators

  3. Objectives: • In this chapter we will explore the working principle of the oscillator. Generally speaking, the oscillator produces sinusoidal and other waveforms. • Beginning with a detailed circuit analysis of the oscillator, we will proceed to discuss the conditions and frequency of oscillation. • Following this, the different types of oscillators—Tuned oscillator, Hartley oscillator, Colpitts oscillator, Clapp oscillator, Phase-shift oscillator, Crystal oscillator and Wien-bridge oscillator—will be examined with detailed mathematical analysis and illustrations. • The chapter ends with an overview of the applications of the oscillator.

  4. INTRODUCTION: • An oscillator is an electronic system. • It comprises active and passive circuit elements and sinusoidal produces repetitive waveforms at the output without the application of a direct external input signal to the circuit. • It converts the dc power from the source to ac power in the load. A rectifier circuit converts ac to dc power, but an oscillator converts dc noise signal/power to its ac equivalent. • The general form of a harmonic oscillator is an electronic amplifier with the output attached to a narrow-band electronic filter, and the output of the filter attached to the input of the amplifier. • In this chapter, the oscillator analysis is done in two methods—first by a general analysis, considering all other circuits are the special form of a common generalized circuit and second, using the individual circuit KVL analysis.

  5. Difference between an amplifier and an oscillator:

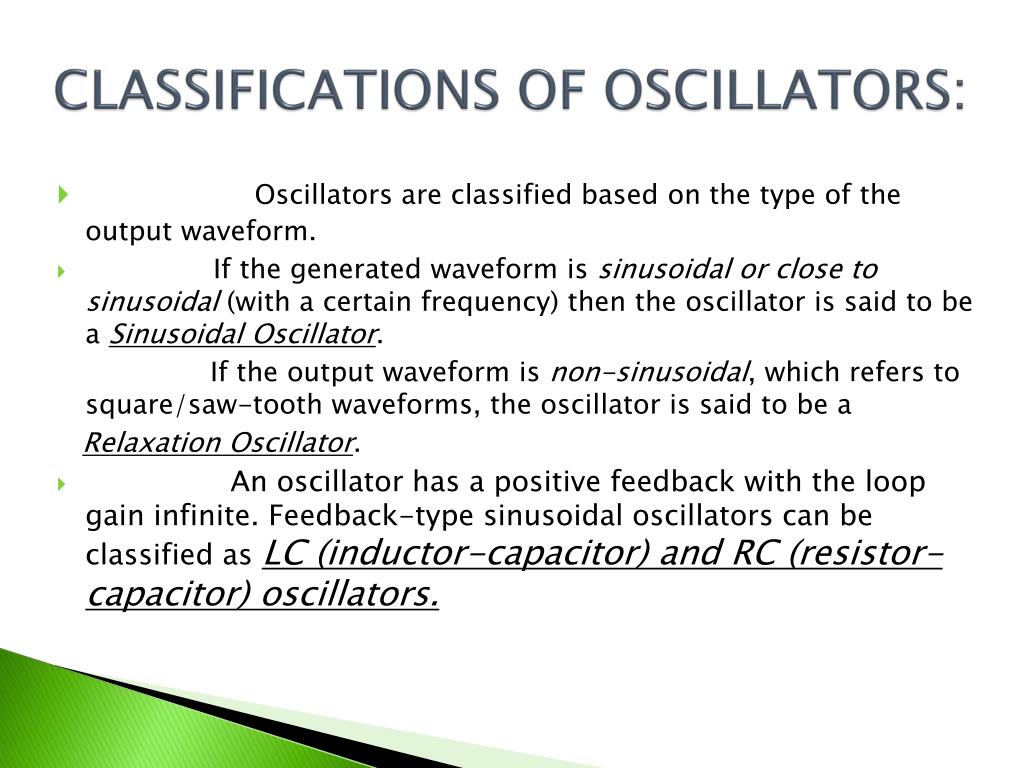

  6. CLASSIFICATIONS OF OSCILLATORS: • Oscillators are classified based on the type of the output waveform. • If the generated waveform is sinusoidal or close to sinusoidal (with a certain frequency) then the oscillator is said to be a Sinusoidal Oscillator. If the output waveform is non-sinusoidal, which refers to square/saw-tooth waveforms, the oscillator is said to be a Relaxation Oscillator. • An oscillator has a positive feedback with the loop gain infinite. Feedback-type sinusoidal oscillators can be classified as LC (inductor-capacitor) and RC (resistor-capacitor) oscillators.

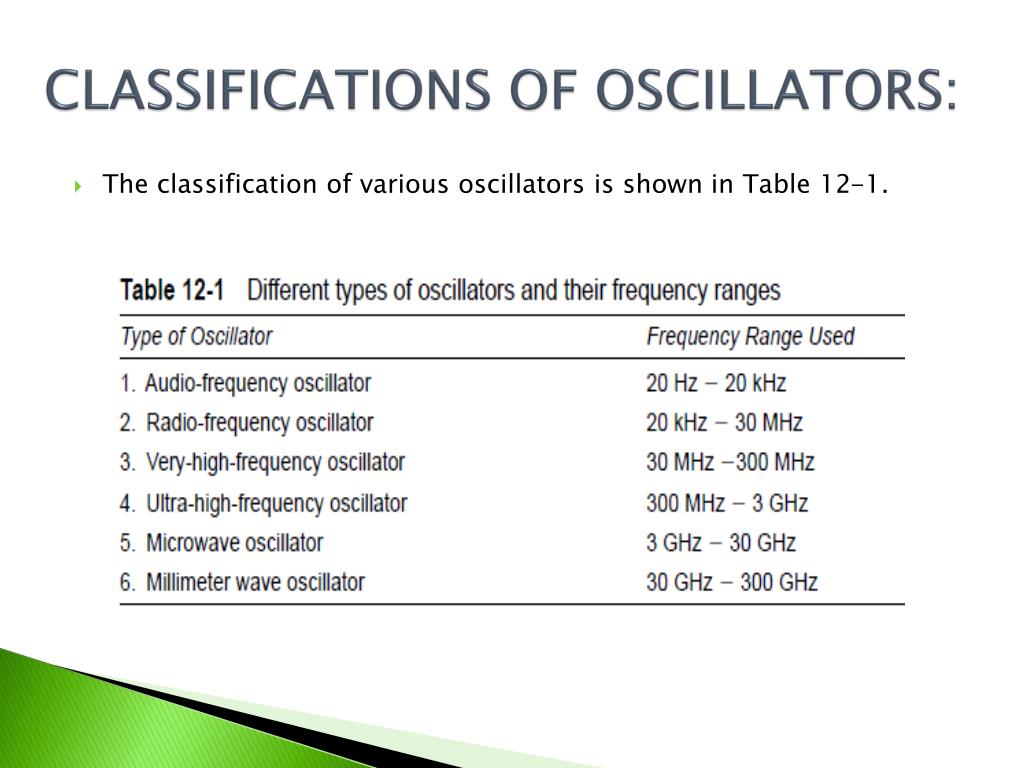

  7. CLASSIFICATIONS OF OSCILLATORS: • The classification of various oscillators is shown in Table 12-1.

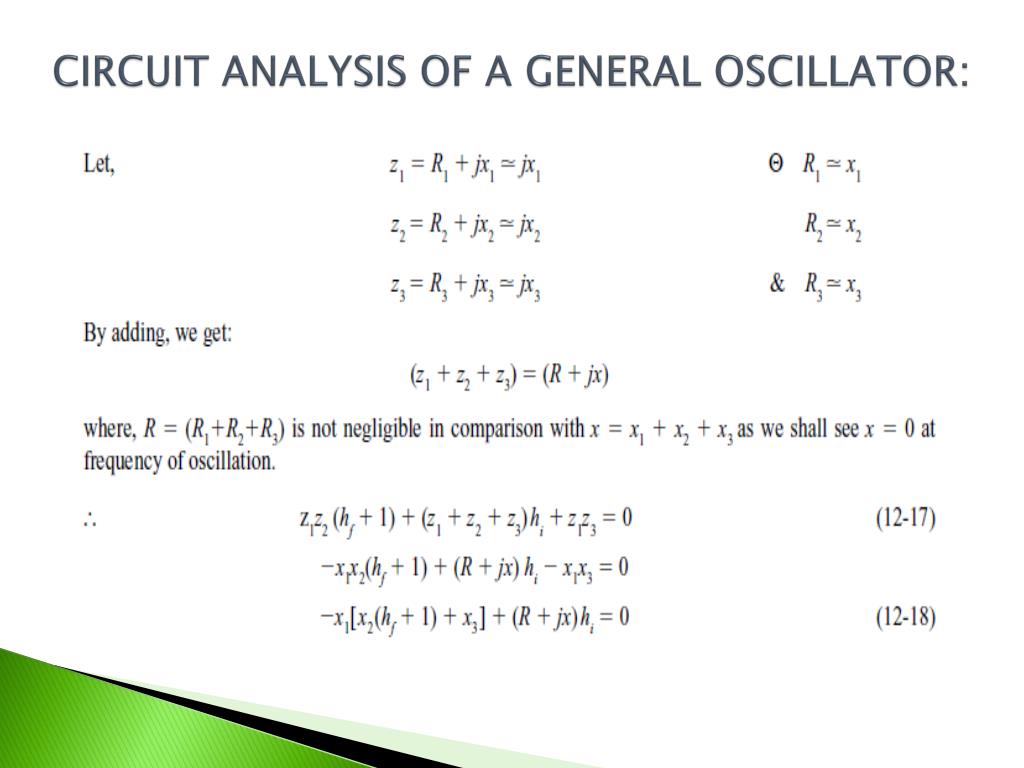

  8. CIRCUIT ANALYSIS OF A GENERAL OSCILLATOR: • This section discusses the general oscillator circuit with a simple generalized analysis using the transistor, as shown in Fig. 12-2. • An impedance z1 is connected between the base B and the emitter E, an impedance z2 is connected between the collector C and emitter E. To apply a positive feedback z3 is connected between • the collector and the base terminal. • All the other different oscillators can be analyzed as a special case of the generalized analysis of oscillator.

  9. CIRCUIT ANALYSIS OF A GENERAL OSCILLATOR: • The above generalized circuit of an oscillator is considered using a simple transistor-equivalent circuit model. The current voltage expressions are expressed as follows:

  10. CIRCUIT ANALYSIS OF A GENERAL OSCILLATOR:

  11. CIRCUIT ANALYSIS OF A GENERAL OSCILLATOR:

  12. CIRCUIT ANALYSIS OF A GENERAL OSCILLATOR:

  13. CIRCUIT ANALYSIS OF A GENERAL OSCILLATOR:

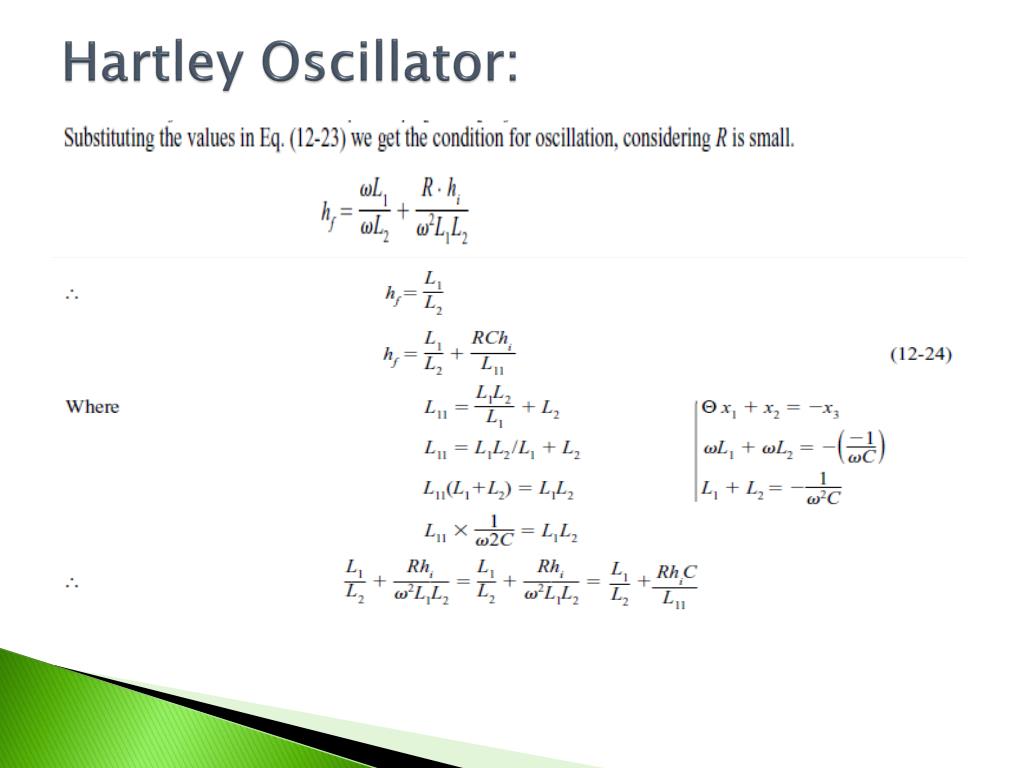

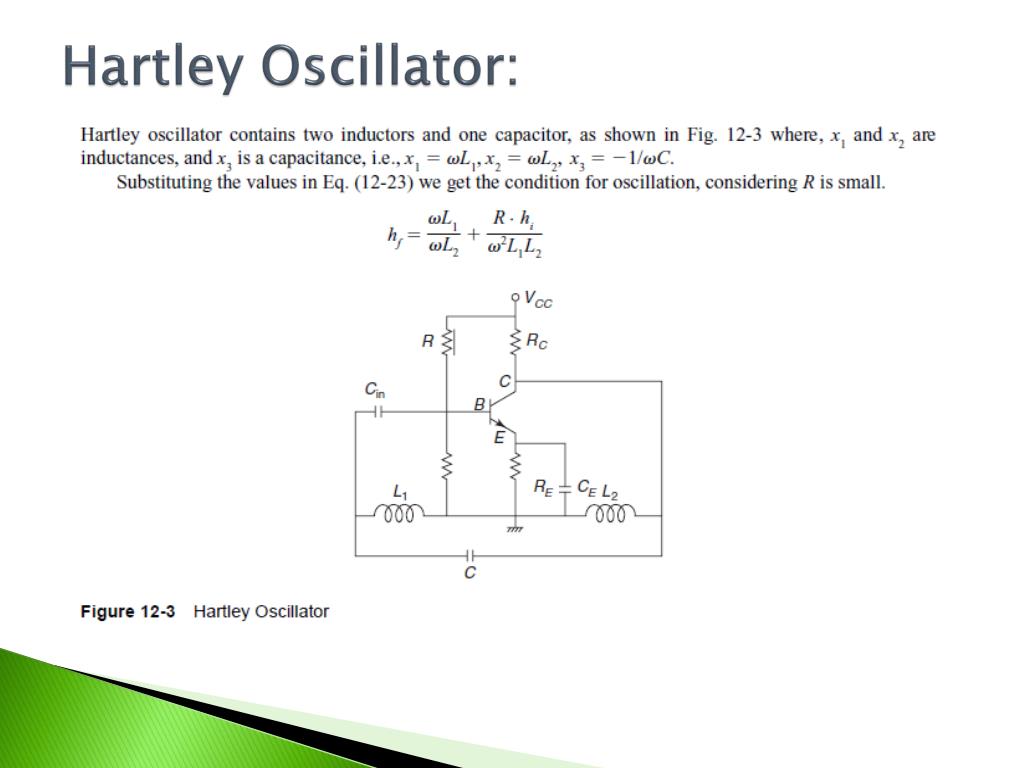

  14. Hartley Oscillator:

  15. Hartley Oscillator:

  16. Colpitts Oscillator:

  17. Colpitts Oscillator:

  18. Colpitts Oscillator:

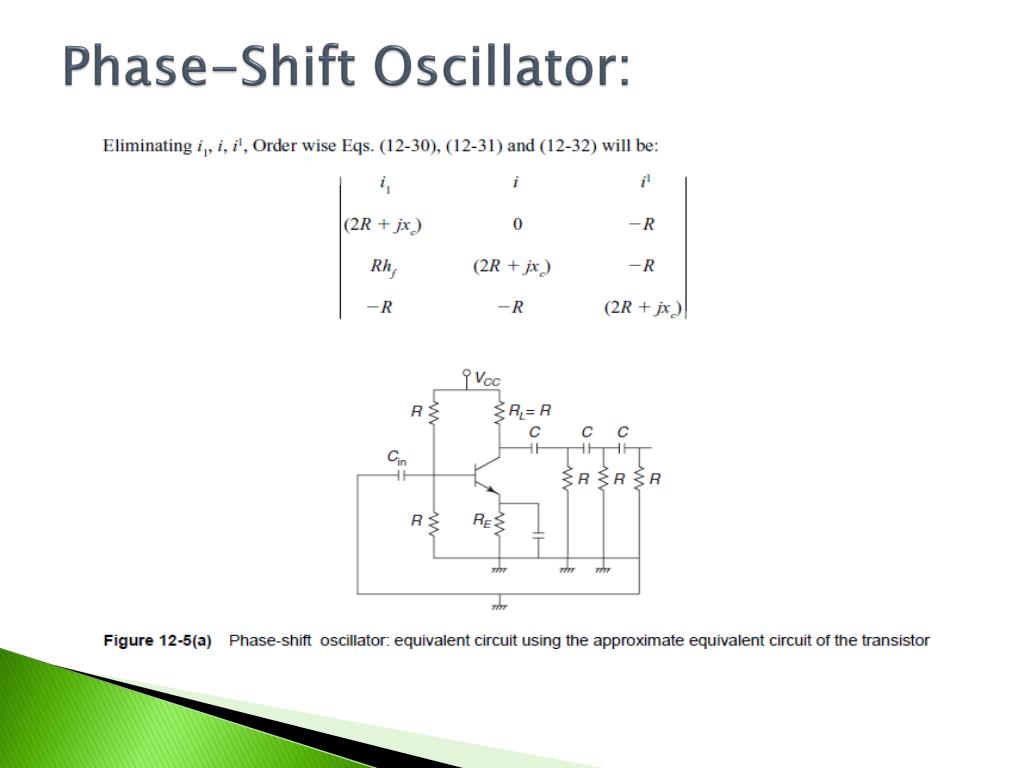

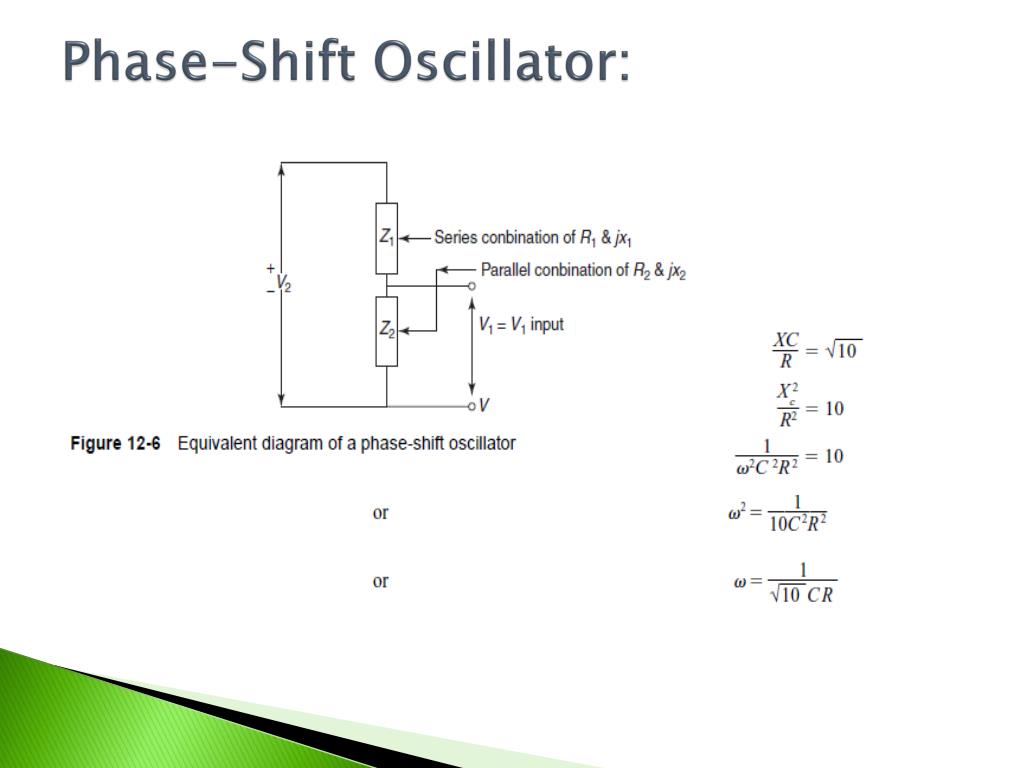

  19. Phase-Shift Oscillator:

  20. Phase-Shift Oscillator:

  21. Phase-Shift Oscillator:

  22. Phase-Shift Oscillator:

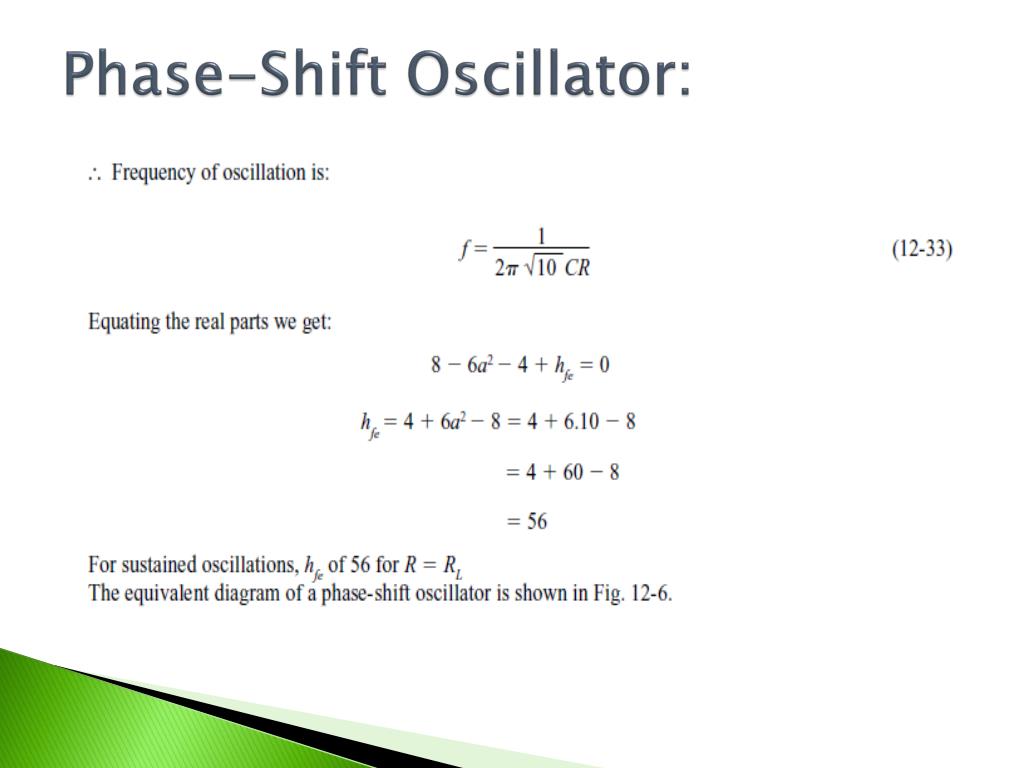

  23. Phase-Shift Oscillator:

  24. Phase-Shift Oscillator:

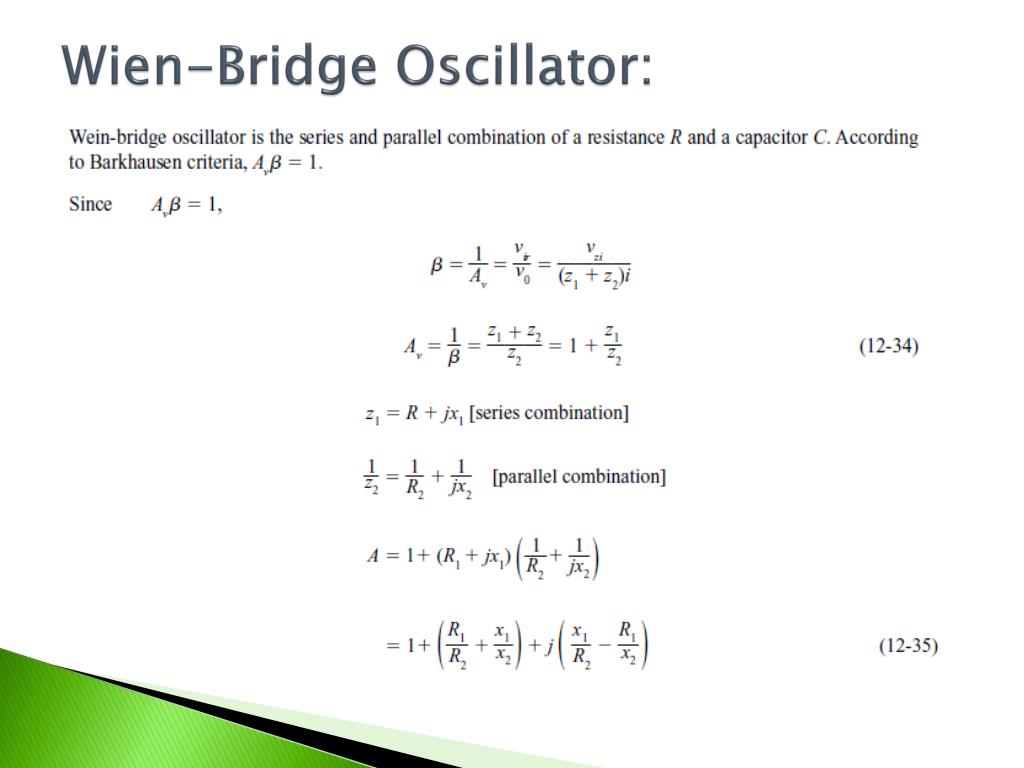

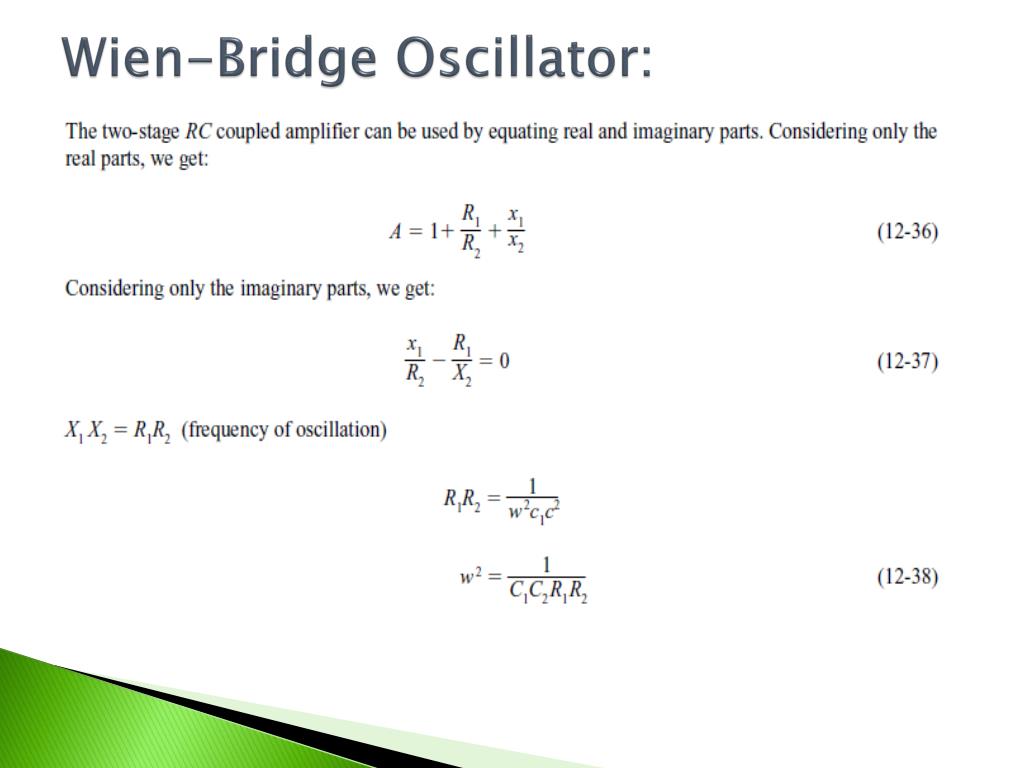

  25. Wien-Bridge Oscillator:

  26. Wien-Bridge Oscillator:

  27. Wien-Bridge Oscillator:

  28. Circuit Diagram of Wien-Bridge Oscillator:

  29. Wien-Bridge Oscillator:

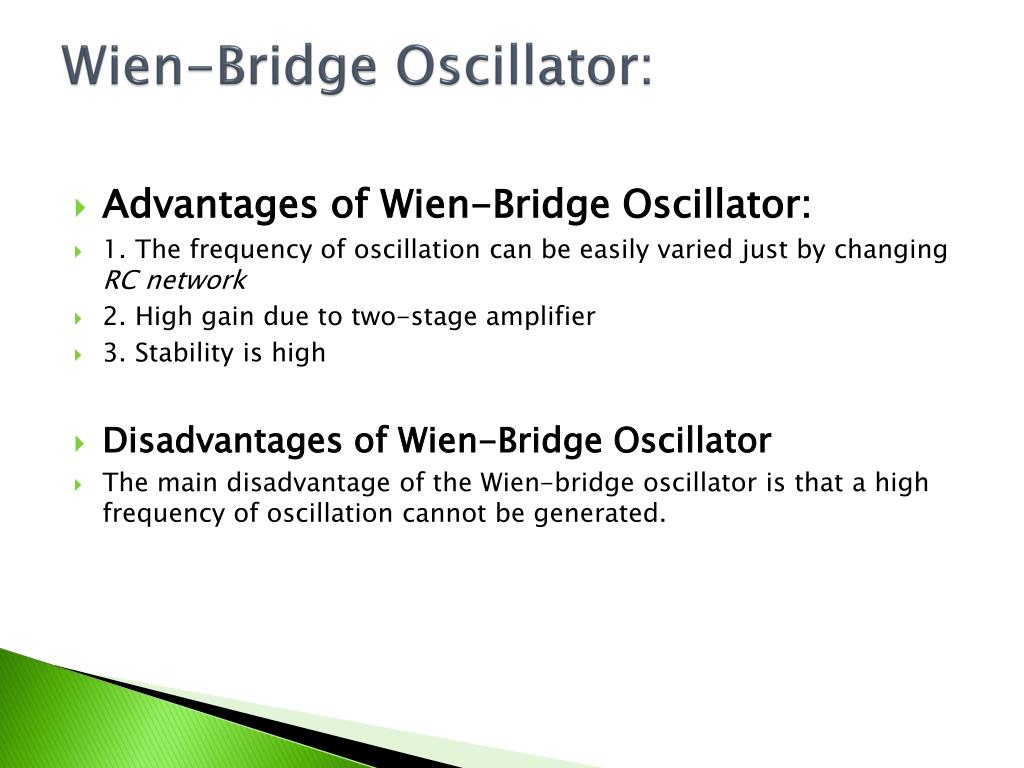

  30. Wien-Bridge Oscillator: • Advantages of Wien-Bridge Oscillator: • 1. The frequency of oscillation can be easily varied just by changing RC network • 2. High gain due to two-stage amplifier • 3. Stability is high • Disadvantages of Wien-Bridge Oscillator • The main disadvantage of the Wien-bridge oscillator is that a high frequency of oscillation cannot be generated.

  31. CONDITIONS FOR OSCILLATION: BARKHAUSEN CRITERIA

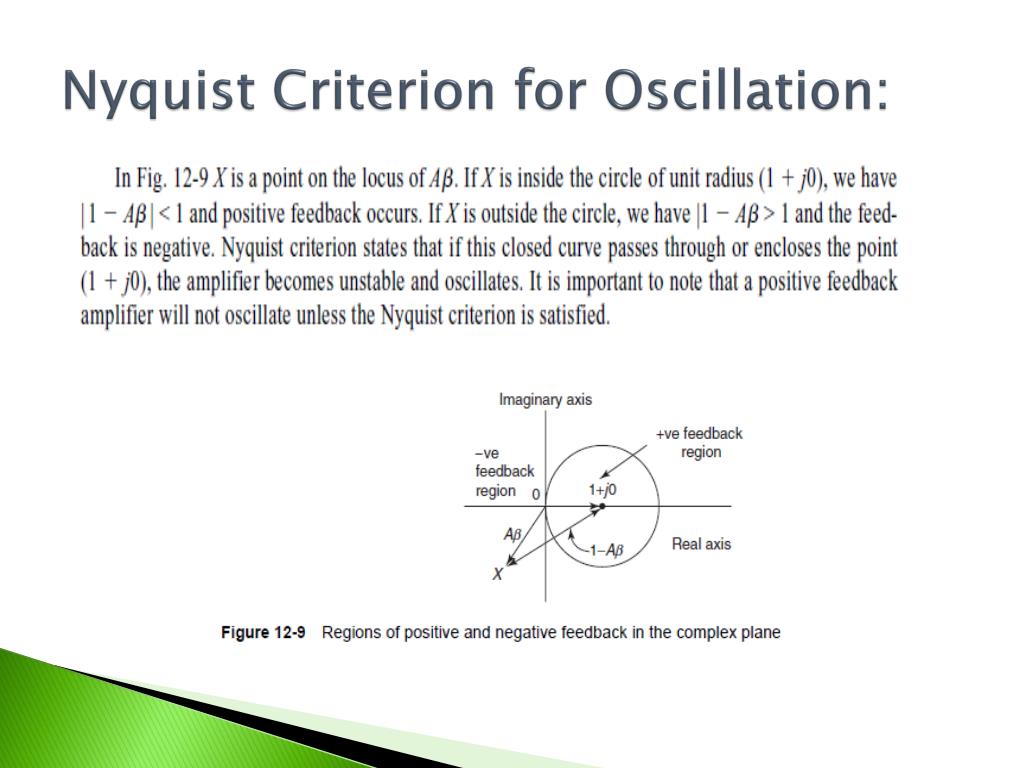

  32. Nyquist Criterion for Oscillation: • Nyquist criterion states that if this closed curve passes through or encloses the point (1 + j0), the amplifier becomes unstable and oscillates. • It is important to note that a positive feedback amplifier will not oscillate unless the Nyquist criterion is satisfied. • In the steady state condition the loop gain becomes unity and the oscillations are sustained, the frequency of oscillations is controlled by the frequency-determining network of the oscillator. • The RC and a LC combination circuits are used in oscillators to serve as the frequency-determining network. • Let us summarize the key necessities of a feedback oscillator. 1. Amplifier with positive feedback produces a negative resistance in the system. 2. A frequency-determining network creates oscillations at certain required frequencies. 3. System non-linearity introduced by the devices contain the amplitude of oscillation.

  33. Nyquist Criterion for Oscillation:

  34. CIRCUIT DIAGRAM OF TUNED OSCILLATOR:

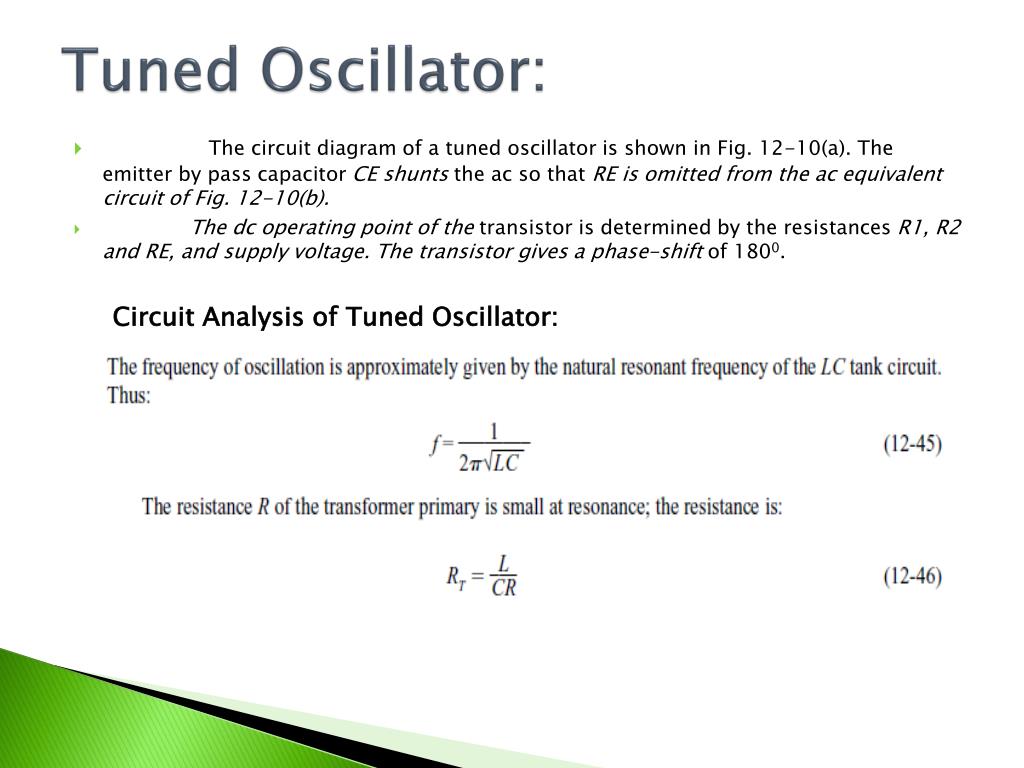

  35. Tuned Oscillator: • The circuit diagram of a tuned oscillator is shown in Fig. 12-10(a). The emitter by pass capacitor CE shunts the ac so that RE is omitted from the ac equivalent circuit of Fig. 12-10(b). • The dc operating point of the transistor is determined by the resistances R1, R2 and RE, and supply voltage. The transistor gives a phase-shift of 1800. Circuit Analysis of Tuned Oscillator:

  36. Circuit Analysis of Tuned Oscillator:

  37. Circuit Analysis of Tuned Oscillator:

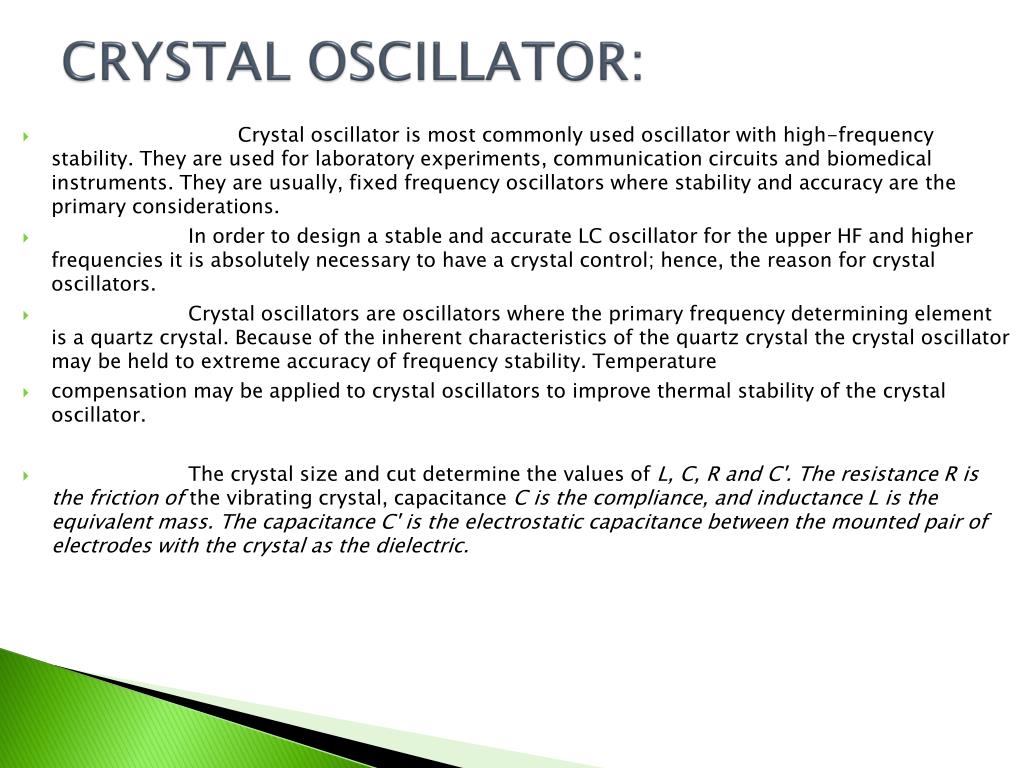

  38. CRYSTAL OSCILLATOR: • Crystal oscillator is most commonly used oscillator with high-frequency stability. They are used for laboratory experiments, communication circuits and biomedical instruments. They are usually, fixed frequency oscillators where stability and accuracy are the primary considerations. • In order to design a stable and accurate LC oscillator for the upper HF and higher frequencies it is absolutely necessary to have a crystal control; hence, the reason for crystal oscillators. • Crystal oscillators are oscillators where the primary frequency determining element is a quartz crystal. Because of the inherent characteristics of the quartz crystal the crystal oscillator may be held to extreme accuracy of frequency stability. Temperature • compensation may be applied to crystal oscillators to improve thermal stability of the crystal oscillator. • The crystal size and cut determine the values of L, C, R and C'. The resistance R is the friction of the vibrating crystal, capacitance C is the compliance, and inductance L is the equivalent mass. The capacitance C' is the electrostatic capacitance between the mounted pair of electrodes with the crystal as the dielectric.

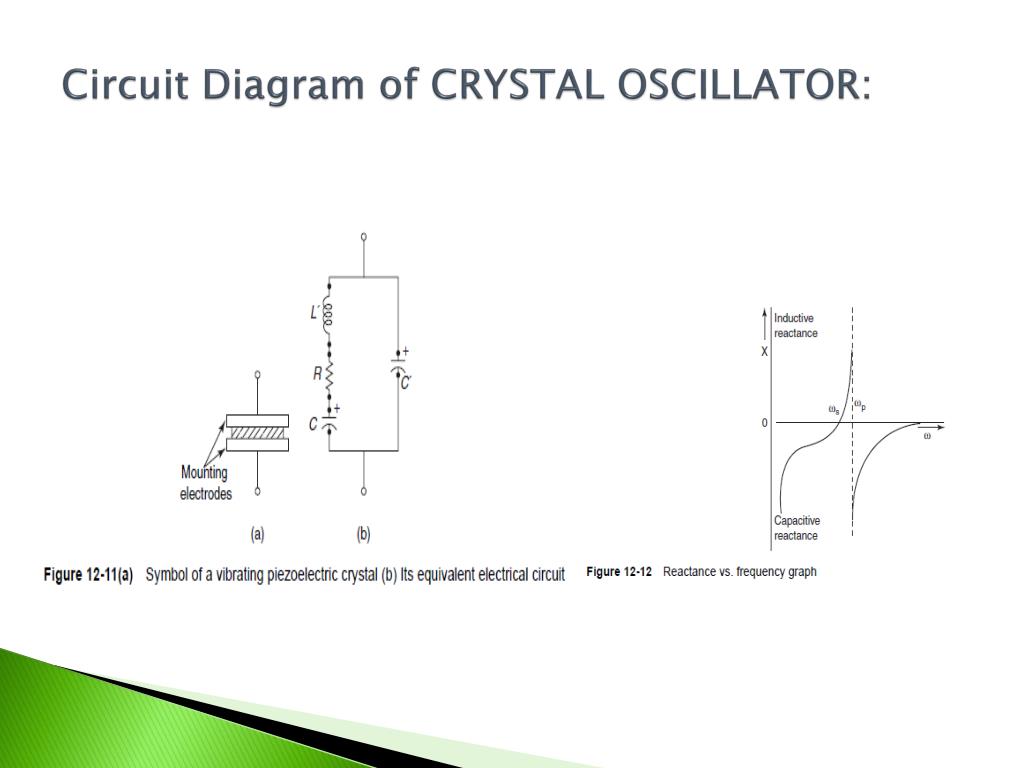

  39. Circuit Diagram of CRYSTAL OSCILLATOR:

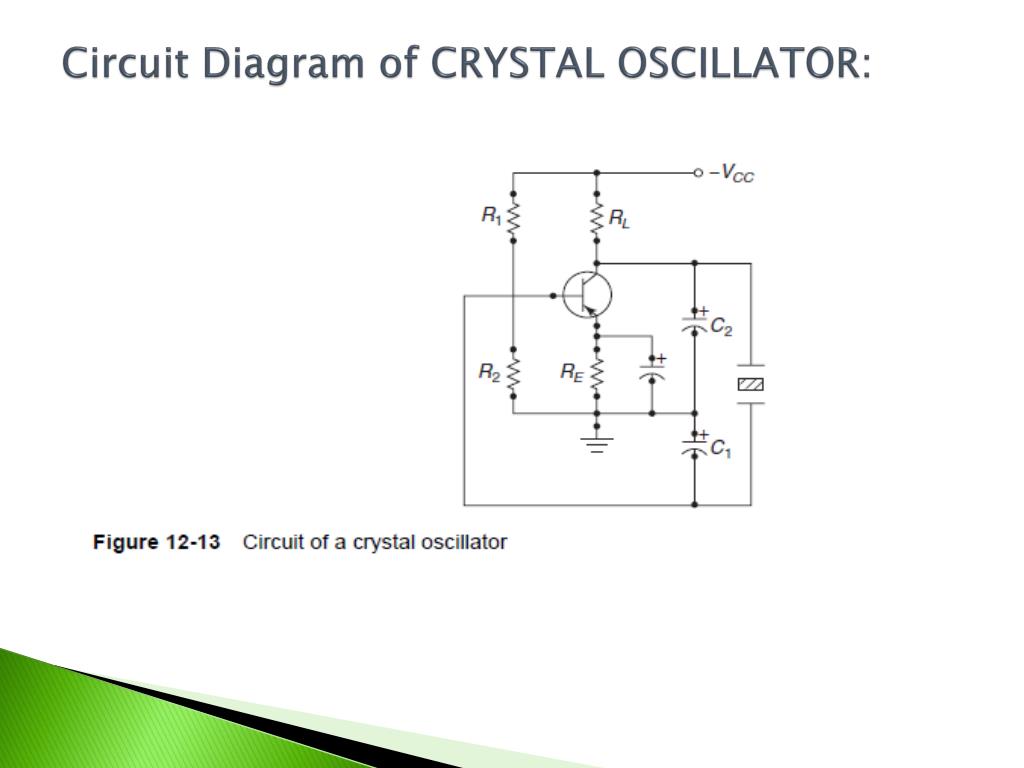

  40. Circuit Diagram of CRYSTAL OSCILLATOR:

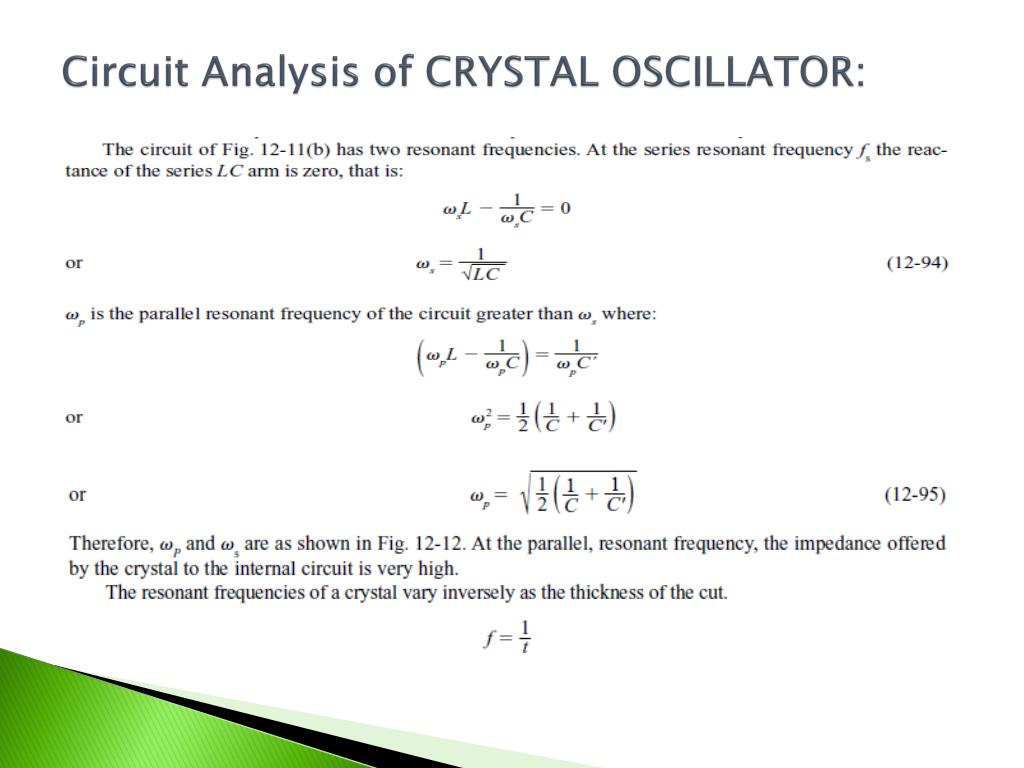

  41. Circuit Analysis of CRYSTAL OSCILLATOR:

  42. APPLICATIONS OF OSCILLATORS: • Oscillators are a common element of almost all electronic circuits. They are used in various applications, and their use makes it possible for circuits and subsystems to perform numerous useful functions. • In oscillator circuits, oscillation usually builds up from zero when power is first applied under linear circuit operation. • The oscillator’s amplitude is kept from building up by limiting the amplifier saturation and various non-linear effects. • Oscillator design and simulation is a complicated process. It is also extremely important and crucial to design a good and stable oscillator. • Oscillators are commonly used in communication circuits. All the communication circuits for different modulation techniques—AM, FM, PM—the use of an oscillator is must. • Oscillators are used as stable frequency sources in a variety of electronic applications. • Oscillator circuits are used in computer peripherals, counters, timers, calculators, phase-locked loops, digital multi-metres, oscilloscopes, and numerous other applications.

  43. Voltage-Controlled Oscillator: • A common oscillator implementation is the voltage-controlled oscillator (VCO) circuit, where an input tuning voltage is applied to an oscillator circuit and the tuning voltage adjusted to set the frequency at which the circuit oscillates. • The VCO is the most widely used oscillator circuit and it produces an oscillatory output voltage. • It provides a periodic signal, where the frequency of the periodic signal is related to the level of an input voltage control signal supplied to the VCO. • A VCO is simply an oscillator having a frequency output that is proportional to an applied voltage. • The centre frequency of a VCO is the frequency of the periodic output signal formed by the VCO when the input control voltage is set to a nominal level.

  44. Cascode Crystal Oscillator: • The cascode crystal oscillator is composed of a Colpitts crystal oscillator and a base-common buffer amplifier in mobile circuits. • In the cascode crystal oscillator, a temparature-independent voltage source biases the buffer amplifier and the bypass capaciter gets eliminated. • GSM phones, set-top boxes and digital audio broadcasting equipments use oscillators. and digital audio roadcasting equipment use oscillators.

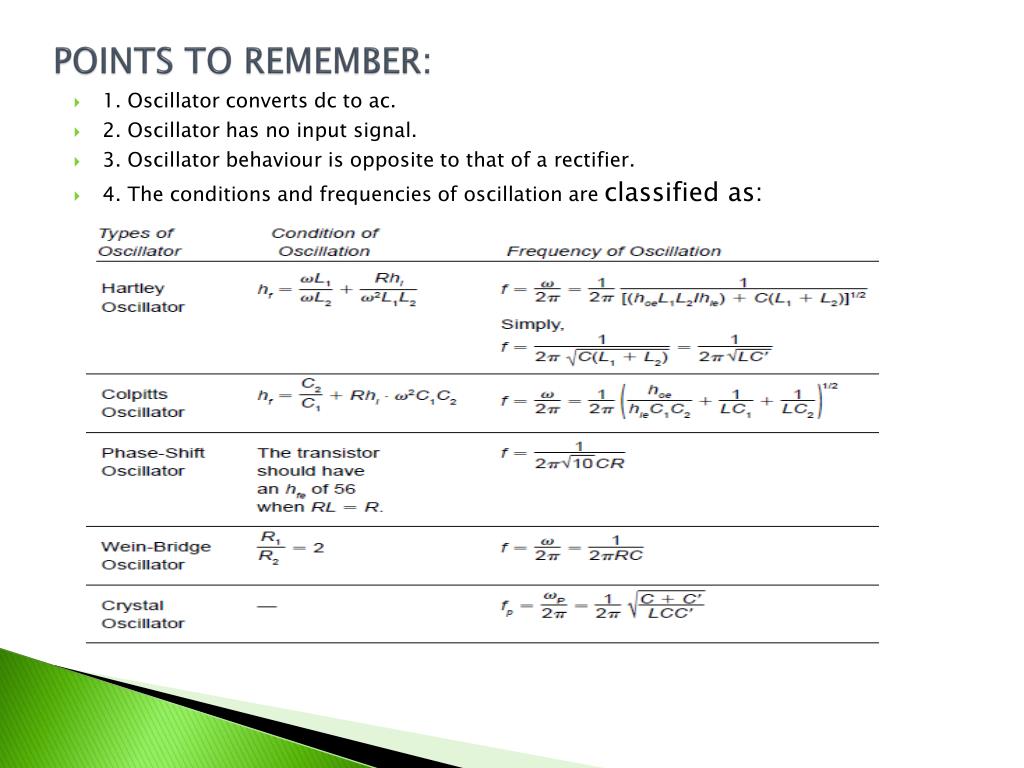

  45. POINTS TO REMEMBER: • 1. Oscillator converts dc to ac. • 2. Oscillator has no input signal. • 3. Oscillator behaviour is opposite to that of a rectifier. • 4. The conditions and frequencies of oscillation are classified as:

  46. IMPORTANT FORMULAE:
