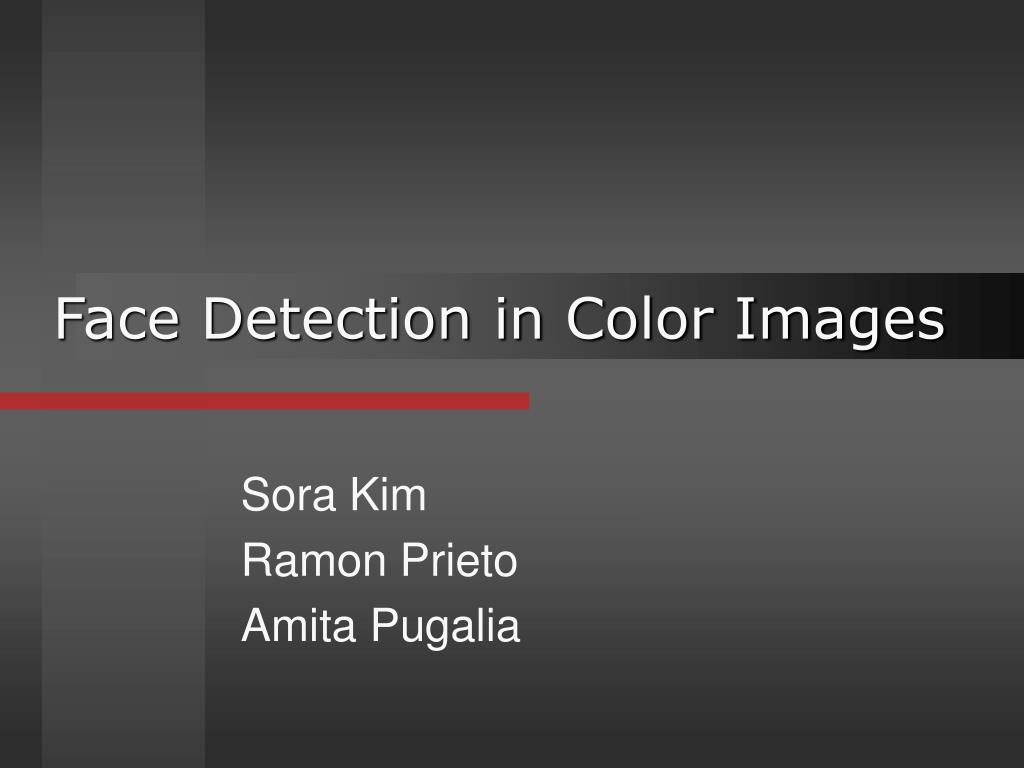

  1. Face Detection in Color Images Sora Kim Ramon Prieto Amita Pugalia

  2. Outline Input Image Skin Color Detection Morphological Processing Template Matching Eigenfaces Output Image

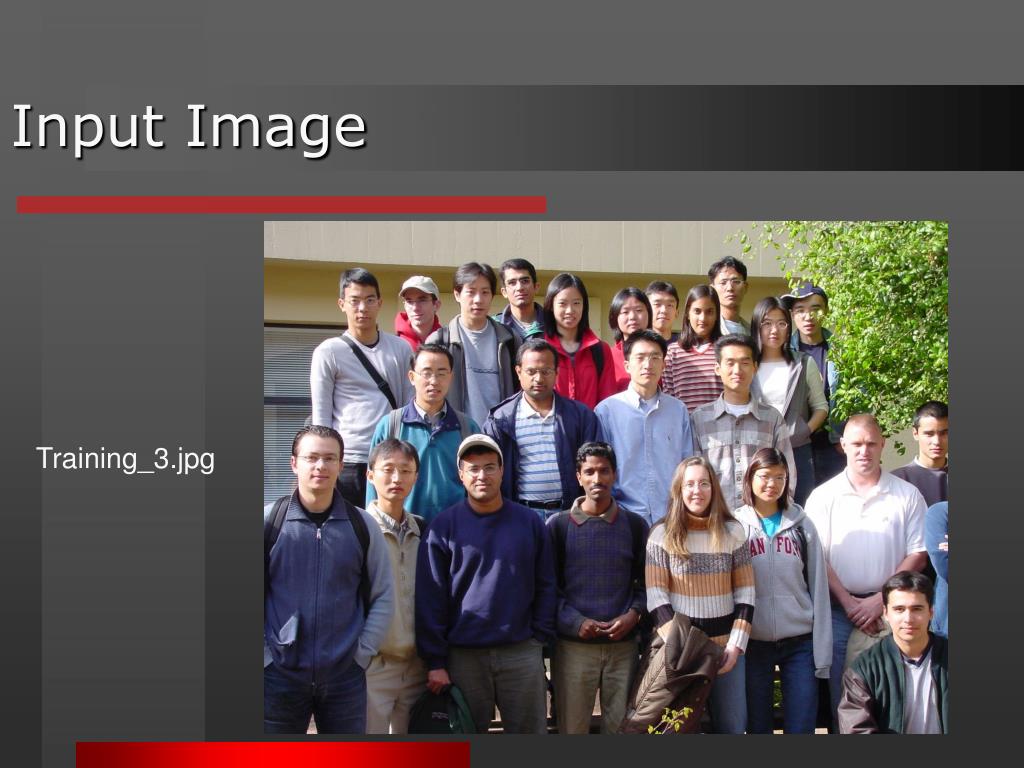

  3. Input Image Training_3.jpg

  4. Skin Color Detection Probability Image Binary Image - Color model of eight Gaussians - k-means training algorithm

  5. Morphological Processing Morphological closing followed by opening using the same circular structuring element.

  6. Template Matching Template Formation - Fixed intersection point of vertical facial symmetry line and horizontal line passing through the pupils of eyes.

  7. Template Matching (Cont.) Lens Zoom Considerations - Two templates: 12x12, 10x18 - Different correlation thresholds \ - Different downsizing factors

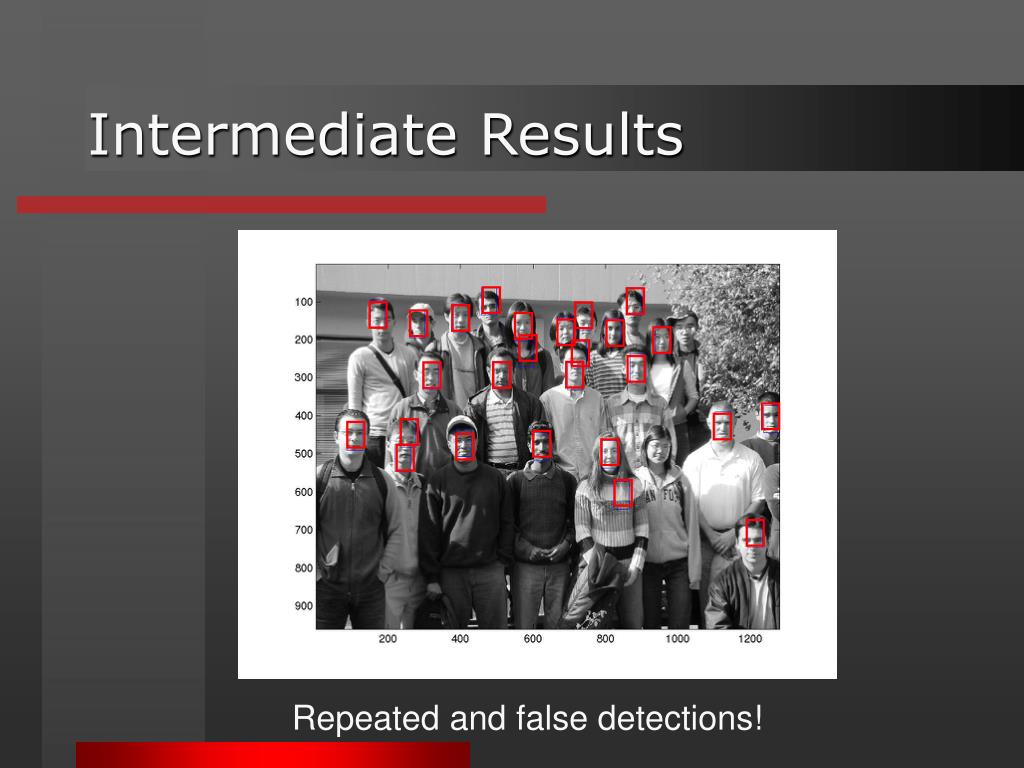

  8. Intermediate Results Repeated and false detections!

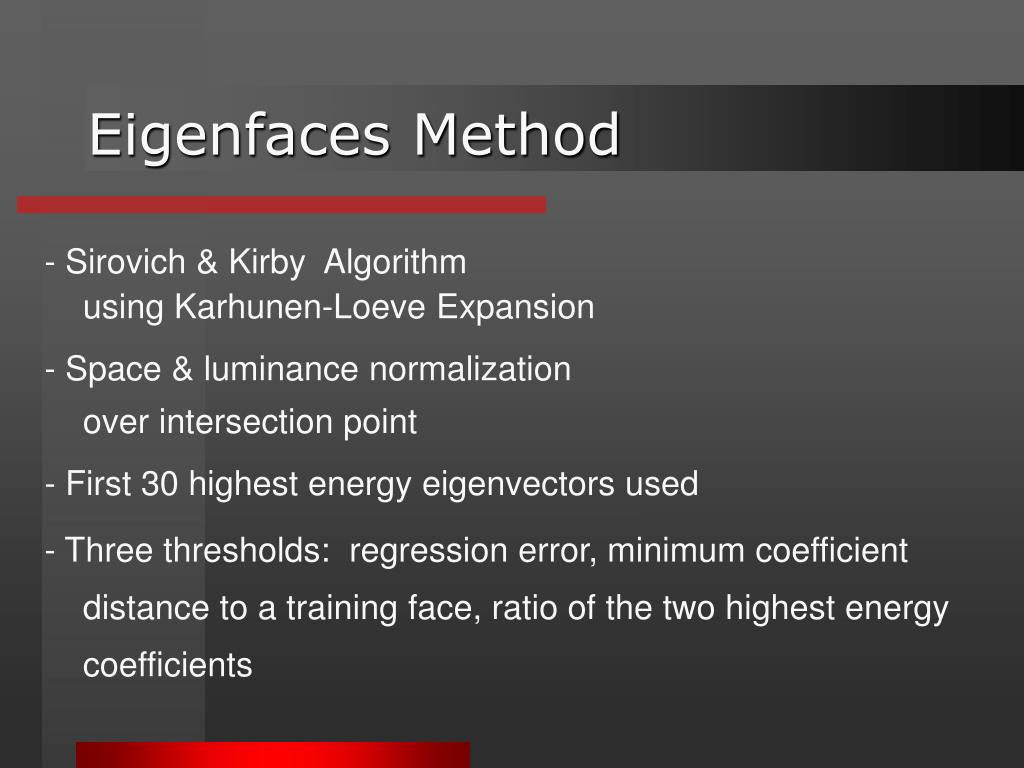

  9. Eigenfaces Method - Sirovich & Kirby Algorithm using Karhunen-Loeve Expansion - Space & luminance normalization over intersection point - First 30 highest energy eigenvectors used - Three thresholds: regression error, minimum coefficient distance to a training face, ratio of the two highest energy coefficients

  10. First Nine Eigenfaces

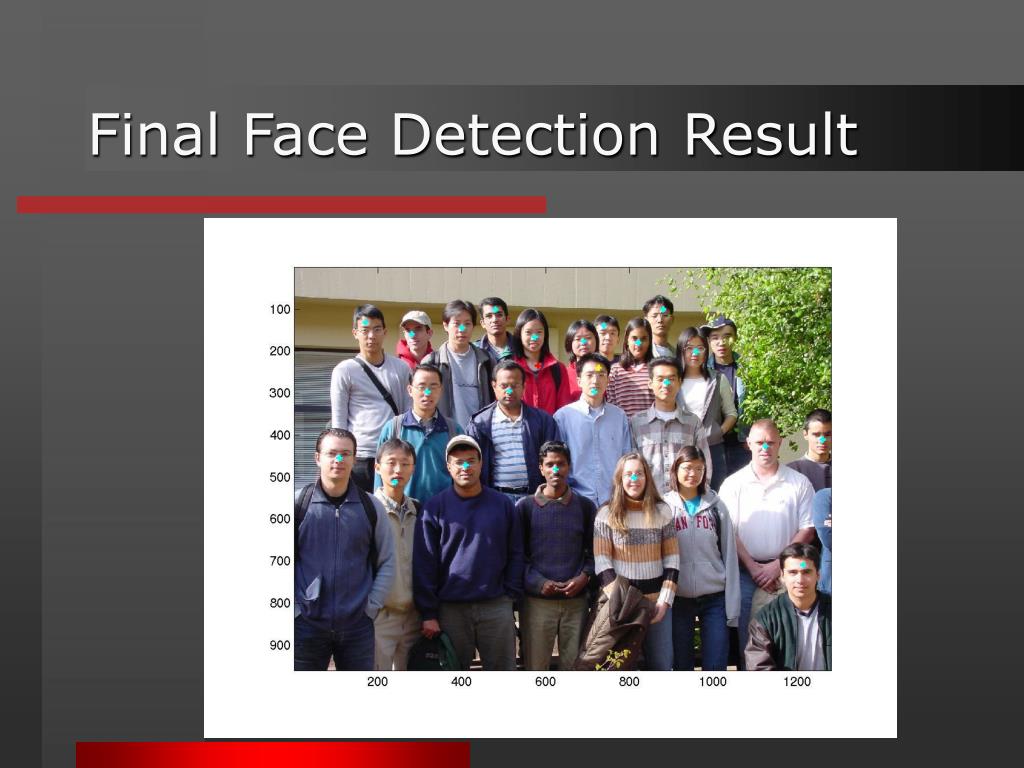

  11. Final Face Detection Result

  12. Results Computation Time < 4min.

  13. Conclusions - Skin Color Detection & Morphological Processing : Segment out possible face parts & reduce computation time - Template Matching & Eigenfaces Method : Select the positions of faces & reject the non-faces and repetitions - For the 7 training images, scores higher than 20 & computation time less than 4minutes : Simple and fast algorithm, but relatively accurate
