Presentation Transcript
the files
The Files

FILENAME=ORDERS, SUFFIX=SQLMAC , $

SEGMENT=ORDERS, SEGTYPE=S0, $

FIELDNAME=ORDER_NUM, ALIAS=ORDER_NUM, USAGE=A5, ACTUAL=A5 ,MISSING=ON, $

FIELDNAME=PROD_NUM, ALIAS=PROD_NUM, USAGE=A4, ACTUAL=A4 ,MISSING=ON, $

FIELDNAME=ORDER_DATE, ALIAS=ORDER_DATE, USAGE=HYYMDS,ACTUAL=HYYMDS,MISSING=ON, $

FIELDNAME=STORE_CODE, ALIAS=STORE_CODE, USAGE=A6, ACTUAL=A6 ,MISSING=ON, $

FIELDNAME=PLANT_CODE, ALIAS=PLANT_CODE, USAGE=A3, ACTUAL=A3 ,MISSING=ON, $

FIELDNAME=SALES_REP, ALIAS=SALES_REP, USAGE=A50, ACTUAL=A50 ,MISSING=ON, $

FIELDNAME=QUANTITY, ALIAS=QUANTITY, USAGE=I11, ACTUAL=I4 ,MISSING=ON, $

FIELDNAME=LINEPRICE, ALIAS=LINEPRICE, USAGE=D20.2, ACTUAL=D8 ,MISSING=ON, $

FIELDNAME=LINE_COGS, ALIAS=LINE_COGS, USAGE=D20.2, ACTUAL=D8 ,MISSING=ON, $

FIELDNAME=RETURNS, ALIAS=RETURNS, USAGE=I11, ACTUAL=I4, ,MISSING=ON, $

FIELDNAME=WARRANTYEXP, ALIAS=WARRANTYEXP, USAGE=D20.2, ACTUAL=D8 ,MISSING=ON, $

FIELDNAME=SHIPPINGCOST, ALIAS=SHIPPINGCOST, USAGE=D20.2, ACTUAL=D8 ,MISSING=ON, $

FILENAME=STORES_EN, SUFFIX=SQLMAC , $

SEGMENT=STORES_EN, SEGTYPE=S0, $

FIELDNAME=STORE_CODE, ALIAS=STORE_CODE, USAGE=A6, ACTUAL=A6 ,MISSING=ON, $

FIELDNAME=STORENAME, ALIAS=STORENAME, USAGE=A30, ACTUAL=A30, MISSING=ON, $

FIELDNAME=COUNTRY, ALIAS=COUNTRY, USAGE=A15, ACTUAL=A15, MISSING=ON, $

FIELDNAME=REGION, ALIAS=REGION, USAGE=A25, ACTUAL=A2 MISSING=ON, $

FIELDNAME=STATE, ALIAS=STATE, USAGE=A25, ACTUAL=A25, MISSING=ON, $

FIELDNAME=CITY, ALIAS=CITY, USAGE=A25, ACTUAL=A25, MISSING=ON, $

FILENAME=INVENTORY_EN, SUFFIX=SQLMAC , $

SEGMENT=INVENTORY_EN, SEGTYPE=S0, $

FIELDNAME=PROD_NUM, ALIAS=PROD_NUM, USAGE=A4, ACTUAL=A4, MISSING=ON, $

FIELDNAME=PRODTYPE, ALIAS=PRODTYPE, USAGE=A15, ACTUAL=A15, MISSING=ON, $

report 1
Report 1

TABLE FILE ORDERS

SUM SALES COST

COMPUTE PROFIT/D12.2 = LINEPRICE – LINE_COGS;

MARGIN

BY REGION NOPRINT

BY STATE NOPRINT

BY HIGHEST TOTAL PROFIT NOPRINT

BY CITY

BY STORENAME

HEADING

"Report of Sales”

"Region

"State

"For Year &Order_Year "

Where Order_Year EQ &Order_Year

END

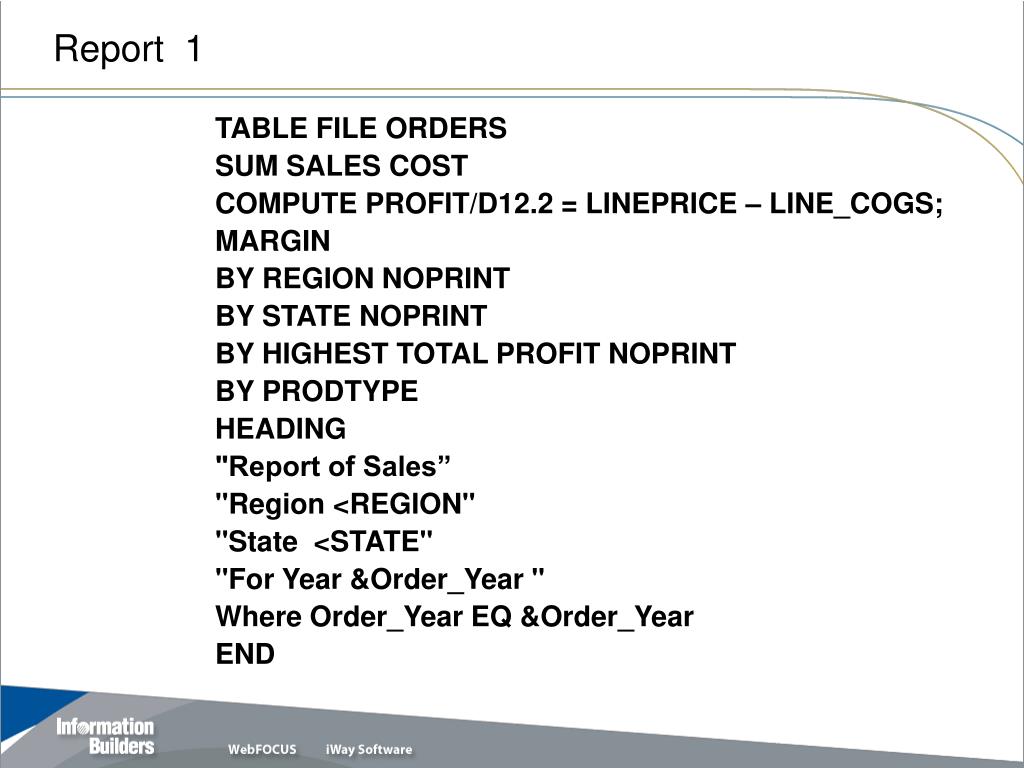

report 11
Report 1

TABLE FILE ORDERS

SUM SALES COST

COMPUTE PROFIT/D12.2 = LINEPRICE – LINE_COGS;

MARGIN

BY REGION NOPRINT

BY STATE NOPRINT

BY HIGHEST TOTAL PROFIT NOPRINT

BY PRODTYPE

HEADING

"Report of Sales”

"Region

"State

"For Year &Order_Year "

Where Order_Year EQ &Order_Year

END

no problem compound pdf
No Problem – Compound PDF
  • SET COMPOUND
    • EXEC Report1 SUM … BY REGION BY STATE BY CITY
    • EXEC Report2 SUM … BY REGION BY STATE BY PRODUCT
    • EXEC Report3 SUM … BY REGION BY STATE
  • Output
    • Report1 for All States within Region
    • Report2 for All States with Region
    • Report3 for All States within Region
  • OR
    • Report1, Report2, Report3 for New Jersey
    • Report1, Report2, Report3 for New York
    • Report1, Report2, Report3 for Pennsylvania
suppose we had 3 copies of each record
Suppose We Had 3 Copies of each record,

DEFINE FILE ORDERS

SRT/A10 = IF Copy_number EQ 1 THEN

CITY ELSE IF Copy_number EQ 2 THEN

PROD_TYPE ELSE 'TOTAL'

END

TABLE FILE ORDERS

SUM SALES COMPUTE PROFIT…

BY REGION BY CITY

BY Copy_number NOPRINT

BY HIGHEST TOTAL PROFIT

BY SRT AS ''

END

ORDER_NUM

PROD_NUM

STORE_CODE

CITY

STATE

REGION

PROFIT

Copy_number

the mcgyver master
The McGyver Master

FILENAME=FOCMCGYV, SUFFIX=FIX,

SEGNAME=ONE, SEGTYPE=S0

FIELDNAME=CONTROL, ,A1,A1,$

. . .

SEGNAME=TWO, SEGTYPE=S0,PARENT=ONE ,

OCCURS = VARIABLE

FIELDNAME=CHAR1,,A1, A1, $ FIELDNAME=CTR,ALIAS=ORDER,

FORMAT=I4 , I4, $

DEFINE REPORT_NUMBER/I4 = CTR;

what to do enter mcgyver
What to do? Enter McGyver
  • A Record is one instance of each referenced Segment/TABLE.
  • DEFINE fields are created at the lowest Segment/TABLE referenced in the DEFINE expression.
  • McGyver:
    • Create a lower level segment with DEFINE based JOIN
    • Higher level fields are inherited by the lower level segment
    • Use DEFINE to use the higher level fields at the report number level.
mcgyver join
McGyver JOIN

JOIN

CONTROL WITH STORENAME IN orders TO UNIQUE FOCMCGYV.ROOT_SEG.CONTROL IN FOCMCGYV

AS J2

END

DEFINE FILE orders

CONTROL/A1 WITH STORENAME = ‘X’;

END

now we have

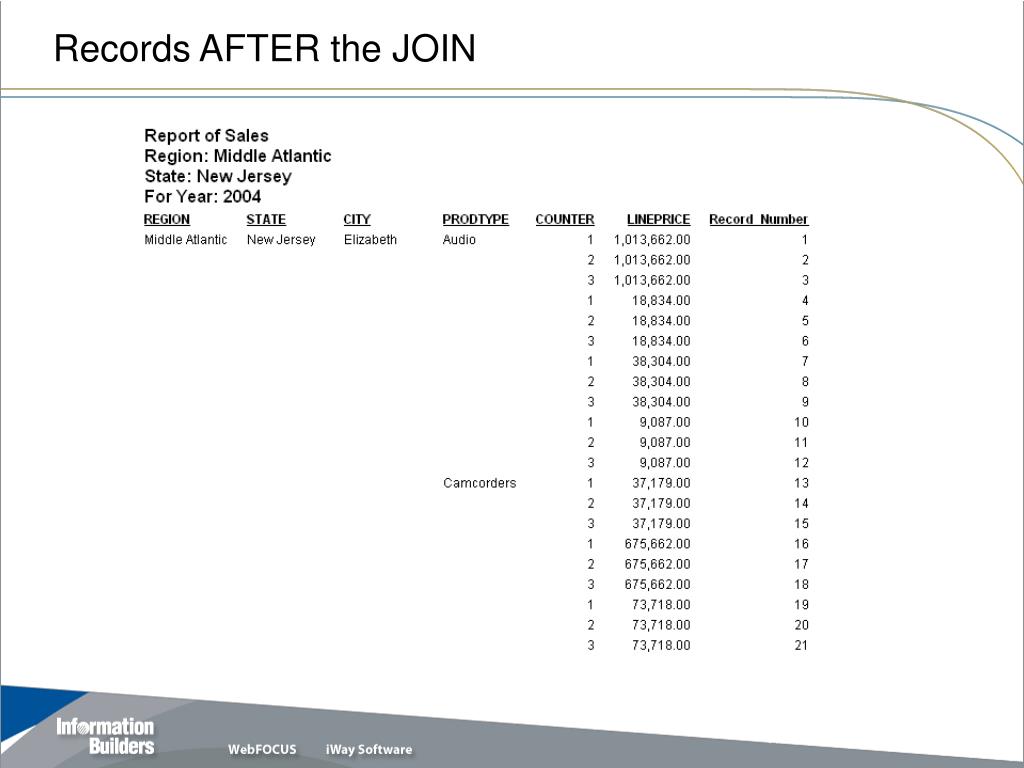

Now We Have

ORDER_NUM

PROD_NUM

STORE_CODE

CITY

STATE

REGION

PROFIT

DEFINE FILE ORDERS

CONTROL/A1 WITH STORENAME = 'X';

END

TABLE FILE ORDERS

PRINT LINEPRICE COMPUTE RECNO/I5 = RECNO + 1; AS 'Record Number'

BY REGION BY STATE BY CITY BY STORENAME

BY PRODTYPE

BY CTR

WHERE CTR LE 3

END

CONTROL

CHAR1

CTR

now we have1
Now We Have

FILEDEF FOCMCGYV DISK

-RUN …

-WRITE FOCMCGYV X12345

-RUN

JOIN

CONTROL WITH STORENAME IN ORDERS TO UNIQUE FOCMCGYV.ROOT_SEG.CONTROL IN FOCMCGYV AS J2

END

DEFINE FILE ORDERS

CONTROL/A1 WITH STORENAME='X';

SRT5/A30=

IF COUNTER EQ 1 THEN CITY ELSE

IF COUNTER EQ 2 THEN PRODCAT ELSE

IF COUNTER EQ 3 THEN ' ' ELSE ' ';

SRT6/A30=IF COUNTER EQ 1 THEN STORENAME ELSE ' ';

END

-RUN

mcgyver putting it all together
McGyver – Putting it All Together

File

FILE=FOCMCG,SUFFIX=FIX

SEGNAME=ONE,SEGTYPE=S0

FIELD=CONTROL,WHICH,A1,A1,$

SEGNAME=TWO,OCCURS=VARIABLE

FIELD=CHAR ,CHAR , A1,A1,$

FIELD=COUNTER,ORDER, I4,I4,$

-WRITE FOCMCG X1234

JOIN

JOIN CONTROL WITH field IN host

TO CONTROL IN FOCMCG AS J1

DEFINE

DEFINE FILE HOST

CONTROL/A1 WITH field = ‘X’;

Sortfield/Axx = IF COUNTER EQ 1

THEN …

no problem defines

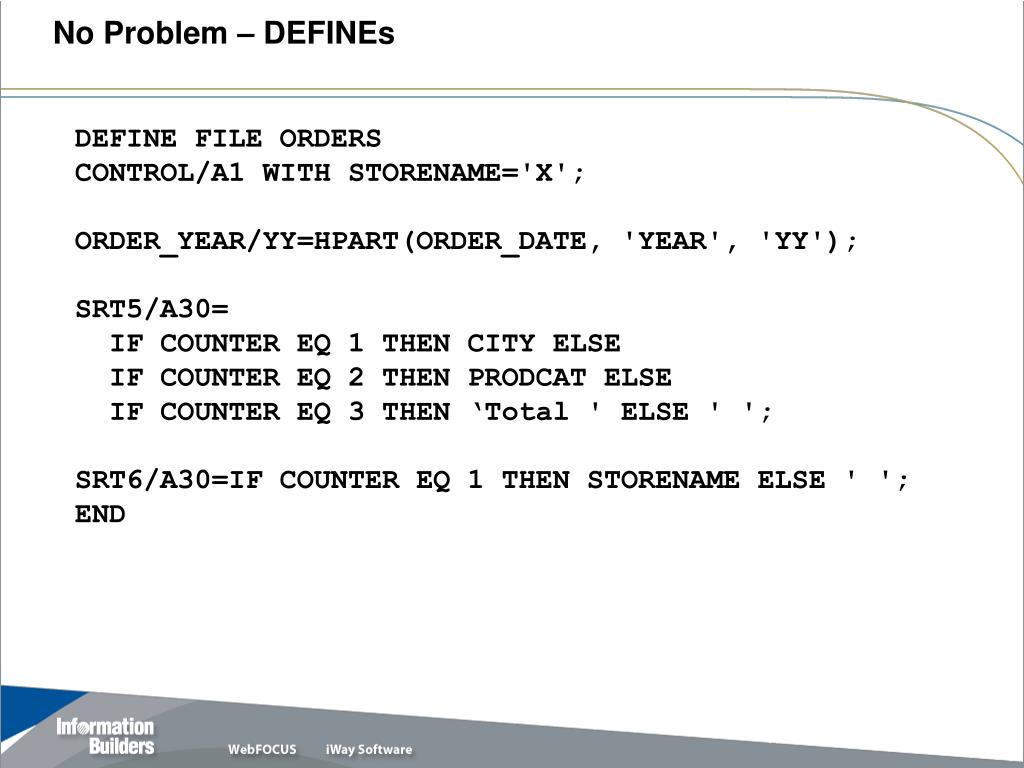

No Problem – DEFINEs

DEFINE FILE ORDERS

CONTROL/A1 WITH STORENAME='X';

ORDER_YEAR/YY=HPART(ORDER_DATE, 'YEAR', 'YY');

SRT5/A30=

IF COUNTER EQ 1 THEN CITY ELSE

IF COUNTER EQ 2 THEN PRODCAT ELSE

IF COUNTER EQ 3 THEN ‘Total ' ELSE ' ';

SRT6/A30=IF COUNTER EQ 1 THEN STORENAME ELSE ' ';

END

no problem table
No Problem – TABLE

TABLE FILE ORDERS

SUM

SRT6 AS '' LINEPRICE AS 'Sales' LINE_COGS AS 'Cost'

COMPUTE Profit/D12.2 = LINEPRICE - LINE_COGS;

COMPUTE Margin/D12.2 = Profit / LINE_COGS;

BY REGION NOPRINT BY STATE NOPRINT

BY COUNTER NOPRINT

BY TOTAL HIGHEST Profit NOPRINT

BY SRT5 AS ''

ON STATE PAGE-BREAK

ON COUNTER SUBHEAD

"Stores Ranked by Profit"

WHEN COUNTER EQ 1;

ON COUNTER SUBHEAD

"Products Ranked by Profit"

WHEN COUNTER EQ 2;

ON COUNTER SKIP-LINE

ON SRT5 SKIP-LINE

no problem table1
No Problem – TABLE

DEFINE FILE ORDERS

CONTROL/A1 WITH STORENAME='X';

XSRT/I1 = IF COUNTER EQ 3 THEN 1 ELSE 2;

END

TABLE FILE ORDERS

SUM …

BY REGION NOPRINT

BY STATE NOPRINT

BY XSRT NOPRINT

BY COUNTER NOPRINT

build the launch page

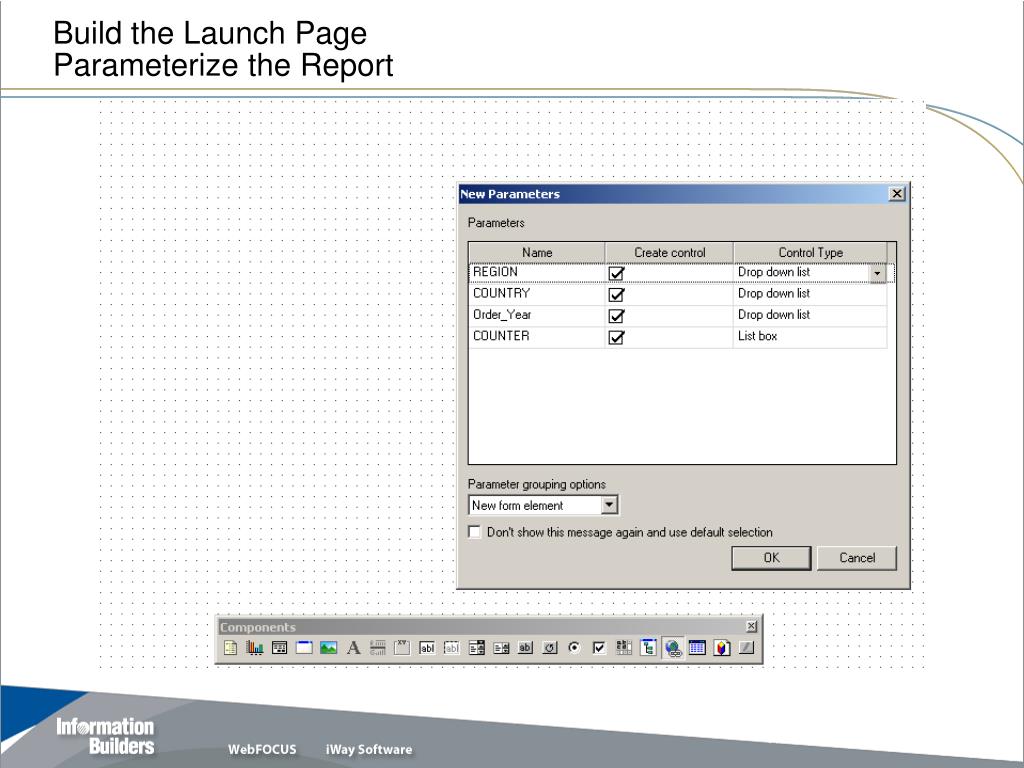

Build the Launch Page
  • Parameterize the Report:

WHERE REGION EQ

'®ION.(FIND REGION IN STORES_EN).REGION.';

WHERE COUNTRY EQ

'&COUNTRY.(FIND COUNTRY IN STORES_EN).COUNTRY.';

WHERE ORDER_YEAR EQ

'&ORDER_YEAR.(<2003,2003>,<2004,2004>).Year.';

WHERE COUNTER EQ

&COUNTER.(OR(,,)).Report.

what to do
What to Do?
  • Add Option 4 to the DEFINE

DEFINE FILE ORDERS

SRT2/A30=IF COUNTER EQ 4 THEN ' ' ELSE STATE;

SRT5/A30=

IF COUNTER EQ 1 THEN CITY ELSE

IF COUNTER EQ 2 THEN PRODCAT ELSE

IF COUNTER EQ 3 THEN 'Total ' ELSE

IF COUNTER EQ 4 THEN STATE ELSE ' ';

SRT6/A30=IF COUNTER EQ 1 THEN STORENAME ELSE ' ';

SRT3/I1 = IF COUNTER EQ 4 THEN 1 ELSE

IF COUNTER EQ 3 THEN 2 ELSE 3;

OVER_SRT/I1 = IF COUNTER EQ 4 THEN 1 ELSE 2;

END

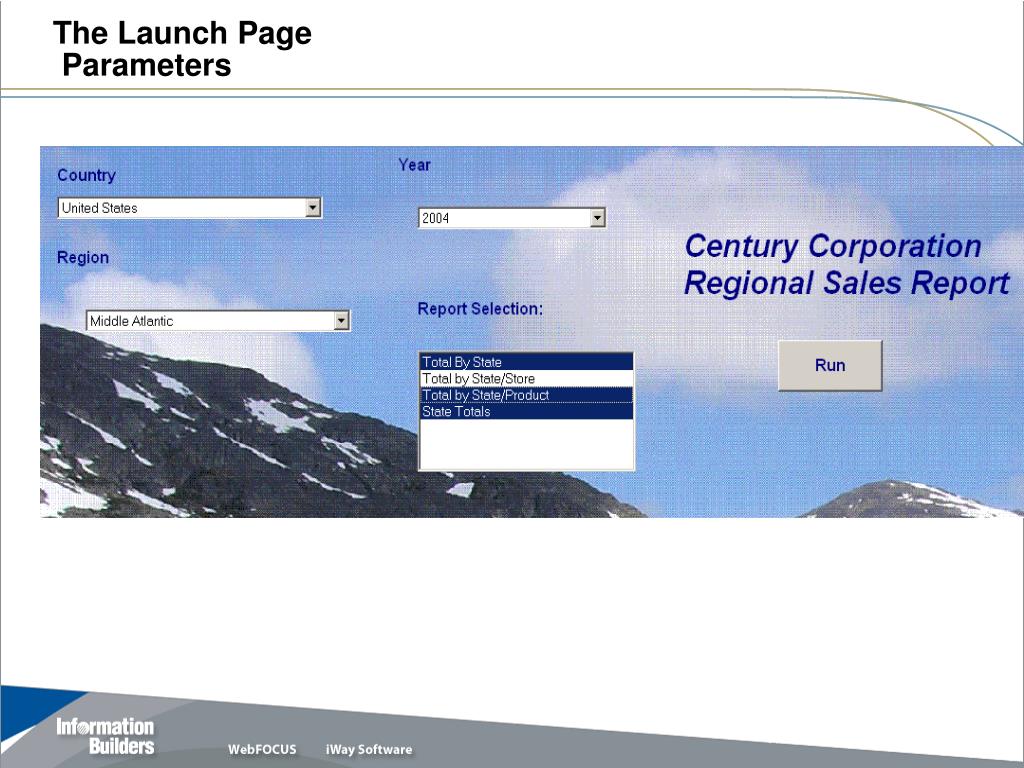

  • Change launch page and include New Parameter Value for Option.
mcgyver even works with compute

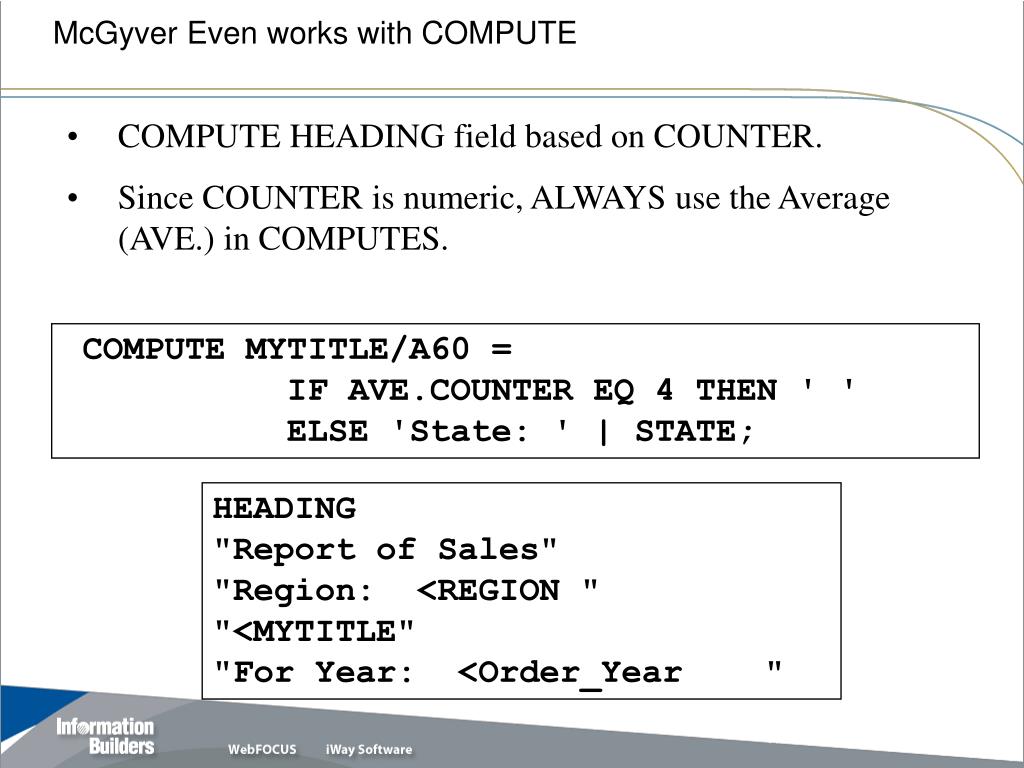

McGyver Even works with COMPUTE
  • COMPUTE HEADING field based on COUNTER.
  • Since COUNTER is numeric, ALWAYS use the Average (AVE.) in COMPUTES.

COMPUTE MYTITLE/A60 =

IF AVE.COUNTER EQ 4 THEN ' '

ELSE 'State: ' | STATE;

HEADING

"Report of Sales"

"Region:

"

"For Year:

oh that telephone book
Oh, that Telephone Book?

FILEDEF focmcgyv DISK c:\ibi\apps\baseapp\focmcgyv.txt

-RUN

-WRITE focmcgyv X123

-RUN

JOIN CONTROL WITH PIN IN EMPDATA TO CONTROL IN FOCMCGYV AS AB

-RUN

DEFINE FILE EMPDATA

CONTROL/A1 WITH PIN = 'X';

SORTFLD/A20 = IF ORDER EQ 1 THEN DEPT ELSE

IF ORDER EQ 2 THEN LASTNAME ELSE FIRSTNAME;

WHCHSRT/A15 = IF ORDER EQ 1 THEN 'Department' ELSE

IF ORDER EQ 2 THEN 'Last Name' ELSE 'First Name';

END

oh that telephone book1
Oh, that Telephone Book?

TABLE FILE EMPDATA

PRINT COMPUTE

COL1/A20 = IF AVE.ORDER EQ 1 OR 2 THEN FIRSTNAME

ELSE IF AVE.ORDER EQ 3 THEN LASTNAME

ELSE DEPT; AS ''

COMPUTE

COL2/A20 = IF AVE.ORDER EQ 1 THEN LASTNAME ELSE DEPT ; AS ''

BY ORDER NOPRINT PAGE-BREAK

BY SORTFLD AS ''

BY ORDER NOPRINT PAGE-BREAK

BY SORTFLD NOPRINT

ON TABLE HOLD AS CEMP1 FORMAT PPT

WHERE ORDER LE 3

HEADING

"REPORT OF EMPLOYEES SORTED BY

END

slide45
Report of Employees Sorted BY

Department

ACCOUNTING

EVELYN

SANCHEZ

TIM

ANDERSON

BEN

SOPENA

JOHN

WANG

ANNE

LOPEZ

ADMIN SERVICES

WILLIAM

MORAN

LAURA

GORDON

CONSULTING

KATE

WANG

KARL

WHITE

DAVID

ELLNER

CUSTOMER SUPPORT

ANTHONY

RUSSO

VERONICA

WHITE

ROSE

HIRSCHMAN

ERWIN

FERNSTEIN

MARKETING

DANIEL

VALINO

MICHAEL

BELLA

RUTH

ADAMS

DORINA

PATEL

PAMELA

SO

MARCUS

CVEK

CASSANDRA

LEWIS

JEFF

LIEBER

ERICA

DONATELLO

CHRIS

GOTLIEB

MARSHALL

CONTI

PERSONNEL

MARIANNE

PULASKI

JIM

NOZAWA

YOLANDA

KASHMAN

ADAM

CONRAD

ELAINE

GRAFF

PROGRAMMING & DVLPMT

KATRINA

ROSENTHAL

MARIE

CASTALANETTA

ARLEEN

MARTIN

CAROL

PUMA

SALES

LOIS

CASSANOVA

PETER

ADDAMS

MARK

MEDINA

KAREN

LASTRA

ERIC

DUBOIS

WILMA

OLSON

HENRY

CHISOLM

slide46
Report of Employees Sorted BY

Last Name

ADAMS

RUTH

MARKETING

ADDAMS

PETER

SALES

ANDERSON

TIM

ACCOUNTING

BELLA

MICHAEL

MARKETING

CASSANOVA

LOIS

SALES

CASTALANETTA

MARIE

PROGRAMMING & DVLPMT

CHISOLM

HENRY

SALES

CONRAD

ADAM

PERSONNEL

CONTI

MARSHALL

MARKETING

CVEK

MARCUS

MARKETING

DONATELLO

ERICA

MARKETING

DUBOIS

ERIC

SALES

ELLNER

DAVID

CONSULTING

FERNSTEIN

ERWIN

CUSTOMER SUPPORT

GORDON

LAURA

ADMIN SERVICES

GOTLIEB

CHRIS

MARKETING

GRAFF

ELAINE

PERSONNEL

HIRSCHMAN

ROSE

CUSTOMER SUPPORT

KASHMAN

YOLANDA

PERSONNEL

LASTRA

KAREN

SALES

LEWIS

CASSANDRA

MARKETING

LIEBER

JEFF

MARKETING

LOPEZ

ANNE

ACCOUNTING

MARTIN

ARLEEN

PROGRAMMING & DVLPMT

MEDINA

MARK

SALES

MORAN

WILLIAM

ADMIN SERVICES

NOZAWA

JIM

PERSONNEL

OLSON

WILMA

SALES

PATEL

DORINA

MARKETING

PULASKI

MARIANNE

PERSONNEL

PUMA

CAROL

PROGRAMMING & DVLPMT

ROSENTHAL

KATRINA

PROGRAMMING & DVLPMT

RUSSO

ANTHONY

CUSTOMER SUPPORT

SANCHEZ

EVELYN

ACCOUNTING

SO

PAMELA

MARKETING

SOPENA

BEN

ACCOUNTING

VALINO

DANIEL

MARKETING

WANG

KATE

CONSULTING

JOHN

ACCOUNTING

WHITE

VERONICA

CUSTOMER SUPPORT

KARL

CONSULTING

slide47
Report of Employees Sorted BY

First Name

ADAM

CONRAD

PERSONNEL

ANNE

LOPEZ

ACCOUNTING

ANTHONY

RUSSO

CUSTOMER SUPPORT

ARLEEN

MARTIN

PROGRAMMING & DVLPMT

BEN

SOPENA

ACCOUNTING

CAROL

PUMA

PROGRAMMING & DVLPMT

CASSANDRA

LEWIS

MARKETING

CHRIS

GOTLIEB

MARKETING

DANIEL

VALINO

MARKETING

DAVID

ELLNER

CONSULTING

DORINA

PATEL

MARKETING

ELAINE

GRAFF

PERSONNEL

ERIC

DUBOIS

SALES

ERICA

DONATELLO

MARKETING

ERWIN

FERNSTEIN

CUSTOMER SUPPORT

EVELYN

SANCHEZ

ACCOUNTING

HENRY

CHISOLM

SALES

JEFF

LIEBER

MARKETING

JIM

NOZAWA

PERSONNEL

JOHN

WANG

ACCOUNTING

KAREN

LASTRA

SALES

KARL

WHITE

CONSULTING

KATE

WANG

CONSULTING

KATRINA

ROSENTHAL

PROGRAMMING & DVLPMT

LAURA

GORDON

ADMIN SERVICES

LOIS

CASSANOVA

SALES

MARCUS

CVEK

MARKETING

MARIANNE

PULASKI

PERSONNEL

MARIE

CASTALANETTA

PROGRAMMING & DVLPMT

MARK

MEDINA

SALES

MARSHALL

CONTI

MARKETING

MICHAEL

BELLA

MARKETING

PAMELA

SO

MARKETING

PETER

ADDAMS

SALES

ROSE

HIRSCHMAN

CUSTOMER SUPPORT

RUTH

ADAMS

MARKETING

TIM

ANDERSON

ACCOUNTING

VERONICA

WHITE

CUSTOMER SUPPORT

WILLIAM

MORAN

ADMIN SERVICES

WILMA

OLSON

SALES

YOLANDA

KASHMAN

PERSONNEL

ad
