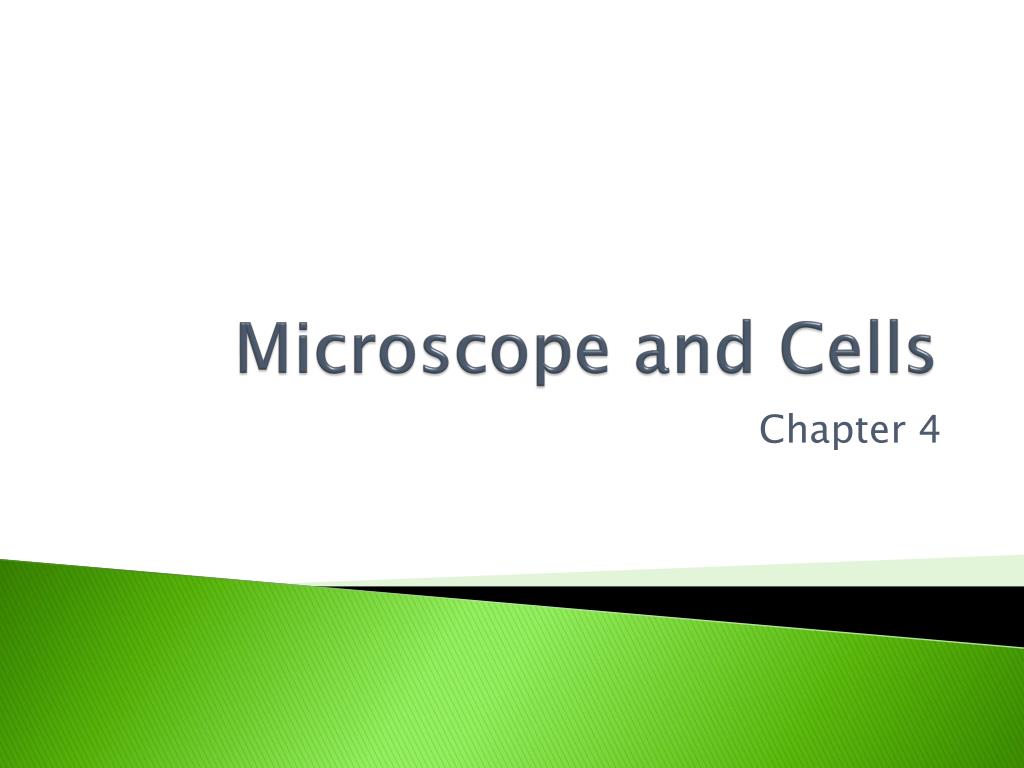

  1. Microscope and Cells Chapter 4

  2. I. The Cell Theory • All living organisms are made up of cells • Cells are the basic units of structure and function in living organisms. • All cells come from cells that existed before them by cellular reproduction. • Schwann, Schleiden and Virchow are credited with coming up with the basics of the cell theory • http://www.youtube.com/watch?v=dscY_2QQbKU

  3. Every cell has the following main characteristics: • Plasma membrane covering • Cytoplasm • Their genes are made of DNA • Ribosomes are tiny organelles that assemble proteins

  4. II. The Compound Light Microscope • Antone von Leeuwenhoek assembled the first microscope that was useful for scientific research. • Compound light microscopes reflect light through a set of lenses and the specimen to magnify the specimen. • See handout for the parts of the microscope – you must know it. • http://www.youtube.com/watch?v=MYKM_iGY9K8 – images of the human body under a microscope

  5. Two important characteristics that determine the quality of a light microscope: • Magnification – an increase in the apparent size of an object. We calculate magnification by the following: Magnification of eyepiece x magnification of objective = total magnifying power • Resolution – the measure of clarity of an image. As the magnification increases, the resolution of the image decreases.

  6. III. Electron Microscopes • Some microscopes use beams of electrons for magnification instead of light – electron microscopes • Scanning electron microscope (SEM) – used to study the detailed architecture of the surface of the object. Forms a 3D image, but does not show the inside of the object. • Transmission electron microscope (TEM) – used to provide a detailed 2D image of the inside structure of the object that is viewed.

  7. http://micro.magnet.fsu.edu/primer/java/electronmicroscopy/magnify1/index.htmlhttp://micro.magnet.fsu.edu/primer/java/electronmicroscopy/magnify1/index.html • http://www5.pbrc.hawaii.edu/microangela/index.html • http://billdesowitz.com/ibm-makes-atomic-size-stop-motion-short/

  8. III. The Size of Cells • http://www.cellsalive.com/howbig.htm • Cells are microscopic, they are visible only with light microscopes. Most of their size ranges from 1-100 µm. • The cells are small, because they have to be able to carry materials from one side of the cell to the next in a short period of time. • Cells must have a large enough surface area to be able to take in nutrients and oxygen and release waste quickly.

  9. IV. Prokaryotic Cells • Prokaryotic cells – small cells (about 1-10 µm) that do not have a nucleus and organelles that are covered with membranes • Prokaryotic cells are found in Bacteria and Archaea (two main domains of life).

  10. Nucleoid region – part of the prokaryotic cell where the DNA is found • Cell membrane – innermost covering of the cell • Cell wall – made up of a special mix of polysaccharides and proteins (antibiotics break it down) • Capsule – outside of the cell wall, protective covering (not all bacteria have it) • Flagella (sing. Flagellum) – moves bacteria • Pili – used to stick them to surfaces and for conjugation (exchange of genetic materials between bacteria)

  11. Cytoplasm – dissolves substances and holds organelles • Ribosomes – organelles that make proteins in the cytoplasm • http://www.ted.com/talks/lang/eng/bonnie_bassler_on_how_bacteria_communicate.html • http://www.youtube.com/watch?v=RGfs328X8Kw – artificial bacteria • http://www.youtube.com/watch?v=tqOVYpkZ0qs – bacteria song

  12. V. Eukaryotic Cells • Protists, Fungi, Plants, and Animals • Have nucleus and organelles that are surrounded by phospholipid membranes (membrane-bound organelles) • Much larger and more complex than prokaryotic cells. (10-100 µm) • Reproduce sexually and asexually • http://www.youtube.com/watch?v=Y3u_GDIj7RI&feature=related

  13. VI. Eukaryotic OrganellesGeneral Function: Manufacturing • Nucleus • Control center of cell; contains most of the cell’s DNA • Nucleolus • Location where ribosomes are synthesized, made up of DNA, RNA and proteins • Nuclear envelope • Protects the DNA in the nucleus, nuclear pores allow the exchange of materials. • Amazing cells: http://learn.genetics.utah.edu/content/begin/cells/insideacell/

  14. Ribosomes • Protein synthesis – mushroom-shaped organelle that is made up of RNA and proteins • Rough ER • Comprised of a network of tubes and flattened sacs. • Continuous with plasma membrane and nuclear membrane and made up of the same material • Site of protein synthesis (consists of ribosomes) and protein folding (this is where many proteins get their secondary and tertiary structures).

  15. Smooth ER • Site of lipid and carbohydrate metabolism • No ribosomes • Membrane structure, so it is also made up of phospholipids and proteins • Detoxification • Golgi Apparatus • Connected with ER; flattened disc-shaped sacs, stacked one on top of the other • Modification, storage, and packaging of proteins. • “Tags” proteins so they go to the correct destination • “The mailroom of the cell”

  16. VII. Eukaryotic OrganellesGeneral Function: Breakdown • Lysosomes (in animal cells and some protists) • Digestion of nutrients, bacteria, and damaged organelles; destruction of certain cells during embryonic development • Peroxisomes • Diverse metabolic processes break down H ions into hydrogen peroxide • Detoxification • Vacuoles • Digestion (like lysosomes); storage of chemicals, cell enlargement; water balance, really large in older plant cells

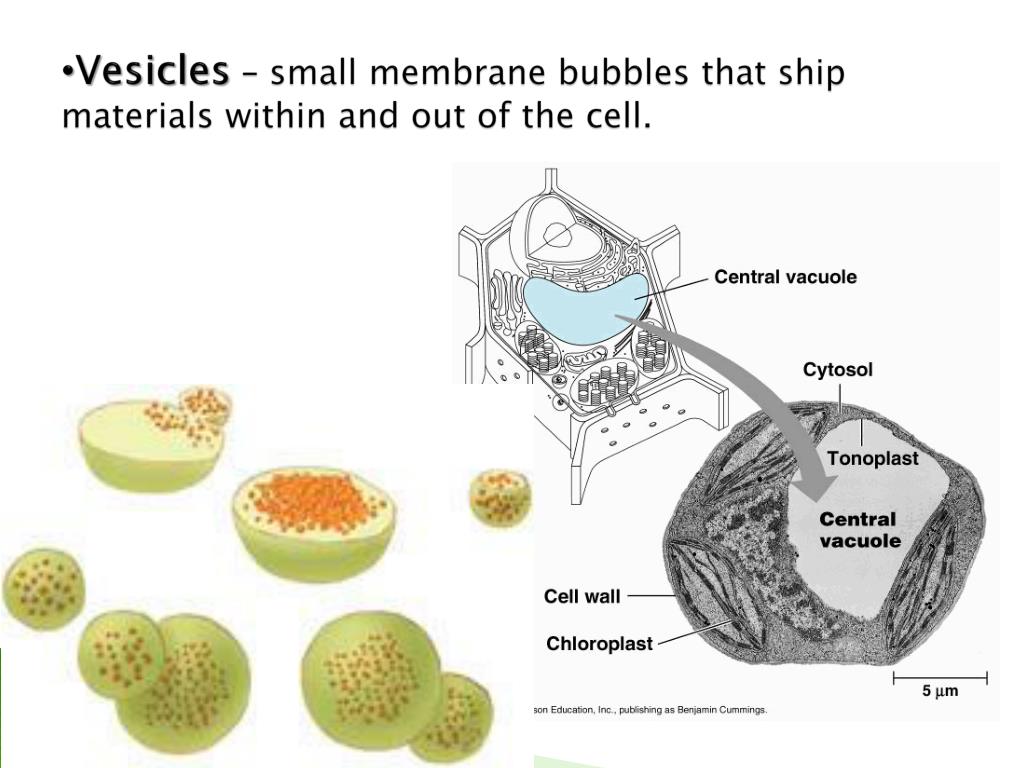

  17. Vesicles – small membrane bubbles that ship materials within and out of the cell.

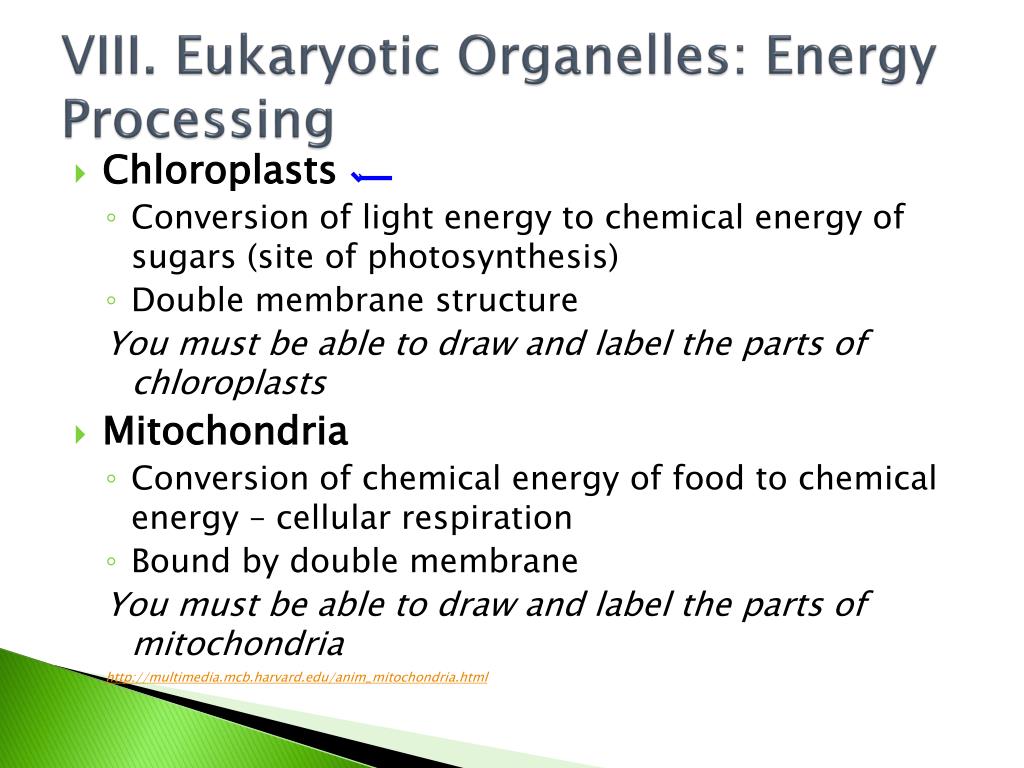

  18. VIII. Eukaryotic Organelles: Energy Processing • Chloroplasts • Conversion of light energy to chemical energy of sugars (site of photosynthesis) • Double membrane structure You must be able to draw and label the parts of chloroplasts • Mitochondria • Conversion of chemical energy of food to chemical energy – cellular respiration • Bound by double membrane You must be able to draw and label the parts of mitochondria http://multimedia.mcb.harvard.edu/anim_mitochondria.html

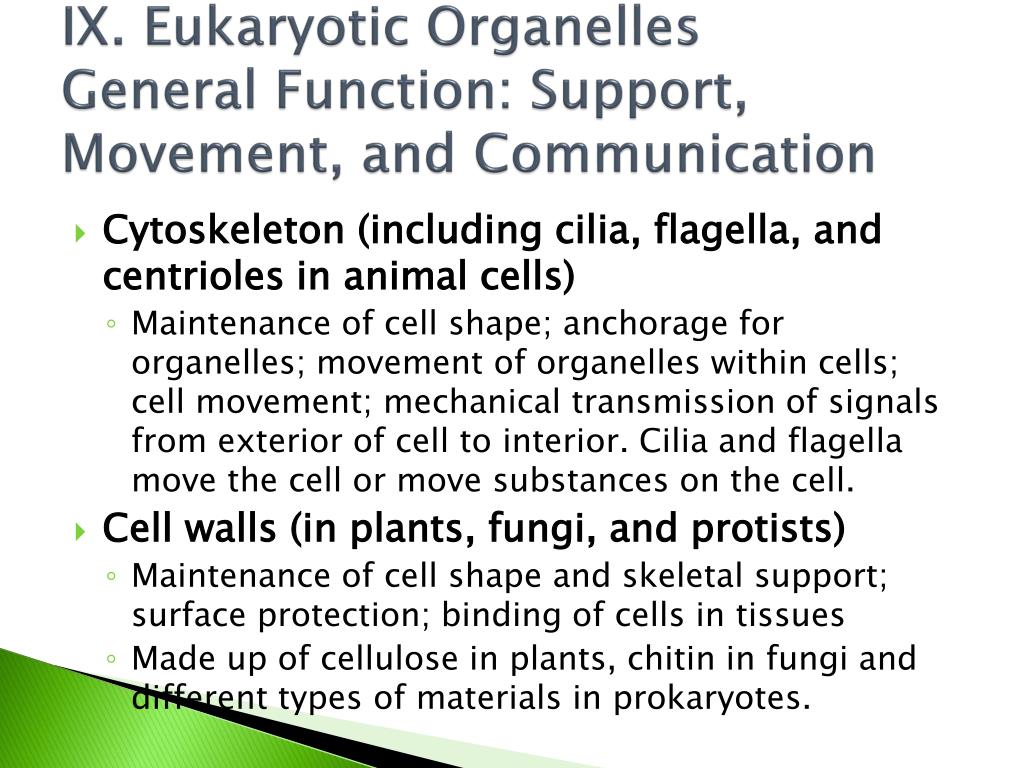

  19. IX. Eukaryotic OrganellesGeneral Function: Support, Movement, and Communication • Cytoskeleton (including cilia, flagella, and centrioles in animal cells) • Maintenance of cell shape; anchorage for organelles; movement of organelles within cells; cell movement; mechanical transmission of signals from exterior of cell to interior. Cilia and flagella move the cell or move substances on the cell. • Cell walls (in plants, fungi, and protists) • Maintenance of cell shape and skeletal support; surface protection; binding of cells in tissues • Made up of cellulose in plants, chitin in fungi and different types of materials in prokaryotes.
