HGI & the Standards Landscape

HGI & the Standards Landscape . Klaus Milczewsky, T-Online International AG. Convergent Service Usage @ Home. Services home specific, personal, enterprise, entertainment … Networks Access Networks, Home Networks, Mgmt., QoS, Config… Devices movable, portable, mobile, fixed installation …

clover
Download Presentation

HGI & the Standards Landscape

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. HGI & the Standards Landscape Klaus Milczewsky, T-Online International AG

  2. Convergent Service Usage @ Home • Services home specific, personal, enterprise, entertainment … • Networks Access Networks, Home Networks, Mgmt., QoS, Config… • Devices movable, portable, mobile, fixed installation … • Convergence protocols, formats, AAA, deployment … Mobile Device Vehicle User Home Telco Network & Service Platform 3rd Party Service Provider Enterprise

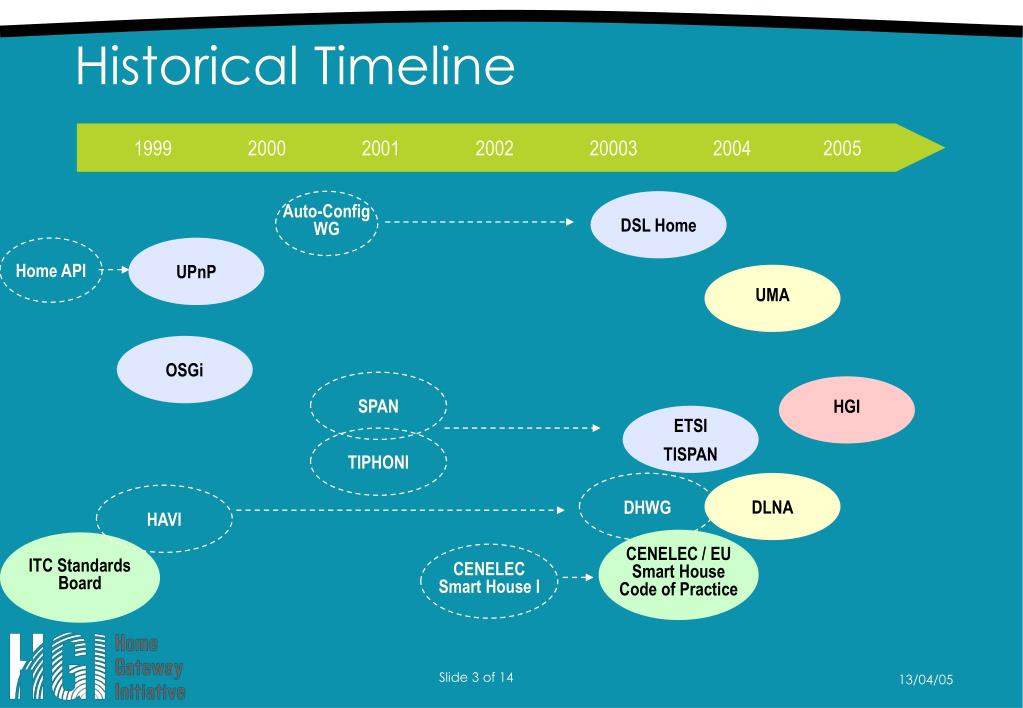

  3. Historical Timeline 1999 2000 2001 2002 20003 2004 2005 DSL Home Auto-Config WG UPnP Home API UMA OSGi SPAN HGI ETSI TISPAN TIPHONI DLNA DHWG HAVI CENELEC / EU Smart House Code of Practice ITC Standards Board CENELEC Smart House I

  4. Matrix of standards bodies and industry fora technical marketing • Selection of suitable technologies • Creation of brands, trademarks, certification • Creating awareness among decision makers and customers • New technical concepts and solutions • Specifications, reference implementations, test cases • Based on business requirements specific • Regulatory-like consolidation of results of different consortia • Preparation of reliable and open market conditions • Gathering, prioritization and establishing of requirements • Steering technical decisions • Joint efforts based on market position and role integrative

  5. Matrix of standards bodies and industry fora technical marketing DSL Home UPnP DLNA specific OSGi UMA ETSI TISPAN CENELEC / EU Smart House CoP HGI ITC Standards Board integrative

  6. HGI does not specify objectives of related standardisation bodies • Clear boundaries with related standardisation bodies • Outcome of HGI is a reference architecture for a home gateway Relations DSL Forum DSL Home UPnP Reference Architecture for Home Gateway OSGi HGI ETSI TISPAN UMA Others DLNA

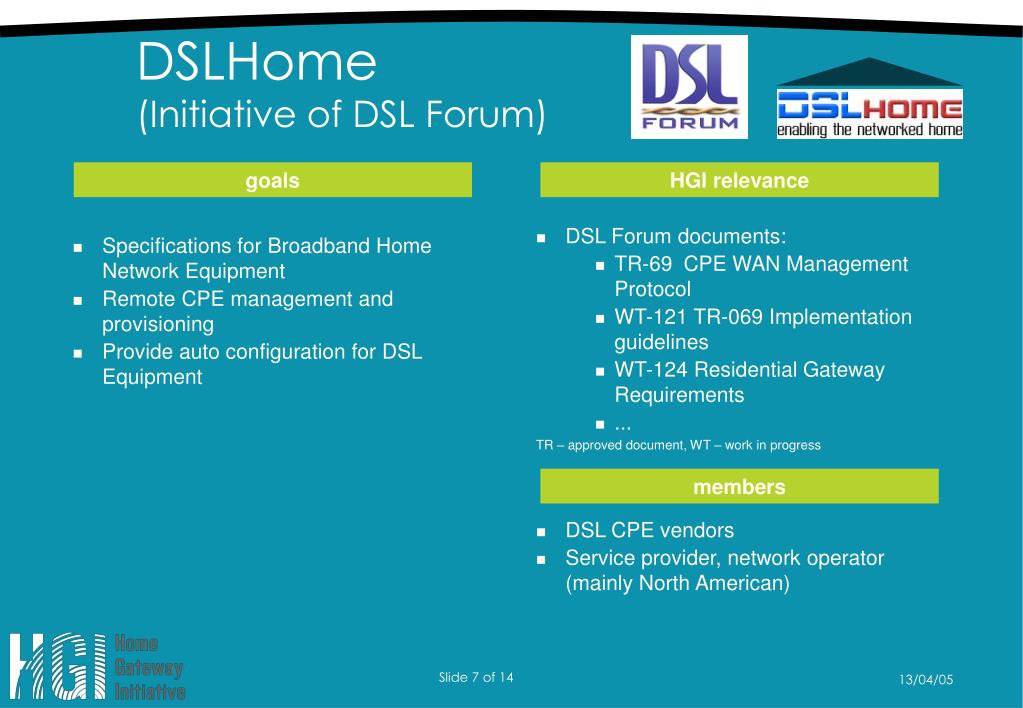

  7. DSLHome (Initiative of DSL Forum) goals HGI relevance • DSL Forum documents: • TR-69 CPE WAN Management Protocol • WT-121 TR-069 Implementation guidelines • WT-124 Residential Gateway Requirements • ... TR – approved document, WT – work in progress • Specifications for Broadband Home Network Equipment • Remote CPE management and provisioning • Provide auto configuration for DSL Equipment members • DSL CPE vendors • Service provider, network operator (mainly North American)

  8. DLNA goals HGI relevance • End-user devices are crucial to service delivery. • DLNA is complementary to the HGI objectives; HGI objectives have clear boundaries with DLNA objectives. • Strongly coupled to NMPR. • Delivery of design guidelines based on open industry standards for interoperability and cross-industry digital convergence of PCs, consumer electronics and mobile devices: • Networking and Connectivity • Device and Service Discovery and Control • Media Format and Transport Model • Media Management, Distribution and Control members • Hardware and software technology providers.

  9. UPnP goals HGI relevance • Use already specified profiles for management and service applications (e. g. QoS control). • Provide UPnP device and service profiles for the HGI Home Gateway. • Definition of methods and protocols that allow for IP-based device interaction (detection and control). • Continuous definition of device and service profiles that provide concrete functionality of devices (control). membership • Vendors, including industry leaders in consumer electronics, computing, home automation, home security, appliances, printing, photography, computer networking, and mobile products.

  10. UPnP(more details) Already specified profiles: • Internet Gateway Device (IGD) V1.0 • MediaServer V1.0 and MediaRenderer V1.0 • Printer Device and Print Basic Service V1.0 • Scanner (External Activity V1.0, Feeder V1.0, Scan V1.0, Scanner V1.0) • Basic Device V1.0 • HVAC V1.0 • WLAN Access Point Device V1.0 • Device Security V1.0 and Security Console V 1.0 • Lighting Controls V1.0 • Quality of Service V1.0 • Digital Security Camera V1.0 • Remote UI Client and Server V1.0

  11. OSGi Alliance goals HGI relevance • The integration of an OSGi service platform is the last foreseen step for the Home Gateway to become a full blown Service Gateway (multiple services scenario). • Definition of an industry standard for an open service management and delivery platform as a focal point of service providers, developers, manufacturers and consumers. • Primary targeting small/embedded devices, such as home gateways, telematic devices and mobile phones. • Facilitates installation and operation of multiple services on a single platform. members • Operators, manufacturers and technology providers from fixed, mobile and automotive industries. • Operators that are HGI and OSGi members as well: Belgacom, Deutsche Telekom, France Telecom, NTT, Telefonica, TeliaSonera.

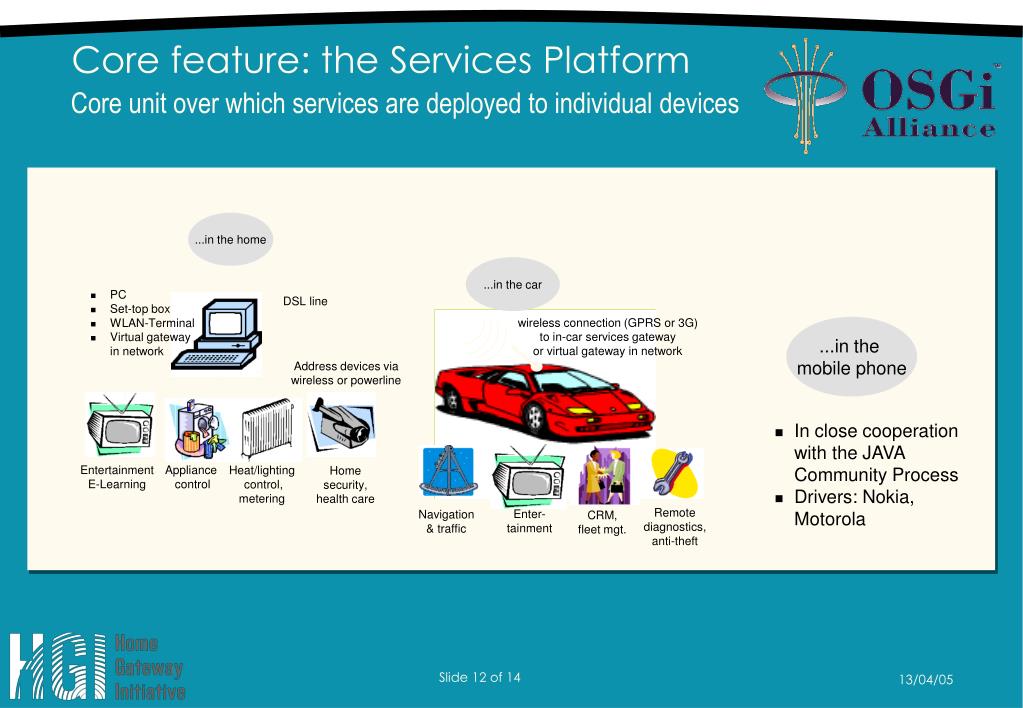

  12. ...in the car ...in the home wireless connection (GPRS or 3G)to in-car services gatewayor virtual gateway in network • PC • Set-top box • WLAN-Terminal • Virtual gatewayin network DSL line Address devices viawireless or powerline Remote diagnostics,anti-theft Enter-tainment Navigation& traffic CRM,fleet mgt. EntertainmentE-Learning Appliance control Heat/lighting control,metering Home security,health care Core feature: the Services Platform Core unit over which services are deployed to individual devices ...in the mobile phone • In close cooperation with the JAVA Community Process • Drivers: Nokia, Motorola

  13. ETSI TISPAN goals HGI relevance • Reference for NGN network and service architectures • Requirements for fixed-mobile convergence • A multi-service, multi-protocol, multi-access, IP based network • Multi-services: delivered by a common QoS enabled core network • Multi-access: several access networks; fixed and mobile terminals • Not one network, but different networks that interoperate seamlessly • An enabler for Service Providers to offer real-time and non real-time communication services between peers or in a client-server configuration • Nomadicity and Mobility of both users and devices • intra- and inter-Network Domains, eventually between Fixed and Mobile networks membership • Network Operators, Service Providers, Manufacturers, Administrators, Users

  14. UMA – UnlicensedMobile Access goals HGI relevance • Home Gateway should be applicable to UMA technologies • Provide access to GSM and GPRS mobile services over unlicensed spectrum technologies (e. g. Bluetooth, IEEE 802.11). • Enable subscribers to roam between cellular networks and public/private unlicensed wireless networks. • Release UMA specifications (technology-driven consortium). membership • Telecommunication Operators • Telco technology providers • Mobile phone manufacturers
