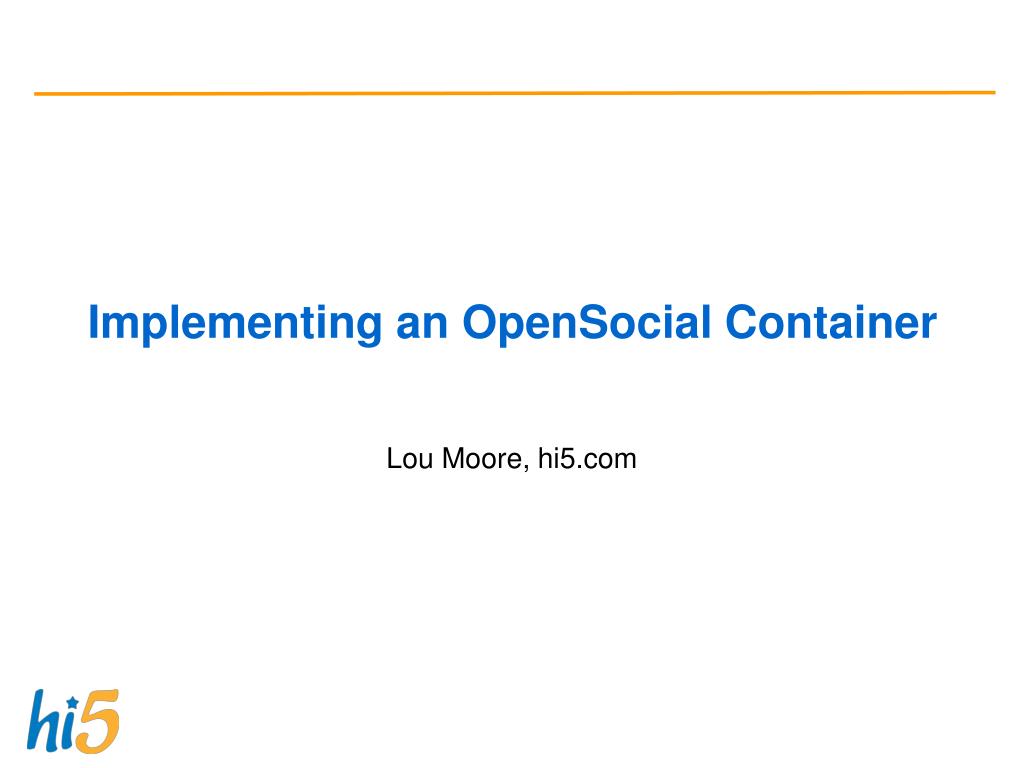

  1. Implementing an OpenSocial Container Lou Moore, hi5.com

  2. hi5 The Truly Global Social Network

  3. hi5 — International Leader #1 social network in 26 countries: Africa Cote d'Ivoire Ghana Tunisia Asia Thailand Mongolia Europe Portugal Romania Greece Cyprus Malta Albania Macedonia Luxembourg Latin America & Caribbean Mexico Venezuela Costa Rica Honduras Ecuador El Salvador Guatemala Peru Nicaragua Dominican Republic Cuba Jamaica Barbados • 80M+ registered members • 40M WW monthly uniques

  4. hi5 — Truly Global Social Network hi5 Traffic Across the Globe 25% 15% 20% 10% 30%

  5. Offered in 23 Language Options English 한국어 Español (3 dialects: Español, España & Argentina) Português (2 dialects: Portugal & Brasil) 中文 (traditional & simplified scripts) Français Italiano Nederlands ภาษาไทย 日本語 Русский Deutsch Ελληνικά Türkçe Polski Română YkpaÏHCbKa Česky Magyar Coming soon: hi5 tool to translate your application!

  6. hi5 User Demographics

  7. Opportunity to Reach New Users ~20% users overlap ~40M WW hi5 unique users ~20% users overlap ~30% users overlap

  8. Motivation Why Platform? Why OpenSocial?

  9. Why Platform? • Tap talent and creativity of the developer community • Provide engaging experience for our users • Obtain locally relevant content, provide a locally relevant experience

  10. Why OpenSocial? • Standards-based platform for deep integration within hi5 • Decreases our time to market • Leverages open standards • Strong opensource community • Draw for developers because OpenSocial apps are easily portable

  11. Defining Your Platform How will applications integrate with your social website?

  12. Views - Profile • User profiles are the center for self-expression on hi5 and are a common feature of social sites • A profile page may have many applications

  13. Views - Profile

  14. Views – Profile • Considerations • Performance: Many applications with dynamic content will impact page load times. • Styling: hi5 Profiles can be heavily styled so application profile views need to be able to seamlessly blend. • Customization: Allow users to control their profile pages via features like module re-ordering. • Common Actions: Provide links to View, Share, and Remove applications. • What apps can’t do on hi5 Profiles • Use viral channels • Advertise or cross-promote

  15. Views - Canvas • Dedicated page for applications • Monetization opportunity – advertisements allowed

  16. Views - Canvas

  17. Views - Canvas • Considerations • Vanity URLs for application canvas pages • Canvas page should detect if user has installed the application • Provide links for users to manage application settings • Provide method for users to give feedback to developers

  18. Views - Preview • Non-standard view • Way for users to interact with an application without installing it • Option for installing application • Privacy settings to be applied • Displays information about the application • Metadata such as summary and description • Friends with the application • Other apps by the developer • Rankings & ratings

  19. Views - Preview

  20. Views - Preview • Considerations • Non-standard view, another size for developers to conform to • Permissions model is complex if viral channels allowed, but allows for a richer pre-install experience (beware the blinking red arrow)

  21. Views – Anywhere you choose! • Homepage? Photos? Albums? Define your own views in the context of your social site.

  22. Permissions • Access profile data • Add profile module • Allow friend updates (activity) • Allow notifications • Allow email

  23. Viral Channels - Activity • hi5 Friend Updates are displayed on the user’s profile and their friends’ homepages

  24. Viral Channels - Notifications • Lightweight message sent to a user notifying them of some event. • No action required, expire after 2 weeks, and limited to 5 per app/user/day

  25. Viral Channels - Email • Limited to 1 per user/app/day

  26. Viral Channels - Invites • Invites are requests sent from a user to a friend inviting them to install an application. Requests do require action on the part of the recipient.

  27. Directory • Applications must be approved to be added to the hi5 directory. • Randomized at launch to maintain a level playing field. • Engagement-based metrics will be introduced to rank applications. • Sorting by most recent applications and applications that are locally relevant or support the user’s language will also be introduced.

  28. Directory

  29. Applications Homepage

  30. Implementing a REST API Creating the web services necessary to support OpenSocial

  31. Publishing the hi5 Web Service • Enunciate • Opensource java web service framework • Publishes endpoints in REST, JSON, and SOAP formats • Auto-documenting, annotation-based • http://enunciate.codehaus.org • Authentication • auth tokens generated based on valid API Key and hi5 user/password combination • Auth token may be obtained via REST call, but is always made available within OpenSocial applications

  32. hi5 REST APIs

  33. REST API • OpenSocial core APIs • People • Activity • Persistence • hi5 REST endpoints • profile/foaf • feed/activity • profile/appdata • Example call • http://api.hi5.com/rest/profile/foaf/23777773

  34. REST API • OpenSocial request* APIs • requestSendMessage • requestCreateActivity • hi5 REST endpoints • notifications/send • message/sendEmails • friendUpdates/friendUpdate • Example call • http://api.hi5.com/rest/notifications/send?toIds=23777773&body=Hey&Hi5AuthToken=xxxxx

  35. OpenSocial REST API • Currently no standard REST API across containers • OpenSocial REST API spec in progress • hi5 will migrate to support this in future

  36. Implementing the OpenSocial API Tying it back to your social data

  37. Shindig • Opensource Apache project – implementation of OpenSocial and Gadgets specifications. • Gadget Container JavaScript -- core JavaScript foundation for general gadget functionality. • Gadget Server – renders the gadget XML into JavaScript and HTML • OpenSocial Container JavaScript -- OpenSocial specific functionality (profiles, friends, activities, datastore)

  38. Shindig Structure

  39. Shindig - Features

  40. Shindig – opensocial-reference

  41. Shindig – opensocial-0.7

  42. Shindig – feature.xml

  43. Data Requests • opensocial.newDataRequest • newFetchPersonRequest • newFetchPeopleRequest • newFetchActivitiesRequest • newFetchPersonAppDataRequest • newUpdatePersonAppDataRequest • Map to hi5 REST endpoints and convert results to OpenSocial objects • opensocial.Person • opensocial.Activity • Persistence returns Map<PersonId, Map<String, String>>

  44. jsoncontainer.js – Fetch People

  45. jsoncontainer.js and the SocialData Servlet • Request Batching • Java servlet handles batched requests and returns one large JSON response • All data fetches routed to SocialData servlet via jsoncontainer.js

  46. Viral Requests (request*) • opensocial.requestCreateActivity • supported fields include TITLE, BODY, MEDIA_ITEMS, URL • a and br tags allowed in TITLE and BODY • opensocial.requestSendMessage • NOTIFICATION and EMAIL implemented • PRIVATE_MESSAGE and PUBLIC_MESSAGE return NOT_IMPLEMENTED response • opensocial.requestShareApp • implemented as rpc call to navigate to invite page • Map requests to hi5 REST api, return opensocial.ResponseItem

  47. hi5container.js – Create Activity

  48. hi5container.js – Share App

  49. Gadgets – Core • Prefs • user data including country and language injected into applications • io • gadgets.io.makeRequest for remote fetching • signed requests using OAuth

  50. Gadgets – Other Features • Views • gadgets.views.requestNavigateTo • rpc call to navigate to a desired View • gadgets.views.getCurrentView • gadgets.views.getParams • view-params • params in json format to be passed into applications • Skins • gadgets.skins.getProperty
