artificial intelligence planning system

Artificial IntelligencePlanning System

L. Manevitz

L. Manevitz Lecture 6

components of a planning system
Components of a Planning System
  • Chose the best rule to apply next based on the best available heuristic information.
  • Apply the chosen rule to compute the new problem state that arises from its application.
  • Detect when a solution has been found.

L. Manevitz Lecture 6

components of a planning system cont
Components of a Planning System cont.
  • Detect dead ends so that they can be abandoned and the system’s effort directed in more fruitful directions.
  • Detect when an almost correct solution has been found and employ special techniques to make it totally correct.

L. Manevitz Lecture 6

the blocks world
The Blocks World
  • Operators:
    • UNSTACK(A,B) – Pick up block A from its current position on block B. The arm must be empty and block A must have no blocks on top of it.
    • STACK(A,B) – Place block A on block B. The arm must already be holding A and the surface of B must be clear.

L. Manevitz Lecture 6

the blocks world cont
The Blocks World cont.

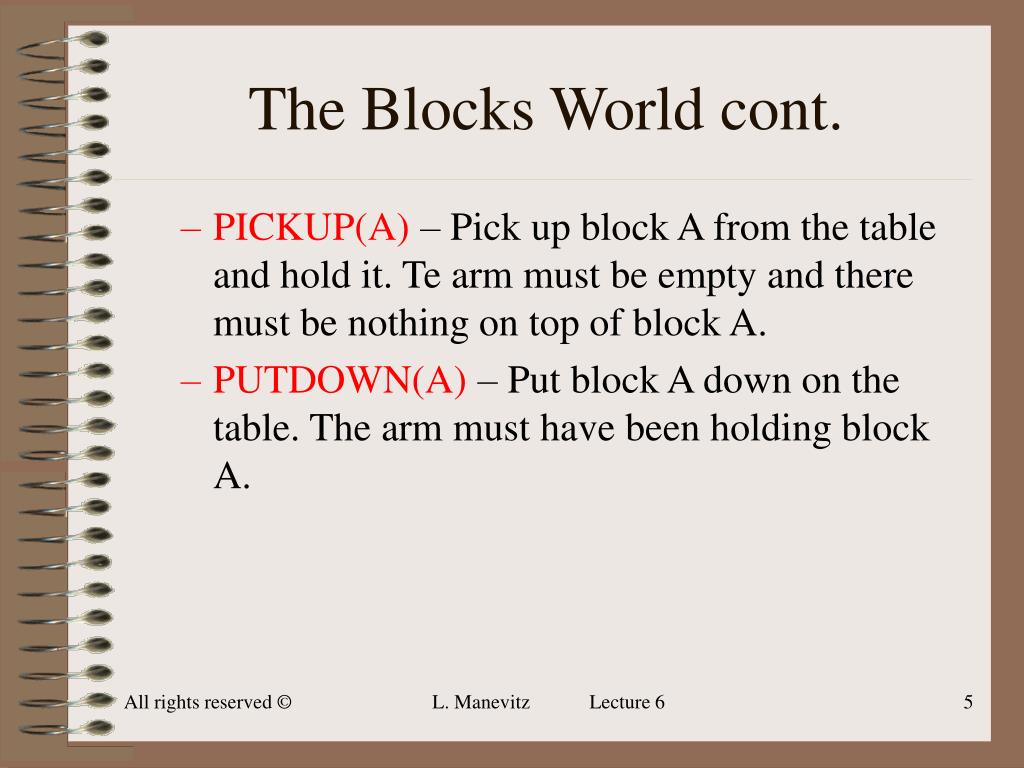

  • PICKUP(A) – Pick up block A from the table and hold it. Te arm must be empty and there must be nothing on top of block A.
  • PUTDOWN(A) – Put block A down on the table. The arm must have been holding block A.

L. Manevitz Lecture 6

the blocks world cont1
The Blocks World cont.
  • Predicates:
    • ON(A,B) – Block A is on block B.
    • ONTABLE(A) – Block A is on the table.
    • CLEAR(A) – There is nothing on top of block A.
    • HOLDING(A) – The arm is holding block A.
    • ARMEMPTY – The arm is holding nothing.

L. Manevitz Lecture 6

the blocks world cont2
The Blocks World cont.

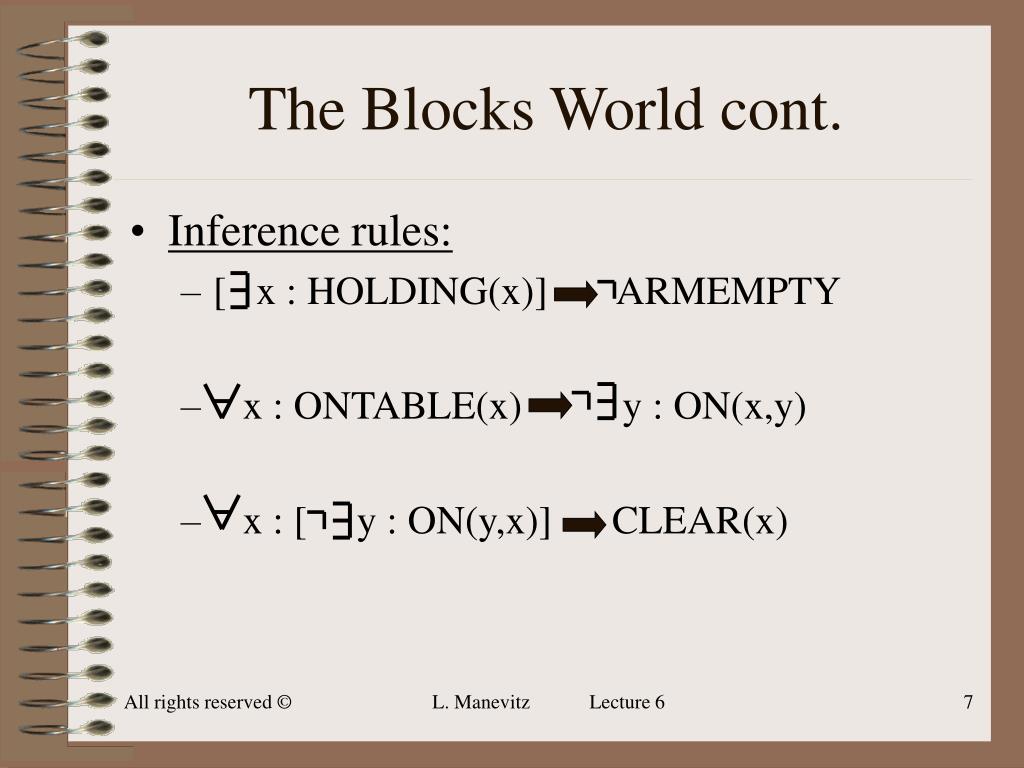

  • Inference rules:
    • [ x : HOLDING(x)] ARMEMPTY
    • x : ONTABLE(x) y : ON(x,y)
    • x : [ y : ON(y,x)] CLEAR(x)

L. Manevitz Lecture 6

a simple blocks world description

A

B

ON(A,B,S0)

ONTABLE(B,S0)

CLEAR(A,S0)

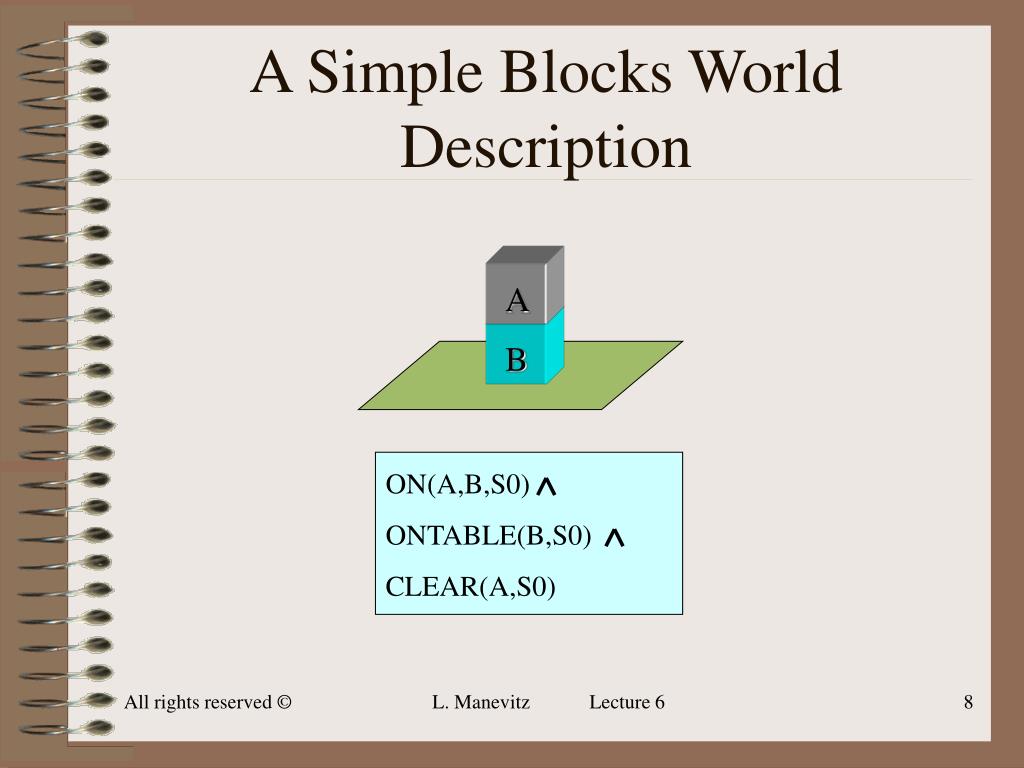

A Simple Blocks World Description

L. Manevitz Lecture 6

strips style operate for the blocks world
STRIPS – Style Operate for the Blocks World

STACK(x,y)

P: CLEAR(y) HOLDING(x)

D: CLEAR(y) HOLDING(x)

A: ARMEMPTY ON(x,y)

UNSTACK(x,y)

P: ON(x,y) CLEAR(x) ARMEMPTY

D: ON(X,Y) ARMEMPTY

A: HOLDING(x) CLEAR(y)

L. Manevitz Lecture 6

strips style operate for the blocks world cont
STRIPS – Style Operate for the Blocks World cont.

PICKUP(x)

P: CLEAR(x) ONTABLE(x) ARMEMPTY

D: ONTABLE(x) ARMEMPTY

A: HOLDING(x)

PUTDOWN(x)

P: HOLDING(x)

D: HOLDING(x)

A: ONTABLE(x) ARMEMPTY

L. Manevitz Lecture 6

a simple search tree

1

2

3

A Simple Search Tree

UNSTACK(A,B)

PUTDOWN(A)

Global database at this point

ONTABLE(B) CLEAR(A)

CLEAR(B) ONTABLE(A)

L. Manevitz Lecture 6

a very simple blocks world problem

B

C

B

A

C

D

A

D

Start: ON(B,A)

ONTABLE(A)

ONTABLE(C)

ONTABLE(D)

ARMEMPTY

Goal: ON(C,A)

ON(B,D)

ONTABLE(A)

ONTABLE(D)

A Very Simple Blocks World Problem

L. Manevitz Lecture 6

goal stack planning

ON(C,A) ON(B,D) ONTABLE(A) ONTABLE(D)

Goal Stack Planning

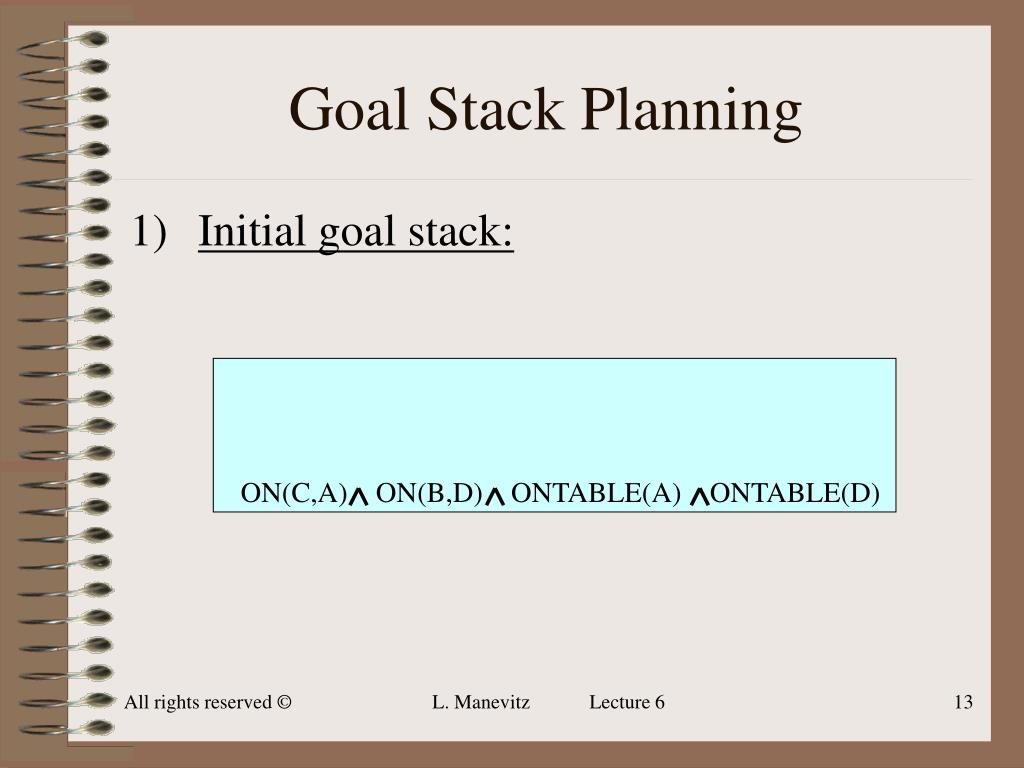

  • Initial goal stack:

L. Manevitz Lecture 6

goal stack planning cont

ON(C,A) ON(B,D) OTAD

Goal Stack Planning cont.

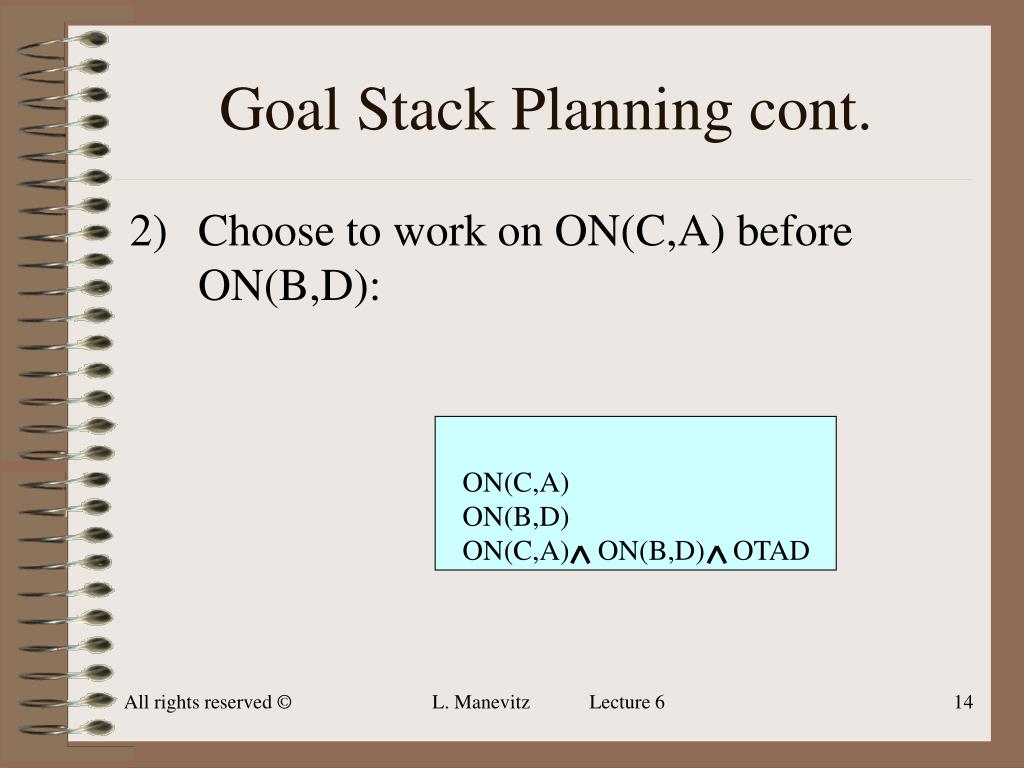

  • Choose to work on ON(C,A) before ON(B,D):

ON(C,A)

ON(B,D)

L. Manevitz Lecture 6

goal stack planning cont1

ON(C,A) ON(B,D) OTAD

Goal Stack Planning cont.
  • Achieve ON(C,A) with STACK(C,A):

ON(C,A)

STACK(C,A)

ON(B,D)

L. Manevitz Lecture 6

goal stack planning cont2

CLEAR(A) HOLDING(C)

ON(C,A) ON(B,D) OTAD

Goal Stack Planning cont.
  • Add STACK’s preconditions:

CLEAR(A)

HOLDING(C)

STACK(C,A)

ON(B,D)

L. Manevitz Lecture 6

goal stack planning cont3

ON(B,A) CLEAR(B) ARMEMPTY

CLEAR(A) HOLDING(C)

ON(C,A) ON(B,D) OTAD

Goal Stack Planning cont.

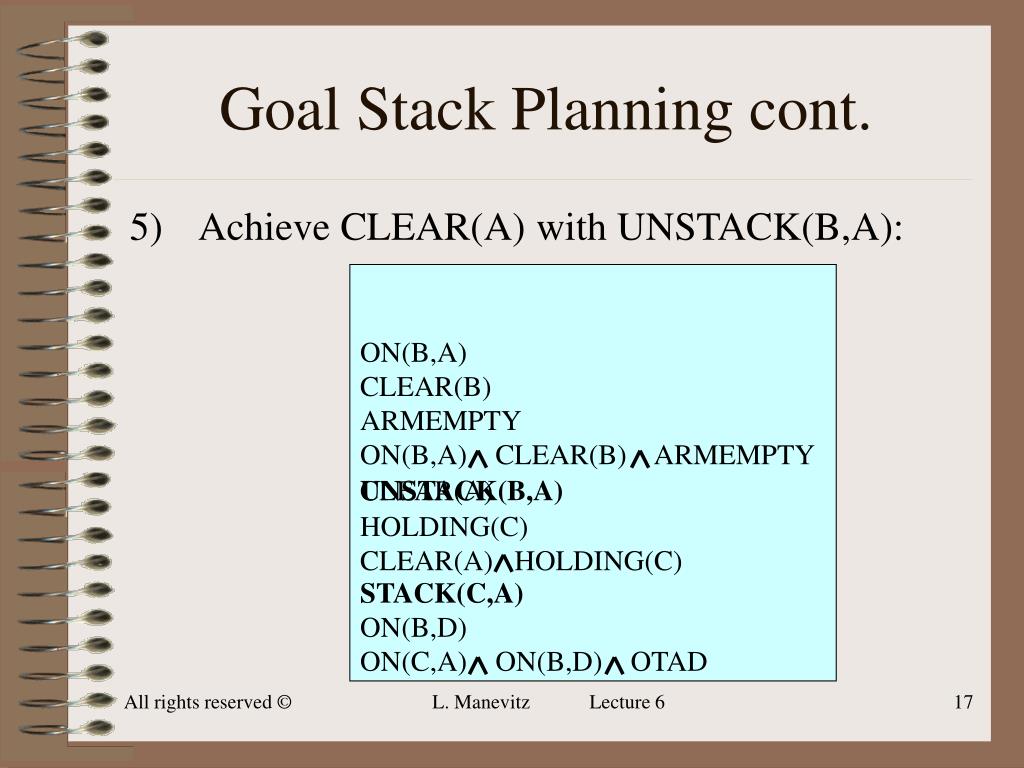

  • Achieve CLEAR(A) with UNSTACK(B,A):

ON(B,A)

CLEAR(B)

ARMEMPTY

UNSTACK(B,A)

CLEAR(A)

HOLDING(C)

STACK(C,A)

ON(B,D)

L. Manevitz Lecture 6

goal stack planning cont4

ON(B,A) CLEAR(B) ARMEMPTY

CLEAR(A) HOLDING(C)

ON(C,A) ON(B,D) OTAD

Goal Stack Planning cont.

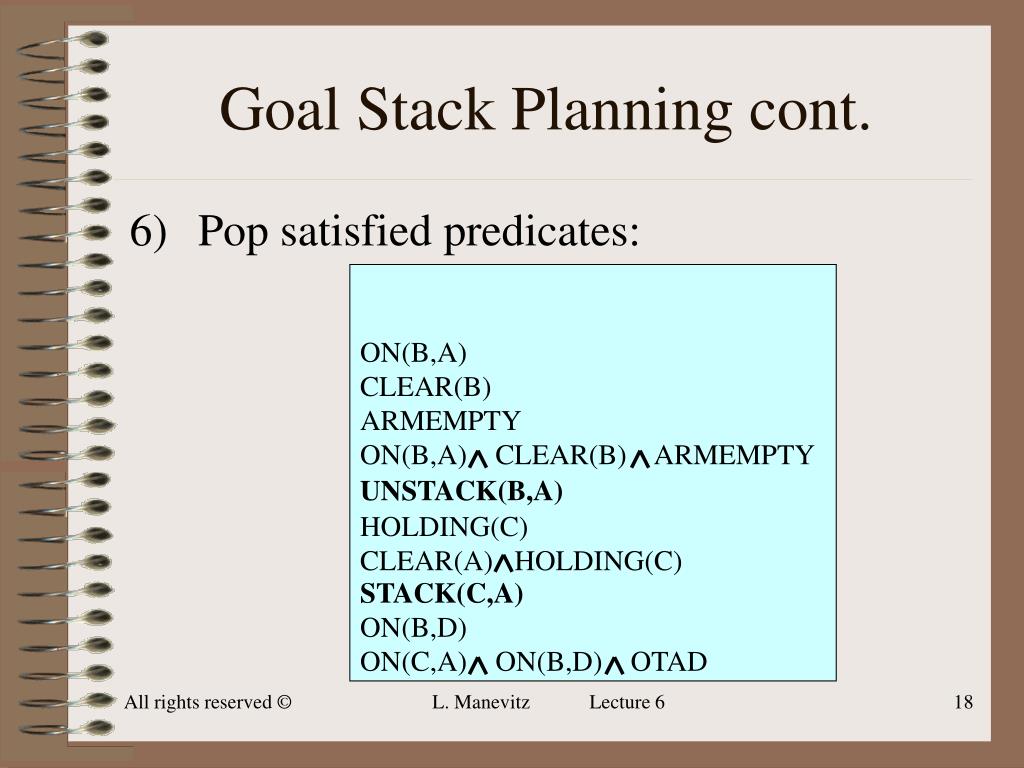

  • Pop satisfied predicates:

ON(B,A)

CLEAR(B)

ARMEMPTY

UNSTACK(B,A)

HOLDING(C)

STACK(C,A)

ON(B,D)

L. Manevitz Lecture 6

goal stack planning cont5

ON(C,x) CLEAR(C) ARMEMPTY

CLEAR(A) HOLDING(C)

ON(C,A) ON(B,D) OTAD

Goal Stack Planning cont.

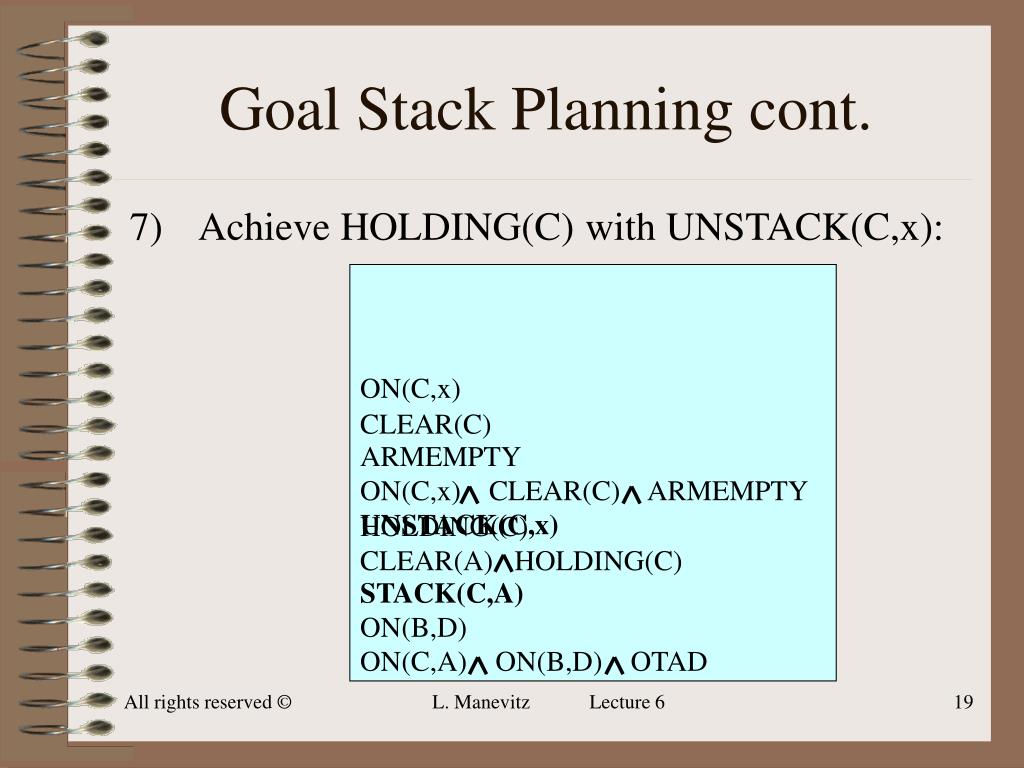

  • Achieve HOLDING(C) with UNSTACK(C,x):

ON(C,x)

CLEAR(C)

ARMEMPTY

UNSTACK(C,x)

HOLDING(C)

STACK(C,A)

ON(B,D)

L. Manevitz Lecture 6

goal stack planning cont6

CLEAR(x) HOLDING(C)

ON(C,x) CLEAR(C) ARMEMPTY

CLEAR(A) HOLDING(C)

ON(C,A) ON(B,D) OTAD

Goal Stack Planning cont.
  • Achieve ON(C,x) by STACK(C,x):

CLEAR(x)

HOLDING(C)

ON(C,x)

STACK(C,x)

CLEAR(C)

ARMEMPTY

UNSTACK(C,x)

STACK(C,A)

ON(B,D)

L. Manevitz Lecture 6

goal stack planning cont7

CLEAR(x) HOLDING(C)

ON(C,x) CLEAR(C) ARMEMPTY

CLEAR(A) HOLDING(C)

ON(C,A) ON(B,D) OTAD

Goal Stack Planning cont.

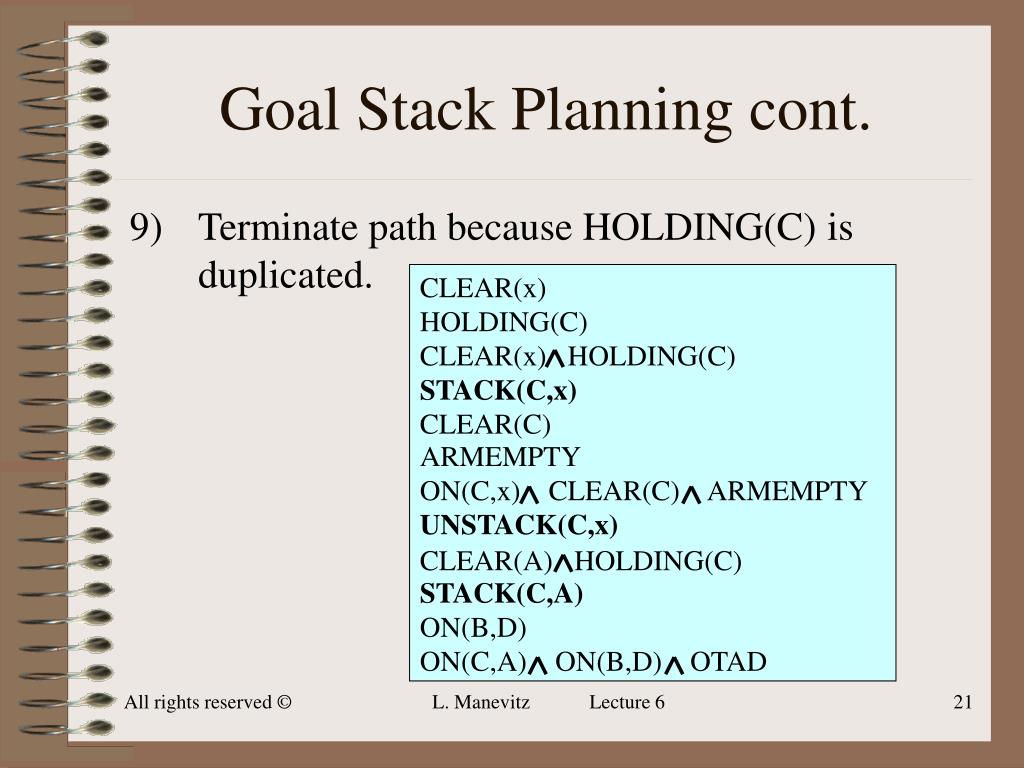

  • Terminate path because HOLDING(C) is duplicated.

CLEAR(x)

HOLDING(C)

STACK(C,x)

CLEAR(C)

ARMEMPTY

UNSTACK(C,x)

STACK(C,A)

ON(B,D)

L. Manevitz Lecture 6

goal stack planning cont8

ONTABLE(C) CLEAR(C) ARMEMPTY

CLEAR(A) HOLDING(C)

ON(C,A) ON(B,D) OTAD

Goal Stack Planning cont.
  • Achieve HOLDING(C) with PICKUP, not UNSTACK:

ONTABLE(C)

CLEAR(C)

ARMEMPTY

PICKUP(C)

STACK(C,A)

ON(B,D)

L. Manevitz Lecture 6

goal stack planning cont9

ONTABLE(C) CLEAR(C) ARMEMPTY

CLEAR(A) HOLDING(C)

CLEAR(D) HOLDING(B)

ON(C,A) ON(B,D) OTAD

Goal Stack Planning cont.

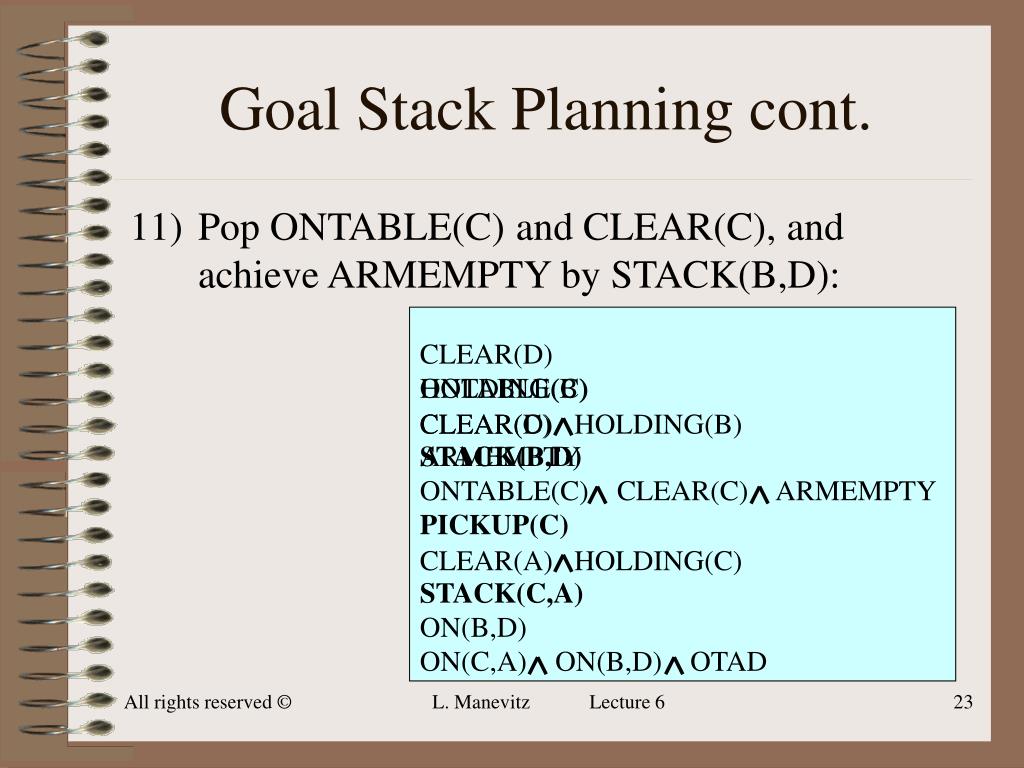

  • Pop ONTABLE(C) and CLEAR(C), and achieve ARMEMPTY by STACK(B,D):

CLEAR(D)

ONTABLE(C)

HOLDING(B)

CLEAR(C)

ARMEMPTY

STACK(B,D)

PICKUP(C)

STACK(C,A)

ON(B,D)

L. Manevitz Lecture 6

goal stack planning cont10
Goal Stack Planning cont.

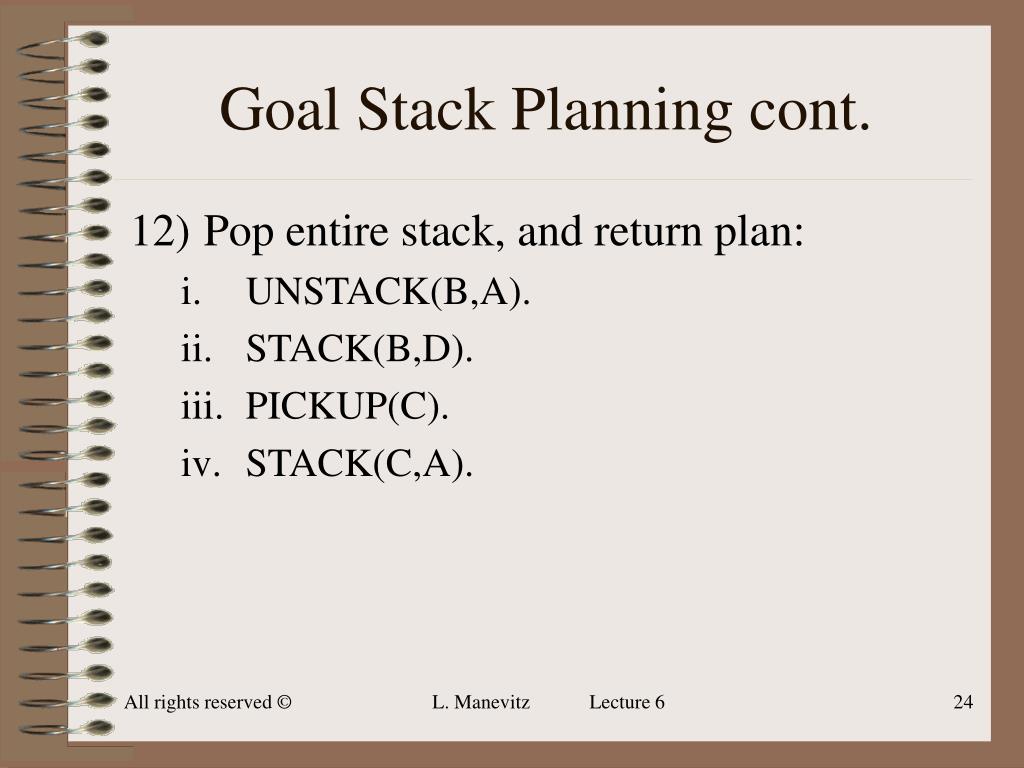

  • Pop entire stack, and return plan:
    • UNSTACK(B,A).
    • STACK(B,D).
    • PICKUP(C).
    • STACK(C,A).

L. Manevitz Lecture 6

a slightly harder blocks problem

A

C

B

A

B

C

Start: ON(C,A)

ONTABLE(A)

ONTABLE(B)

ARMEMPTY

Goal: ON(A,B)

ON(B,C)

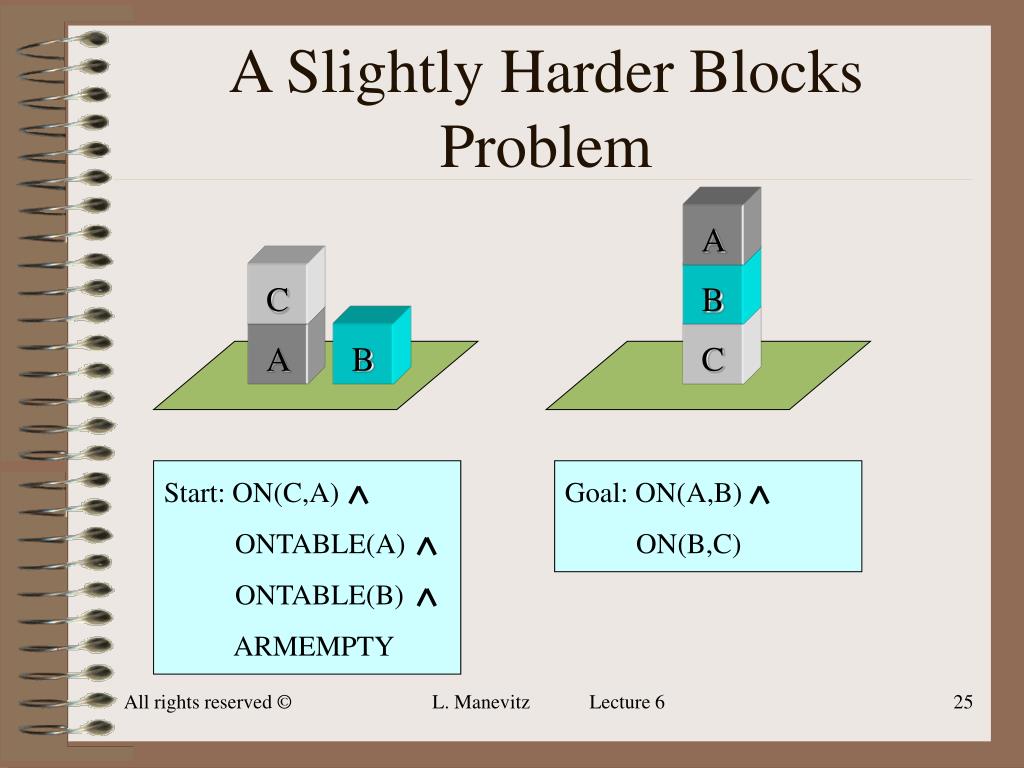

A Slightly Harder Blocks Problem

L. Manevitz Lecture 6

goal stack planning1

ON(A,B)

ON(B,C)

ON(B,C)

ON(A,B)

ON(A,B) ON(B,C)

ON(A,B) ON(B,C)

2

1

Goal Stack Planning
  • There are two ways to begin solving:

L. Manevitz Lecture 6

goal stack planning cont11

CLEAR(A) ARMEMPTY

CLEAR(C) ARMEMPTY

CLEAR(B) HOLDING(A)

ON(A,B) ON(B,C)

Goal Stack Planning cont.
  • Let’s choose alternative 1.we will eventually produce this goal stack:

CLEAR(C)

ARMEMPTY

CLEAR(A)

UNSTACK(C,A)

ARMEMPTY

PICKUP(A)

HOLDING(A)

STACK(A,B)

ON(A,B)

ON(B,C)

L. Manevitz Lecture 6

goal stack planning cont12

CLEAR(A) ARMEMPTY

CLEAR(C) ARMEMPTY

CLEAR(B) HOLDING(A)

ON(A,B) ON(B,C)

Goal Stack Planning cont.
  • We can pop off the stack goals that have already been satisfied:

CLEAR(C)

ARMEMPTY

To satisfy ARMEMPTY we need to PUTDOWN(C).

UNSTACK(C,A)

HOLDING(C)

ARMEMPTY

PUTDOWN(C)

PICKUP(A)

STACK(A,B)

ON(B,C)

L. Manevitz Lecture 6

goal stack planning cont13

CLEAR(A) ARMEMPTY

CLEAR(B) HOLDING(A)

ON(A,B) ON(B,C)

Goal Stack Planning cont.

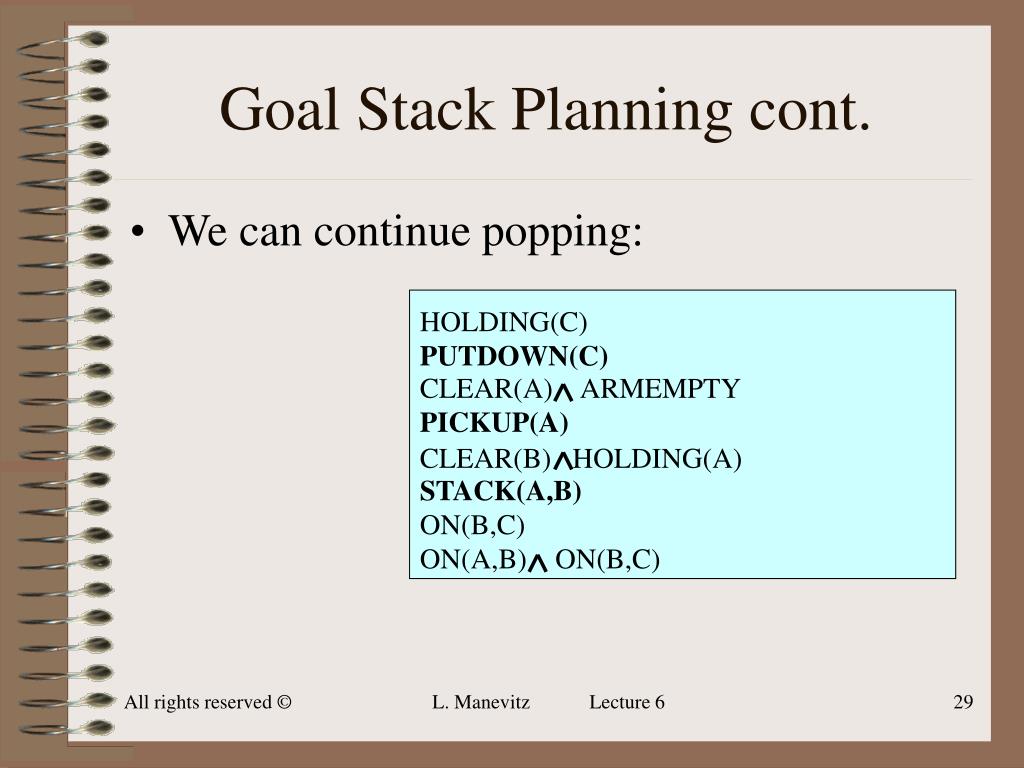

  • We can continue popping:

HOLDING(C)

PUTDOWN(C)

PICKUP(A)

STACK(A,B)

ON(B,C)

L. Manevitz Lecture 6

goal stack planning cont14

C

A

B

Goal Stack Planning cont.
  • The current state is:
  • The sequence of operators applied so far is:
    • UNSTACK(C,A)
    • PUTDOWN(C)
    • PICKUP(A)
    • STACK(A,B)

ONTABLE(B)

ON(A,B)

ONTABLE(C)

ARMEMPTY

L. Manevitz Lecture 6

goal stack planning cont15
Goal Stack Planning cont.
  • Now we can begin to work on ON(B,C).

We need to stack B on C. To do that we need to unstack A from B. By the time we have achieved the goal ON(B,C), and popped it off the stack, we will have executed the following additional sequence of operators

L. Manevitz Lecture 6

goal stack planning cont16

C

A

B

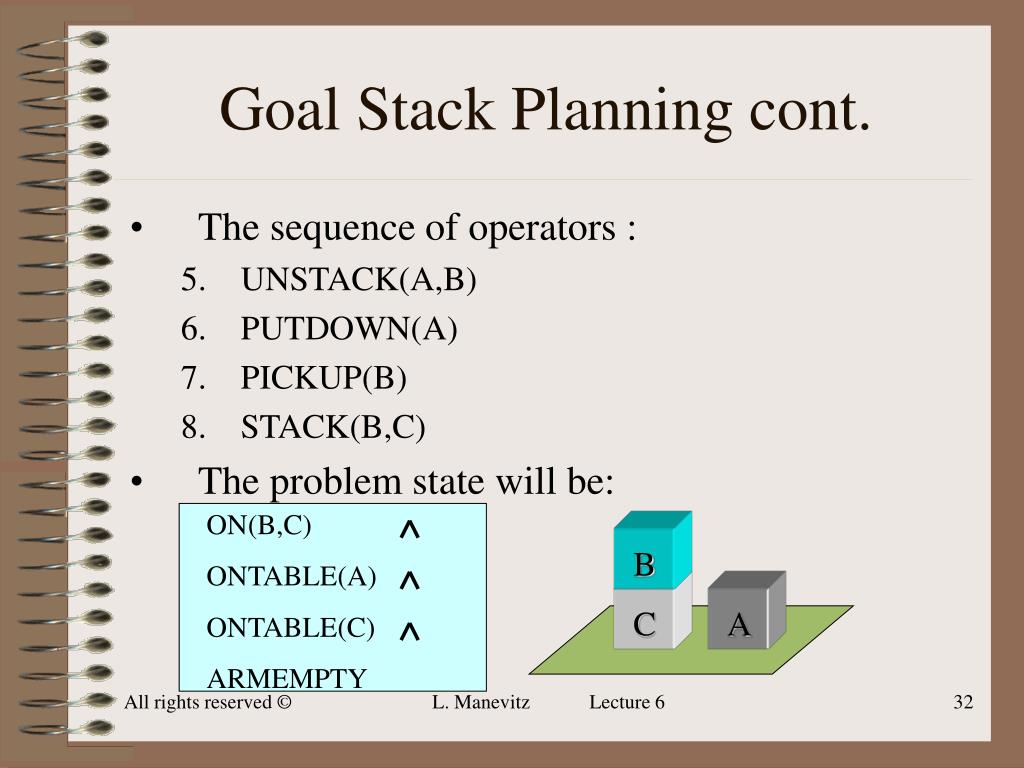

Goal Stack Planning cont.
  • The sequence of operators :
    • UNSTACK(A,B)
    • PUTDOWN(A)
    • PICKUP(B)
    • STACK(B,C)
  • The problem state will be:

ON(B,C)

ONTABLE(A)

ONTABLE(C)

ARMEMPTY

L. Manevitz Lecture 6

goal stack planning cont17

ON(A,B) ON(B,C)

Goal Stack Planning cont.
  • But now when we check the remaining goal on the stack:

we discover that it is not satisfied.

We have undone ON(A,B) in the process of achieving ON(B,C).

  • The sequence of operators we need to add:
    • PICKUP(A)
    • STACK(A,B)

L. Manevitz Lecture 6

goal stack planning cont18
Goal Stack Planning cont.

The complete plan that has been discovered is:

  • UNSTACK(C,A)
  • PUTDOWN(C)
  • PICKUP(A)
  • STACK(A,B)
  • UNSTACK(A,B)
  • PUTDOWN(A)
  • PICKUP(B)
  • STACK(B,C)
  • PICKUP(A)
  • STACK(A,B)
  • Although this plan
  • will achieve the desired
  • goal, it does not do so
  • very efficiently.
  • The same would have
  • happened if we had
  • chosen the
  • second alternative.

L. Manevitz Lecture 6

goal stack planning cont19
Goal Stack Planning cont.
  • There are two approaches we can take to the question of how a good plan could be found:
    • Look at ways to repair the plan we already have – look for places in the plan where we perform an operation and then immediately undo it. We can eliminate both the doing and the undoing steps from the plan.
    • Use a plan-finding procedure that could construct efficient plans directly – the Nonlinear Planning.

L. Manevitz Lecture 6

repairing the first plan

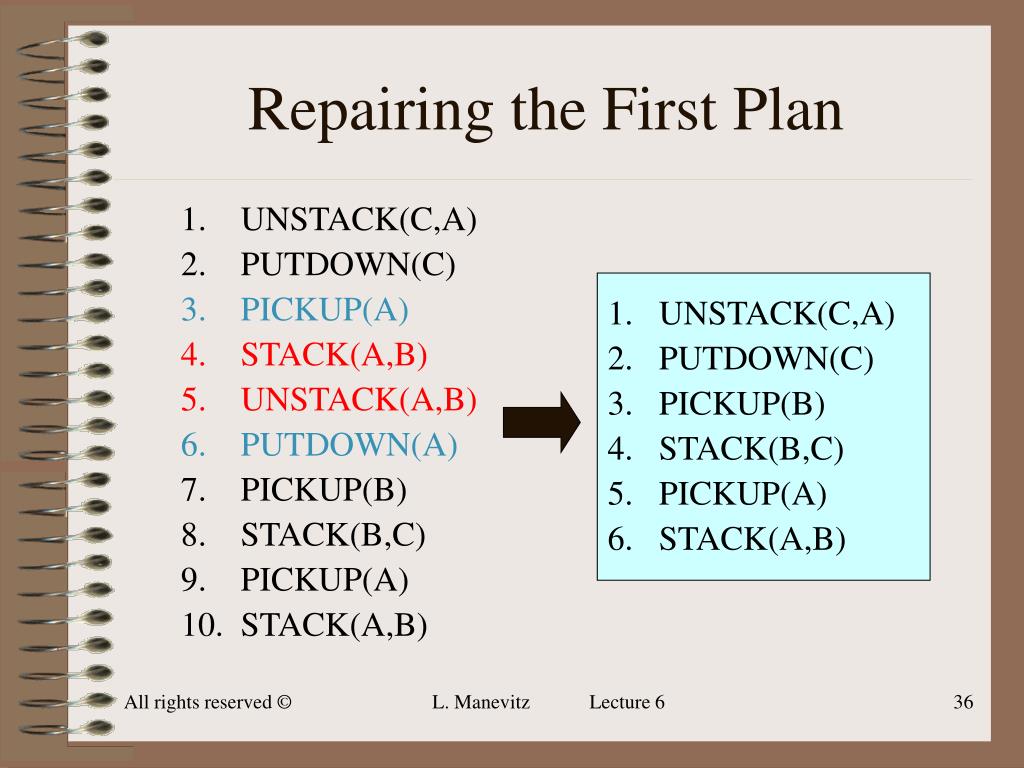

Repairing the First Plan
  • UNSTACK(C,A)
  • PUTDOWN(C)
  • PICKUP(A)
  • STACK(A,B)
  • UNSTACK(A,B)
  • PUTDOWN(A)
  • PICKUP(B)
  • STACK(B,C)
  • PICKUP(A)
  • STACK(A,B)
  • UNSTACK(C,A)
  • PUTDOWN(C)
  • PICKUP(B)
  • STACK(B,C)
  • PICKUP(A)
  • STACK(A,B)

L. Manevitz Lecture 6

the nonlinear planning

C

A

B

C

The Nonlinear Planning
  • Begin work on the goal ON(A,B) by clearing A, thus putting C on the table.

L. Manevitz Lecture 6

nonlinear planning cont

A

B

B

C

Nonlinear Planning cont.
  • Achieve the goal ON(B,C) by stacking B on C.

L. Manevitz Lecture 6

nonlinear planning cont1

A

A

B

C

Nonlinear Planning cont.
  • Complete the goal ON(A,B) by stacking A on B.

L. Manevitz Lecture 6

backwards non linear planner

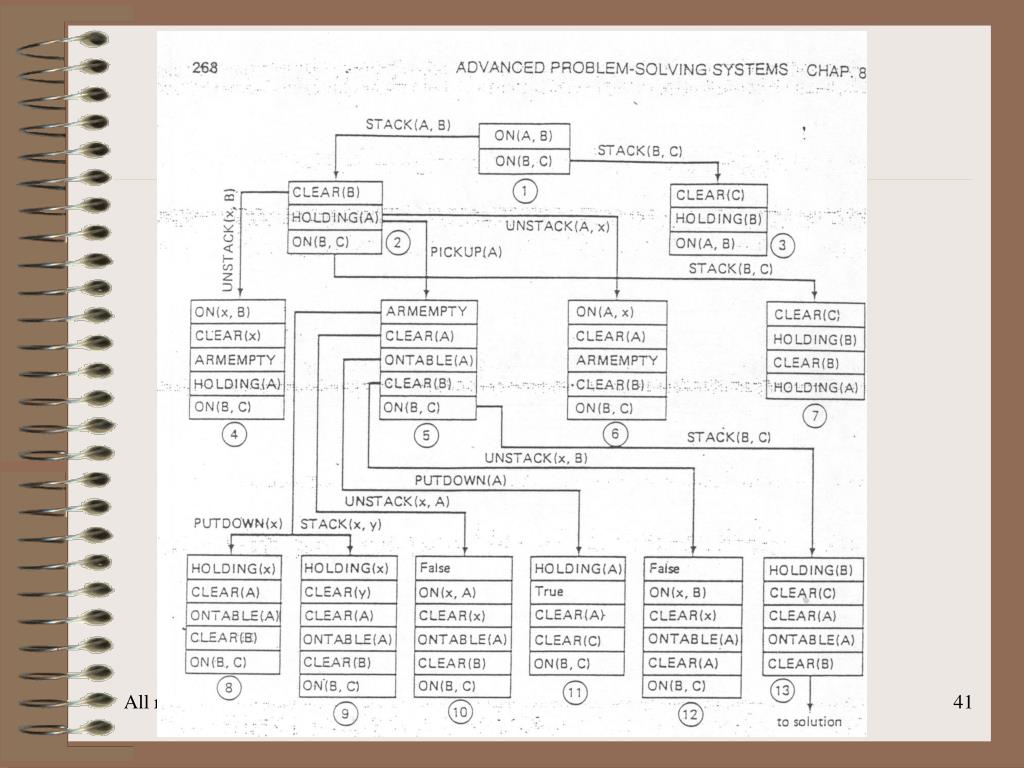

Backwards Non-Linear Planner
  • Finds “Last Operator” recursively
  • Uses theorem prover to prune paths

L. Manevitz Lecture 6

the problem solving system noah

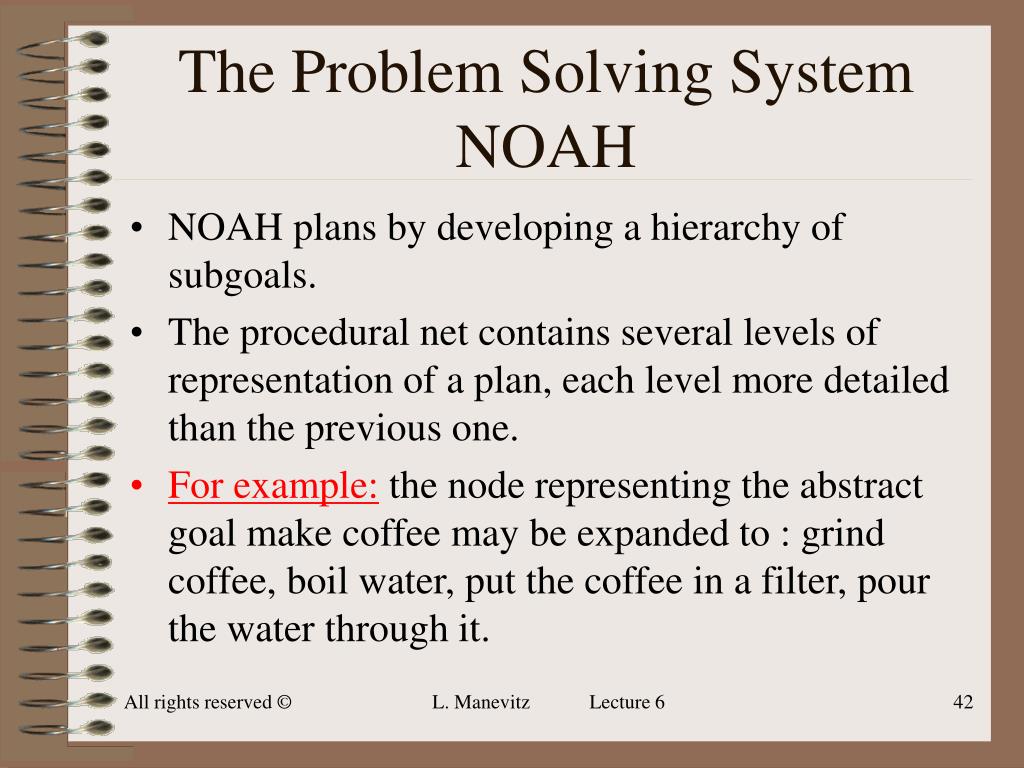

The Problem Solving System NOAH
  • NOAH plans by developing a hierarchy of subgoals.
  • The procedural net contains several levels of representation of a plan, each level more detailed than the previous one.
  • For example: the node representing the abstract goal make coffee may be expanded to : grind coffee, boil water, put the coffee in a filter, pour the water through it.

L. Manevitz Lecture 6

noah cont

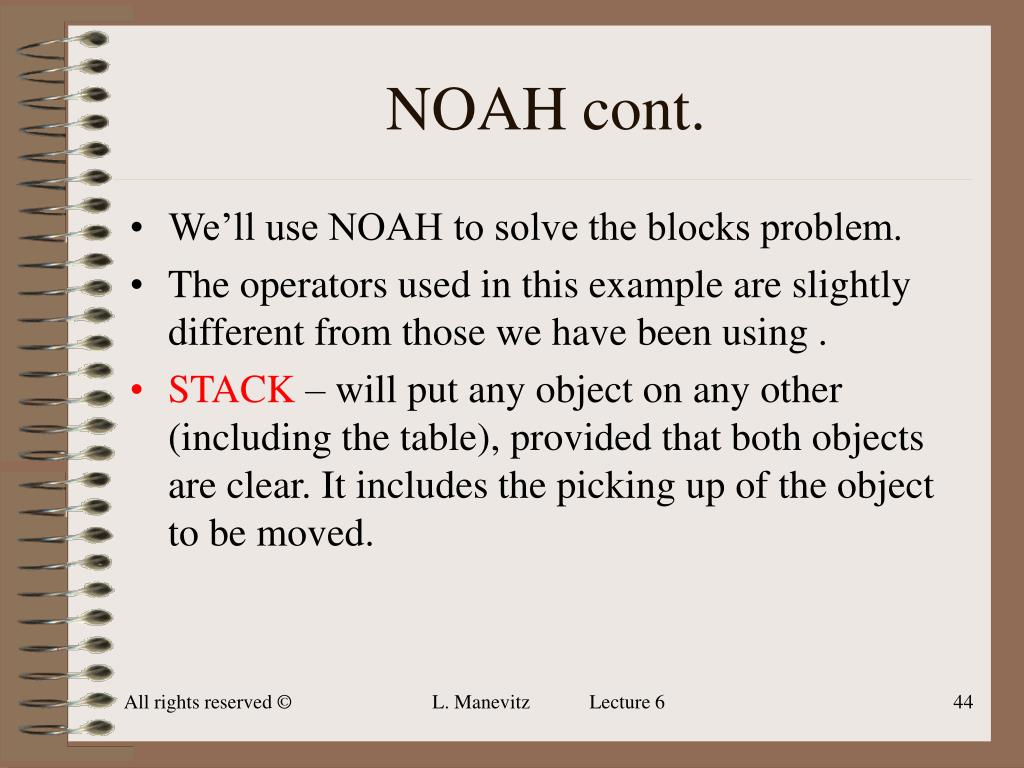

NOAH cont.
  • We’ll use NOAH to solve the blocks problem.
  • The operators used in this example are slightly different from those we have been using .
  • STACK – will put any object on any other (including the table), provided that both objects are clear. It includes the picking up of the object to be moved.

L. Manevitz Lecture 6

the blocks problem

A

C

B

A

B

C

Start: ON(C,A)

ONTABLE(A)

ONTABLE(B)

ARMEMPTY

Goal: ON(A,B)

ON(B,C)

The Blocks Problem

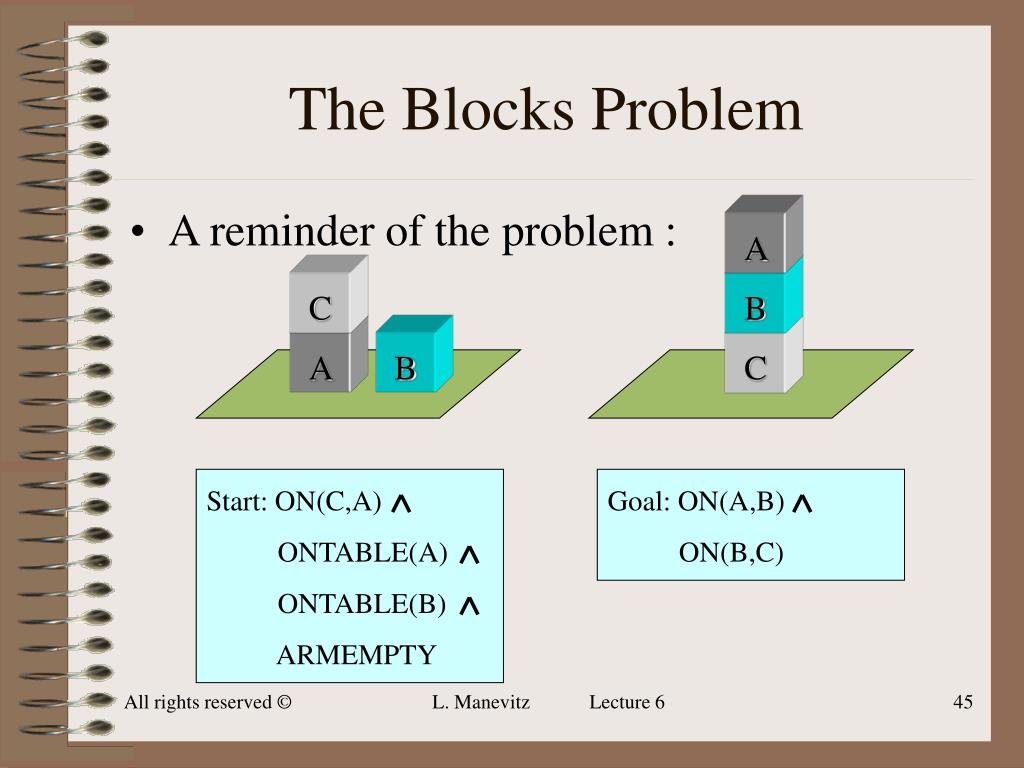

  • A reminder of the problem :

L. Manevitz Lecture 6

noah solution

(ON(A,B) ON(B,C))

NOAH Solution
  • The initial state of the problem solver:

Level 1

L. Manevitz Lecture 6

noah solution cont

ON(A,B)

S

J

ON(B,C)

NOAH Solution cont.
  • The first thing that it does is to divide the problem into two subproblems:

Level 2

Split

Join

L. Manevitz Lecture 6

noah solution cont1

J

S

S

S

CLEAR(B)

CLEAR(C)

STACK(B,C)

STACK(A,B)

J

J

6

3

1

5

4

2

NOAH Solution cont.

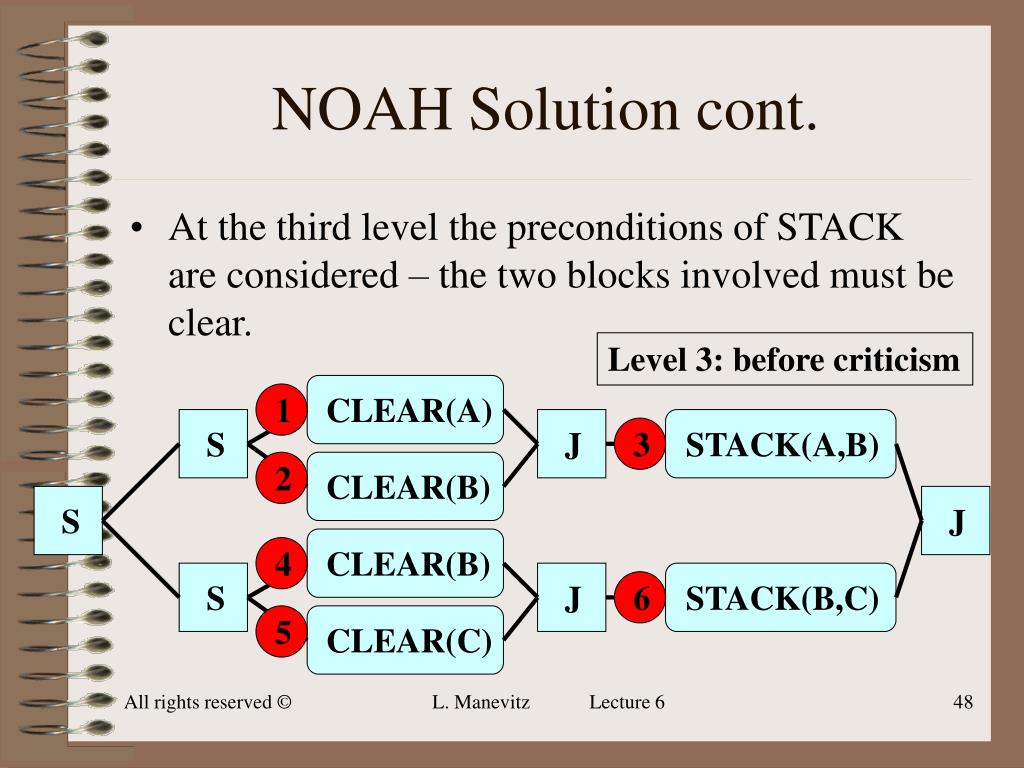

  • At the third level the preconditions of STACK are considered – the two blocks involved must be clear.

Level 3: before criticism

CLEAR(A)

CLEAR(B)

L. Manevitz Lecture 6

noah solution cont2
NOAH Solution cont.
  • Now NOAH employs a set of critics to examine the plan and detect interactions among the subplans.
  • Each critic is a little program that makes specific observations about the proposed plan.

L. Manevitz Lecture 6

the resolve conflicts critic

CLEAR(B): asserted: node 2 “Clear B”

denied: node 3 “Stack A on B”

asserted: node 4 “Clear B”

CLEAR(C): asserted: node 5 “Clear C”

denied: node 6 “Stack B on C”

The Resolve Conflicts critic
  • The Resolve Conflicts critic – constructs a table that lists all the literals that are mentioned more than once in the plan.

L. Manevitz Lecture 6

the resolve conflicts critic cont

CLEAR(B): denied: node 3 “Stack A on B”

asserted: node 4 “Clear B”

The Resolve Conflicts critic cont.
  • Constraints on the ordering of operation arise when a given literal must be true before one operation can be performed but will be undone by another.

L. Manevitz Lecture 6

the resolve conflicts critic cont1
The Resolve Conflicts critic cont.
  • Conclusion:

Since putting A on B could undo the preconditions for putting B on C, putting B on C needs to be done first.

L. Manevitz Lecture 6

noah solution cont3

J

S

S

S

CLEAR(B)

CLEAR(C)

STACK(A,B)

STACK(B,C)

J

NOAH Solution cont.
  • The third level after criticism to resolve conflicts:

Level 3

CLEAR(A)

CLEAR(B)

L. Manevitz Lecture 6

eliminate redundant preconditions
Eliminate Redundant Preconditions
  • Can be invoked to eliminate the redundant specification of subgoals. In this case CLEAR(B) appears twice and is only denied by the last step of the plan.

L. Manevitz Lecture 6

noah solution cont4

J

S

S

CLEAR(C)

STACK(A,B)

STACK(B,C)

J

NOAH Solution cont.
  • The third level after all criticism:

Level 3

CLEAR(A)

CLEAR(B)

L. Manevitz Lecture 6

noah solution cont5

CLEAR(C)

J

S

S

CLEAR(C)

STACK(A,B)

STACK(B,C)

STACK(C,x)

J

NOAH Solution cont.
  • To clear A, C must be removed from A. in order to do that C must be clear :

Level 4: before criticism

CLEAR(B)

L. Manevitz Lecture 6

the resolve conflicts critic1
The Resolve Conflicts critic
  • The critic observes that putting B on C will make CLEAR(C) false, so everything that depends on C being clear will have to be done before B is put on C.

L. Manevitz Lecture 6

noah solution cont6

CLEAR(C)

S

S

CLEAR(C)

STACK(A,B)

STACK(B,C)

STACK(C,x)

J

NOAH Solution cont.
  • The Resolve Conflicts critic is employed:

CLEAR(B)

Level 4: after criticism to resolve conflicts

L. Manevitz Lecture 6

eliminate redundant preconditions1
Eliminate Redundant Preconditions
  • It notices that CLEAR(C) is required twice.
  • Since putting C somewhere must occur before putting B on C, and both require C being clear then we know that when we get to putting B on C, C will be clear.
  • CLEAR(C) can be eliminated from the lower path.

L. Manevitz Lecture 6

noah solution cont7

CLEAR(C)

S

STACK(A,B)

STACK(B,C)

STACK(C,x)

CLEAR(B)

J

NOAH Solution cont.
  • The Eliminate Redundant Preconditions critic is called:

Level 4: after all criticism

L. Manevitz Lecture 6

noah solution cont8

STACK(A,B)

STACK(B,C)

STACK(C,x)

NOAH Solution cont.
  • The system observes that the remaining goals , CLEAR(C) and CLEAR(B), are true in the initial state.
  • Therefore the final plan is:

Final plan

L. Manevitz Lecture 6
