information search

INFORMATION SEARCH

Presenter: Pham Kim Son

Saint Petersburg State University

overview
Overview
  • Introduction
  • Overview of IR system and basic terminologies
  • Classical models of Information Retrieval
    • Boolean Model
    • Vector Model
  • Modern models of Information Retrieval
    • Latent Semantic Indexing
    • Correlation Method
  • Conclusion
introduction
Introduction
  • People need information to solve problem
    • Very simple thing
    • Complex thing
  • “Perfect search machine” defined by Larry Page is something that understand exactly what you mean and return exactly what you want.
challenges to ir
Challenges to IR
  • Introduction of www
    • www is large
    • Heterogeneous
  • Gives challenges to IR
overview of ir and basic terminologies
Overview of IR and basic terminologies
  • IR can be divided in to 3 components
    • Input
    • Processor
    • Output

Query

Processor

Output

Input

Documents

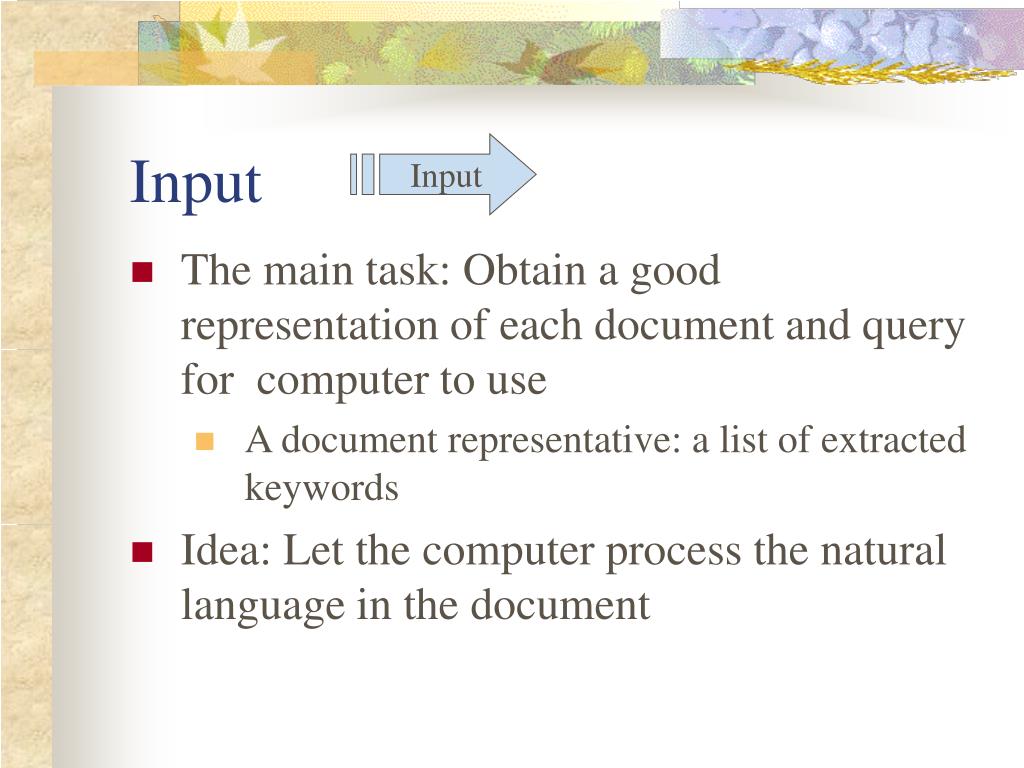

input
Input

Input

  • The main task: Obtain a good representation of each document and query for computer to use
    • A document representative: a list of extracted keywords
  • Idea: Let the computer process the natural language in the document
input cont

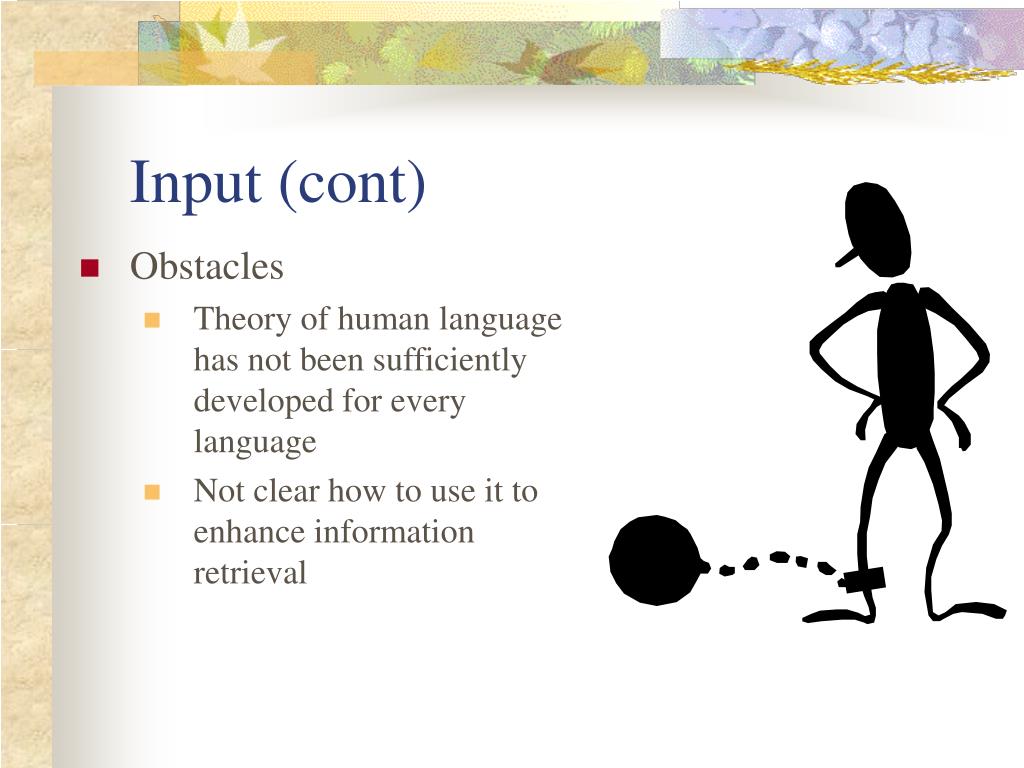

Input (cont)
  • Obstacles
    • Theory of human language has not been sufficiently developed for every language
    • Not clear how to use it to enhance information retrieval
input cont1
Input (cont)
  • Representing documents by keywords
    • Step1:Removing common words
    • Step2: Stemming
slide9
Step1: Removing common words
    • Very high frequency words very common words
    • They should removed
    • comparing with stop-list
    • So
      • Non-significant words not interfere IR process
      • Reduce the size document between 30->50 per cent (C.J. van Rijsbergen)

are

be

By

will

of the

slide10
Step2:Stemming
  • Def: Stemming : The process of chopping the ending of a term, e.g. removing “ed”, ”ing”
  • Algorithm Porter

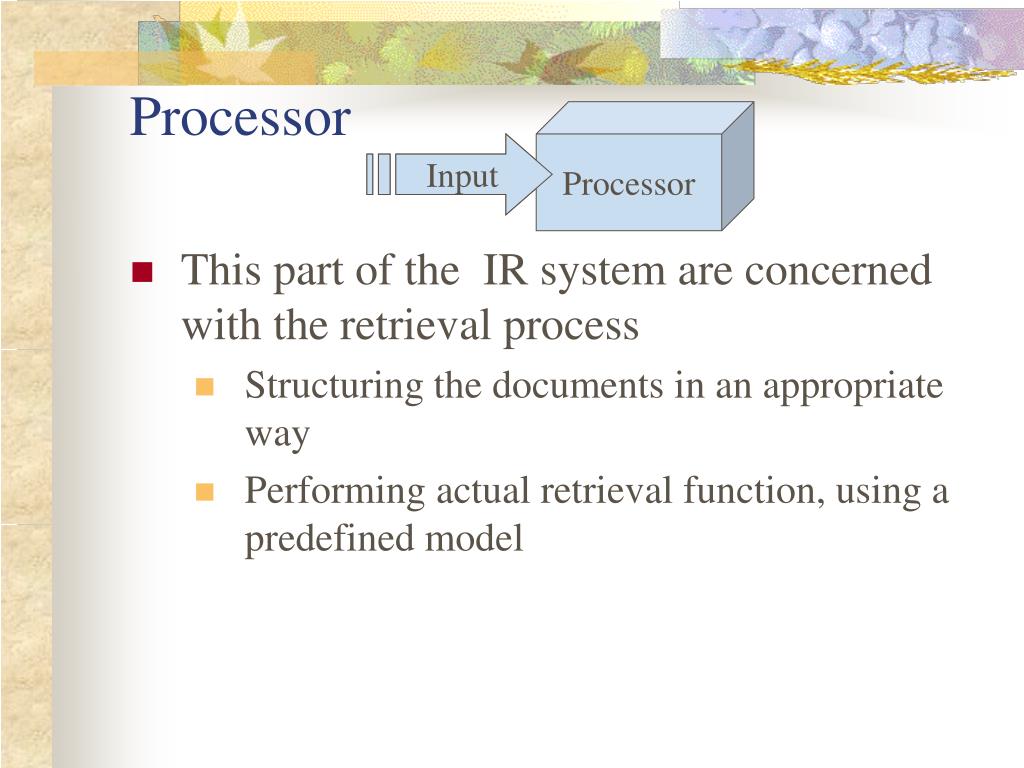

processor
Processor

Processor

Input

Input

  • This part of the IR system are concerned with the retrieval process
    • Structuring the documents in an appropriate way
    • Performing actual retrieval function, using a predefined model
output

Processor

Output

output

Input

  • The output will be a set of documents, assumed to be relevant to users.
  • Purpose of IR:
    • Retrieved all relevant documents
    • Retrieved irrelevant documents as few as possible
slide13

Relevant docs retrieved

  • Definition

relevant docs

Relevant docs retrieved

All docs retrieved

slide14

Returns relevant documents but

misses many useful ones too

The ideal

Returns most relevant

documents but includes

lots of junk

1

Precision

0

1

Recall

information retrieval models
Information Retrieval Models
  • Classical models
    • Boolean model
    • Vector model
  • Novel models
    • Latent semantic indexing model
    • Correlation method
boolean model
Boolean model
  • Earliest and simplest method, widely used in IR systems today
  • Based on set theories and Boolean algebra.
  • Queries are Boolean expressions of keywords, connected by operators AND, OR, ANDNOT
  • Ex: (Saint Petersburg AND Russia) | (beautiful city AND Russia)
slide17
Inverted files are widely used
  • Ex:
    • Term1 : doc 2 , doc 5, doc6 ;
    • Term2 : doc 2, doc4, doc5;
    • Query : q = (term1 AND term2)
    • Result: doc2, doc5
  • Term-document matrix can be used
thinking about boolean model
Thinking about Boolean model
  • Advantages:
    • Very simple model based on sets theory
    • Easy to understand and implement
    • Supports exact query
  • Disadvantages:
    • Retrieval based on binary decision criteria , without notion of partial matching
    • Sets are easy, but complex Boolean expressions are not
    • The Boolean queries formulated by users are most often so simplistic
    • Retrieves so many or so few documents
    • Gives unranked results
vector model

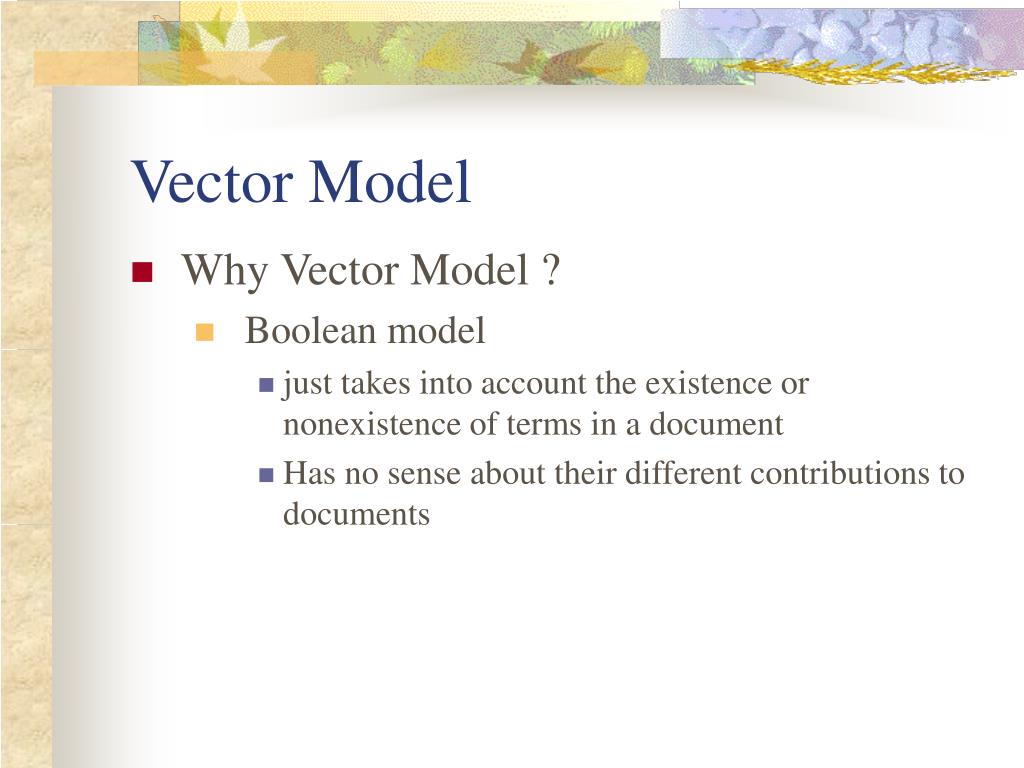

Vector Model
  • Why Vector Model ?
    • Boolean model
      • just takes into account the existence or nonexistence of terms in a document
      • Has no sense about their different contributions to documents
overview theory of vector model

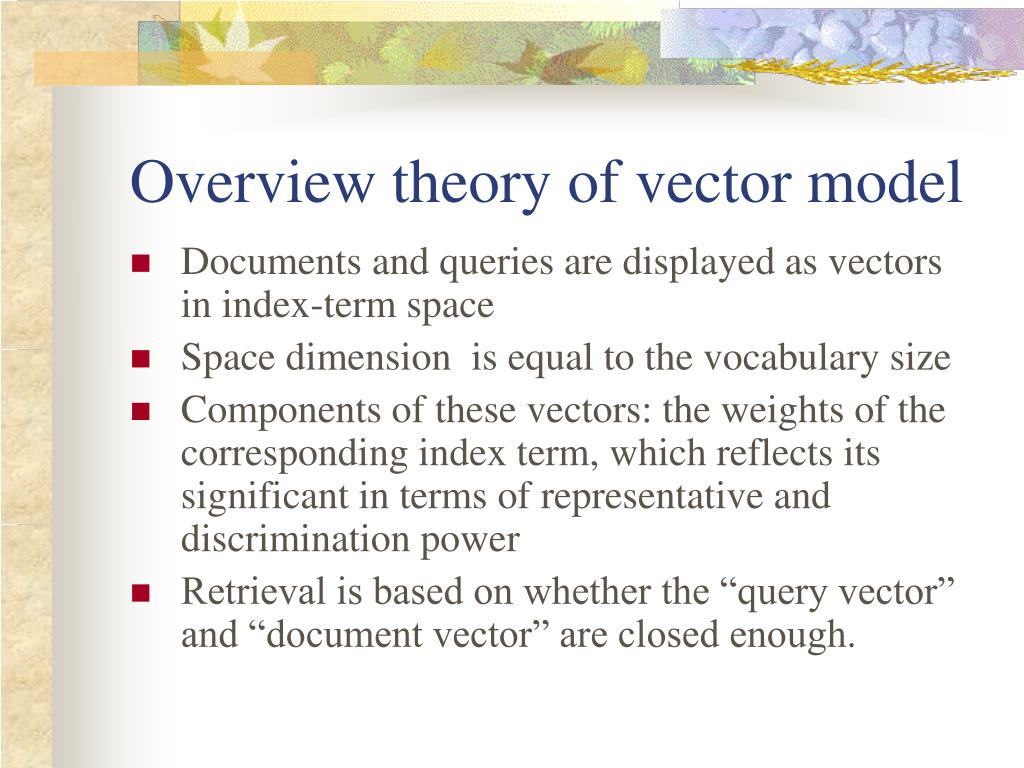

Overview theory of vector model
  • Documents and queries are displayed as vectors in index-term space
  • Space dimension is equal to the vocabulary size
  • Components of these vectors: the weights of the corresponding index term, which reflects its significant in terms of representative and discrimination power
  • Retrieval is based on whether the “query vector” and “document vector” are closed enough.

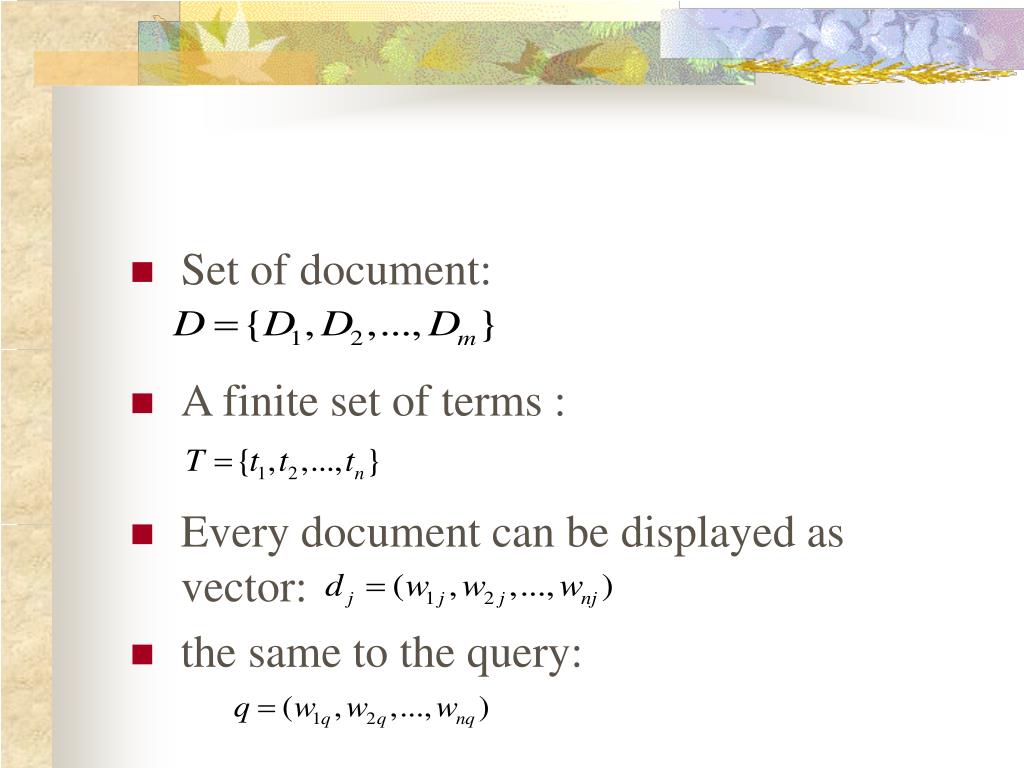

slide21
Set of document:
  • A finite set of terms :
  • Every document can be displayed as vector:
  • the same to the query:
slide22

j

dj

  • Similarity of query q and document d:
  • Given a threshold , all documents with similarity > threshold are retrieved

q

i

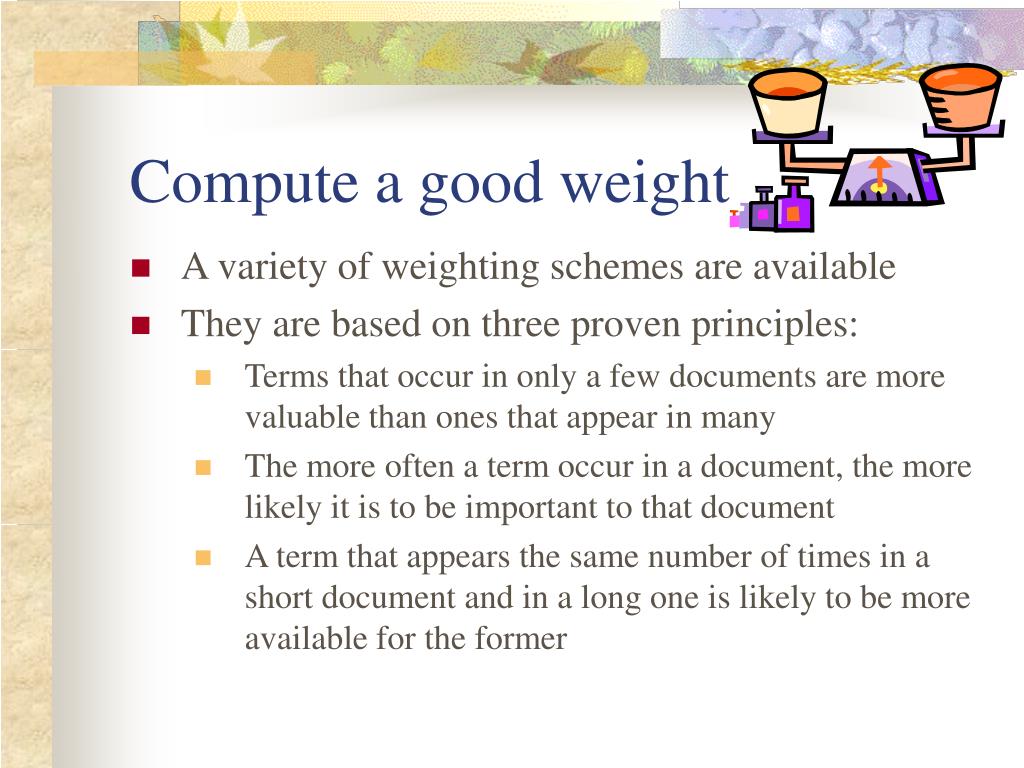

compute a good weight
Compute a good weight
  • A variety of weighting schemes are available
  • They are based on three proven principles:
    • Terms that occur in only a few documents are more valuable than ones that appear in many
    • The more often a term occur in a document, the more likely it is to be important to that document
    • A term that appears the same number of times in a short document and in a long one is likely to be more available for the former
tf idf dl tf idf scheme
tf-idf-dl (tf-idf) scheme
  • The term frequency of a term ti in document dj:
  • The length of document dj:
  • DLj = total number of terms occurrences in document dj
  • Inverted document frequency: collection of N documents, inverted document frequency of a term ti that appears in n document is :
  • Weight:

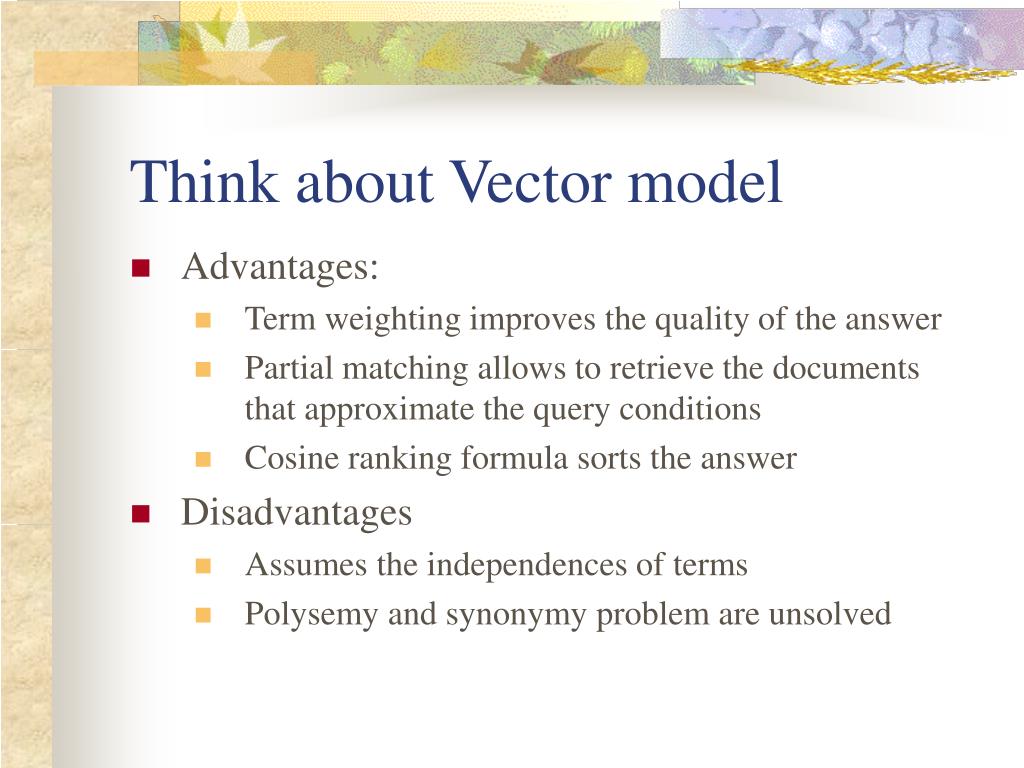

think about vector model
Think about Vector model
  • Advantages:
    • Term weighting improves the quality of the answer
    • Partial matching allows to retrieve the documents that approximate the query conditions
    • Cosine ranking formula sorts the answer
  • Disadvantages
    • Assumes the independences of terms
    • Polysemy and synonymy problem are unsolved

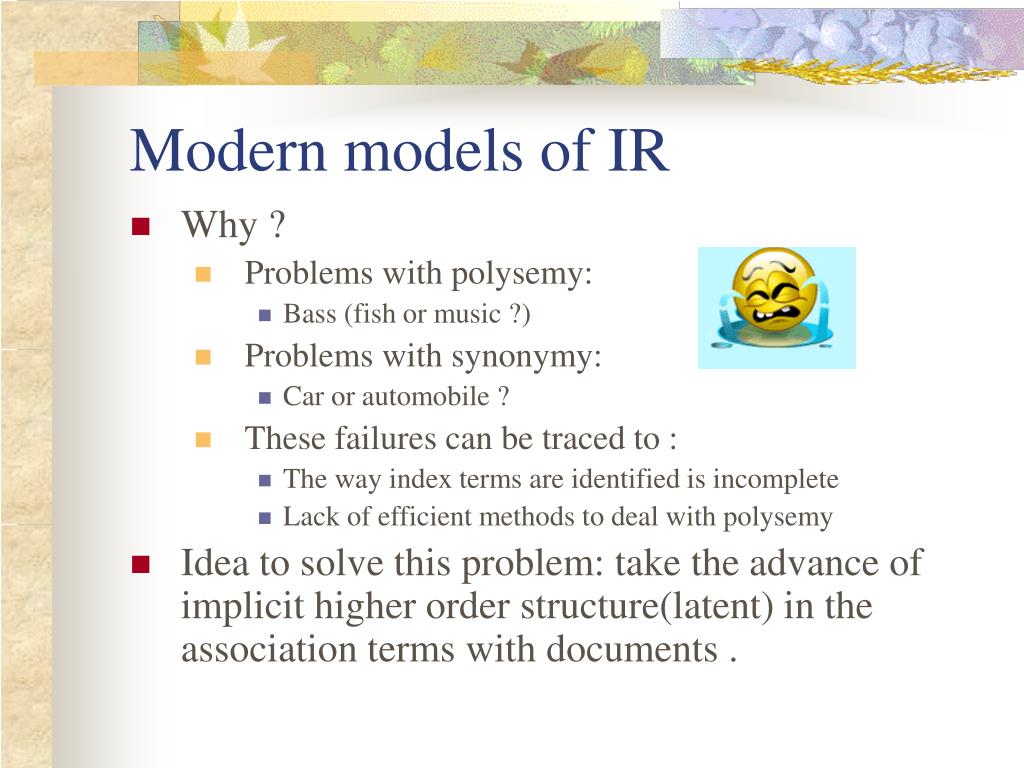

modern models of ir
Modern models of IR
  • Why ?
    • Problems with polysemy:
      • Bass (fish or music ?)
    • Problems with synonymy:
      • Car or automobile ?
    • These failures can be traced to :
      • The way index terms are identified is incomplete
      • Lack of efficient methods to deal with polysemy
  • Idea to solve this problem: take the advance of implicit higher order structure(latent) in the association terms with documents .
latent semantic indexing lsi
Latent Semantic Indexing (LSI)
  • LSI overview
    • Representing documents roughly by terms is unreliability, ambiguity and redundancy
    • Should find a method , which can :
      • Documents and terms are displayed as vectors in a k-dim concepts space. Its weights indicating the strength of association with each of these concepts
      • That method should be flexible enough to remove the weak concepts, considered as noises

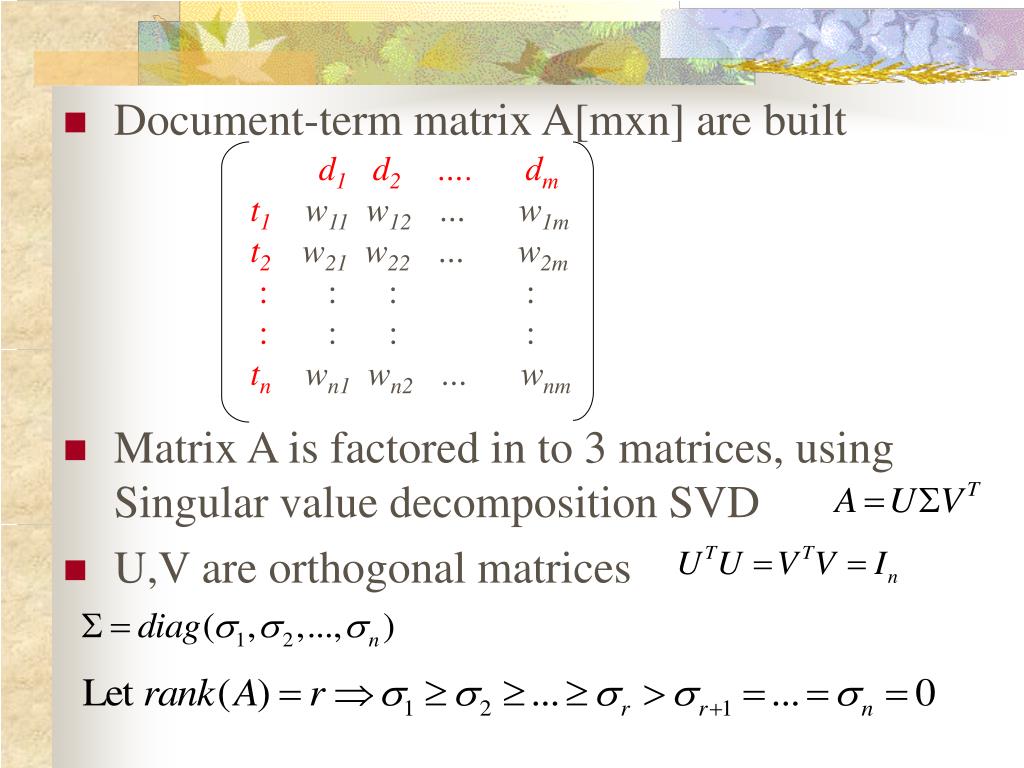

slide28

d1 d2 …. dm

t1 w11 w12 … w1m

t2 w21 w22 … w2m

: : : :

: : : :

tn wn1 wn2 … wnm

  • Document-term matrix A[mxn] are built
  • Matrix A is factored in to 3 matrices, using Singular value decomposition SVD
  • U,V are orthogonal matrices

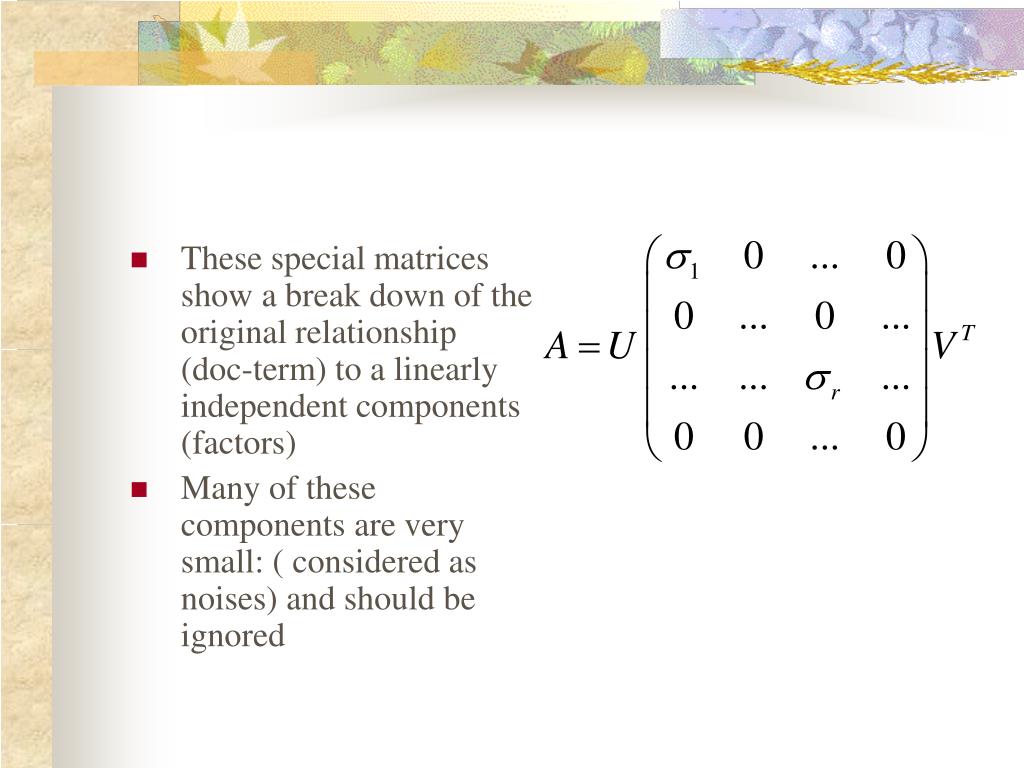

slide29
These special matrices show a break down of the original relationship (doc-term) to a linearly independent components (factors)
  • Many of these components are very small: ( considered as noises) and should be ignored
slide30
Criteria to choose k:
    • Ignore noises
    • Important information are not lost
  • Documents and terms are displayed as vectors in k-dim space
  • Theory Eckart & Young ensures us about not losing important information
query
Query
  • Should find a method to display a query to k-dim space
  • Query q can be seen as a document.
  • From equation:
  • We have
similarity between objects
Similarity between objects
  • Term-Term:
    • Dot product between two rows vector of matrix Ak reflects the similarity between two terms
    • Term-term similarity matrix :
    • Can consider the rows of matrix as coordinate of terms.
    • The relation between taking rows of as coordinate and rows of as coordinates is simple
slide33
Document-document
    • Dot product between two columns vectors of matrix Ak reflect the similarity between two documents.
    • Can consider the row of matrix as coordinates of documents.
  • Term-document
    • This value can be obtained by looking at the element of matrix Ak
    • Drawback: between and within comparisons can not be done simultaneously without resizing the coordinate.

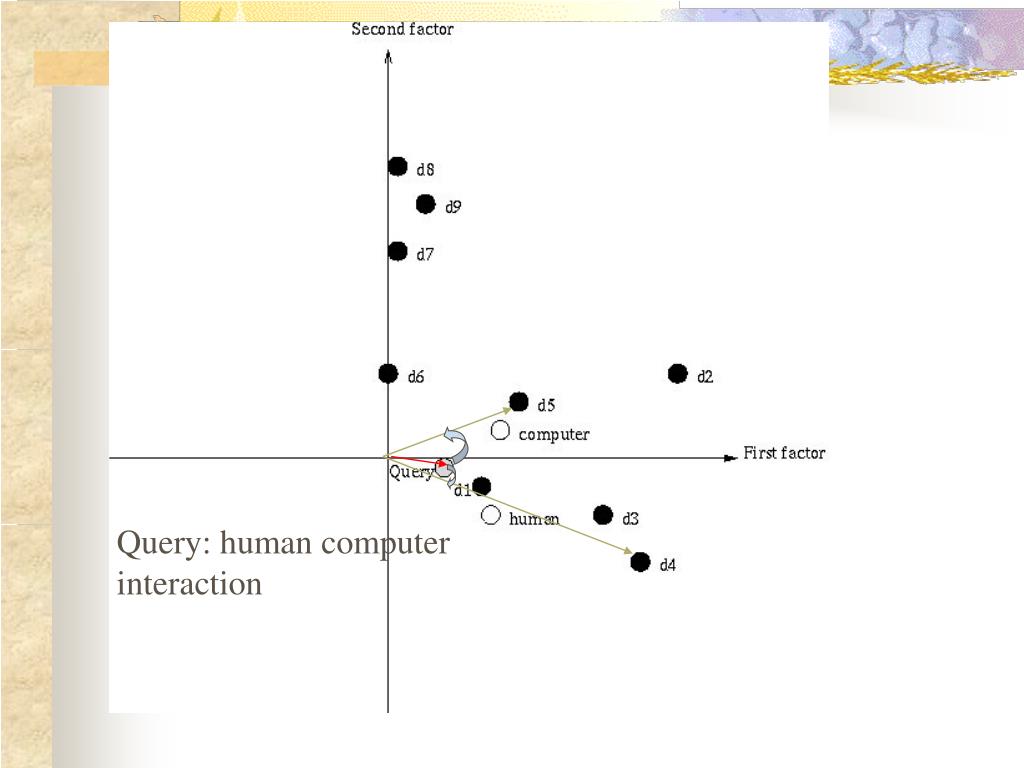

example

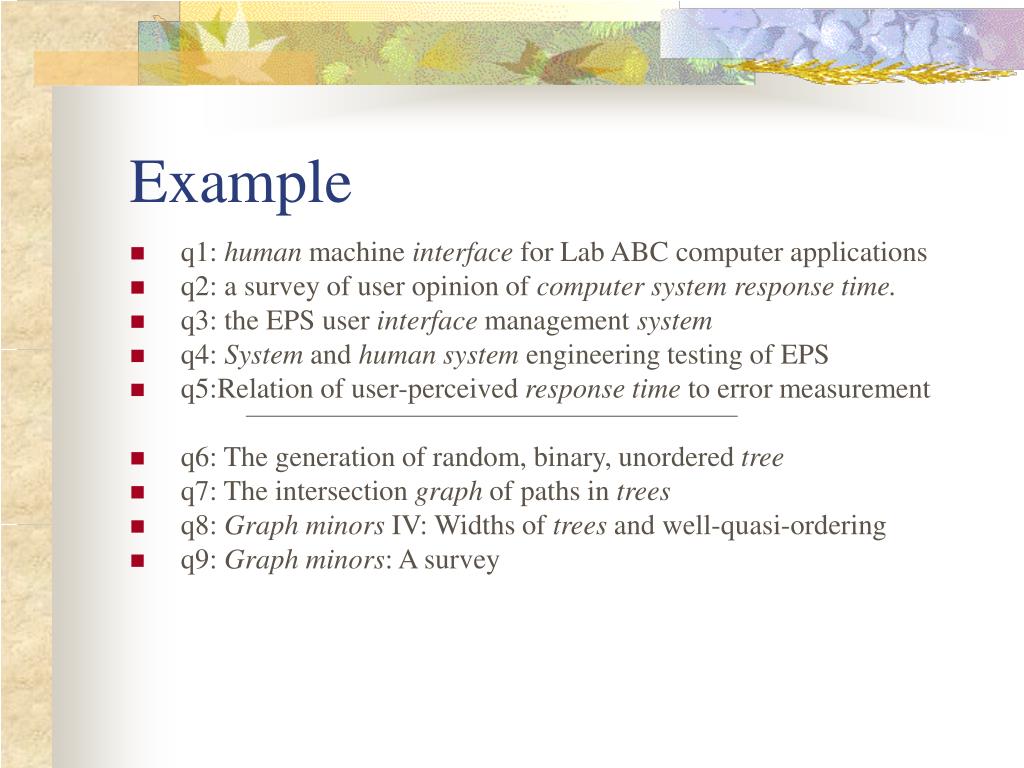

Example
  • q1: human machine interface for Lab ABC computer applications
  • q2: a survey of user opinion of computer system response time.
  • q3: the EPS user interface management system
  • q4: System and human system engineering testing of EPS
  • q5:Relation of user-perceived response time to error measurement
  • q6: The generation of random, binary, unordered tree
  • q7: The intersection graph of paths in trees
  • q8: Graph minors IV: Widths of trees and well-quasi-ordering
  • q9: Graph minors: A survey
updating
Updating
  • Folding in
    • New document
    • New terms and docs has no effect on the presentation of pre-existing docs and terms
  • Re-computing SVD
    • Re-compute SVD
    • Requires times and memory
  • Choosing one of these two methods
think about lsi

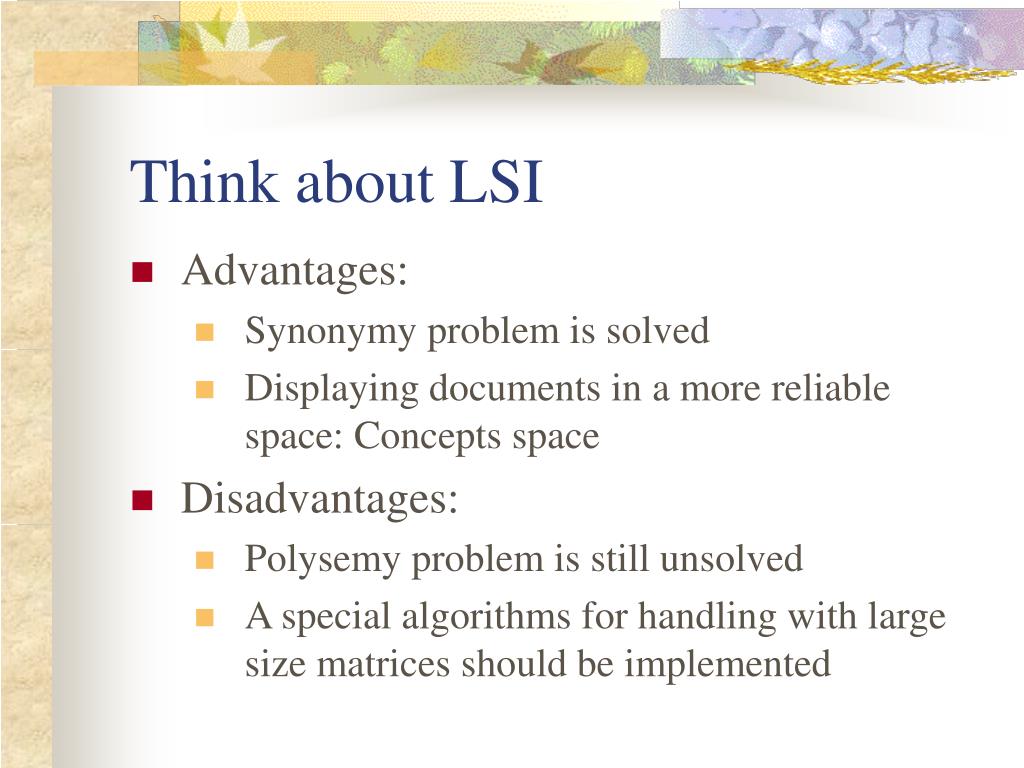

Think about LSI
  • Advantages:
    • Synonymy problem is solved
    • Displaying documents in a more reliable space: Concepts space
  • Disadvantages:
    • Polysemy problem is still unsolved
    • A special algorithms for handling with large size matrices should be implemented
correlation method
Correlation Method
  • Idea: If a keyword is present in the document, correlated keywords should be taken into account as well. So, the concepts containing in the document aren’t obscured by the choices of a specific vocabulary.
  • In vector space model: similarity vector :

Depend on the user query q, we now build the best query, taking the correlated keyword into account as well.

slide40

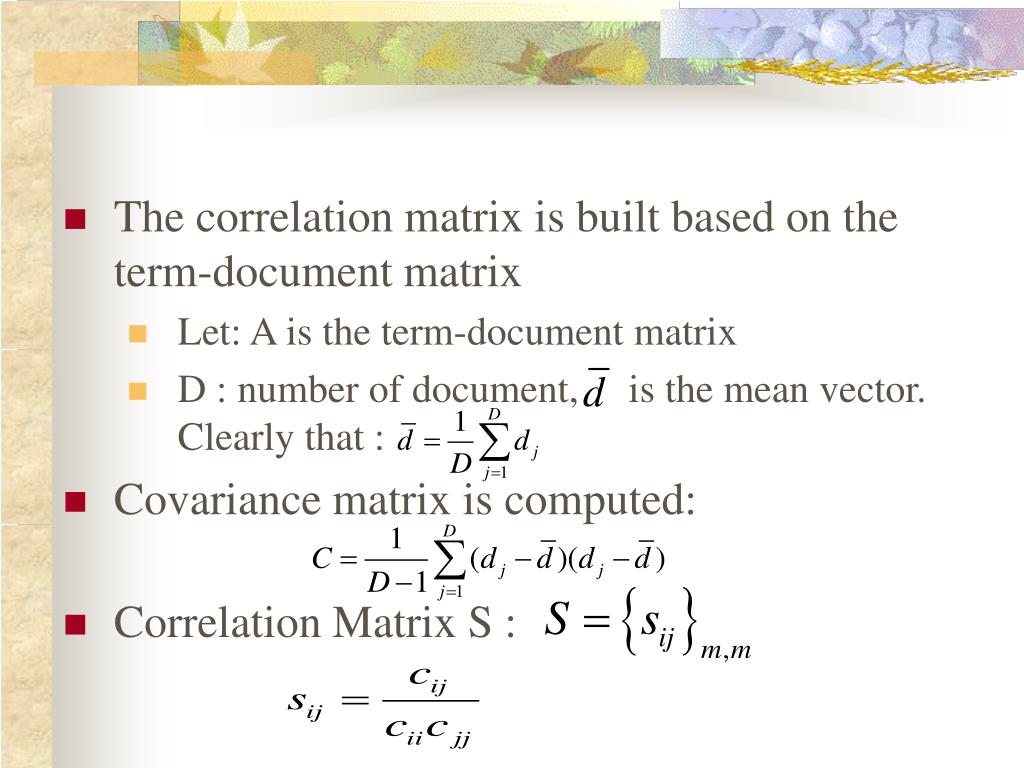

The correlation matrix is built based on the term-document matrix
    • Let: A is the term-document matrix
    • D : number of document, is the mean vector. Clearly that :
  • Covariance matrix is computed:
  • Correlation Matrix S :
slide41
Better query:
  • We now use SVD to reduce noises in the correlation of keywords:
  • We choose the first k largest factors to obtain the k dimensional of S
  • Generate our best query:
  • Vector of similarity :
  • Define a projection, defined by :

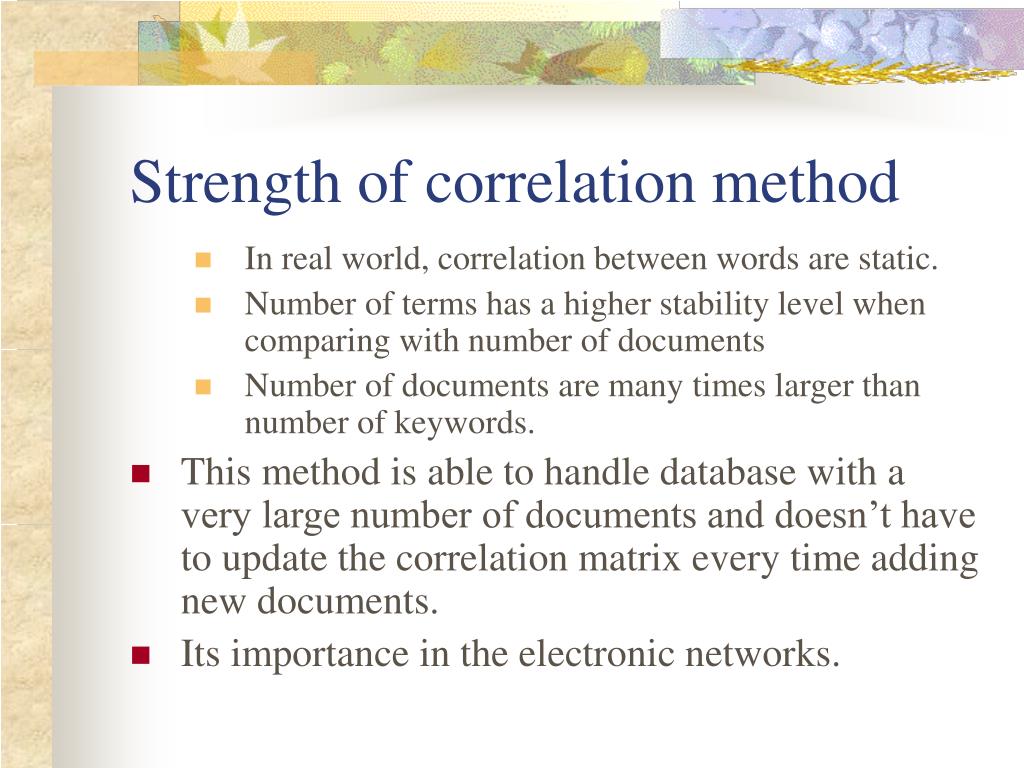

strength of correlation method
Strength of correlation method
    • In real world, correlation between words are static.
    • Number of terms has a higher stability level when comparing with number of documents
    • Number of documents are many times larger than number of keywords.
  • This method is able to handle database with a very large number of documents and doesn’t have to update the correlation matrix every time adding new documents.
  • Its importance in the electronic networks.
conclusion

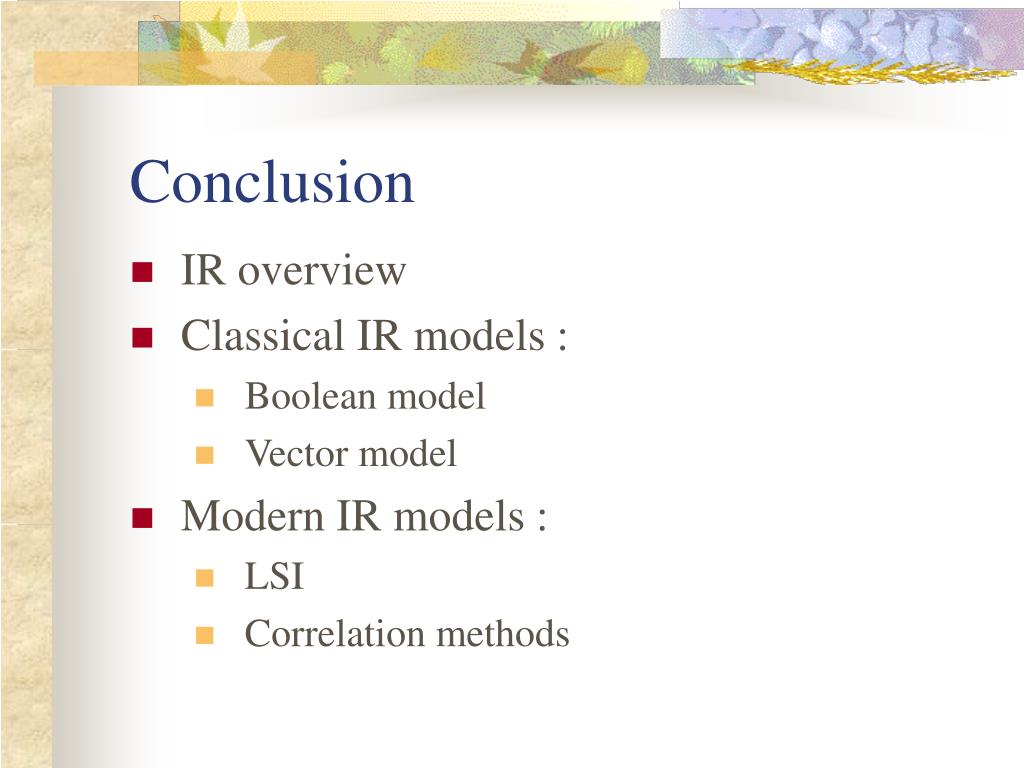

Conclusion
  • IR overview
  • Classical IR models :
    • Boolean model
    • Vector model
  • Modern IR models :
    • LSI
    • Correlation methods
references

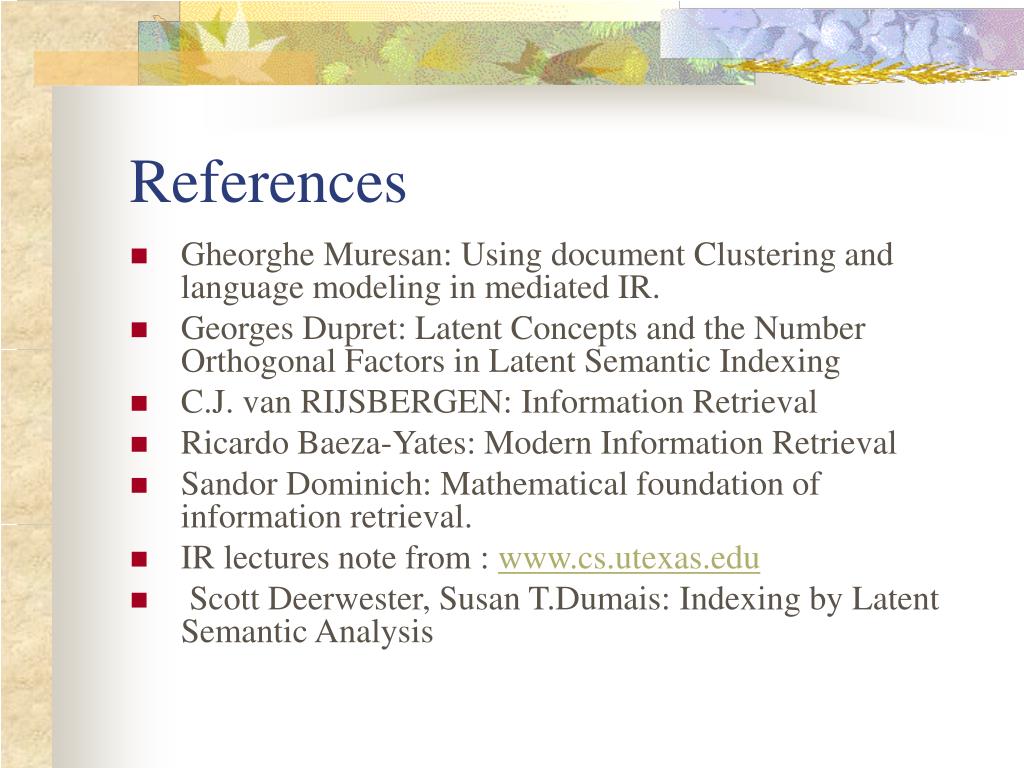

References
  • Gheorghe Muresan: Using document Clustering and language modeling in mediated IR.
  • Georges Dupret: Latent Concepts and the Number Orthogonal Factors in Latent Semantic Indexing
  • C.J. van RIJSBERGEN: Information Retrieval
  • Ricardo Baeza-Yates: Modern Information Retrieval
  • Sandor Dominich: Mathematical foundation of information retrieval.
  • IR lectures note from : www.cs.utexas.edu
  • Scott Deerwester, Susan T.Dumais: Indexing by Latent Semantic Analysis
desktop search
Desktop Search
  • Design the desktop search that satisfies
    • Not affects computer’s performance
    • Privacy is protected
    • Ability to search as many types of files as possible( consider music file)
    • Multi languages search
    • User-friendly
    • Support semantic search if possible
