Scott F. Reed, MD, FACS

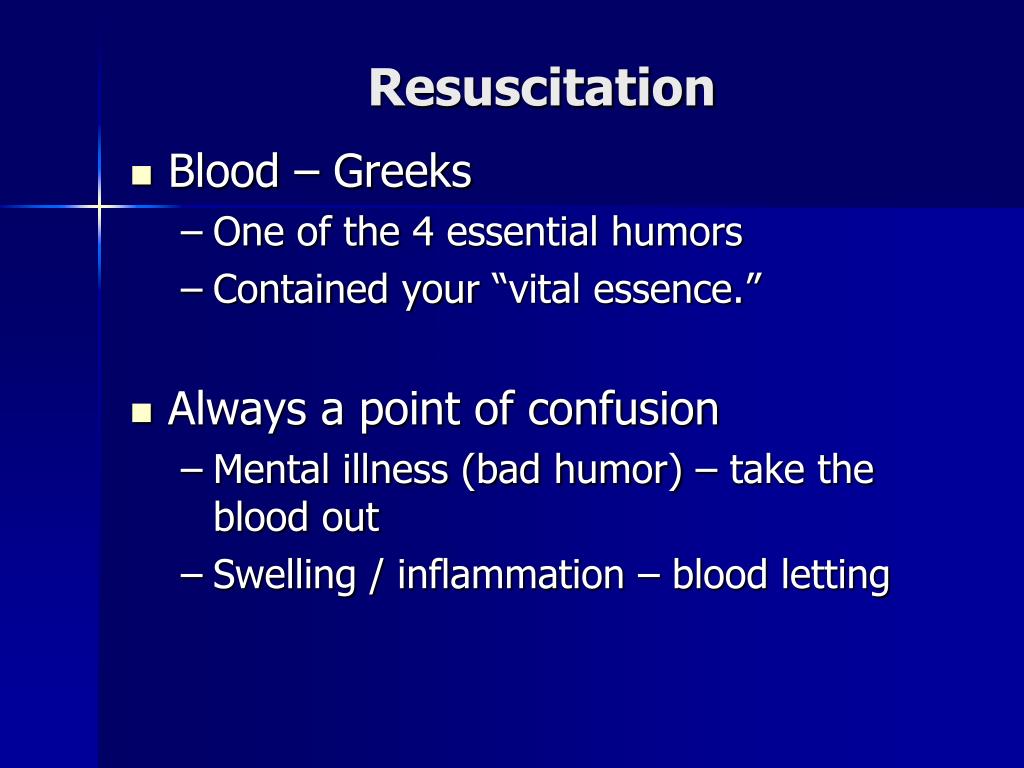

  • Blood – Greeks
    • One of the 4 essential humors
    • Contained your “vital essence.”
  • Always a point of confusion
    • Mental illness (bad humor) – take the blood out
    • Swelling / inflammation – blood letting

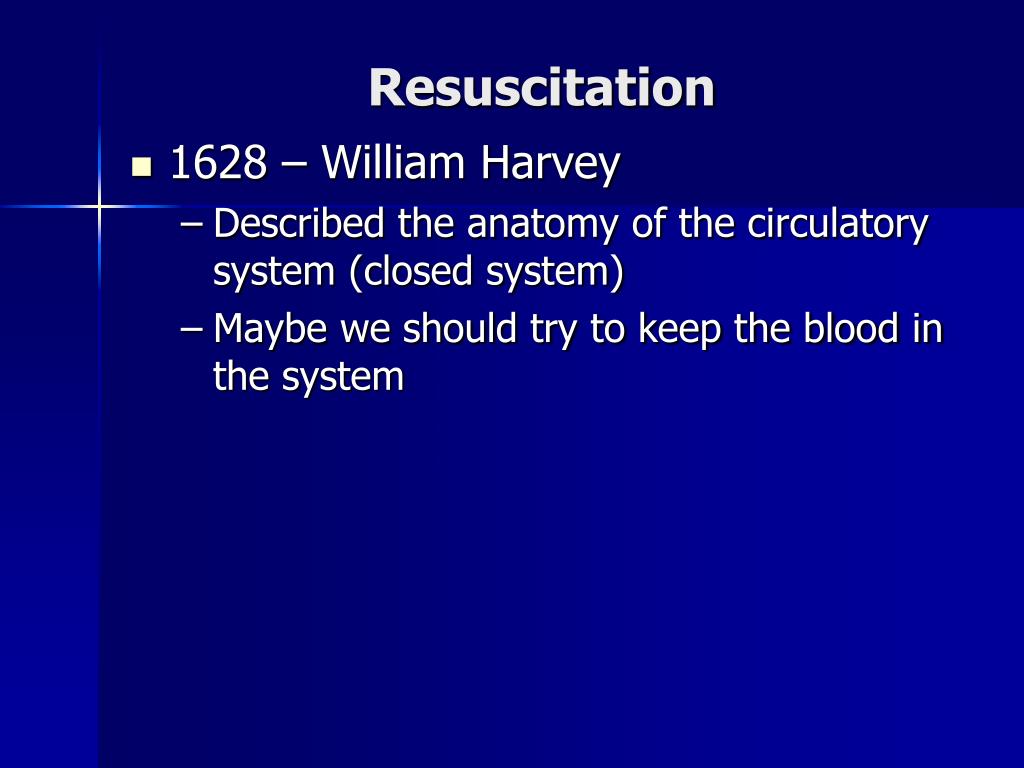

  • 1628 – William Harvey
    • Described the anatomy of the circulatory system (closed system)
    • Maybe we should try to keep the blood in the system

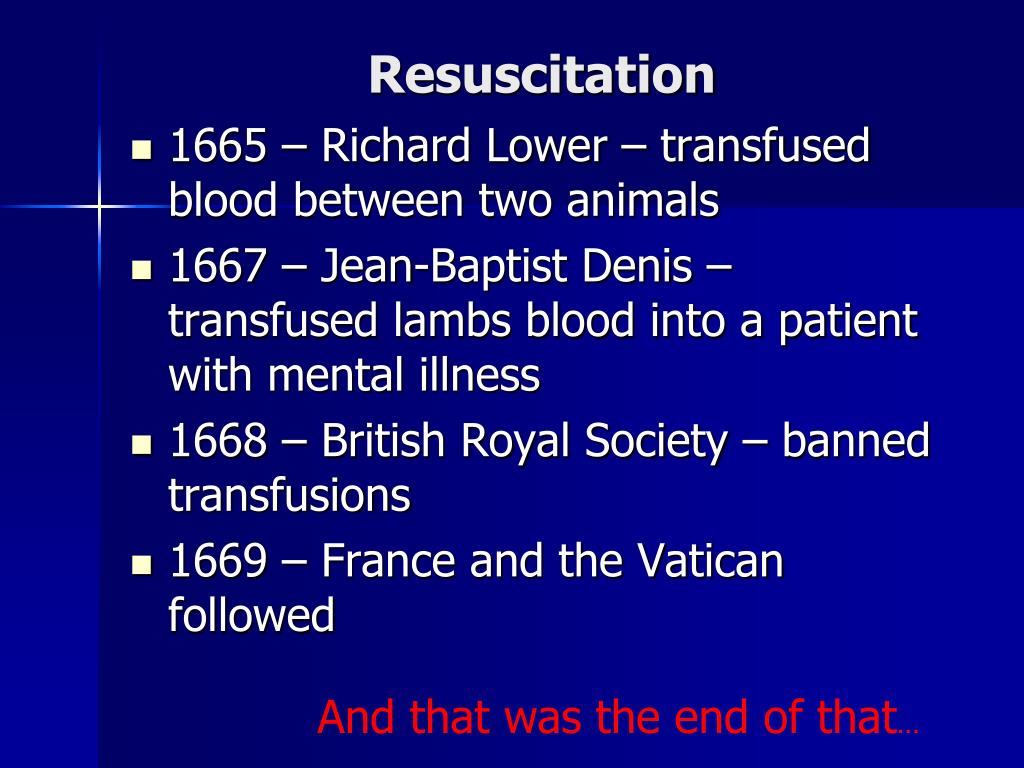

  • 1665 – Richard Lower – transfused blood between two animals
  • 1667 – Jean-Baptist Denis – transfused lambs blood into a patient with mental illness
  • 1668 – British Royal Society – banned transfusions
  • 1669 – France and the Vatican followed

And that was the end of that…

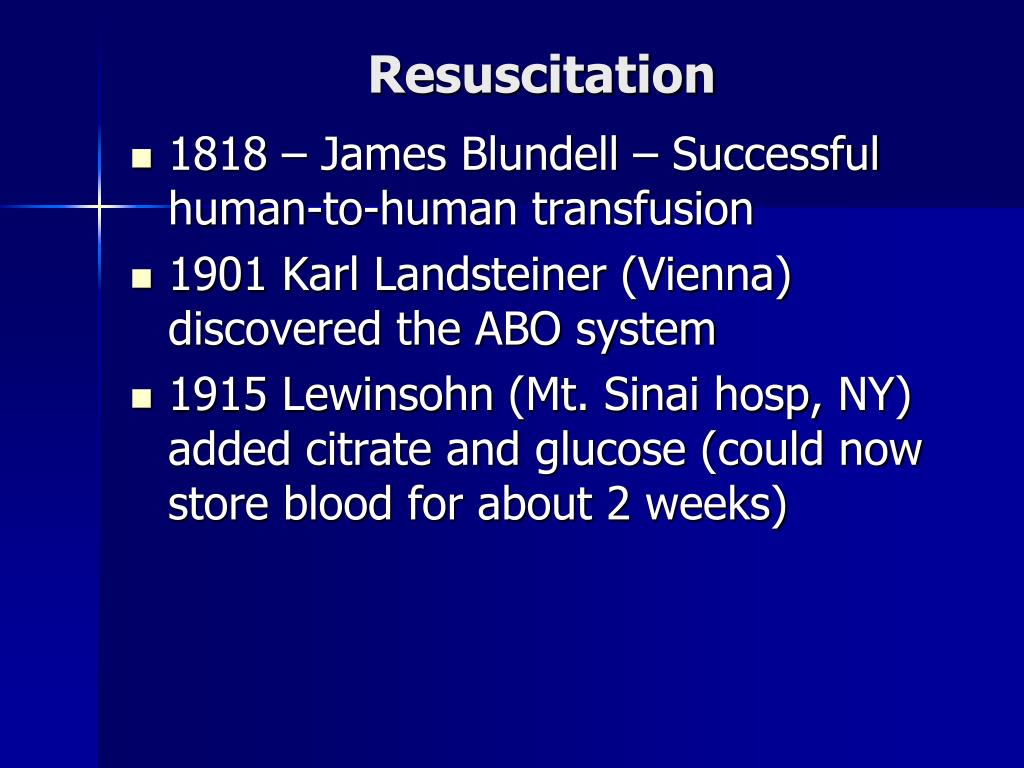

  • 1818 – James Blundell – Successful human-to-human transfusion
  • 1901 Karl Landsteiner (Vienna) discovered the ABO system
  • 1915 Lewinsohn (Mt. Sinai hosp, NY) added citrate and glucose (could now store blood for about 2 weeks)

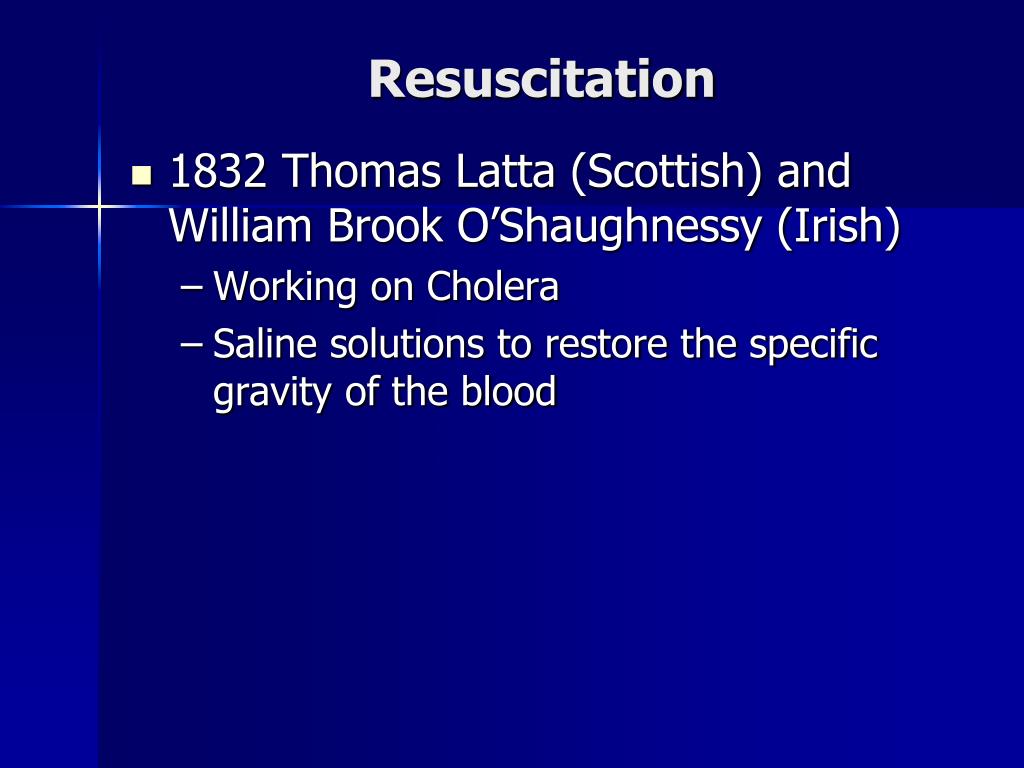

  • 1832 Thomas Latta (Scottish) and William Brook O’Shaughnessy (Irish)
    • Working on Cholera
    • Saline solutions to restore the specific gravity of the blood

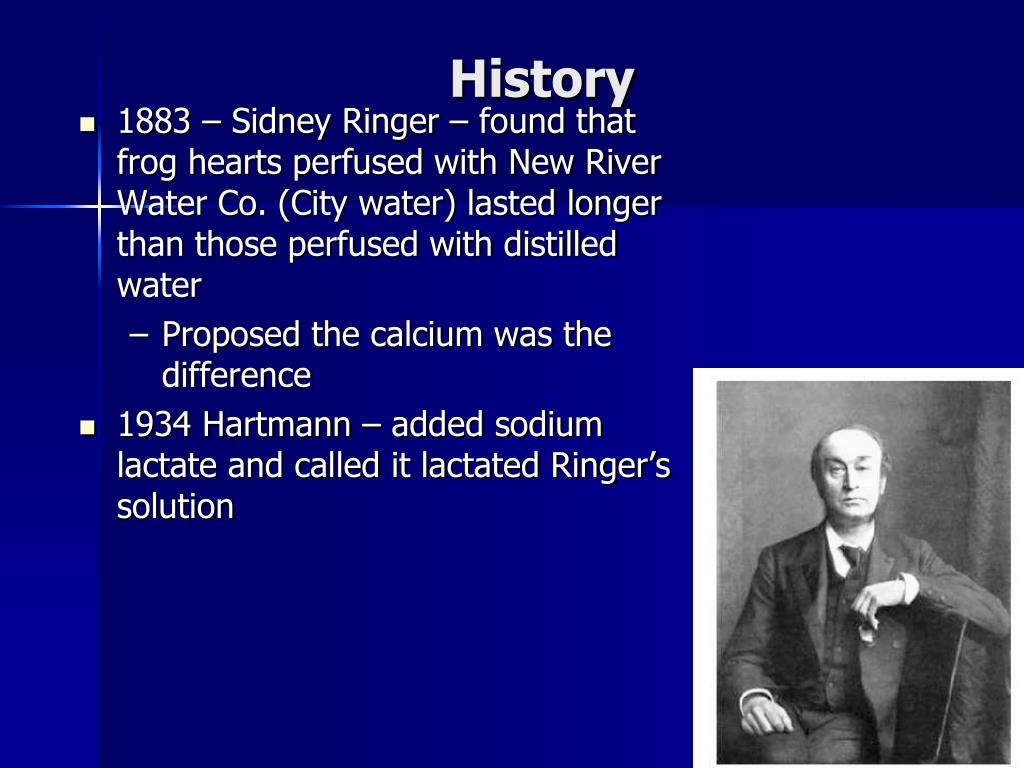

  • 1883 – Sidney Ringer – found that frog hearts perfused with New River Water Co. (City water) lasted longer than those perfused with distilled water
    • Proposed the calcium was the difference
  • 1934 Hartmann – added sodium lactate and called it lactated Ringer’s solution

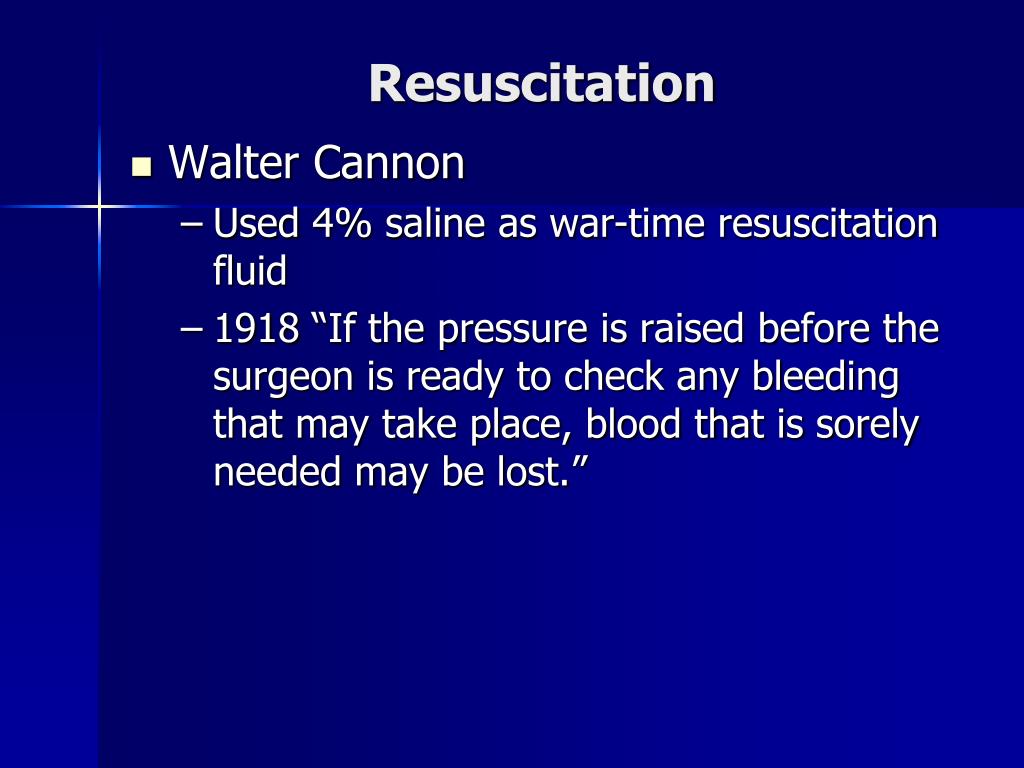

  • Walter Cannon
    • Used 4% saline as war-time resuscitation fluid
    • 1918 “If the pressure is raised before the surgeon is ready to check any bleeding that may take place, blood that is sorely needed may be lost.”


Most of our resuscitation is based on fluids from the last century

(in a fancy new bag)

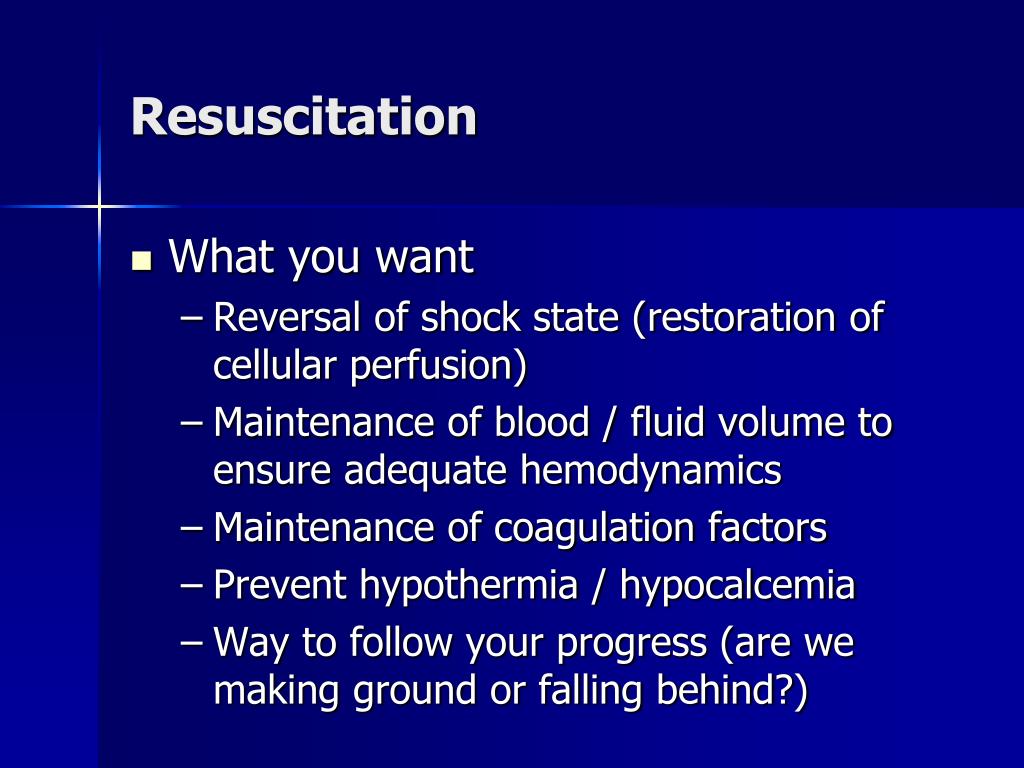

  • What you want
    • Reversal of shock state (restoration of cellular perfusion)
    • Maintenance of blood / fluid volume to ensure adequate hemodynamics
    • Maintenance of coagulation factors
    • Prevent hypothermia / hypocalcemia
    • Way to follow your progress (are we making ground or falling behind?)

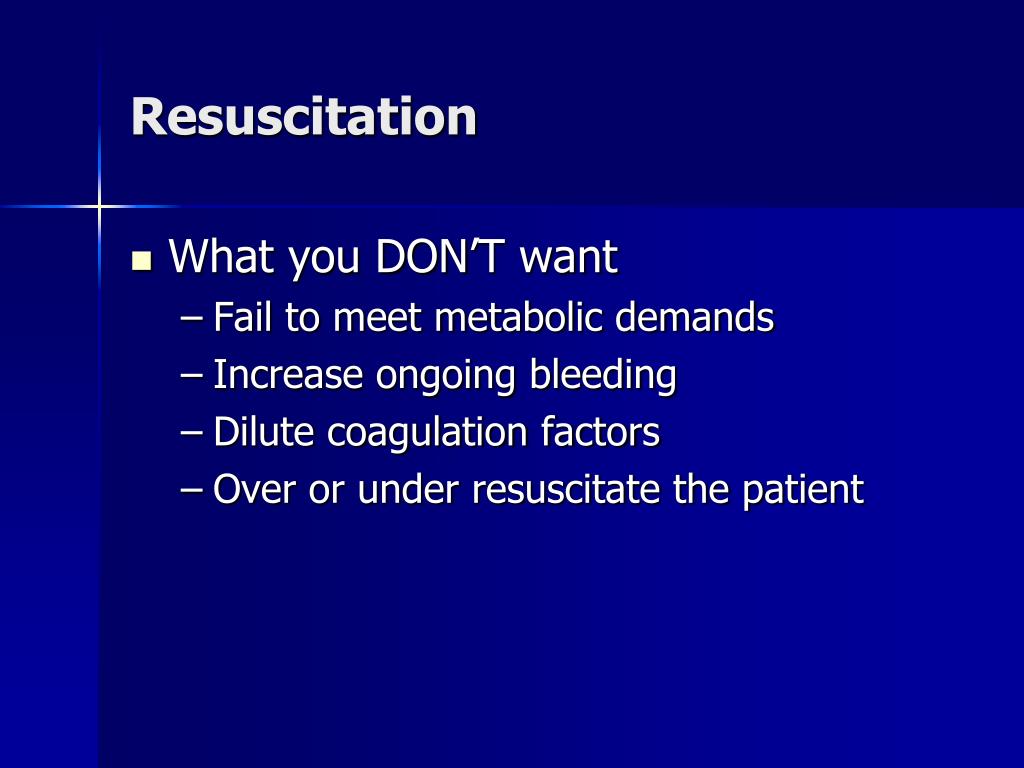

  • What you DON’T want
    • Fail to meet metabolic demands
    • Increase ongoing bleeding
    • Dilute coagulation factors
    • Over or under resuscitate the patient

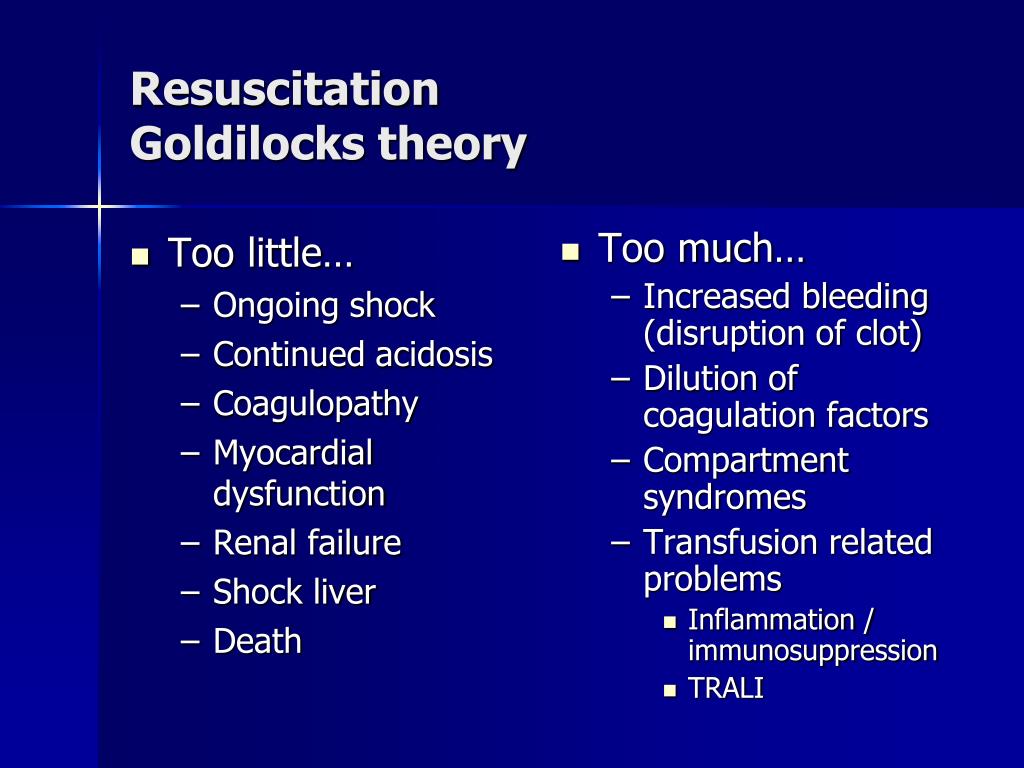

resuscitation goldilocks theory
Too little…

Ongoing shock

Continued acidosis


Myocardial dysfunction

Renal failure

Shock liver


Too much…

Increased bleeding (disruption of clot)

Dilution of coagulation factors

Compartment syndromes

Transfusion related problems

Inflammation / immunosuppression


ResuscitationGoldilocks theory

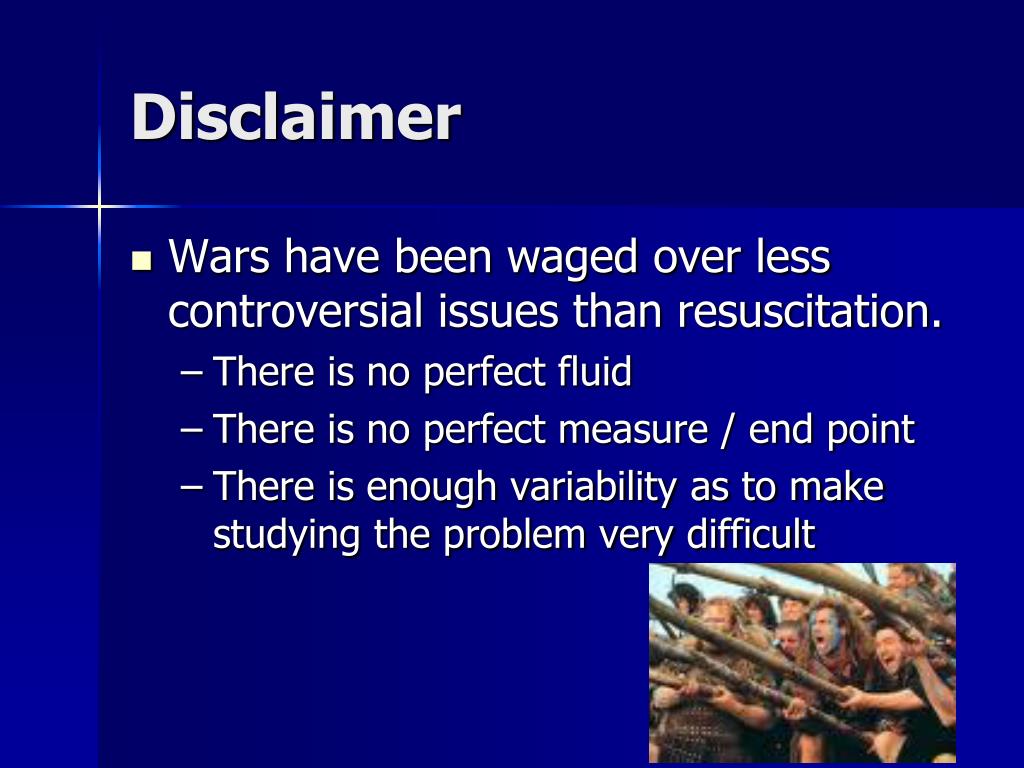

  • Wars have been waged over less controversial issues than resuscitation.
    • There is no perfect fluid
    • There is no perfect measure / end point
    • There is enough variability as to make studying the problem very difficult

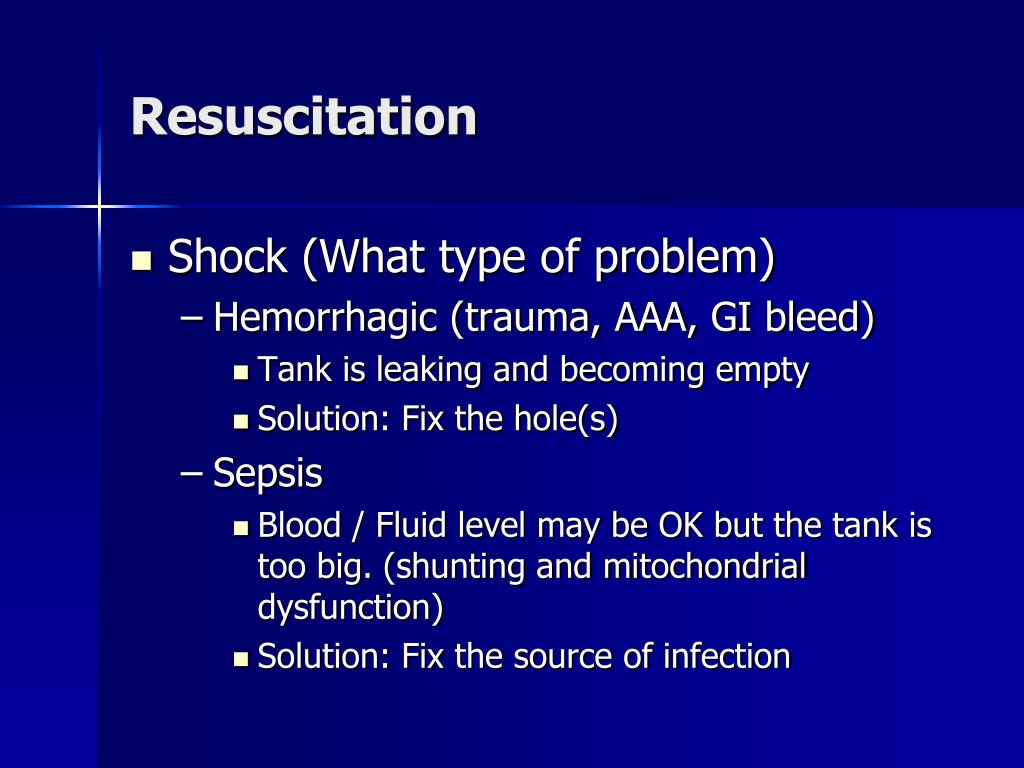

  • Shock (What type of problem)
    • Hemorrhagic (trauma, AAA, GI bleed)
      • Tank is leaking and becoming empty
      • Solution: Fix the hole(s)
    • Sepsis
      • Blood / Fluid level may be OK but the tank is too big. (shunting and mitochondrial dysfunction)
      • Solution: Fix the source of infection

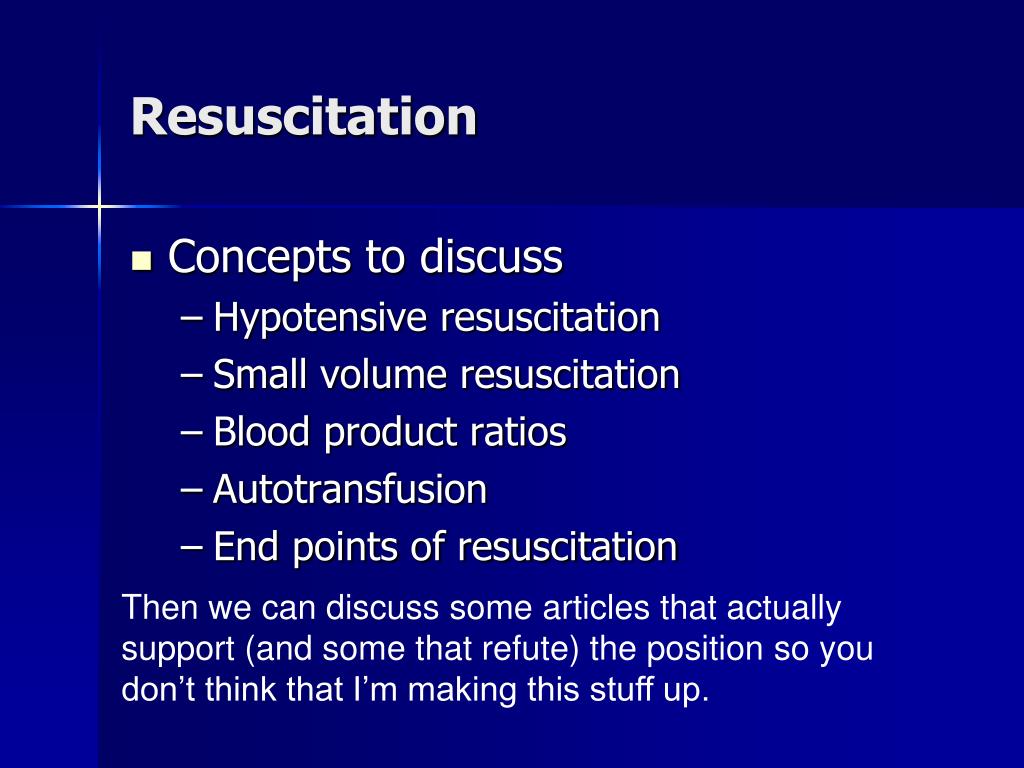

  • Concepts to discuss
    • Hypotensive resuscitation
    • Small volume resuscitation
    • Blood product ratios
    • Autotransfusion
    • End points of resuscitation

Then we can discuss some articles that actually support (and some that refute) the position so you don’t think that I’m making this stuff up.

  • So what about this lecture???
    • It is NOT a lecture (lectures are boring and reserved for our children.)
    • This is an exchange of ideas so please ask questions.
    • You won’t be a convert to any of this because the data is shaky, and the concepts will change.
hypotensive resuscitation

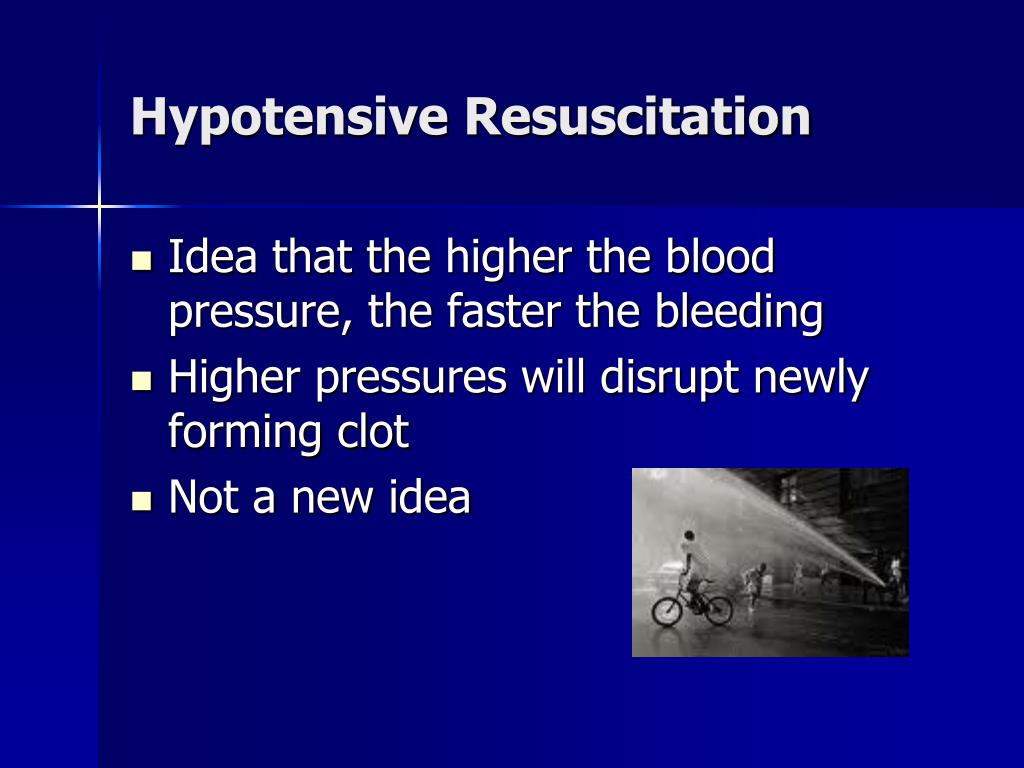

Hypotensive Resuscitation
  • Idea that the higher the blood pressure, the faster the bleeding
  • Higher pressures will disrupt newly forming clot
  • Not a new idea
hypotensive resuscitation1

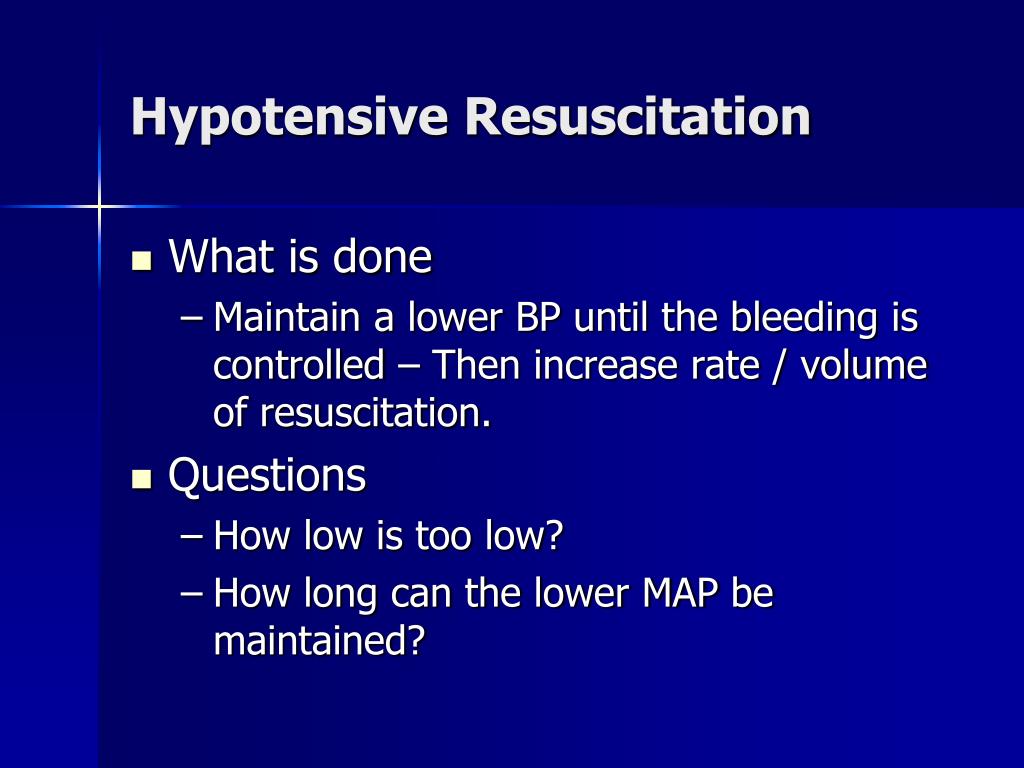

Hypotensive Resuscitation
  • What is done
    • Maintain a lower BP until the bleeding is controlled – Then increase rate / volume of resuscitation.
  • Questions
    • How low is too low?
    • How long can the lower MAP be maintained?
hypotensive resuscitation on arrival

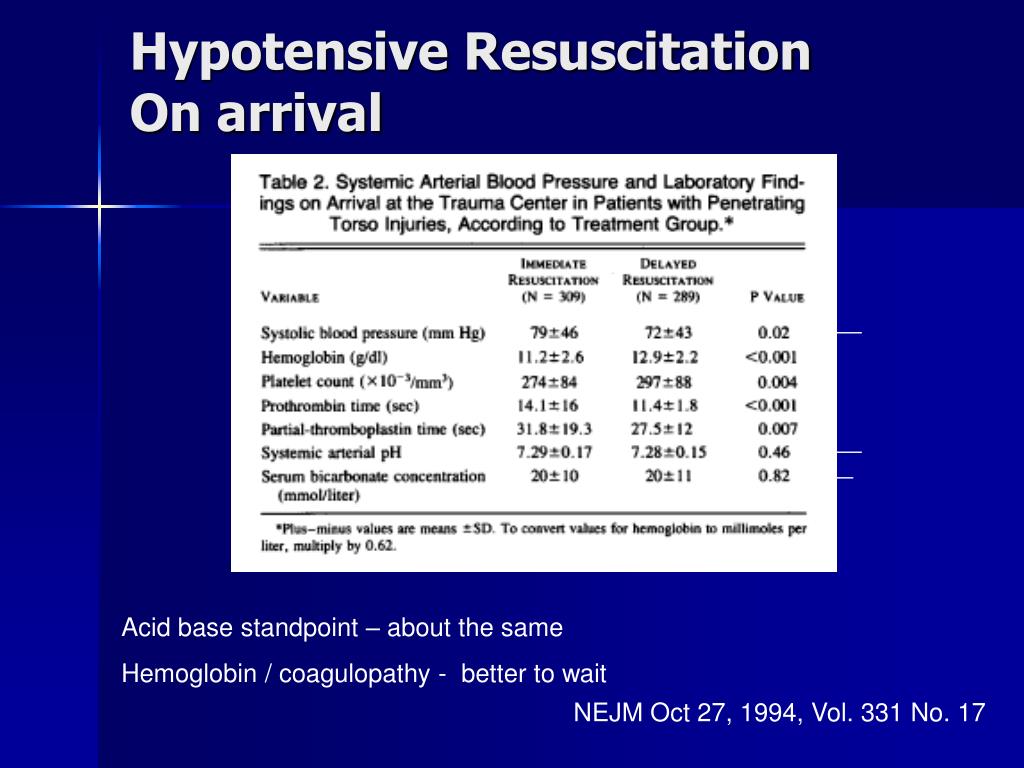

Hypotensive ResuscitationOn arrival

Acid base standpoint – about the same

Hemoglobin / coagulopathy - better to wait

NEJM Oct 27, 1994, Vol. 331 No. 17

hypotensive resuscitation3

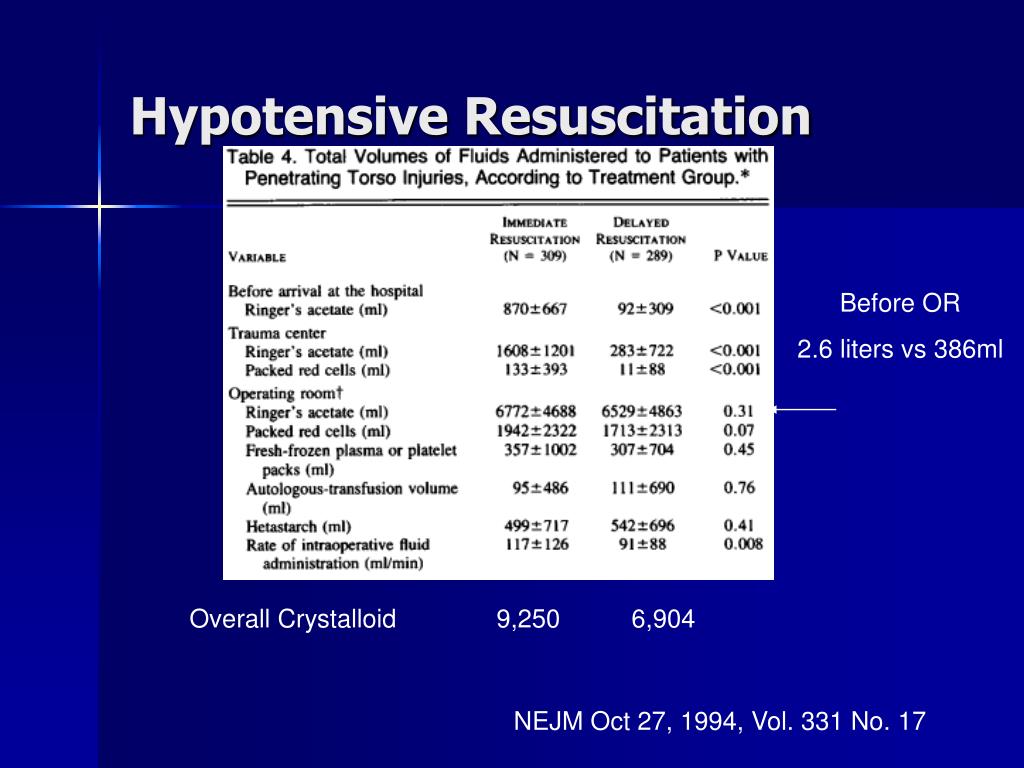

Hypotensive Resuscitation

Before OR

2.6 liters vs 386ml

Overall Crystalloid 9,250 6,904

NEJM Oct 27, 1994, Vol. 331 No. 17

hypotensive resuscitation4

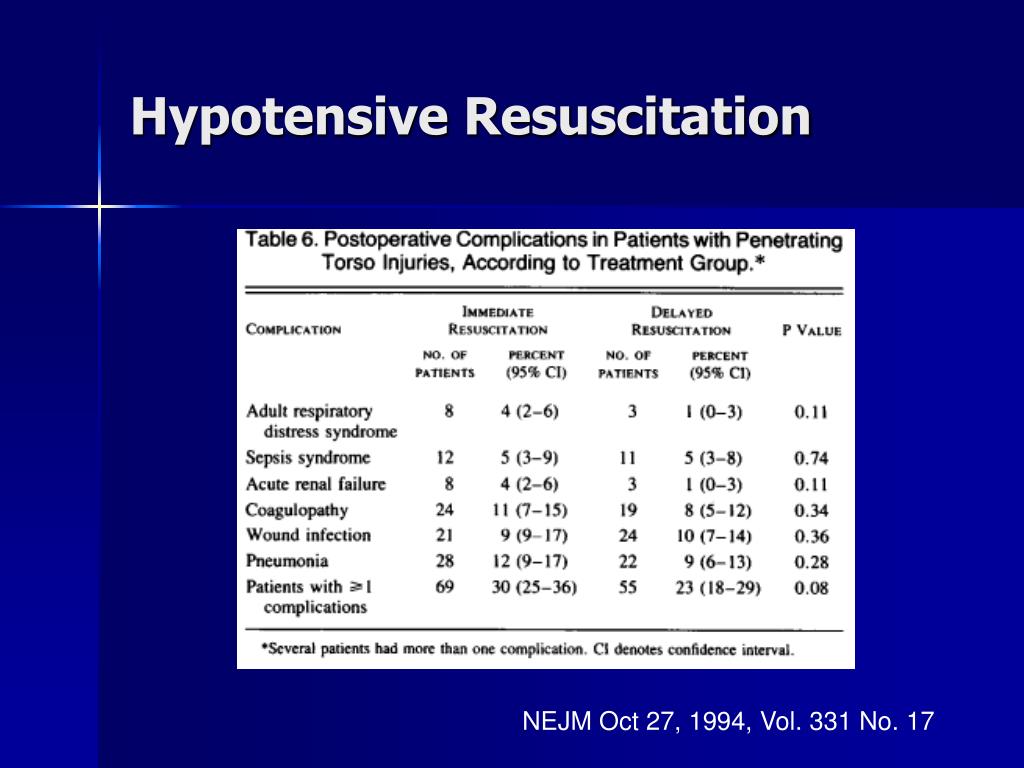

Hypotensive Resuscitation

NEJM Oct 27, 1994, Vol. 331 No. 17

hypotensive resuscitation5
Hypotensive Resuscitation

NEJM Oct 27, 1994, Vol. 331 No. 17

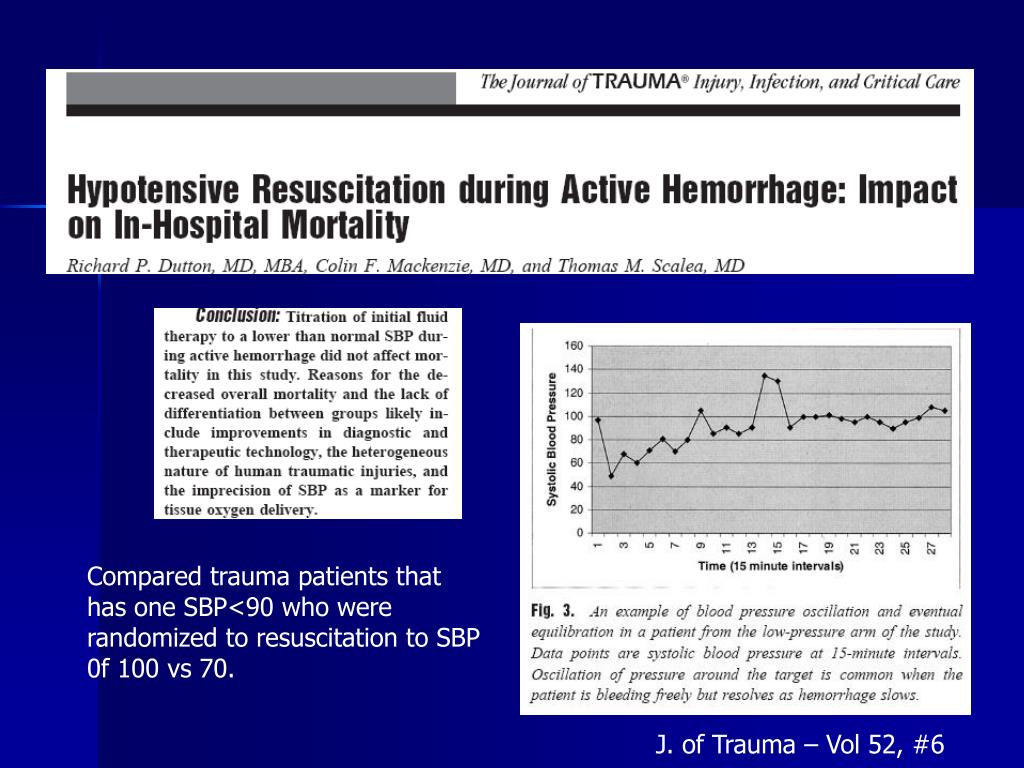

Compared trauma patients that has one SBP<90 who were randomized to resuscitation to SBP 0f 100 vs 70.

J. of Trauma – Vol 52, #6

hypotensive resuscitation6
Hypotensive Resuscitation

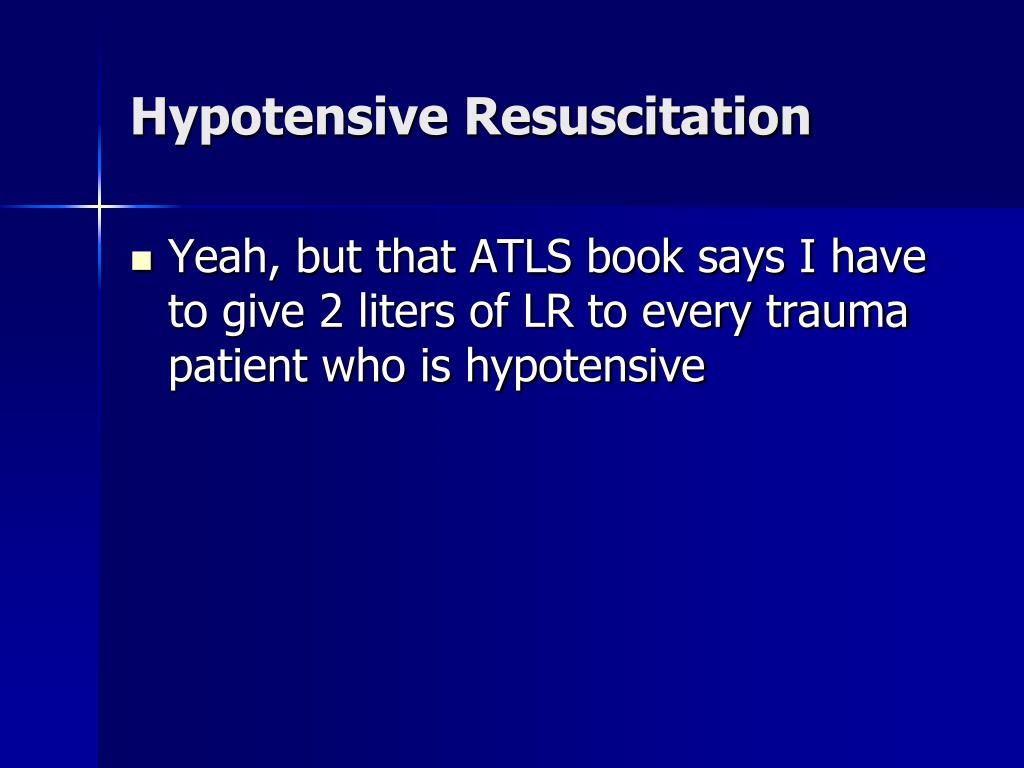

  • Yeah, but that ATLS book says I have to give 2 liters of LR to every trauma patient who is hypotensive
hypotensive resuscitation7

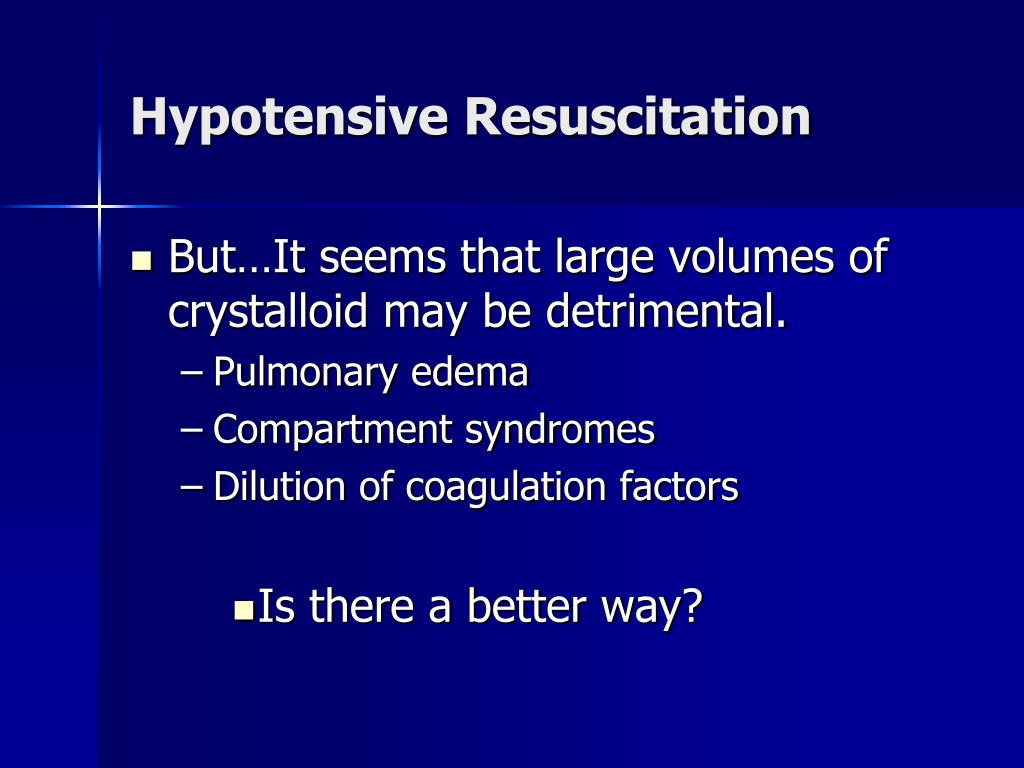

Hypotensive Resuscitation
  • But…It seems that large volumes of crystalloid may be detrimental.
    • Pulmonary edema
    • Compartment syndromes
    • Dilution of coagulation factors
      • Is there a better way?
small volume resuscitation

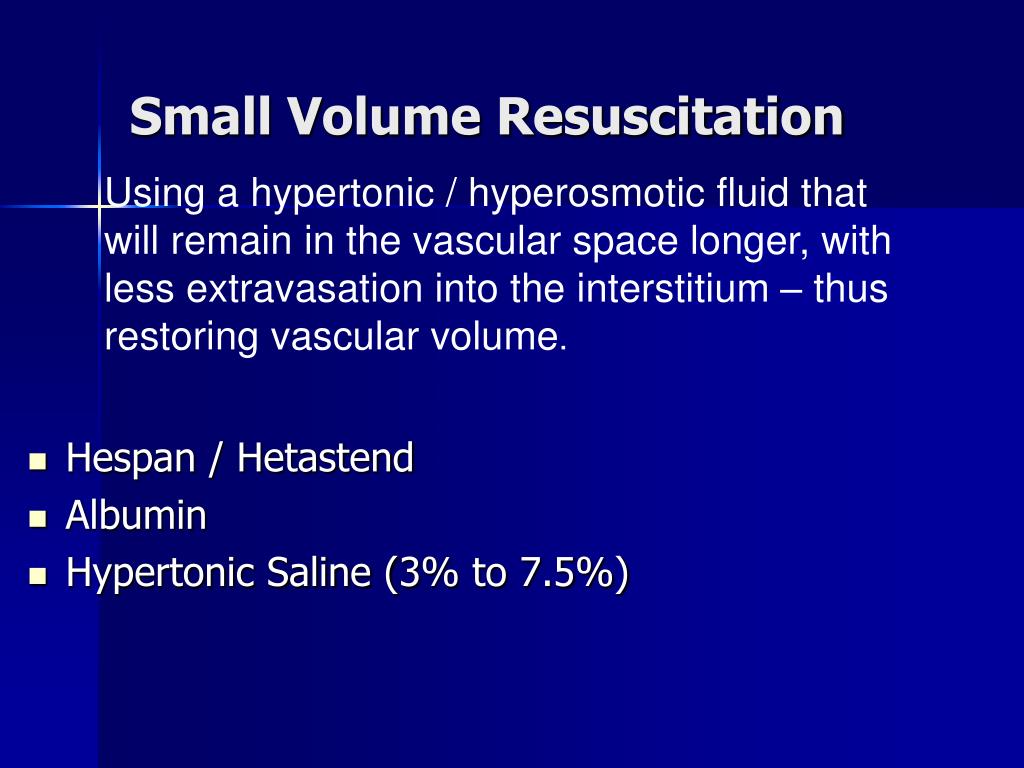

Small Volume Resuscitation

Using a hypertonic / hyperosmotic fluid that will remain in the vascular space longer, with less extravasation into the interstitium – thus restoring vascular volume.

  • Hespan / Hetastend
  • Albumin
  • Hypertonic Saline (3% to 7.5%)
small volume resuscitation1
Small Volume Resuscitation
  • Standard procedure in the military
    • 7.5% saline / 6% hespan in a 250cc bolus
      • Can’t logistically carry liters of fluid in the field
hespan hetastend
Hespan / Hetastend
  • Large carbohydrate molecule
    • May cause coagulopathy in large doses (30ml per Kg) in a 70kg person 2.1 liters
    • Renal tubular dysfunction concern

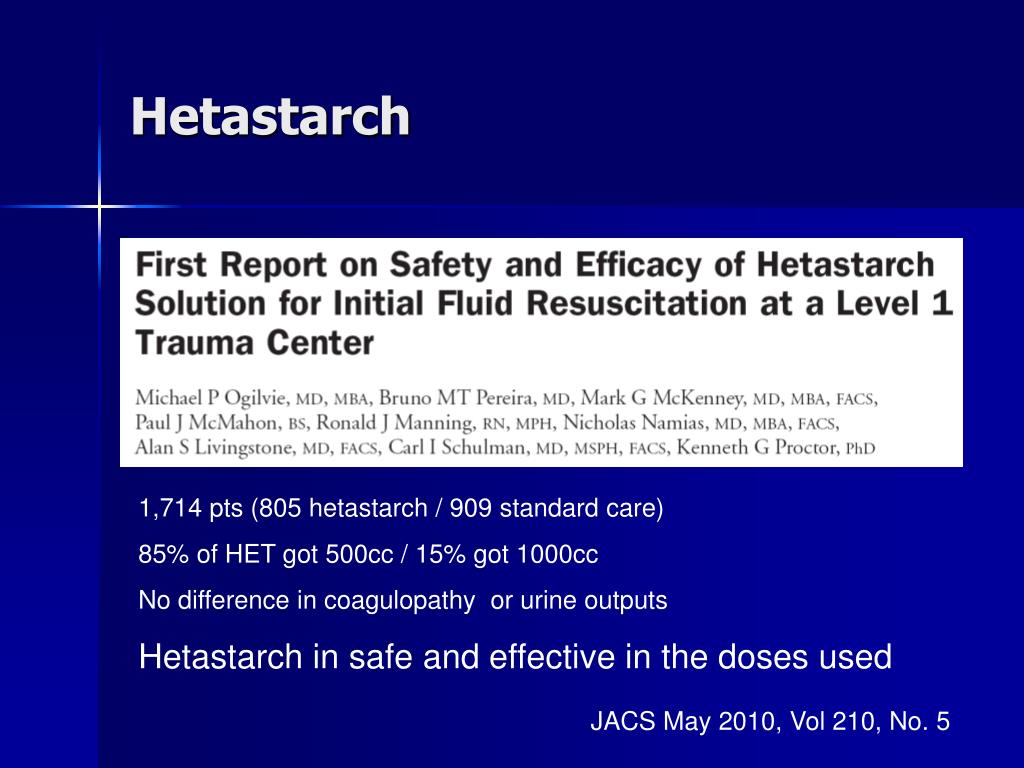

1,714 pts (805 hetastarch / 909 standard care)

85% of HET got 500cc / 15% got 1000cc

No difference in coagulopathy or urine outputs

Hetastarch in safe and effective in the doses used

JACS May 2010, Vol 210, No. 5

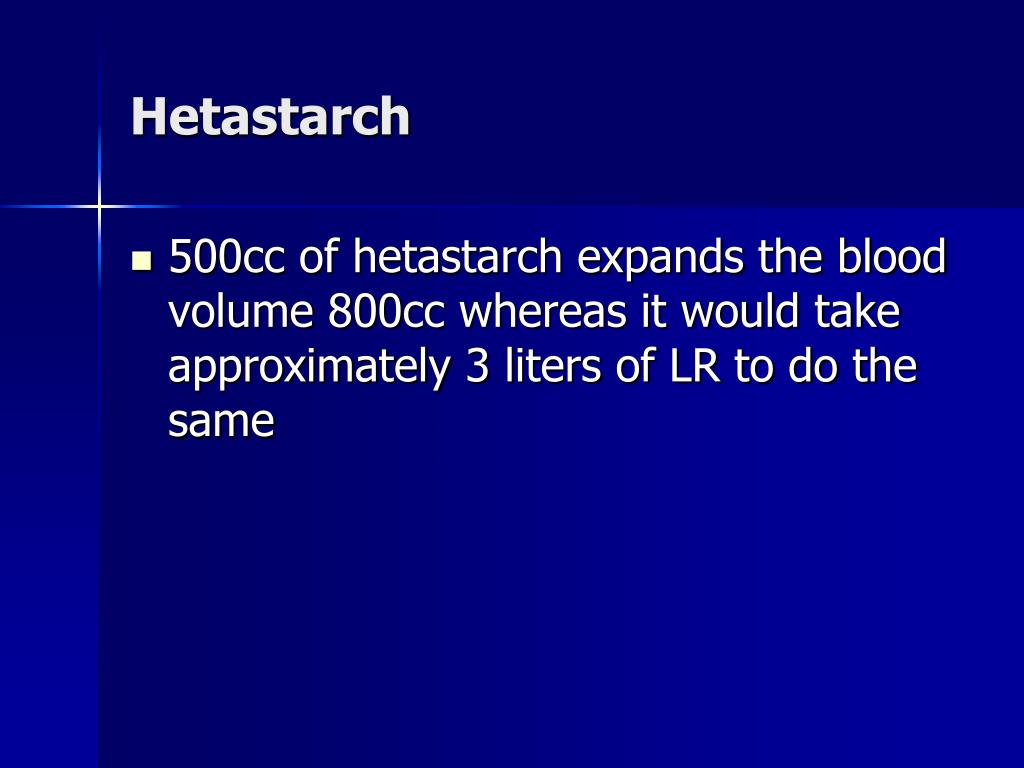

  • 500cc of hetastarch expands the blood volume 800cc whereas it would take approximately 3 liters of LR to do the same
hypertonic saline

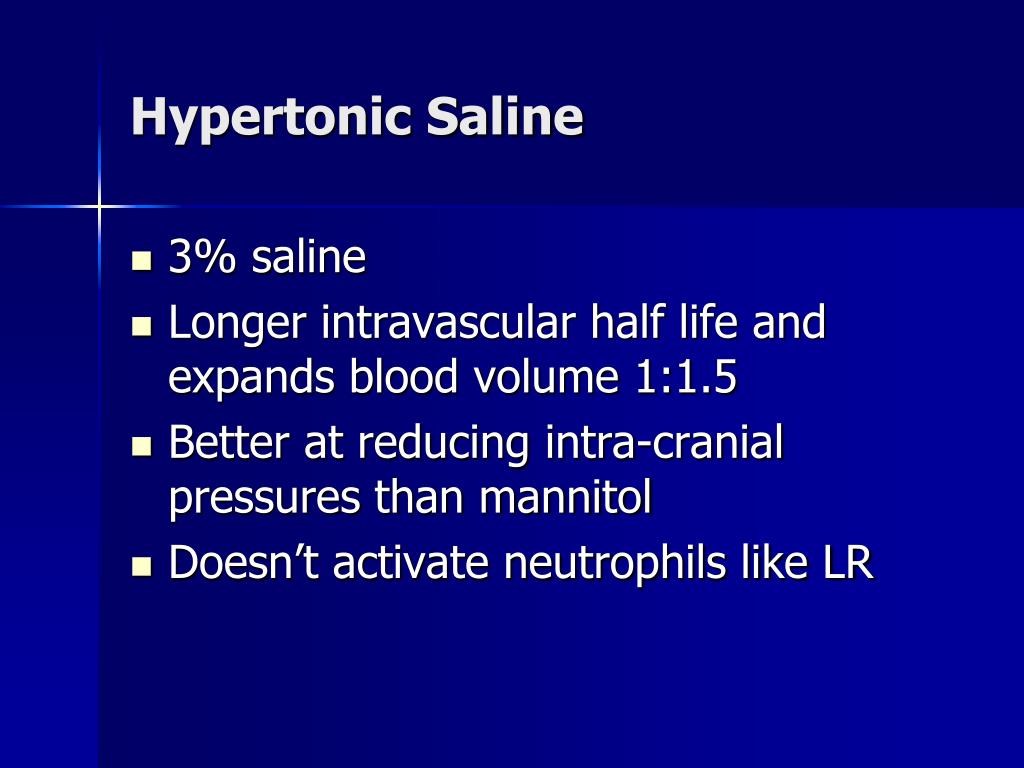

Hypertonic Saline
  • 3% saline
  • Longer intravascular half life and expands blood volume 1:1.5
  • Better at reducing intra-cranial pressures than mannitol
  • Doesn’t activate neutrophils like LR

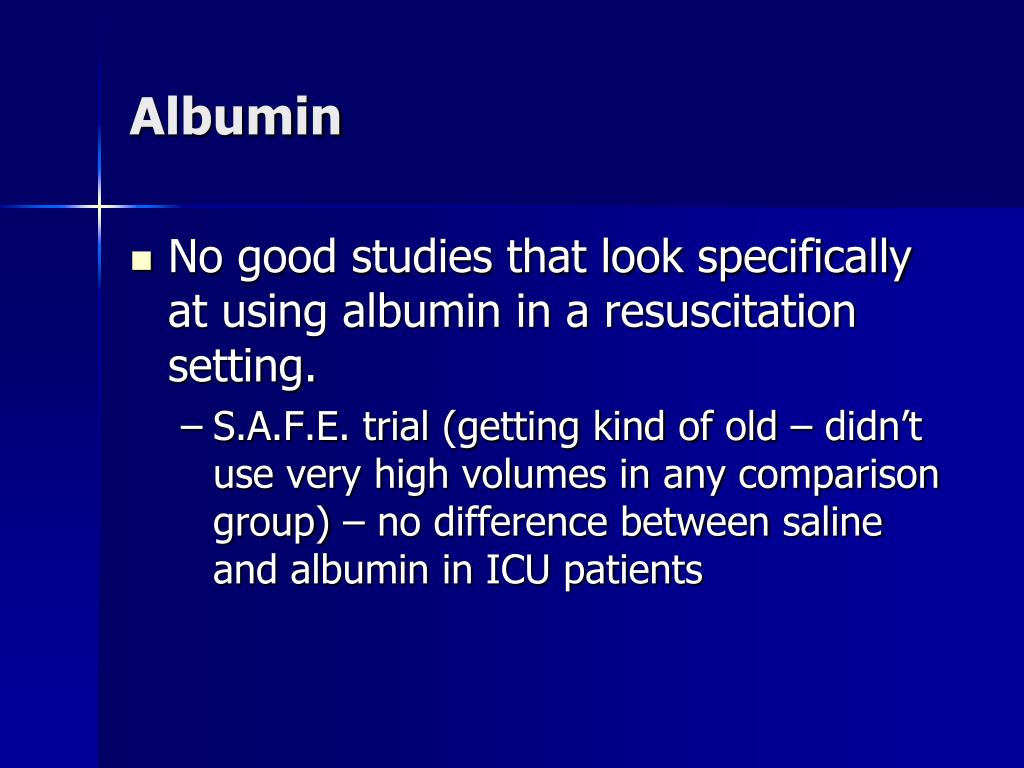

  • No good studies that look specifically at using albumin in a resuscitation setting.
    • S.A.F.E. trial (getting kind of old – didn’t use very high volumes in any comparison group) – no difference between saline and albumin in ICU patients
small volume resuscitation2
Small Volume Resuscitation

The Cochran Library – 2009 Issue #3

The Moral of the Story

The Cochran Library – 2009 Issue #3

blood product ratios
Blood Product Ratios

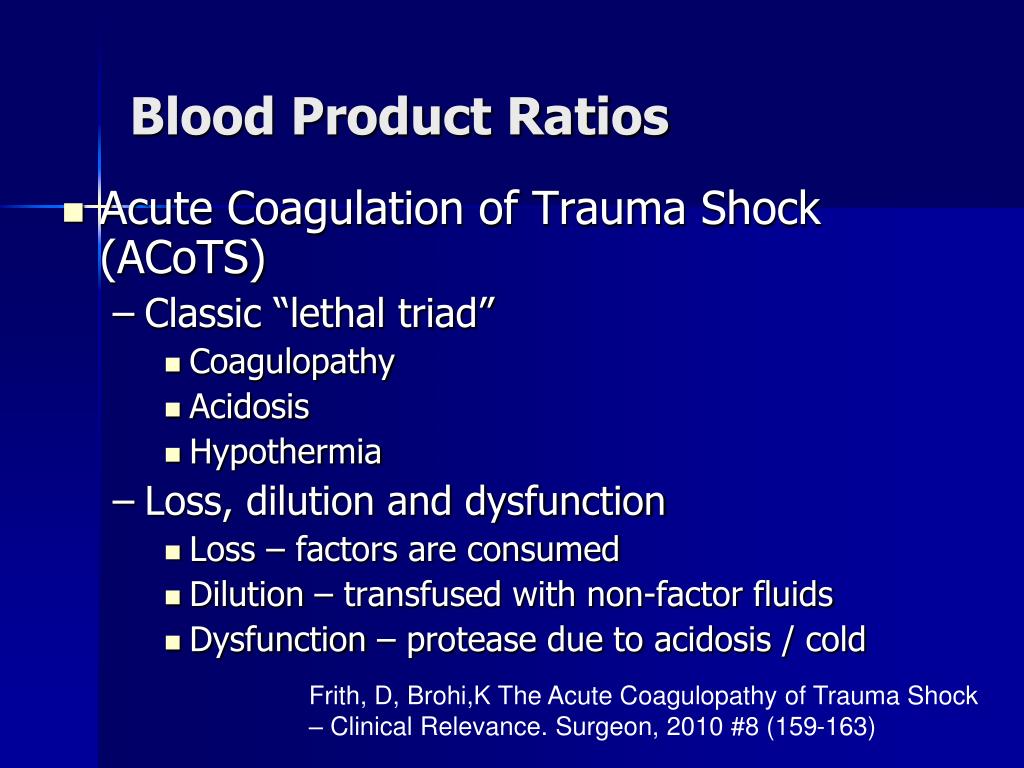

  • Acute Coagulation of Trauma Shock (ACoTS)
    • Classic “lethal triad”
      • Coagulopathy
      • Acidosis
      • Hypothermia
    • Loss, dilution and dysfunction
      • Loss – factors are consumed
      • Dilution – transfused with non-factor fluids
      • Dysfunction – protease due to acidosis / cold

Frith, D, Brohi,K The Acute Coagulopathy of Trauma Shock – Clinical Relevance. Surgeon, 2010 #8 (159-163)

blood product ratios1
Blood Product Ratios

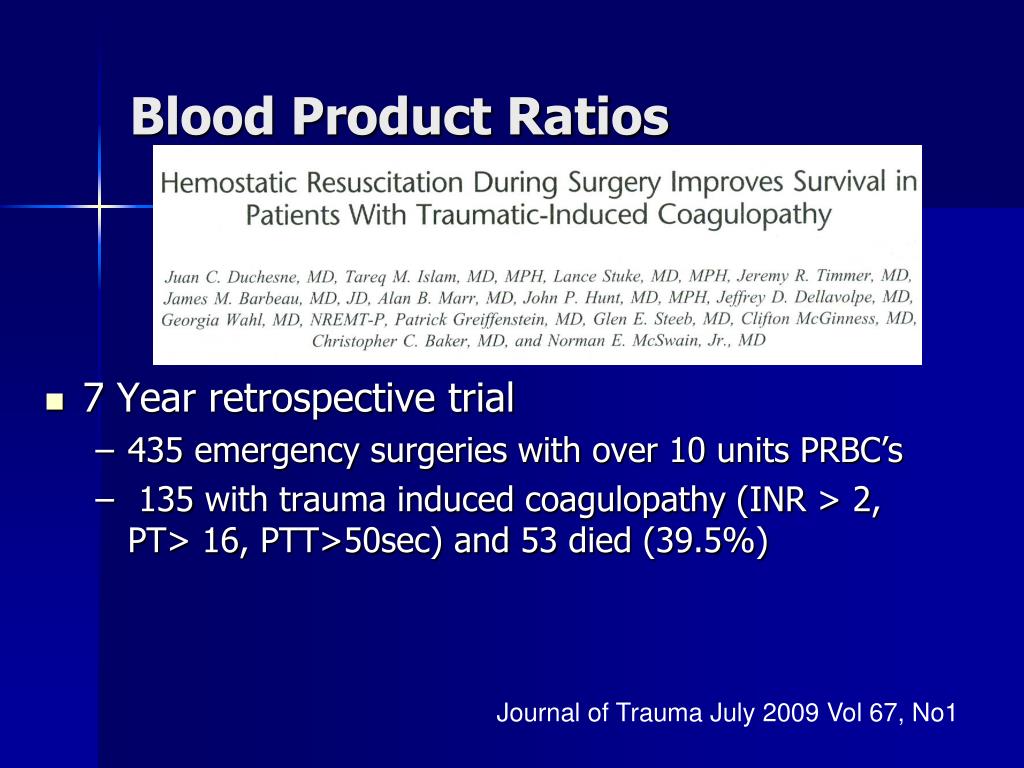

  • 7 Year retrospective trial
    • 435 emergency surgeries with over 10 units PRBC’s
    • 135 with trauma induced coagulopathy (INR > 2, PT> 16, PTT>50sec) and 53 died (39.5%)

Journal of Trauma July 2009 Vol 67, No1

blood product ratios2

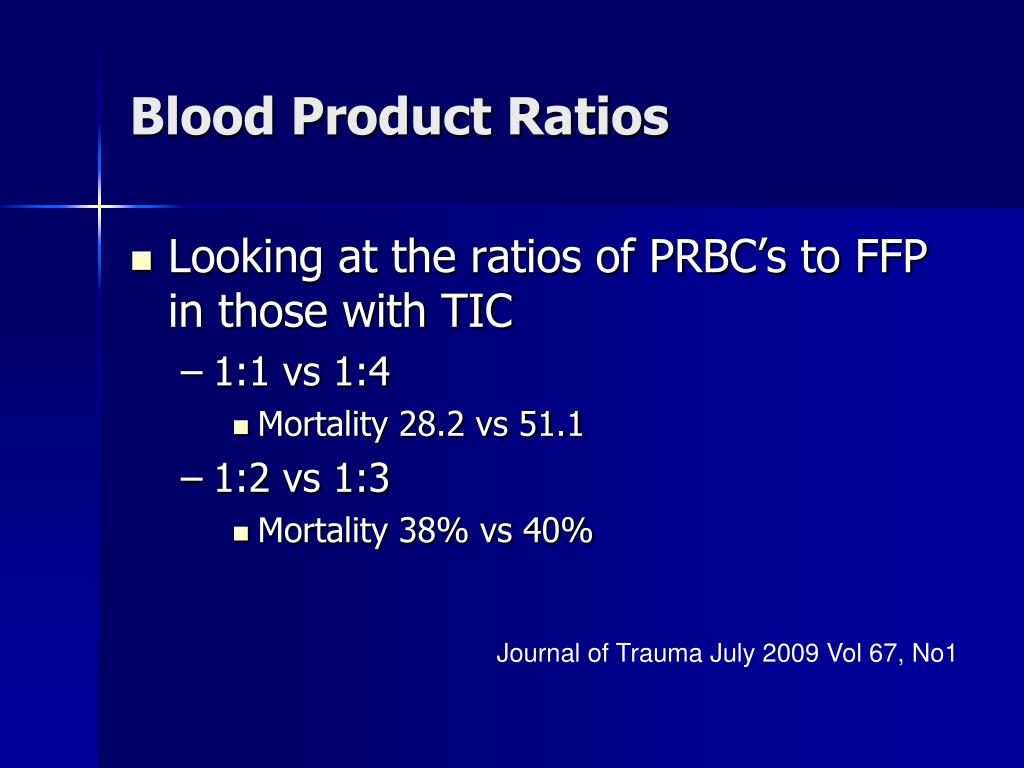

Blood Product Ratios
  • Looking at the ratios of PRBC’s to FFP in those with TIC
    • 1:1 vs 1:4
      • Mortality 28.2 vs 51.1
    • 1:2 vs 1:3
      • Mortality 38% vs 40%

Journal of Trauma July 2009 Vol 67, No1

blood product ratios3
Blood Product Ratios

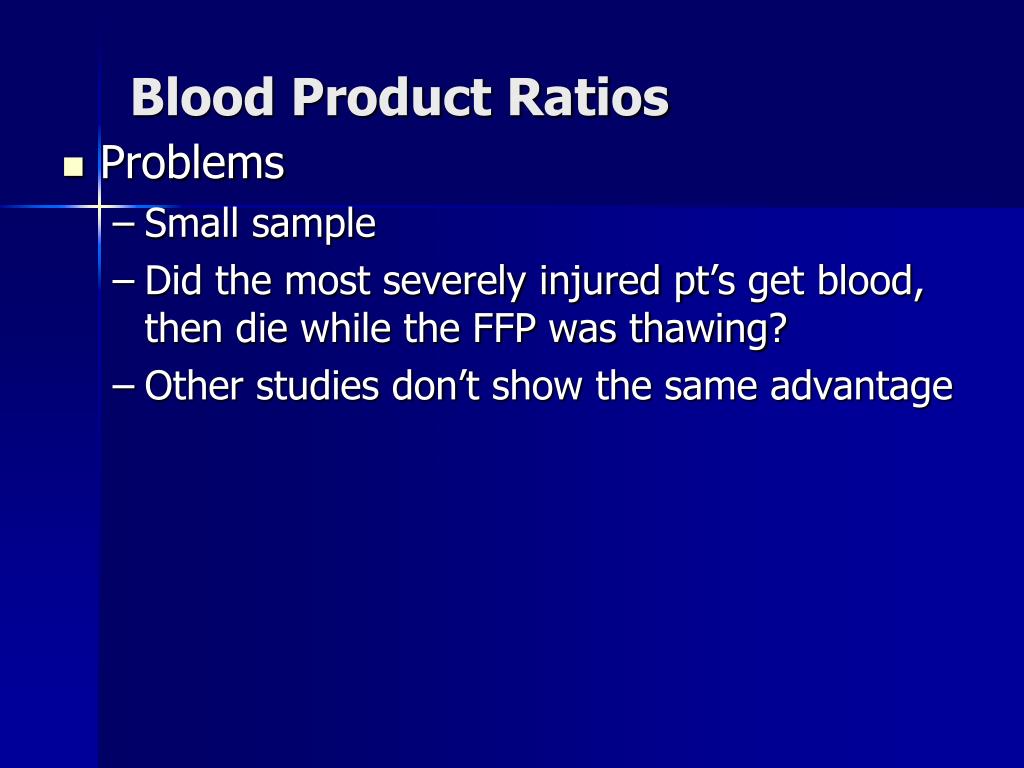

  • Problems
    • Small sample
    • Did the most severely injured pt’s get blood, then die while the FFP was thawing?
    • Other studies don’t show the same advantage
blood product ratios4
Blood Product Ratios

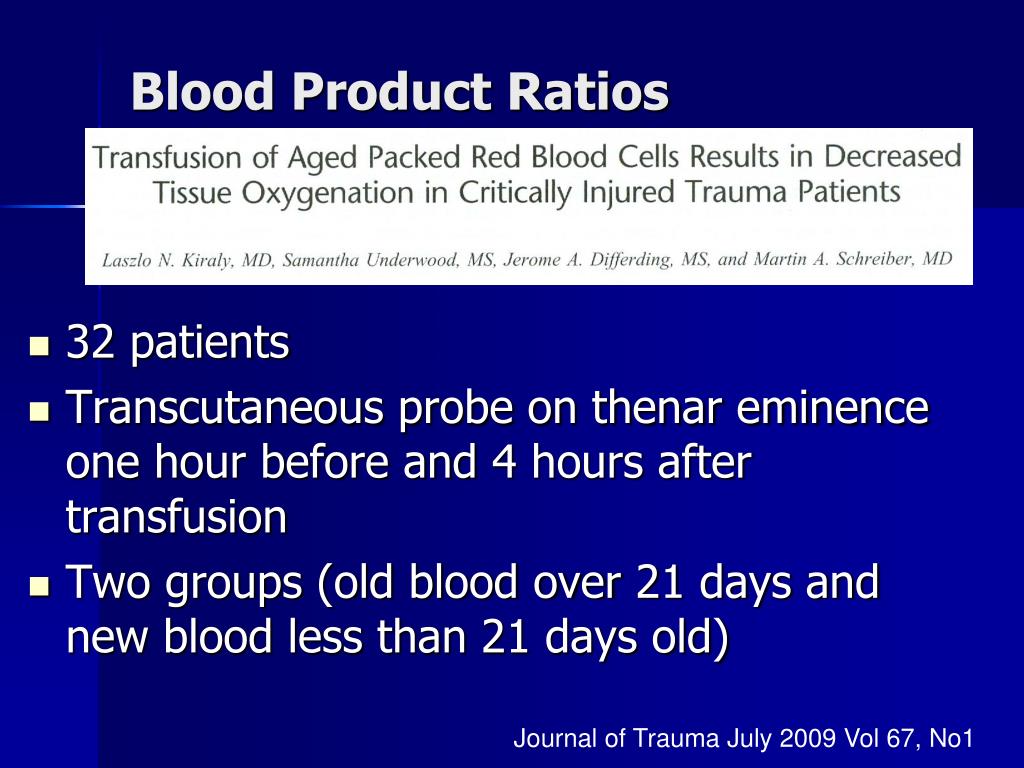

  • 32 patients
  • Transcutaneous probe on thenar eminence one hour before and 4 hours after transfusion
  • Two groups (old blood over 21 days and new blood less than 21 days old)

Journal of Trauma July 2009 Vol 67, No1

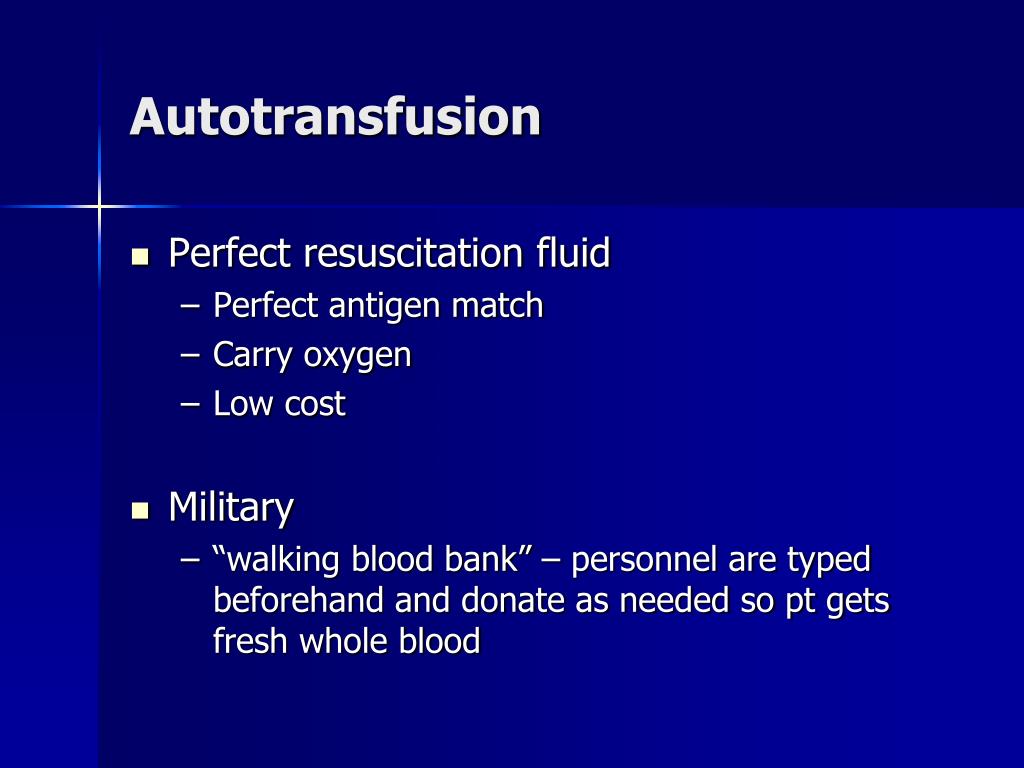

  • Perfect resuscitation fluid
    • Perfect antigen match
    • Carry oxygen
    • Low cost
  • Military
    • “walking blood bank” – personnel are typed beforehand and donate as needed so pt gets fresh whole blood

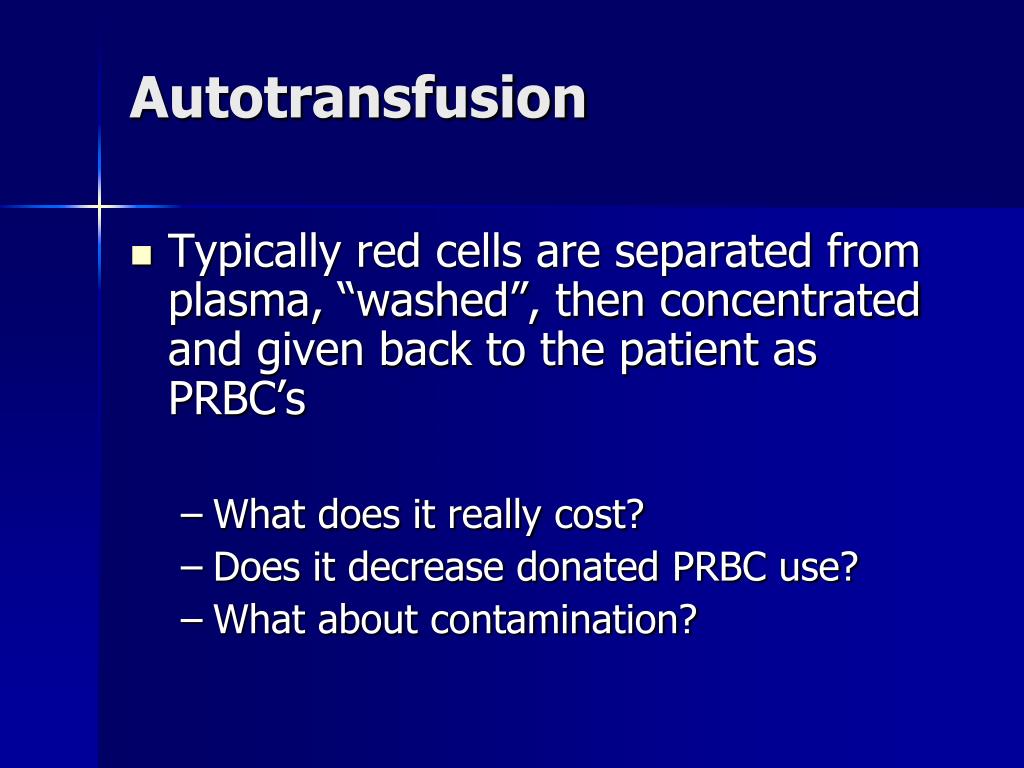

  • Typically red cells are separated from plasma, “washed”, then concentrated and given back to the patient as PRBC’s
    • What does it really cost?
    • Does it decrease donated PRBC use?
    • What about contamination?

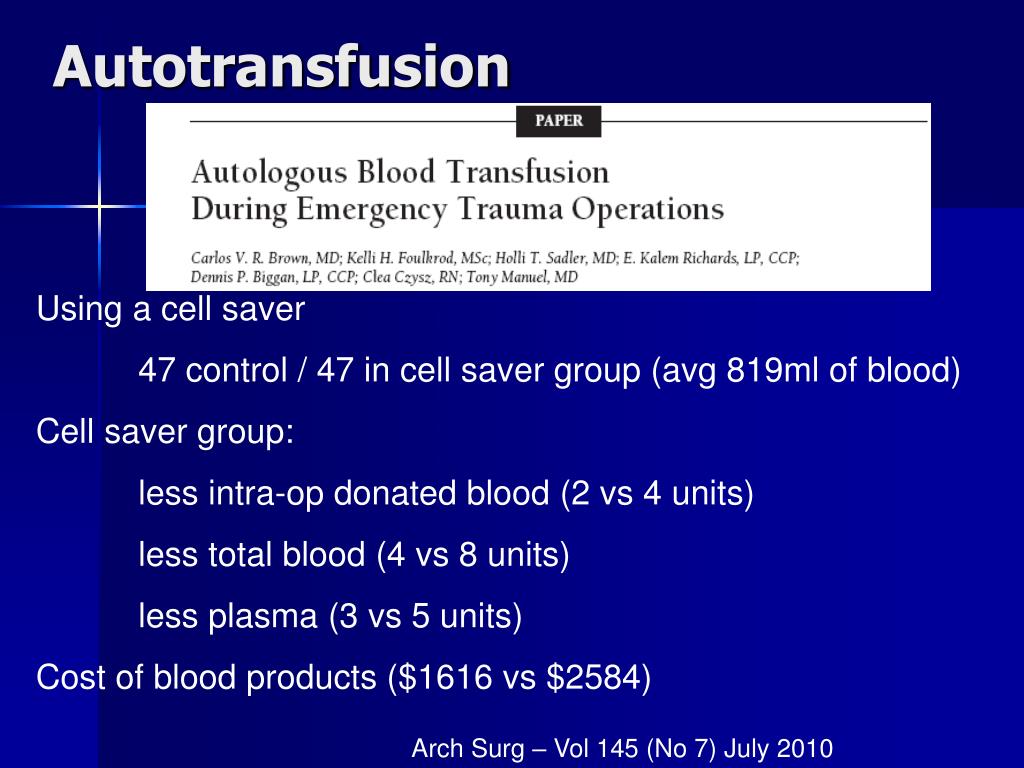

Using a cell saver

47 control / 47 in cell saver group (avg 819ml of blood)

Cell saver group:

less intra-op donated blood (2 vs 4 units)

less total blood (4 vs 8 units)

less plasma (3 vs 5 units)

Cost of blood products ($1616 vs $2584)

Arch Surg – Vol 145 (No 7) July 2010

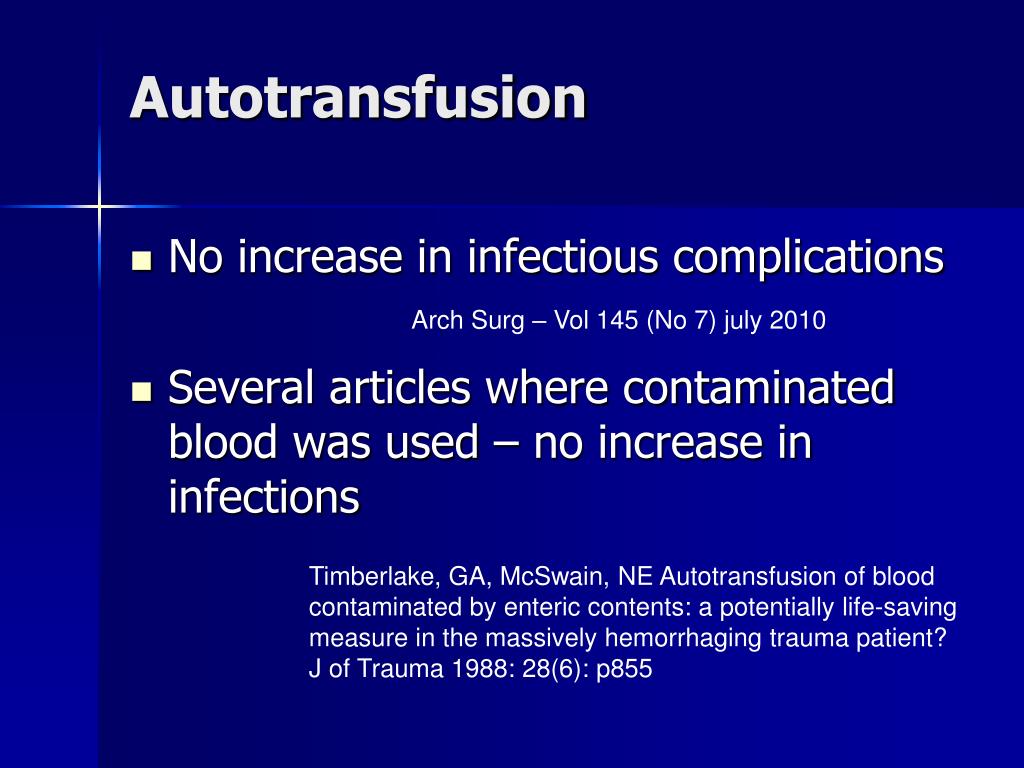

  • No increase in infectious complications
  • Several articles where contaminated blood was used – no increase in infections

Arch Surg – Vol 145 (No 7) july 2010

Timberlake, GA, McSwain, NE Autotransfusion of blood contaminated by enteric contents: a potentially life-saving measure in the massively hemorrhaging trauma patient? J of Trauma 1988: 28(6): p855

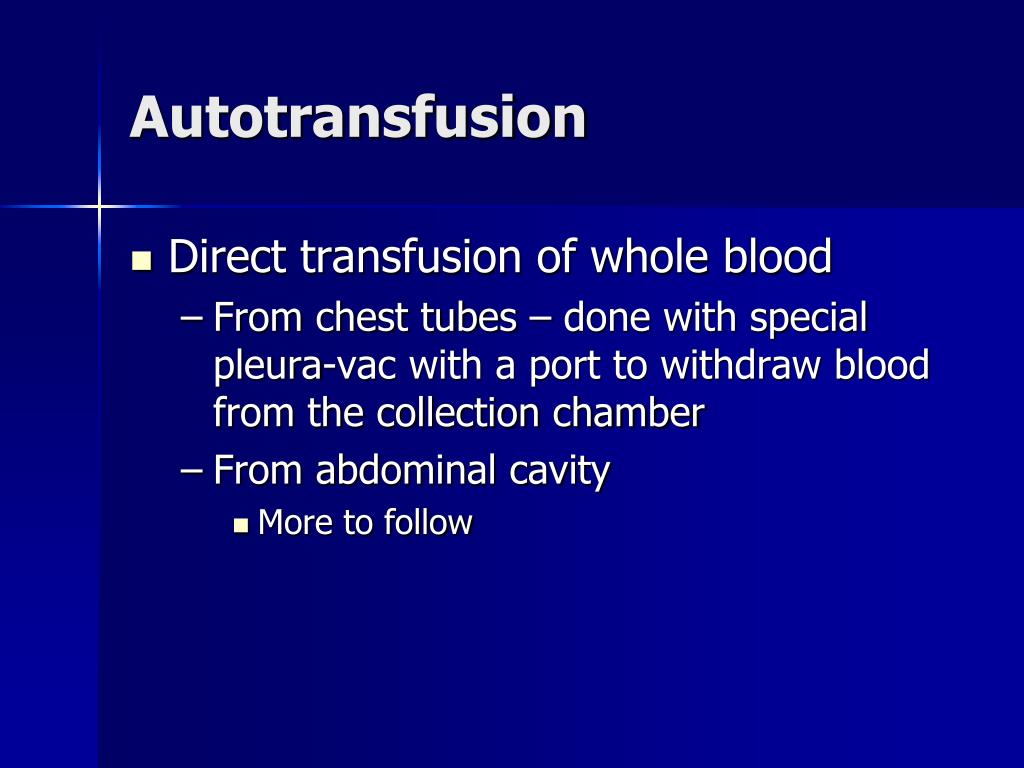

  • Direct transfusion of whole blood
    • From chest tubes – done with special pleura-vac with a port to withdraw blood from the collection chamber
    • From abdominal cavity
      • More to follow
end points of resuscitation

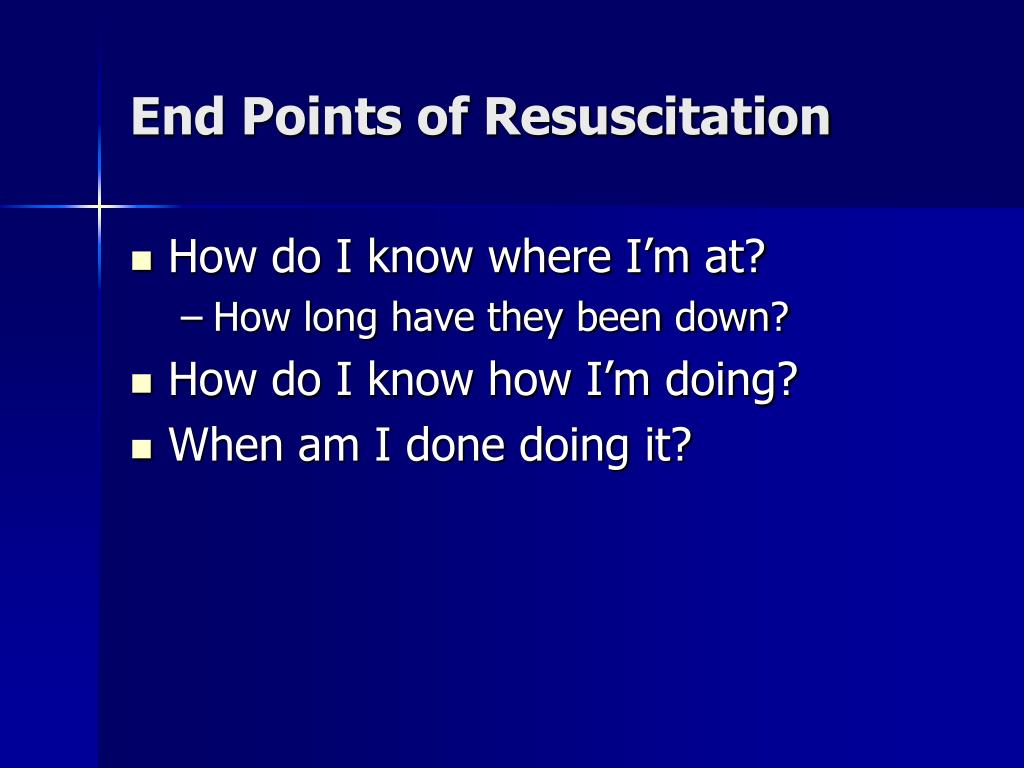

End Points of Resuscitation
  • How do I know where I’m at?
    • How long have they been down?
  • How do I know how I’m doing?
  • When am I done doing it?
end points of resuscitation1
End Points of Resuscitation

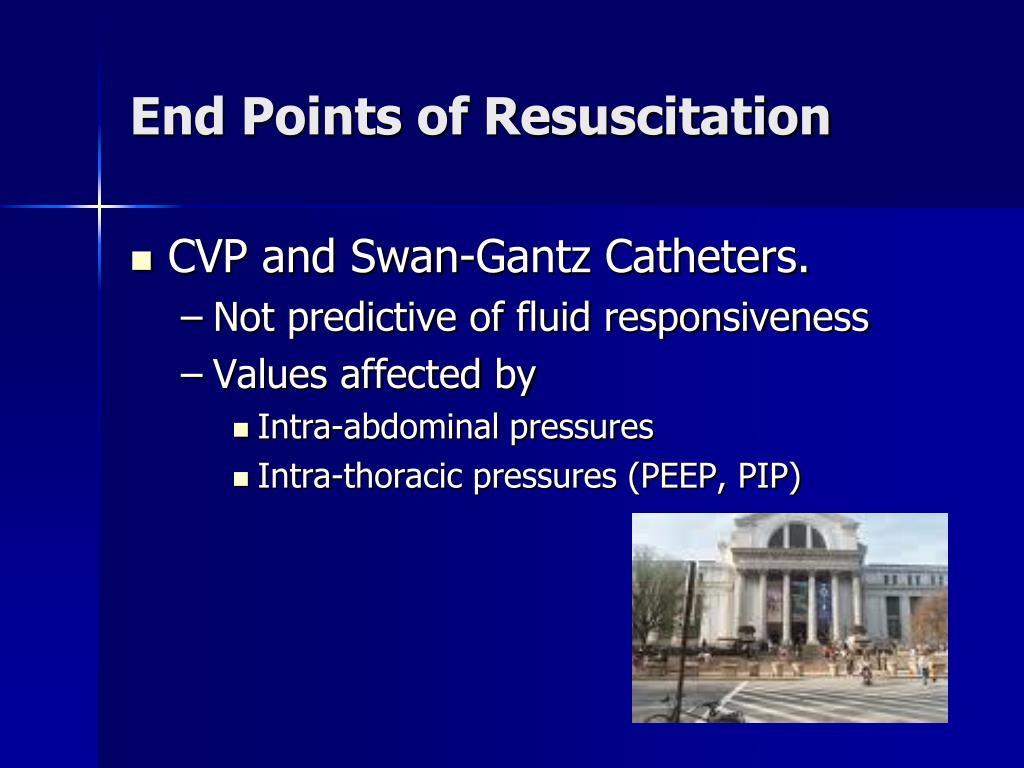

  • CVP and Swan-Gantz Catheters.
    • Not predictive of fluid responsiveness
    • Values affected by
      • Intra-abdominal pressures
      • Intra-thoracic pressures (PEEP, PIP)
end points of resuscitation2
End Points of Resuscitation
  • Base deficit – easy and fast
  • Lactate – easy but takes awhile to get results
  • Mixed venous saturation – requires special lines and equipment but gives a continuous reading
end points of resuscitation3
End Points of Resuscitation
  • Base deficit
    • Retrospective study to see who dropped their BP’s a second time after being hypotensive in the field but arriving normotensive (crumped)
      • 5 year period – 231 patients hypotensive in field but normotensive on arrival – 189 had BD’s

Bilello, JF et. al. Prehospital Hypotension in Blunt Trauma: Identifying the “Crump Factor.” Journal of Trauma. Dec 4, 2009 Epub.

end points of resuscitation4
End Points of Resuscitation
  • Base Deficit
    • Of the 189 patients
      • Base deficit of < or = to -6
        • Repeat hypotension 78% vs 30%
      • Repeat hypotension
        • Mortality of 24% vs 5%

Bilello, JF et. al. Prehospital Hypotension in Blunt Trauma: Identifying the “Crump Factor.” Journal of Trauma. Dec 4, 2009 Epub

so what do i do
So, what do I do…
  • Alpha trauma
    • All get an ABG and serum lactate on arrival
      • Base deficit over 6 causes concern.
    • Hypotension
      • SBP in 80’s – 500cc of 3% hypertonic saline
    • Head injury
      • Even a suspicion get hypertonic
so what do i do1
So, what do I do…
  • Quick to find source of bleeding
    • If chest – chest tube with rapid autotransfusion of output
    • Abdomen – (FAST ultrasound) then quickly to OR (cell saver if time)
    • Colley Ave. – Source control
      • HTS, 1-2 liters of LR then to blood
        • If more than 3-4 units of blood, then FFP
so what do i do2
So, what do I do…
  • In my head I’m counting crystalloid
  • Pressure bag and a cordis can be trouble, especially if we go to CT.
    • I don’t want more than 2-3 liters before OR
    • OK to have SBP in 80-90’s (especially if talking)
    • OK to use some hespan (500-1000cc) in work-up and in OR
so what do i do3
So, what do I do…
  • In the OR I try to tell anesthesia if we are still bleeding and when we have it stopped
  • Hopefully by this time the FFP is thawed and can start to catch up to 1:1
  • If pt is unstable I give myself 1 hour on the clock to get out of OR
    • Blue towel closure
    • Upstairs to BTU
    • Come back to fight later
