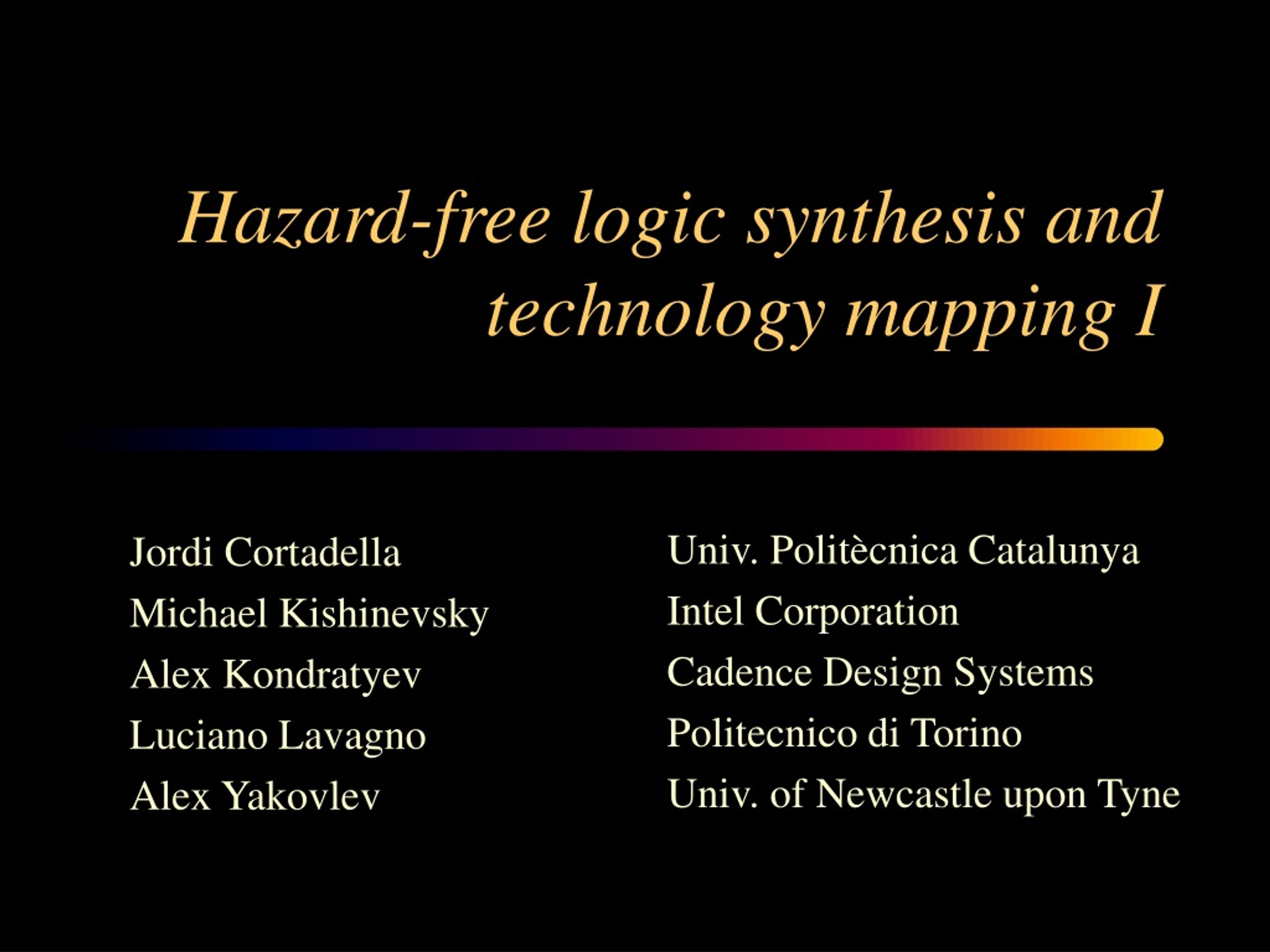

  1. Hazard-free logic synthesis and technology mapping I Univ. Politècnica Catalunya Intel Corporation Cadence Design Systems Politecnico di Torino Univ. of Newcastle upon Tyne Jordi Cortadella Michael Kishinevsky Alex Kondratyev Luciano Lavagno Alex Yakovlev

  2. Outline • Overview of the synthesis flow • Specification • State graph and next-state functions • State encoding • Implementability conditions • Speed-independent circuit • Complex gates • C-element architecture • Review of advanced topics

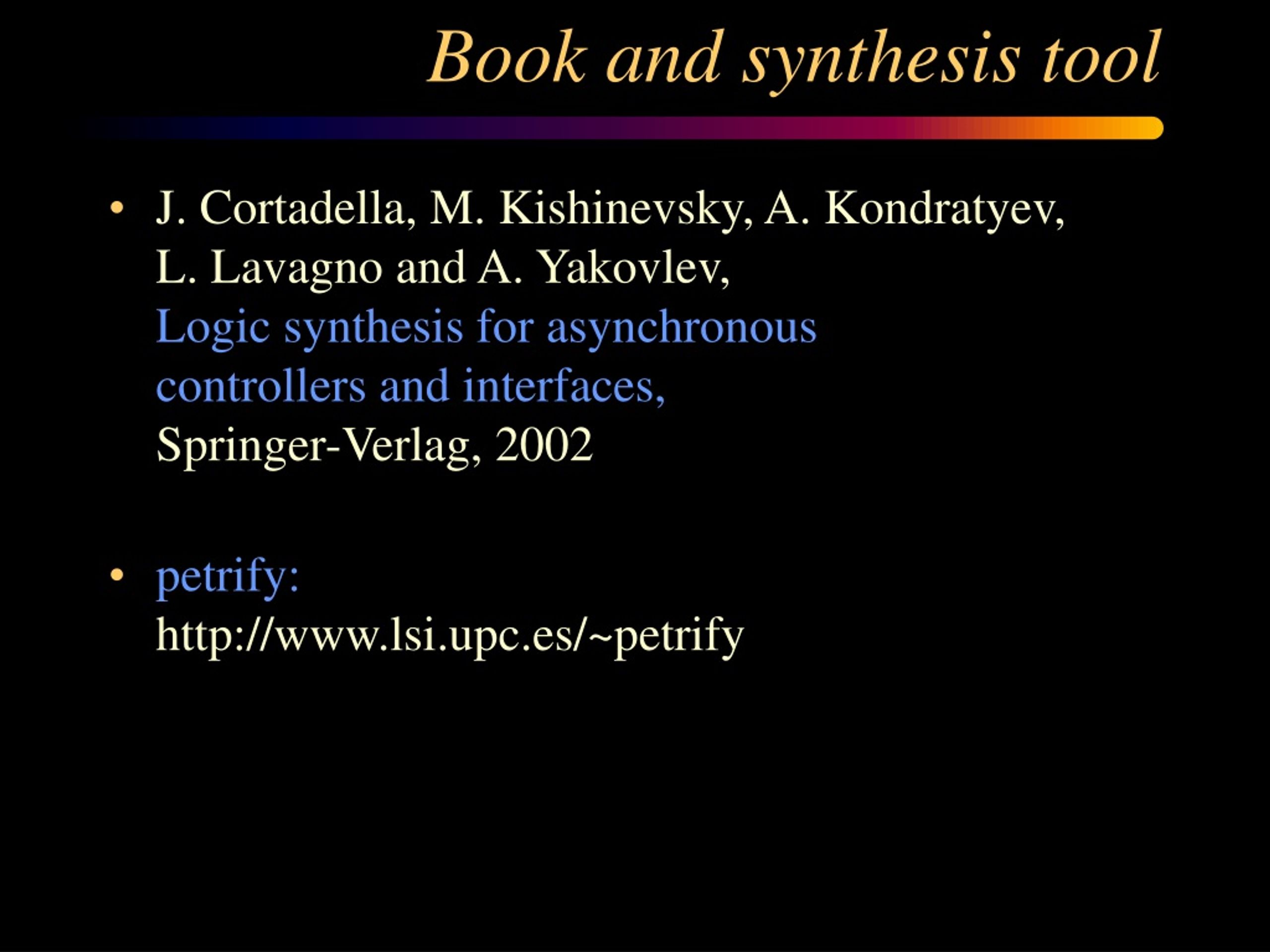

  3. Book and synthesis tool • J. Cortadella, M. Kishinevsky, A. Kondratyev,L. Lavagno and A. Yakovlev,Logic synthesis for asynchronouscontrollers and interfaces,Springer-Verlag, 2002 • petrify:http://www.lsi.upc.es/~petrify

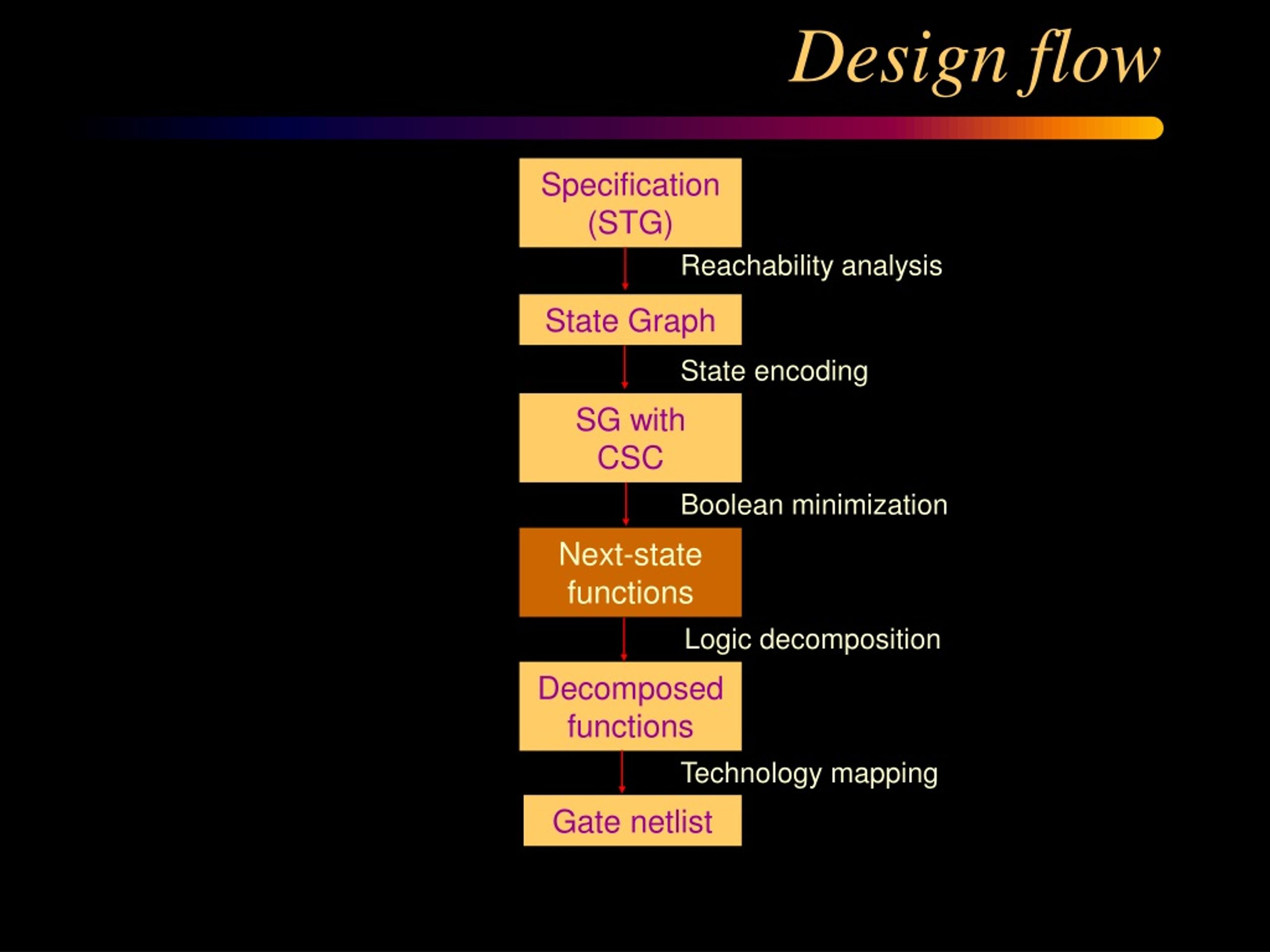

  4. Design flow Specification(STG) Reachability analysis State Graph State encoding SG withCSC Boolean minimization Next-state functions Logic decomposition Decomposed functions Technology mapping Gate netlist

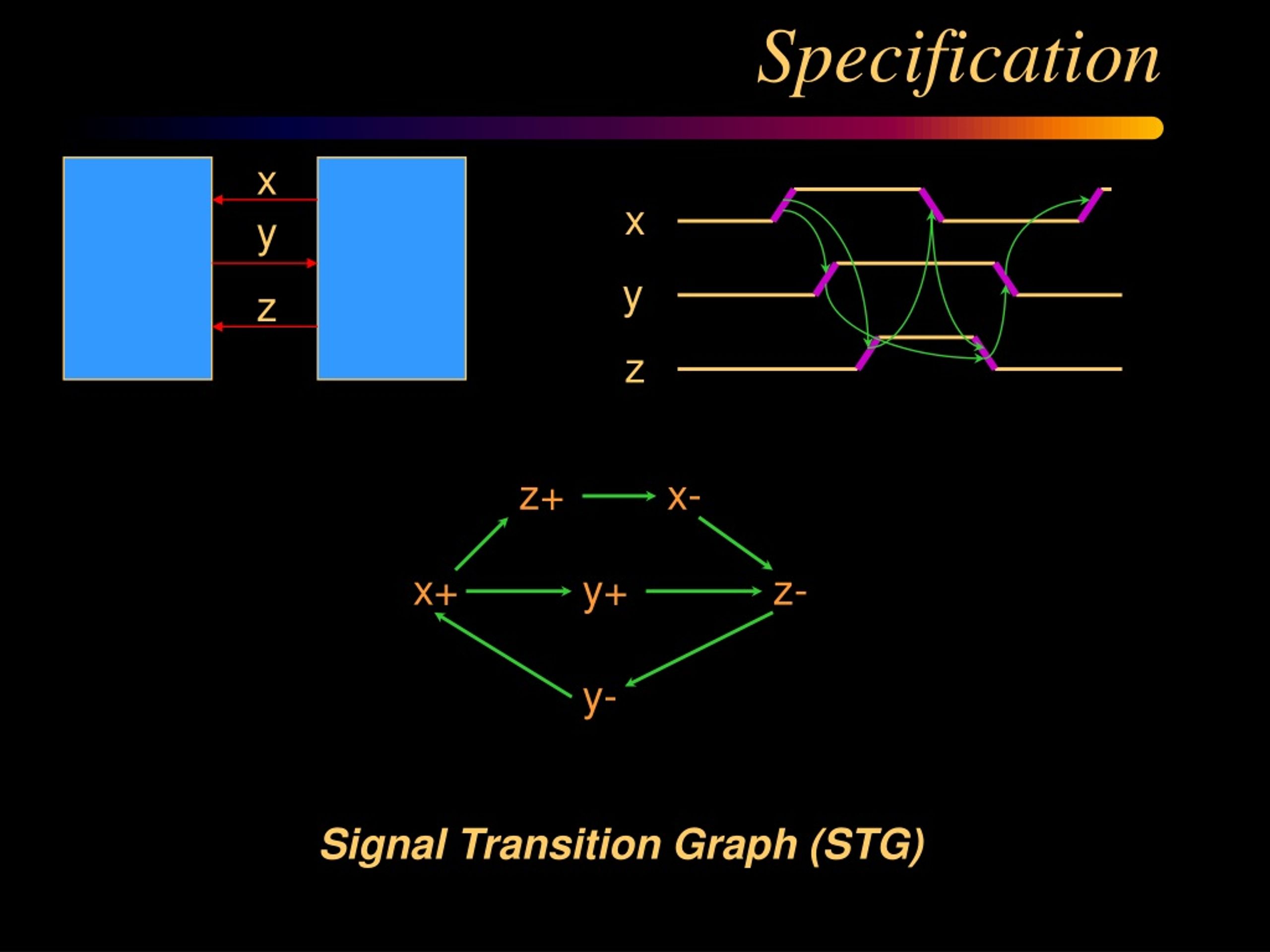

  5. Specification x x y y z z z+ x- x+ y+ z- y- Signal Transition Graph (STG)

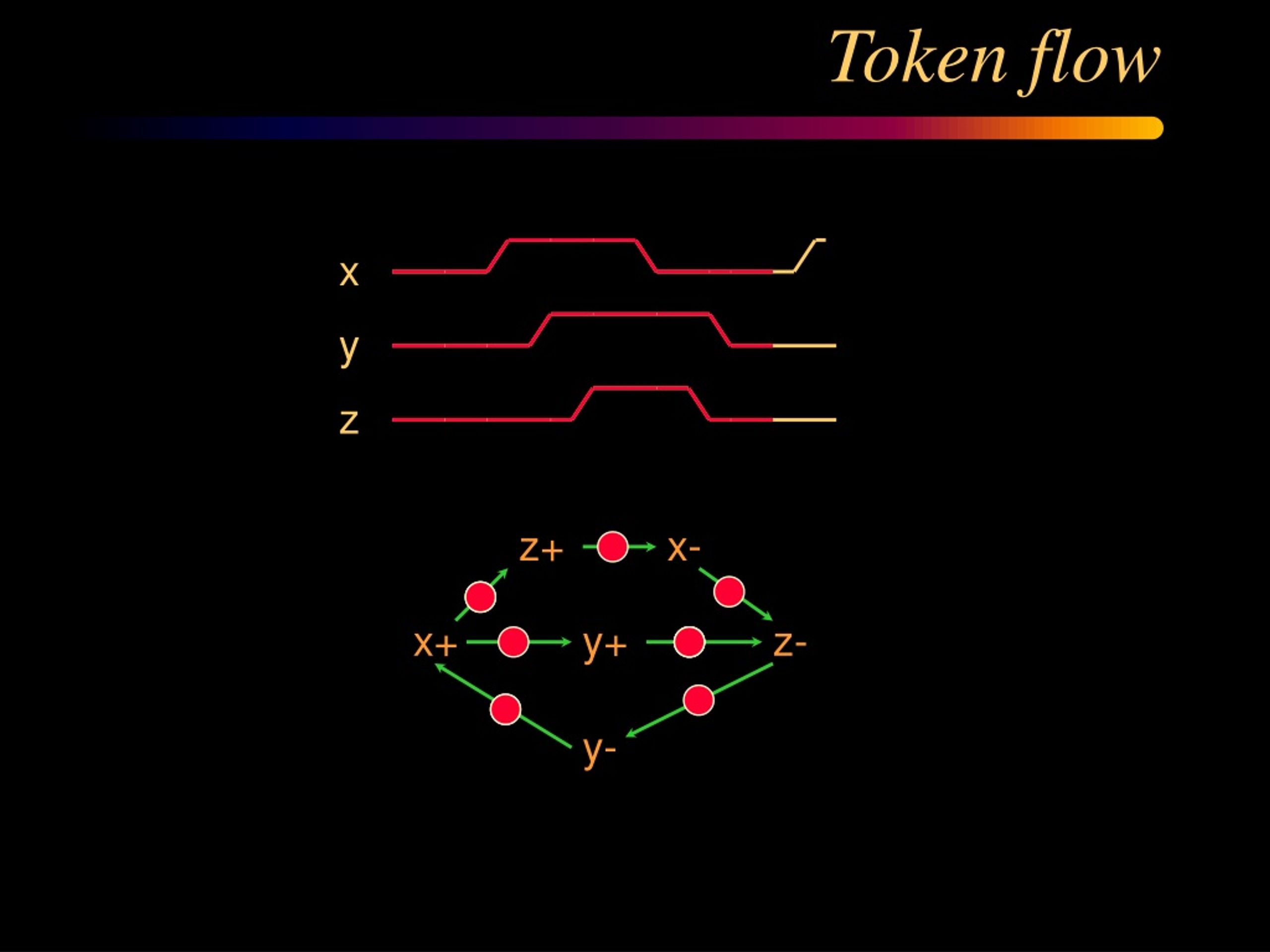

  6. x y z z+ x- x+ y+ z- y- Token flow

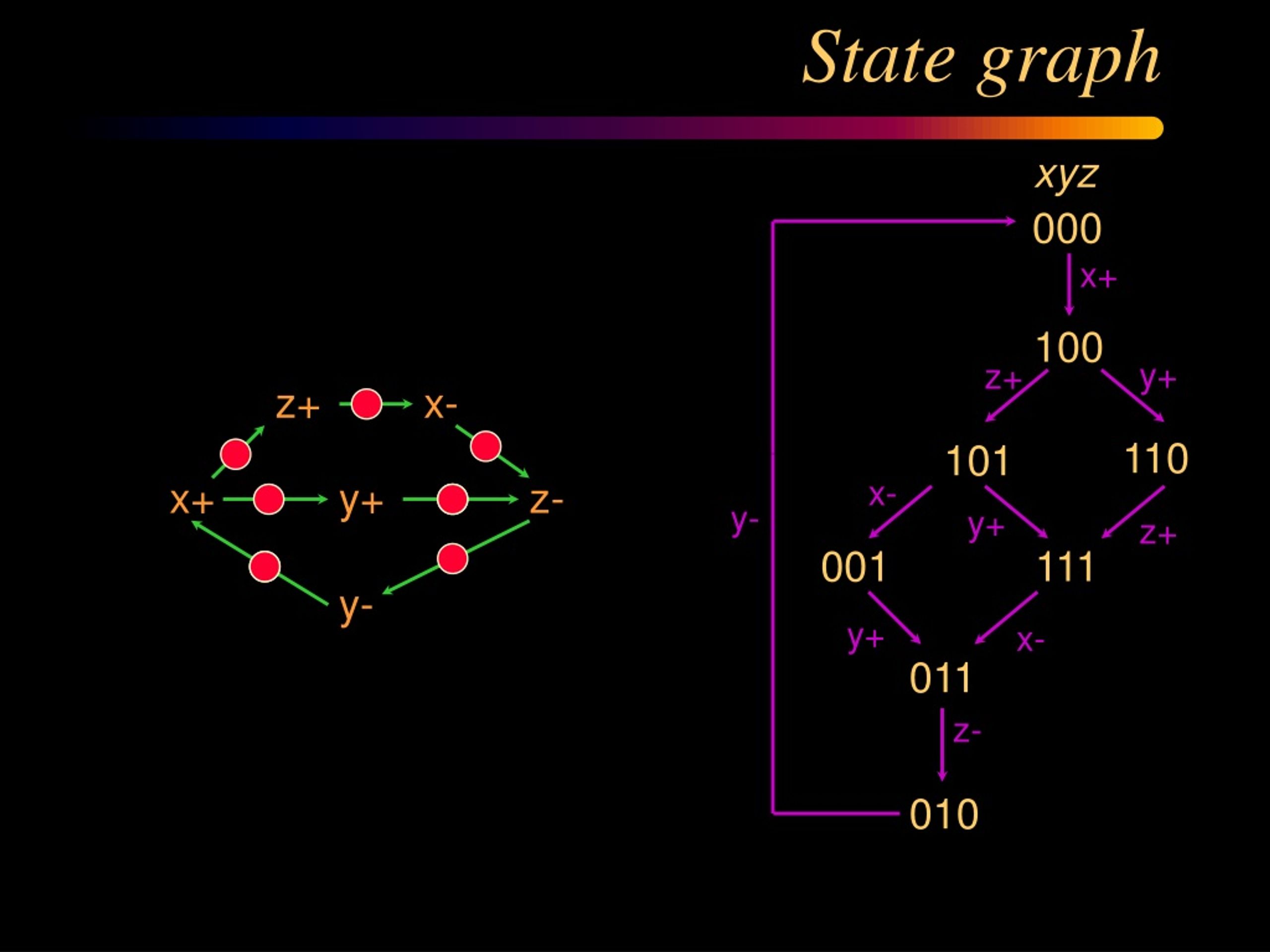

  7. xyz 000 x+ 100 y+ z+ z+ x- 110 101 x- x+ y+ z- y- y+ z+ 001 111 y- y+ x- 011 z- 010 State graph

  8. xyz 000 x+ 100 y+ z+ 110 101 x- y- y+ z+ 001 111 y+ x- 011 z- 010 Next-state functions

  9. Gate netlist x y z

  10. Design flow Specification(STG) Reachability analysis State Graph State encoding SG withCSC Boolean minimization Next-state functions Logic decomposition Decomposed functions Technology mapping Gate netlist

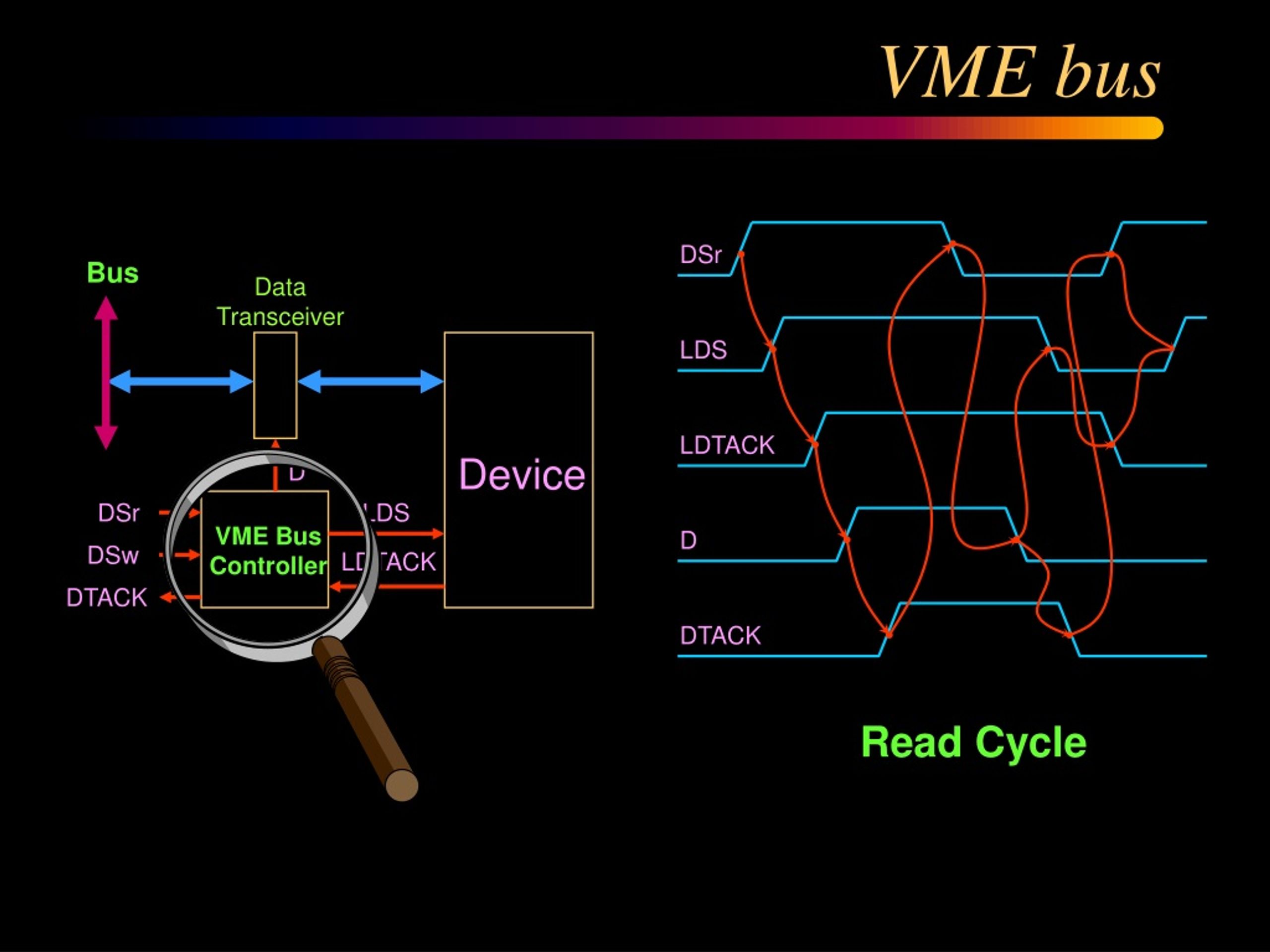

  11. Bus Data Transceiver DSr LDS Device D LDTACK DSr LDS VME Bus Controller DSw LDTACK D DTACK DTACK Read Cycle VME bus

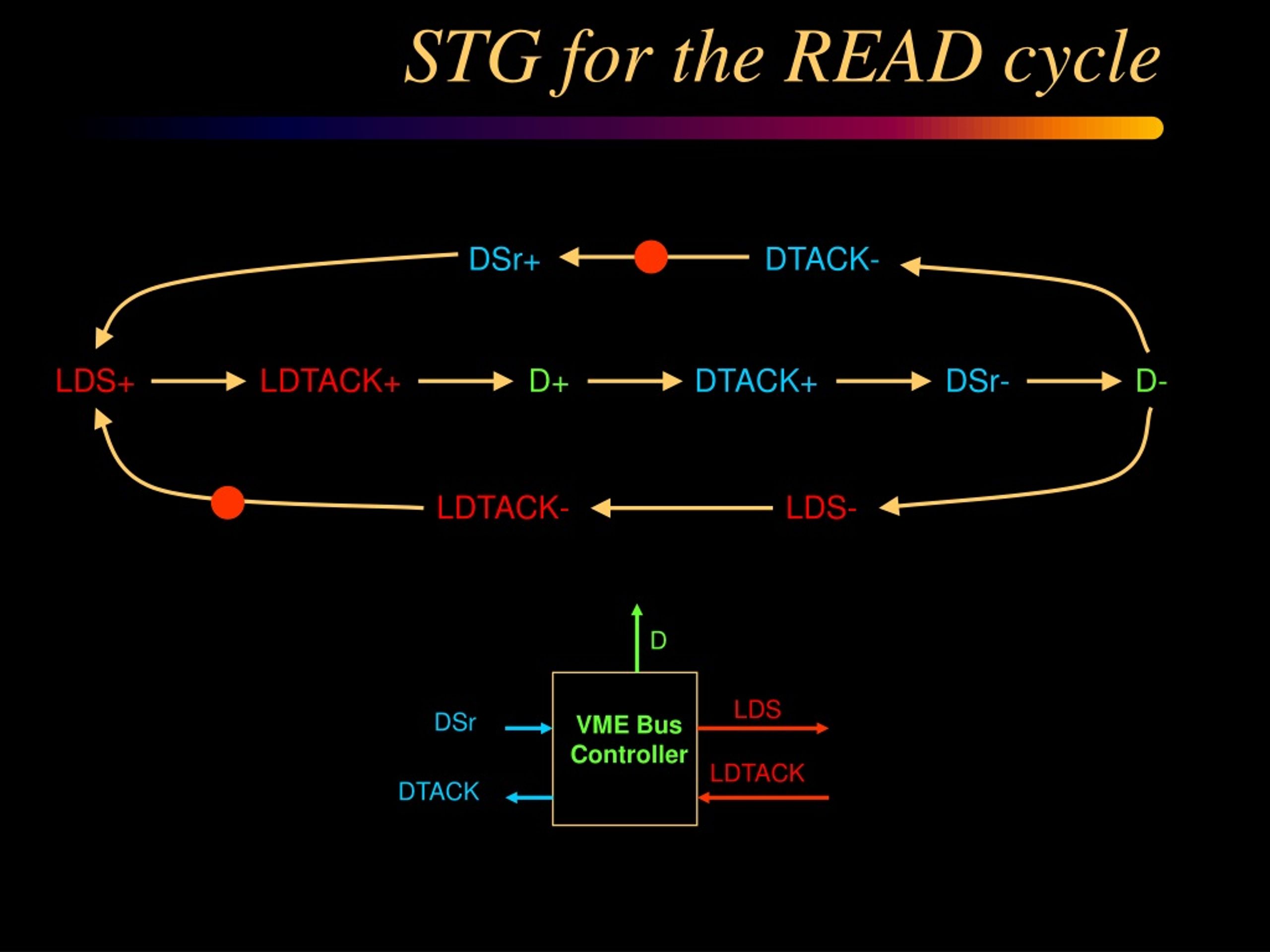

  12. STG for the READ cycle DSr+ DTACK- LDS+ LDTACK+ D+ DTACK+ DSr- D- LDTACK- LDS- D LDS DSr VME Bus Controller LDTACK DTACK

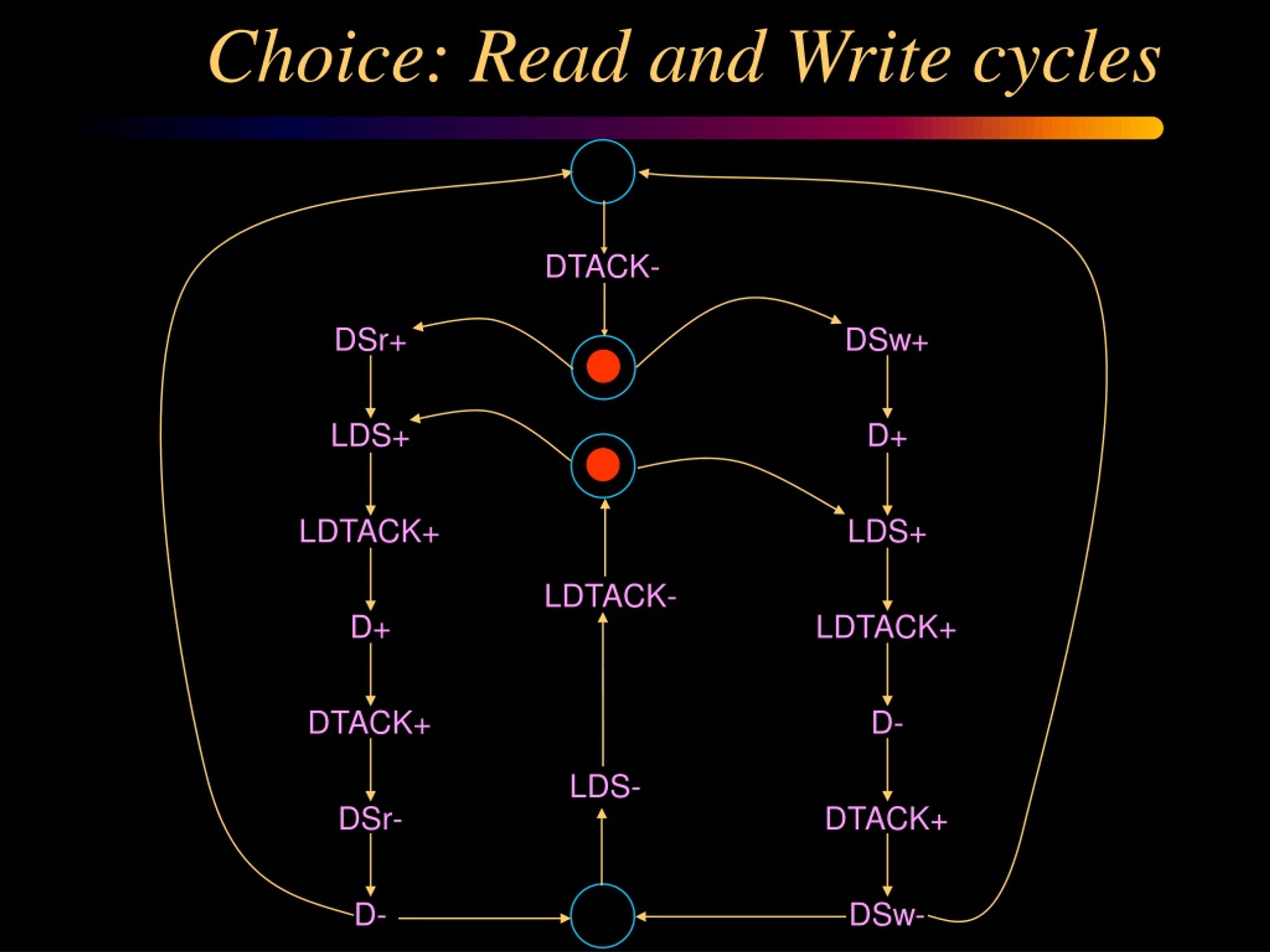

  13. LDTACK- DTACK- DTACK- LDTACK- LDS- LDS- Choice: Read and Write cycles DSr+ DSw+ LDS+ D+ LDTACK+ LDS+ D+ LDTACK+ DTACK+ D- DSr- DTACK+ D- DSw-

  14. DTACK- DSr+ DSw+ LDS+ D+ LDTACK+ LDS+ LDTACK- D+ LDTACK+ DTACK+ D- LDS- DSr- DTACK+ D- DSw- Choice: Read and Write cycles

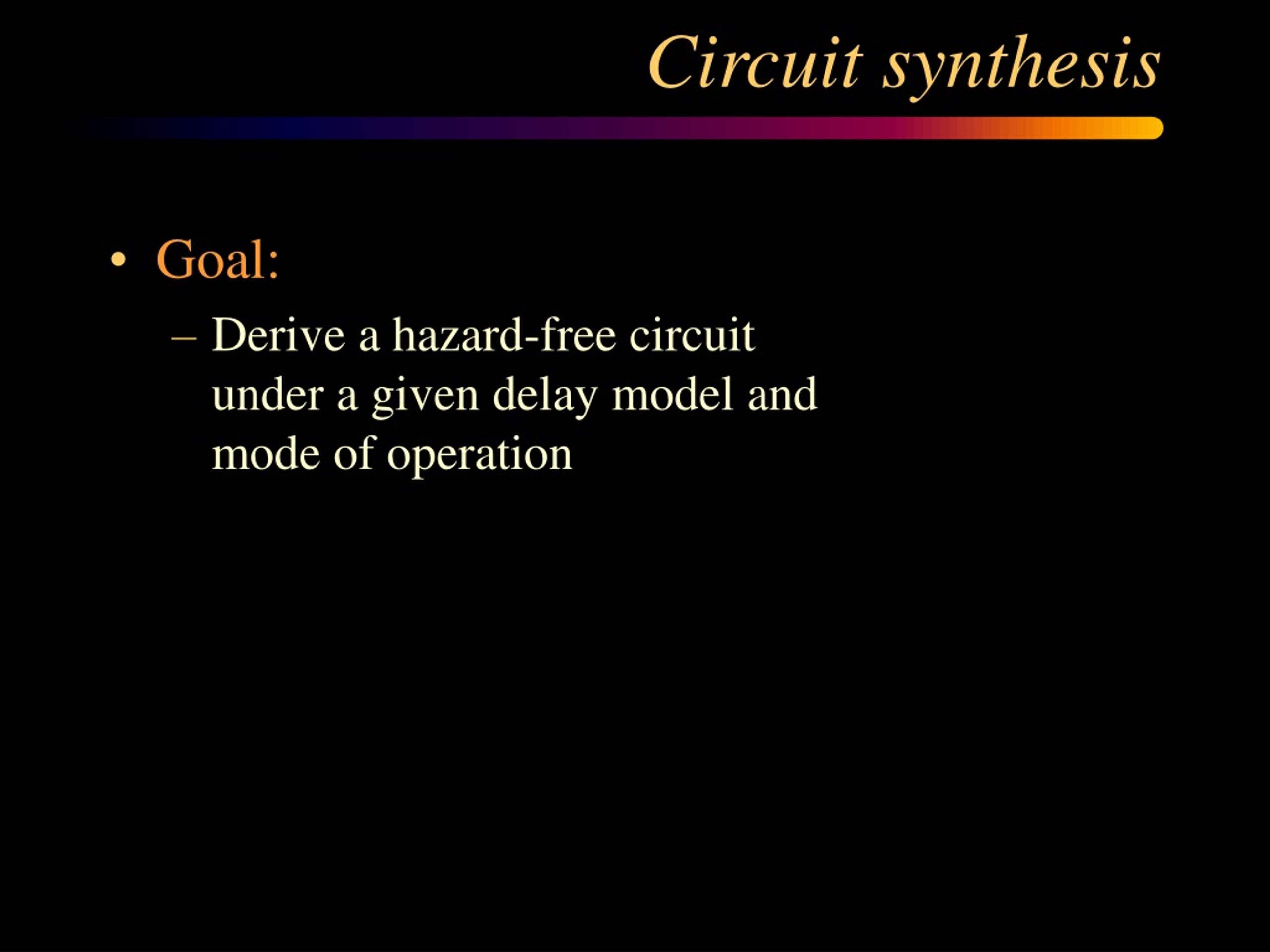

  15. Circuitsynthesis • Goal: • Derive a hazard-free circuitunder a given delay model andmode of operation

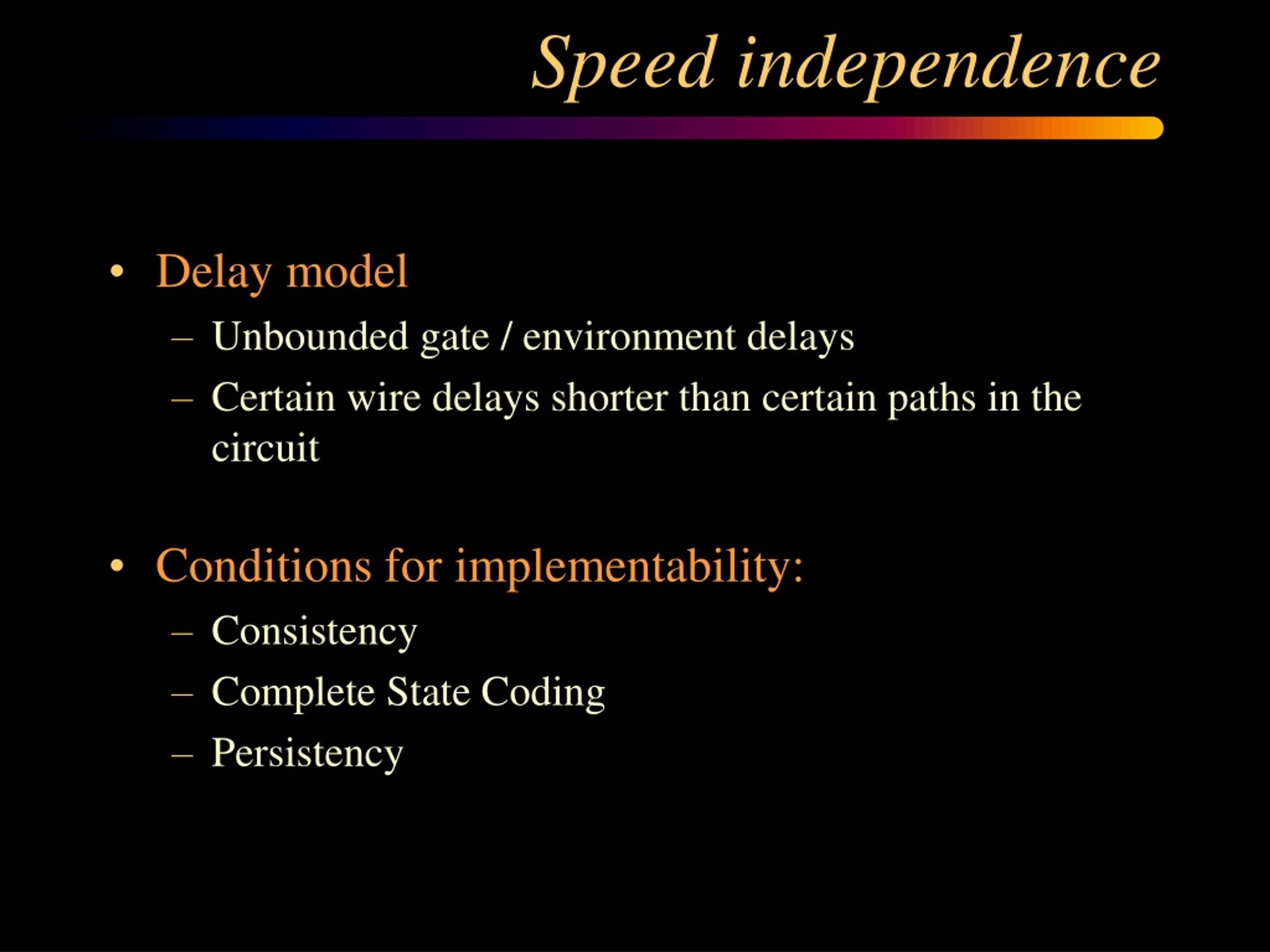

  16. Speed independence • Delay model • Unbounded gate / environment delays • Certain wire delays shorter than certain paths in the circuit • Conditions for implementability: • Consistency • Complete State Coding • Persistency

  17. Design flow Specification(STG) Reachability analysis State Graph State encoding SG withCSC Boolean minimization Next-state functions Logic decomposition Decomposed functions Technology mapping Gate netlist

  18. STG for the READ cycle DSr+ DTACK- LDS+ LDTACK+ D+ DTACK+ DSr- D- LDTACK- LDS- D LDS DSr VME Bus Controller LDTACK DTACK

  19. LDS + LDS = 0 LDS - LDS = 1 Binary encoding of signals DSr+ DTACK- LDS+ LDTACK- LDTACK- LDTACK- DSr+ DTACK- LDS- LDS- LDS- LDTACK+ DSr+ DTACK- D+ D- DTACK+ DSr-

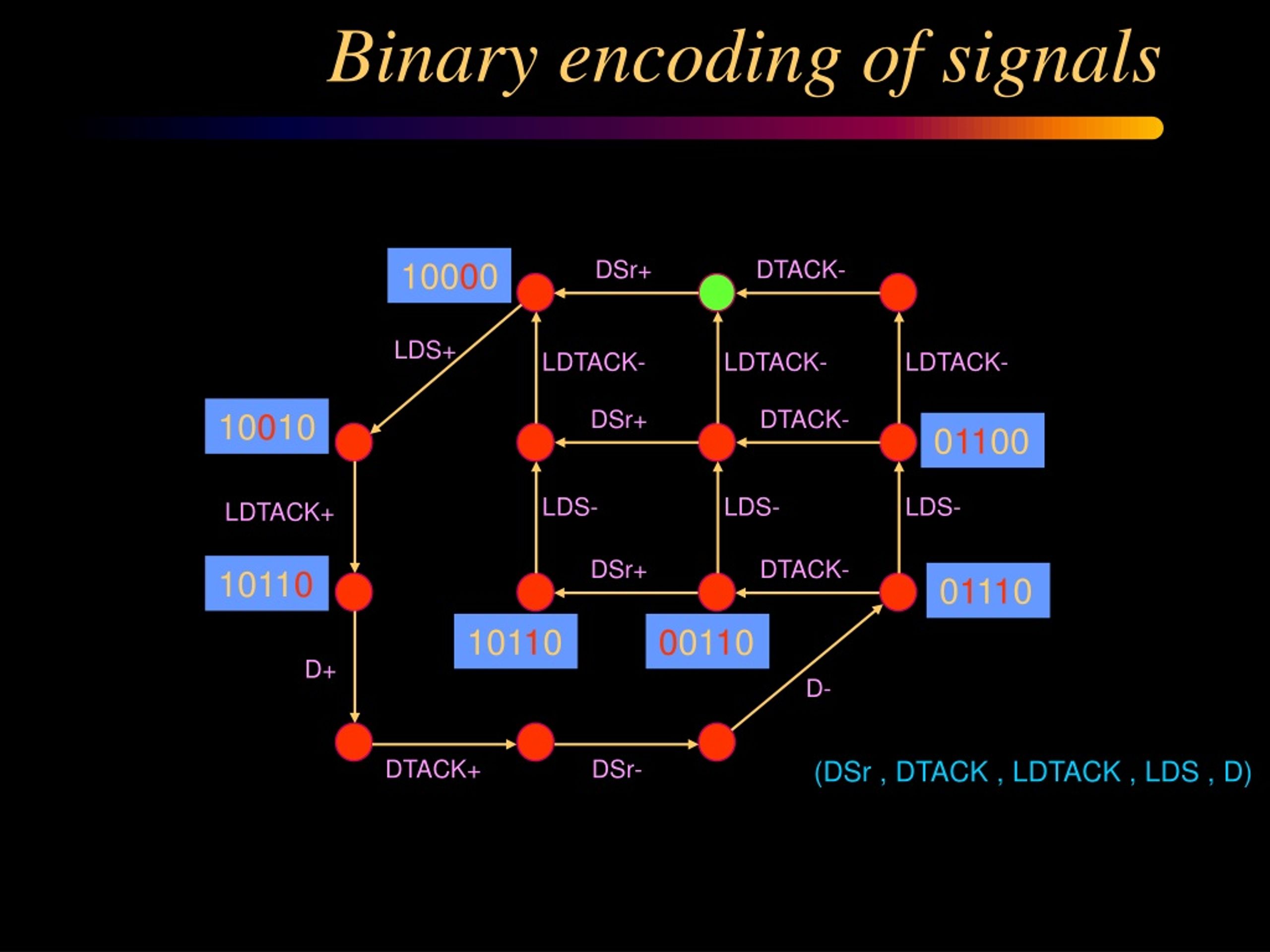

  20. 01100 00110 Binary encoding of signals 10000 DSr+ DTACK- LDS+ LDTACK- LDTACK- LDTACK- DSr+ DTACK- 10010 LDS- LDS- LDS- LDTACK+ DSr+ DTACK- 10110 01110 10110 D+ D- DTACK+ DSr- (DSr , DTACK , LDTACK , LDS , D)

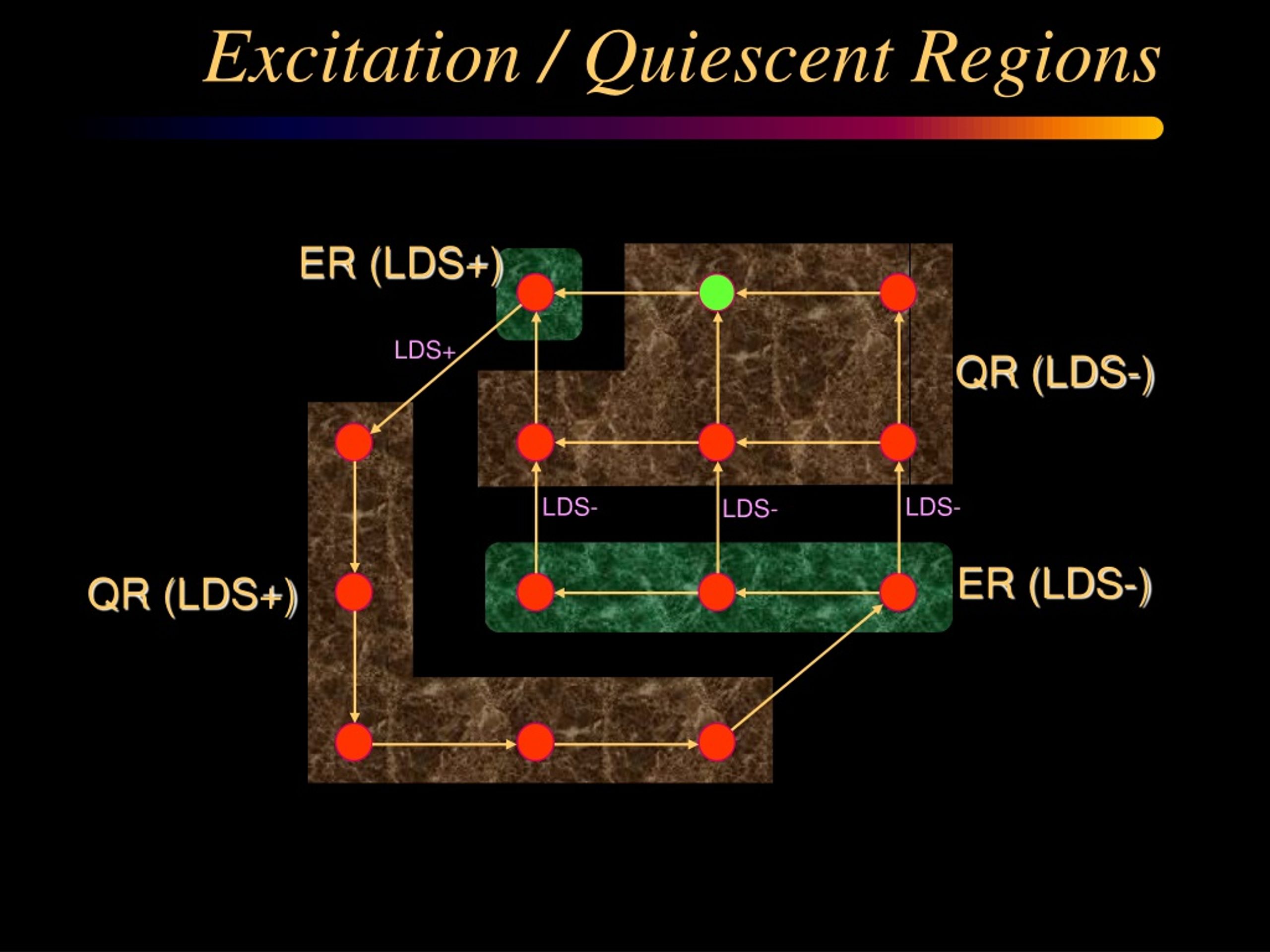

  21. ER (LDS+) LDS+ QR (LDS-) LDS- LDS- LDS- ER (LDS-) QR (LDS+) Excitation / Quiescent Regions

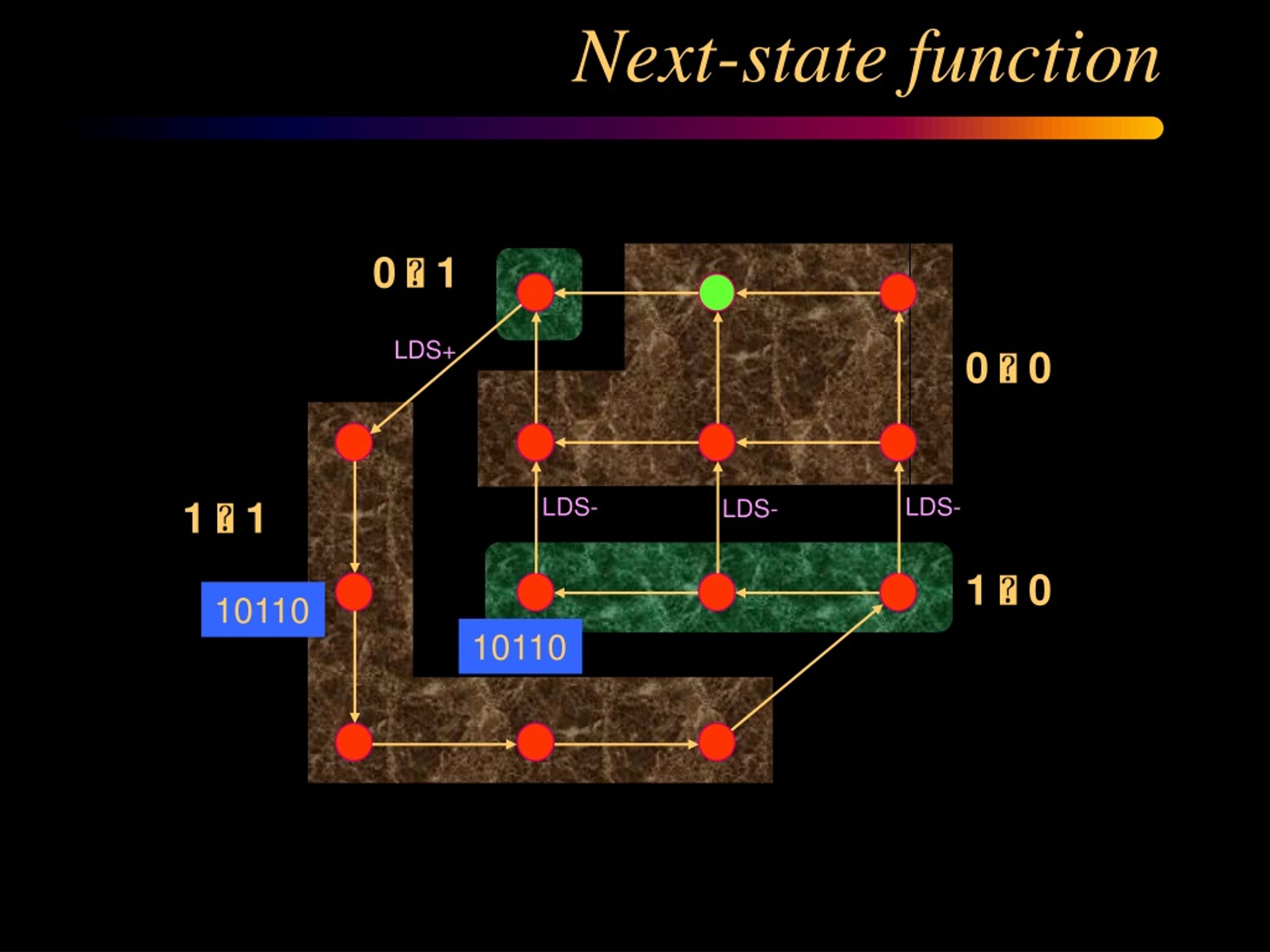

  22. LDS+ LDS- LDS- LDS- 10110 10110 Next-state function 0  1 0  0 1  1 1  0

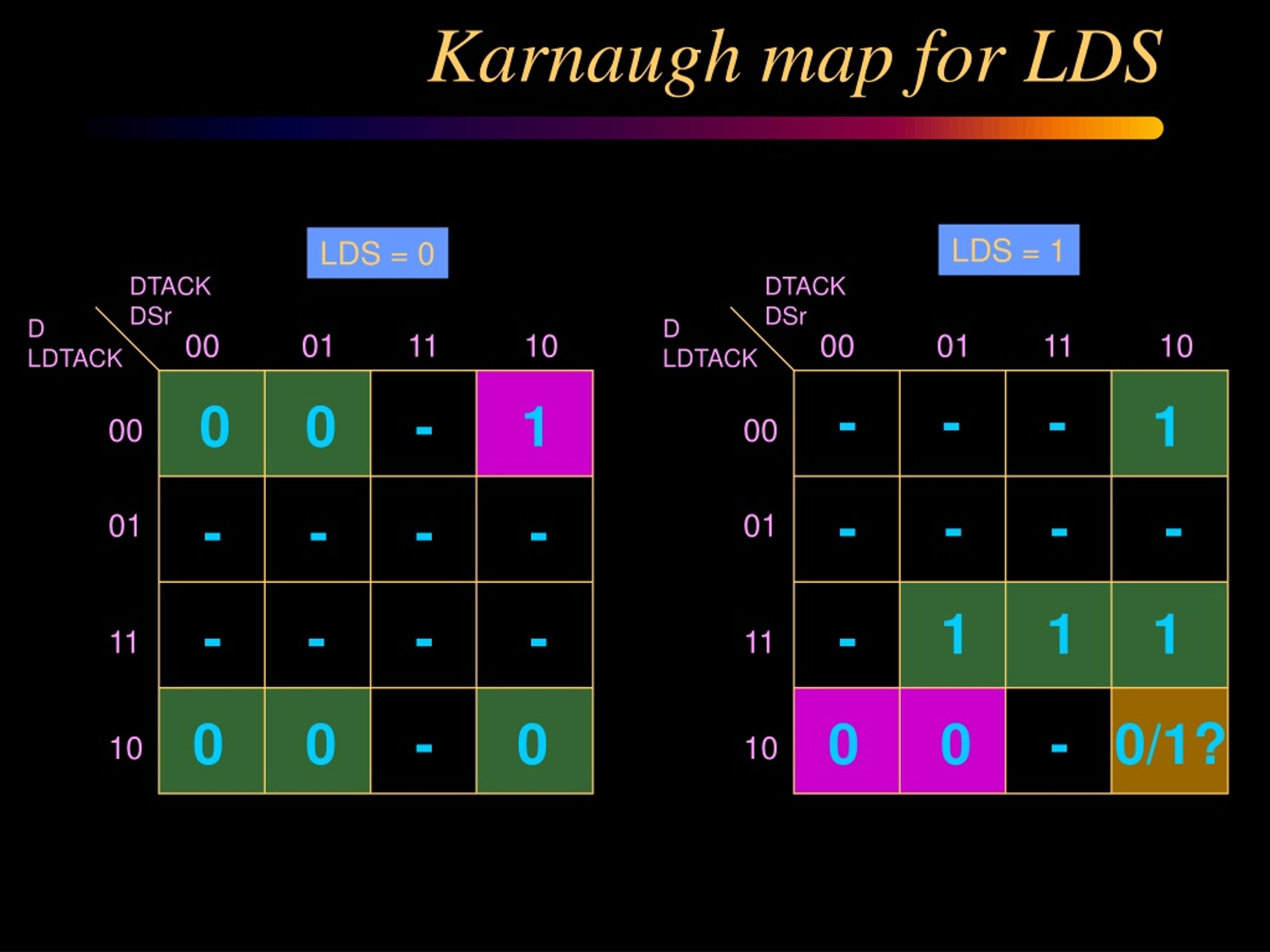

  23. DTACK DSr DTACK DSr D LDTACK D LDTACK 00 00 01 01 11 11 10 10 00 00 01 01 11 11 10 10 Karnaugh map for LDS LDS = 1 LDS = 0 - - - 0 0 - 1 1 - - - - - - - - 1 1 1 - - - - - 0 0 - 0 0 0 - 0/1?

  24. Design flow Specification(STG) Reachability analysis State Graph State encoding SG withCSC Boolean minimization Next-state functions Logic decomposition Decomposed functions Technology mapping Gate netlist

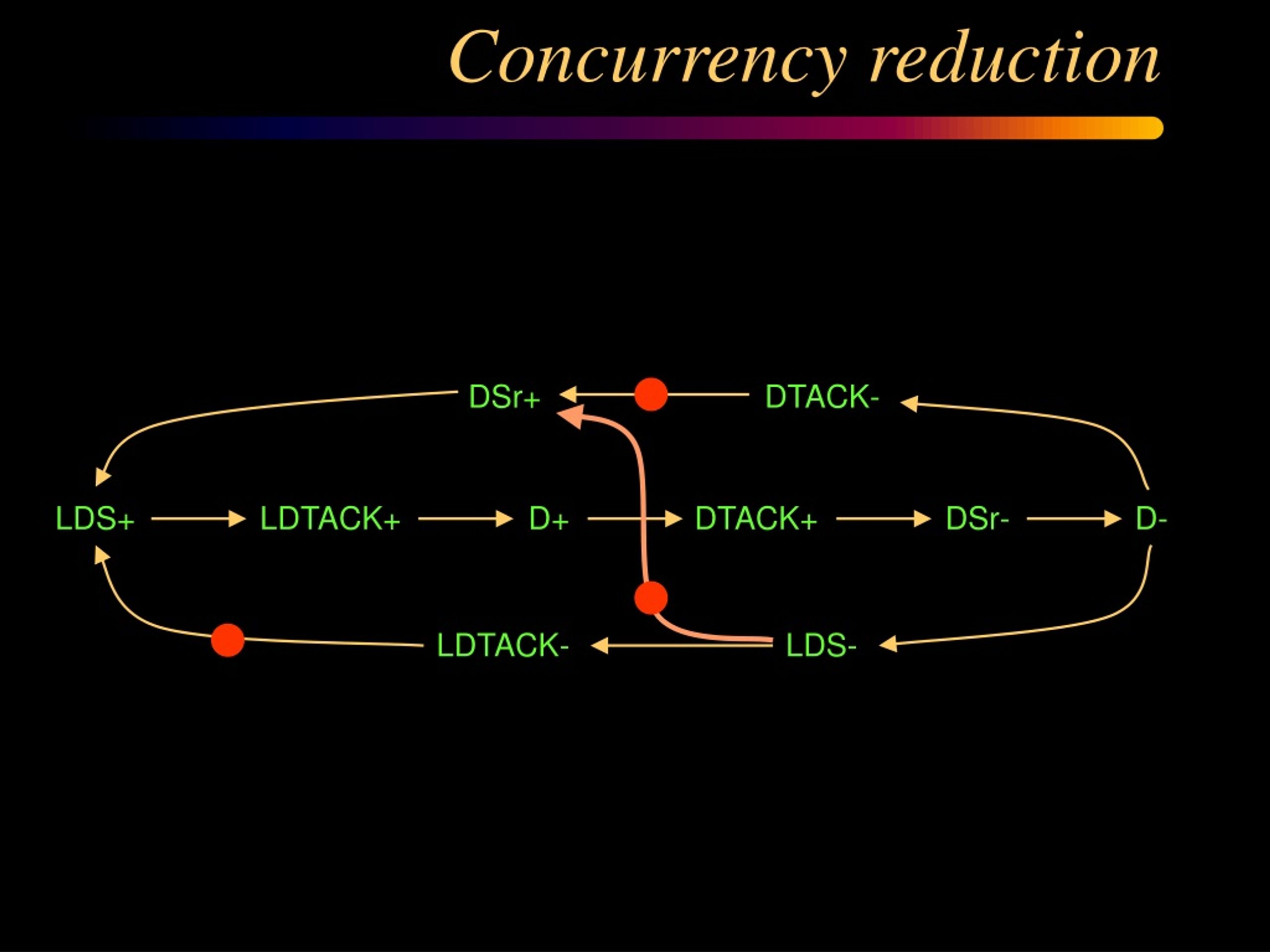

  25. DSr+ DSr+ DSr+ Concurrency reduction LDS+ LDS- LDS- LDS- 10110 10110

  26. Concurrency reduction DSr+ DTACK- LDS+ LDTACK+ D+ DTACK+ DSr- D- LDTACK- LDS-

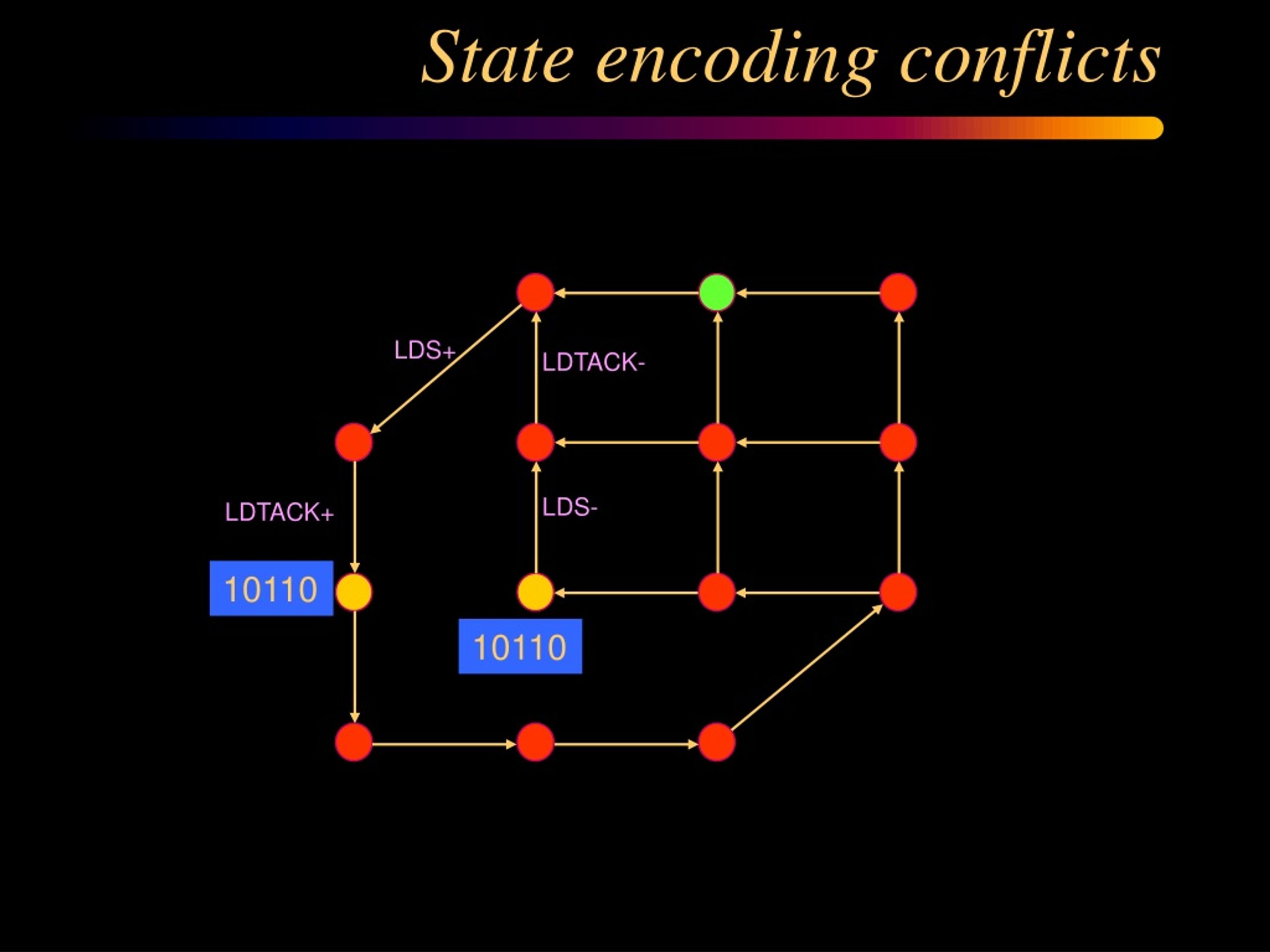

  27. State encoding conflicts LDS+ LDTACK- LDS- LDTACK+ 10110 10110

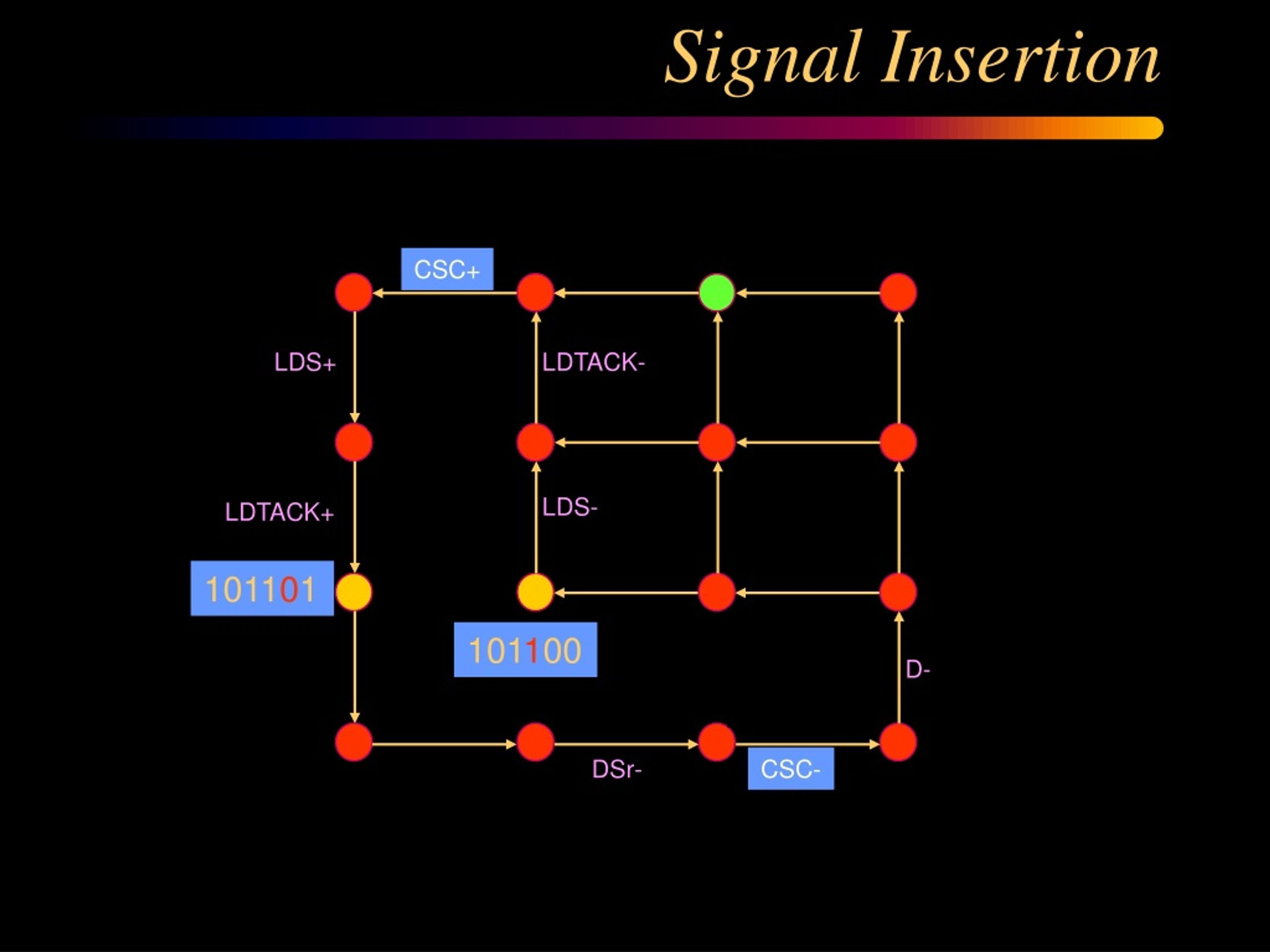

  28. CSC+ CSC- Signal Insertion LDS+ LDTACK- LDS- LDTACK+ 101101 101100 D- DSr-

  29. Design flow Specification(STG) Reachability analysis State Graph State encoding SG withCSC Boolean minimization Next-state functions Logic decomposition Decomposed functions Technology mapping Gate netlist

  30. Complex-gate implementation

  31. Implementability conditions • Consistency • Rising and falling transitions of each signal alternate in any trace • Complete state coding (CSC) • Next-state functions correctly defined • Persistency • No event can be disabled by another event (unless they are both inputs)

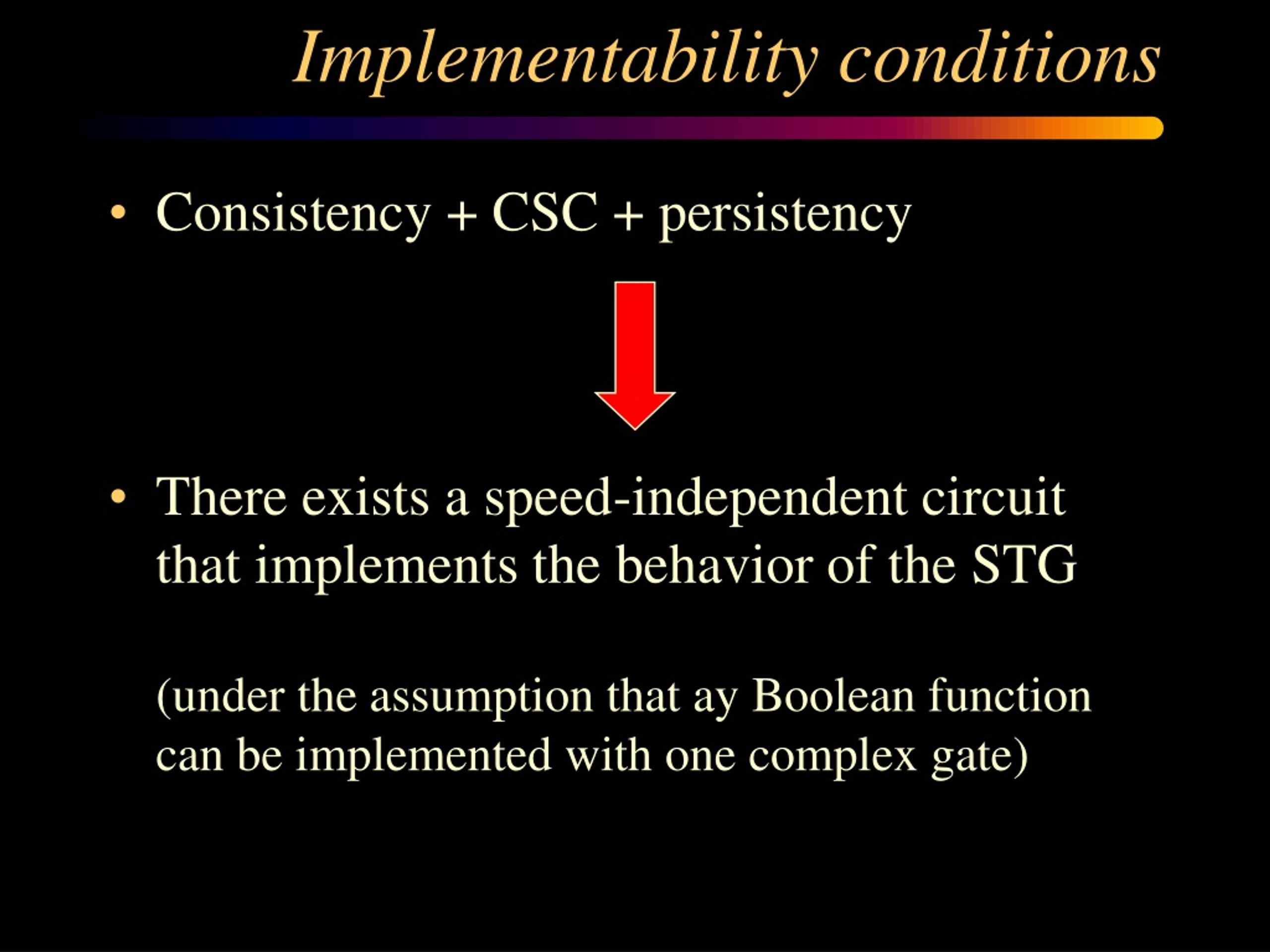

  32. Implementability conditions • Consistency + CSC + persistency • There exists a speed-independent circuit that implements the behavior of the STG(under the assumption that ay Boolean function can be implemented with one complex gate)

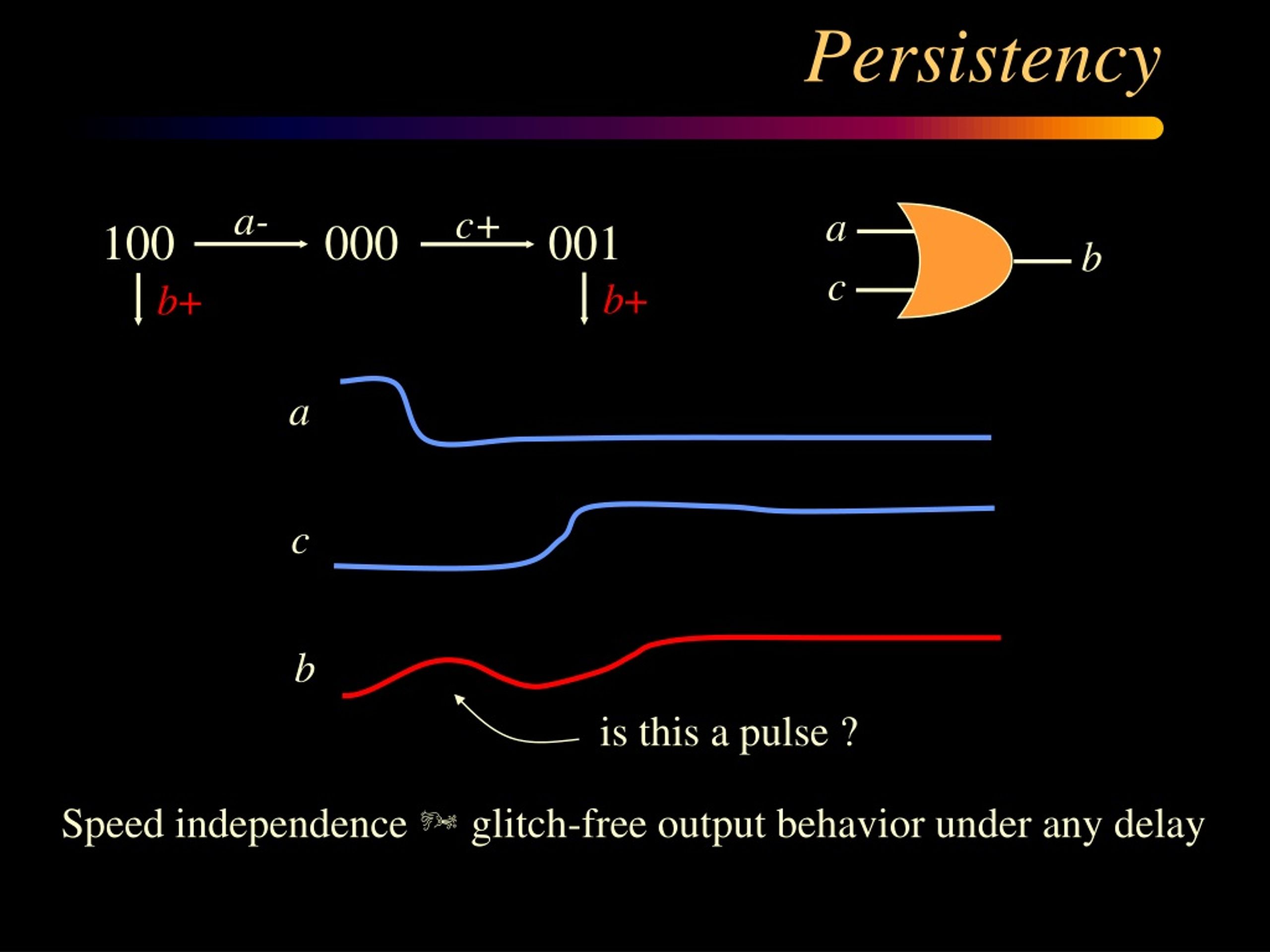

  33. a- c+ a 100 000 001 b c b+ b+ Persistency a c b is this a pulse ? Speed independence  glitch-free output behavior under any delay

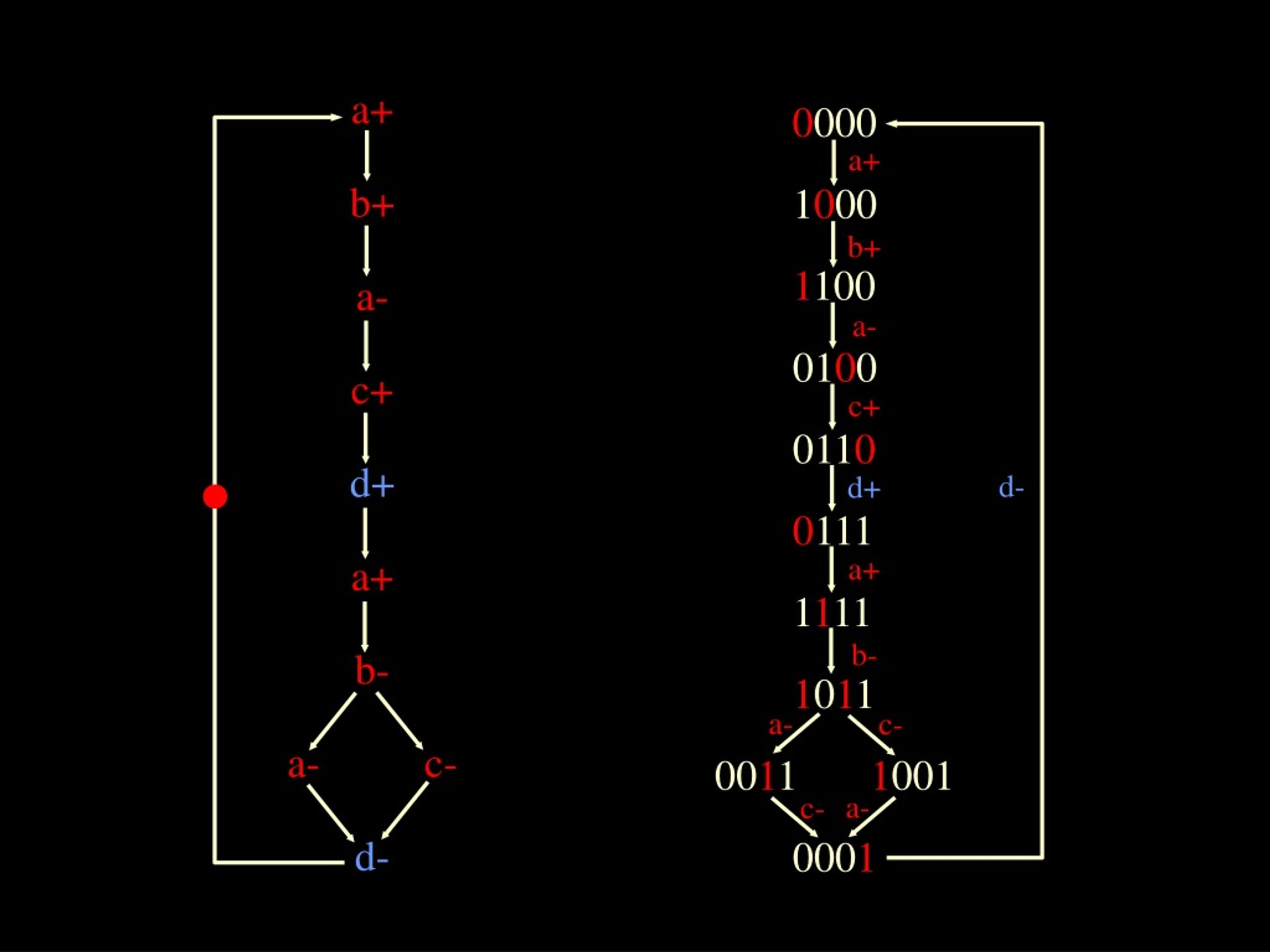

  34. a+ 0000 a+ b+ 1000 b+ 1100 a- a- 0100 c+ c+ 0110 d+ d- d+ 0111 a+ a+ 1111 b- b- 1011 a- c- a- c- 0011 1001 a- c- d- 0001

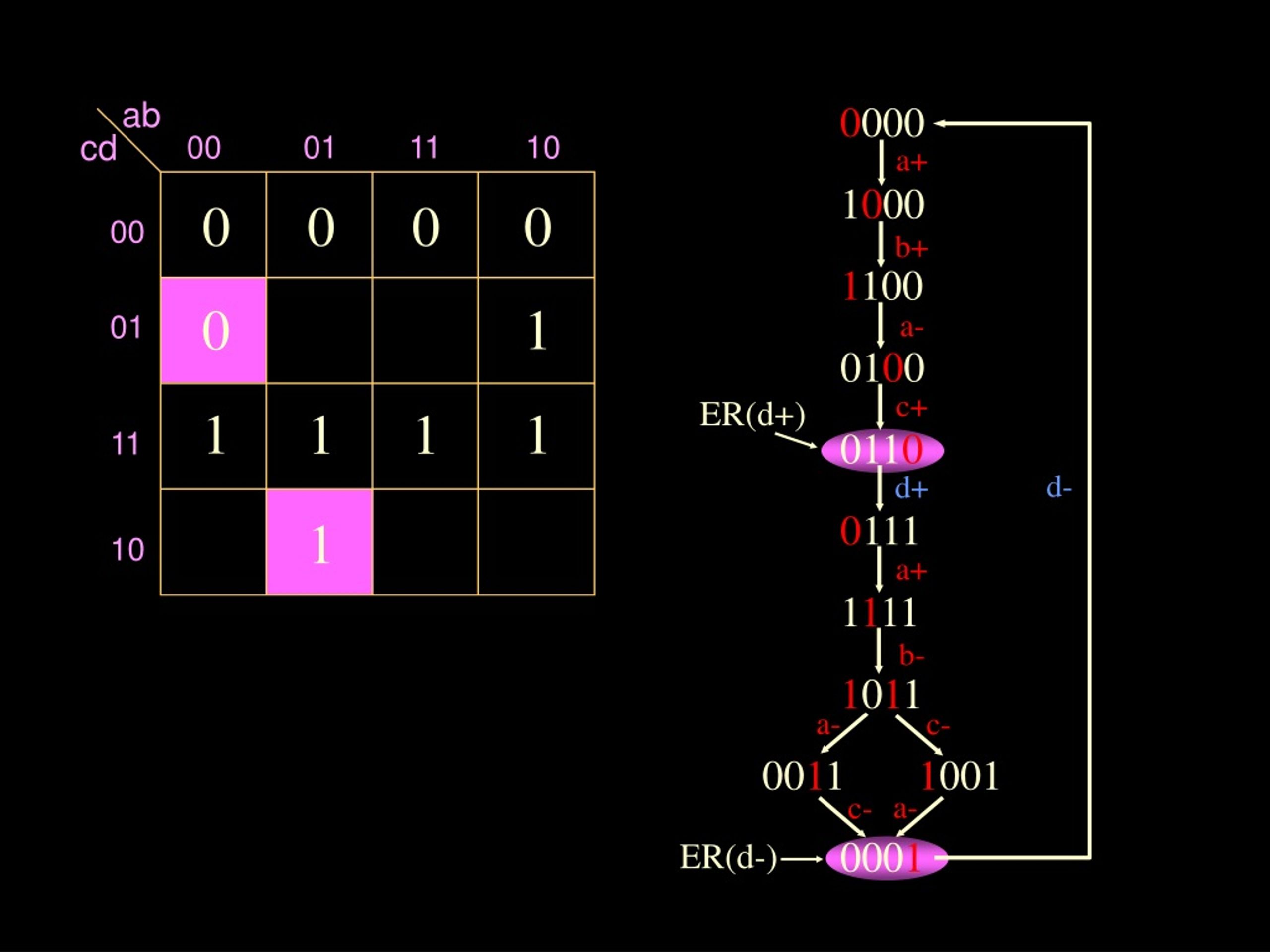

  35. ab 0000 cd 00 01 11 10 a+ 1000 0 0 0 0 00 b+ 1100 1 0 a- 01 0100 c+ 1 1 1 1 0110 11 d- d+ 0111 1 10 a+ 1111 b- 1011 a- c- 0011 1001 a- c- 0001 ER(d+) ER(d-)

  36. 0000 a+ 1000 b+ 1100 a- 0100 c+ 0110 d- d+ 0111 a+ 1111 b- 1011 a- c- 0011 1001 a- c- 0001 ab cd 00 01 11 10 0 0 0 0 00 1 0 01 1 1 1 1 11 1 10 Complex gate

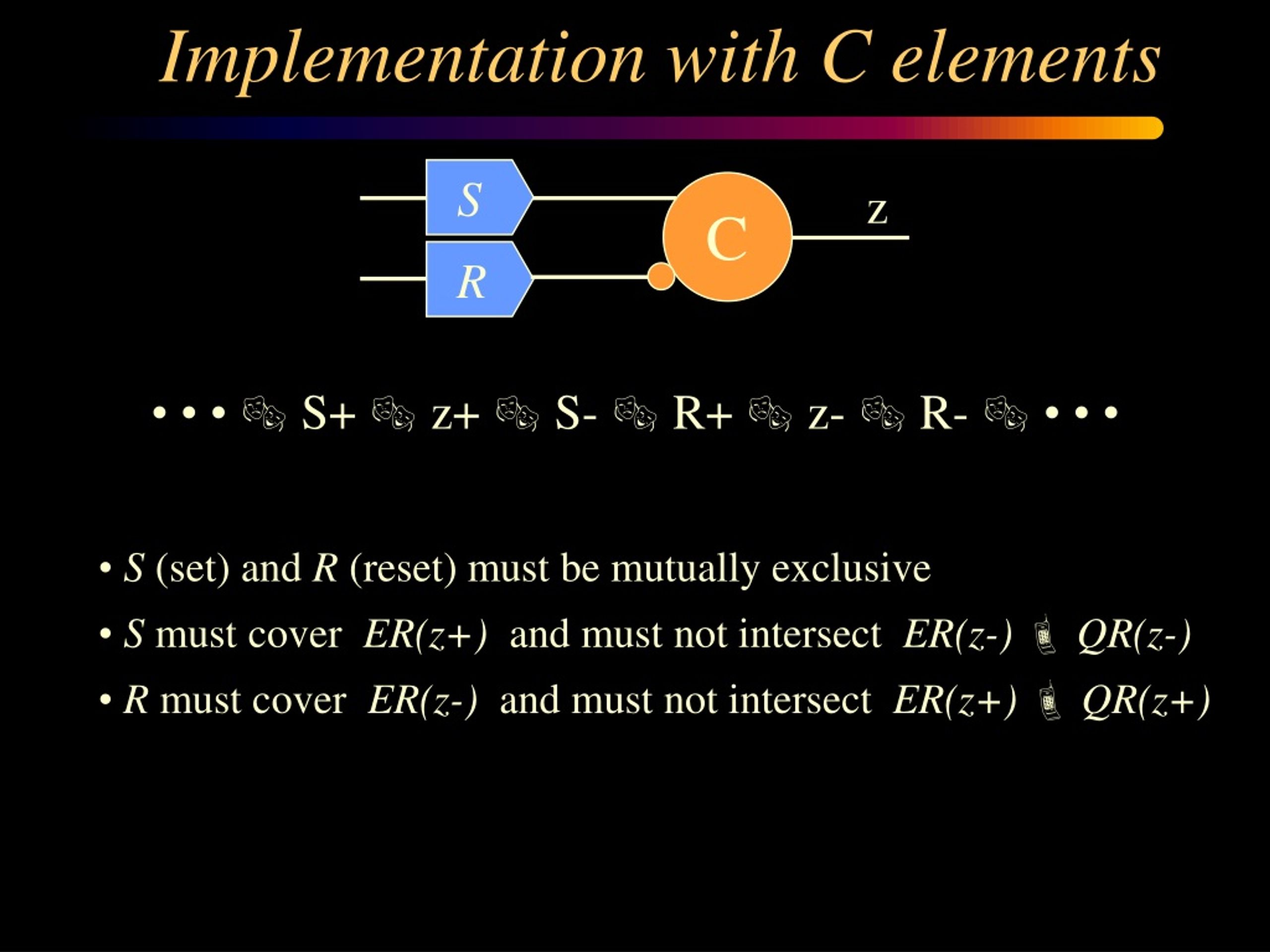

  37. S z C R Implementation with C elements • • •  S+  z+  S-  R+  z-  R-  • • • • S (set) and R (reset) must be mutually exclusive • S must cover ER(z+) and must not intersect ER(z-)  QR(z-) • R must cover ER(z-) and must not intersect ER(z+)  QR(z+)

  38. 0000 a+ 1000 b+ 1100 a- 0100 c+ 0110 d- d+ 0111 a+ 1111 b- 1011 a- c- 0011 1001 a- c- 0001 ab cd 00 01 11 10 0 0 0 0 00 1 0 01 1 1 1 1 11 1 10 S d C R

  39. 0000 a+ 1000 b+ 1100 a- 0100 c+ 0110 d- d+ 0111 a+ 1111 b- 1011 a- c- 0011 1001 a- c- 0001 but ... S d C R

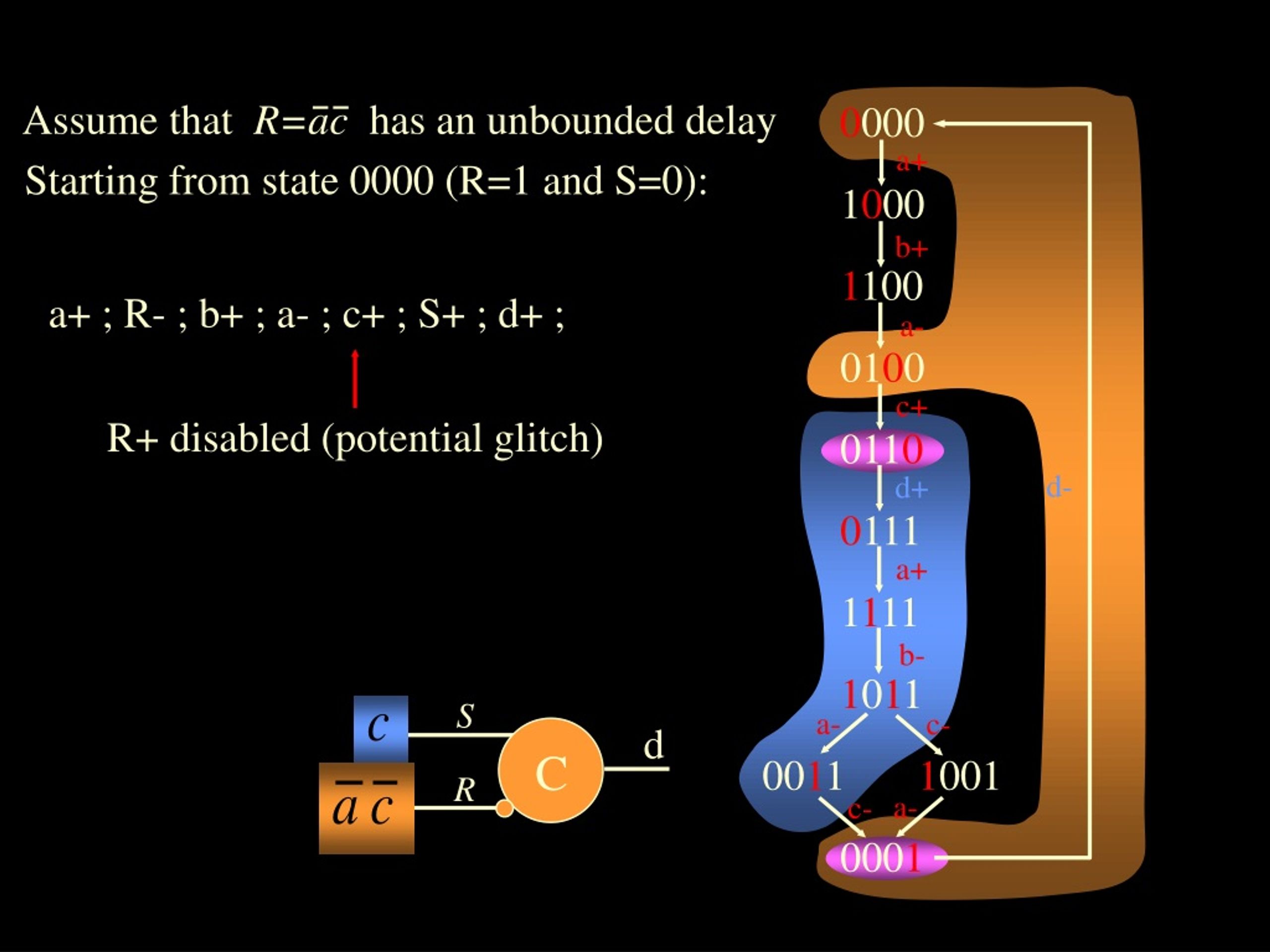

  40. Assume that R=ac has an unbounded delay 0000 a+ 1000 b+ 1100 a- 0100 c+ R+ disabled (potential glitch) 0110 d- d+ 0111 a+ 1111 b- 1011 a- c- 0011 1001 a- c- 0001 Starting from state 0000 (R=1 and S=0): a+ ; R- ; b+ ; a- ; c+ ; S+ ; d+ ; S d C R

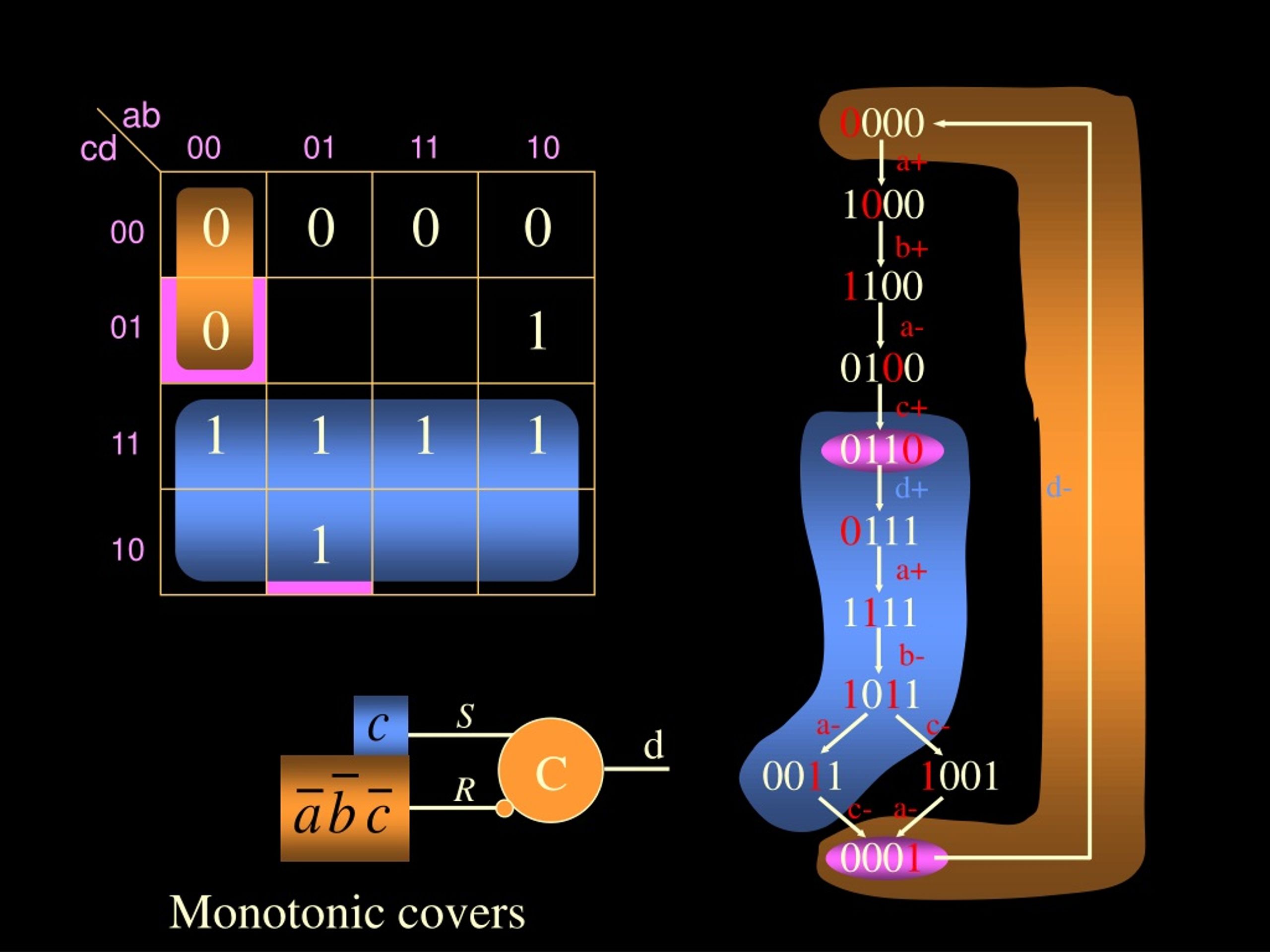

  41. 0000 a+ 1000 b+ 1100 a- 0100 c+ 0110 d- d+ 0111 a+ 1111 b- 1011 S a- c- d 0011 1001 C R a- c- 0001 ab cd 00 01 11 10 0 0 0 0 00 1 0 01 1 1 1 1 11 1 10 Monotonic covers

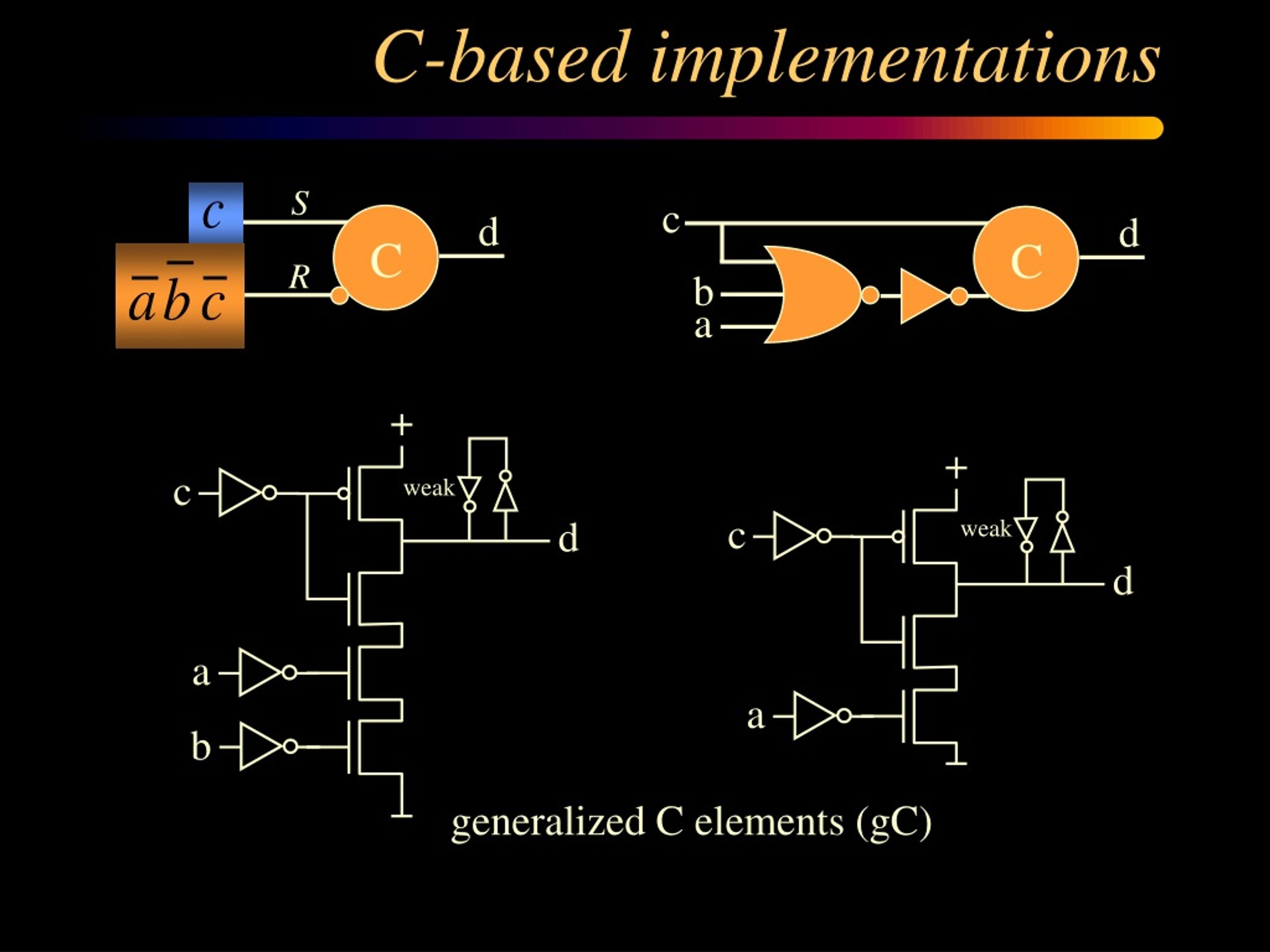

  42. S d C R C-based implementations c d C b a c weak c d weak d a a b generalized C elements (gC)

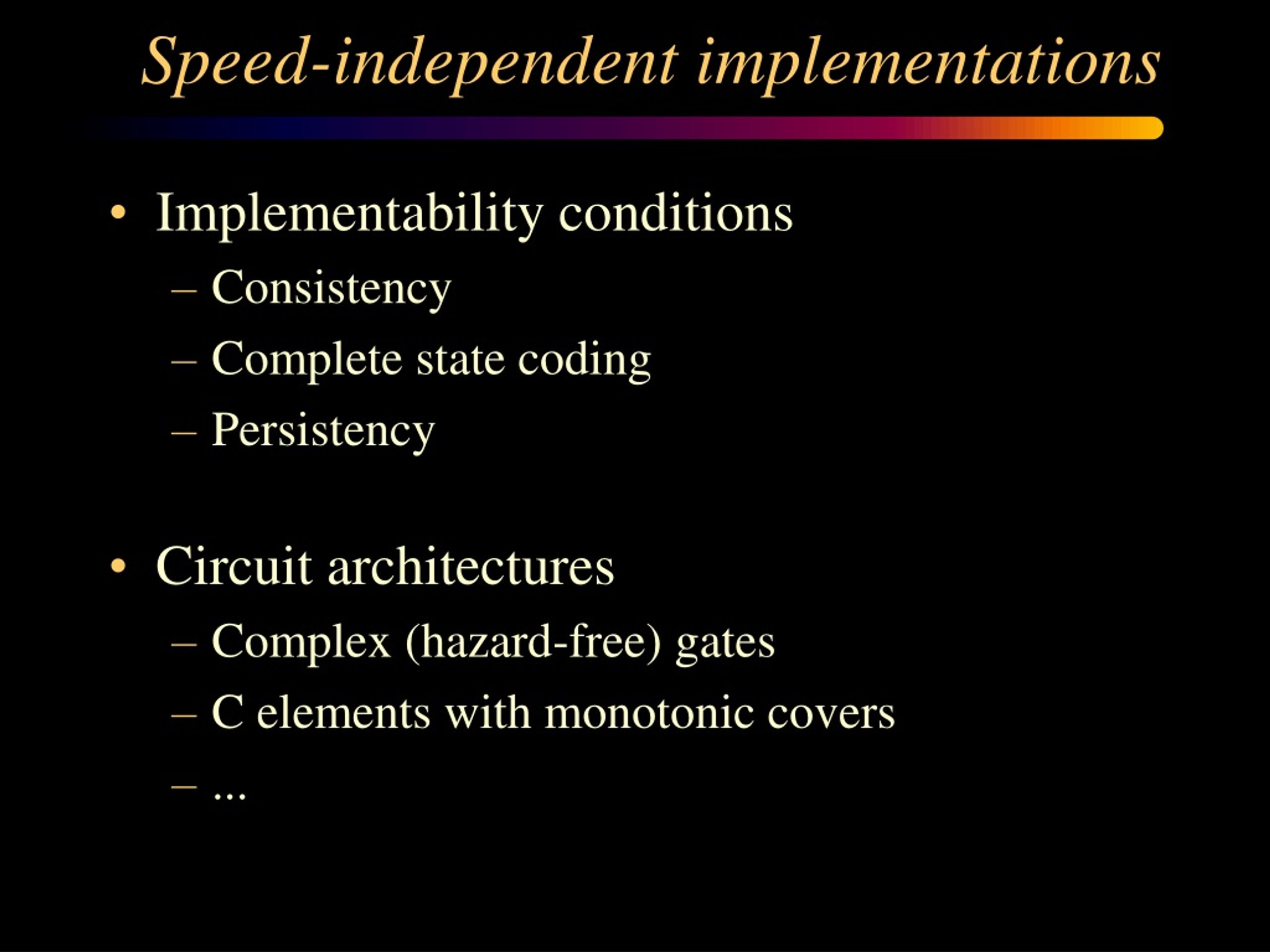

  43. Speed-independent implementations • Implementability conditions • Consistency • Complete state coding • Persistency • Circuit architectures • Complex (hazard-free) gates • C elements with monotonic covers • ...

  44. y- y- 1001 z- w- 1000 0001 w+ y+ w- z- x+ z- w- w+ 1010 0000 0101 w- y+ x+ z- y+ x+ x- 0010 0100 x- x+ y+ z+ 0110 z+ Synthesis exercise 1011 0011 0111 Derive circuits for signals x and z (complex gates and monotonic covers)

  45. y- 1001 z- w- 1000 0001 w+ y+ w- z- x+ 1010 0000 0101 w- y+ x+ z- 0010 0100 x- x+ y+ z+ 0110 Synthesis exercise 1011 wx yz 00 01 11 10 - 1 0 1 00 0011 - 1 0 1 01 - 0 0 0 11 - 1 1 0 10 0111 Signal x

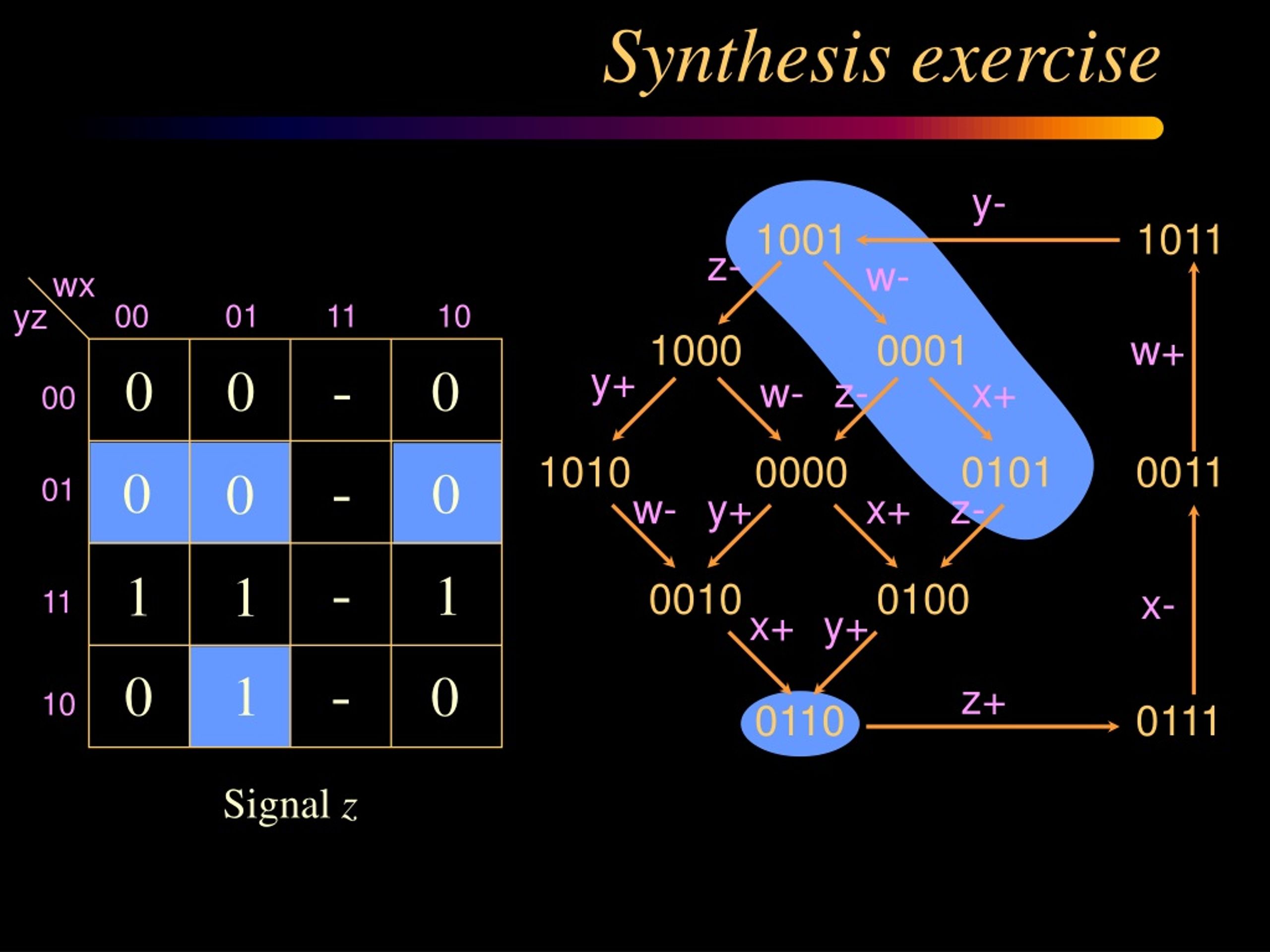

  46. y- 1001 z- w- 1000 0001 w+ y+ w- z- x+ 1010 0000 0101 w- y+ x+ z- 0010 0100 x- x+ y+ z+ 0110 Synthesis exercise 1011 wx yz 00 01 11 10 - 0 0 0 00 0011 - 0 0 0 01 - 1 1 1 11 - 1 0 0 10 0111 Signal z

  47. y- y- 1001 1011 z- w- 1000 0001 w+ y+ w- z- x+ z- w- w+ 1010 0000 0101 0011 w- y+ x+ z- y+ x+ x- 0010 0100 x- x+ y+ z+ 0110 0111 z+ Logic decomposition: example

  48. x y- y w 1001 1011 z z- w- y 1000 0001 w+ z y+ x w- z- x+ w 1010 0000 0101 0011 w w- y+ x+ z- C z y z 0010 0100 x- x+ y+ y z+ C 0110 0111 x z y yz=0 yz=1 Logic decomposition: example y- 1001 1011 z- w- 1000 0001 w+ y+ w- z- x+ 1010 0000 0101 0011 w- y+ x+ z- 0010 0100 x- x+ y+ z+ 0110 0111

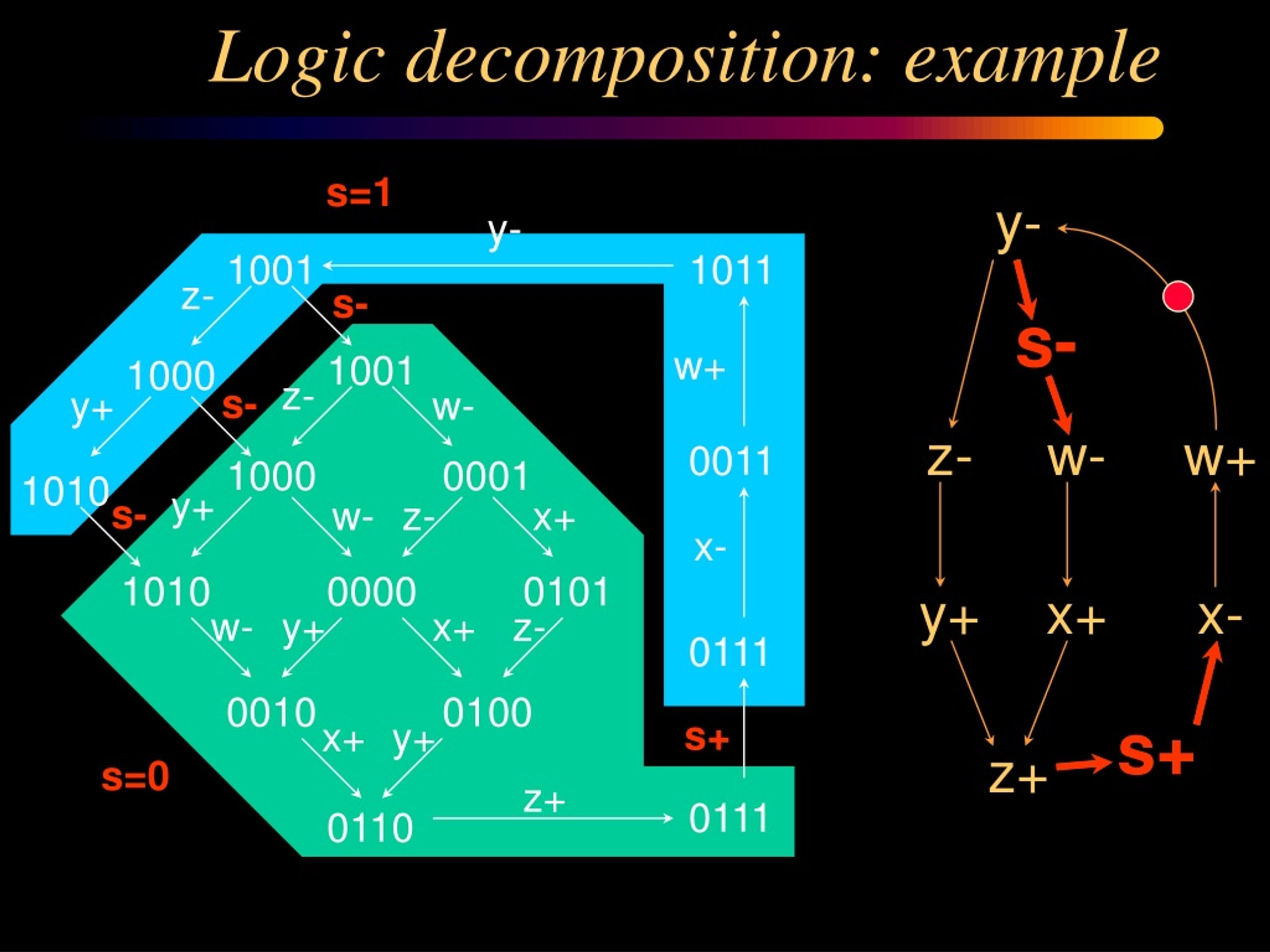

  49. x w y z x w w C z y z y C x z y Logic decomposition: example s=1 y- s 1001 1011 z- s- w+ 1001 1000 z- s- y+ w- 0011 1000 0001 1010 y+ s- w- z- x+ x- 1010 0000 0101 w- y+ x+ z- 0111 0010 0100 s+ x+ y+ s=0 z+ 0111 0110

  50. Logic decomposition: example s=1 y- y- 1001 1011 z- s- s- w+ 1001 1000 z- s- y+ w- z- w- w+ 0011 1000 0001 1010 y+ s- w- z- x+ x- 1010 0000 0101 y+ x+ x- w- y+ x+ z- 0111 0010 0100 s+ s+ x+ y+ z+ s=0 z+ 0111 0110
