  1. Economic and field evaluation of modular cabling techniques in the Belgacom network

  2. 1. Introduction Belgacom’s future network structure 2. Modular cabling systems - Technical evaluation - introduction - product description - competing technologies - network concept 3. Modular cabling systems - Economical evaluation - investment analysis - present value approach - inv / npv results

  3. 1. Introduction Belgacom’s future network structure

  4. BELGACOM’s NETWORKARCHITECTURES EVOLUTION IN Server TV I - T M N SL SW TR SAP AN CPE ATM SDH (Network Interworking) NB services SAP SAP SAP LC/LDC PON SDH PON WLL DP DP DP TV DP COAX A/HDSL Clients 4

  5. O & M Switch Management System SDH Node SDH Optical Node FH PFS Pulling Fibre System Wireless In The Loop O & M Clients BELGACOM’s NETWORKARCHITECTURES EVOLUTION OVERVIEW FSAN GATEWAYS ON SDH Local SDH Local Clients Clients PFS ON SWI V5 LC ZC ON SDH BACKBONE LC FH - SDH ON LC LC ON LC ON PFS ON Clients LC ON PFS SDH ON Client

  6. OMDF ADM4 BELGACOM’s NETWORKARCHITECTURES EVOLUTION ON XXX ARCHITECTURE ON RING ADM4 OMDF Backbone 4v - 1T 8v- 2T 36F 8v- 2T 8v- 2T Reserve 1T ON XXY O M D F O M D F Ring 36 F.O. ADM4 ADM4 ADM4 36F Backbone ON XXZ

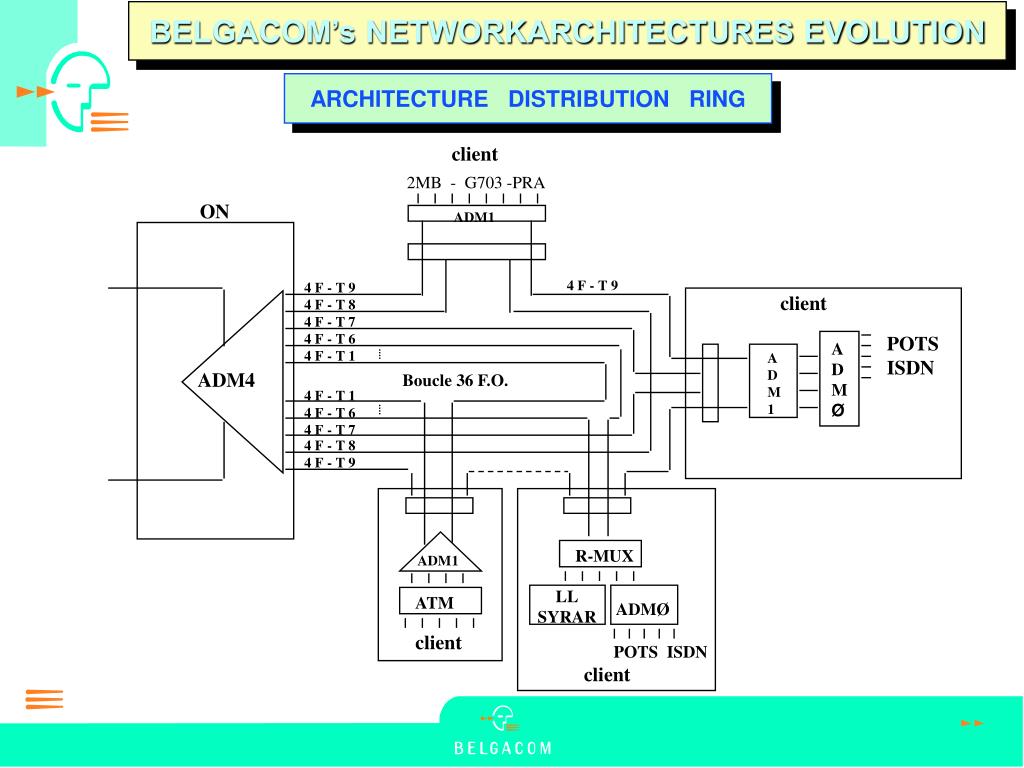

  7. BELGACOM’s NETWORKARCHITECTURES EVOLUTION ARCHITECTURE DISTRIBUTION RING client 2MB - G703 -PRA ON ADM1 4 F - T 9 4 F - T 9 client 4 F - T 8 4 F - T 7 4 F - T 6 POTS ISDN A D M Ø 4 F - T 1 A D M 1 ADM4 Boucle 36 F.O. 4 F - T 1 4 F - T 6 4 F - T 7 4 F - T 8 4 F - T 9 R-MUX ADM1 LL SYRAR ATM ADMØ client POTS ISDN client

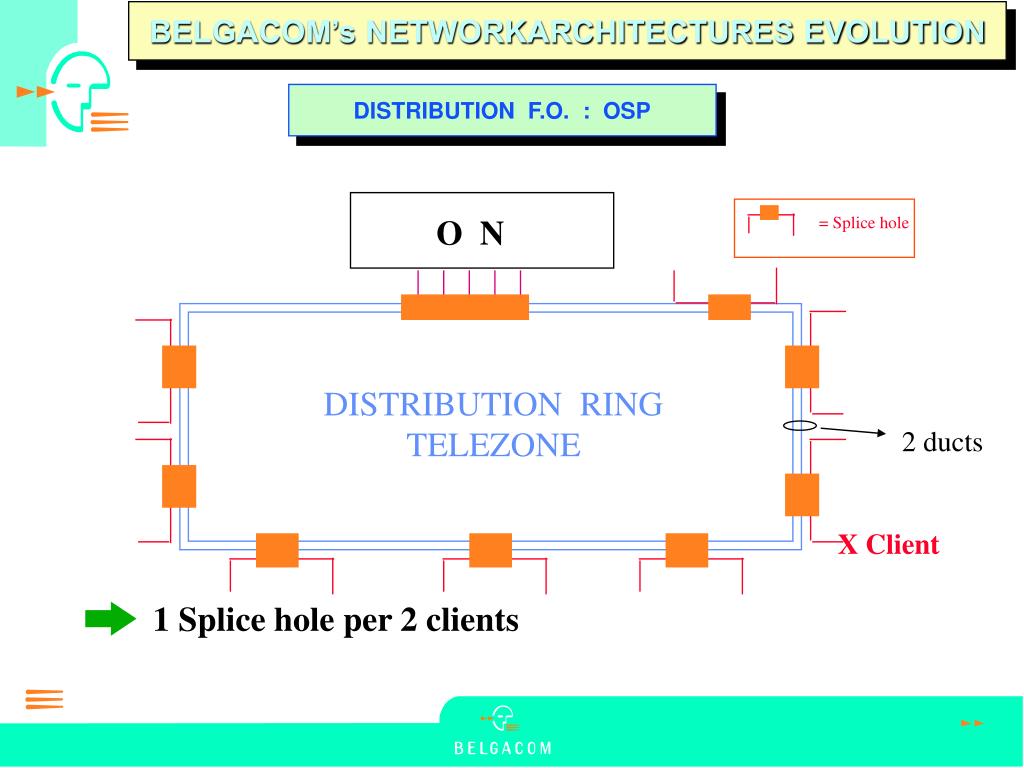

  8. BELGACOM’s NETWORKARCHITECTURES EVOLUTION DISTRIBUTION F.O. : OSP O N = Splice hole DISTRIBUTION RING TELEZONE 2 ducts X Client 1 Splice hole per 2 clients

  9. BELGACOM’s NETWORKARCHITECTURES EVOLUTION DISTRIBUTION F.O. : ALTERNATIVE Pulling Fibre System (PFS) MAINETTIE : ducts RAYCHEM : splices, ... OPTICAL FIBRE : fibres MICROLIGHT - S.A. VULCAN Pilot projects in 1996 Fine tuning of the system : 02/97 Commercial projects : 1Q98 Volume Deployment : 3Q98 DUCTS ! * no more splice holes * cheaper splicing technology = copper * installation of the fibres when there is a new customer ==> ROI 

  10. 2. Modular Cabling Systems Technical Evaluation

  11. Modular cabling systemsTechnical evaluation • product description • manufacturers • competing technologies • network concept • field trial(s)

  12. Modular cabling systemsproduct description • multi- tube system : 2/4/7/19-way • direct buried version • direct installed version • multi-fibre units : 2/4/8 fibre units • installation techniques : • blown fibre technique • pulled fibre technique • mechanical building blocks : • tube branchout and connecting joints • repair kit • customer lead in box

  13. Competing technologies • “traditional” fibre optic cabling technology : • 4 or 8 fibres per tube • FIST technology for customer independence • usage of concrete manholes for splicing and/or recoiling ; no direct buried splices • “inline” fibre optic cabling technology : • idem + direct buried customer connection splice • “modular cabling” technology • 2,4 or 8 fibre unit per tube • only one splice at Optical Node • whole system is direct buried • handling of the system : similar as copper outside plant

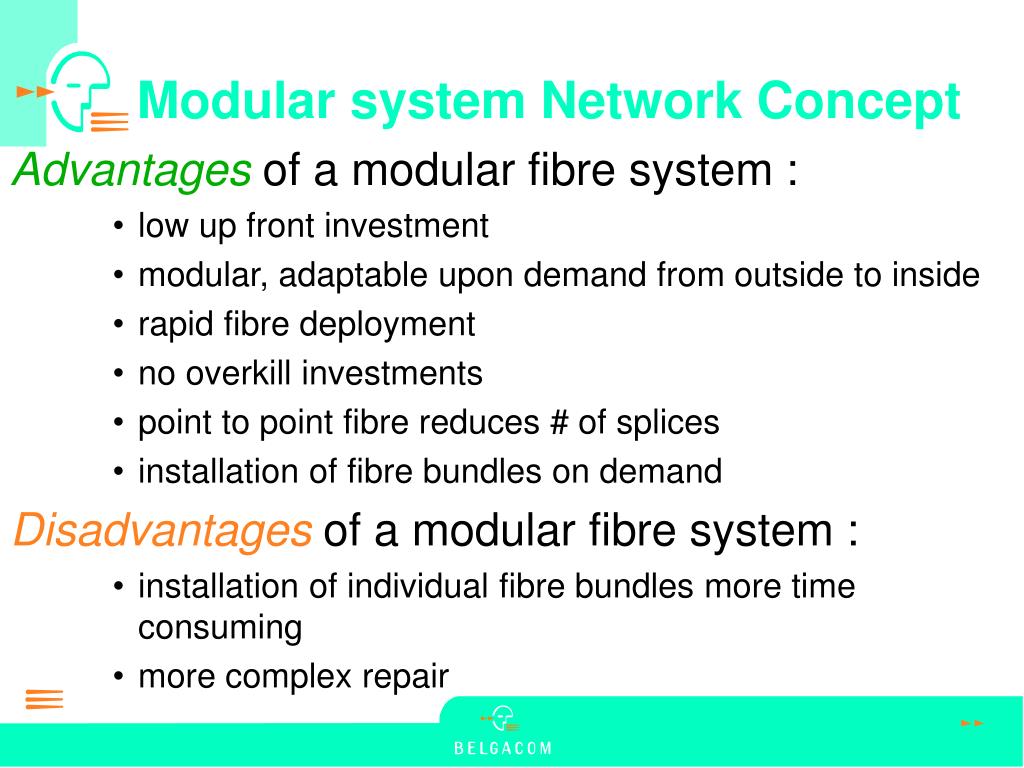

  14. Modular system Network Concept Advantagesof a modular fibre system : • low up front investment • modular, adaptable upon demand from outside to inside • rapid fibre deployment • no overkill investments • point to point fibre reduces # of splices • installation of fibre bundles on demand Disadvantages of a modular fibre system : • installation of individual fibre bundles more time consuming • more complex repair

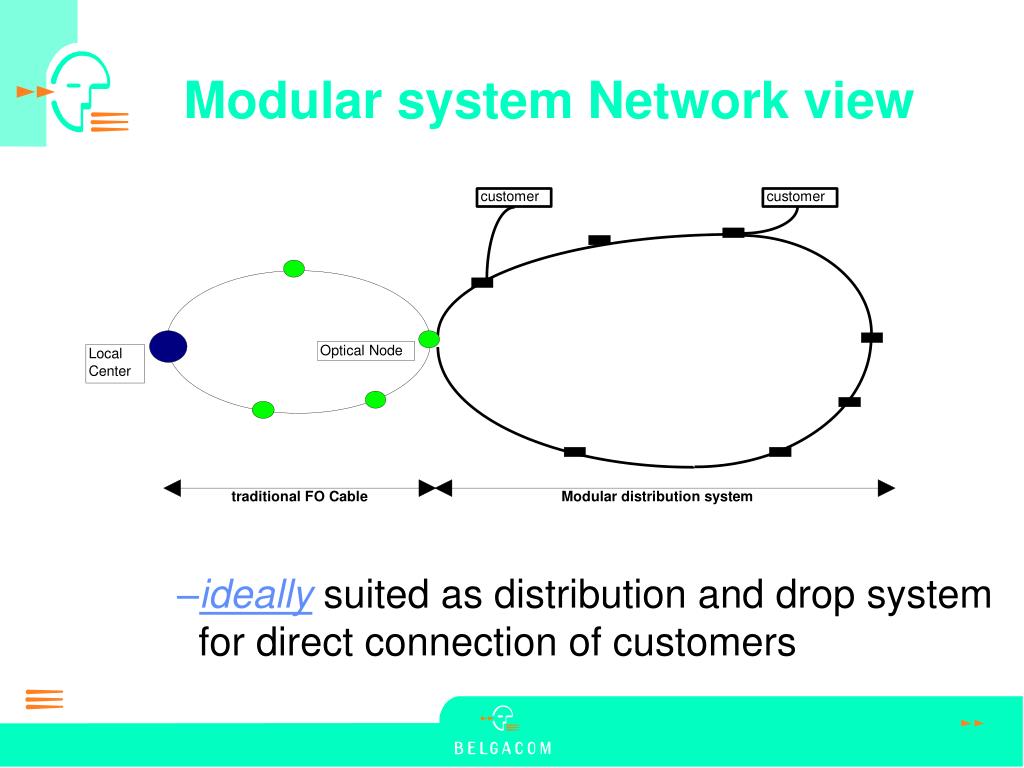

  15. Modular system Network view • ideally suited as distribution and drop system for direct connection of customers

  16. Modular system Network view • optional for FTT/C-KVD (from ON to KVD) in a non-full deployment strategy

  17. Modular system Network Concepttowards implementation • simplicity of the system assures the retrainability of “copper people” due to similarity in handling with the existing copper technology

  18. FTT BUILDING - PILOT PROJECT IN NIEUWPOORT

  19. FTT BUILDING PILOT PROJECT IN NIEUWPOORT Introduction : - connect new buildings in F.O. - connect existing buildings in F.O. Desaturates KVD’s so that growth of uni-familial houses and small buildings can be handled by existing KVD’s/cu-network. • Introduction of the site : • Fundamental plan of the network Nieuwpoort • Topographical plan of the site

  20. ADM FTTB / FTTKVD - NIEUWPOORT ON - CABINET BUILDING n TEST HDSL LC POTS ISDN 2MB a : b first road KVD CU ADM + HDSL ADM0 MDF OMDF ADM a : b            ADM0   second road O.N.     O & M ADM ADM 2MB 2MB ADM0 ADM0 PROVISIONING CUSTOMER SERVICE POTS ISDN POTS ISDN BUILDING 1 BUILDING 2

  21. Cabling of the local junction ON 091 LDC HOME Tube 1 : LDC 091 (HOME) Tube 2 : LDC 091 (HOME) Tube 3 : O.N. 097 Tube 4 : O.N. 097 Tube 5 : SDH loop Tube 6-10 : (PDH O.N. 097) 20 fibres 5 4 3 2 1 20 fibres LC NIEUWPOORT 40 fibres 1 O.N. 097 2 3 4 5 6 7 8 9 10

  22. Cable plan of O.N. (on cable level) LDC 091 40 fibres 20 fibres O.N. cabinet LC FIST 0 24 fibres 80 fibres 80 fibres 8 fibres 8 fibres FIST 1 FIST 2 cable 1 : 40 fibres cable 2 : 40 fibres cable 3 : 40 fibres cable 4 : 40 fibres 16 fibres 16 fibres 16 fibres 16 fibres 16 fibres 16 fibres 16 fibres 16 fibres 16 fibres 16 fibres 16 fibres 16 fibres 16 fibres 16 fibres 16 fibres 16 fibres 16 fibres 16 fibres 16 fibres 16 fibres 4011 4012 4013 4014 4015 4021 4022 4023 4024 4025 4031 4032 4033 4034 4035 4036 4041 4042 4043 4044 4045

  23. Cable plan of O.N. (on tube-level) 1 1 2 2 O.N. cabinet 3 3 ADM 4 4 5 5 6 7 8 FIST 0 9 10 1 2 3 4 5 6 FIST 1 FIST 2 10 10 10 10 9 9 9 9 : : : : 4 4 : 4 3 3 4 3 2 2 3 2 1 1 2 1 1 ADM ADM ADM ADM ADM ADM ADM ADM ADM ADM ADM ADM ADM ADM ADM ADM ADM ADM ADM ADM ADM 4011 4012 4013 4014 4015 4021 4022 4023 4024 4025 4031 4032 4033 4034 4035 4036 4041 4042 4043 4044 4045

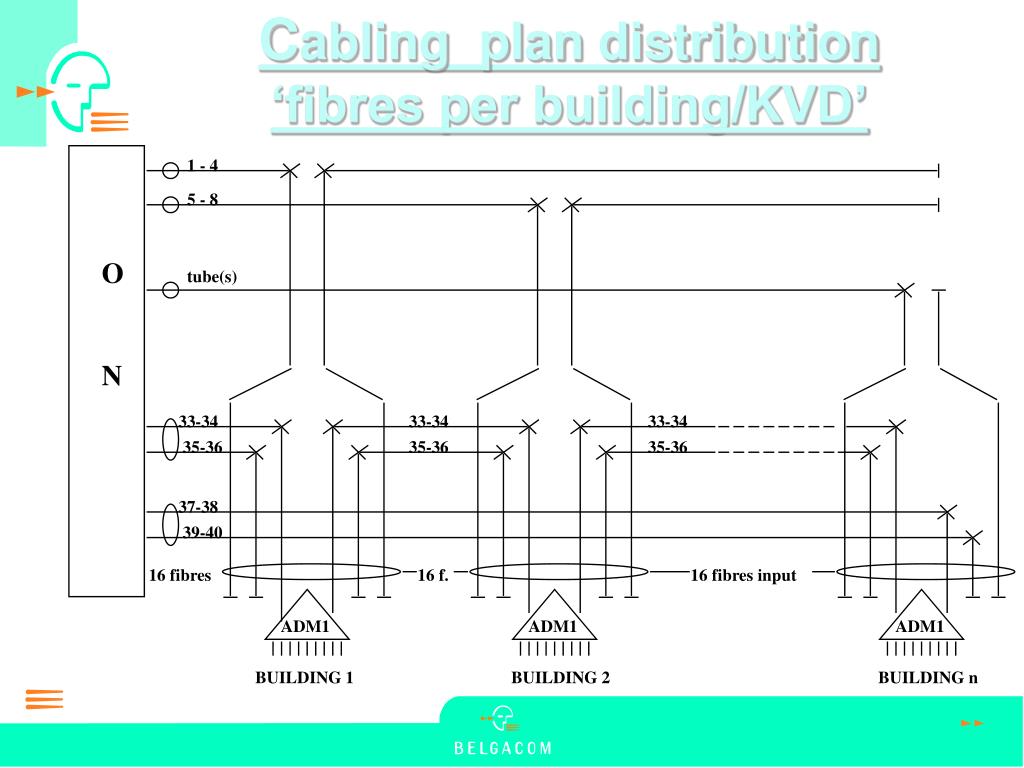

  24. 33-34 33-34 33-34 35-36 35-36 35-36 37-38 39-40 ADM1 ADM1 ADM1 Cabling plan distribution‘fibres per building/KVD’ 1 - 4 5 - 8 O N tube(s) 16 fibres 16 f. 16 fibres input BUILDING 1 BUILDING 2 BUILDING n

  25. 3. Modular Cabling System Economical Evaluation

  26. Economics Comparison on a real plant layout of the investments considering the model network “Nieuwpoort” - FTT Building and different Network Concepts: • traditional fibre optic approach • modular fibre system approach

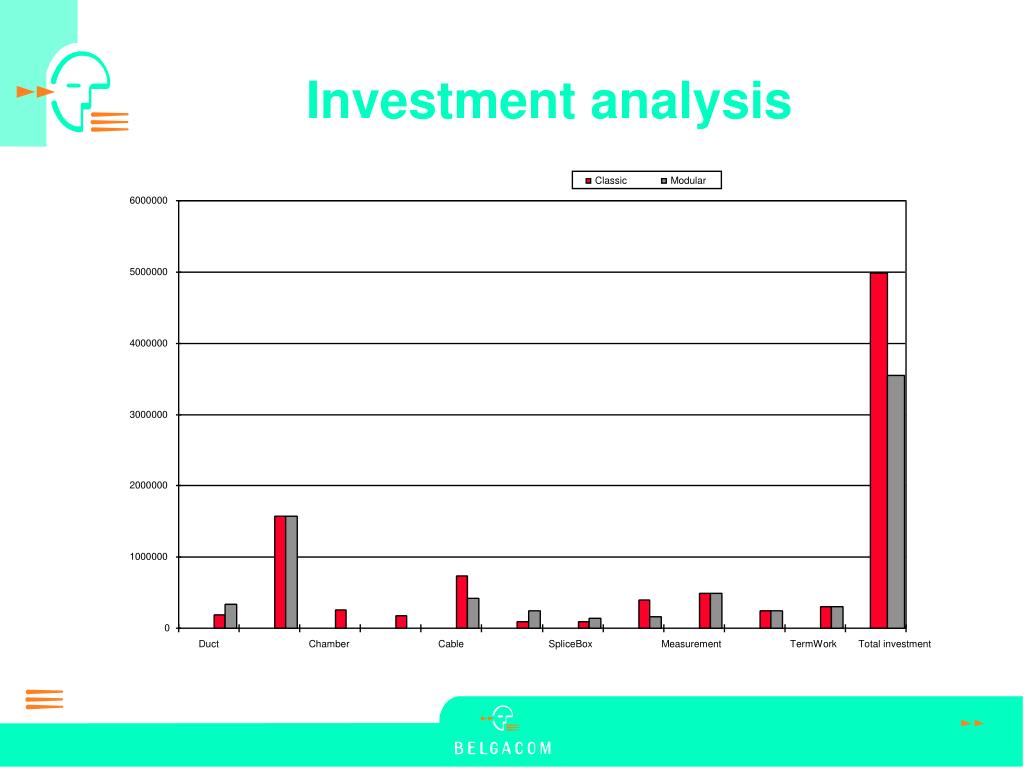

  27. Investment analysis Classic Modular 6000000 5000000 4000000 3000000 2000000 1000000 0 Duct Chamber Cable SpliceBox Measurement TermWork Total investment

  28. Present Value (15%) PV Cumulative 4500000 4000000 3500000 3000000 Classic PFS 2500000 2000000 1500000 Year1 Year2 Year3 Year4 Year5

  29. Present Value / Results Modular system smallest increase over time For FTTBuilding / FTTC architectures is the advantage for the Modular system 30%
