1 / 3

Component Properties

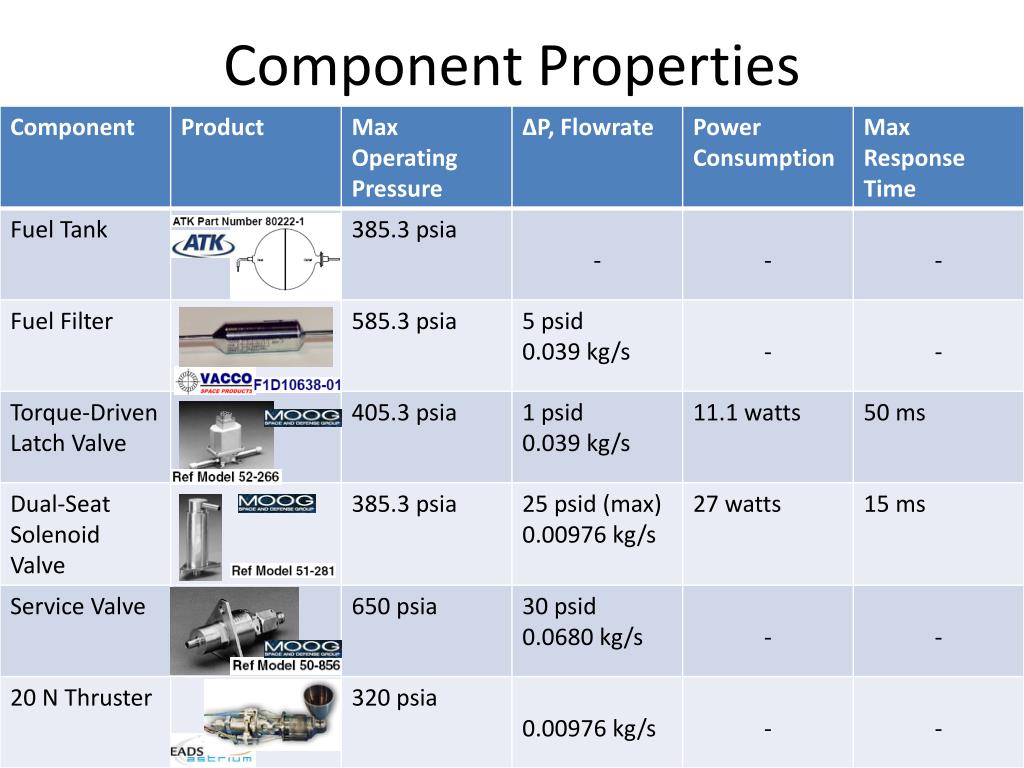

Component Properties. Propulsion System Losses. Max Tank Operating Pressure: 385.3 psia. Filter Pressure Drop: 5 psid at rated flow. Latch Valve Pressure Drop: 1 psid at rated flow. Solenoid Valve Pressure Drop: 25 psid (max) at rated flow. Total System Pressure Drop: 31 psid

ciro
Download Presentation

Component Properties

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Component Properties

  2. Propulsion System Losses Max Tank Operating Pressure: 385.3 psia Filter Pressure Drop: 5 psid at rated flow Latch Valve Pressure Drop: 1 psid at rated flow Solenoid Valve Pressure Drop: 25 psid (max) at rated flow Total System Pressure Drop: 31 psid Thruster Operating Pressure for Required Force: 282 psia Regulate Tank Pressure Near: 313 psia 20 N HYDRAZINE THRUSTER Model CHT 20

  3. Propulsion Mass Budget

More Related
