  1. PHOTOMOD 5.0 New level of automation and productivity! Dmitry Kochergin, Head of RACURS Technical support department October 2009, Attica, Greece

  2. PHOTOMOD 5.0.Main advantages • new AAT reliable and precise correlation algorithm • up to 20 000 images in the project • no limits for the image size • full 16-bit rasters support • “dynamic” rebuilding of TIN and contours while editing • new user-friendly interface of tie points manual measurements • block layout from the Exterior Orientation Parameters • direct working with the “source” images • DTM of any size • no “fixed” stages of working with the project • stereo-processing of “any”pair of images • more and more distributed processing • more system openness and reliability • optimal using of modern video cards benefits • powerful 3d window • raster bands managing on any stage of processing • simultaneous access of several operators to the AT-project • WorldView stereoprocessing • and more…

  3. PHOTOMOD 5.0.Automatic Aerial Triangulation terrain:mountains, forest number of images: 629 camera: DMC pixel: 12 mkm / ~ 15 cm GSD processing time: 20 hours 4 minutes

  4. PHOTOMOD 5.0.Automatic Aerial Triangulation terrain:low urban number of images: 762 camera: UltraCamX pixel: 7.2 mkm / ~ 40cm GSD Processing time: 5 hours 16 minutes

  5. PHOTOMOD 5.0.Automatic Aerial Triangulation PHOTOMOD 4.4: problems in measurements in the strips junctions

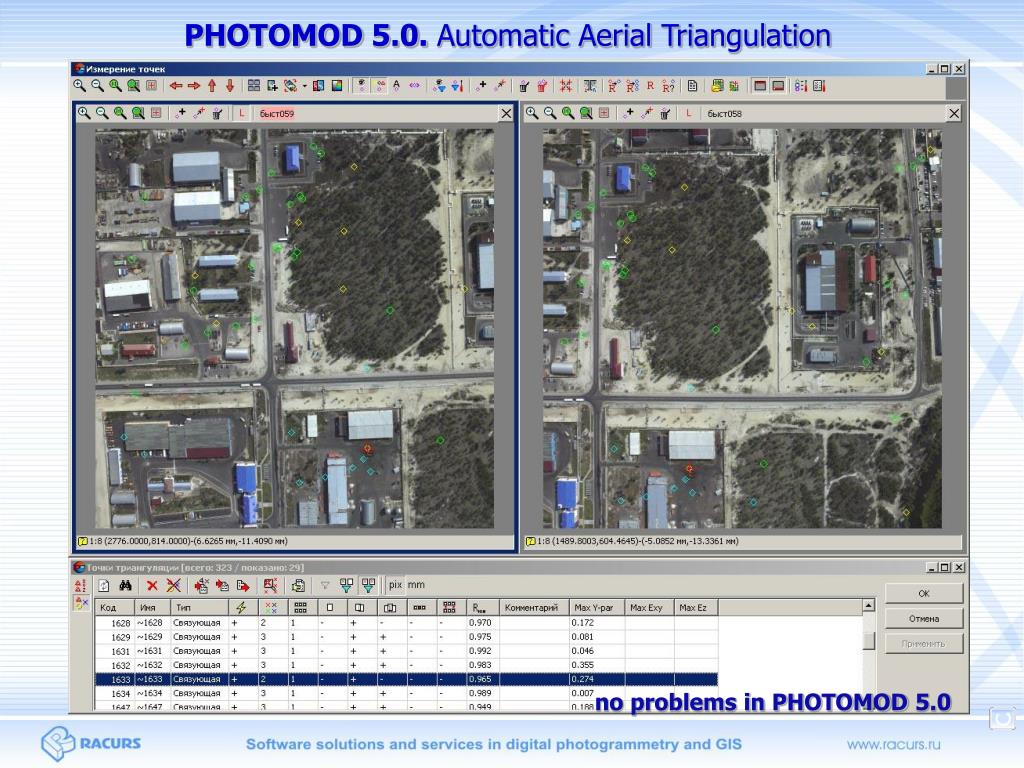

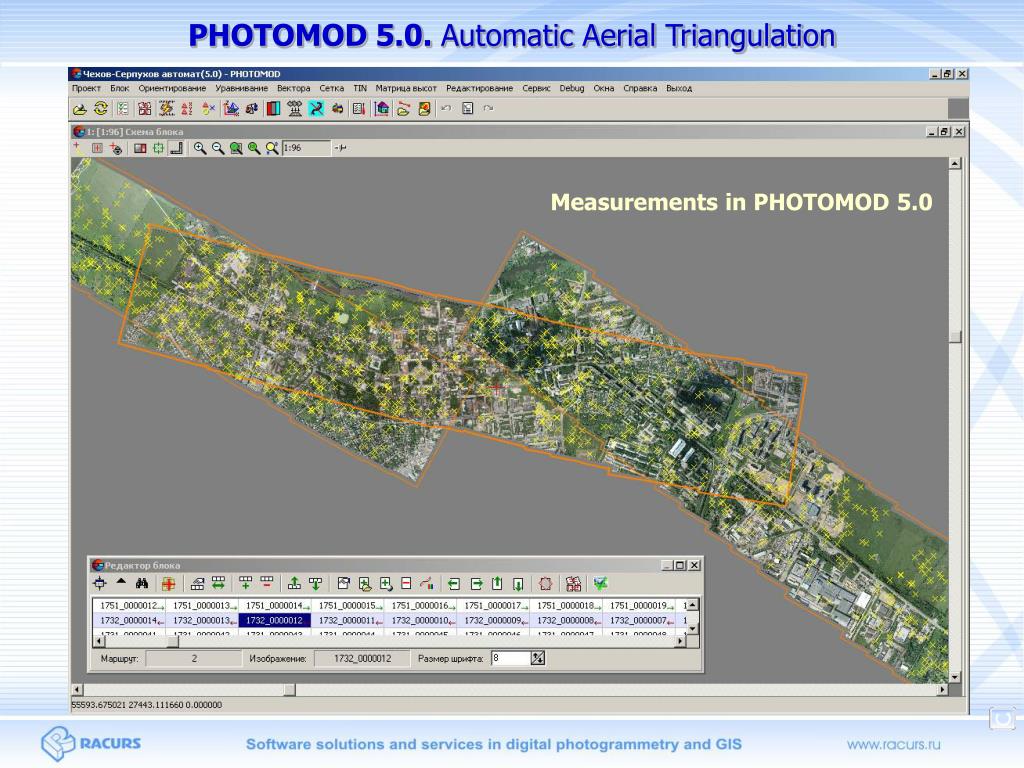

  6. PHOTOMOD 5.0.Automatic Aerial Triangulation Measurements in PHOTOMOD 5.0

  7. PHOTOMOD 5.0.Automatic Aerial Triangulation PHOTOMOD 4.4: problems with measurements “in the forest” Measurements in PHOTOMOD 5.0

  8. PHOTOMOD 5.0.Automatic Aerial Triangulation PHOTOMOD 4.4 problems:

  9. PHOTOMOD 5.0.Automatic Aerial Triangulation no problems in PHOTOMOD5.0

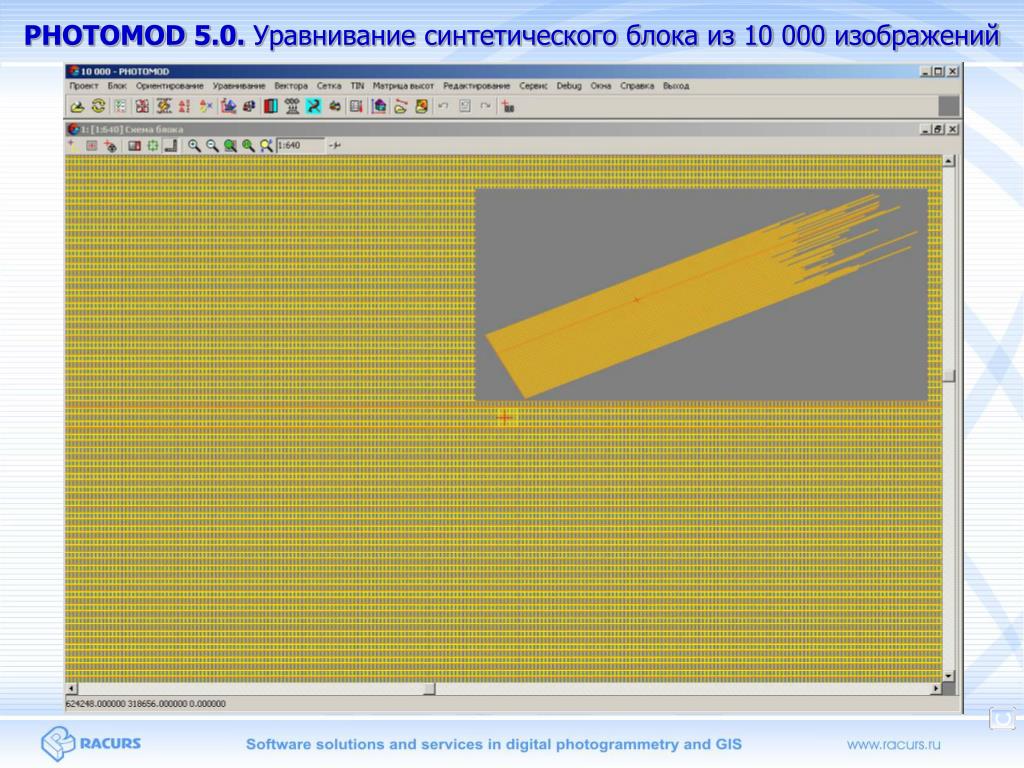

  10. PHOTOMOD 5.0.Уравнивание синтетического блока из 10 000 изображений

  11. PHOTOMOD 5.0.new interface of “manual” tie measurements

  12. PHOTOMOD 5.0.Block layout from exterior orientation parameters

  13. PHOTOMOD 5.0.“Source” images with a point measurements

  14. PHOTOMOD 5.0.Images oriented in accordance with block layout

  15. PHOTOMOD 5.0.QuickBird images > 20 gigabytes

  16. PHOTOMOD 5.0.Block with “big” overlap areas

  17. PHOTOMOD 5.0.Stereopair from any overlapping strip images

  18. PHOTOMOD 5.0.Stereopair from different strips overlapping images

  19. PHOTOMOD 5.0.TIN and breaklines PHOTOMOD 5.0 PHOTOMOD 4.4 New breaklines embedding algorithm

  20. PHOTOMOD 5.0.TIN and contour lines “Dynamic” contours Final smooth contours

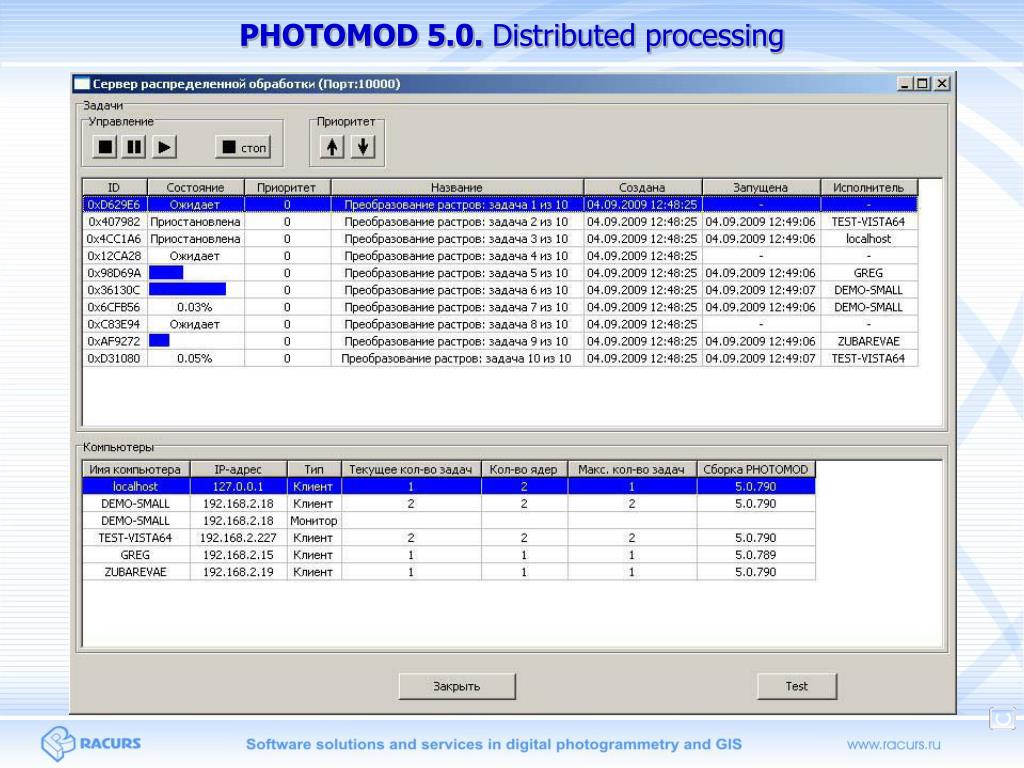

  21. PHOTOMOD 5.0.Distributed processing

  22. PHOTOMOD 5.0.DEM (> 10 gigabytes)

  23. RGBI image processing

  24. PHOTOMOD 5.0.3D window

  25. PHOTOMOD 5.0.3D objects to be exported to AutoCAD

  26. PHOTOMOD 5.0 Thank you for attention !
