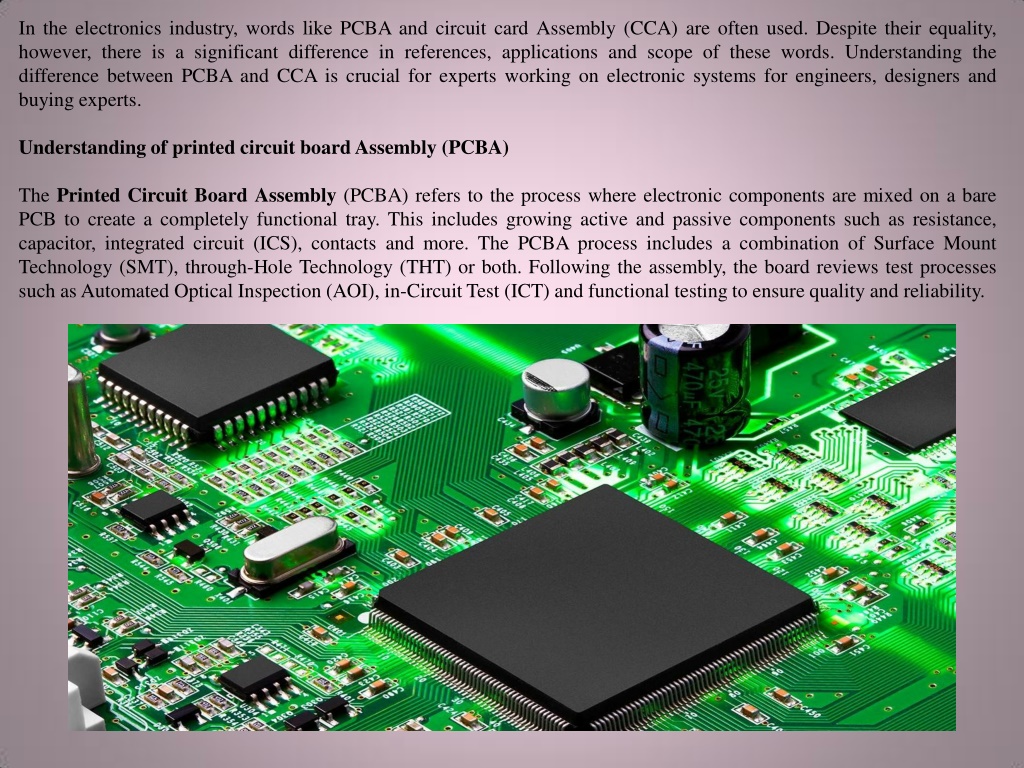

  1. In the electronics industry, words like PCBA and circuit card Assembly (CCA) are often used. Despite their equality, however, there is a significant difference in references, applications and scope of these words. Understanding the difference between PCBA and CCA is crucial for experts working on electronic systems for engineers, designers and buying experts. Understanding of printed circuit boardAssembly (PCBA) The Printed Circuit Board Assembly (PCBA) refers to the process where electronic components are mixed on a bare PCB to create a completely functional tray. This includes growing active and passive components such as resistance, capacitor, integrated circuit (ICS), contacts and more. The PCBA process includes a combination of Surface Mount Technology (SMT), through-Hole Technology (THT) or both. Following the assembly, the board reviews test processes such asAutomated Optical Inspection (AOI), in-Circuit Test (ICT) and functional testing to ensure quality and reliability.

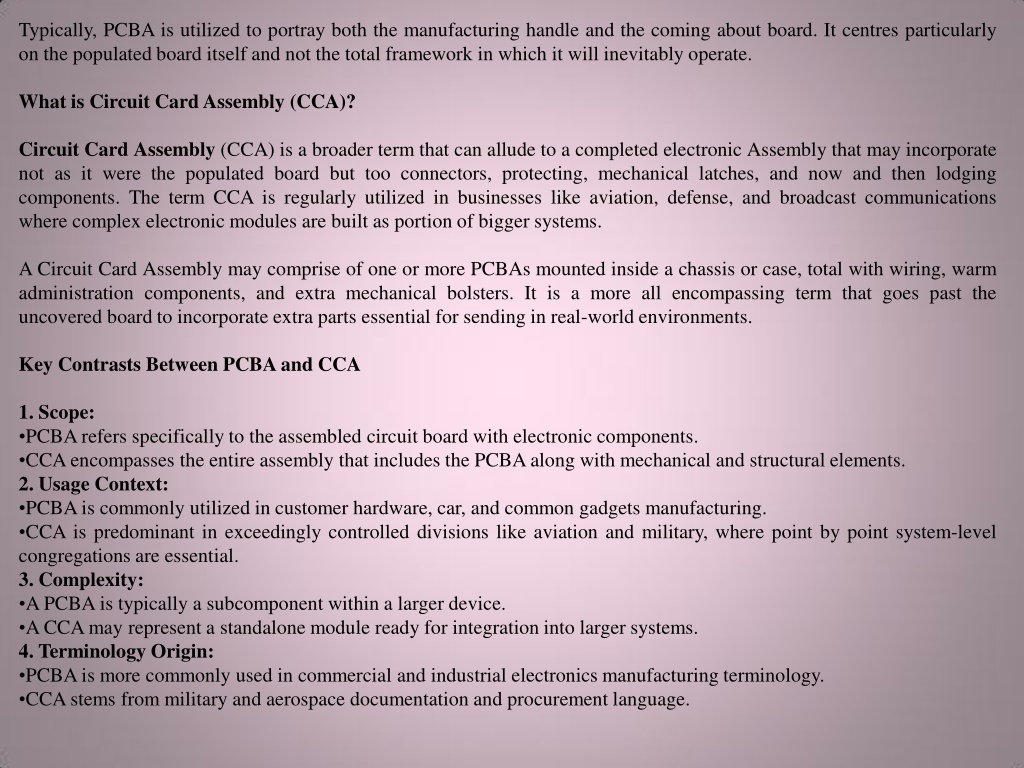

  2. Typically, PCBA is utilized to portray both the manufacturing handle and the coming about board. It centres particularly on the populated board itself and not the total framework in which it will inevitably operate. What is Circuit CardAssembly (CCA)? Circuit Card Assembly (CCA) is a broader term that can allude to a completed electronic Assembly that may incorporate not as it were the populated board but too connectors, protecting, mechanical latches, and now and then lodging components. The term CCA is regularly utilized in businesses like aviation, defense, and broadcast communications where complex electronic modules are built as portion of bigger systems. A Circuit Card Assembly may comprise of one or more PCBAs mounted inside a chassis or case, total with wiring, warm administration components, and extra mechanical bolsters. It is a more all encompassing term that goes past the uncovered board to incorporate extra parts essential for sending in real-world environments. Key Contrasts Between PCBAand CCA 1. Scope: •PCBArefers specifically to the assembled circuit board with electronic components. •CCAencompasses the entire assembly that includes the PCBAalong with mechanical and structural elements. 2. Usage Context: •PCBAis commonly utilized in customer hardware, car, and common gadgets manufacturing. •CCA is predominant in exceedingly controlled divisions like aviation and military, where point by point system-level congregations are essential. 3. Complexity: •APCBAis typically a subcomponent within a larger device. •ACCAmay represent a standalone module ready for integration into larger systems. 4. Terminology Origin: •PCBAis more commonly used in commercial and industrial electronics manufacturing terminology. •CCAstems from military and aerospace documentation and procurement language.

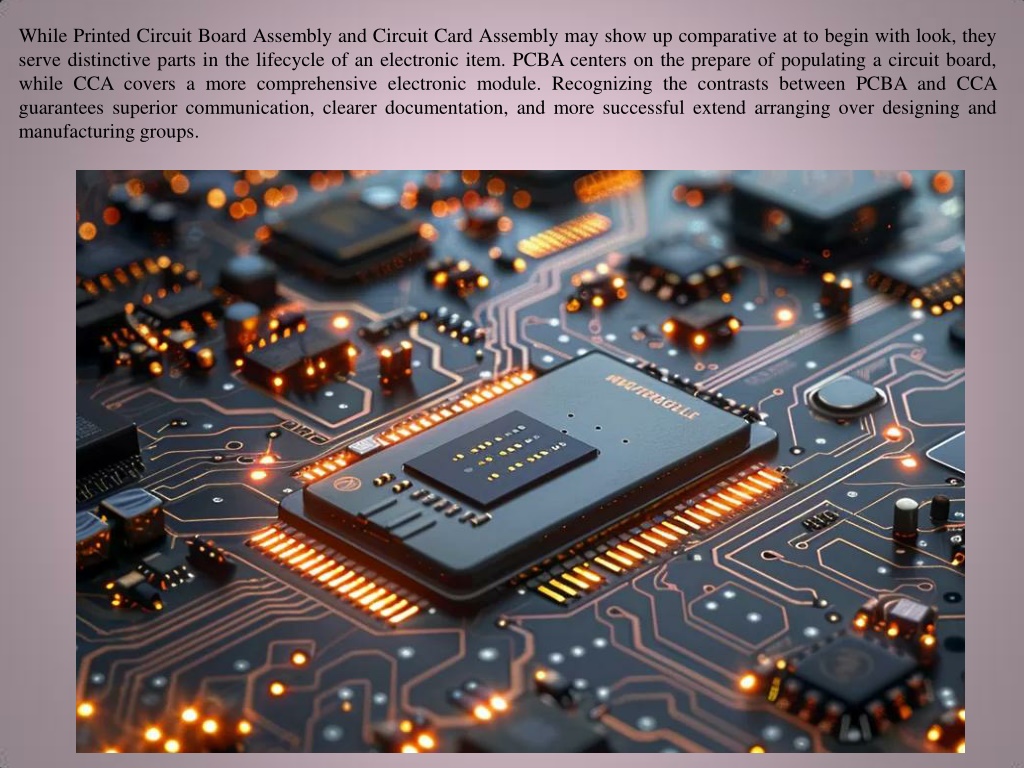

  3. While Printed Circuit Board Assembly and Circuit Card Assembly may show up comparative at to begin with look, they serve distinctive parts in the lifecycle of an electronic item. PCBA centers on the prepare of populating a circuit board, while CCA covers a more comprehensive electronic module. Recognizing the contrasts between PCBA and CCA guarantees superior communication, clearer documentation, and more successful extend arranging over designing and manufacturing groups.
