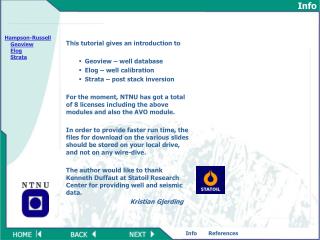

  1. Info • This tutorial gives an introduction to • Geoview – well database • Elog – well calibration • Strata – post stack inversion • For the moment, NTNU has got a total of 8 licenses including the above modules and also the AVO module. • In order to provide faster run time, the files for download on the various slides should be stored on your local drive, and not on any wire-dive. • The author would like to thank Kenneth Duffaut at Statoil Research Center for providing well and seismic data. • Kristian Gjerding

  2. FAQ • Why am I unable to start the software? The Geoview window is shown only a few seconds before it disappears. • -Check the permissions for the • I’ve got a problem with

  3. References • Connolly, P., 1999, Elastic impedance: The Leading Edge, 18, no. 4, 438-452. • Duffaut, K., Alsos T., Landrø, M., Rognø H., Al-Najjar. N. F., 2000, Shear-wave • elastic impedance: The Leading Edge, 19, no. 11, 1222-1229. • Hampson-Russell 4.1.5 Reference Manual
