April Release: Performance Review

High-level PPE system diagram Definitions Current PPE performance summary < app1> performance <app2> performance <app3> performance <app4> performance May RR expectation list Links to test detail. April Release: Performance Review. High-level PPE system diagram. Definitions.

ciel
Download Presentation

April Release: Performance Review

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. High-level PPE system diagram Definitions Current PPE performance summary <app1> performance <app2>performance <app3>performance <app4>performance May RR expectation list Links to test detail April Release: Performance Review

  2. High-level PPE system diagram

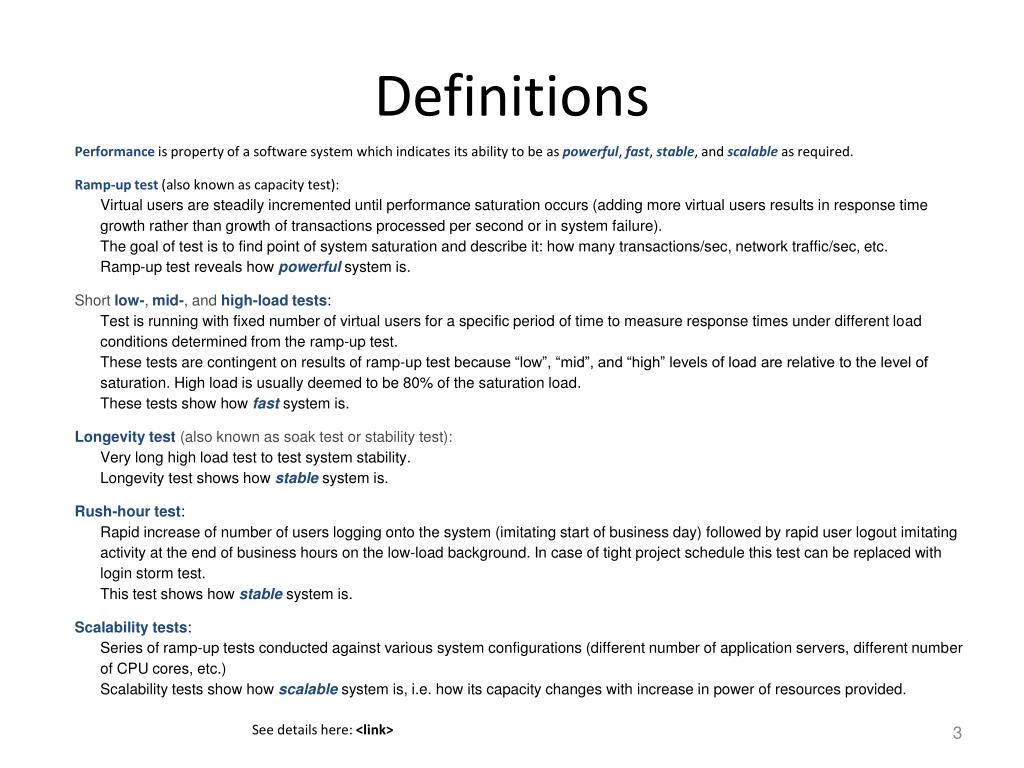

  3. Definitions • Performance is property of a software system which indicates its ability to be as powerful, fast, stable, and scalable as required. • Ramp-up test (also known as capacity test): • Virtual users are steadily incremented until performance saturation occurs (adding more virtual users results in response time growth rather than growth of transactions processed per second or in system failure). • The goal of test is to find point of system saturation and describe it: how many transactions/sec, network traffic/sec, etc. • Ramp-up test reveals how powerful system is. • Short low-, mid-, and high-load tests: • Test is running with fixed number of virtual users for a specific period of time to measure response times under different load conditions determined from the ramp-uptest. • These tests are contingent on results of ramp-up test because “low”, “mid”, and “high” levels of load are relative to the level of saturation. High load is usually deemed to be 80% of the saturation load. • These tests show how fast system is. • Longevity test (also known as soak test or stability test): • Very long high load test to test system stability. • Longevity test shows how stablesystem is. • Rush-hour test: • Rapid increase of number of users logging onto the system (imitating start of business day) followed by rapid user logout imitating activity at the end of business hours on the low-load background. In case of tight project schedule this test can be replaced with login storm test. • This test shows how stable system is. • Scalability tests: • Series of ramp-up tests conducted against various system configurations (different number of application servers, different number of CPU cores, etc.) • Scalability tests show how scalable system is, i.e. how its capacity changes with increase in power of resources provided. See details here: <link>

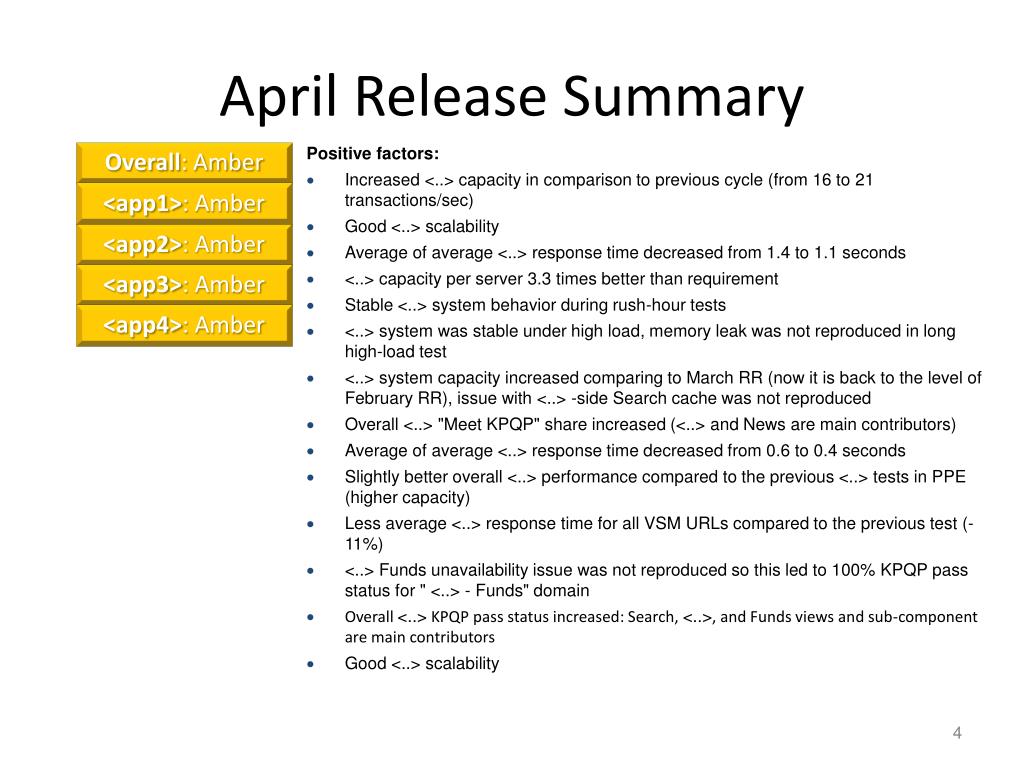

  4. April Release Summary Overall: Amber Positive factors: • Increased <..> capacity in comparison to previous cycle (from 16 to 21 transactions/sec) • Good <..> scalability • Average of average <..> response time decreased from 1.4 to 1.1 seconds • <..> capacity per server 3.3 times better than requirement • Stable <..> system behavior during rush-hour tests • <..> system was stable under high load, memory leak was not reproduced in long high-load test • <..> system capacity increased comparing to March RR (now it is back to the level of February RR), issue with <..> -side Search cache was not reproduced • Overall <..> "Meet KPQP" share increased (<..> and News are main contributors) • Average of average <..> response time decreased from 0.6 to 0.4 seconds • Slightly better overall <..> performance compared to the previous <..> tests in PPE (higher capacity) • Less average <..> response time for all VSM URLs compared to the previous test (-11%) • <..> Funds unavailability issue was not reproduced so this led to 100% KPQP pass status for " <..> - Funds" domain • Overall <..>KPQP pass status increased: Search, <..>, and Funds views and sub-component are main contributors • Good <..> scalability <app1>: Amber <app2>: Amber <app3>: Amber <app4>: Amber

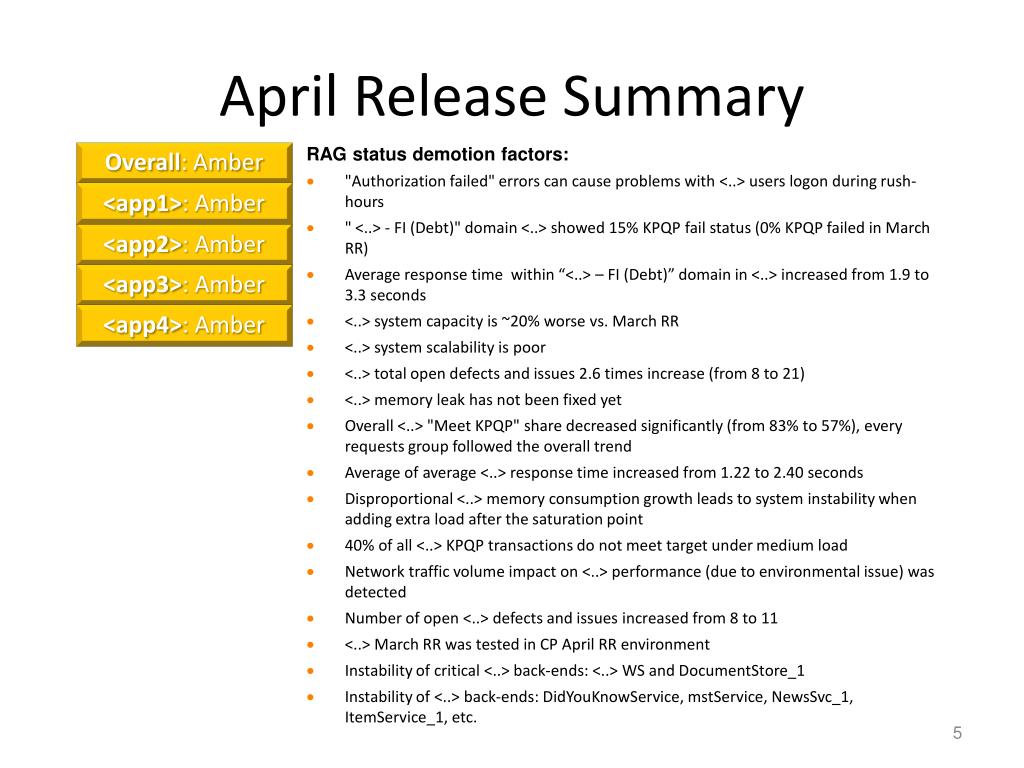

  5. April Release Summary Overall: Amber RAG status demotion factors: • "Authorization failed" errors can cause problems with <..> users logon during rush-hours • " <..> - FI (Debt)" domain <..> showed 15% KPQP fail status (0% KPQP failed in March RR) • Average response time within “<..> – FI (Debt)” domain in <..> increased from 1.9 to 3.3 seconds • <..> system capacity is ~20% worse vs. March RR • <..> system scalability is poor • <..> total open defects and issues 2.6 times increase (from 8 to 21) • <..> memory leak has not been fixed yet • Overall <..> "Meet KPQP" share decreased significantly (from 83% to 57%), every requests group followed the overall trend • Average of average <..> response time increased from 1.22 to 2.40 seconds • Disproportional <..> memory consumption growth leads to system instability when adding extra load after the saturation point • 40% of all <..> KPQP transactions do not meet target under medium load • Network traffic volume impact on <..> performance (due to environmental issue) was detected • Number of open <..> defects and issues increased from 8 to 11 • <..> March RR was tested in CP April RR environment • Instability of critical <..> back-ends: <..> WS and DocumentStore_1 • Instability of <..> back-ends: DidYouKnowService, mstService, NewsSvc_1, ItemService_1, etc. <app1>: Amber <app2>: Amber <app3>: Amber <app4>: Amber

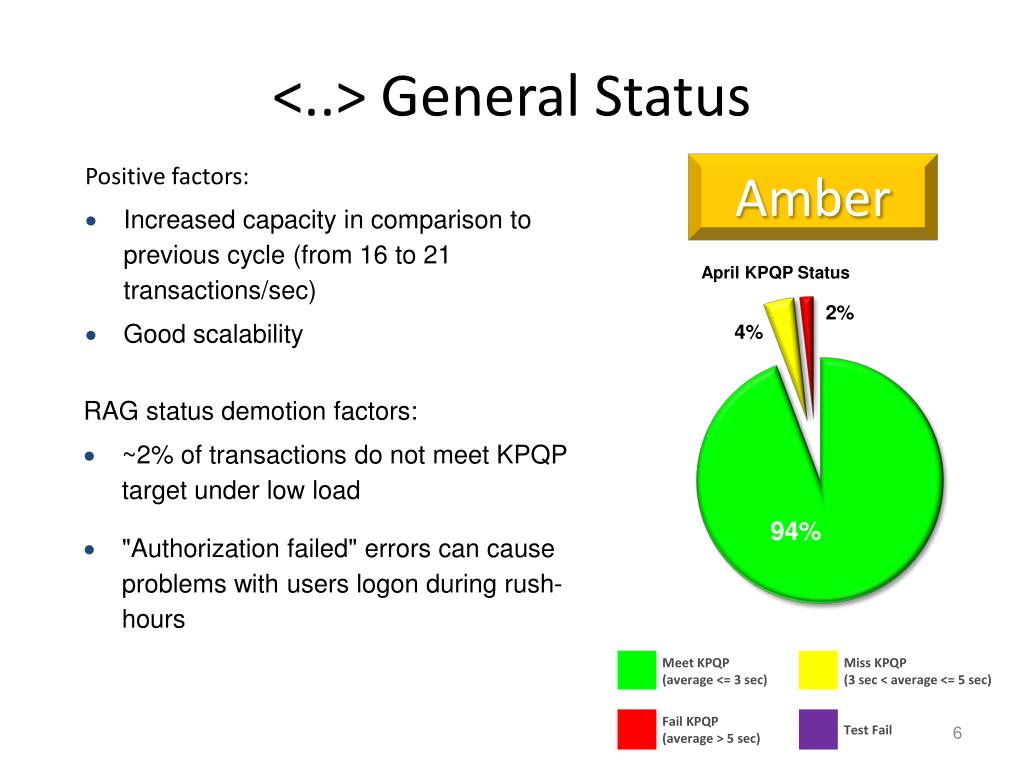

  6. <..>General Status • Positive factors: • Increased capacity in comparison to previous cycle (from 16 to 21 transactions/sec) • Good scalability Amber • RAG status demotion factors: • ~2% of transactions do not meet KPQP target under low load • "Authorization failed" errors can cause problems with users logon during rush-hours

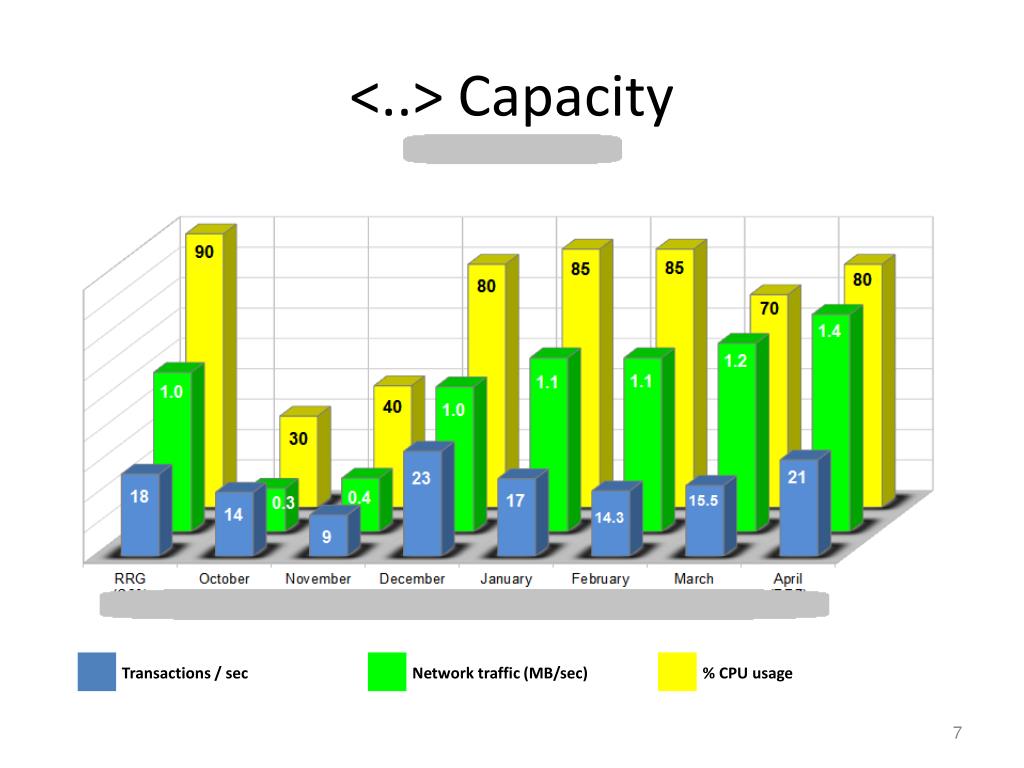

  7. <..>Capacity

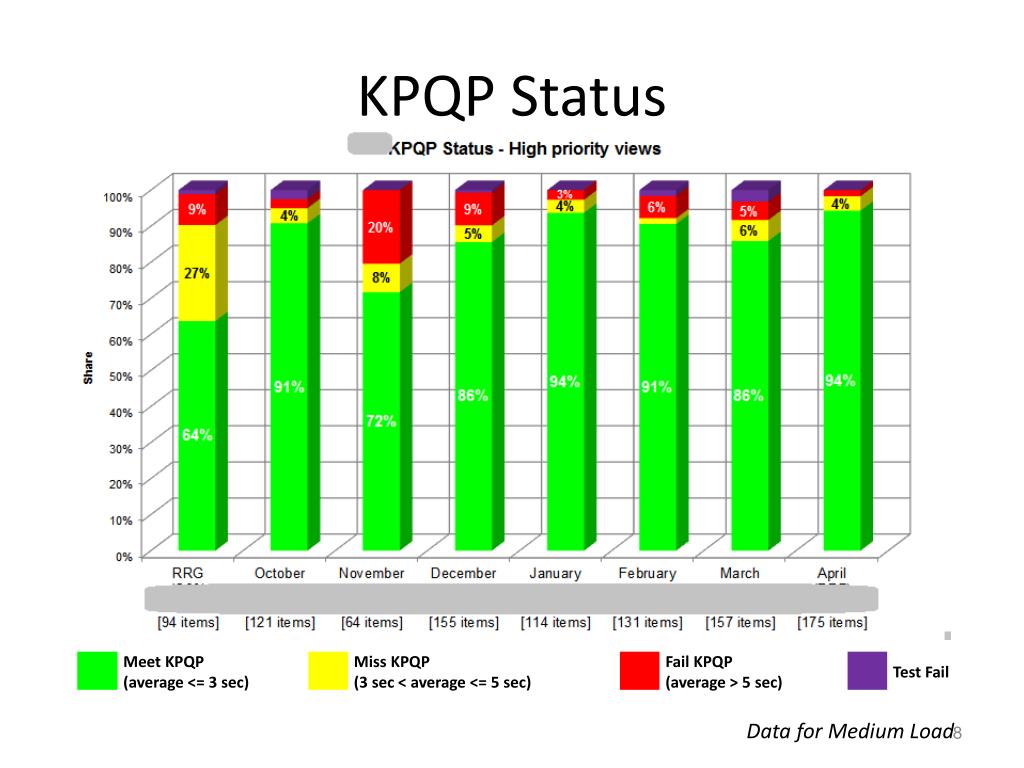

  8. KPQP Status Data for Medium Load

  9. <..> Response Times • Average of average response time decreased from 1.4 to 1.1 seconds • Average response time within “FI (Debt)” domain increased from 1.9 to 3.3 seconds Data for Medium Load

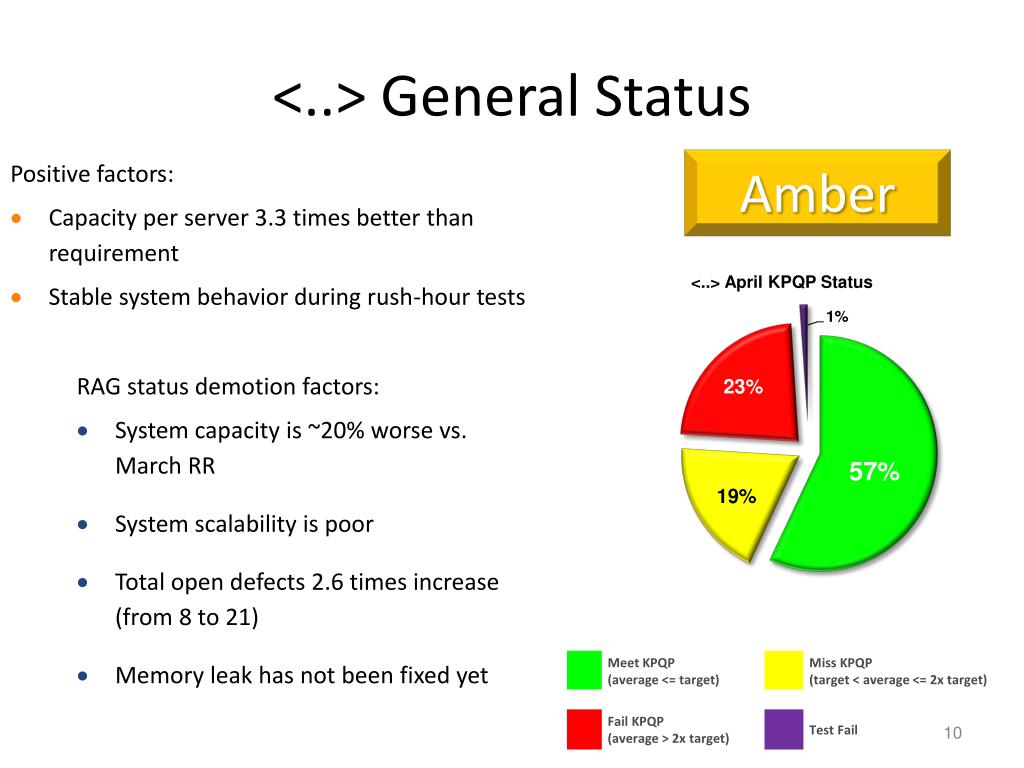

  10. Positive factors: Capacity per server 3.3 times better than requirement Stable system behavior during rush-hour tests <..> General Status Amber RAG status demotion factors: • System capacity is ~20% worse vs. March RR • System scalability is poor • Total open defects 2.6 times increase (from 8 to 21) • Memory leak has not been fixed yet

  11. <..> Capacity

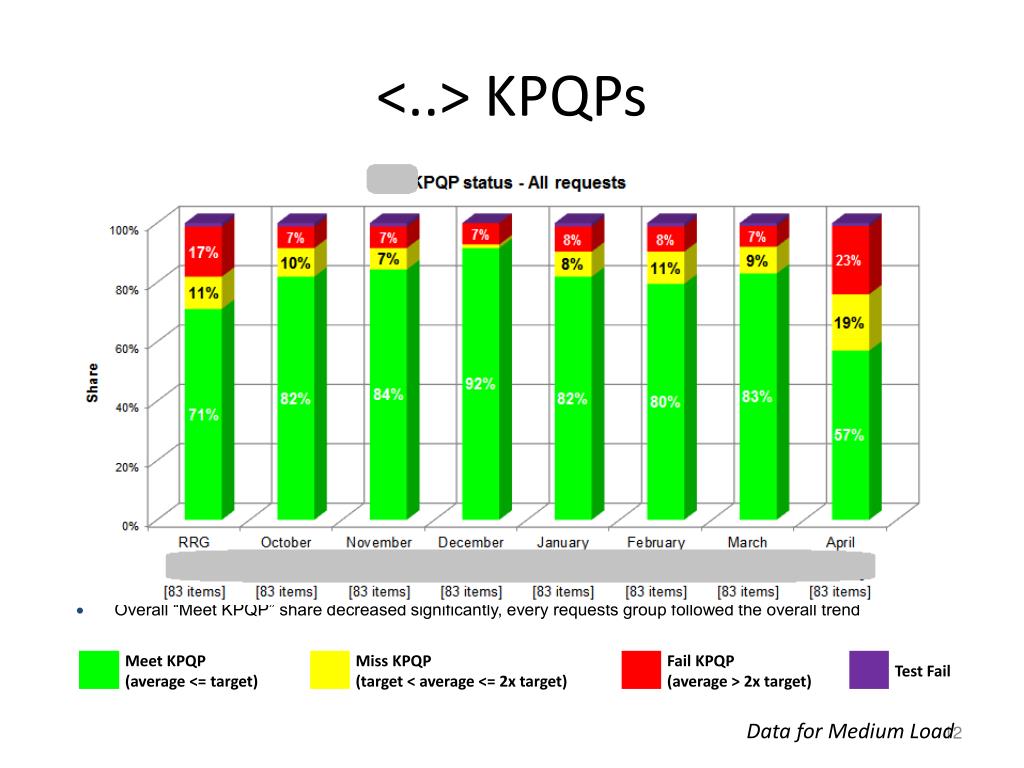

  12. <..> KPQPs • Overall “Meet KPQP” share decreased significantly, every requests group followed the overall trend Data for Medium Load

  13. <..> Response Times • Average of average response times increased from 1.22 to 2.40 seconds • Average response times of every requests group followed the overall trend Data for Medium Load

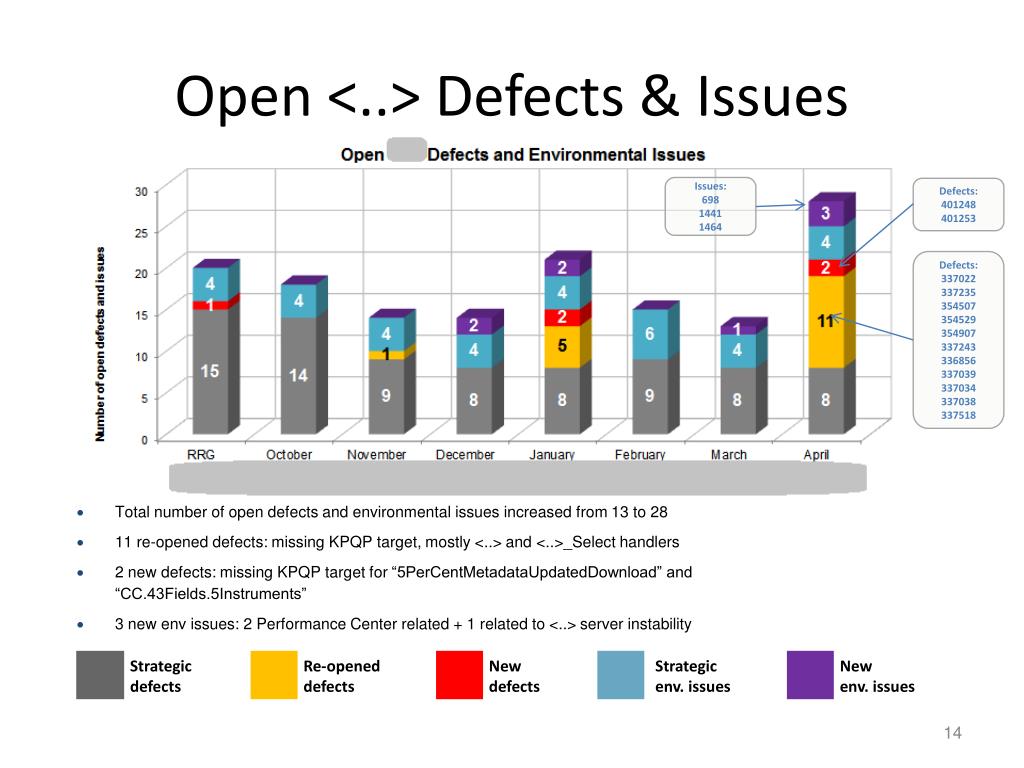

  14. Open <..> Defects & Issues Issues: 698 1441 1464 Defects: 401248 401253 Defects: 337022 337235 354507 354529 354907 337243 336856 337039 337034 337038 337518 • Total number of open defects and environmental issues increased from 13 to 28 • 11 re-opened defects: missing KPQP target, mostly <..> and <..>_Select handlers • 2 new defects: missing KPQP target for “5PerCentMetadataUpdatedDownload” and “CC.43Fields.5Instruments” • 3 new env issues: 2 Performance Center related + 1 related to <..> server instability

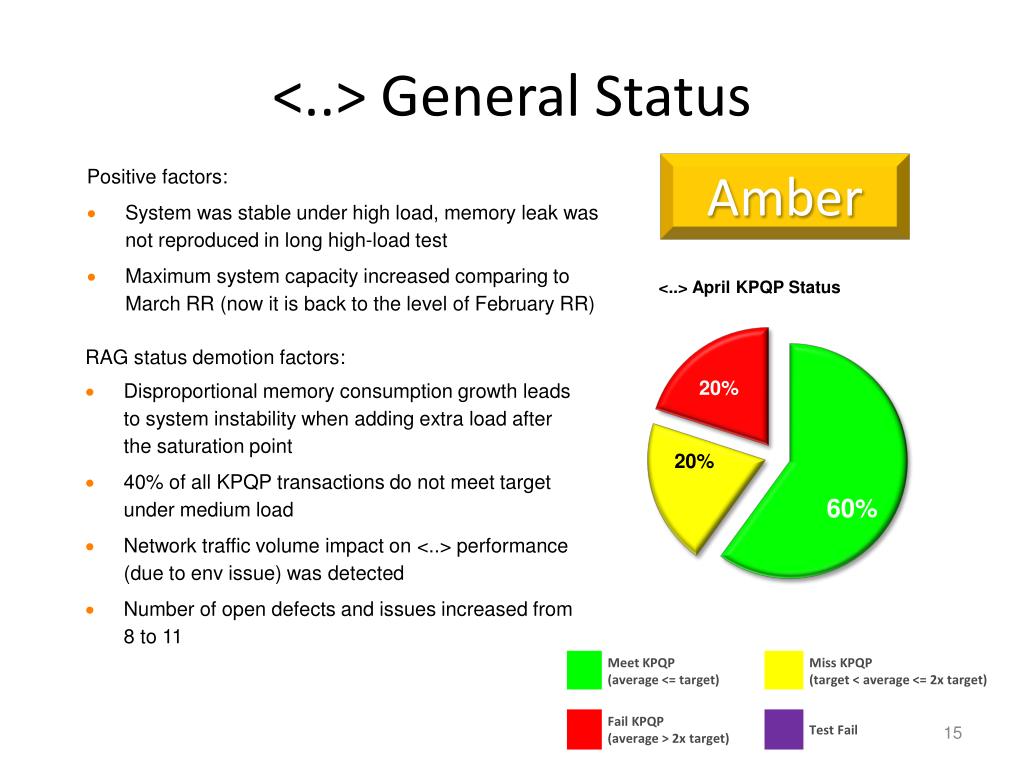

  15. <..> General Status Amber • Positive factors: • System was stable under high load, memory leak was not reproduced in long high-load test • Maximum system capacity increased comparing to March RR (now it is back to the level of February RR) • RAG status demotion factors: • Disproportional memory consumption growth leads to system instability when adding extra load after the saturation point • 40% of all KPQP transactions do not meet target under medium load • Network traffic volume impact on <..> performance (due to env issue) was detected • Number of open defects and issues increased from 8 to 11

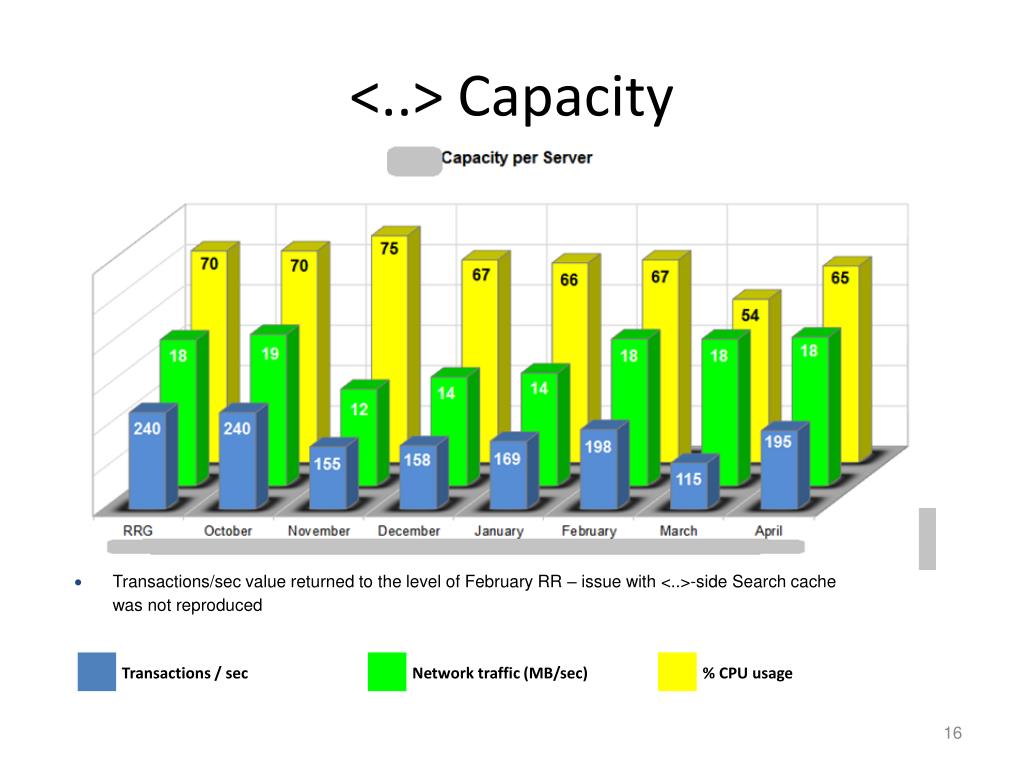

  16. <..> Capacity • Transactions/sec value returned to the level of February RR – issue with <..>-side Search cache was not reproduced

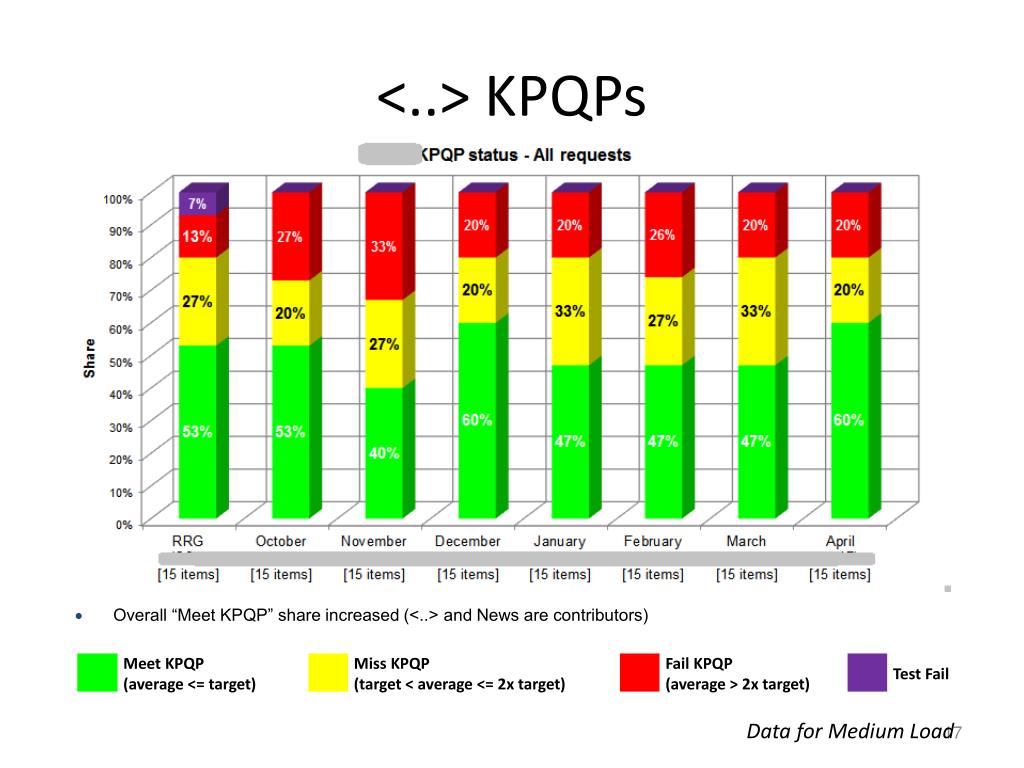

  17. <..> KPQPs • Overall “Meet KPQP” share increased (<..> and News are contributors) Data for Medium Load

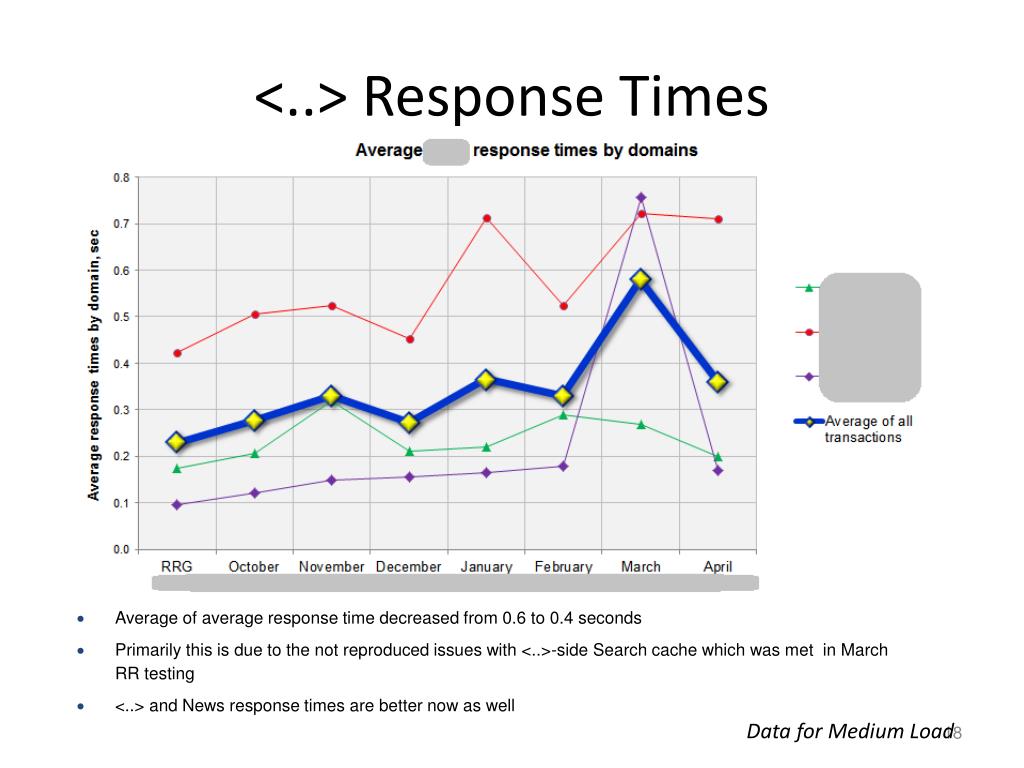

  18. <..> Response Times • Average of average response time decreased from 0.6 to 0.4 seconds • Primarily this is due to the not reproduced issues with <..>-side Search cache which was met in March RR testing • <..> and News response times are better now as well Data for Medium Load

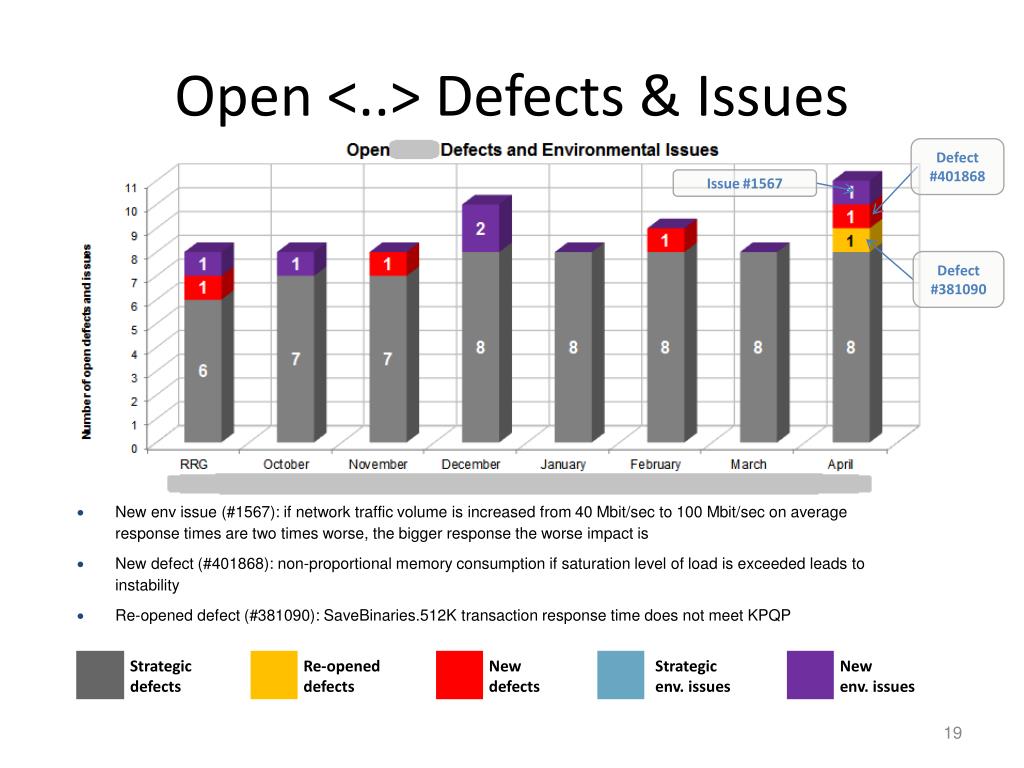

  19. Open <..> Defects & Issues Defect #401868 Issue #1567 Defect #381090 • New env issue (#1567): if network traffic volume is increased from 40 Mbit/sec to 100 Mbit/sec on average response times are two times worse, the bigger response the worse impact is • New defect (#401868): non-proportional memory consumption if saturation level of load is exceeded leads to instability • Re-opened defect (#381090): SaveBinaries.512K transaction response time does not meet KPQP

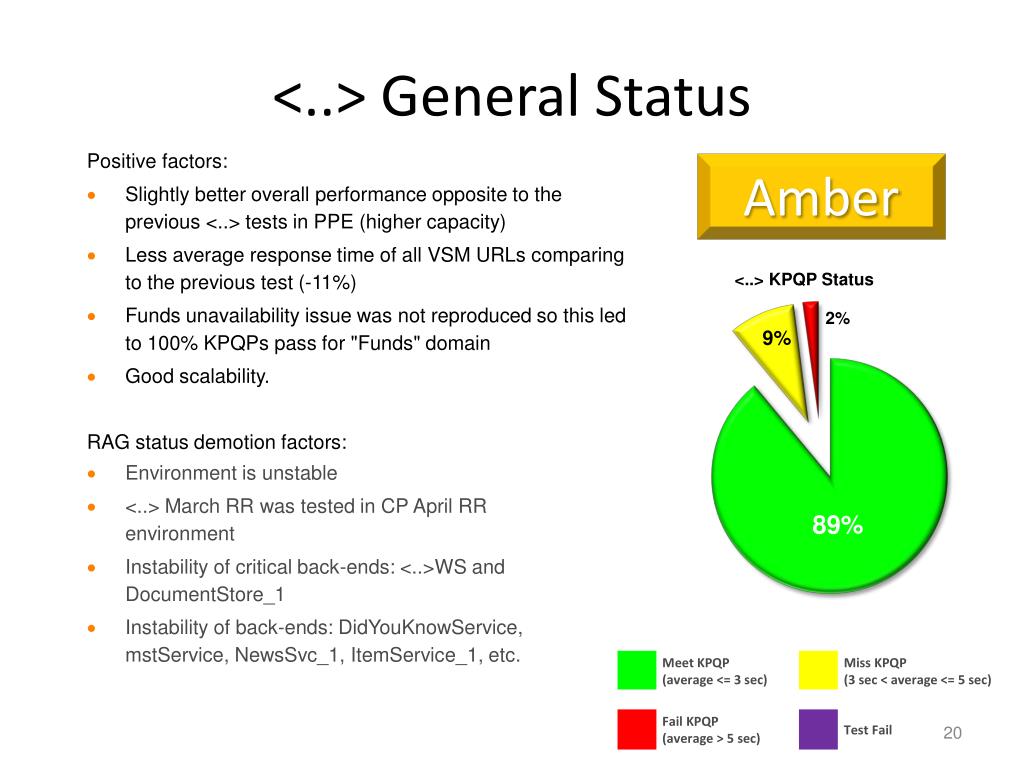

  20. <..> General Status • Positive factors: • Slightly better overall performance opposite to the previous <..> tests in PPE (higher capacity) • Less average response time of all VSM URLs comparing to the previous test (-11%) • Funds unavailability issue was not reproduced so this led to 100% KPQPs pass for "Funds" domain • Good scalability. Amber • RAG status demotion factors: • Environment is unstable • <..> March RR was tested in CP April RR environment • Instability of critical back-ends: <..>WS and DocumentStore_1 • Instability of back-ends: DidYouKnowService, mstService, NewsSvc_1, ItemService_1, etc.

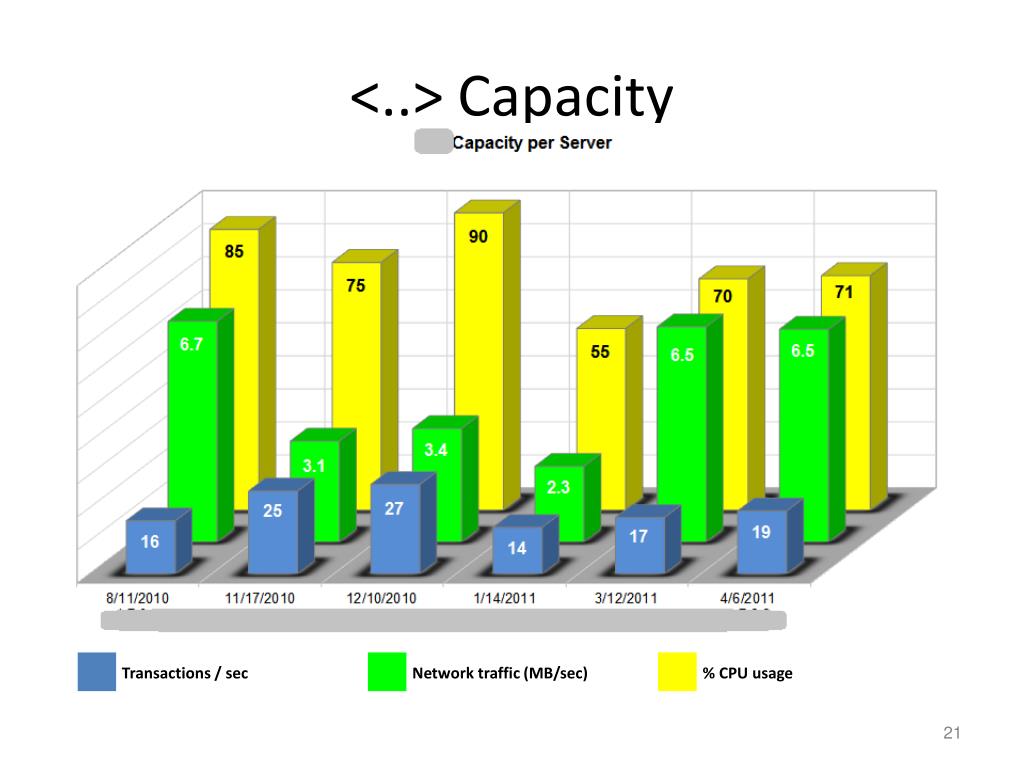

  21. <..> Capacity

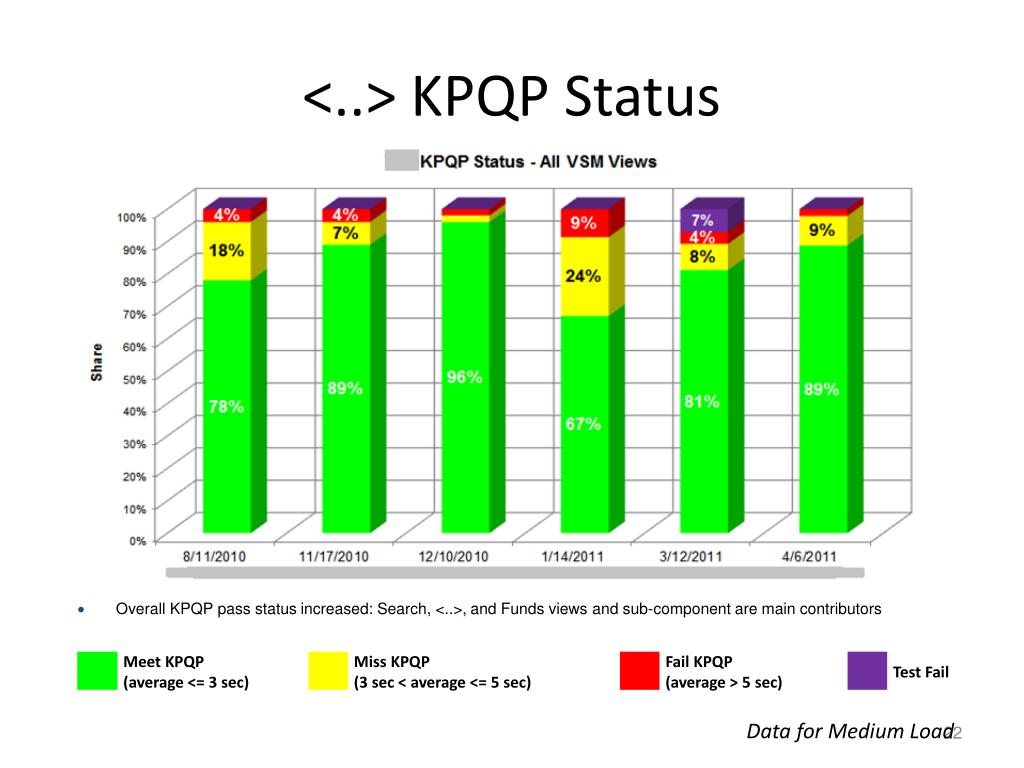

  22. <..> KPQP Status • Overall KPQP pass status increased: Search, <..>, and Funds views and sub-component are main contributors Data for Medium Load

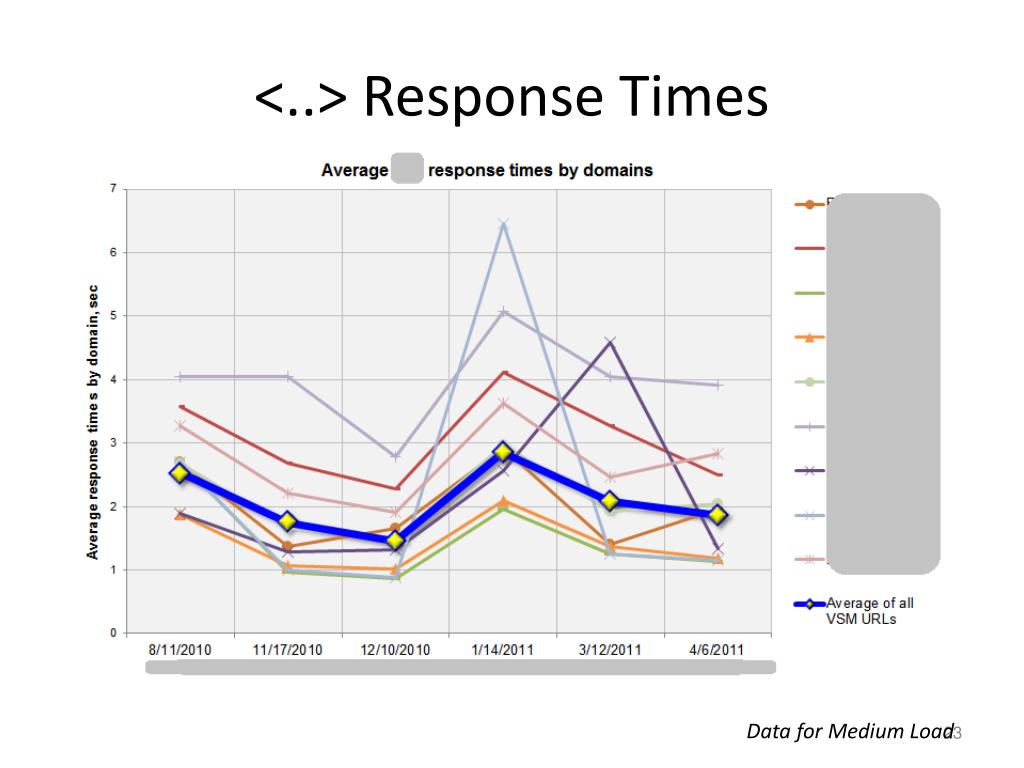

  23. <..> Response Times Data for Medium Load

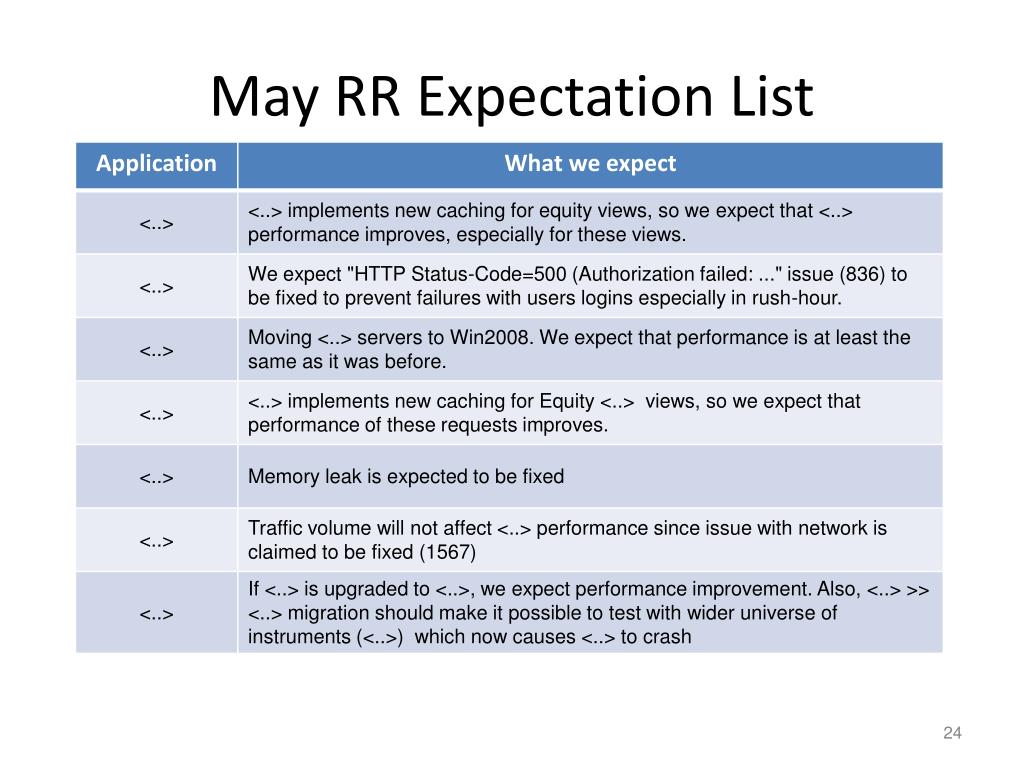

  24. May RR Expectation List

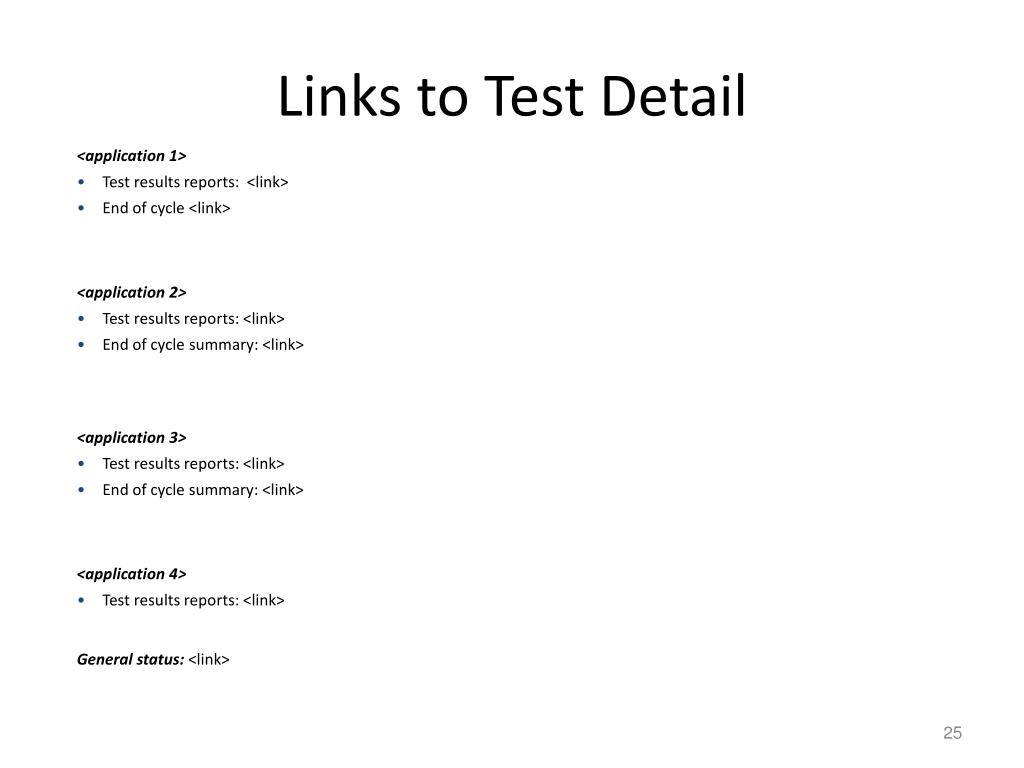

  25. Links to Test Detail <application 1> • Test results reports: <link> • End of cycle <link> <application 2> • Test results reports: <link> • End of cycle summary: <link> <application 3> • Test results reports: <link> • End of cycle summary: <link> <application 4> • Test results reports: <link> General status: <link>
